Model Maytag MFI2570FEW02 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET

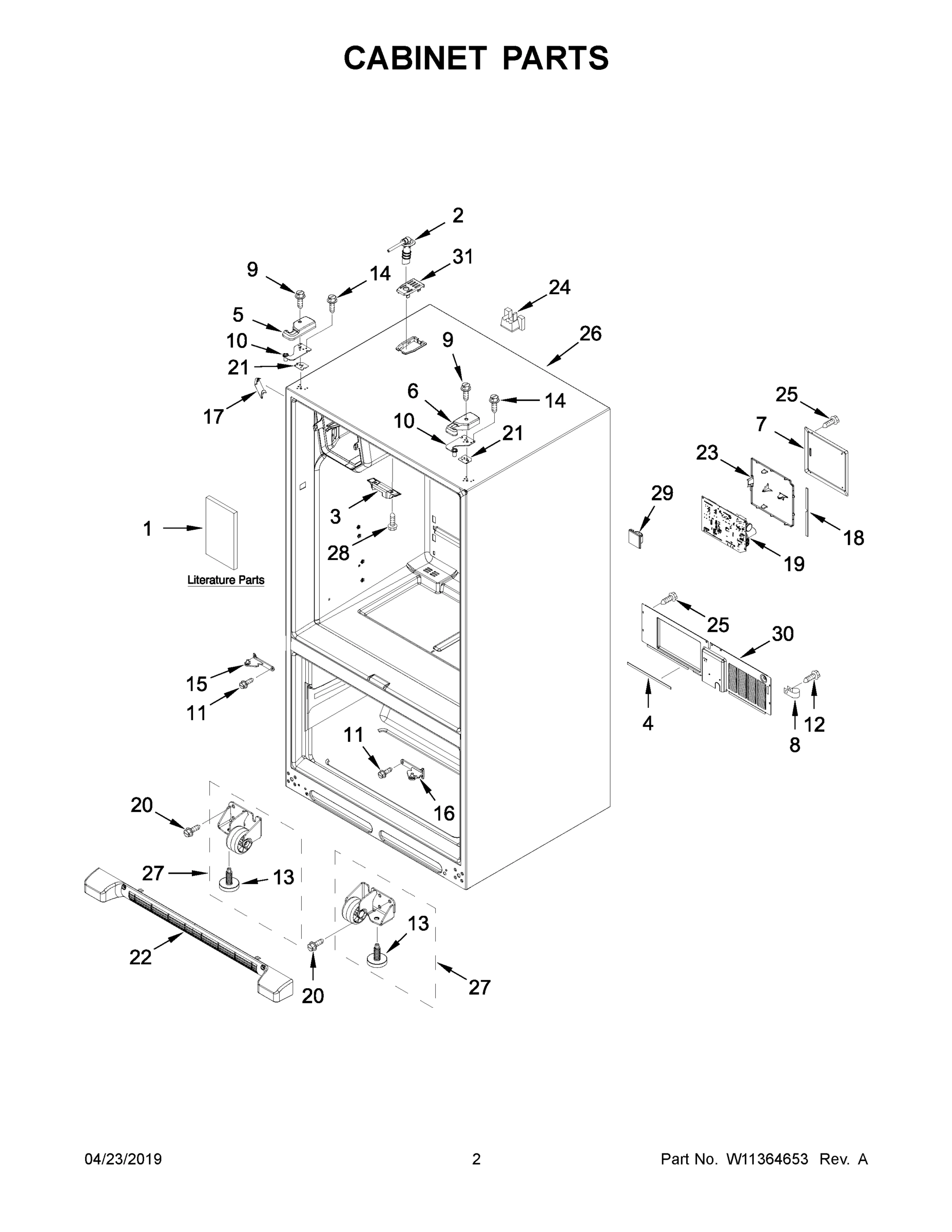

02 - CABINET PARTS

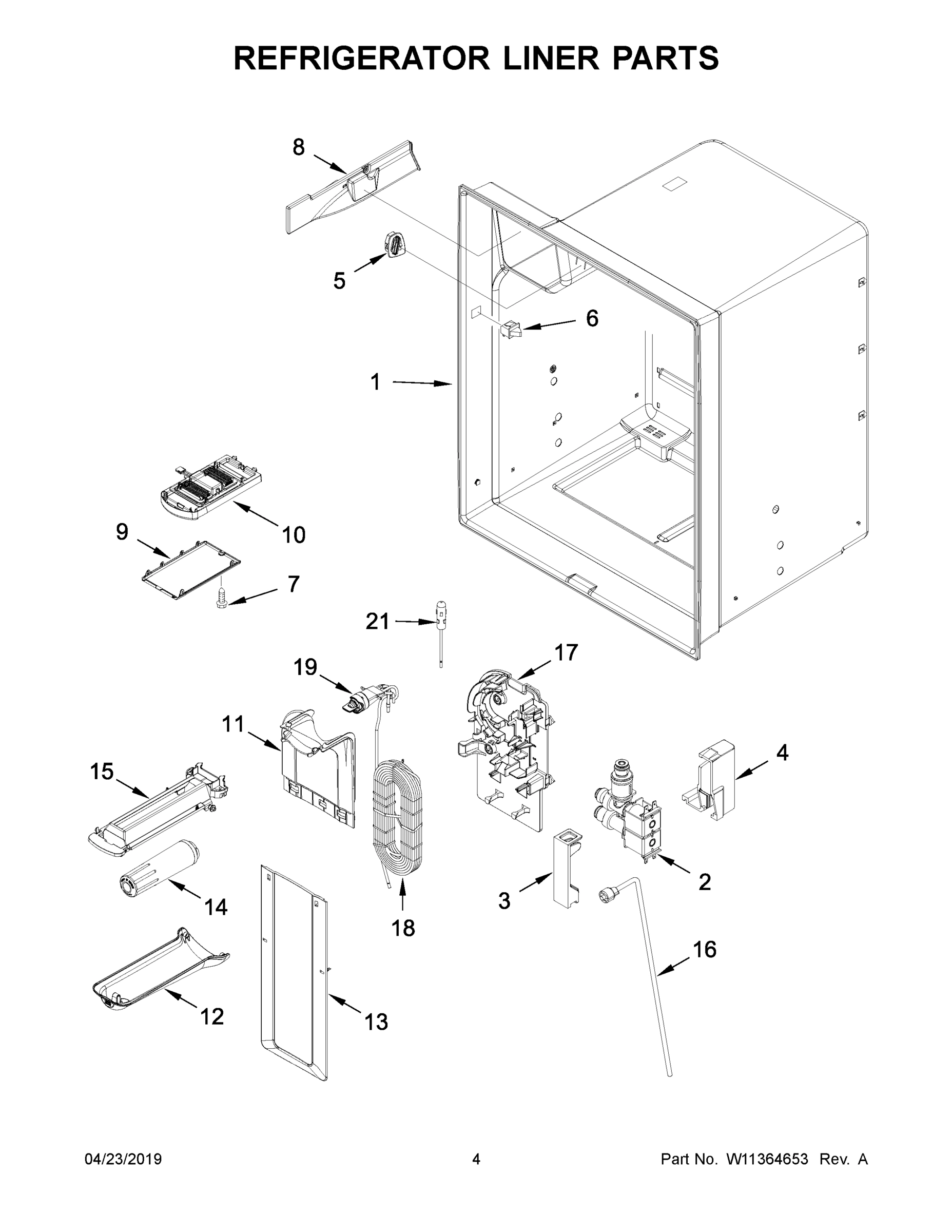

03 - REFRIGERATOR LINER PARTS

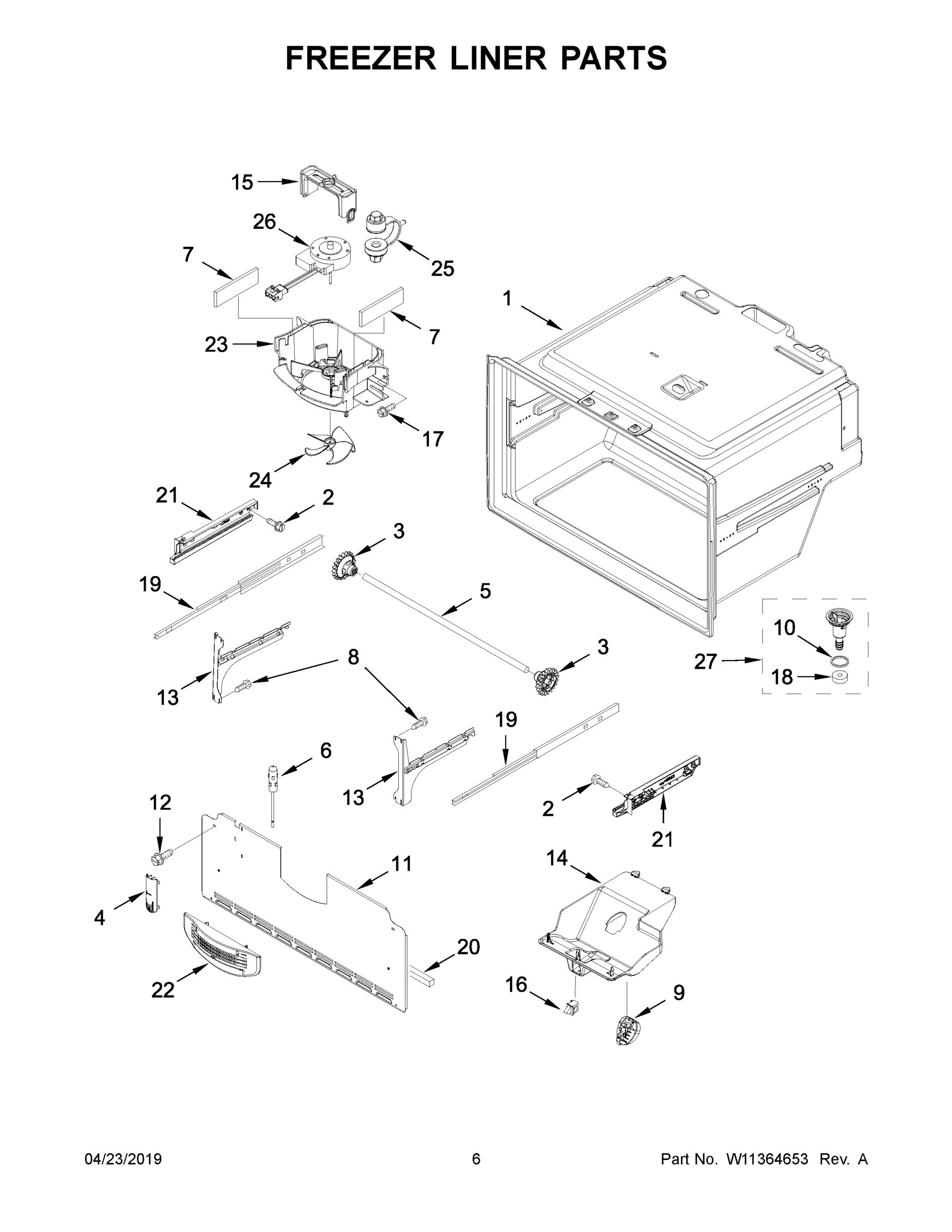

04 - FREEZER LINER PARTS

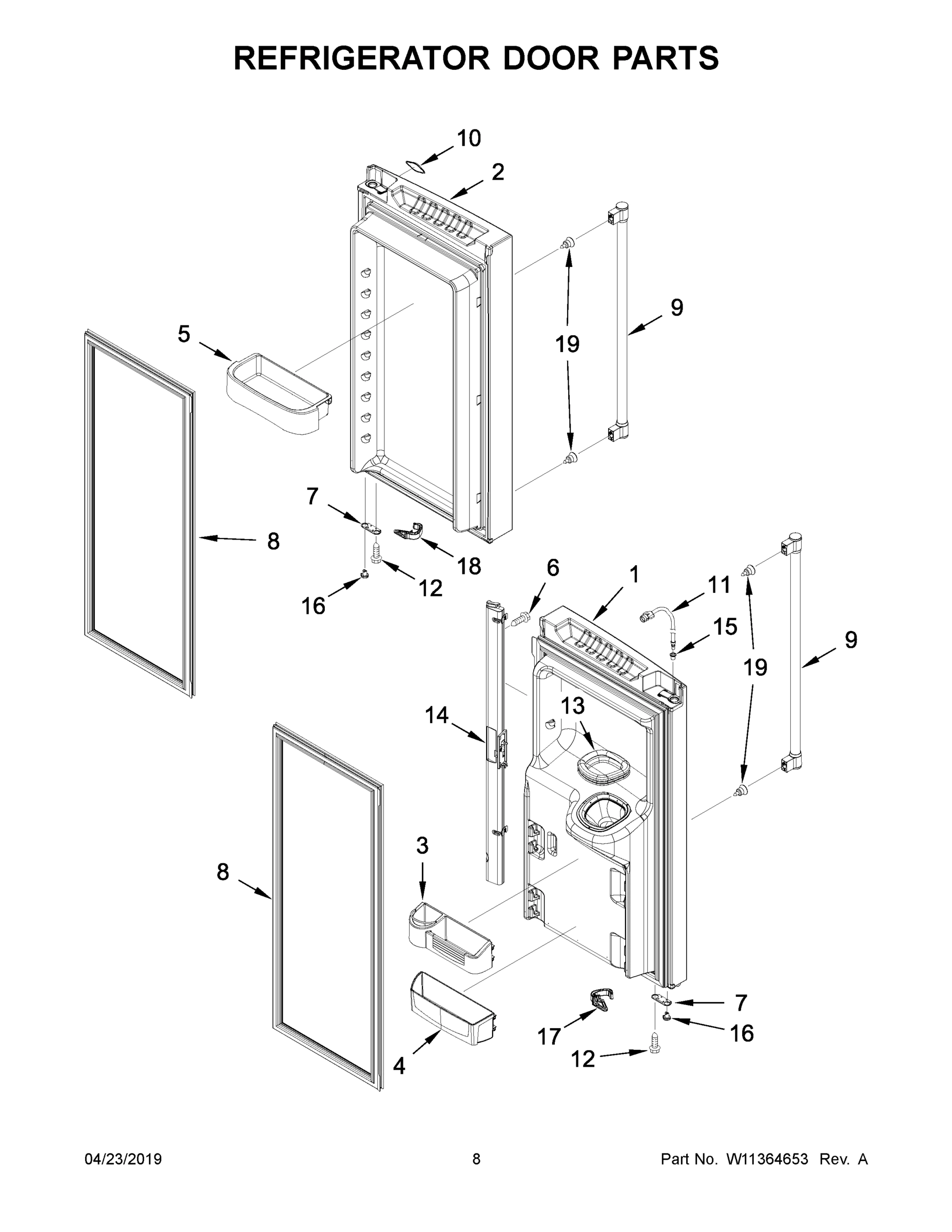

05 - REFRIGERATOR DOOR PARTS

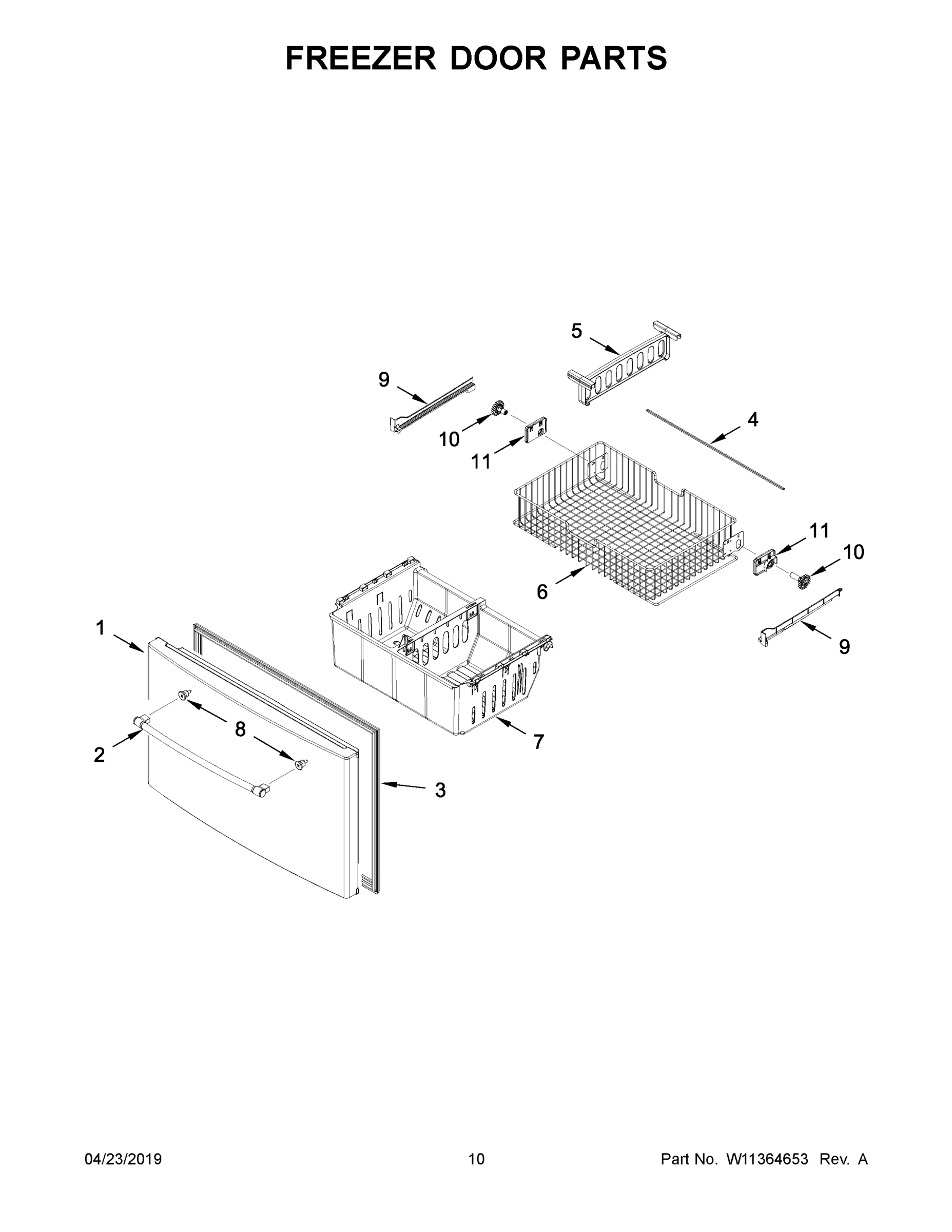

06 - FREEZER DOOR PARTS
07 - UNIT PARTS
08 - SHELF PARTS

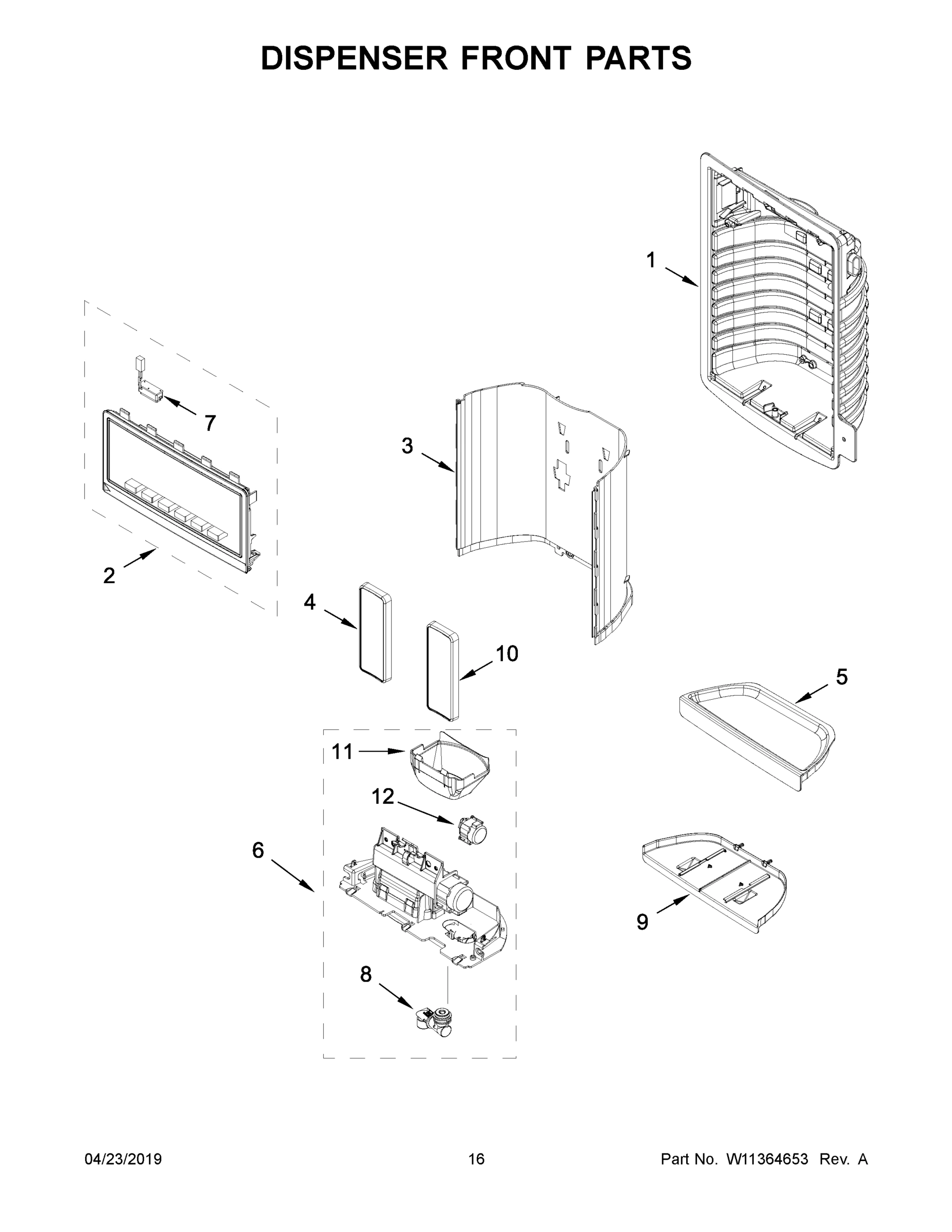

09 - DISPENSER FRONT PARTS

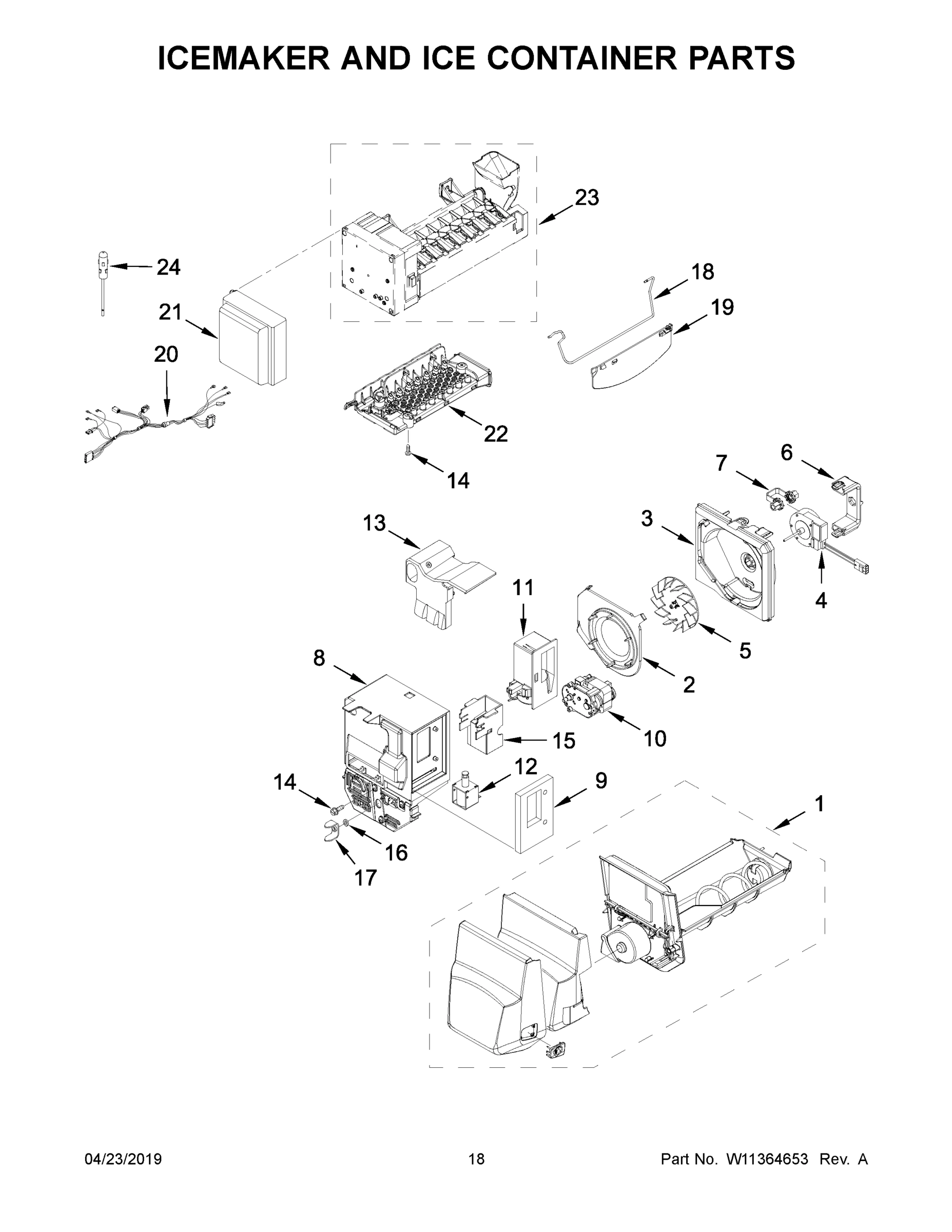

10 - ICEMAKER AND ICE CONTAINER PARTS
11 - OPTIONAL PARTS
Common parts from model Maytag MFI2570FEW02 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
HOUSING, DISPENSER (NOT SERVICED) MAY N/P Contact Us For Availability
1
DOOR, REFRIGERATOR LEFT HAND (WHITE) MAY W10859353 Contact Us For Availability
1
DOOR, FREEZER (WHITE) MAY W10857732 Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
SHELF, GLIDE OUT MAY 12883507 Contact Us For Availability
1
ASSEMBLY, ICE BIN MAY W11097357 Contact Us For Availability
1A
DOOR, REFRIGERATOR LEFT HAND (BLACK) MAY W10859351 Contact Us For Availability
1A
DOOR, FREEZER (BLACK) MAY W10857731 Contact Us For Availability
1C
MAY W11308952 MAY W11308952 Contact Us For Availability
2
TUBE, WATER MAY 12961401 Contact Us For Availability
2
VALVE, WATER INLET MAY W10913947 Contact Us For Availability
2
SCREW MAY 12990501 Contact Us For Availability
2
DOOR, REFRIGERATOR RIGHT HAND (WHITE) MAY W10859352 Contact Us For Availability
2
HANDLE, DOOR (WHITE) MAY W10891393 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
FRAME, CRISPER PAN MAY 12643802SP Contact Us For Availability
2
ASSEMBLY, USER INTERFACE MAY W11114472 Contact Us For Availability
2
INLET, BLOWER MAY W10121282 Contact Us For Availability
2A
DOOR, REFRIGERATOR RIGHT HAND (BLACK) MAY W10859350 Contact Us For Availability
2A
HANDLE, DOOR (BLACK) MAY W10891392 Contact Us For Availability
3
PLATE, PIVOT MAY 12698403 Contact Us For Availability
3
LID, ENCLOSURE MAY W10118194 Contact Us For Availability
3
BUCKET, UPPER MAY W10323808 Contact Us For Availability
3
GASKET, DOOR (WHITE) MAY W10443321 Contact Us For Availability
3
BASEPAN MAY W10480111 Contact Us For Availability
3
DRAWER, PANTRY MAY 12731302 Contact Us For Availability
3
WALL, DISPENSER FALSE (WHITE) MAY W11045975 Contact Us For Availability
3
SCROLL, BLOWER MAY W10309863 Contact Us For Availability
3A
GASKET, DOOR (BLACK) MAY W10436253 Contact Us For Availability
3A
WALL, DISPENSER FALSE (BLACK) MAY W11045976 Contact Us For Availability
4
GASKET MAY B5759655 Contact Us For Availability
4
ENCLOSURE, WATER VALVE CONNECTOR MAY W10118193 Contact Us For Availability
4
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
4
BUCKET, SMALL MAY W10212139 Contact Us For Availability
4
SHAFT, RACK MAY W10802333 Contact Us For Availability
4
ENDCAP, PANTRY (LEFT HAND) MAY W10845509 Contact Us For Availability
4
ASSEMBLY, ICE PAD (GREY) MAY W10334801 Contact Us For Availability
4
MOTOR, FAN MAY W10308033 Contact Us For Availability
4A
ENDCAP, PANTRY (RIGHT HAND) MAY W10845508 Contact Us For Availability
4A
ASSEMBLY, ICE PAD (BLACK) MAY W10334798 Contact Us For Availability
5
COVER, TOP HINGE (INCLUDES FOIL) LEFT HAND (W MAY W10337634 Contact Us For Availability
5
ASSEMBLY, AIR GRILLE (INCLUDES DAMPER SEAL) MAY W10555984 Contact Us For Availability
5
SHAFT, RACK MAY W10802332 Contact Us For Availability
5
BUCKET, GALLON MAY W10224961 Contact Us For Availability
5
DIVIDER, UPPER BASKET MAY W10146439 Contact Us For Availability
5
CAPACITOR MAY W10350564 Contact Us For Availability
5
GLIDE, PANTRY MAY W10235370 Contact Us For Availability
5
TRAY, DISPENSER (WHITE) MAY W11045970 Contact Us For Availability
5
WHEEL, BLOWER MAY W10123444 Contact Us For Availability
5A
COVER, TOP HINGE (INCLUDES FOIL) LEFT HAND (B MAY 12962301B Contact Us For Availability
5A
TRAY, DISPENSER (BLACK) MAY W11045971 Contact Us For Availability
6
COVER, TOP HINGE RIGHT HAND (WHITE) MAY 12962302W Contact Us For Availability
6
MAY W10847848 MAY W10847848 Contact Us For Availability
6
SCREW MAY 12990204 Contact Us For Availability
6
BASKET, UPPER MAY W11115237 Contact Us For Availability
6
TUBE, DISCHARGE MAY W10795418 Contact Us For Availability
6
RAIL, CENTER CRISPER MAY W10326469N Contact Us For Availability
6
ASSEMBLY, SEPARATOR (INCLUDES SPIGOT AND ICE MAY W10353552 Contact Us For Availability
6
CLIP, FAN MOTOR MAY 12956603 Contact Us For Availability
6A
COVER, TOP HINGE RIGHT HAND (BLACK) MAY 12962302B Contact Us For Availability
7
COVER, CONTROL BOX MAY 12961602 Contact Us For Availability
7
SCREW (STAINLESS) MAY 3400065 Contact Us For Availability
7
GASKET, FOAM MAY A3189392 Contact Us For Availability
7
STOP, DOOR (WHITE) MAY 12968202W Contact Us For Availability
7
BIN, LOWER MAY W10293682 Contact Us For Availability
7
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
7
LADDER, SIDE (LEFT HAND) MAY W10251966 Contact Us For Availability
7
ASSEMBLY, LED MAY W10238083 Contact Us For Availability
7
GROMMET, FAN MOTOR MAY W10151687 Contact Us For Availability
7A
STOP, DOOR (BLACK) MAY 12968202B Contact Us For Availability
7A
LADDER, SIDE (RIGHT HAND) MAY W10251965 Contact Us For Availability
8
CLAMP, TUBE MAY M0108107 Contact Us For Availability
8
COVER, WIRING MAY W10309869 Contact Us For Availability
8
SCREW MAY 12990504 Contact Us For Availability
8
GASKET, DOOR (WHITE) MAY W10830057 Contact Us For Availability
8
SCREW MAY W10460893 Contact Us For Availability
8
PAN, DRAIN MAY W10655368 Contact Us For Availability
8
ASSEMBLY, SPIGOT BODY MAY 2316647 Contact Us For Availability
8
DIVIDER, ICE BOX MAY W10309864 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY W10830065 Contact Us For Availability
9
SCREW MAY 12992602 Contact Us For Availability
9
LENS, LED MAY W10311756 Contact Us For Availability
9
MAY W11251749 MAY W11251749 Contact Us For Availability
9
HANDLE, DOOR (WHITE) MAY W10891380 Contact Us For Availability
9
RACK, SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
9
SCREW MAY W10622701 Contact Us For Availability
9
LID, PANTRY MAY 12656813 Contact Us For Availability
9
TRAY, DISPENSER SLIDE (WHITE) MAY W10267860 Contact Us For Availability
9
GASKET, DAMPER MAY 12920001 Contact Us For Availability
9A
HANDLE, DOOR (BLACK) MAY W10891379 Contact Us For Availability
9A
RACK, SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
9A
TRAY, DISPENSER SLIDE (BLACK) MAY W10267861 Contact Us For Availability
10
HINGE, TOP (LEFT HAND) MAY 12963204ED Contact Us For Availability
10
MAY W11101384 MAY W11101384 Contact Us For Availability
10
SEAL MAY M0500703 Contact Us For Availability
10
BADGE MAY W10612926 Contact Us For Availability
10
SPUR, GEAR (LEFT HAND) MAY W10474716 Contact Us For Availability
10
HEATER, DEFROST MAY 12729123 Contact Us For Availability
10
PAN, CRISPER MAY 12804601SP Contact Us For Availability
10
ASSEMBLY, WATER PAD (GREY) MAY W10334825 Contact Us For Availability
10
MOTOR, DISPENSER MAY W10317991 Contact Us For Availability
10A
HINGE, TOP (RIGHT HAND) MAY 12963205ED Contact Us For Availability
10A
SPUR, GEAR (RIGHT HAND) MAY W10474715 Contact Us For Availability
10A
ASSEMBLY, WATER PAD (BLACK) MAY W10334822 Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
COVER, UPPER WATER TANK MAY 12960101 Contact Us For Availability
11
COVER, EVAPORATOR MAY W10308421 Contact Us For Availability
11
WATERLINE, DOOR MAY W10511930 Contact Us For Availability
11
MOUNT, GEAR (LEFT HAND) MAY W10348259 Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
BRACE, CRISPER COVER MAY 12642303WD Contact Us For Availability
11
GUIDE, ICE MAY W10339578 Contact Us For Availability
11
DAMPER, CONTROL MAY W10196393 Contact Us For Availability
11A
MOUNT, GEAR (RIGHT HAND) MAY W10348260 Contact Us For Availability
12
COVER, FILTER MAY 12960301 Contact Us For Availability
12
SCREW MAY 12990521 Contact Us For Availability
12
DEVICE, START MAY W10798748 Contact Us For Availability
12
FRAME, CRISPER MAY W10329866 Contact Us For Availability
12
MOTOR, ICE DOOR MAY W10205979 Contact Us For Availability
12
ASSEMBLY, SOLENOID MAY W10309866 Contact Us For Availability
13
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
13
COVER, LOWER WATER TANK MAY 12960001 Contact Us For Availability
13
BRACKET, DOOR SLIDE (LEFT HAND) MAY W10330991 Contact Us For Availability
13
SEAL, ICE CHUTE MAY W10287601 Contact Us For Availability
13
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
13
GLASS, SHELF MAY 12204824N Contact Us For Availability
13
LINER, DIVIDER MAY W10118612 Contact Us For Availability
13A
BRACKET, DOOR SLIDE (RIGHT HAND) MAY W10330993 Contact Us For Availability
14
SCREW MAY 12990511 Contact Us For Availability
14
SCREW MAY 12992403 Contact Us For Availability
14
MAY W11256384 MAY W11256384 Contact Us For Availability
14
MODULE, LIGHT MAY W10315248 Contact Us For Availability
14
MULLION, DOOR (WHITE) MAY 12722815W Contact Us For Availability
14
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
14
LADDER, CENTER MAY W10273464 Contact Us For Availability
14A
MULLION, DOOR (BLACK) MAY 12722815B Contact Us For Availability
15
HINGE, CENTER LEFT HAND (WHITE) MAY W10740148 Contact Us For Availability
15
BRACKET, FILTER BASE MAY 12955901 Contact Us For Availability
15
CLIP, FAN MOTOR MAY 12956601 Contact Us For Availability
15
CLIP, BUSHING MAY 12996601 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
SCREW MAY 12990513 Contact Us For Availability
15
BRACKET, SOLENOID MAY W10346971 Contact Us For Availability
15A
HINGE, CENTER LEFT HAND (BLACK) MAY W10740149 Contact Us For Availability
16
HINGE, CENTER RIGHT HAND (WHITE) MAY W10740144 Contact Us For Availability
16
TUBE, WATER MAY W10444033 Contact Us For Availability
16
SWITCH, LIGHT MAY 12466111SP Contact Us For Availability
16
CLOSURE, DOOR (WHITE) MAY 12028505W Contact Us For Availability
16
SCREW MAY 12992101 Contact Us For Availability
16
SCREW MAY 12990512 Contact Us For Availability
16
WASHER MAY W10465946 Contact Us For Availability
16A
HINGE, CENTER RIGHT HAND (BLACK) MAY W10740145 Contact Us For Availability
16A
CLOSURE, DOOR (BLACK) MAY 12028505B Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
BRACKET, WATER TANK AND VALVE MAY W10334463 Contact Us For Availability
17
LATCH, DOOR CLOSER LEFT HAND (WHITE) MAY W10833740 Contact Us For Availability
17
GROMMET, COMPRESSOR MAY W10806346 Contact Us For Availability
17
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
17
YOKE, ICE DISPENSER MAY 63052A001 Contact Us For Availability
17A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17A
LATCH, DOOR CLOSER LEFT HAND (BLACK) MAY W10725268 Contact Us For Availability
18
GASKET, CONTROL BOX MAY W10914798 Contact Us For Availability
18
MAY W11308017 MAY W11308017 Contact Us For Availability
18
GASKET, DRAIN MAY B8381501 Contact Us For Availability
18
LATCH, DOOR CLOSER RIGHT HAND (WHITE) MAY W10833738 Contact Us For Availability
18
CONDENSER MAY W10346415 Contact Us For Availability
18
SUPPORT, CRISPER FRAME MAY 13062602 Contact Us For Availability
18
ARM, SHUTOFF MAY W11130404 Contact Us For Availability
18A
LATCH, DOOR CLOSER RIGHT HAND (BLACK) MAY W10725267 Contact Us For Availability
19
CONTROL, ELECTRONIC MAY W10867574 Contact Us For Availability
19
CARTRIDGE, BYPASS MAY 12664501SP Contact Us For Availability
19
SLIDE, DOOR MAY W10860513 Contact Us For Availability
19
CLIP, DRIER MAY W10281329 Contact Us For Availability
19
BAR, CONTROL MAY 12655304 Contact Us For Availability
19
EXTENSION, SHUTOFF ARM MAY W10351019 Contact Us For Availability
20
SCREW MAY W10709365 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
TRAY, DRIP MAY W10292803 Contact Us For Availability
20
KNOB, TEMPERATURE CONTROL MAY 12655204 Contact Us For Availability
20
HARNESS, ICEMAKER MAY W10826037 Contact Us For Availability
21
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
ADAPTER, SIDE (LEFT HAND) MAY W10284682 Contact Us For Availability
21
EXTENSION, DRAIN TUBE MAY W10622099 Contact Us For Availability
21
HOUSING, CONTROL MAY 12656202 Contact Us For Availability
21
COVER MAY W10290556 Contact Us For Availability
21A
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
21A
ADAPTER, SIDE (RIGHT HAND) MAY W10284683 Contact Us For Availability
22
GRILLE, TOE (WHITE) MAY W10534154 Contact Us For Availability
22
GRILLE, AIR MAY 12959901 Contact Us For Availability
22
EVAPORATOR MAY W10313899 Contact Us For Availability
22
SLIDE, TEMPERATURE CONTROL MAY 12655402 Contact Us For Availability
22
ASSEMBLY, IMPINGER MAY W10312691 Contact Us For Availability
22A
GRILLE, TOE (BLACK) MAY W10534153 Contact Us For Availability
23
LID, HV CONTROL BOX MAY W10296541 Contact Us For Availability
23
SHROUD, EVAPORATOR MAY 12951401 Contact Us For Availability
23
GASKET, FOAM MAY A3189397 Contact Us For Availability
23
SUPPORT, GLASS (INCLUDES PANTRY BRACE) MAY W10528933 Contact Us For Availability
23
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10300024 Contact Us For Availability
24
BLOCK, FILL TUBE MAY W10658542 Contact Us For Availability
24
THERMISTOR MAY 12791417SP Contact Us For Availability
24
BLADE, FAN MAY 12986101 Contact Us For Availability
24
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
24
GLASS, SHELF MAY W10893772 Contact Us For Availability
25
SCREW MAY 12990702 Contact Us For Availability
25
GROMMET, FAN MOTOR MAY W10905511 Contact Us For Availability
25
GASKET, PANTRY MAY 12656901 Contact Us For Availability
26
MAY W11050039 MAY W11050039 Contact Us For Availability
26
MAY W11239039 MAY W11239039 Contact Us For Availability
26
TRACK, DELI DRAWER MAY 12531901 Contact Us For Availability
27
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
27
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
TRIM, CRISPER MAY W10313178N Contact Us For Availability
27A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
28
SCREW MAY 688983 Contact Us For Availability
28
COMPRESSOR MAY W11100924 Contact Us For Availability
28
SHELF, MINI STATIONARY MAY 12885501 Contact Us For Availability
29
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
30
COVER, UNIT MAY W10270394 Contact Us For Availability
30
AXLE, ROLLER MAY 12477202 Contact Us For Availability
31
COVER, FILL TUBE (WHITE) MAY 12981401W Contact Us For Availability
31
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
31A
COVER, FILL TUBE (BLACK) MAY 12981401B Contact Us For Availability
32
CONNECTOR, WATER TUBE MAY W10334458 Contact Us For Availability
33
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
34
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
MISCELLANEOUS, ICE MAY IC13B Contact Us For Availability
NI
MAY W10917540 MAY W10917540 Contact Us For Availability
× ![]()
