Model Maytag MFF2558FEZ02 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams

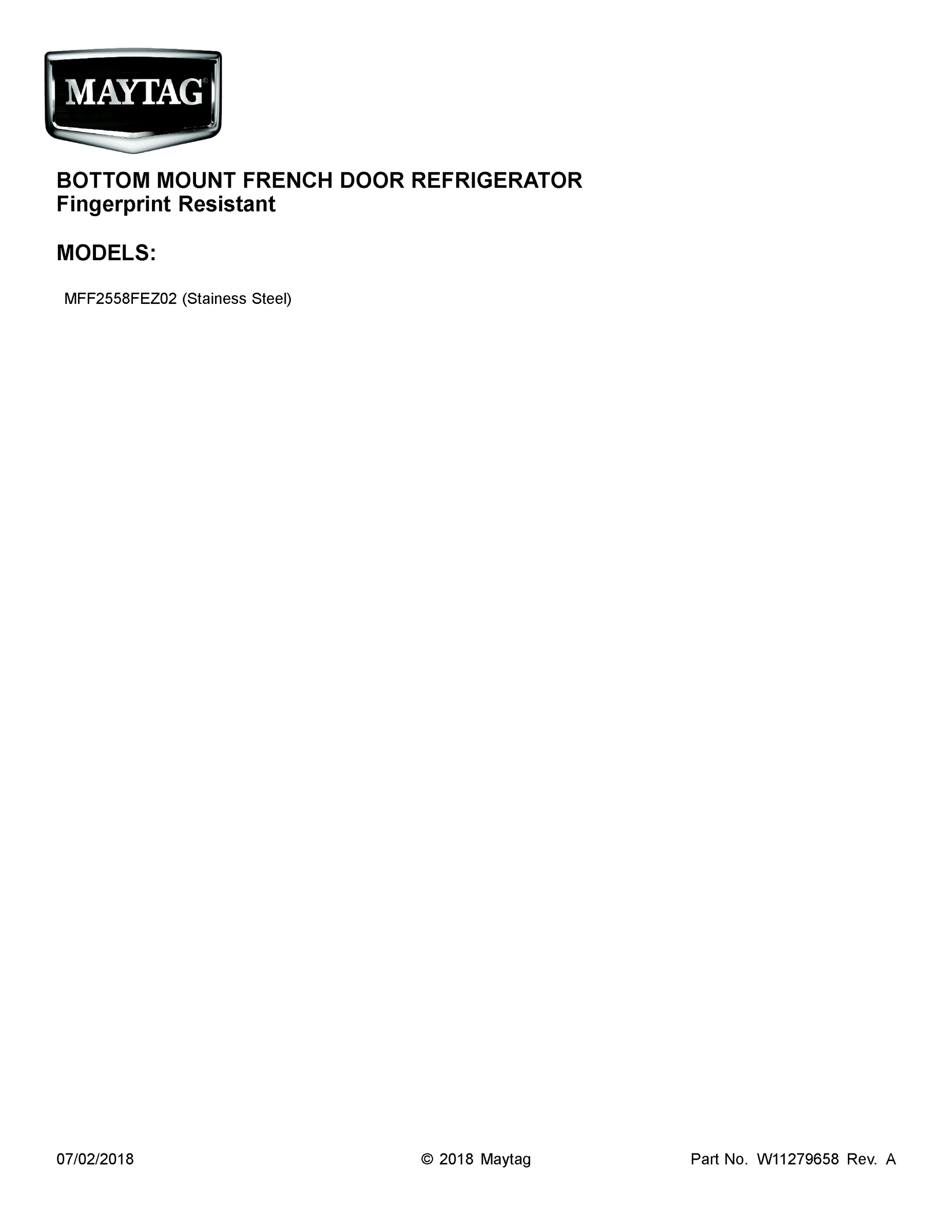

01 - COVER SHEET

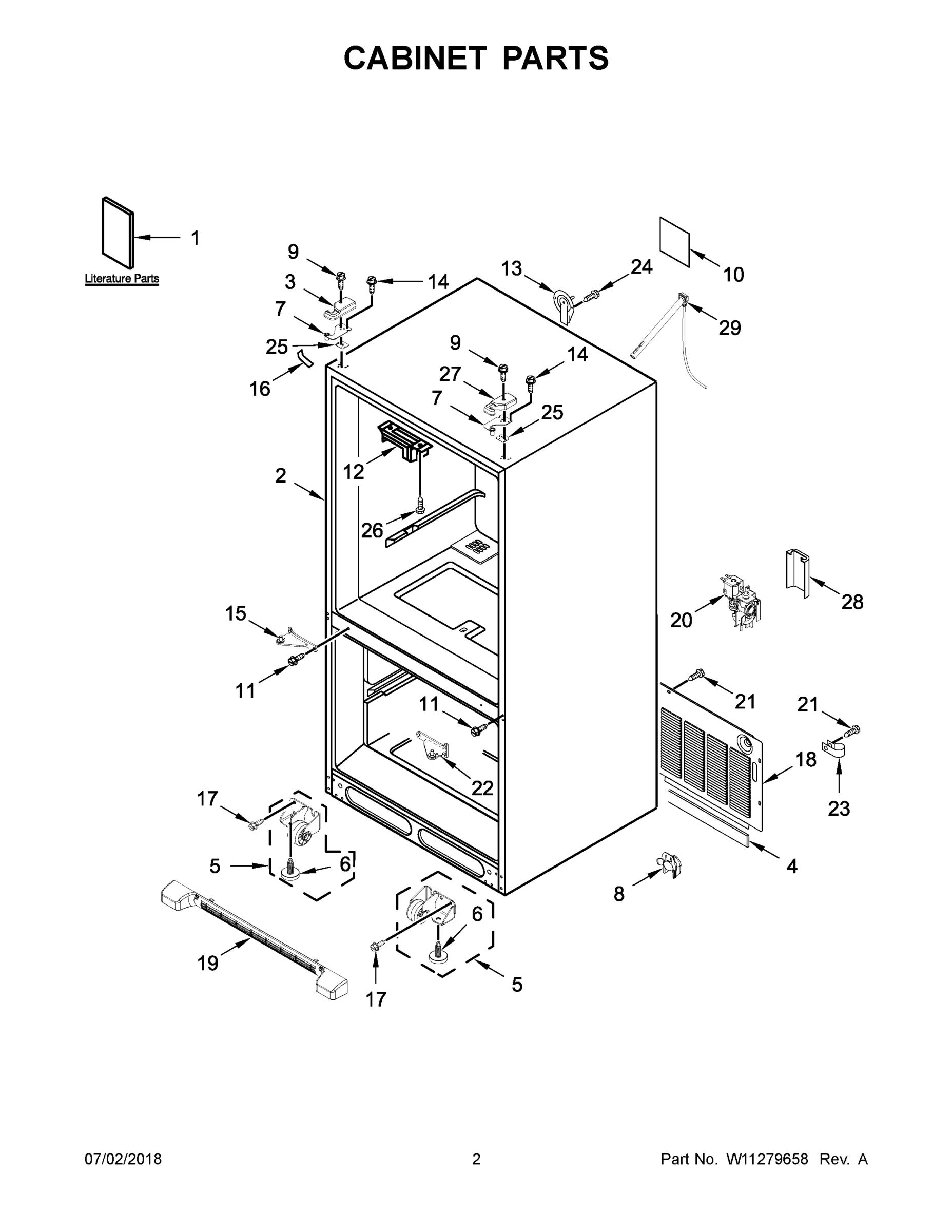

02 - CABINET PARTS

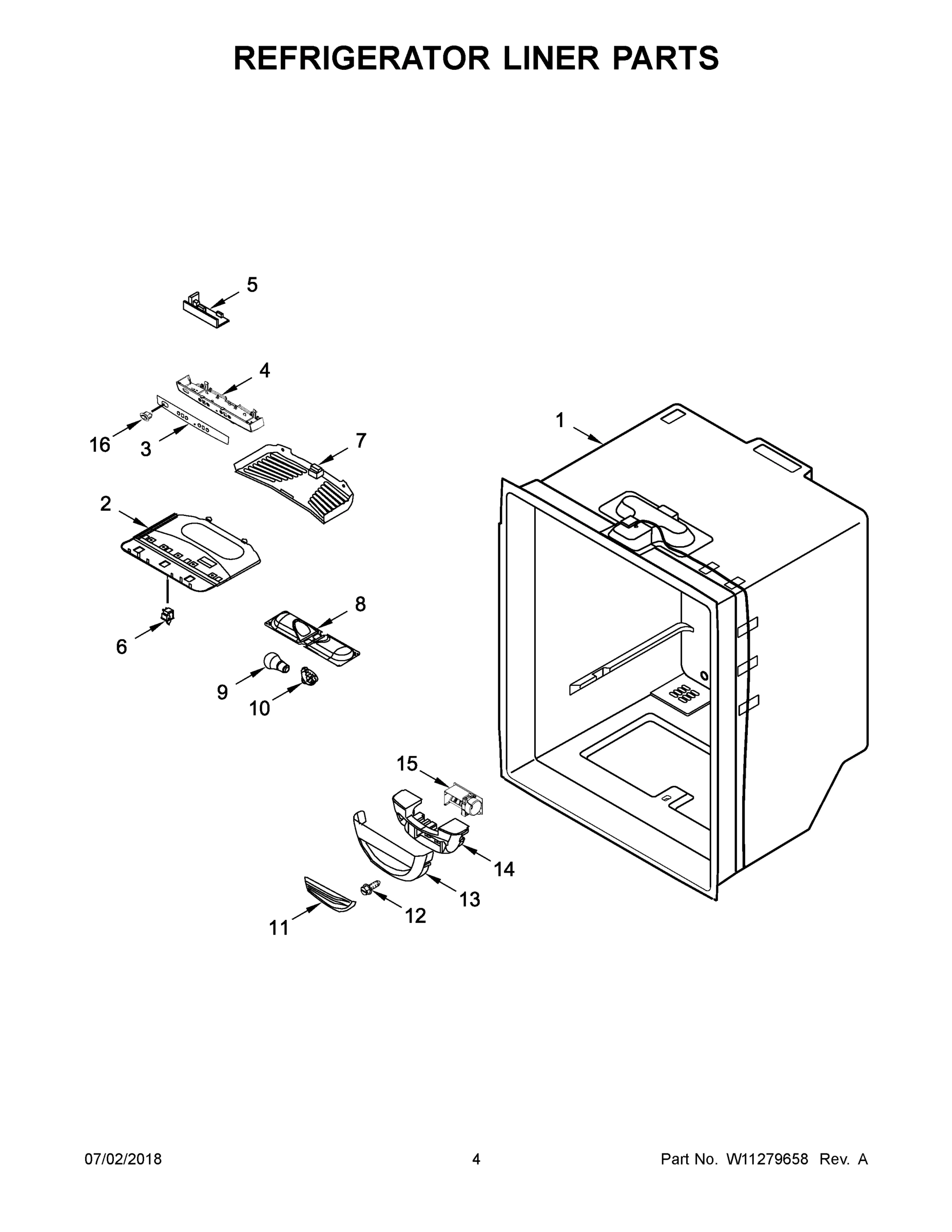

03 - REFRIGERATOR LINER PARTS

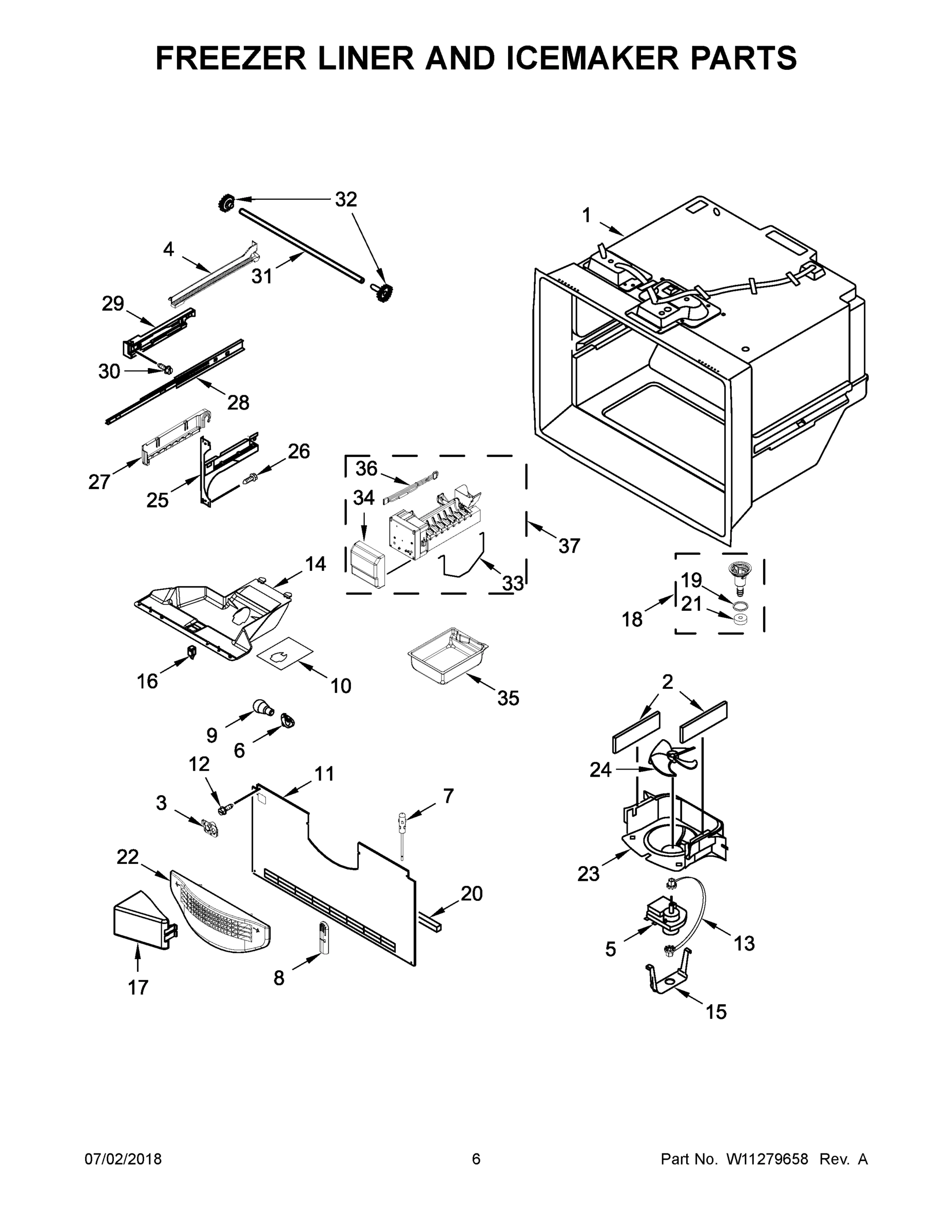

04 - FREEZER LINER AND ICEMAKER PARTS

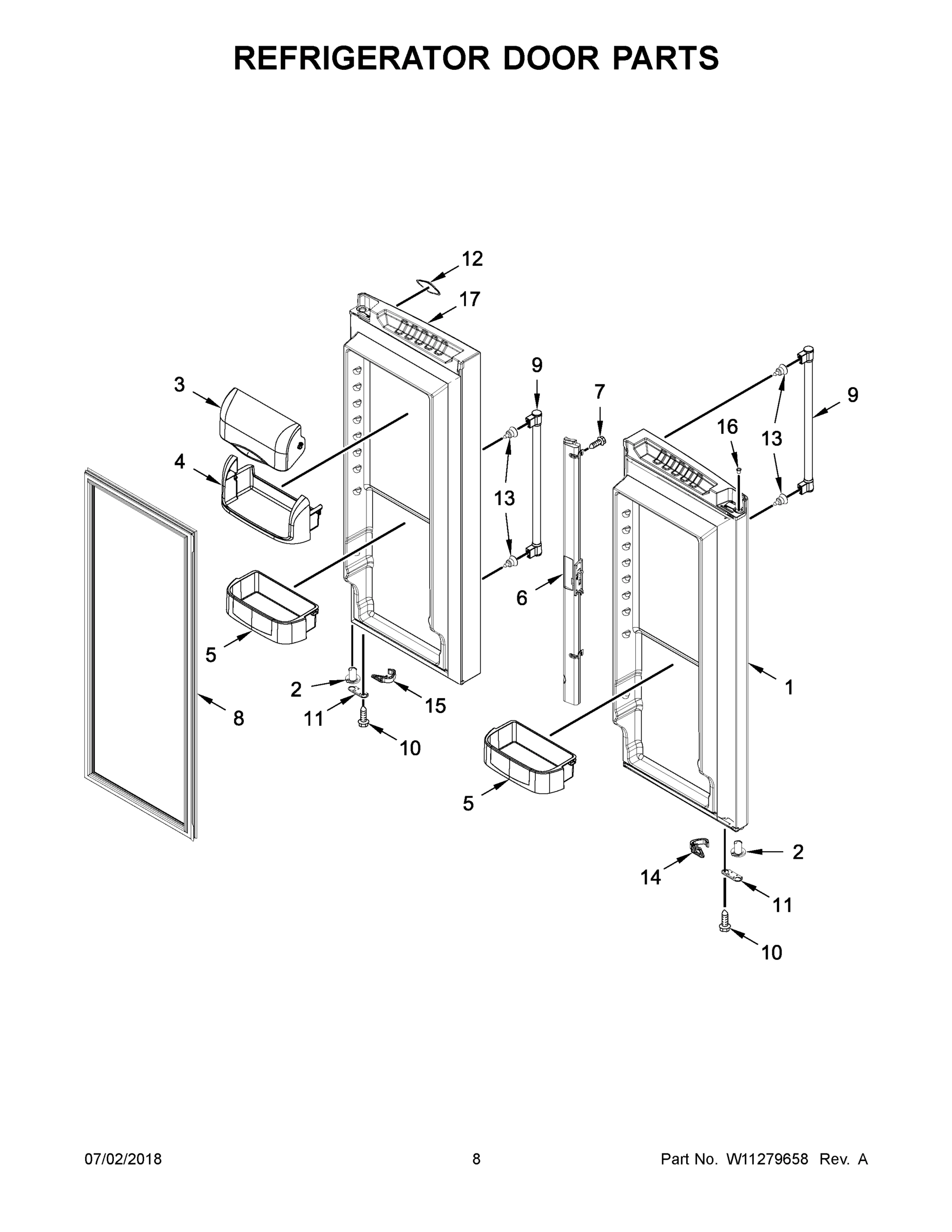

05 - REFRIGERATOR DOOR PARTS

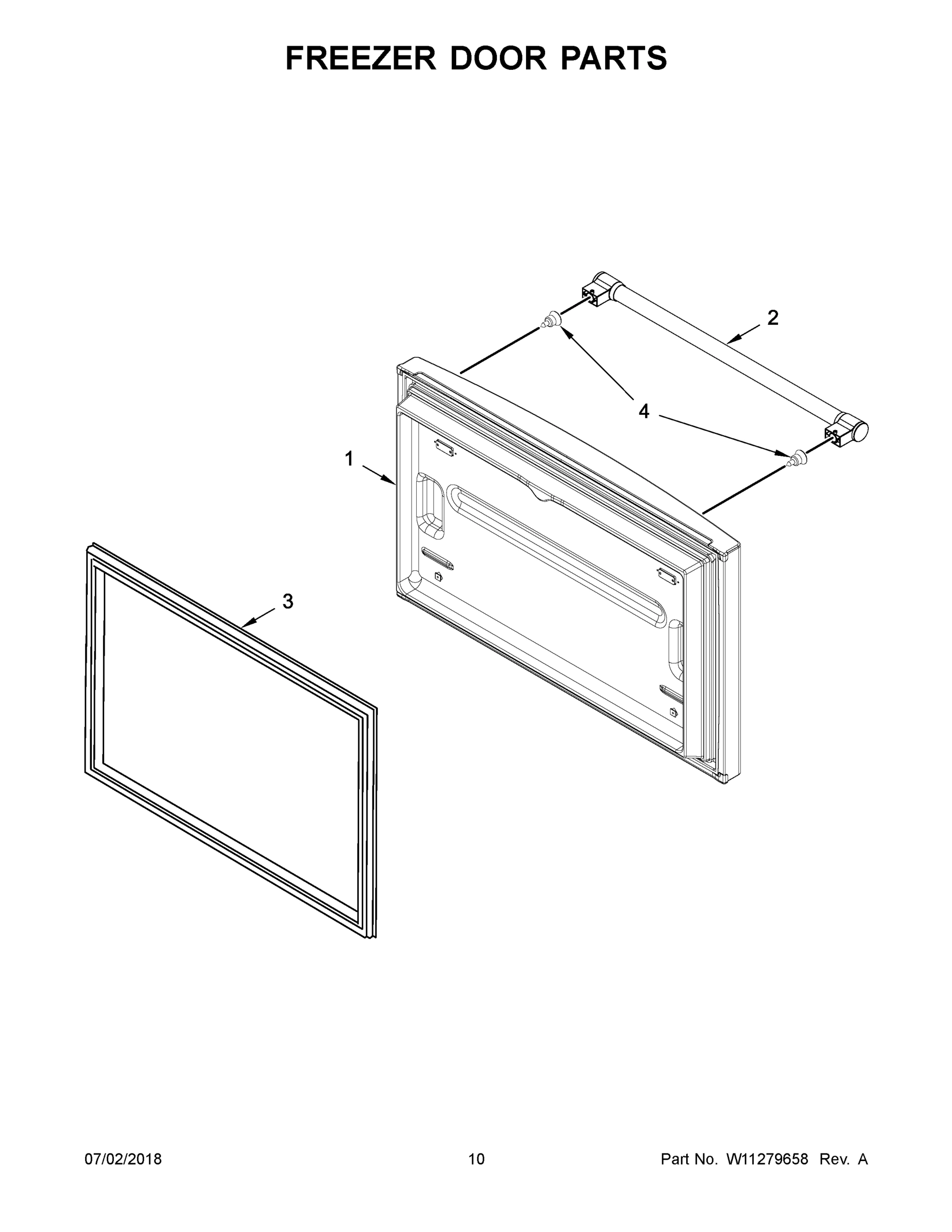

06 - FREEZER DOOR PARTS

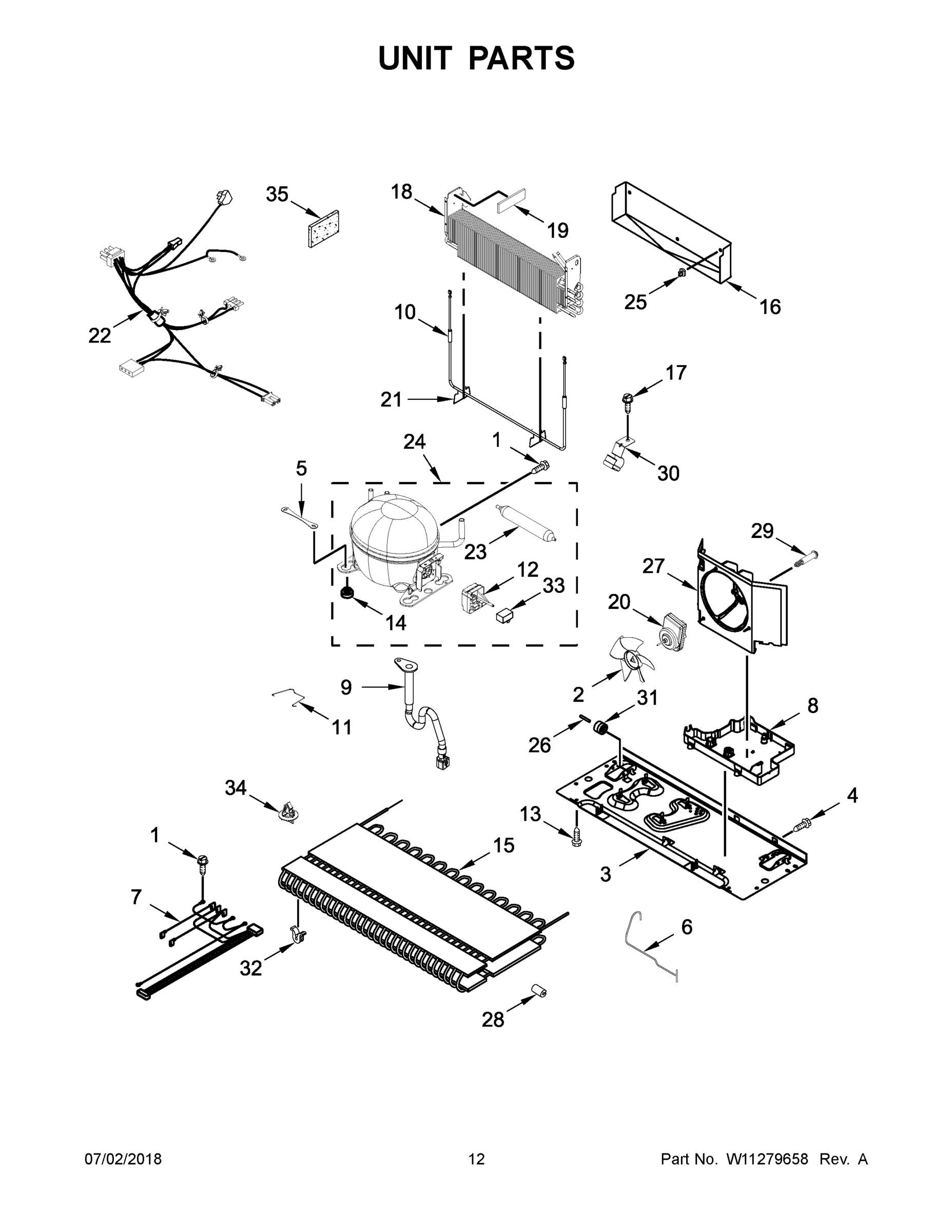

07 - UNIT PARTS

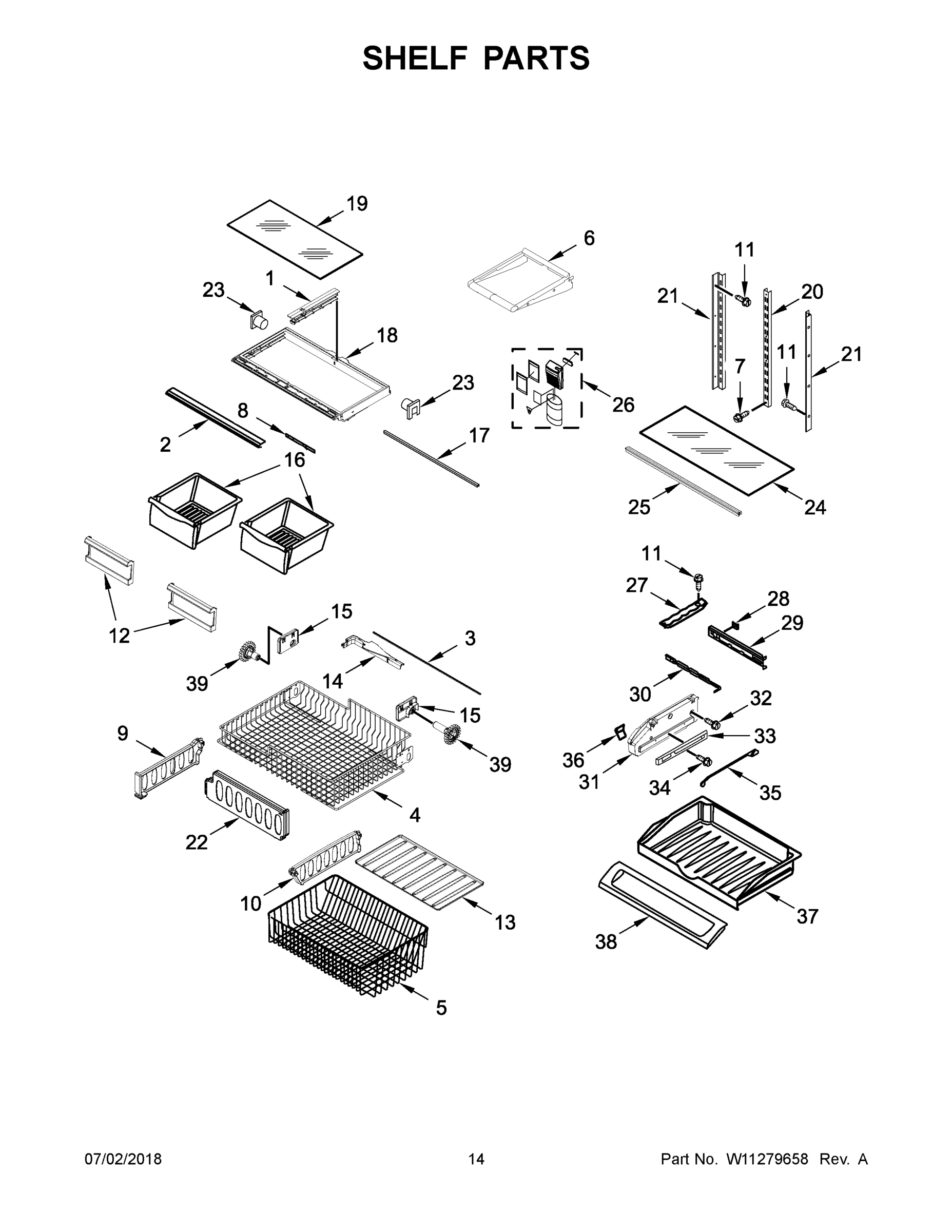

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag MFF2558FEZ02 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
DOOR, REFRIGERATOR LEFT HAND (STAINLESS) MAY W11254613 Contact Us For Availability
1
DOOR, FREEZER (STAINLESS) MAY W11254609 Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
RAIL, CENTER CRISPER MAY W10326469N Contact Us For Availability
1B
TECH SHEET MAY W10517966 Contact Us For Availability
2
MODULE, LIGHT MAY W10464764 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2
CLOSURE, DOOR (GREY) MAY 12028505AP Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) MAY W10838132 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
TRIM, CRISPER MAY W10231345N Contact Us For Availability
3
COVER, HINGE (GREY) MAY W10337648 Contact Us For Availability
3
OVERLAY, CONTROL MAY W10613576 Contact Us For Availability
3
GUIDE, FILL TUBE MAY 12932103 Contact Us For Availability
3
DOOR, DAIRY MAY 12804701SP Contact Us For Availability
3
GASKET, DOOR (GREY) MAY W10443320 Contact Us For Availability
3
BASEPAN MAY W10480111 Contact Us For Availability
3
SHAFT, RACK MAY W10802333 Contact Us For Availability
4
GASKET MAY B5759655 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464775 Contact Us For Availability
4
RAIL, SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
4
TRAY, DAIRY MAY 12369502SP Contact Us For Availability
4
SCREW MAY W10460893 Contact Us For Availability
4
BASKET, FREEZER (UPPER) MAY W11115256 Contact Us For Availability
4A
RAIL, SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
5
ASSEMBLY, ROLLER (LEFT HAND) MAY W10515763 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10503278 Contact Us For Availability
5
MOTOR, EVAPORATOR MAY W10128551 Contact Us For Availability
5
BUCKET, MEDIUM MAY W10371194 Contact Us For Availability
5
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
5
BASKET, FREEZER (LOWER) MAY W11115781 Contact Us For Availability
5A
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10515762 Contact Us For Availability
5A
BUCKET, GALLON MAY W10289497 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
SWITCH, LIGHT MAY C3680310V Contact Us For Availability
6
MULLION, DOOR (GREY) MAY 12722803AP Contact Us For Availability
6
TUBE, DISCHARGE MAY W10233569 Contact Us For Availability
6
ASSEMBLY, SHELF MAY W10743547 Contact Us For Availability
7
HINGE, TOP (LEFT HAND) MAY 12963204ED Contact Us For Availability
7
MAY W11132917 MAY W11132917 Contact Us For Availability
7
THERMISTOR MAY 12791409SP Contact Us For Availability
7
SCREW MAY 12990204 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W11050969 Contact Us For Availability
7
SCREW MAY W10215666 Contact Us For Availability
7A
HINGE, TOP (RIGHT HAND) MAY 12963205ED Contact Us For Availability
8
GUIDE, WATERLINE MAY W10485986 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
8
GASKET, DOOR (GREY) MAY W10830162 Contact Us For Availability
8
PAN, DRAIN MAY W10655368 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL MAY 12530805SP Contact Us For Availability
9
SCREW MAY 12992602 Contact Us For Availability
9
LAMP, LED MAY W10805744 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10838130 Contact Us For Availability
9
EXTENSION, DRAIN TUBE MAY W10622099 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY W10241046 Contact Us For Availability
10
COVER, FILL TUBE MAY W11042480 Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
FOIL, HOUSING MAY W10277466 Contact Us For Availability
10
HEATER, DEFROST MAY 12729123 Contact Us For Availability
10
DIVIDER, BASKET (LOWER) MAY W10146440 Contact Us For Availability
11
SCREW MAY 12990101 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
COVER, EVAPORATOR MAY W10308416 Contact Us For Availability
11
STOP, DOOR (GREY) MAY 12968202AP Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
SCREW MAY 12990513 Contact Us For Availability
12
PLATE, PIVOT MAY 12698403 Contact Us For Availability
12
SCREW MAY 12990604 Contact Us For Availability
12
BADGE MAY W10612926 Contact Us For Availability
12
DEVICE, START MAY W10796752 Contact Us For Availability
12
FRONT, CRISPER PAN MAY 12802602SP Contact Us For Availability
13
COVER, WATER LINE MAY 12726003 Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
GROMMET MAY W10121318 Contact Us For Availability
13
SCREW MAY 12992101 Contact Us For Availability
13
TRAY, LOWER BASKET MAY 13025201 Contact Us For Availability
14
SCREW MAY 12992403 Contact Us For Availability
14
INSULATION, DAMPER MAY 13012402 Contact Us For Availability
14
MODULE, LIGHT MAY W10277025 Contact Us For Availability
14
LATCH, DOOR CLOSER LEFT HAND (GREY) MAY W10833741 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
14
LIFT, BAIL ARM MAY W10149389N Contact Us For Availability
15
HINGE, CENTER (GREY) MAY W10740150 Contact Us For Availability
15
DAMPER, CONTROL MAY W10594330 Contact Us For Availability
15
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
15
LATCH, DOOR CLOSER RIGHT HAND (GREY) MAY W10833739 Contact Us For Availability
15
CONDENSER MAY W10346415 Contact Us For Availability
15
MOUNT, GEAR (LEFT HAND) MAY W10348259 Contact Us For Availability
15A
MOUNT, GEAR (RIGHT HAND) MAY W10348260 Contact Us For Availability
16
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
16
SWITCH, ENERGY SAVER MAY 12861601 Contact Us For Availability
16
SWITCH, LIGHT MAY 12466105 Contact Us For Availability
16
CLIP, BUSHING MAY 12996601 Contact Us For Availability
16
TRAY, DRIP MAY W10292803 Contact Us For Availability
16
PAN, CRISPER MAY 12804601SP Contact Us For Availability
17
SCREW MAY W10709365 Contact Us For Availability
17
DIVERTER, AIR MAY W10157765 Contact Us For Availability
17
DOOR, REFRIGERATOR RIGHT HAND (STAINLESS) MAY W11254623 Contact Us For Availability
17
SCREW MAY 12990701 Contact Us For Availability
17
BRACE, CRISPER COVER MAY 12642303WD Contact Us For Availability
18
COVER, UNIT MAY W10211854 Contact Us For Availability
18
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
18
EVAPORATOR MAY W10669255 Contact Us For Availability
18
FRAME, CRISPER MAY W10329866 Contact Us For Availability
19
GRILLE, TOE (GREY) MAY W10534155 Contact Us For Availability
19
SEAL MAY M0500703 Contact Us For Availability
19
GASKET, FOAM MAY A3189397 Contact Us For Availability
19
GLASS, SHELF MAY 12204824N Contact Us For Availability
20
VALVE, INLET MAY W10498976 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
MOTOR, CONDENSER FAN MAY W10909377 Contact Us For Availability
20
LADDER, CENTER MAY W10273463 Contact Us For Availability
21
GASKET, DRAIN MAY B8381501 Contact Us For Availability
21
LADDER, SIDE MAY W10569182 Contact Us For Availability
22
HINGE, CENTER (GREY) MAY W10740146 Contact Us For Availability
22
GRILLE, FREEZER AIR MAY 13024803 Contact Us For Availability
22
HARNESS, UNIT (INCLUDES POWER CORD) MAY W11045109 Contact Us For Availability
22
DIVIDER, BASKET (UPPER) MAY W10171558 Contact Us For Availability
23
CLAMP, TUBE MAY M0108107 Contact Us For Availability
23
SHROUD, EVAPORATOR FAN MAY 13057901 Contact Us For Availability
23
DRIER MAY W10177049 Contact Us For Availability
23
SUPPORT, CRISPER FRAME MAY 13062602 Contact Us For Availability
24
BLADE, FAN MAY 2169142 Contact Us For Availability
24
COMPRESSOR MAY W10879296 Contact Us For Availability
24
GLASS, SHELF MAY W10893772 Contact Us For Availability
25
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
25
BRACKET, DOOR (LEFT HAND) MAY W10330991 Contact Us For Availability
25
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
25
SUPPORT, GLASS (INCLUDES PANTRY BRACE) MAY W10528933 Contact Us For Availability
25A
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
25A
BRACKET, DOOR (RIGHT HAND) MAY W10330993 Contact Us For Availability
26
SCREW MAY 12990521 Contact Us For Availability
26
AXLE, ROLLER MAY 12477202 Contact Us For Availability
26
ASSEMBLY, PRODUCE PRESERVER MAY W10596756 Contact Us For Availability
27
COVER, HINGE (GREY) MAY 12962302AP Contact Us For Availability
27
CRADLE, BASKET (LEFT HAND) MAY W10280608 Contact Us For Availability
27
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
27
TRACK, DELI DRAWER MAY 12531901 Contact Us For Availability
27A
CRADLE, BASKET (RIGHT HAND) MAY W10280613 Contact Us For Availability
28
COVER, VALVE MAY W10208592 Contact Us For Availability
28
SLIDE, DOOR MAY W10120018 Contact Us For Availability
28
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
28
GASKET, PANTRY MAY 12656901 Contact Us For Availability
29
ASSEMBLY, FILL TUBE (INCLUDES TUBING, FILL TU MAY W11046934 Contact Us For Availability
29
ADAPTER, SLIDE (LEFT HAND) MAY W10284684 Contact Us For Availability
29
SCREW MAY W10622701 Contact Us For Availability
29
HOUSING, CONTROL MAY 12656202 Contact Us For Availability
29A
ADAPTER, SLIDE (RIGHT HAND) MAY W10284685 Contact Us For Availability
30
SCREW MAY 12990501 Contact Us For Availability
30
CLIP, DRIER MAY W10281329 Contact Us For Availability
30
SLIDE, TEMPERATURE CONTROL MAY 12655402 Contact Us For Availability
31
SHAFT, RACK MAY W10802332 Contact Us For Availability
31
ROLLER MAY 12477102 Contact Us For Availability
31
ENDCAP, PANTRY (LEFT HAND) MAY W10845509 Contact Us For Availability
31A
ENDCAP, PANTRY (RIGHT HAND) MAY W10845508 Contact Us For Availability
32
SCREW MAY 12990504 Contact Us For Availability
32
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
33
ARM, SHUT OFF MAY W10202524 Contact Us For Availability
33
CAPACITOR MAY W10350564 Contact Us For Availability
33
GLIDE, PANTRY MAY W10235370 Contact Us For Availability
34
COVER, ICEMAKER MAY W10445790 Contact Us For Availability
34
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
34
SCREW MAY 12990512 Contact Us For Availability
35
PAN, ICE MAY W10171529N Contact Us For Availability
35
SEALER, INSULATION MAY 2169104 Contact Us For Availability
35
BAR, CONTROL MAY 12655304 Contact Us For Availability
36
HARNESS, ICEMAKER WIRE MAY W10793621 Contact Us For Availability
36
KNOB, TEMPERATURE CONTROL MAY 12655204 Contact Us For Availability
37
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10793298 Contact Us For Availability
37
DRAWER, PANTRY MAY 12731302 Contact Us For Availability
38
LID, PANTRY MAY 12656813 Contact Us For Availability
39
GEAR (LEFT HAND) MAY W10474716 Contact Us For Availability
39A
GEAR (RIGHT HAND) MAY W10474715 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY W10389967 Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
PAINT, TOUCH-UP (1 MAY W10917540 Contact Us For Availability
× ![]()
