Model Maytag MFF2558FEH00 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams

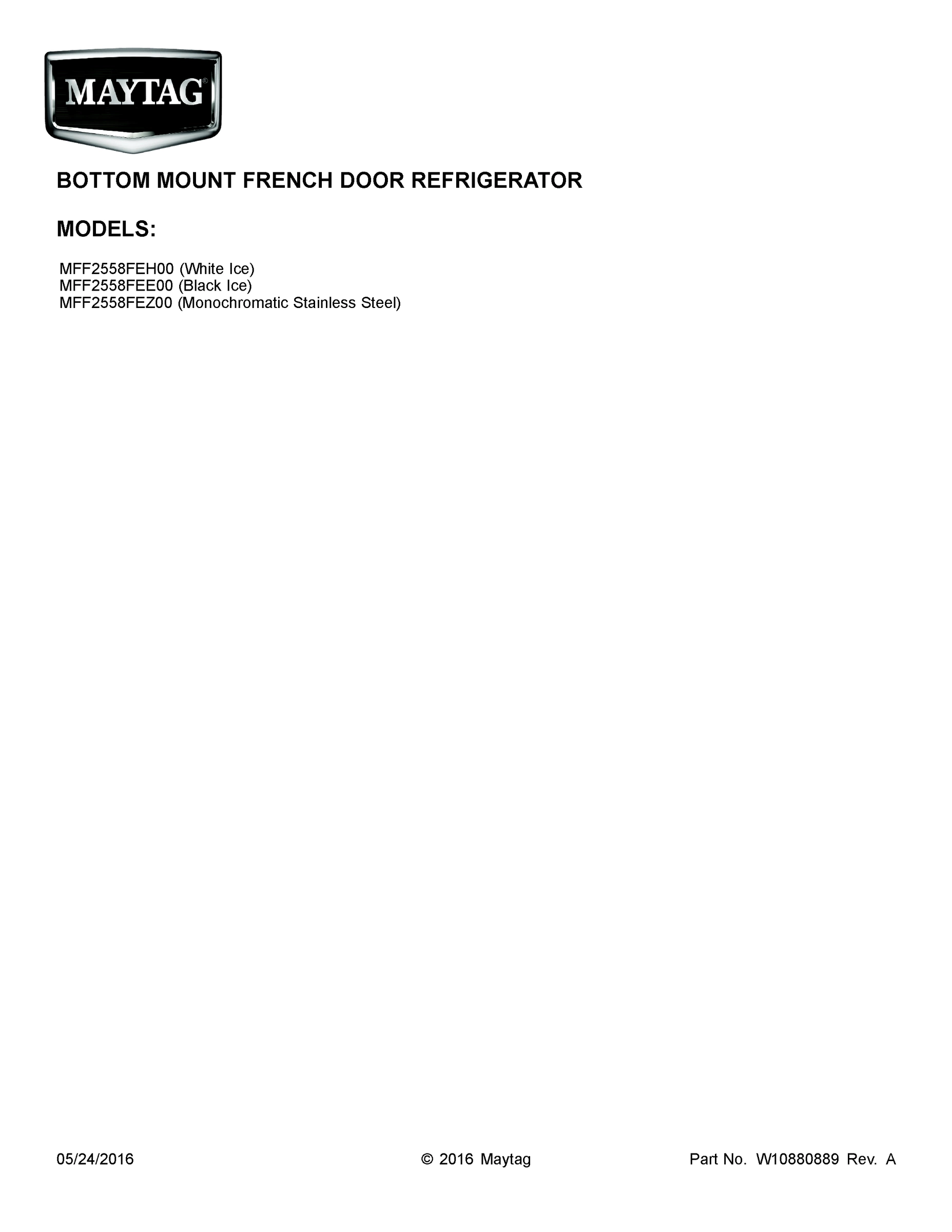

01 - COVER SHEET

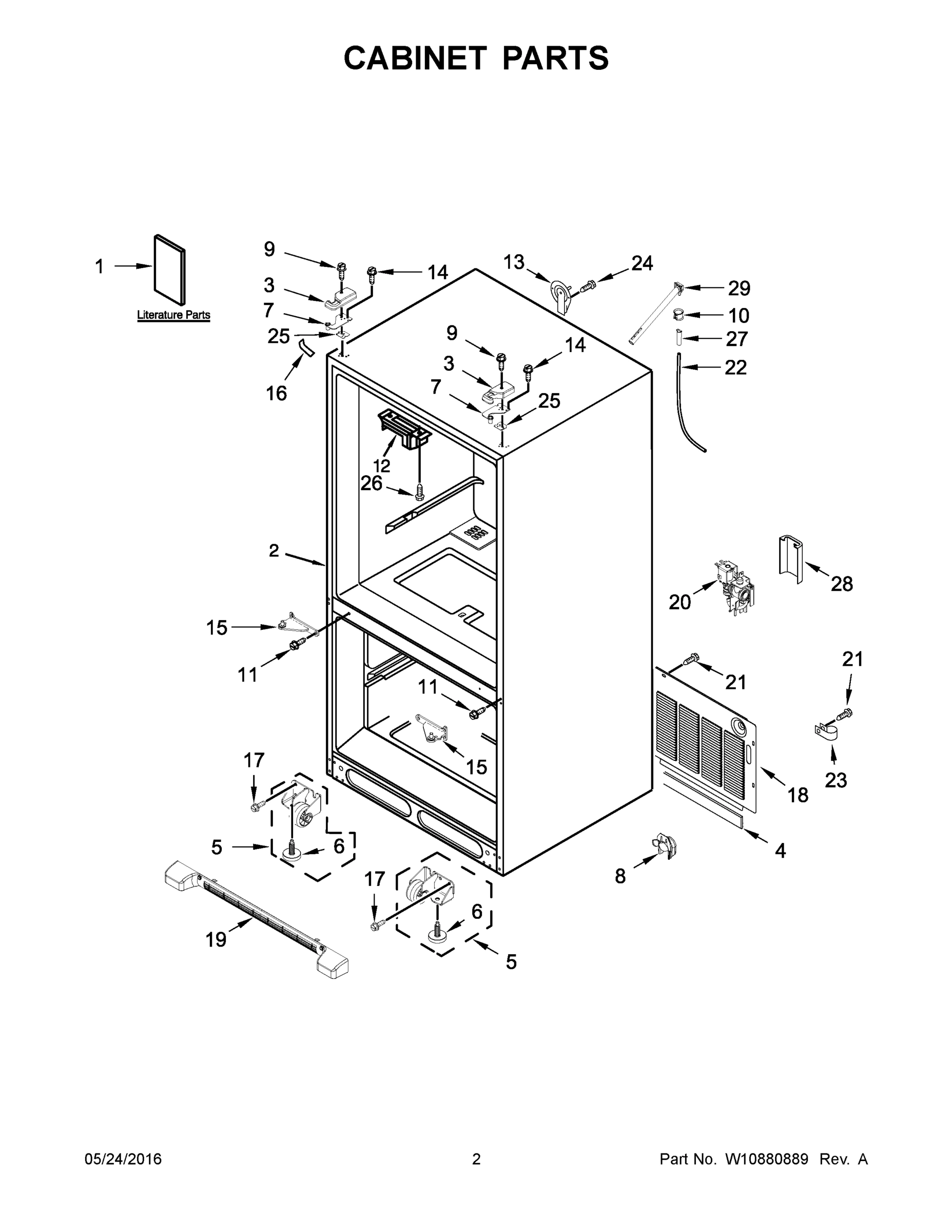

02 - CABINET PARTS

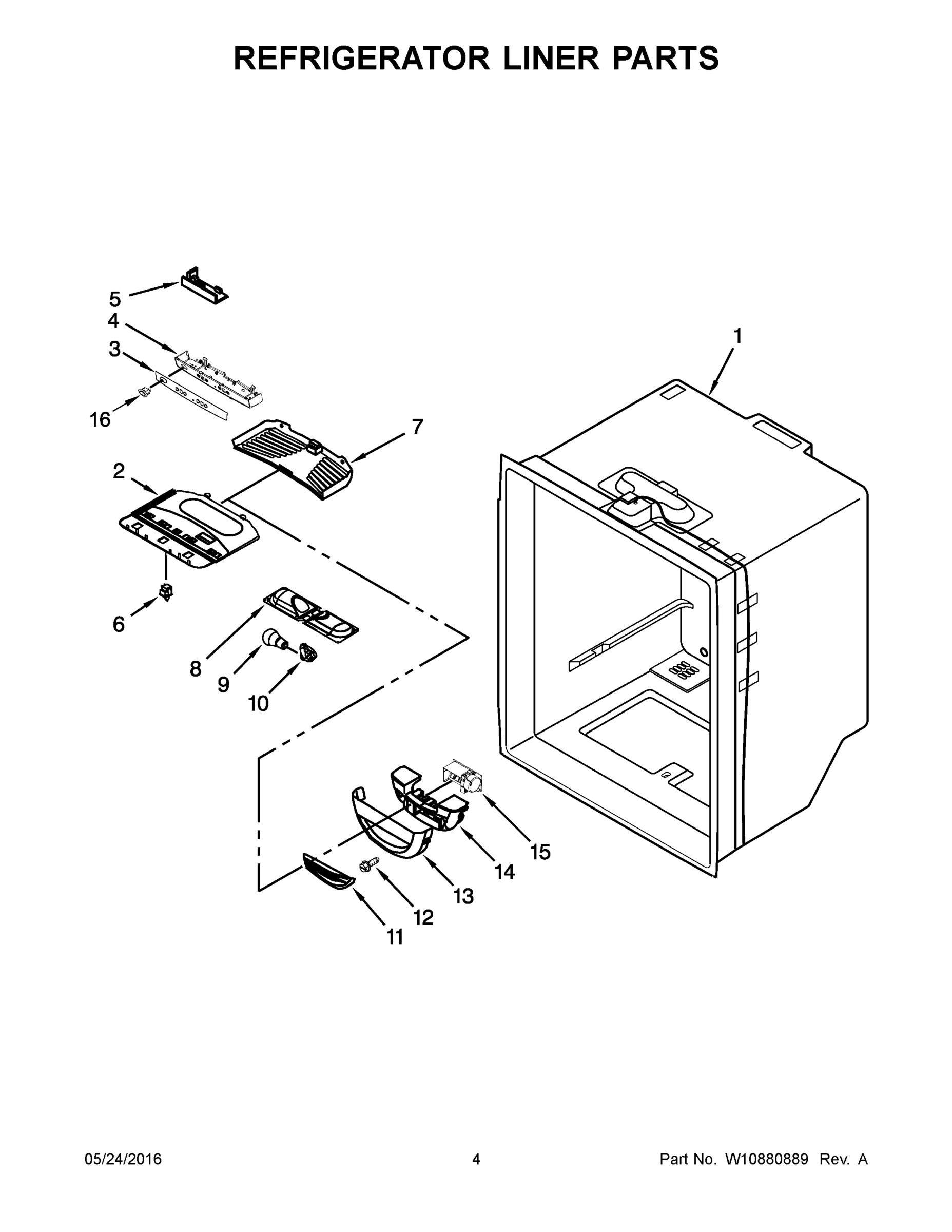

03 - REFRIGERATOR LINER PARTS

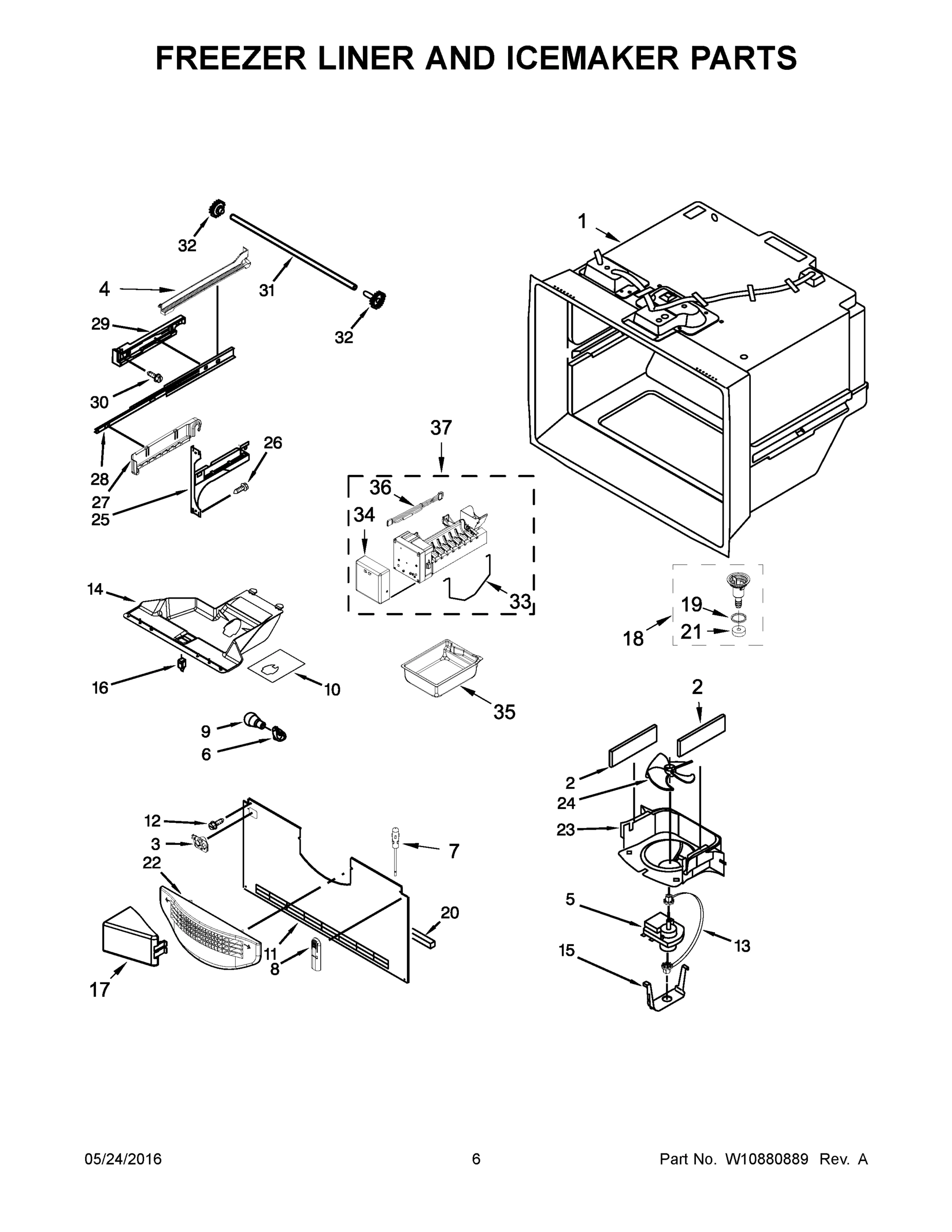

04 - FREEZER LINER AND ICEMAKER PARTS

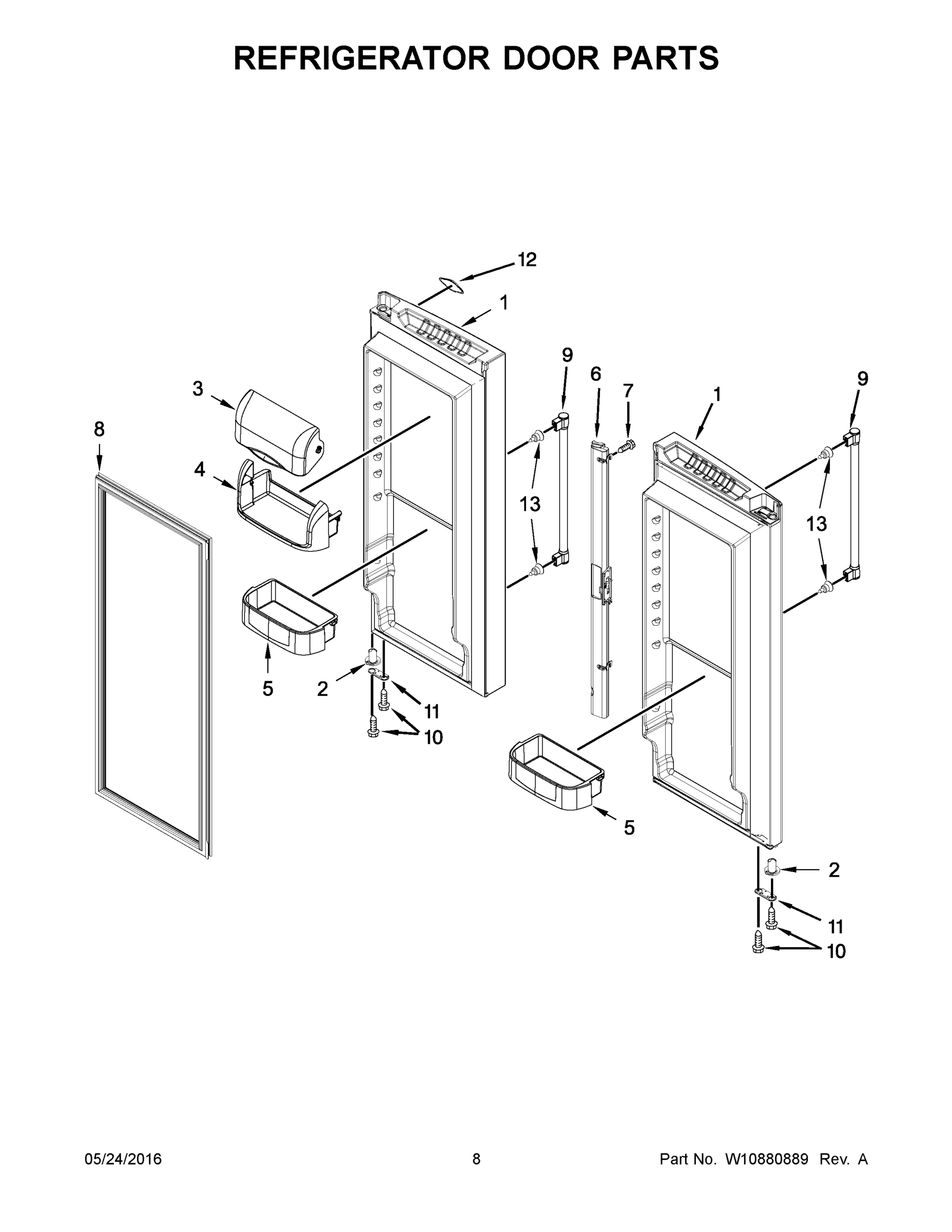

05 - REFRIGERATOR DOOR PARTS

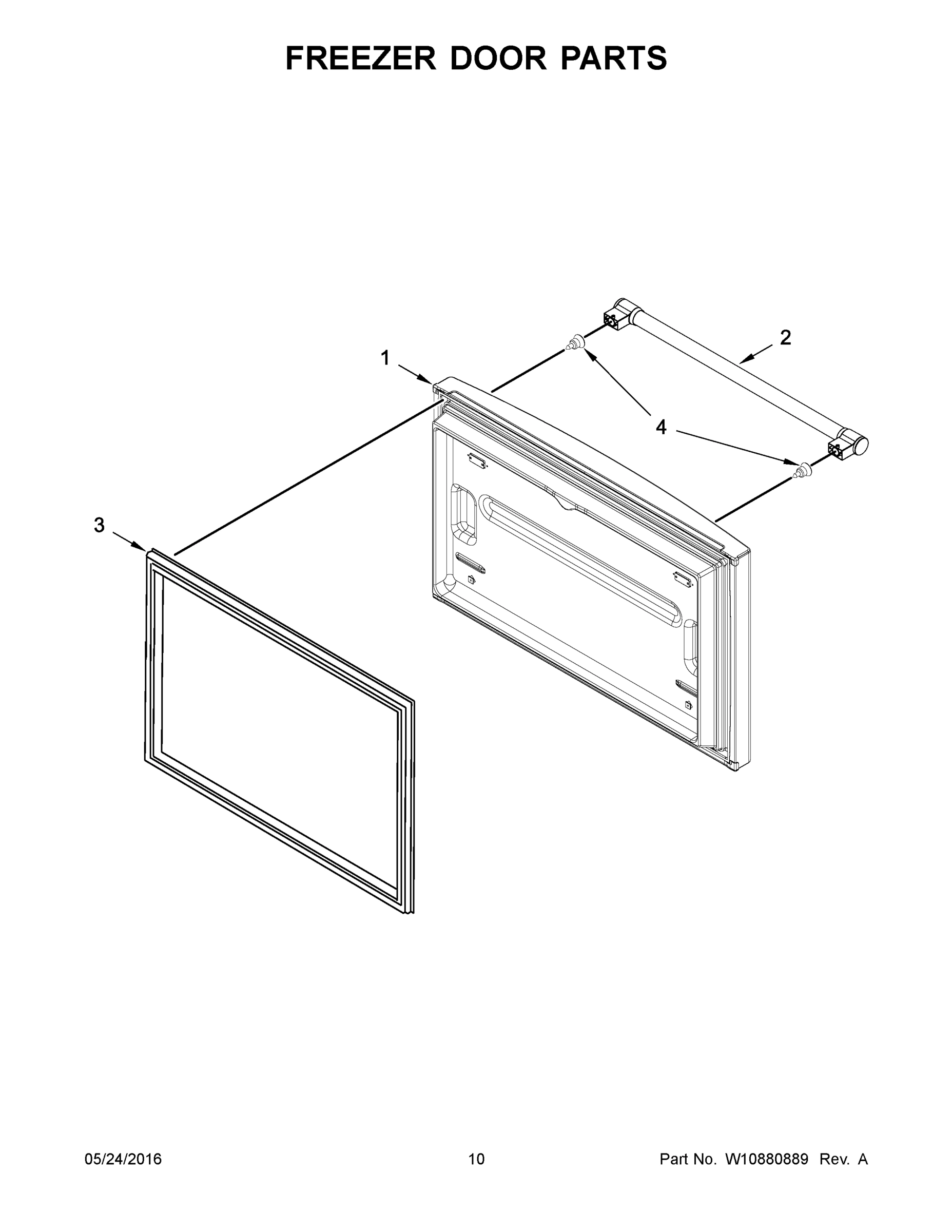

06 - FREEZER DOOR PARTS

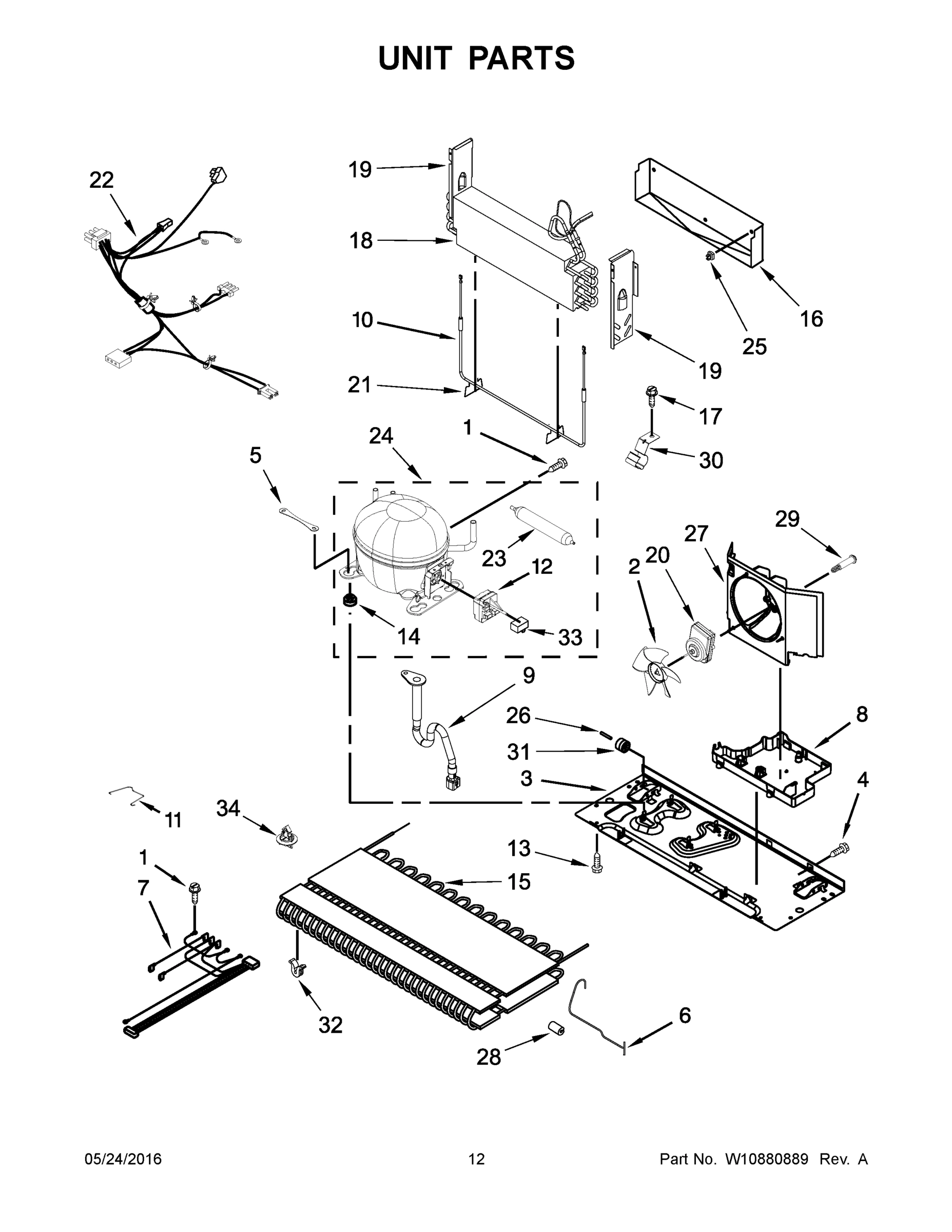

07 - UNIT PARTS

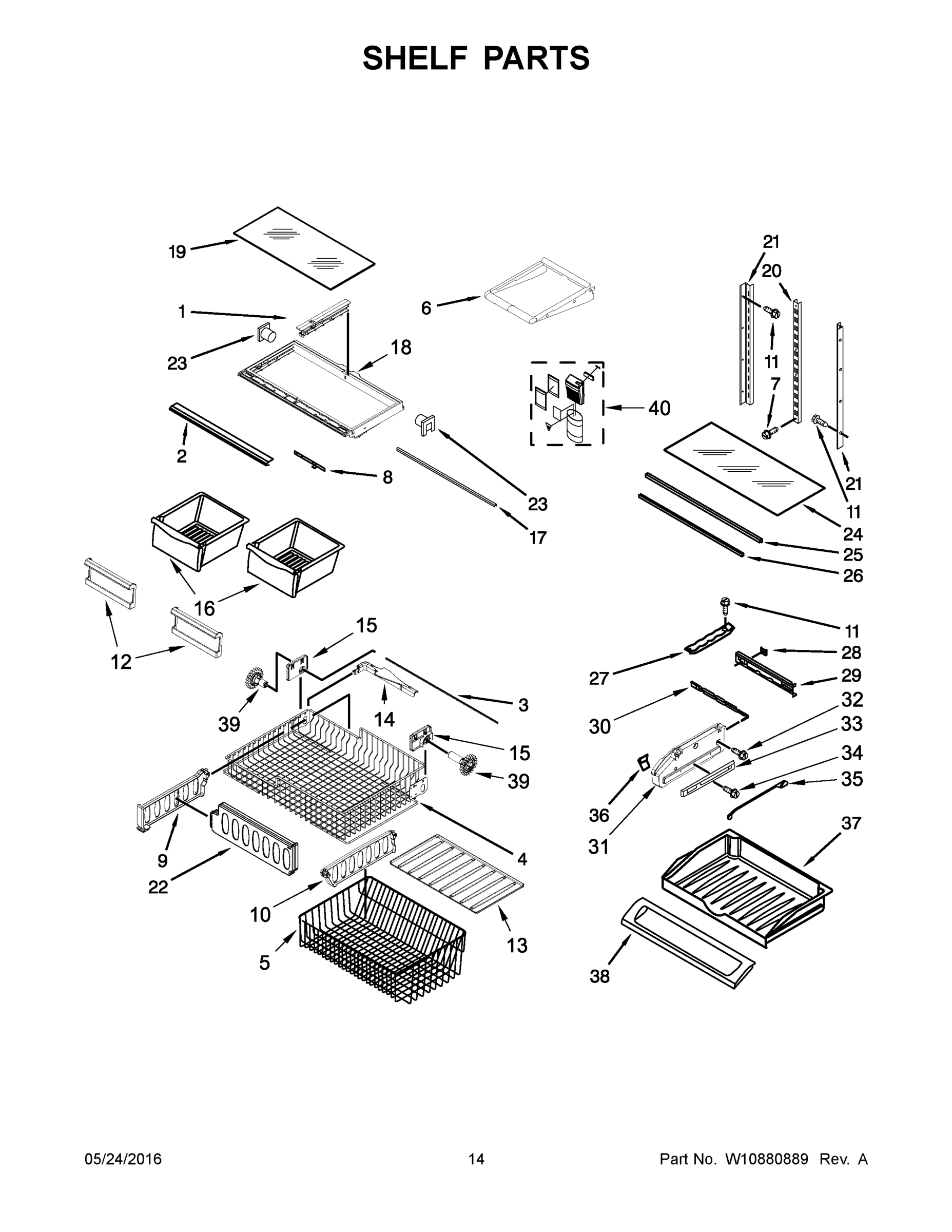

08 - SHELF PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag MFF2558FEH00 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
DOOR, REFRIGERATOR LEFT HAND (WHITE) MAY 13107888W Contact Us For Availability
1
MAY 12977879W MAY 12977879W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY W10326469N MAY W10326469N Contact Us For Availability
1A
DOOR, REFRIGERATOR LEFT HAND (BLACK) MAY 13107888B Contact Us For Availability
1A
MAY 12977878B MAY 12977878B Contact Us For Availability
1B
MAY W10517966N MAY W10517966N Contact Us For Availability
1B
DOOR, REFRIGERATOR LEFT HAND (STAINLESS) MAY W10842640 Contact Us For Availability
1B
MAY W10842633 MAY W10842633 Contact Us For Availability
1C
DOOR, REFRIGERATOR RIGHT HAND (WHITE) MAY 13107887W Contact Us For Availability
1D
DOOR, REFRIGERATOR RIGHT HAND (BLACK) MAY 13107887B Contact Us For Availability
1E
DOOR, REFRIGERATOR RIGHT HAND (STAINLESS) MAY W10842636 Contact Us For Availability
2
MAY W10464764 MAY W10464764 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY 12028505W MAY 12028505W Contact Us For Availability
2
MAY W10838132 MAY W10838132 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231345N MAY W10231345N Contact Us For Availability
2A
MAY 12028505B MAY 12028505B Contact Us For Availability
2B
MAY 12028505AP MAY 12028505AP Contact Us For Availability
3
COVER, HINGE LEFT HAND (WHITE) MAY W10337634 Contact Us For Availability
3
MAY W10613576 MAY W10613576 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10443319 MAY W10443319 Contact Us For Availability
3
MAY W10480111 MAY W10480111 Contact Us For Availability
3
MAY W10802333 MAY W10802333 Contact Us For Availability
3A
COVER, HINGE LEFT HAND (BLACK) MAY W10337647 Contact Us For Availability
3A
MAY W10436252 MAY W10436252 Contact Us For Availability
3B
COVER, HINGE LEFT HAND (GREY) MAY W10337648 Contact Us For Availability
3B
GASKET, DOOR (GREY) MAY W10443320 Contact Us For Availability
3C
COVER, HINGE RIGHT HAND (WHITE) MAY 12962302W Contact Us For Availability
3D
COVER, HINGE RIGHT HAND (BLACK) MAY 12962302B Contact Us For Availability
3E
COVER, HINGE RIGHT HAND (GREY) MAY 12962302AP Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10464775 MAY W10464775 Contact Us For Availability
4
RAIL, SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10460893 MAY W10460893 Contact Us For Availability
4
MAY W10348246 MAY W10348246 Contact Us For Availability
4A
RAIL, SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
5
ROLLER ASSEMBLY (LEFT HAND) MAY W10515763 Contact Us For Availability
5
MAY W10503278 MAY W10503278 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
MAY W10371194 MAY W10371194 Contact Us For Availability
5
MAY W10236396 MAY W10236396 Contact Us For Availability
5
MAY W10503184N MAY W10503184N Contact Us For Availability
5A
ROLLER ASSEMBLY (RIGHT HAND) MAY W10515762 Contact Us For Availability
5A
MAY W10289497 MAY W10289497 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY 12722803W MAY 12722803W Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
MAY W10743547 MAY W10743547 Contact Us For Availability
6A
MAY 12722803BN MAY 12722803BN Contact Us For Availability
6B
MULLION, DOOR (GREY) MAY 12722803APN Contact Us For Availability
7
HINGE, TOP (LEFT HAND) MAY 12963204ED Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12791409SP MAY 12791409SP Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10292244 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7A
HINGE, TOP (RIGHT HAND) MAY 12963205ED Contact Us For Availability
8
MAY W10485986 MAY W10485986 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY W10830189 MAY W10830189 Contact Us For Availability
8
MAY W10655368 MAY W10655368 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8A
MAY W10830206 MAY W10830206 Contact Us For Availability
8B
MAY W10830162 MAY W10830162 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10820003 MAY W10820003 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10838130 Contact Us For Availability
9
MAY W10622099 MAY W10622099 Contact Us For Availability
9
MAY W10241046 MAY W10241046 Contact Us For Availability
10
MAY M0114003 MAY M0114003 Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
10
MAY W10146440 MAY W10146440 Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308416 MAY W10308416 Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11A
MAY 12968202B MAY 12968202B Contact Us For Availability
11B
MAY 12968202AP MAY 12968202AP Contact Us For Availability
12
MAY 12698403 MAY 12698403 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
BADGE (GREY) MAY W10612926 Contact Us For Availability
12
MAY W10796752 MAY W10796752 Contact Us For Availability
12
MAY 12802602SP MAY 12802602SP Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12992101 MAY 12992101 Contact Us For Availability
13
MAY 13025201 MAY 13025201 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
14
MAY W10149389N MAY W10149389N Contact Us For Availability
15
HINGE, CENTER LEFT HAND (WHITE) MAY 13000001WD Contact Us For Availability
15
MAY W10594330 MAY W10594330 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
MAY W10346415 MAY W10346415 Contact Us For Availability
15
MAY W10348259 MAY W10348259 Contact Us For Availability
15A
HINGE, CENTER LEFT HAND (BLACK) MAY 13000007ED Contact Us For Availability
15A
MAY W10348260 MAY W10348260 Contact Us For Availability
15B
HINGE, CENTER LEFT HAND (GREY) MAY 13000001AP Contact Us For Availability
15C
HINGE, CENTER RIGHT HAND (WHITE) MAY 13000002WD Contact Us For Availability
15D
HINGE, CENTER RIGHT HAND (BLACK) MAY 13000008ED Contact Us For Availability
15E
HINGE, CENTER RIGHT HAND (GREY) MAY 13000002AP Contact Us For Availability
16
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
16
MAY 12861601 MAY 12861601 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY W10292803 MAY W10292803 Contact Us For Availability
16
MAY 12804601SP MAY 12804601SP Contact Us For Availability
16A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
16B
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
MAY W10709365 MAY W10709365 Contact Us For Availability
17
MAY W10157765 MAY W10157765 Contact Us For Availability
17
MAY 12990701 MAY 12990701 Contact Us For Availability
17
MAY 12642303WD MAY 12642303WD Contact Us For Availability
18
MAY W10211854 MAY W10211854 Contact Us For Availability
18
MAY W10662407 MAY W10662407 Contact Us For Availability
18
MAY W10317014 MAY W10317014 Contact Us For Availability
18
MAY W10329866 MAY W10329866 Contact Us For Availability
19
GRILLE, TOE (WHITE) MAY W10534154 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
19
GLASS, SHELF MAY 12204824N Contact Us For Availability
19A
GRILLE, TOE (BLACK) MAY W10534153 Contact Us For Availability
19A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
19B
MAY W10534155 MAY W10534155 Contact Us For Availability
20
MAY W10498976 MAY W10498976 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
MAY W10609117 MAY W10609117 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
21
MAY B8381501 MAY B8381501 Contact Us For Availability
21
MAY W10569182 MAY W10569182 Contact Us For Availability
22
MAY B5705333 MAY B5705333 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY W10679216 MAY W10679216 Contact Us For Availability
22
MAY W10171558 MAY W10171558 Contact Us For Availability
23
CLAMP, TUBE MAY M0108107 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
DRIER MAY W10177049 Contact Us For Availability
23
MAY 13062602 MAY 13062602 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10485433 MAY W10485433 Contact Us For Availability
24
MAY 12204830 MAY 12204830 Contact Us For Availability
25
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
25
MAY W10330991 MAY W10330991 Contact Us For Availability
25
MAY 10623002 MAY 10623002 Contact Us For Availability
25
MAY W10528935 MAY W10528935 Contact Us For Availability
25A
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
25A
MAY W10330993 MAY W10330993 Contact Us For Availability
26
MAY 12990521 MAY 12990521 Contact Us For Availability
26
MAY 12477202 MAY 12477202 Contact Us For Availability
26
MAY 12227305WH MAY 12227305WH Contact Us For Availability
27
MAY A3223101 MAY A3223101 Contact Us For Availability
27
MAY W10280608 MAY W10280608 Contact Us For Availability
27
MAY W10189184 MAY W10189184 Contact Us For Availability
27
MAY 12531901 MAY 12531901 Contact Us For Availability
27A
MAY W10280613 MAY W10280613 Contact Us For Availability
28
MAY W10208592 MAY W10208592 Contact Us For Availability
28
MAY W10120018 MAY W10120018 Contact Us For Availability
28
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
28
MAY 12656901 MAY 12656901 Contact Us For Availability
29
MAY 10463203 MAY 10463203 Contact Us For Availability
29
ADAPTER, SLIDE (LEFT HAND) MAY W10284684 Contact Us For Availability
29
MAY W10622701 MAY W10622701 Contact Us For Availability
29
MAY 12656202 MAY 12656202 Contact Us For Availability
29A
ADAPTER, SLIDE (RIGHT HAND) MAY W10284685 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY W10281329 MAY W10281329 Contact Us For Availability
30
MAY 12655402 MAY 12655402 Contact Us For Availability
31
MAY W10802332 MAY W10802332 Contact Us For Availability
31
ROLLER MAY 12477102 Contact Us For Availability
31
MAY W10845509 MAY W10845509 Contact Us For Availability
31A
MAY W10845508 MAY W10845508 Contact Us For Availability
32
MAY 12990504 MAY 12990504 Contact Us For Availability
32
MAY W10137529 MAY W10137529 Contact Us For Availability
33
ARM, SHUT OFF MAY W10202524 Contact Us For Availability
33
MAY W10350564 MAY W10350564 Contact Us For Availability
33
MAY W10235370 MAY W10235370 Contact Us For Availability
34
MAY W10289690 MAY W10289690 Contact Us For Availability
34
MAY W10815863 MAY W10815863 Contact Us For Availability
34
MAY 12990512 MAY 12990512 Contact Us For Availability
35
MAY W10740448N MAY W10740448N Contact Us For Availability
35
MAY 12655304 MAY 12655304 Contact Us For Availability
36
MAY W10793621 MAY W10793621 Contact Us For Availability
36
MAY 12655204 MAY 12655204 Contact Us For Availability
37
MAY W10793298 MAY W10793298 Contact Us For Availability
37
MAY 12731302 MAY 12731302 Contact Us For Availability
38
MAY 12656813 MAY 12656813 Contact Us For Availability
39
MAY W10474716 MAY W10474716 Contact Us For Availability
39A
MAY W10474715 MAY W10474715 Contact Us For Availability
40
MAY W10596756 MAY W10596756 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10389967 MAY W10389967 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
