Model Maytag MFF2258VEM8 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

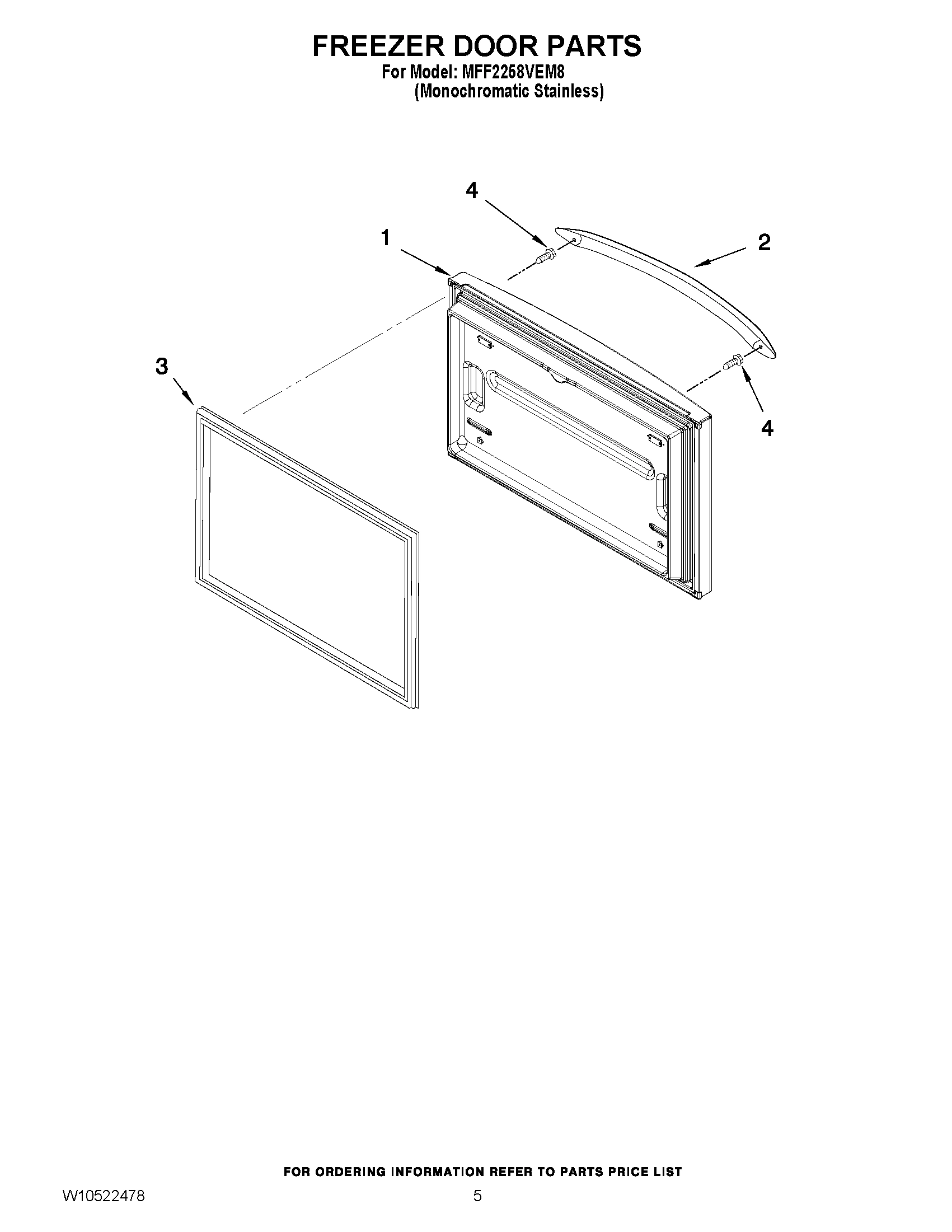

03 - FREEZER DOOR PARTS

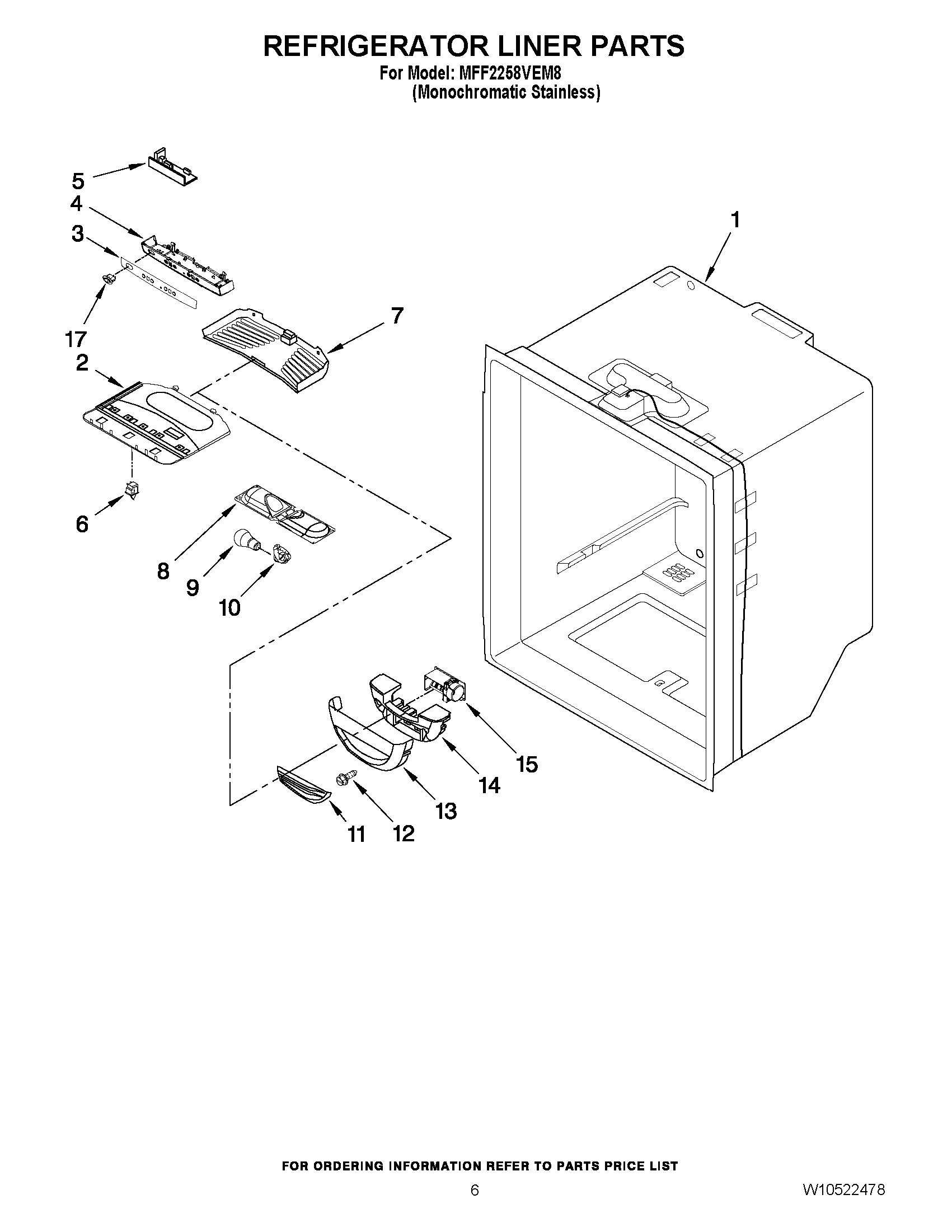

04 - REFRIGERATOR LINER PARTS

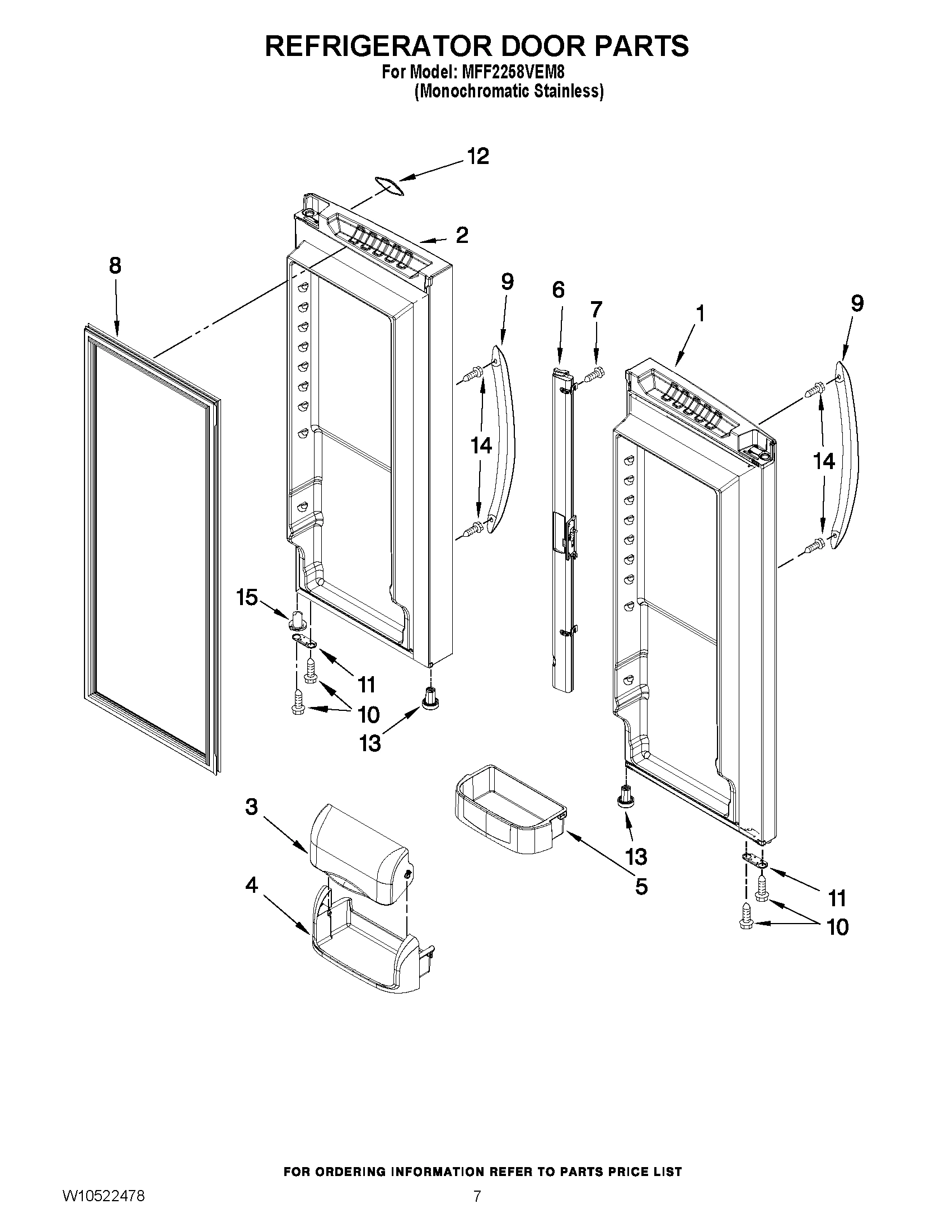

05 - REFRIGERATOR DOOR PARTS

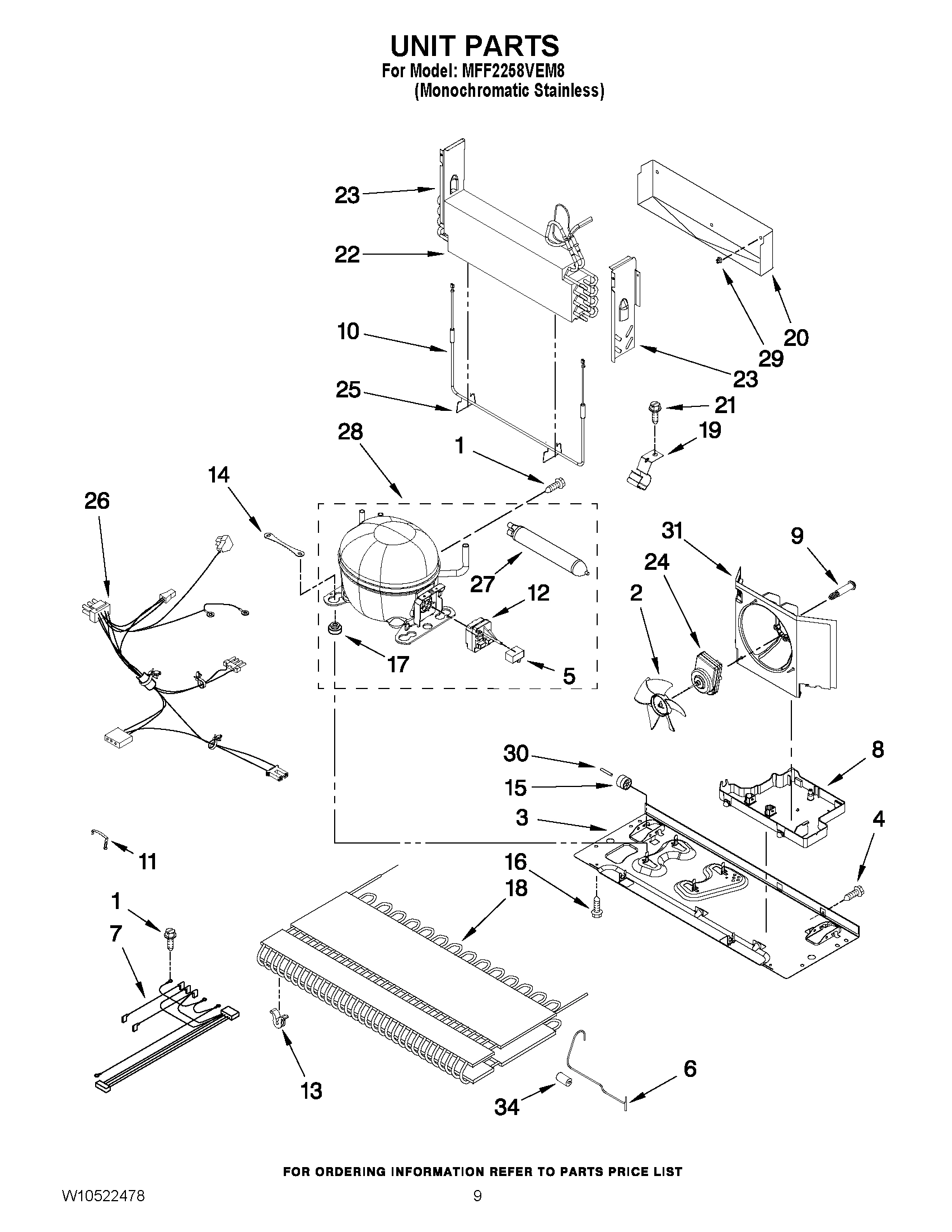

06 - UNIT PARTS

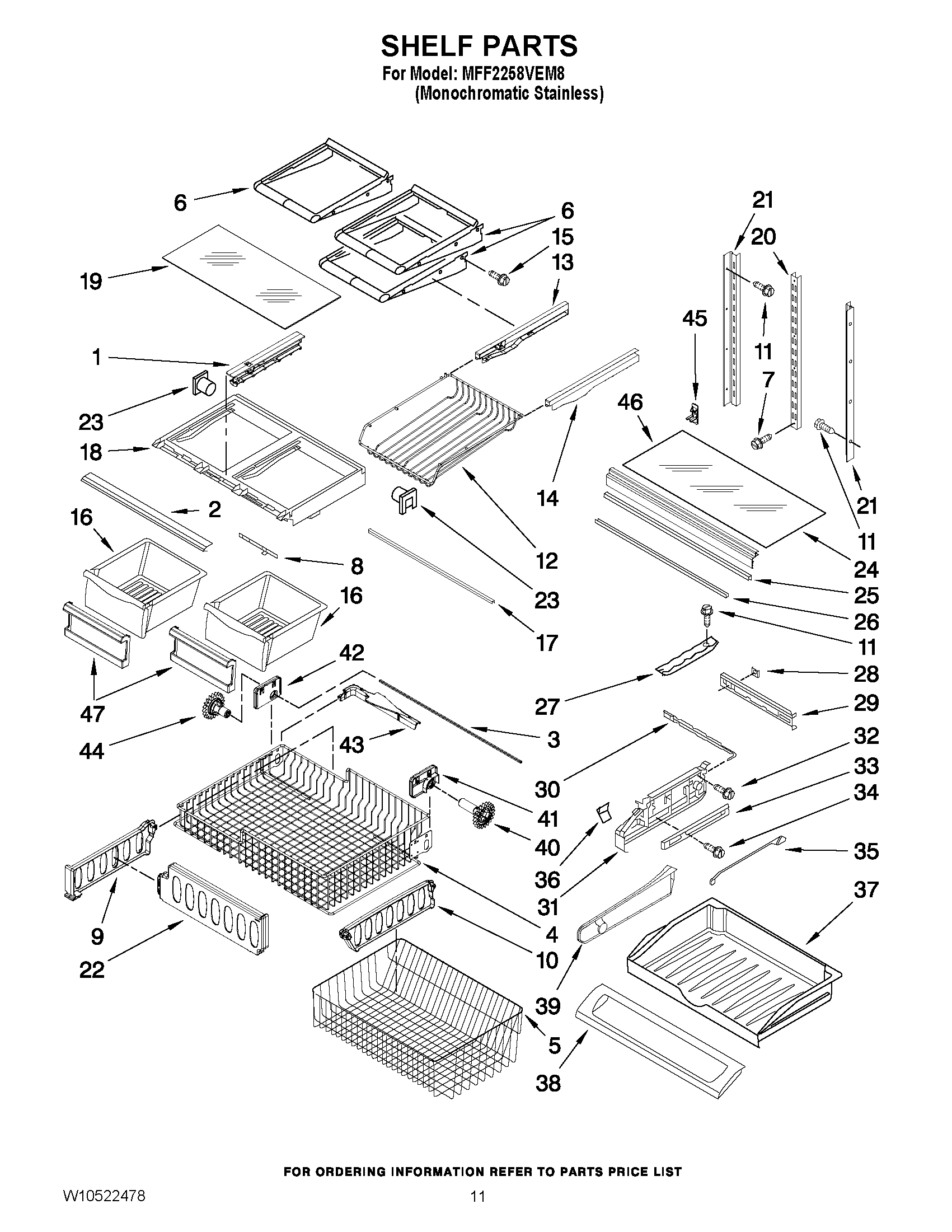

07 - SHELF PARTS

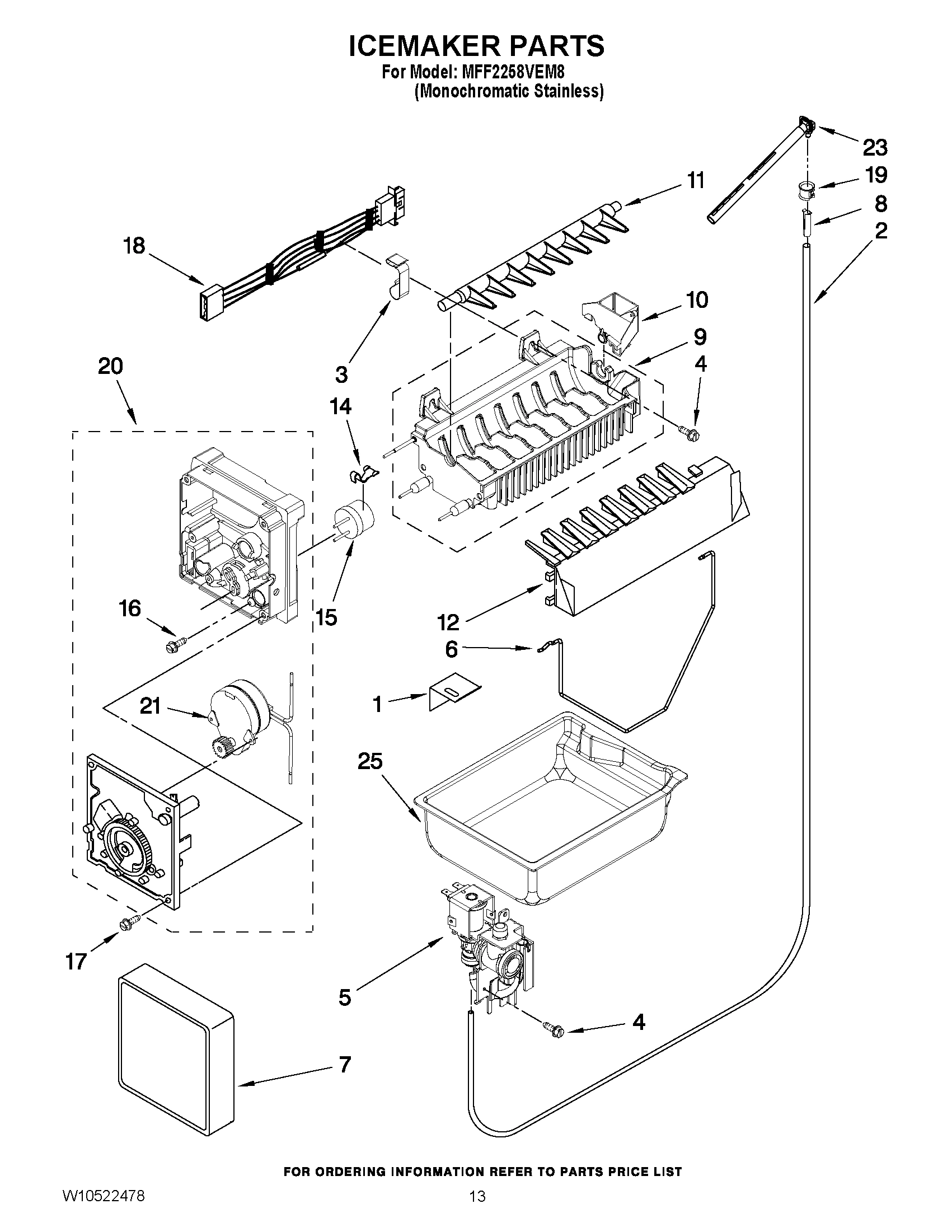

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag MFF2258VEM8 REFRIGERATOR
1
MAY 12977869S MAY 12977869S Contact Us For Availability
1
MAY 13107861S MAY 13107861S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12530701N MAY 12530701N Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10123795N MAY W10123795N Contact Us For Availability
2
MAY W10464766 MAY W10464766 Contact Us For Availability
2
MAY 13107856S MAY 13107856S Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343N MAY W10231343N Contact Us For Availability
2
TUBE, PLASTIC MAY B5705333 Contact Us For Availability
3
COVER, LEFT HINGE (APOLLO GREY) MAY 12962301AP Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
GASKET, DOOR (APOLLO GREY) MAY W10443316N Contact Us For Availability
3
MAY W10316100 MAY W10316100 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10480110 MAY W10480110 Contact Us For Availability
3
Shaft MAY 12812905WD Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10464775 MAY W10464775 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10348238 MAY W10348238 Contact Us For Availability
4
MAY W10001240 MAY W10001240 Contact Us For Availability
5
ROLLER ASSY. (2) (RIGHT SIDE) MAY W10275849 Contact Us For Availability
5
ROLLER ASSY. (2) (LEFT SIDE) MAY W10275850 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
BOARD, CONTROL (INCL INSTR SHEET) MAY 12784415V Contact Us For Availability
5
Bucket, Door (Small (2)) MAY 12801901 Contact Us For Availability
5
Bucket, Door (Medium (1)) MAY 12801902 Contact Us For Availability
5
Bucket, Door (Gallon (Wide)) MAY 12840003 Contact Us For Availability
5
MAY 12840005 MAY 12840005 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY W10150038N MAY W10150038N Contact Us For Availability
5
MAY W10420082 MAY W10420082 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
MAY 12722803APN MAY 12722803APN Contact Us For Availability
6
MAY W10233570 MAY W10233570 Contact Us For Availability
6
Shelf (3) MAY 12463509 Contact Us For Availability
6
ARM-SHUT OFF MAY W10378255 Contact Us For Availability
7
Hinge, Left Top MAY 12963204ED Contact Us For Availability
7
MAY 12812902WD MAY 12812902WD Contact Us For Availability
7
MAY 12806501N MAY 12806501N Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
MAY W10292244 MAY W10292244 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7
MAY W10377174 MAY W10377174 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
GASKET, DOOR (APOLLO GREY-RH) MAY W10443225 Contact Us For Availability
8
GASKET, DOOR (APOLLO GREY-LH) MAY W10443269 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL (2) MAY 12530805SP Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY W10311505 Contact Us For Availability
9
BULB, LIGHT MAY W10311505N Contact Us For Availability
9
MAY W10291144N MAY W10291144N Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY W10241046 MAY W10241046 Contact Us For Availability
9
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) MAY W10300025 Contact Us For Availability
10
Cover, Right Hinge (Apollo Grey) MAY 12962302AP Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
Socket, Light MAY 12570701V Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
MAY W10146440N MAY W10146440N Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY W10308415 MAY W10308415 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
Stop, Door (Apollo Grey) MAY 12968202AP Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
12
Block, Pivot MAY 12698403 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
START DEVICE MAY W10330834 Contact Us For Availability
12
RACK-CAN MAY 12503808SP Contact Us For Availability
12
ICE STRIPPER MAY W10122563 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
BUSHING (RIGHT) MAY 12028601AP Contact Us For Availability
13
BUSHING (LEFT) MAY 12699301AP Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
GLIDE, LEFT MAY 12656601SP Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
MODULE-FZ LIGHT MAY W10277025 Contact Us For Availability
14
MAY W10303465 MAY W10303465 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY W10236396 MAY W10236396 Contact Us For Availability
14
GLIDE, RIGHT MAY 12656602SP Contact Us For Availability
14
CLIP,FUSE MAY 628379 Contact Us For Availability
15
Hinge, Center (LT) (Apollo Grey) MAY 13000001AP Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
MAY W10196393 MAY W10196393 Contact Us For Availability
15
Closure, Door (Apollo Grey) MAY 12028505AP Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
MAY 12990302SP MAY 12990302SP Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC) MAY W10290336 Contact Us For Availability
16
Hinge, Right Top MAY 12963205ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
PAN, CRISPER MAY 12530505SP Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
Cover, Corner (Apollo Grey) MAY 12587703AP Contact Us For Availability
17
MAY 12861601 MAY 12861601 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
Brace, Crisper MAY 12227303WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY W10346420 MAY W10346420 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
18
MAY W10458985 MAY W10458985 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
GLASS, CRISPER COVER MAY 12204822N Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
Screw (4) MAY 12991302 Contact Us For Availability
20
Gasket, Bottom MAY A3189397 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
MODULE ASSEMBLY INCLUDES ITEMS 21& 22) MAY W10281342 Contact Us For Availability
21
MOTOR, NOT AVAILABLE, ORDER ITEM No.20 MAY N/P Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
22
GRILLE, TOE (APOLLO GREY) MAY W10236194N Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY W10317013 MAY W10317013 Contact Us For Availability
22
DIVIDER, UPPER FRZ MAY W10311695 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
Support, Crisper Frame (Left) MAY 12531001 Contact Us For Availability
23
Support, Crisper Frame (Right) MAY 12531002 Contact Us For Availability
23
MAY W10137519 MAY W10137519 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
MAY 12204820 MAY 12204820 Contact Us For Availability
25
BRACKET, DOOR (LEFT) MAY W10330994 Contact Us For Availability
25
BRACKET, DOOR (RIGHT) MAY W10330995 Contact Us For Availability
25
MAY 12655903 MAY 12655903 Contact Us For Availability
25
MAY W10171529N MAY W10171529N Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
Screw (8) MAY 12990521 Contact Us For Availability
26
Harness, Unit with Power Cord MAY W10234024 Contact Us For Availability
26
Brace, Pantry (2) MAY 12227301WD Contact Us For Availability
27
GUARD-WATER VALVE MAY W10208592 Contact Us For Availability
27
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
27
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
TRACK, PANTRY MAY 12531901 Contact Us For Availability
28
MAY M0108107 MAY M0108107 Contact Us For Availability
28
SLIDE, DRAWER (2) MAY W10488000 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 11,12,17,27) MAY W10445422 Contact Us For Availability
28
MAY 12656902 MAY 12656902 Contact Us For Availability
29
ADAPTER, SLIDE (LEFT) MAY W10284684 Contact Us For Availability
29
ADAPTER, SLIDE (RIGHT) MAY W10284685 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 13048301 MAY 13048301 Contact Us For Availability
30
Screw (6) MAY 12990501 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
Slide, Control MAY 13048401 Contact Us For Availability
31
Shim, Top Hinge (Left) MAY 12999501 Contact Us For Availability
31
Shim, Top Hinge (Right) MAY 12999502 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
Endcap, Pantry (Right) MAY 13047701 Contact Us For Availability
31
Endcap, Pantry (Left) MAY 13047801 Contact Us For Availability
32
Screw (4) MAY 12990504 Contact Us For Availability
32
Screw, Block MAY 12990302 Contact Us For Availability
33
Hinge, Center (RT) (Apollo Grey) MAY 13000002AP Contact Us For Availability
33
RAIL-SIDE, LEFT MAY W10284694 Contact Us For Availability
33
RAIL-SIDE, RIGHT MAY W10284695 Contact Us For Availability
33
GLIDE, PANTRY (2) MAY W10235370 Contact Us For Availability
34
SWEEP-WATER VALVE MAY W10485986 Contact Us For Availability
34
MAY W10157765 MAY W10157765 Contact Us For Availability
34
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
34
Screw (4) MAY 12990512 Contact Us For Availability
35
Bar, Temp Cont. MAY 13048201 Contact Us For Availability
36
Knob, Control MAY 12655204 Contact Us For Availability
37
MAY 13048501SP MAY 13048501SP Contact Us For Availability
38
MAY 12656820 MAY 12656820 Contact Us For Availability
39
Divider, Pantry MAY 13048601SP Contact Us For Availability
40
GEAR MAY W10474715 Contact Us For Availability
41
MOUNT, RH GEAR MAY W10348260 Contact Us For Availability
42
MOUNT, LH GEAR MAY W10348259 Contact Us For Availability
43
MAY W10149389N MAY W10149389N Contact Us For Availability
44
GEAR MAY W10474716 Contact Us For Availability
45
LADDER-HOOK-2 MAY 12531802 Contact Us For Availability
46
TRIM-GLASS SUPPORT MAY 13048801 Contact Us For Availability
47
MAY 12802302SP MAY 12802302SP Contact Us For Availability
100
MAY W10469286 MAY W10469286 Contact Us For Availability
NI
Harness, Controls RC Light, Includes Thermist MAY W10216622 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
