Model Maytag MFF2258VEB7 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

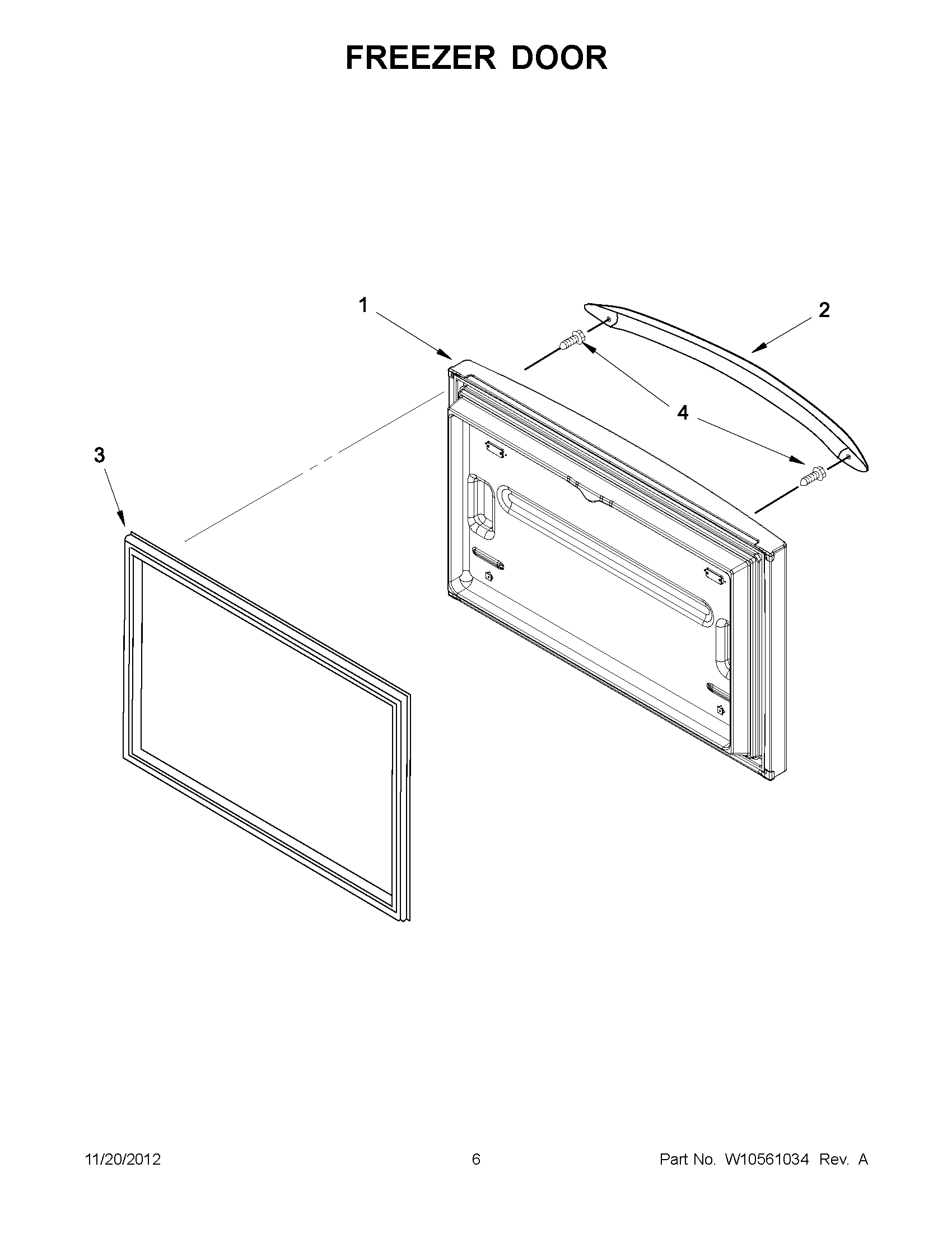

03 - FREEZER DOOR

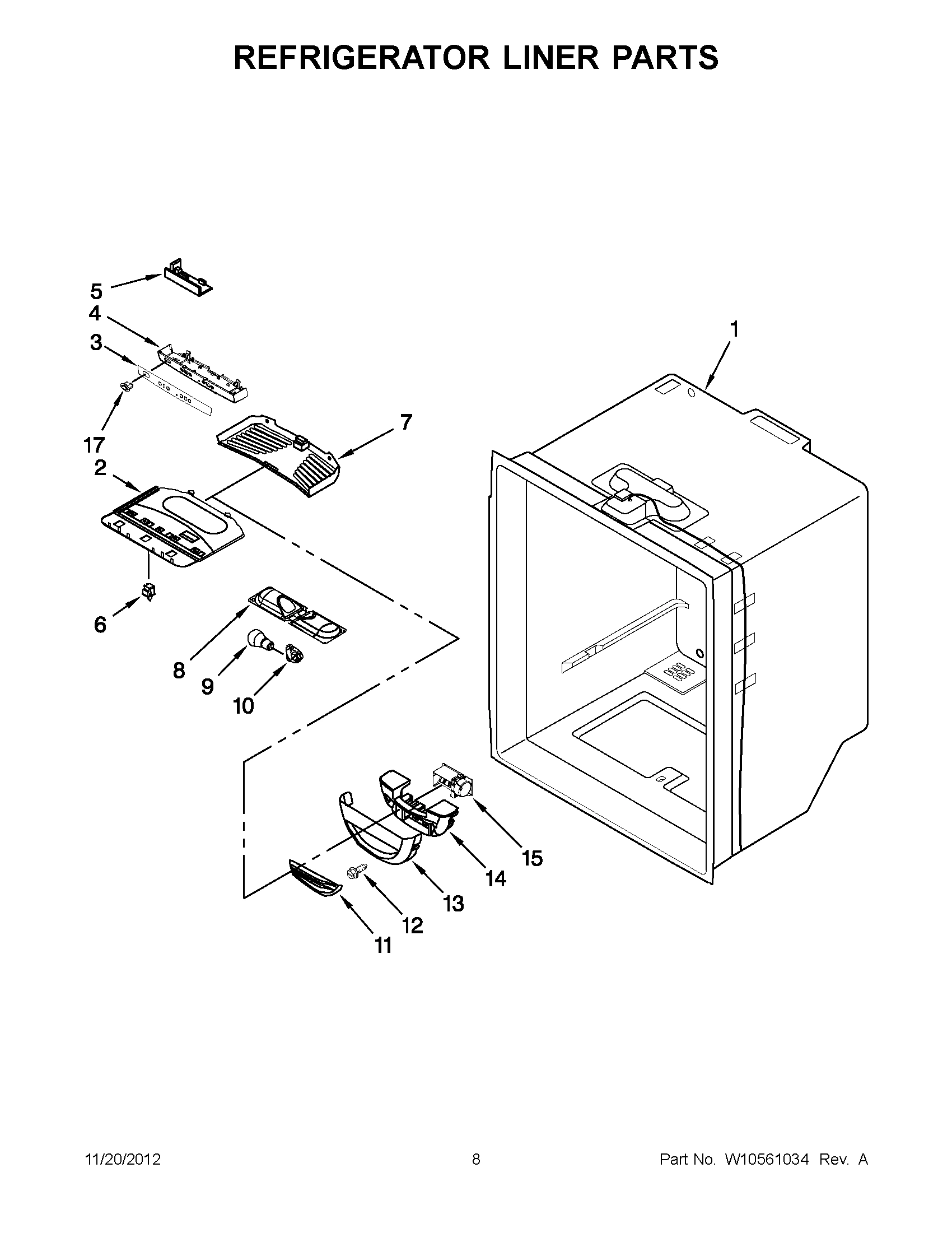

04 - REFRIGERATOR LINER PARTS

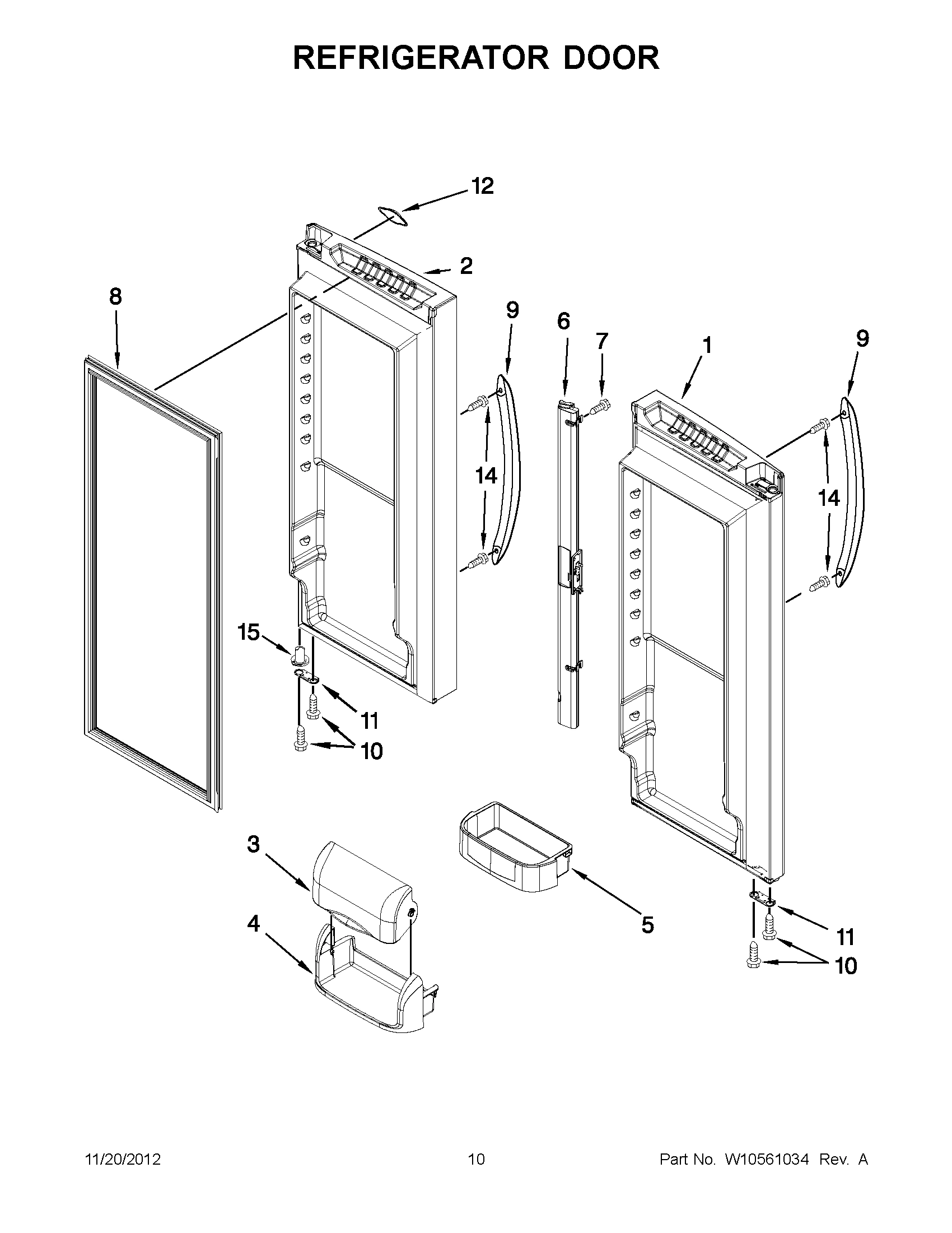

05 - REFRIGERATOR DOOR

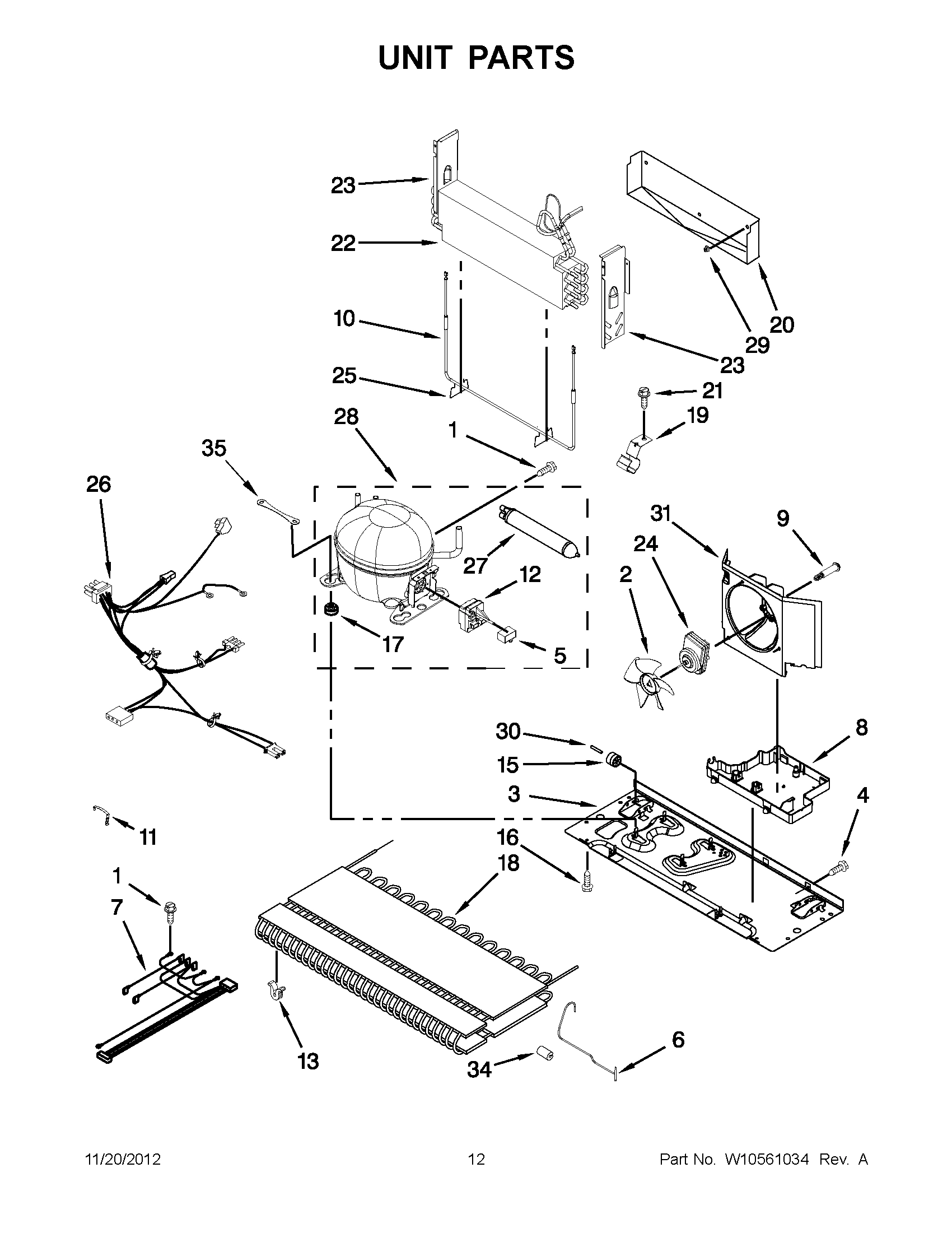

06 - UNIT PARTS

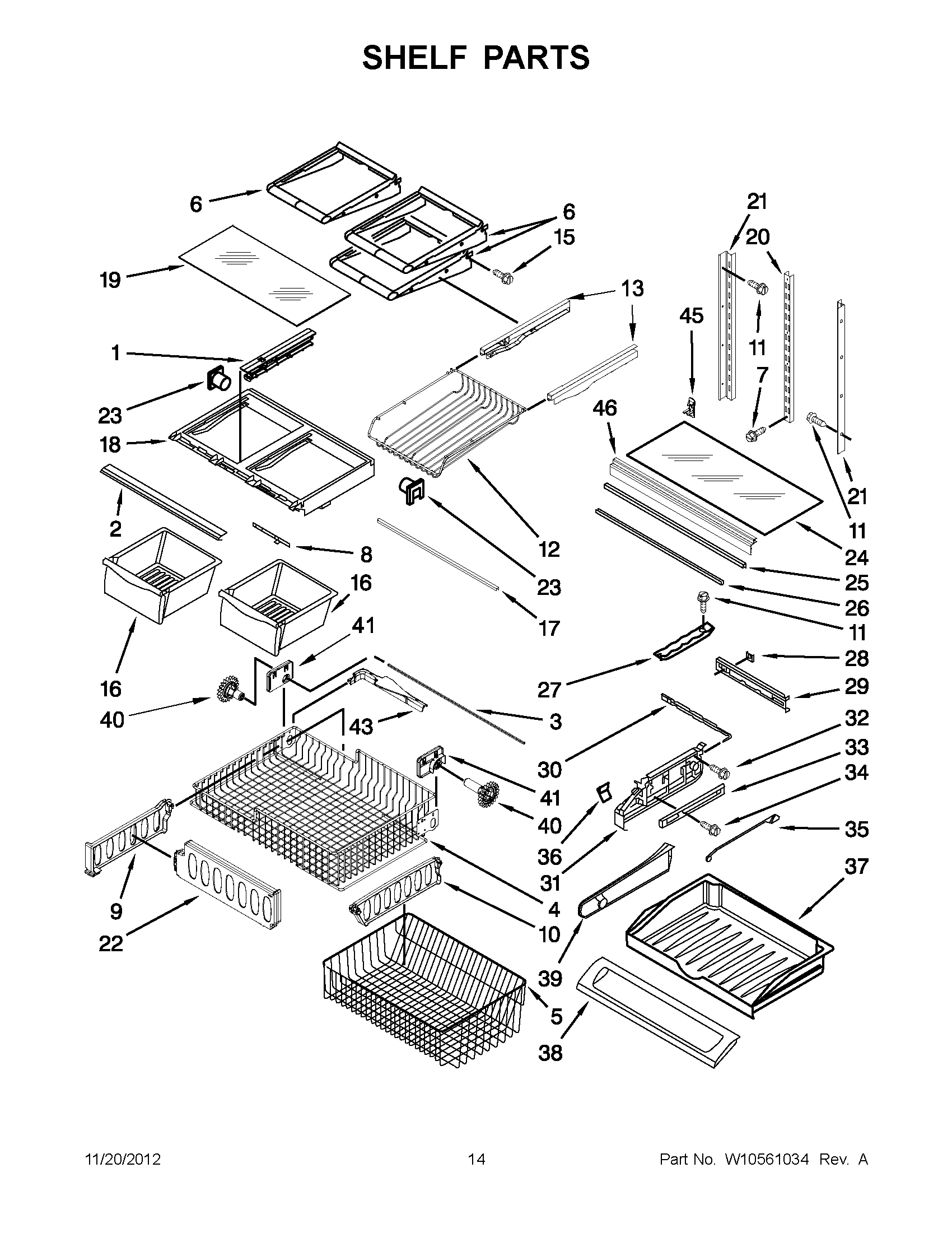

07 - SHELF PARTS

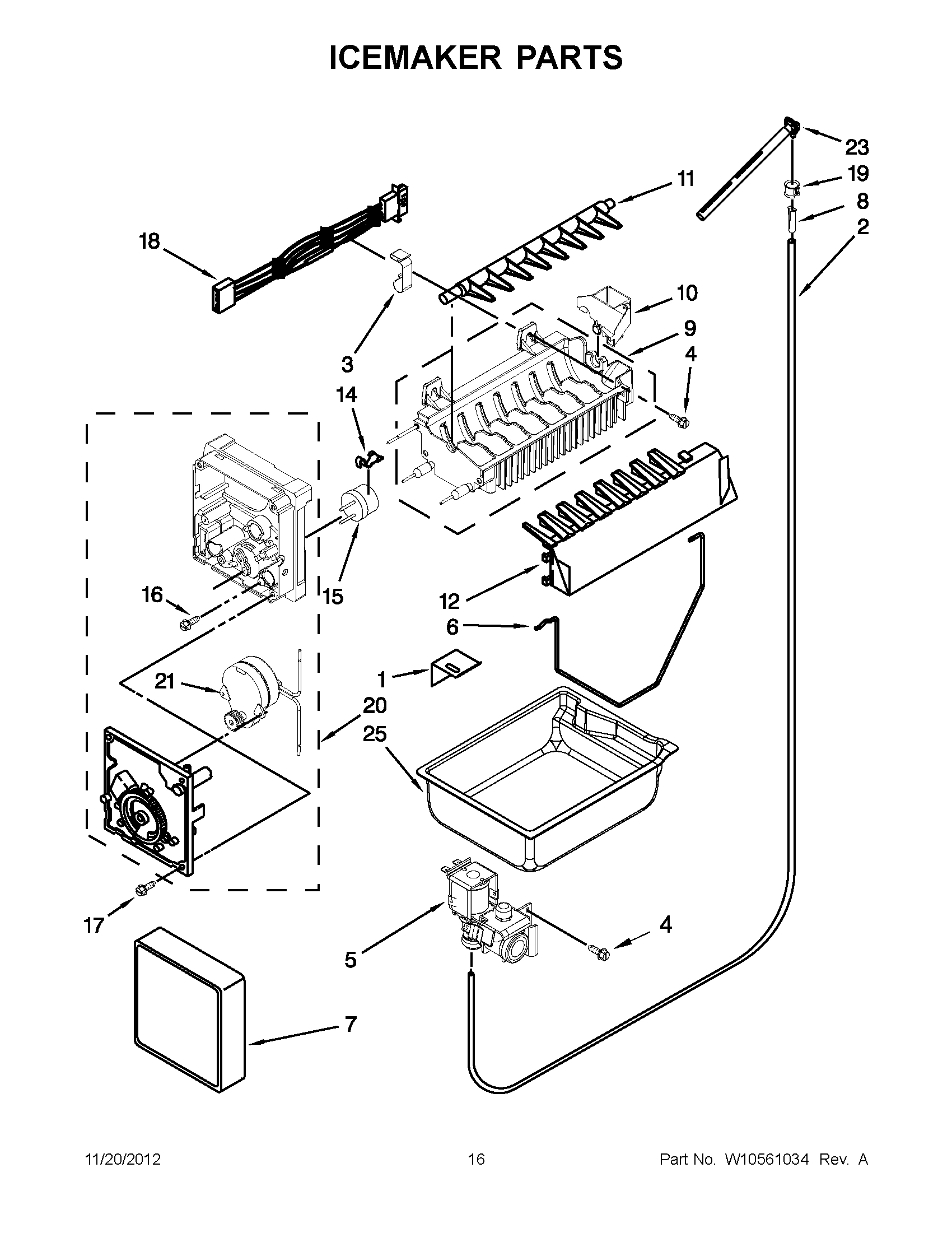

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFF2258VEB7 REFRIGERATOR
1
MAY 12977869B MAY 12977869B Contact Us For Availability
1
MAY 13107883B MAY 13107883B Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12530701N MAY 12530701N Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10123794N MAY W10123794N Contact Us For Availability
2
MAY W10464766 MAY W10464766 Contact Us For Availability
2
MAY 13107856B MAY 13107856B Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343N MAY W10231343N Contact Us For Availability
2
MAY B5705333 MAY B5705333 Contact Us For Availability
3
COVER, LEFT HINGE (BLACK) MAY 12962301B Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY W10436250N MAY W10436250N Contact Us For Availability
3
MAY W10316100 MAY W10316100 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10480110 MAY W10480110 Contact Us For Availability
3
MAY 12812905WD MAY 12812905WD Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY W10464775 MAY W10464775 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
BASKET, UPPER MAY W10348238 Contact Us For Availability
4
MAY W10001240 MAY W10001240 Contact Us For Availability
5
ROLLER ASSY. (RIGHT HAND) MAY W10515762 Contact Us For Availability
5
ROLLER ASSY. (LEFT HAND) MAY W10515763 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
MAY W10503278 MAY W10503278 Contact Us For Availability
5
MAY 12801901 MAY 12801901 Contact Us For Availability
5
BUCKET, DOOR (MEDIUM) MAY 12801902 Contact Us For Availability
5
BUCKET, DOOR (BIN, SHELF (GALLON)) MAY 12840003 Contact Us For Availability
5
BUCKET, DOOR (BUCKET, GALLON) MAY 12840005 Contact Us For Availability
5
MAY W10350564 MAY W10350564 Contact Us For Availability
5
MAY W10503183 MAY W10503183 Contact Us For Availability
5
MAY W10498976 MAY W10498976 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
MAY 12722803BN MAY 12722803BN Contact Us For Availability
6
MAY W10233570 MAY W10233570 Contact Us For Availability
6
MAY 12463509 MAY 12463509 Contact Us For Availability
6
MAY W10512602 MAY W10512602 Contact Us For Availability
7
TOP HINGE (LEFT HAND) MAY 12963204ED Contact Us For Availability
7
TOP HINGE (RIGHT HAND) MAY 12963205ED Contact Us For Availability
7
MAY 12812902WD MAY 12812902WD Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES HEATER) MAY W10292244 Contact Us For Availability
7
MAY W10215666 MAY W10215666 Contact Us For Availability
7
MAY W10377174 MAY W10377174 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
GASKET, DOOR (BLACK) (RIGHT HAND) MAY W10435968 Contact Us For Availability
8
GASKET, DOOR (BLACK) (LEFT HAND) MAY W10435972 Contact Us For Availability
8
MAY W10296784 MAY W10296784 Contact Us For Availability
8
MAY 12530805SP MAY 12530805SP Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY W10311505 Contact Us For Availability
9
BULB, LIGHT MAY W10311505N Contact Us For Availability
9
MAY 13004701BN MAY 13004701BN Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
DIVIDER, UPPER MAY W10241046 Contact Us For Availability
9
ASSEMBLY, MOLD & HEATER MAY W10300025 Contact Us For Availability
10
Cover, Right Hinge (Black) MAY 12962302B Contact Us For Availability
10
Socket, Light MAY 12570701V Contact Us For Availability
10
HOUSING, FOIL MAY W10277466 Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
DIVIDER, LOWER MAY W10146440N Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY W10308415 MAY W10308415 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12968202B MAY 12968202B Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY W10330834 MAY W10330834 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
EJECTOR, ARM MAY W10318914 Contact Us For Availability
12
MAY 12698403 MAY 12698403 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
NAMEPLATE (STAINLESS) MAY W10170766 Contact Us For Availability
12
RACK-CAN MAY 12503808SP Contact Us For Availability
12
STRIPPER, ICE MAY W10122563 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
13
GLIDE (LEFT HAND) MAY 12656601SP Contact Us For Availability
13
GLIDE (RIGHT HAND) MAY 12656602SP Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MAY W10460893 MAY W10460893 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
15
HINGE, CENTER (LT) (BLACK) MAY 13000007ED Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
DAMPER, CONTROL MAY W10196393 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
SCREW MAY 12990302SP Contact Us For Availability
15
MAY W10290336 MAY W10290336 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12530505N MAY 12530505N Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
MAY 12861601 MAY 12861601 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
17
MAY 12227303WD MAY 12227303WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY W10505456 MAY W10505456 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401SP Contact Us For Availability
18
MAY W10458985 MAY W10458985 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY 12204822N MAY 12204822N Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY A3189397 MAY A3189397 Contact Us For Availability
20
MAY W10292802 MAY W10292802 Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
MOTOR, NOT AVAILABLE, ORDER ITEM No.20 MAY N/P Contact Us For Availability
21
MAY B8381501 MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251969 MAY W10251969 Contact Us For Availability
22
MAY W10236196N MAY W10236196N Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
EVAPORATOR KIT MAY W10317013 Contact Us For Availability
22
DIVIDER, UPPER MAY W10311695 Contact Us For Availability
23
Shroud, Evaporator MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
23
SUPPORT, CRISPER FRAME (LEFT HAND) MAY 12531001 Contact Us For Availability
23
SUPPORT, CRISPER FRAME (RIGHT HAND) MAY 12531002 Contact Us For Availability
23
MAY 10463203 MAY 10463203 Contact Us For Availability
24
TUBE-DRAIN MAY W10344402 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
MAY 12204820 MAY 12204820 Contact Us For Availability
25
MAY W10330991 MAY W10330991 Contact Us For Availability
25
MAY W10330993 MAY W10330993 Contact Us For Availability
25
MAY 12655903 MAY 12655903 Contact Us For Availability
25
MAY W10171529N MAY W10171529N Contact Us For Availability
26
MAY 12820505 MAY 12820505 Contact Us For Availability
26
MAY 12990521 MAY 12990521 Contact Us For Availability
26
HARNESS, UNIT (INCLUDES POWER CORD) MAY W10234024 Contact Us For Availability
26
MAY 12227301WD MAY 12227301WD Contact Us For Availability
27
MAY W10208592 MAY W10208592 Contact Us For Availability
27
CRADLE-BASKET (LEFT HAND) MAY W10280608 Contact Us For Availability
27
CRADLE-BASKET (RIGHT HAND) MAY W10280613 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12531901 MAY 12531901 Contact Us For Availability
28
MAY M0108107 MAY M0108107 Contact Us For Availability
28
MAY W10120018 MAY W10120018 Contact Us For Availability
28
COMPRESSOR MAY W10445422 Contact Us For Availability
28
MAY 12656902 MAY 12656902 Contact Us For Availability
29
ADAPTER, SLIDE (LEFT HAND) MAY W10284684 Contact Us For Availability
29
ADAPTER, SLIDE (RIGHT HAND) MAY W10284685 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 13048301 MAY 13048301 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
30
MAY 13048401 MAY 13048401 Contact Us For Availability
31
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
31
SHIM, TOP HINGE MAY 12999502 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
MAY 13047701 MAY 13047701 Contact Us For Availability
31
MAY 13047801 MAY 13047801 Contact Us For Availability
32
MAY 12990504 MAY 12990504 Contact Us For Availability
32
MAY 12990302 MAY 12990302 Contact Us For Availability
33
HINGE, CENTER (RT) (BLACK) MAY 13000008ED Contact Us For Availability
33
RAIL-SIDE (RIGHT HAND) MAY W10516602 Contact Us For Availability
33
RAIL-SIDE (LEFT HAND) MAY W10516603 Contact Us For Availability
33
MAY W10235370 MAY W10235370 Contact Us For Availability
34
MAY W10485986 MAY W10485986 Contact Us For Availability
34
MAY W10157765 MAY W10157765 Contact Us For Availability
34
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
34
MAY 12990512 MAY 12990512 Contact Us For Availability
35
MAY 10351006 MAY 10351006 Contact Us For Availability
35
MAY 12791409SP MAY 12791409SP Contact Us For Availability
35
MAY W10236396 MAY W10236396 Contact Us For Availability
35
MAY 13048201 MAY 13048201 Contact Us For Availability
36
MAY W10309238 MAY W10309238 Contact Us For Availability
36
MAY 12655204 MAY 12655204 Contact Us For Availability
37
MAY 13048501SP MAY 13048501SP Contact Us For Availability
38
MAY 12656820 MAY 12656820 Contact Us For Availability
39
MAY 13048601SP MAY 13048601SP Contact Us For Availability
40
MAY W10474715 MAY W10474715 Contact Us For Availability
40
MAY W10474716 MAY W10474716 Contact Us For Availability
41
MOUNT-GEAR (LEFT HAND) MAY W10348259 Contact Us For Availability
41
MOUNT-GEAR (RIGHT HAND) MAY W10348260 Contact Us For Availability
43
MAY W10149389N MAY W10149389N Contact Us For Availability
45
MAY 12531802 MAY 12531802 Contact Us For Availability
46
MAY 13048801 MAY 13048801 Contact Us For Availability
100
ICEMAKER ASSEMBLY (COMPLETE) MAY W10469286 Contact Us For Availability
NI
HARNESS, LIGHT (WITH THERMISTORS) MAY W10216622 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
