Model Maytag MFF2055YEB02 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

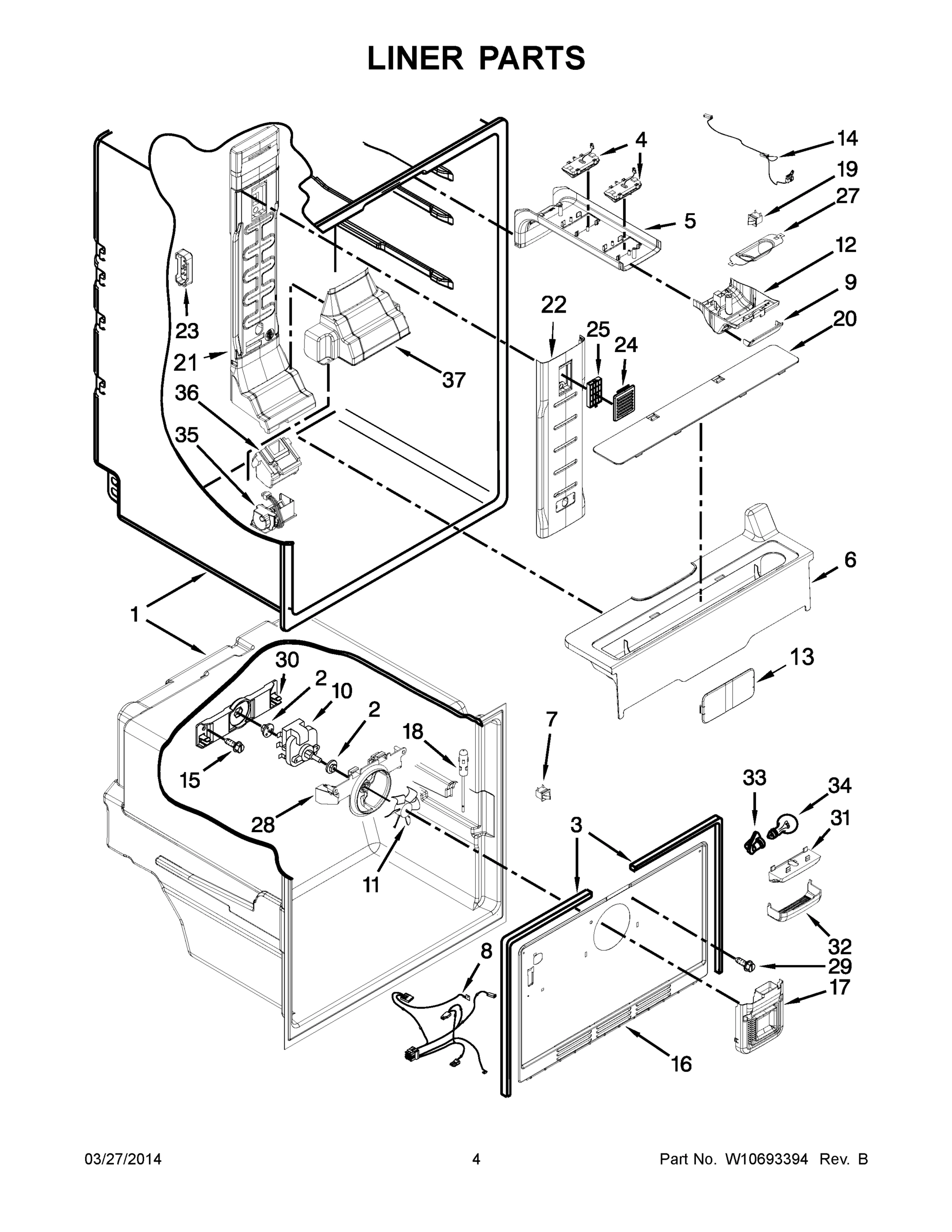

03 - LINER PARTS

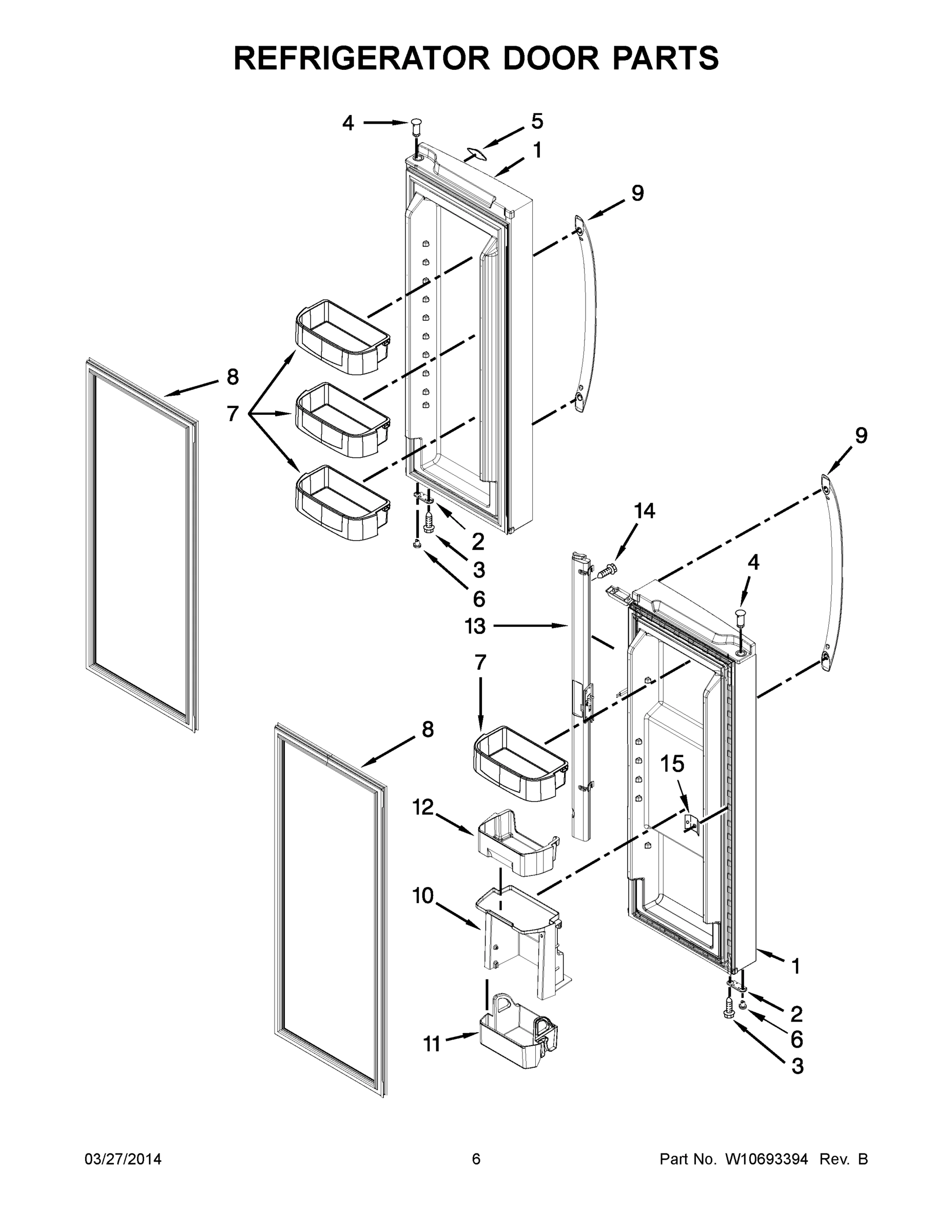

04 - REFRIGERATOR DOOR PARTS

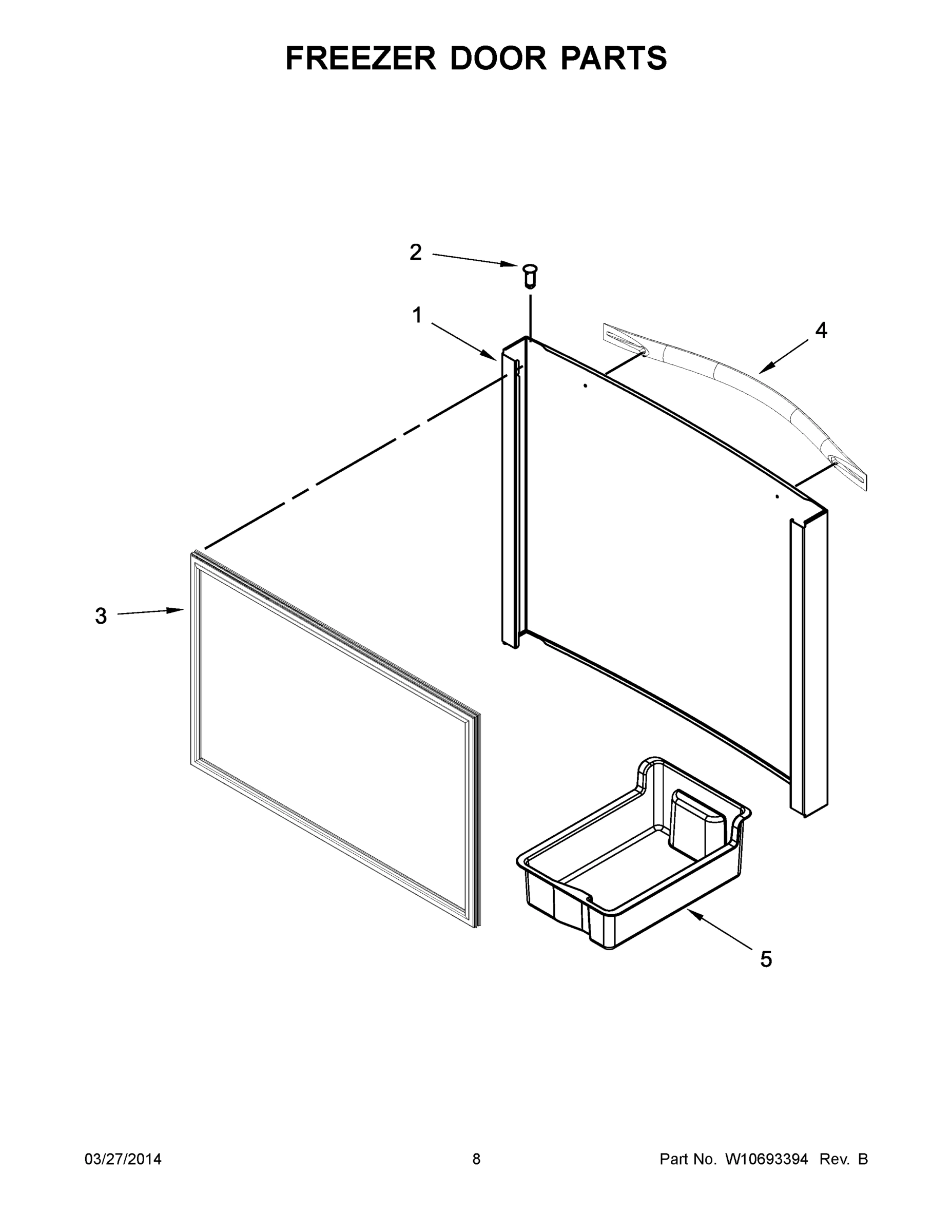

05 - FREEZER DOOR PARTS

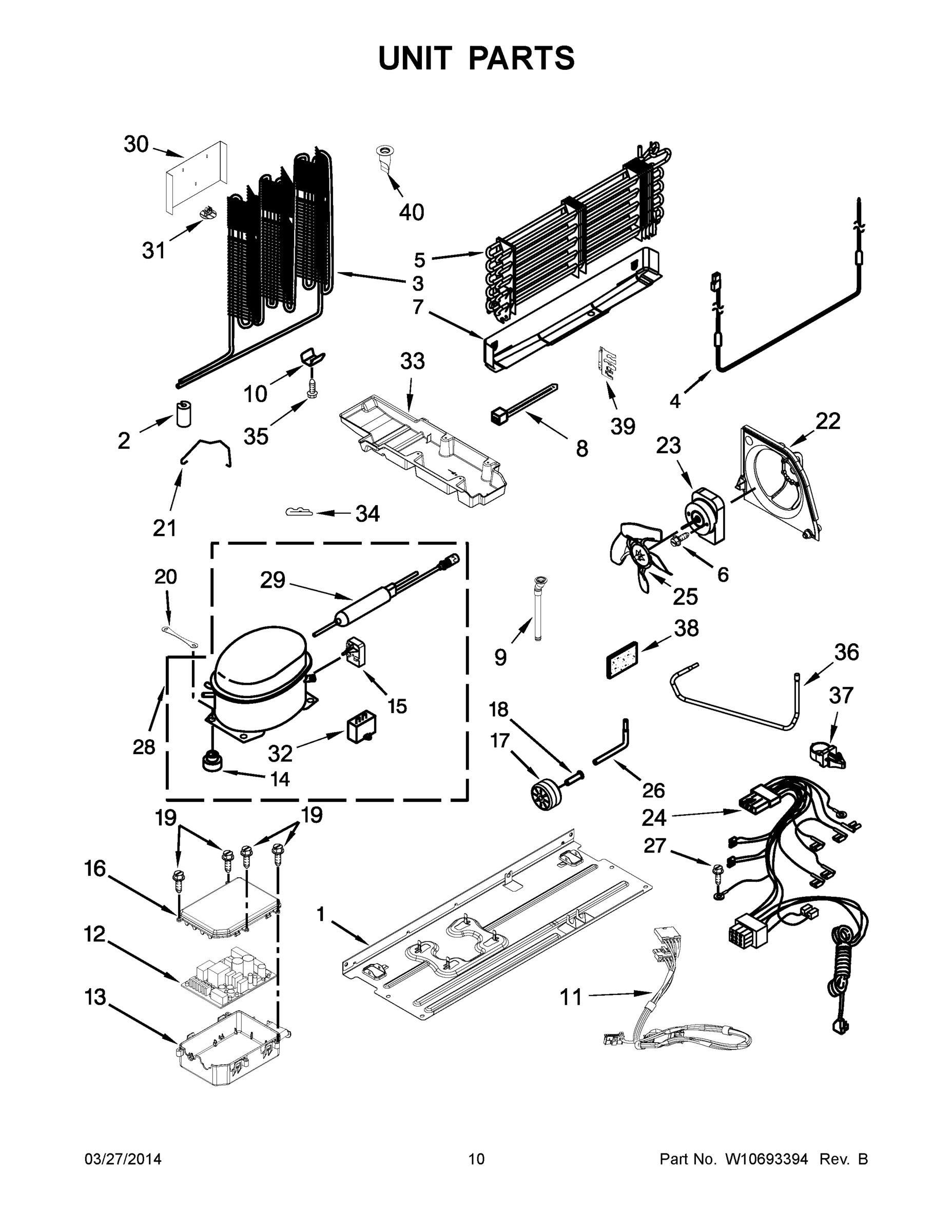

06 - UNIT PARTS

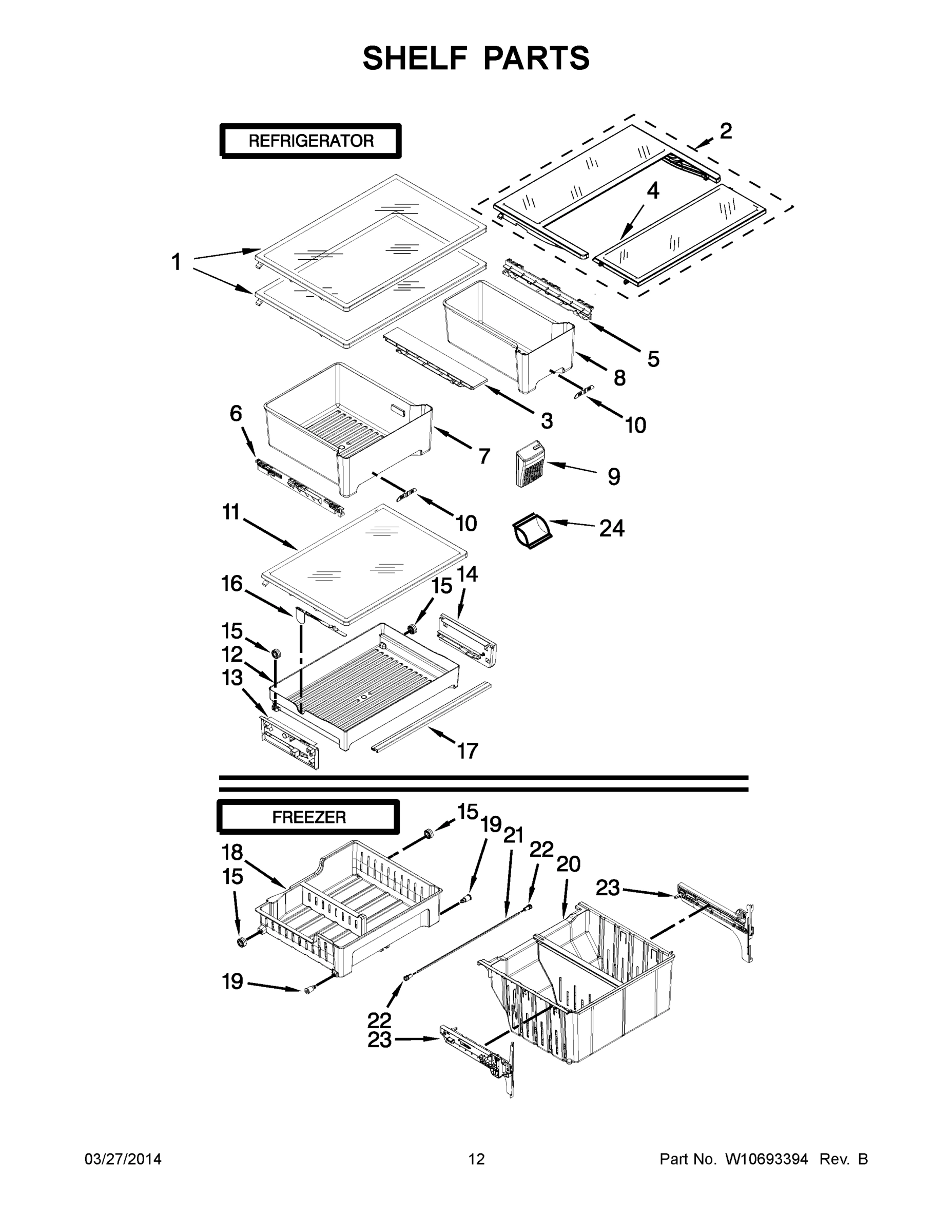

07 - SHELF PARTS

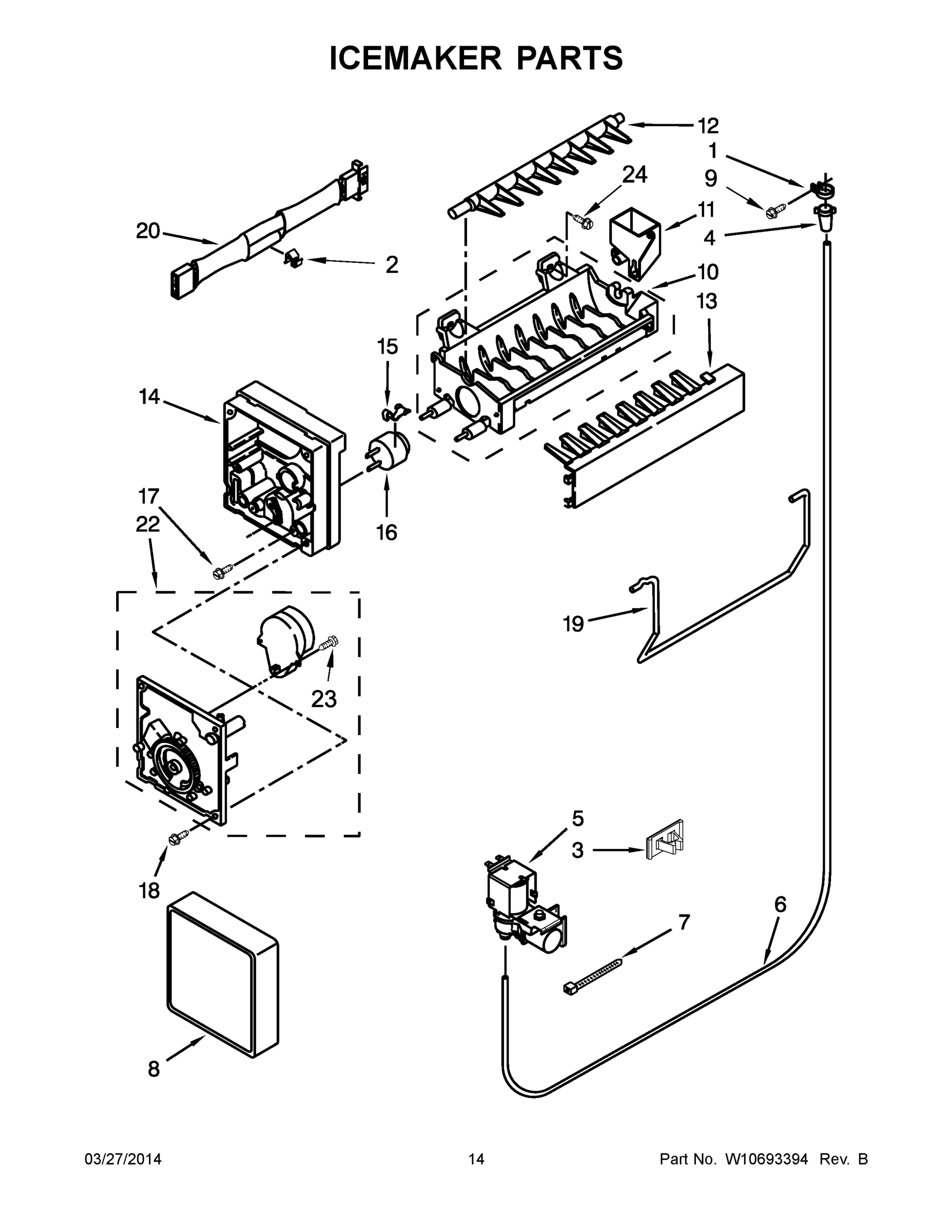

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag MFF2055YEB02 REFRIGERATOR
1
ICEMAKER SERVICE SHEET MAY 2225623 Contact Us For Availability
1
MAY W10405120 MAY W10405120 Contact Us For Availability
1
MAY W10458271 MAY W10458271 Contact Us For Availability
1
MAY W10596092 MAY W10596092 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (RIGHT HAND MAY W10353181 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (LEFT HAND MAY W10393587 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (RIGHT HAND MAY W10413518 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (RIGHT HAND MAY W10413519 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (LEFT HAND MAY W10413522 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.8) (LEFT HAND MAY W10413524 Contact Us For Availability
1
MAY W10353182 MAY W10353182 Contact Us For Availability
1
MAY W10413530 MAY W10413530 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ILLUS. 2 & 3) (STAINLE MAY W10413531 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
1
ASSEMBLY, FULL SHELF (30``) MAY W10486290 Contact Us For Availability
1
CLAMP, TUBE MAY W10329003 Contact Us For Availability
2
MAY W10546298 MAY W10546298 Contact Us For Availability
2
MAY W10546299 MAY W10546299 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
2
THIMBLE, TOP (BLACK) MAY W10334042 Contact Us For Availability
2
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
2
MAY W10476425 MAY W10476425 Contact Us For Availability
2
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
3
ROLLER, FRONT (RIGHT HAND) MAY W10359255 Contact Us For Availability
3
ROLLER, FRONT (LEFT HAND) MAY W10359256 Contact Us For Availability
3
MAY W10468762 MAY W10468762 Contact Us For Availability
3
MAY W10465758 MAY W10465758 Contact Us For Availability
3
MAY W10465761 MAY W10465761 Contact Us For Availability
3
GASKET, FC (GREY) MAY W10465762 Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
3
RAIL, TRACK (CENTER) MAY W10468557 Contact Us For Availability
3
MAY W10352217 MAY W10352217 Contact Us For Availability
4
MAY W10569758 MAY W10569758 Contact Us For Availability
4
MAY W10360497 MAY W10360497 Contact Us For Availability
4
MAY W10366270 MAY W10366270 Contact Us For Availability
4
MAY W10360538 MAY W10360538 Contact Us For Availability
4
MAY W10409179 MAY W10409179 Contact Us For Availability
4
MAY W10409180 MAY W10409180 Contact Us For Availability
4
MAY W10436849 MAY W10436849 Contact Us For Availability
4
MAY W10305243 MAY W10305243 Contact Us For Availability
4
MAY 2181939 MAY 2181939 Contact Us For Availability
5
MAY W10346257 MAY W10346257 Contact Us For Availability
5
MAY W10469878 MAY W10469878 Contact Us For Availability
5
MAY W10170766 MAY W10170766 Contact Us For Availability
5
MAY W10378263 MAY W10378263 Contact Us For Availability
5
MAY W10321158 MAY W10321158 Contact Us For Availability
5
RAIL, TRACK (RIGHT HAND) MAY W10468556 Contact Us For Availability
5
MAY W10279909 MAY W10279909 Contact Us For Availability
6
MAY W10306392 MAY W10306392 Contact Us For Availability
6
CONTAINER, WATER RESERVOIR MAY W10326338 Contact Us For Availability
6
MAY W10470155 MAY W10470155 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
RAIL, TRACK (LEFT HAND) MAY W10468555 Contact Us For Availability
6
MAY W10496649 MAY W10496649 Contact Us For Availability
7
MAY 12466105 MAY 12466105 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
7
MAY W10331764 MAY W10331764 Contact Us For Availability
7
TIE, WIRE MAY 2263990 Contact Us For Availability
7
PAN, CRISPER (16``) MAY W10370327 Contact Us For Availability
8
COVER, TOE GRILLE (WHITE) MAY W10339257 Contact Us For Availability
8
MAY W10353930 MAY W10353930 Contact Us For Availability
8
COVER, TOE GRILLE (GREY) MAY W10353932 Contact Us For Availability
8
MAY W10487766 MAY W10487766 Contact Us For Availability
8
MAY W10353189 MAY W10353189 Contact Us For Availability
8
MAY W10413465 MAY W10413465 Contact Us For Availability
8
GASKET, RC (GREY) MAY W10413468 Contact Us For Availability
8
PAN, CRISPER (8``) MAY W10317184 Contact Us For Availability
8
MAY W10289690 MAY W10289690 Contact Us For Availability
9
MAY 489442 MAY 489442 Contact Us For Availability
9
MAY W10360550 MAY W10360550 Contact Us For Availability
9
HANDLE ASSEMBLY (WHITE) MAY W10252284 Contact Us For Availability
9
MAY W10252285 MAY W10252285 Contact Us For Availability
9
HANDLE ASSEMBLY (STAINLESS) MAY W10252288 Contact Us For Availability
9
MAY W10314199 MAY W10314199 Contact Us For Availability
9
MAY W10408748 MAY W10408748 Contact Us For Availability
9
SCREW MAY 488886 Contact Us For Availability
10
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
10
MAY W10464673 MAY W10464673 Contact Us For Availability
10
MAY W10317224 MAY W10317224 Contact Us For Availability
10
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
10
MAY W10356846 MAY W10356846 Contact Us For Availability
10
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) MAY 628228 Contact Us For Availability
11
MAY W10449880 MAY W10449880 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
MAY W10462298 MAY W10462298 Contact Us For Availability
11
MAY W10424230 MAY W10424230 Contact Us For Availability
11
MAY W10513681 MAY W10513681 Contact Us For Availability
11
MAY W10435665 MAY W10435665 Contact Us For Availability
12
Clamp, Power Cord MAY 549193 Contact Us For Availability
12
MAY W10435577 MAY W10435577 Contact Us For Availability
12
MAY W10372916 MAY W10372916 Contact Us For Availability
12
ELECTRONIC CONTROL MAY W10547719 Contact Us For Availability
12
MAY W10397907 MAY W10397907 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
MAY W10336009 MAY W10336009 Contact Us For Availability
13
MAY W10624448 MAY W10624448 Contact Us For Availability
13
FLIPPER MULLION ASSEMBLY (GREY) MAY W10624450 Contact Us For Availability
13
MAY W10624451 MAY W10624451 Contact Us For Availability
13
MAY W10370696 MAY W10370696 Contact Us For Availability
13
PANTRY RAIL, LEFT HAND MAY W10317191 Contact Us For Availability
13
STRIPPER, ICE MAY W10122563 Contact Us For Availability
14
MAY W10521409 MAY W10521409 Contact Us For Availability
14
MAY W10521411 MAY W10521411 Contact Us For Availability
14
MAY W10421350 MAY W10421350 Contact Us For Availability
14
MAY 12990302 MAY 12990302 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
14
PANTRY RAIL, RIGHT HAND MAY W10317189 Contact Us For Availability
14
MAY 2194712 MAY 2194712 Contact Us For Availability
15
MAY W10450363 MAY W10450363 Contact Us For Availability
15
SCREW ANCHOR MAY 939101 Contact Us For Availability
15
DEVICE, START MAY W10448874 Contact Us For Availability
15
MAY W10278139 MAY W10278139 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
MAY 2262176 MAY 2262176 Contact Us For Availability
16
MAY W10300900 MAY W10300900 Contact Us For Availability
16
MAY W10313215 MAY W10313215 Contact Us For Availability
16
MAY W10411411 MAY W10411411 Contact Us For Availability
16
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
17
MAY W10317182 MAY W10317182 Contact Us For Availability
17
MAY W10475495 MAY W10475495 Contact Us For Availability
17
MAY W10507470 MAY W10507470 Contact Us For Availability
17
MAY W10001280 MAY W10001280 Contact Us For Availability
18
MAY W10383615 MAY W10383615 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
18
FREEZER BIN, UPPER MAY W10554330 Contact Us For Availability
19
MAY W10444800 MAY W10444800 Contact Us For Availability
19
SWITCH, ROCKER ARM (REFRIGERATOR) MAY 1118894 Contact Us For Availability
19
MAY 8533859 MAY 8533859 Contact Us For Availability
19
MAY W10257246 MAY W10257246 Contact Us For Availability
19
SHUT OFF ARM MAY W10474785 Contact Us For Availability
20
CORNER FILLER (WHITE) MAY W10283959 Contact Us For Availability
20
CORNER FILLER (BLACK) MAY W10283960 Contact Us For Availability
20
CORNER FILLER (GREY) MAY W10283961 Contact Us For Availability
20
MAY W10413160 MAY W10413160 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
20
MAY W10317289 MAY W10317289 Contact Us For Availability
20
ASSEMBLY, ICE MAKER WIRE MAY W10309400 Contact Us For Availability
21
MAY W10300127 MAY W10300127 Contact Us For Availability
21
MAY W10353933 MAY W10353933 Contact Us For Availability
21
MAY W10353935 MAY W10353935 Contact Us For Availability
21
MAY W10448448 MAY W10448448 Contact Us For Availability
21
MAY W10174384 MAY W10174384 Contact Us For Availability
21
MAY W10371538 MAY W10371538 Contact Us For Availability
22
GASKET, SEAL MAY 1106508 Contact Us For Availability
22
TOWER, MULTIFLOW AIR MAY W10356895 Contact Us For Availability
22
BAFFLE, AIR MAY 2315541 Contact Us For Availability
22
COLLAR, GEAR MAY W10277361 Contact Us For Availability
22
ASSEMBLY, MODULE AND MOTOR MAY W10223929 Contact Us For Availability
23
MAY W10601149 MAY W10601149 Contact Us For Availability
23
MAY W10425252 MAY W10425252 Contact Us For Availability
23
MAY W10508362 MAY W10508362 Contact Us For Availability
23
MAY W10397635 MAY W10397635 Contact Us For Availability
23
MAY W10397636 MAY W10397636 Contact Us For Availability
23
Screw MAY 489136 Contact Us For Availability
24
MAY W10449611 MAY W10449611 Contact Us For Availability
24
Screw MAY 488208 Contact Us For Availability
24
MAY W10330850 MAY W10330850 Contact Us For Availability
24
ASSEMBLY, UNIT WIRE MAY W10390445 Contact Us For Availability
24
MAY W10346771 MAY W10346771 Contact Us For Availability
25
COVER, HINGE (RIGHT HAND (WHITE)) MAY W10465764 Contact Us For Availability
25
COVER, HINGE (LEFT HAND (WHITE)) MAY W10465765 Contact Us For Availability
25
MAY W10465767 MAY W10465767 Contact Us For Availability
25
MAY W10465768 MAY W10465768 Contact Us For Availability
25
COVER, HINGE (RIGHT HAND (BLACK)) MAY W10465770 Contact Us For Availability
25
COVER, HINGE (LEFT HAND (BLACK)) MAY W10465771 Contact Us For Availability
25
FILTER, AIR MAY W10315189 Contact Us For Availability
25
MAY W10139483 MAY W10139483 Contact Us For Availability
26
MAY W10331226 MAY W10331226 Contact Us For Availability
26
MAY VS20001 MAY VS20001 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
28
CLIP, ROLLER MAY 2174706 Contact Us For Availability
28
MAY W10321162 MAY W10321162 Contact Us For Availability
28
MAY W10445423 MAY W10445423 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY W10190413 MAY W10190413 Contact Us For Availability
30
BRACKET EVAPORATOR FAN, REAR MAY 2254454 Contact Us For Availability
30
MAY W10349514 MAY W10349514 Contact Us For Availability
31
HOUSING, FREEZER LIGHTING MAY W10313917 Contact Us For Availability
31
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
32
MAY W10313918 MAY W10313918 Contact Us For Availability
32
Capacitor MAY 2169373 Contact Us For Availability
33
MAY W10440814 MAY W10440814 Contact Us For Availability
33
MAY W10466213 MAY W10466213 Contact Us For Availability
34
MAY W10473925 MAY W10473925 Contact Us For Availability
34
MAY 1114718 MAY 1114718 Contact Us For Availability
35
MAY W10257451 MAY W10257451 Contact Us For Availability
35
MAY 8281232 MAY 8281232 Contact Us For Availability
36
MAY W10474774 MAY W10474774 Contact Us For Availability
36
MAY W10510988 MAY W10510988 Contact Us For Availability
37
MAY W10314204 MAY W10314204 Contact Us For Availability
37
Clip, Harness MAY 2219077 Contact Us For Availability
38
MAY 2215468 MAY 2215468 Contact Us For Availability
39
MAY W10314197 MAY W10314197 Contact Us For Availability
40
MAY W10519112 MAY W10519112 Contact Us For Availability
100
ICEMAKER ASSEMBLY MAY W10632400 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
