Model Maytag MET8665XW01 ELECTRIC RANGE – Common Parts & Diagrams

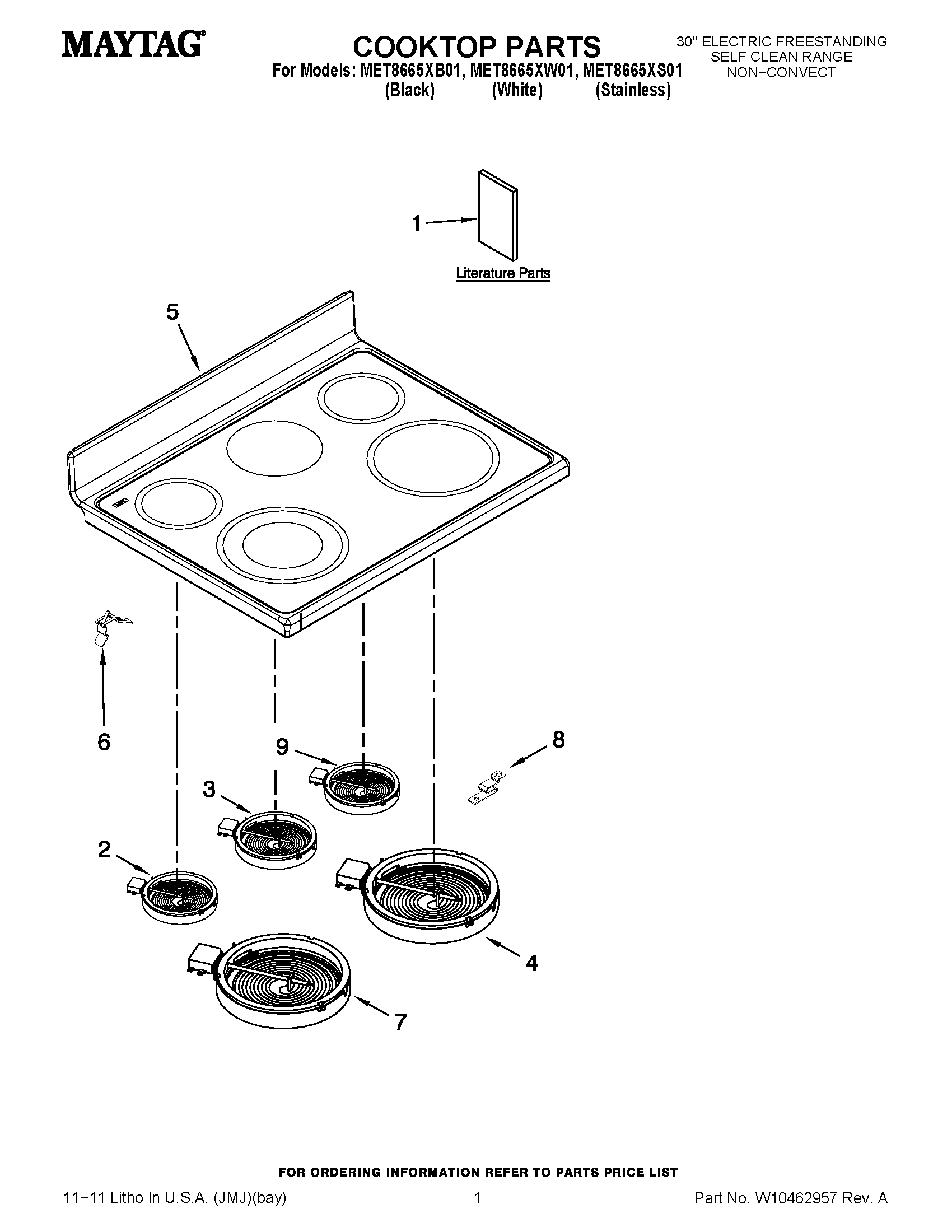

01 - COOKTOP PARTS

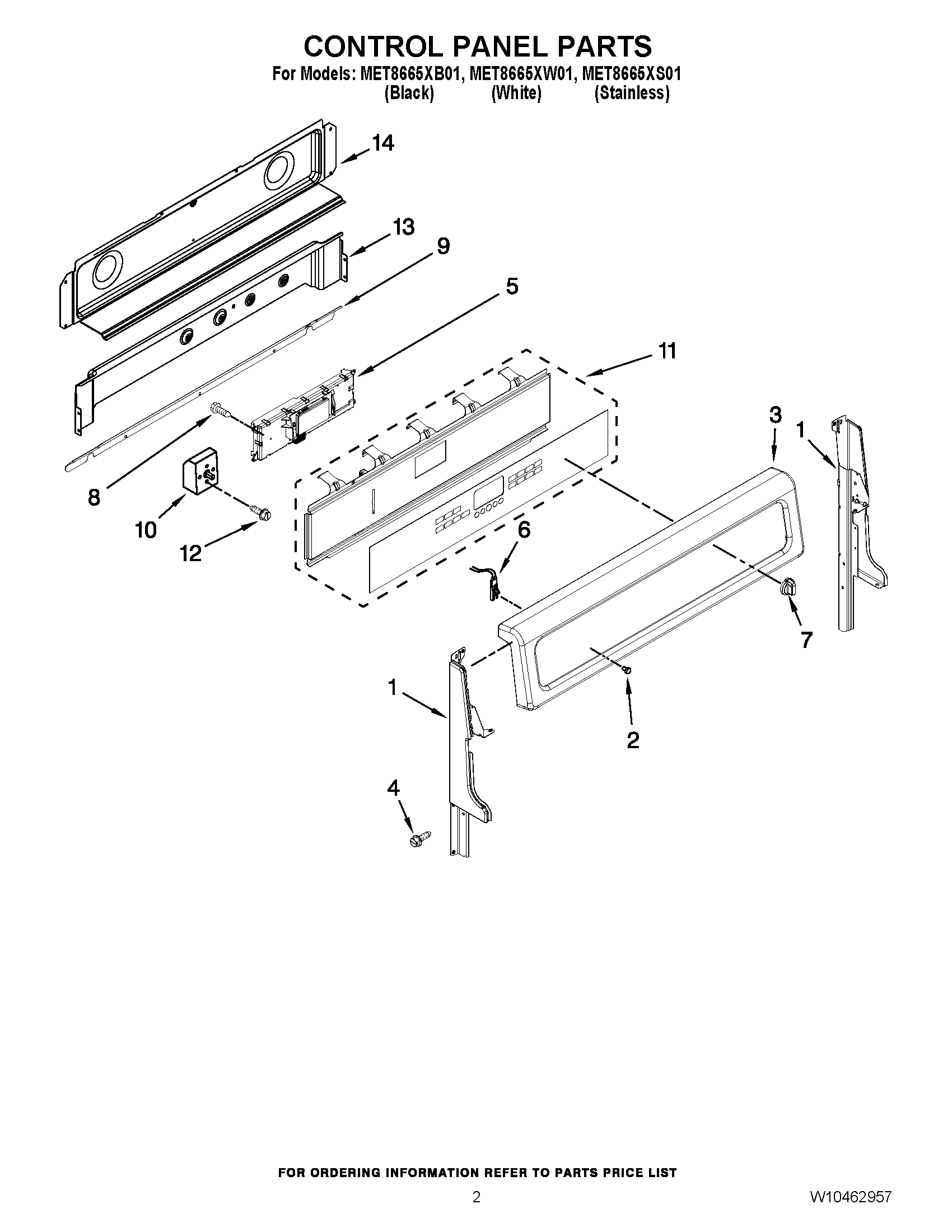

02 - CONTROL PANEL PARTS

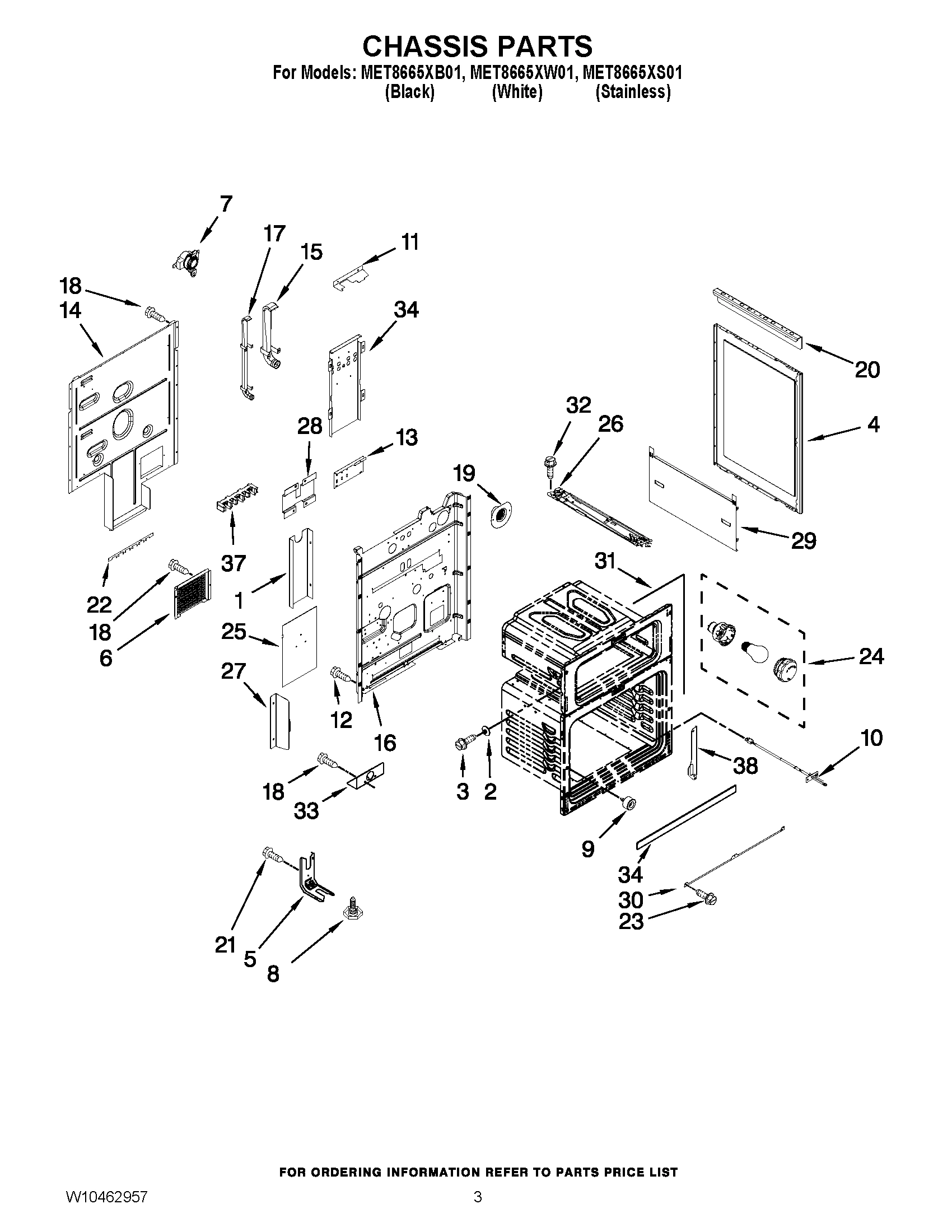

03 - CHASSIS PARTS

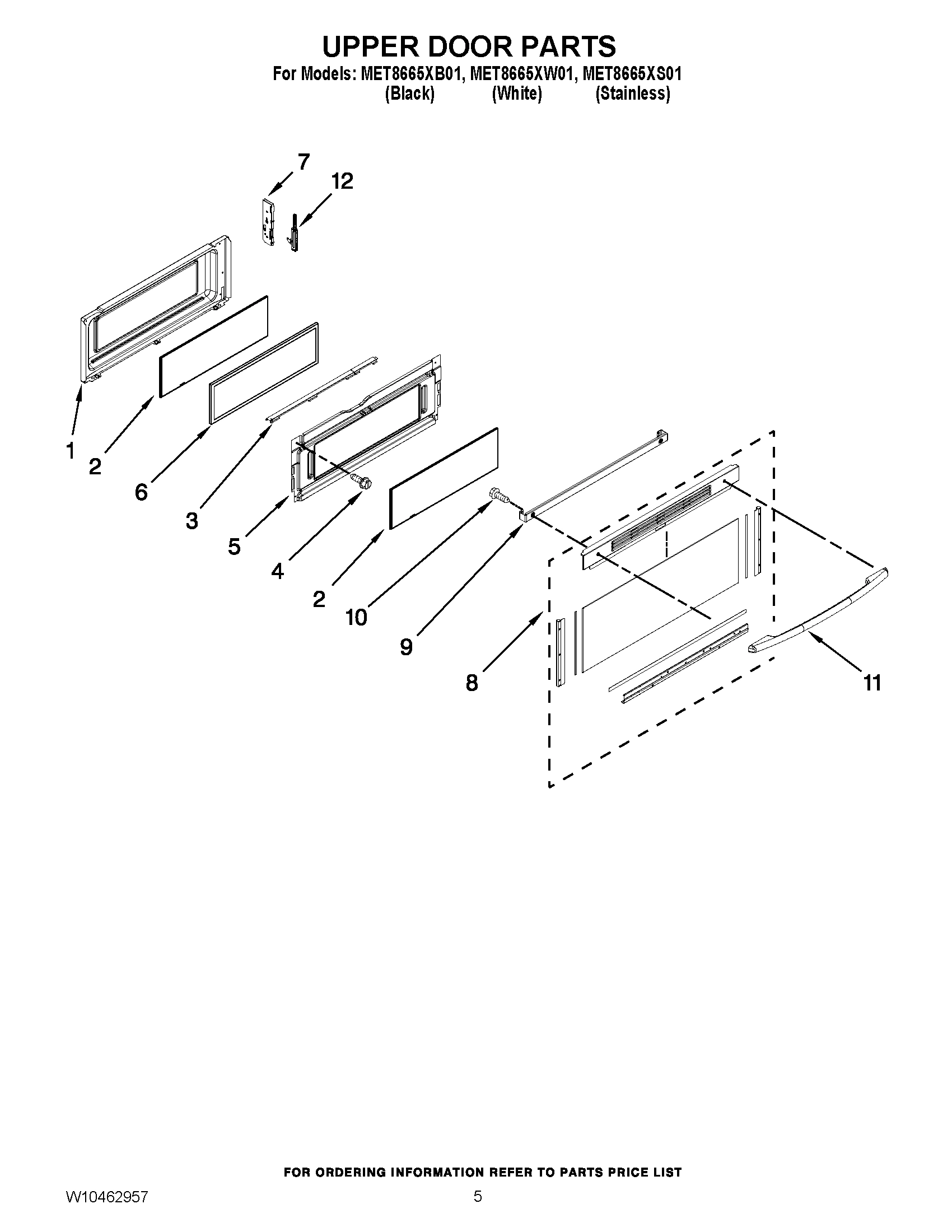

04 - UPPER DOOR PARTS

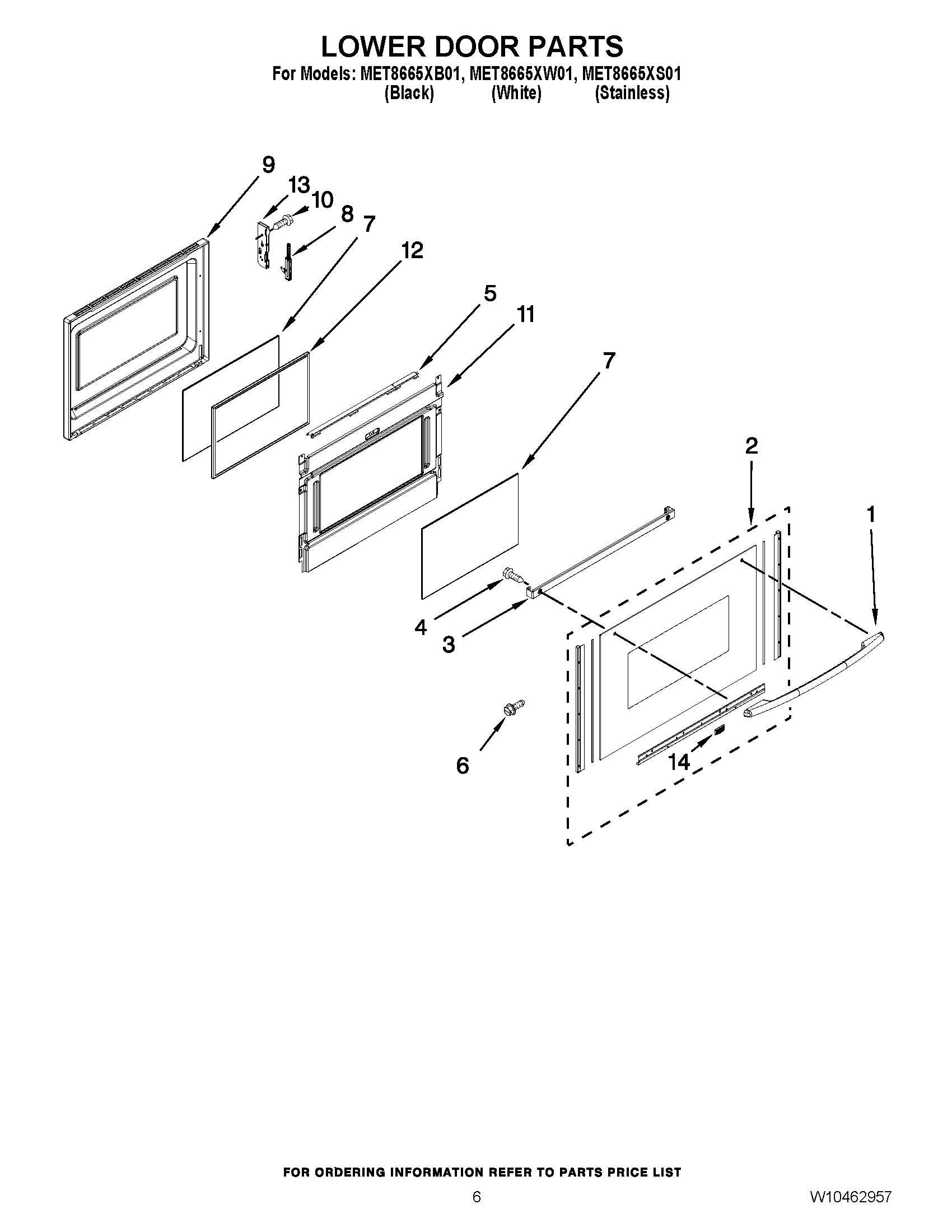

05 - LOWER DOOR PARTS

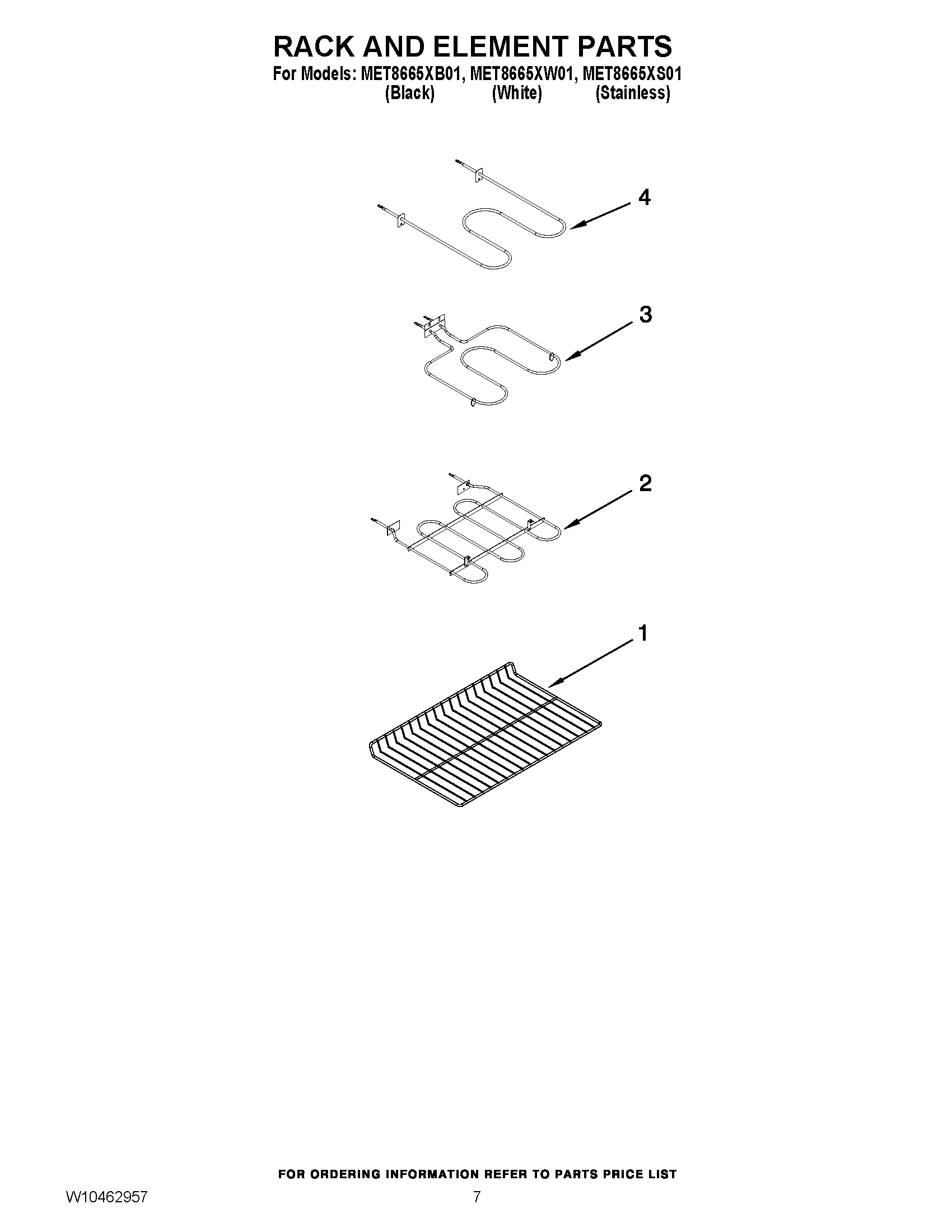

06 - RACK AND ELEMENT PARTS
07 - OPTIONAL PARTS (Not Included)
Common parts from model Maytag MET8665XW01 ELECTRIC RANGE
1
TIPS, BROCHURE SAFE COOKING MAY 9762761 Contact Us For Availability
1
MAY W10289536 MAY W10289536 Contact Us For Availability
1
MAY W10345638 MAY W10345638 Contact Us For Availability
1
MAY W10457102 MAY W10457102 Contact Us For Availability
1
MAY W10319109 MAY W10319109 Contact Us For Availability
1
MAY W10319110 MAY W10319110 Contact Us For Availability
1
MAY W10319111 MAY W10319111 Contact Us For Availability
1
MAY W10319112 MAY W10319112 Contact Us For Availability
1
MAY W10332459 MAY W10332459 Contact Us For Availability
1
MAY W10206315 MAY W10206315 Contact Us For Availability
1
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
1
MAY W10323581 MAY W10323581 Contact Us For Availability
1
MAY W10323584 MAY W10323584 Contact Us For Availability
1
RACK, OVEN (3) MAY W10179152 Contact Us For Availability
2
1200W, LR MAY 8273994 Contact Us For Availability
2
MAY 3196068 MAY 3196068 Contact Us For Availability
2
MAY W10237689 MAY W10237689 Contact Us For Availability
2
MAY W10272707 MAY W10272707 Contact Us For Availability
2
MAY W10272573 MAY W10272573 Contact Us For Availability
2
MAY W10324124 MAY W10324124 Contact Us For Availability
2
MAY W10324547 MAY W10324547 Contact Us For Availability
2
MAY W10249979 MAY W10249979 Contact Us For Availability
3
ELEMENT, WARM ZONE (120V) MAY 9762851 Contact Us For Availability
3
CONSOLE (WHITE) MAY W10097270 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10097280 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10097310 Contact Us For Availability
3
MAY W10267456 MAY W10267456 Contact Us For Availability
3
MAY W10272708 MAY W10272708 Contact Us For Availability
3
BRACKET, HANDLE MAY W10294695 Contact Us For Availability
3
MAY W10272325 MAY W10272325 Contact Us For Availability
4
MAY W10251107 MAY W10251107 Contact Us For Availability
4
MAY W10260942 MAY W10260942 Contact Us For Availability
4
MAY W10260943 MAY W10260943 Contact Us For Availability
4
MAY W10317886 MAY W10317886 Contact Us For Availability
4
MAY W10249977 MAY W10249977 Contact Us For Availability
5
MAY W10299101 MAY W10299101 Contact Us For Availability
5
MAY W10299103 MAY W10299103 Contact Us For Availability
5
MAY W10365407 MAY W10365407 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
RETAINER, INSUL. MAY W10340589 Contact Us For Availability
5
MAY W10272594 MAY W10272594 Contact Us For Availability
6
SPRING-ELEMENT, PUSH-IN MAY W10225448 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
MAY W10312612 MAY W10312612 Contact Us For Availability
6
SCREW W/WASHER MAY W10292297 Contact Us For Availability
6
MAY W10321271 MAY W10321271 Contact Us For Availability
7
3000/1400W, LF MAY W10275048 Contact Us For Availability
7
KNOB (STAINLESS) MAY W10294791 Contact Us For Availability
7
MAY W10294794 MAY W10294794 Contact Us For Availability
7
MAY W10294796 MAY W10294796 Contact Us For Availability
7
MAY 7403P899-60 MAY 7403P899-60 Contact Us For Availability
7
MAY W10277006 MAY W10277006 Contact Us For Availability
7
MAY 9757706 MAY 9757706 Contact Us For Availability
8
MAY W10260946 MAY W10260946 Contact Us For Availability
8
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
8
MAY 7101P507-60 MAY 7101P507-60 Contact Us For Availability
8
MAY W10273126 MAY W10273126 Contact Us For Availability
8
MAY W10322718 MAY W10322718 Contact Us For Availability
8
MAY W10322720 MAY W10322720 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335433 Contact Us For Availability
8
HINGE, DOOR (RIGHT) MAY W10335434 Contact Us For Availability
9
700W, RR MAY W10270604 Contact Us For Availability
9
MAY W10299338 MAY W10299338 Contact Us For Availability
9
SCREW, BUMPER MAY W10105790 Contact Us For Availability
9
MAY W10272698 MAY W10272698 Contact Us For Availability
10
MAY 7403P373-60 MAY 7403P373-60 Contact Us For Availability
10
SWITCH, INFINITE (RF) MAY W10295048 Contact Us For Availability
10
SWITCH, INFINITE (LF) MAY W10441696 Contact Us For Availability
10
PROBE, SENSOR MAY 7430P044-60 Contact Us For Availability
10
SCREW (RECEIVER) MAY 4449040 Contact Us For Availability
11
MAY W10321787 MAY W10321787 Contact Us For Availability
11
MAY W10321788 MAY W10321788 Contact Us For Availability
11
MAY W10321789 MAY W10321789 Contact Us For Availability
11
MAY W10268559 MAY W10268559 Contact Us For Availability
11
RETAINER, INSUL. MAY W10340464 Contact Us For Availability
12
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
12
MAY W10274501 MAY W10274501 Contact Us For Availability
12
MAY W10274503 MAY W10274503 Contact Us For Availability
12
MAY W10321285 MAY W10321285 Contact Us For Availability
13
MAY W10278697 MAY W10278697 Contact Us For Availability
13
MAY W10332449 MAY W10332449 Contact Us For Availability
13
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
13
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
14
COVER, BACKGUARD MAY W10296773 Contact Us For Availability
14
MAY W10261386 MAY W10261386 Contact Us For Availability
14
BADGE MAY W10288004 Contact Us For Availability
15
MAY W10337391 MAY W10337391 Contact Us For Availability
16
MAY W10260583 MAY W10260583 Contact Us For Availability
17
MAY W10323793 MAY W10323793 Contact Us For Availability
18
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
19
MAY W10322408 MAY W10322408 Contact Us For Availability
20
MAY W10319087 MAY W10319087 Contact Us For Availability
21
Screw MAY 7101P485-60 Contact Us For Availability
22
SHIELD, PWR CORD MAY 8036P012-60 Contact Us For Availability
23
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
24
MAY W10323374 MAY W10323374 Contact Us For Availability
25
MAY W10311987 MAY W10311987 Contact Us For Availability
26
MAY W10370650 MAY W10370650 Contact Us For Availability
27
MAY W10268560 MAY W10268560 Contact Us For Availability
28
INSULATOR, HEAT SHIELD MAY 7003P104-60 Contact Us For Availability
29
MAY W10253471 MAY W10253471 Contact Us For Availability
30
MAY W10299886 MAY W10299886 Contact Us For Availability
31
MAY W10269069 MAY W10269069 Contact Us For Availability
31
MAY W10337392 MAY W10337392 Contact Us For Availability
32
SCREW (DOOR LOCK) MAY 7101P375-60 Contact Us For Availability
33
MAY W10190166 MAY W10190166 Contact Us For Availability
34
MAY W10261388 MAY W10261388 Contact Us For Availability
38
COVER, HINGE (RIGHT, LOWER) MAY W10410461 Contact Us For Availability
38
COVER, HINGE (LEFT, LOWER) MAY W10410463 Contact Us For Availability
NI
MAY W10204079 MAY W10204079 Contact Us For Availability
NI
MAIN FRONT STRIP MAY W10204085 Contact Us For Availability
NI
INSULATION, FLOOR INSULATION, UPPER MAY W10271637 Contact Us For Availability
NI
WRAPPER MAY W10308393 Contact Us For Availability
NI
BACK (FULL LENGTH) MAY W10322111 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
CLEANER/POLISH (STAINLESS ONLY) MAY 31462 Contact Us For Availability
NI
CLEANER, COOKTOP (CERAMIC MODELS) MAY 31464 Contact Us For Availability
NI
CLEANER, ALL-PURPOSE MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAN - BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
BLOCK, BARE WIRE ADAPTER MAY 7401P157-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
NI
MAY 8312P255-60 MAY 8312P255-60 Contact Us For Availability
NI
MAY W10225701 MAY W10225701 Contact Us For Availability
NI
MAY W10270317 MAY W10270317 Contact Us For Availability
NI
MAY W10406501 MAY W10406501 Contact Us For Availability
NI
HARNESS, INF.SW. (LEFT) MAY W10406511 Contact Us For Availability
NI
MAY W10457078 MAY W10457078 Contact Us For Availability
× ![]()
