Model Whirlpool MES5875BCB21 ELECTRIC RANGE – Common Parts & Diagrams

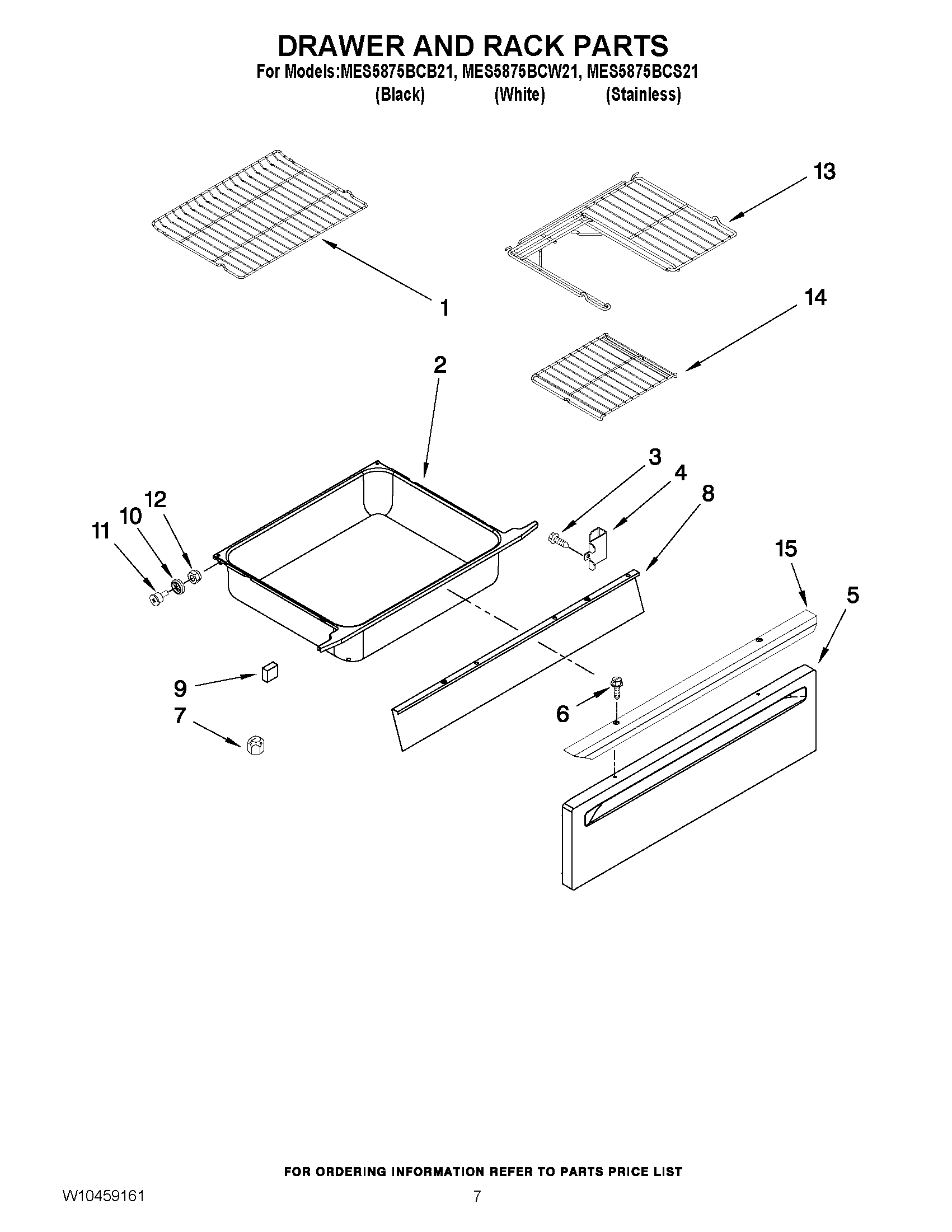

05 - DRAWER AND RACK PARTS

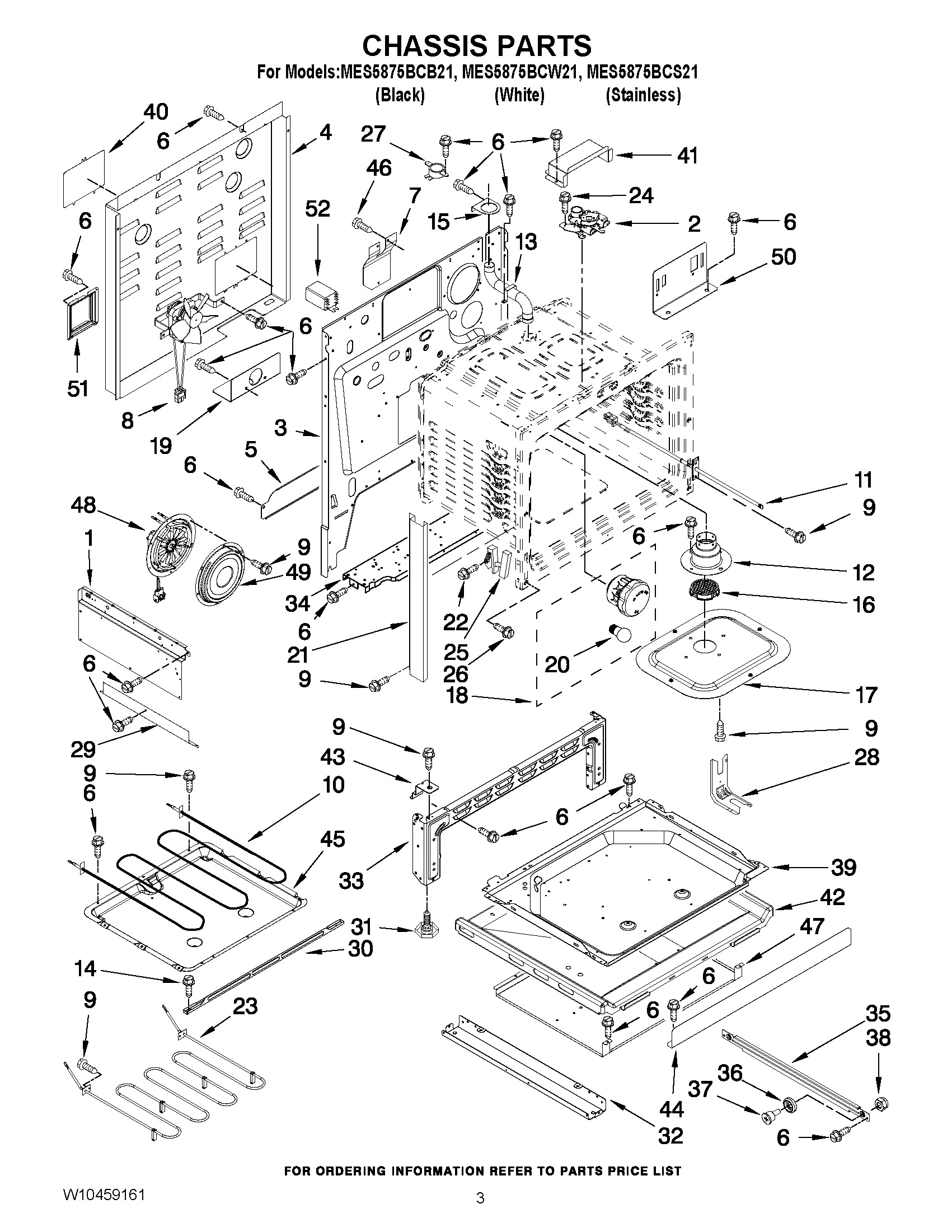

03 - CHASSIS PARTS

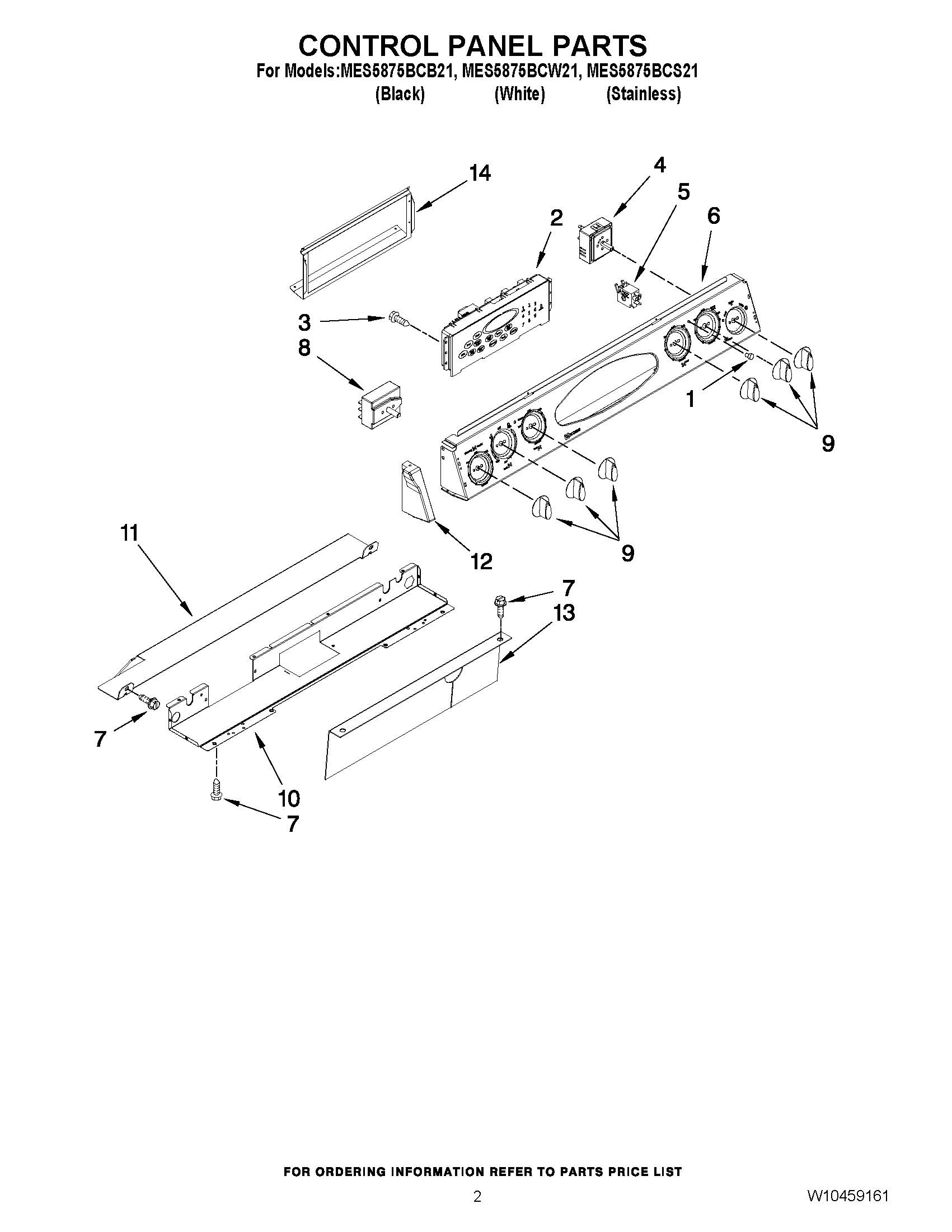

02 - CONTROL PANEL PARTS

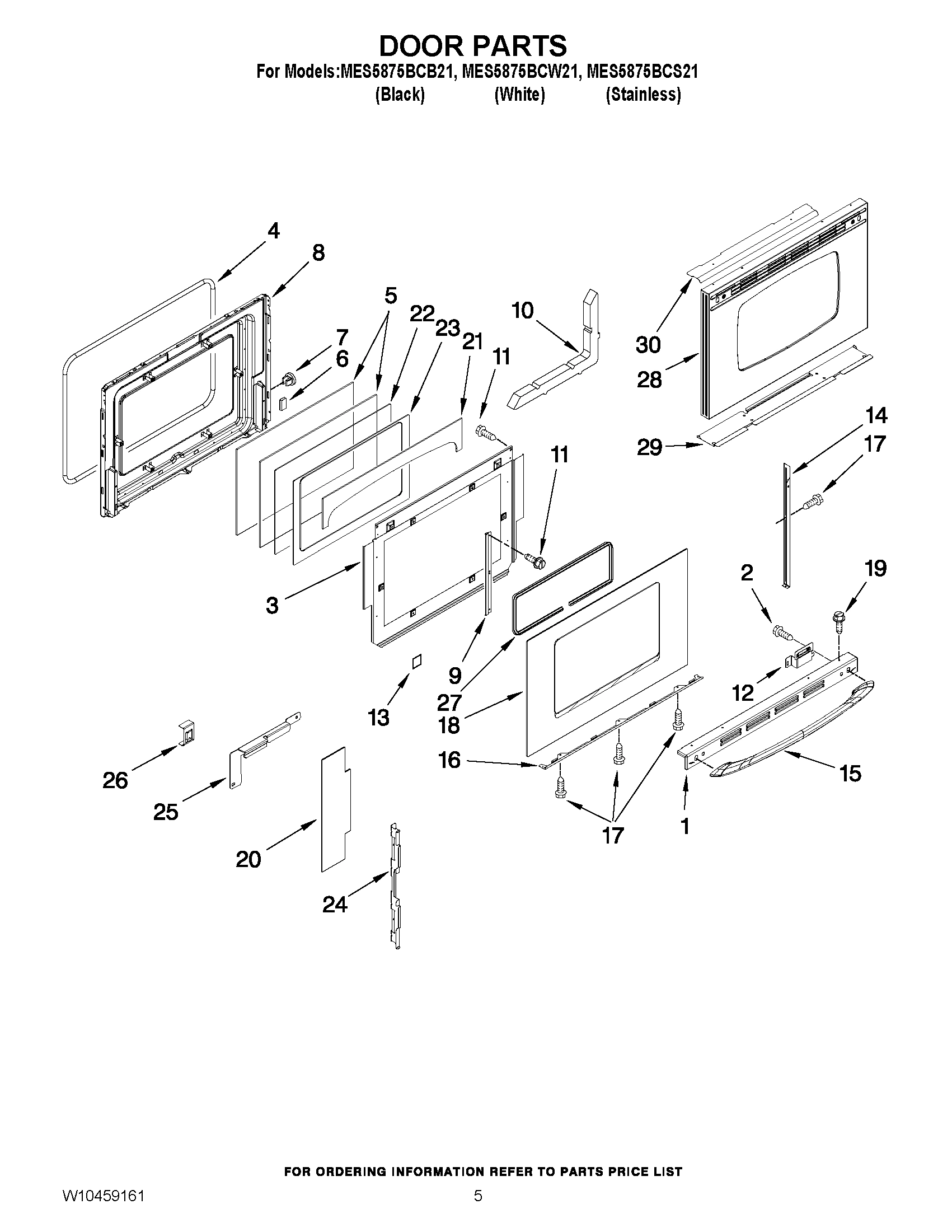

04 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

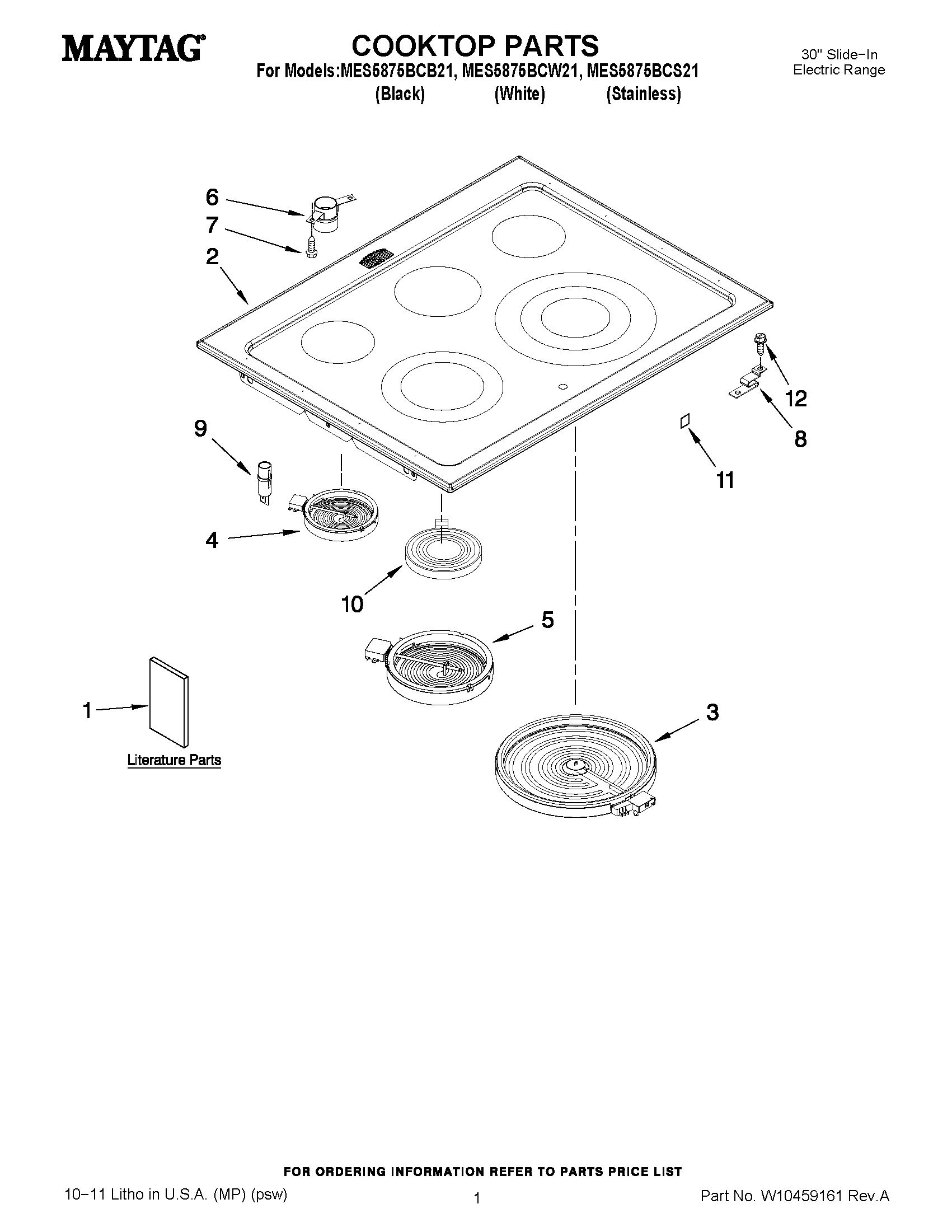

01 - COOKTOP PARTS
Common parts from model Whirlpool MES5875BCB21 ELECTRIC RANGE
1
Lens WPL 7730P01160 Contact Us For Availability
1
Trim, Door Top (Black) WPL 3608F14170 Contact Us For Availability
1
TRIM, DOOR TOP (WHITE) WPL 3608F14171 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P71660 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P77160 Contact Us For Availability
1
BROCHURE, TIPS SAFER COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFER COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) WPL W10394702 Contact Us For Availability
1
WIRING DIAGRAM (FRENCH) WPL W10394704 Contact Us For Availability
2
CONTROL W/OVERLAY (BLACK) WPL 5701M88460 Contact Us For Availability
2
CONTROL W/OVERLAY (WHITE) WPL 5701M88560 Contact Us For Availability
2
SCREW, HANDLE ((SS MODEL ONLY)) WPL 7101P67560 Contact Us For Availability
2
SCREW, HANDLE (BLACK & WHITE MODELS ONLY) WPL 7101P68160 Contact Us For Availability
2
COOKTOP (BLACK) WPL 5706X53809 Contact Us For Availability
2
COOKTOP (STAINLESS) WPL 5706X53850 Contact Us For Availability
2
COOKTOP (WHITE) WPL 5706X55981 Contact Us For Availability
3
SCREW WPL 7101P07760 Contact Us For Availability
3
BAFFLE, RETAINER WPL 3601F37351 Contact Us For Availability
4
SWITCH, INFINTE (LR) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINTE (RR) WPL 7403P87760 Contact Us For Availability
4
SWITCH, INFINTE (CENTER) WPL 7450P02460 Contact Us For Availability
4
SWITCH, INFINTE (RF-TRIPLE) WPL 7450P05660 Contact Us For Availability
5
PANEL, DRAWER (STAINLESS) WPL W10253205 Contact Us For Availability
5
Light, Indicator WPL 7407P13660 Contact Us For Availability
5
Glass, Inner WPL 7902P43660 Contact Us For Availability
6
PANEL, CONTROL (BLACK) WPL 2614D13109 Contact Us For Availability
6
PANEL, CONTROL (WHITE) WPL 2614D13181 Contact Us For Availability
6
PANEL, CONTROL (STAINLESS) WPL 2614N14750 Contact Us For Availability
6
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
6
TUBE, VENT UPPER WPL W10233479 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
9
Screw WPL 7101P43460 Contact Us For Availability
9
KNOB (BLACK) WPL 7737P23560 Contact Us For Availability
9
KNOB (WHITE) WPL 7737P23860 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P19360 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F72951 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
11
Sensor, Oven WPL 7430P04260 Contact Us For Availability
11
SHIELD, CONTROL WPL 3604F42151 Contact Us For Availability
11
SPACER, RUBBER WPL 8010P15260 Contact Us For Availability
12
TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability
12
ENDCAP (WHITE, RIGHT) WPL 7726P33260 Contact Us For Availability
12
ENDCAP (WHITE, LEFT) WPL 7726P33360 Contact Us For Availability
12
ENDCAP (BLACK, RIGHT) WPL 7726P40060 Contact Us For Availability
12
ENDCAP (BLACK, LEFT) WPL 7726P40160 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
12
SCREW WPL 7101P49860 Contact Us For Availability
13
TUBE, VENT UPPER WPL 8026P08460 Contact Us For Availability
13
INSULATOR, SHIELD WPL 7003P15060 Contact Us For Availability
14
SCREW WPL 7101P62660 Contact Us For Availability
14
BRACKET, CONTROL (SS MODEL ONLY) WPL 3801F89551 Contact Us For Availability
14
TRIM, DOOR SIDE (BLACK, RIGHT) WPL 3608F11670 Contact Us For Availability
14
TRIM, DOOR SIDE (WHITE, RIGHT) WPL 3608F11671 Contact Us For Availability
14
TRIM, DOOR SIDE (BLACK, LEFT) WPL 3608F11770 Contact Us For Availability
14
TRIM, DOOR SIDE (WHITE, LEFT) WPL 3608F11771 Contact Us For Availability
15
HANDLE, DRAWER (SS MODEL ONLY) WPL W10180296 Contact Us For Availability
15
HOLDER, VENT TUBE WPL 3605F34551 Contact Us For Availability
15
Handle, Door (Black) WPL 7701P51660 Contact Us For Availability
15
Handle, Door (White) WPL 7701P51760 Contact Us For Availability
15
HANDLE, DOOR (STAINLESS) WPL 7701P52660 Contact Us For Availability
16
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
16
TRIM, DOOR BOTTOM (BLACK) WPL 3807F70870 Contact Us For Availability
16
TRIM, DOOR BOTTOM (WHITE) WPL 3807F70871 Contact Us For Availability
17
PLATE, SMOKE ELM. WPL 3605F35445 Contact Us For Availability
17
SCREW, TRIM WPL 7101P63360 Contact Us For Availability
18
LIGHT ASSEMBLY WPL 7407P18260 Contact Us For Availability
18
PANEL, OUTER DOOR (WHITE) WPL 7902P73660 Contact Us For Availability
18
PANEL, OUTER DOOR (BLACK) WPL 7902P79760 Contact Us For Availability
19
Screw WPL 7101P20860 Contact Us For Availability
20
BULB-OVEN WPL 7407P10360 Contact Us For Availability
20
INSULATION, FOIL (SS MODEL ONLY) WPL 7002P46360 Contact Us For Availability
21
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
21
TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability
21
INSULATION, DOOR INNER GLASS (SS MODEL ONLY) WPL 7002P40360 Contact Us For Availability
22
Screw WPL 7101P28260 Contact Us For Availability
22
GLASS, DOOR INNER COATED (STAINLESS MODEL ONL WPL 7902P76860 Contact Us For Availability
23
GLASS, OUTER (SS MODEL ONLY) WPL 7902P75260 Contact Us For Availability
24
SCREW WPL 7101P37660 Contact Us For Availability
24
RETAINER, GLASS (SS MODEL ONLY) WPL 3804F29345 Contact Us For Availability
25
HINGE WPL 7106P14160 Contact Us For Availability
25
RETAINER, GLASS (SS MODEL ONLY) (SIDE-RIGHT) WPL 3804F30751 Contact Us For Availability
25
RETAINER, GLASS (SS MODEL ONLY) (SIDE-LEFT) WPL 3804F30851 Contact Us For Availability
26
SCREW, HINGE WPL 7101P33660 Contact Us For Availability
26
CLIP, DOOR GLASS (SS MODEL ONLY) WPL 7112P03460 Contact Us For Availability
27
SWITCH, HI-LIMIT WPL 7450P03460 Contact Us For Availability
27
GASKET, DOOR (SS MODEL ONLY) WPL 7201P14160 Contact Us For Availability
28
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
28
PANEL, DOOR (SS MODEL ONLY) WPL 7760P18660 Contact Us For Availability
29
EXTENTION, SHIELD WPL 3826F06451 Contact Us For Availability
29
RETAINER, GLASS (SS MODEL ONLY) WPL 3804F31780 Contact Us For Availability
30
SUPPORT, ELEMENT WPL 3807F49445 Contact Us For Availability
30
SHIELD, DOOR (SS WPL 3604F41851 Contact Us For Availability
31
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
32
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
33
PEDESTAL, FRONT WPL W10271711 Contact Us For Availability
34
SUPPORT WPL 3807F64051 Contact Us For Availability
35
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
36
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
37
Shaft, Roller WPL 7118P03260 Contact Us For Availability
38
Nut, Lock WPL 7103P19060 Contact Us For Availability
39
RETAINER, BOTTOM WPL 3804F23151 Contact Us For Availability
40
COVER, TERMINAL WPL 4005F61251 Contact Us For Availability
41
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
42
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
43
SUPPORT, OVEN BTM. WPL 3807F72745 Contact Us For Availability
44
COVER, FRONT WPL 4005F74945 Contact Us For Availability
45
PAN, BAKE WPL 3401F09245 Contact Us For Availability
46
SCREW WPL 7101P06060 Contact Us For Availability
47
SHIELD, WARM. DWR. WPL 3604F32645 Contact Us For Availability
48
FAN, CONVECTION WPL W10210594 Contact Us For Availability
49
COVER, CONV. FAN WPL 3605F32319 Contact Us For Availability
50
BRACKET WPL 3807F75245 Contact Us For Availability
51
RETAINER, INSUL. WPL 3804F30051 Contact Us For Availability
52
RELAY, AUXILIARY WPL 7428P08260 Contact Us For Availability
NI
Cleaner, Glass WPL 31464 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
NI
INSULATION, HIDDEN BAKE COVER WPL 7002P44860 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P47160 Contact Us For Availability
NI
HARNESS, UNITY (LEFT) WPL 5171P56460 Contact Us For Availability
NI
CORD, PIGTAIL WPL W10221103 Contact Us For Availability
NI
HARNESS, TOP WPL W10298945 Contact Us For Availability
NI
HARNESS, MAIN WPL W10394672 Contact Us For Availability
NI
HARNESS, SENSOR WPL W10394790 Contact Us For Availability
NI
HARNESS, UNITY (RIGHT) WPL W10441693 Contact Us For Availability
× ![]()
