Model Whirlpool MER6875BCS17 ELECTRIC RANGE – Common Parts & Diagrams

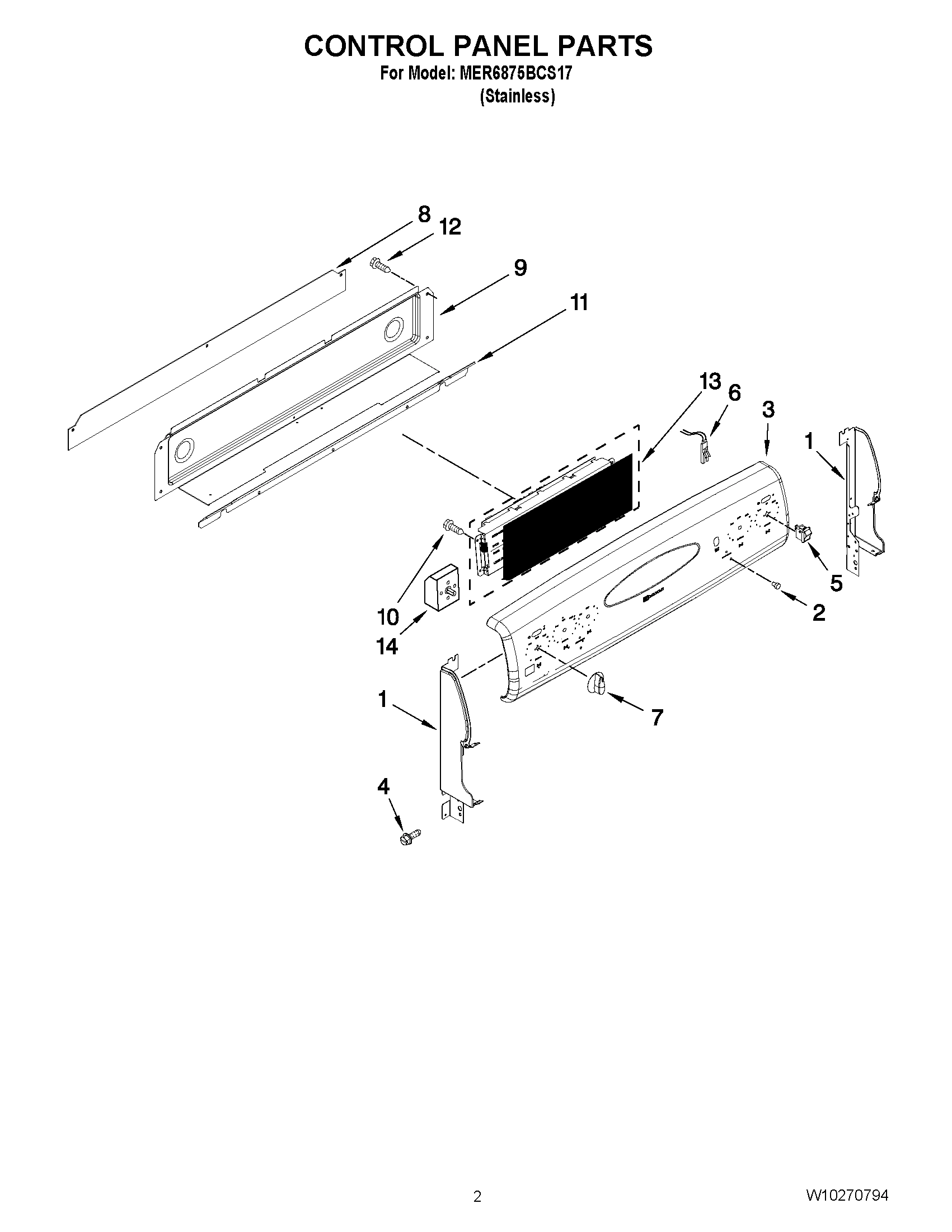

02 - CONTROL PANEL PARTS

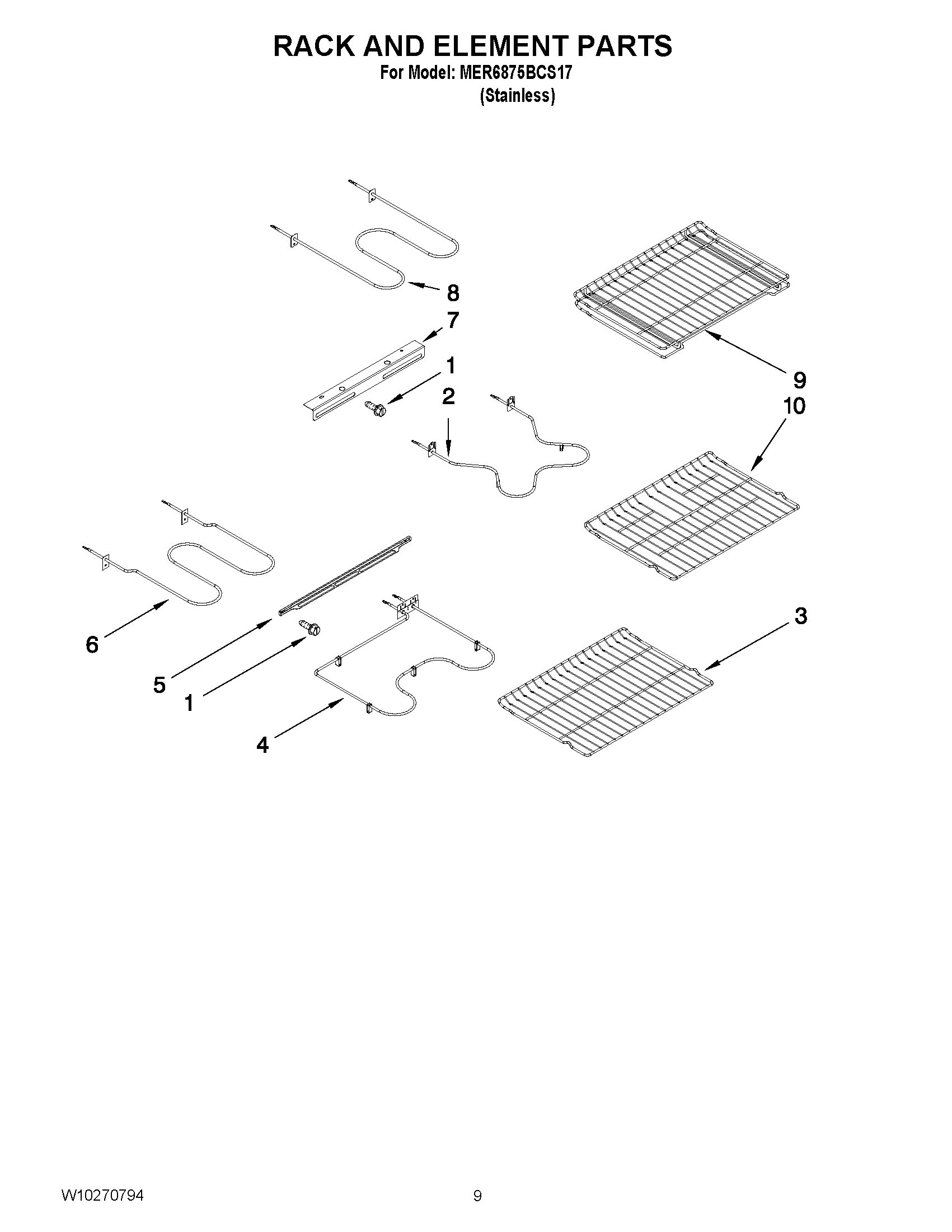

06 - RACK AND ELEMENT PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)

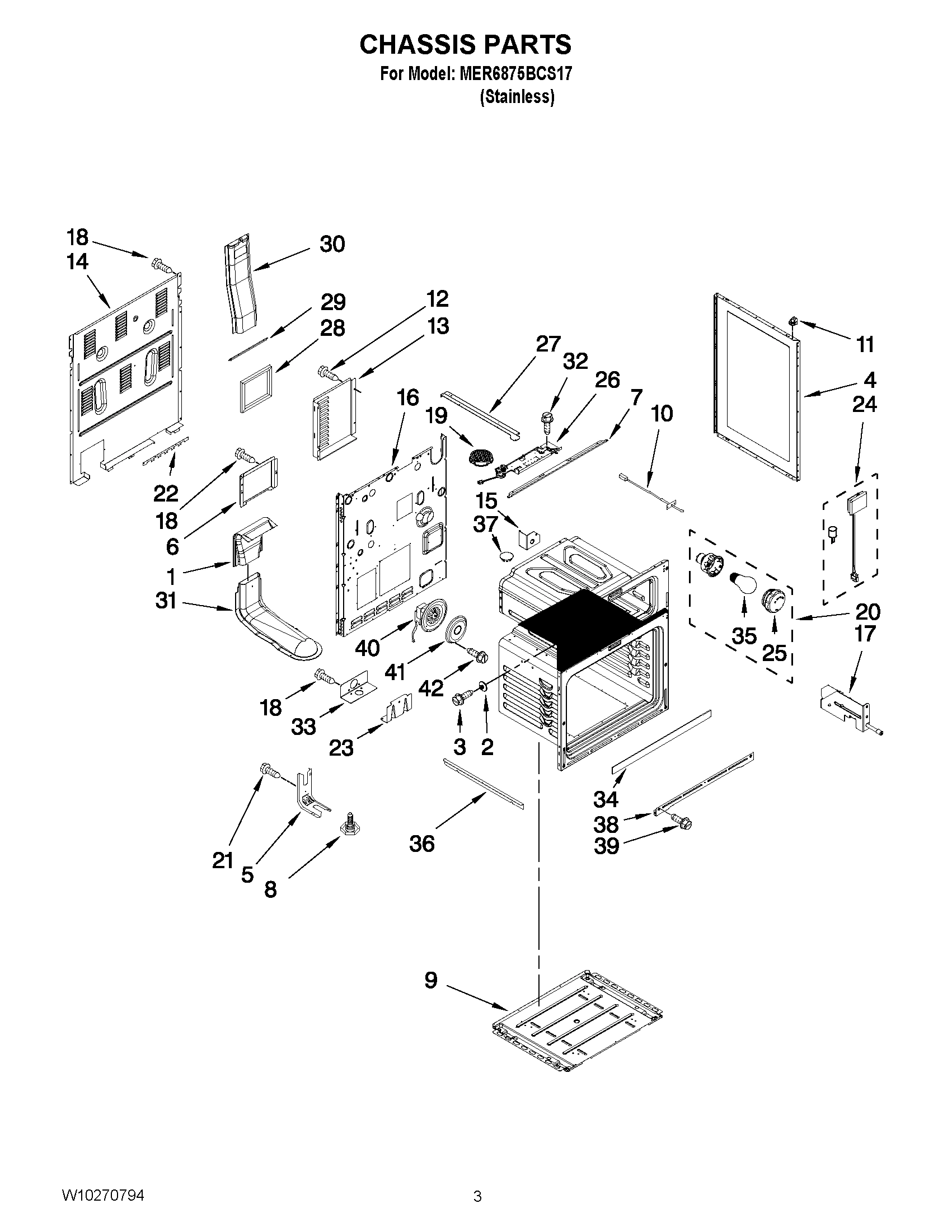

03 - CHASSIS PARTS

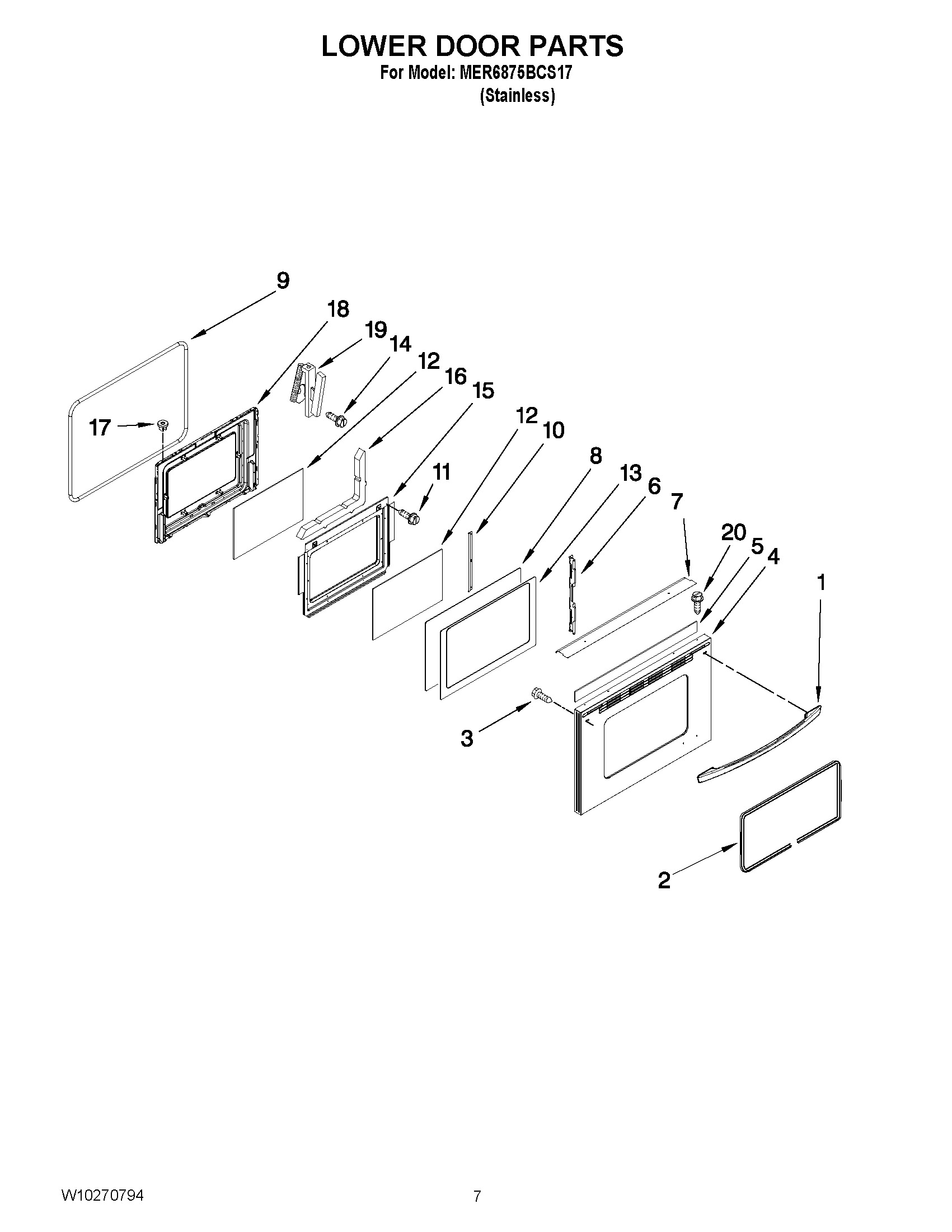

05 - LOWER DOOR PARTS

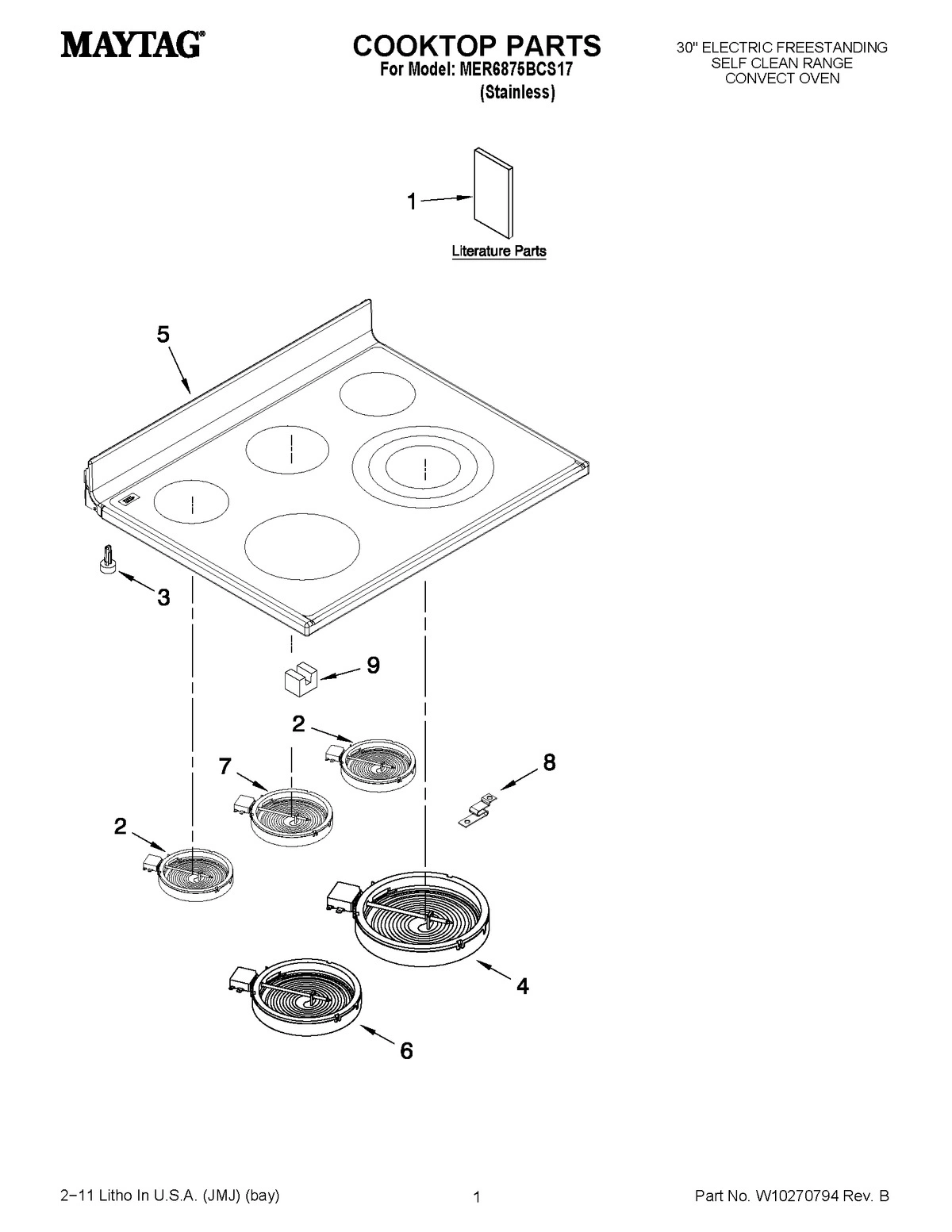

01 - COOKTOP PARTS

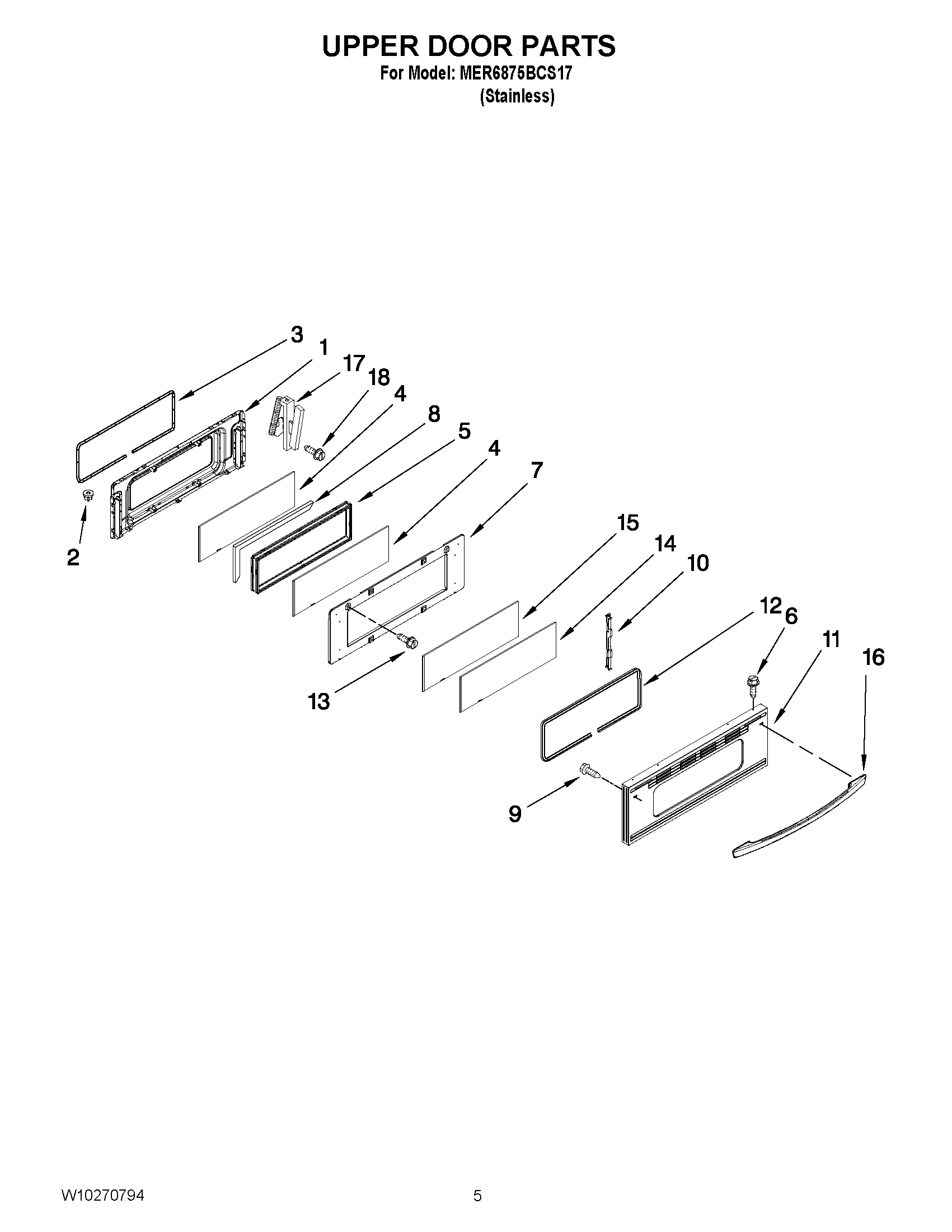

04 - UPPER DOOR PARTS
Common parts from model Whirlpool MER6875BCS17 ELECTRIC RANGE
1
Extension, Vent WPL 8026P08260 Contact Us For Availability
1
Installation Instructions WPL 8101P63060 Contact Us For Availability
1
OWNERS MANUAL WPL 8113P71060 Contact Us For Availability
1
TIPS, BROCHURE SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, BROCHURE SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
LINING, DOOR WPL 2402W24819 Contact Us For Availability
2
Element, Bake (Upper) WPL 7406P42760 Contact Us For Availability
2
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
2
NUT, SNAP WPL 7103P14160 Contact Us For Availability
3
RACK, OVEN WPL 7801P17360 Contact Us For Availability
3
Screw, Shoulder WPL 7101P61860 Contact Us For Availability
3
Glide, Main Top WPL 8016P02260 Contact Us For Availability
3
Gasket, Door WPL 7201P09160 Contact Us For Availability
4
Element, Bake Lower WPL 7406P42860 Contact Us For Availability
4
Panel, Side (2) WPL 2618F19470 Contact Us For Availability
4
Panel, Door WPL 7760P15460 Contact Us For Availability
4
Glass, Inner (2) WPL 7902P52160 Contact Us For Availability
5
Support, Broil Element WPL 3807F49445 Contact Us For Availability
5
Brack, Anti-Tip WPL 3801F65651 Contact Us For Availability
5
Insulation, Foil WPL 7002P42760 Contact Us For Availability
5
COOKTOP WPL 5706X61609 Contact Us For Availability
5
Frame, Glass WPL 7907P03460 Contact Us For Availability
6
ELEMENT (LF) WPL W10187837 Contact Us For Availability
6
Element, Broil WPL 7406P20560 Contact Us For Availability
6
Cover, Access WPL 4005F74751 Contact Us For Availability
6
Screw WPL 7101P38860 Contact Us For Availability
6
Retainer, Glass Support (2) WPL 3804F26545 Contact Us For Availability
7
Support, Broil Element (Upper) WPL 3807F74945 Contact Us For Availability
7
Bracket, Cooktop WPL 3801F92480 Contact Us For Availability
7
Shield, Door WPL 3604F44151 Contact Us For Availability
7
ELEMENT (CTR) WPL 7406P49760 Contact Us For Availability
7
Baffle, Door WPL 3601F35445 Contact Us For Availability
8
Element, Broil (Upper) WPL 7406P47460 Contact Us For Availability
8
Foot, Leveler (4) WPL 7101P50760 Contact Us For Availability
8
Glass, Door WPL 7902P46860 Contact Us For Availability
8
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
8
Insulation, Door WPL 7002P48860 Contact Us For Availability
9
RACK, TELESCOPING WPL W10251904 Contact Us For Availability
9
Base, Gemini WPL 4003F07051 Contact Us For Availability
9
Screw WPL 7101P63360 Contact Us For Availability
9
Block, Element Support WPL 8255P41260 Contact Us For Availability
10
RACK, OVEN (UPPER) WPL 7801P15960 Contact Us For Availability
10
Sensor, Oven (Lower Oven) WPL 7430P04260 Contact Us For Availability
10
Sensor, Oven (Upper Oven) WPL 7430P04460 Contact Us For Availability
10
Bracket, Glass WPL 3801F88651 Contact Us For Availability
10
RETAINER, GLASS WPL 3804F18445 Contact Us For Availability
11
Shield, Wire WPL 3604F40551 Contact Us For Availability
11
Spacer, Top (Left) WPL 8010P08760 Contact Us For Availability
11
Spacer, Top (Right) WPL 8010P08860 Contact Us For Availability
11
Panel, Door WPL 7760P15060 Contact Us For Availability
12
Screw WPL 7101P43460 Contact Us For Availability
12
Gasket, Window WPL 7201P14160 Contact Us For Availability
12
Glass, Inner (2) WPL 7902P43660 Contact Us For Availability
13
CONTROL ASSY (INCL. MEMBRANE) WPL NP Contact Us For Availability
13
SCREW WPL 7101P37660 Contact Us For Availability
13
Cover, Bottom Wire WPL 4005F59251 Contact Us For Availability
13
GLASS, DOOR OUTER WPL 7902P75260 Contact Us For Availability
14
SWITCH, INFINITE (LR,RR) WPL 7403P87760 Contact Us For Availability
14
Switch, Infinite (RF WPL 7450P01160 Contact Us For Availability
14
SWITCH, INFINITE (LF) WPL 7450P09560 Contact Us For Availability
14
COVER, UPPER WIRE WPL W10167412 Contact Us For Availability
14
Glass, Outer Door WPL 7902P75160 Contact Us For Availability
15
Bracket (Right) WPL 3801F70551 Contact Us For Availability
15
Bracket (Left) WPL 3801F70651 Contact Us For Availability
15
Baffle, Door WPL 3601F37351 Contact Us For Availability
15
Glass, Inner Door WPL 7902P54260 Contact Us For Availability
16
Back, Main WPL 4002F33251 Contact Us For Availability
16
Handle, Door WPL 7701P52660 Contact Us For Availability
16
Insulation, Door WPL 7002P24660 Contact Us For Availability
17
SWTCH-LITE WPL 7450P10860 Contact Us For Availability
17
Hinge, Door (2) WPL 7106P14860 Contact Us For Availability
18
Screw (4) WPL 7101P28260 Contact Us For Availability
18
Lining, Door WPL 2402W31219 Contact Us For Availability
19
Screen, Smoke WPL 8034P00860 Contact Us For Availability
19
Hinge, Door (2) WPL 7106P14160 Contact Us For Availability
20
OVEN LIGHT ASSY WPL 7407P16860 Contact Us For Availability
21
Screw WPL 7101P48560 Contact Us For Availability
22
Sheild, Cord WPL 8036P01260 Contact Us For Availability
23
Support, Lwr Oven WPL 3807F58051 Contact Us For Availability
24
Light Assy. (Upper) WPL 7407P17960 Contact Us For Availability
26
Latch, Door Lock WPL 8002P07760 Contact Us For Availability
27
Bottom, Burner Box (Right) WPL 4011F52451 Contact Us For Availability
27
Bottom, Burner Box (Left) WPL 4011F52551 Contact Us For Availability
28
Gasket, Vent WPL 7201P08960 Contact Us For Availability
29
Sheild, Door Lock WPL 3604F33551 Contact Us For Availability
30
Vent, Oven WPL 4022W01745 Contact Us For Availability
31
Vent, Box (Lower) WPL 4006W12945 Contact Us For Availability
31
Vent, Box (Upper) WPL 4006W13945 Contact Us For Availability
32
Screw WPL 7101P37560 Contact Us For Availability
34
Seal, Frame WPL 7212P06660 Contact Us For Availability
35
Bulb, Oven WPL 7407P11460 Contact Us For Availability
36
Spacer, Side Panel (Long) WPL 3823F01551 Contact Us For Availability
37
Plug, Hole WPL 7718P03060 Contact Us For Availability
38
Trim, Kickplate WPL 3608F09170 Contact Us For Availability
40
FAN ASSY, CONVECT WPL W10206588 Contact Us For Availability
41
Plate, Convection WPL 3605F30519 Contact Us For Availability
42
Screw WPL 7101P38560 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability
NI
Harness, Side Mount Lock WPL 5171P46760 Contact Us For Availability
NI
HARNESS, SENSOR WPL 5171P49660 Contact Us For Availability
NI
HARNESS, UPPER LIGHT WPL 5171P71560 Contact Us For Availability
NI
HARNESS, INF.SW. (RIGHT) WPL 5171P85960 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P92160 Contact Us For Availability
NI
HARNESS, INF.SW. (LEFT) WPL 5171P92260 Contact Us For Availability
NI
Harness, Door Position WPL 5175P36560 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
HARNESS, CERAN WPL W10196184 Contact Us For Availability
NI
Insulation, Wrap (Lower Oven) WPL 7002P23360 Contact Us For Availability
NI
Insulation, Back (Upper Oven) WPL 7002P43460 Contact Us For Availability
NI
Insulation, Wrap (Upper Oven) WPL 7002P49060 Contact Us For Availability
× ![]()
