Model Whirlpool MER6757BAB15 ELECTRIC RANGE – Common Parts & Diagrams

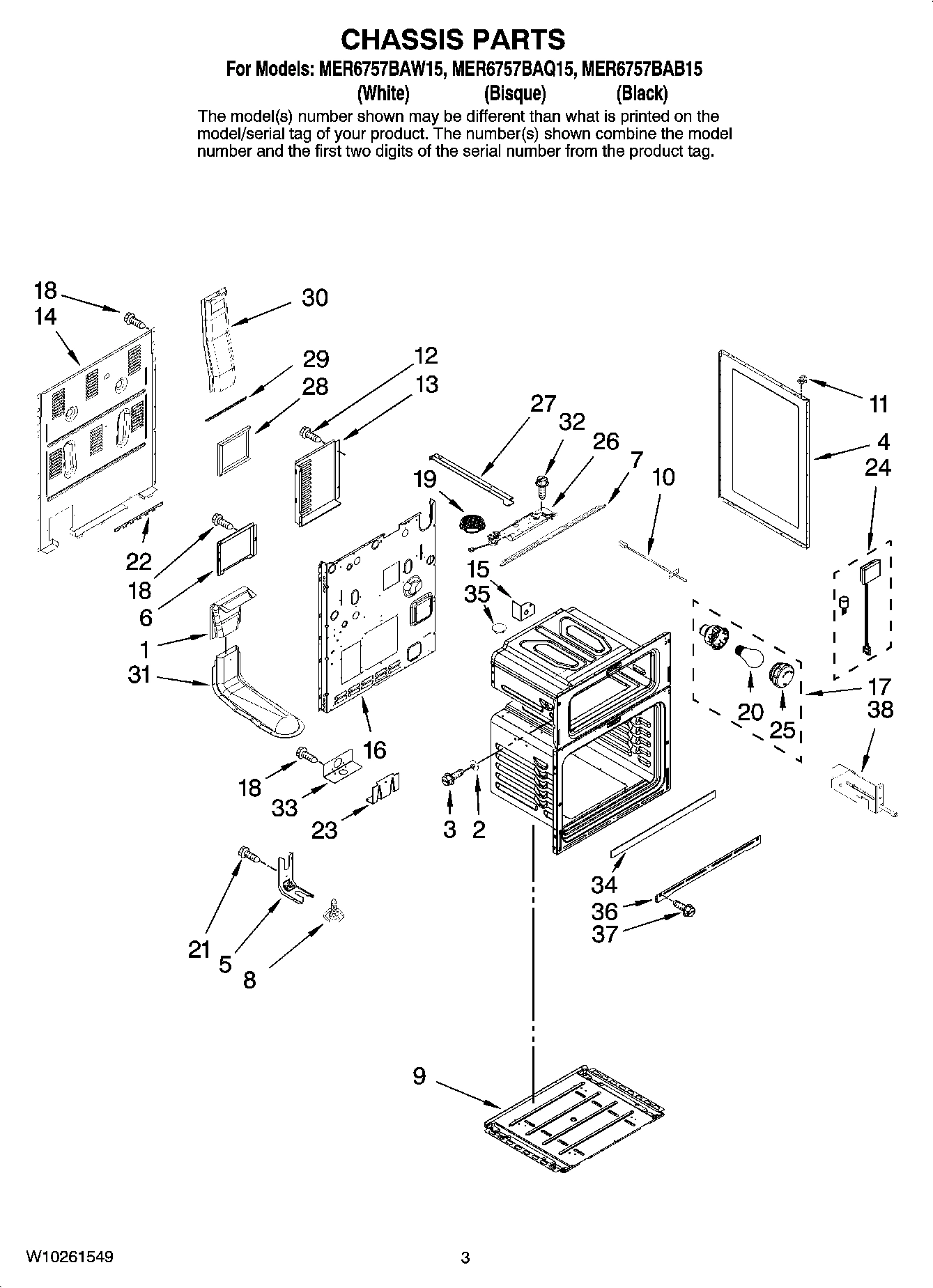

03 - CHASSIS PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)

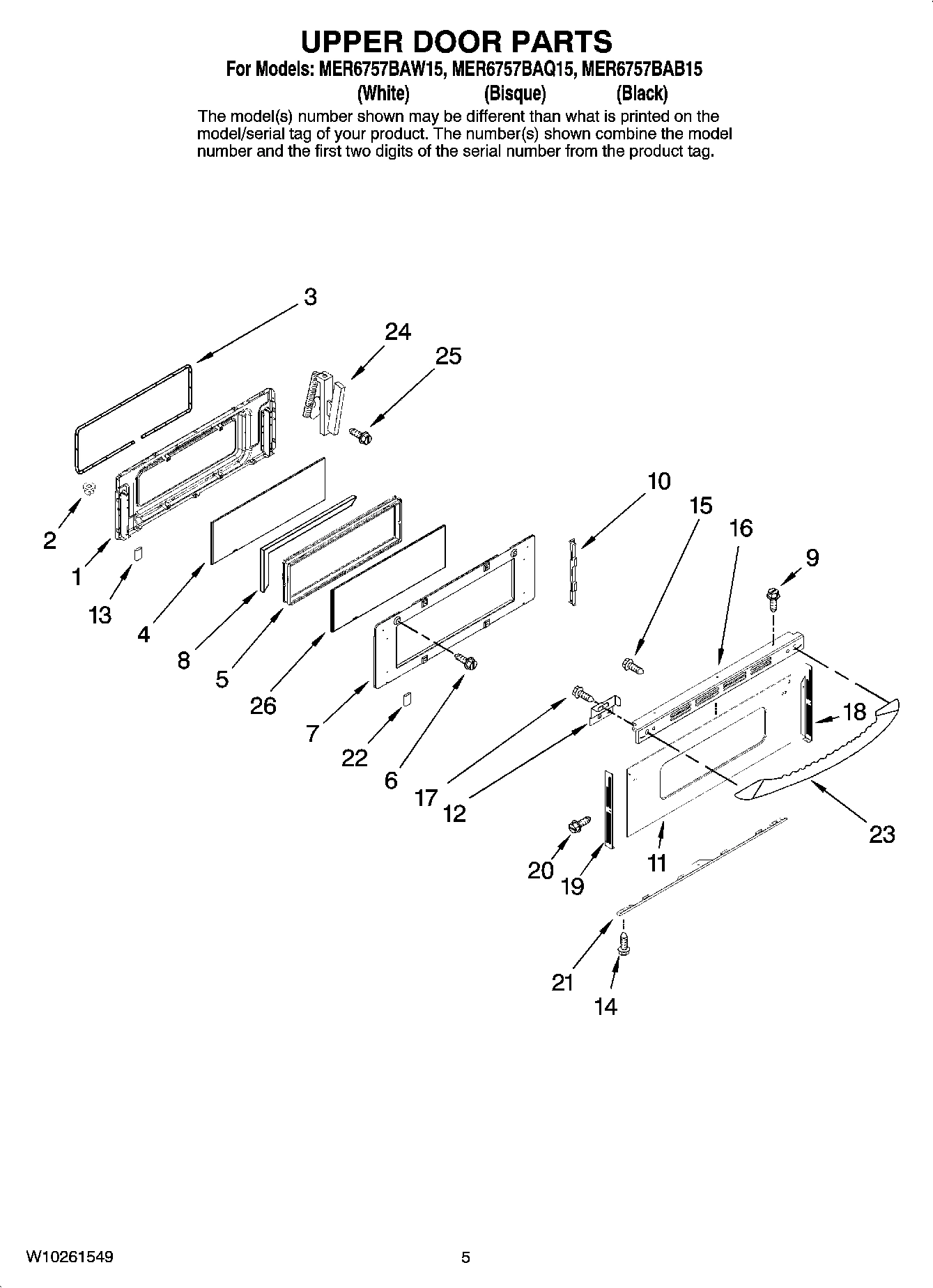

04 - UPPER DOOR PARTS

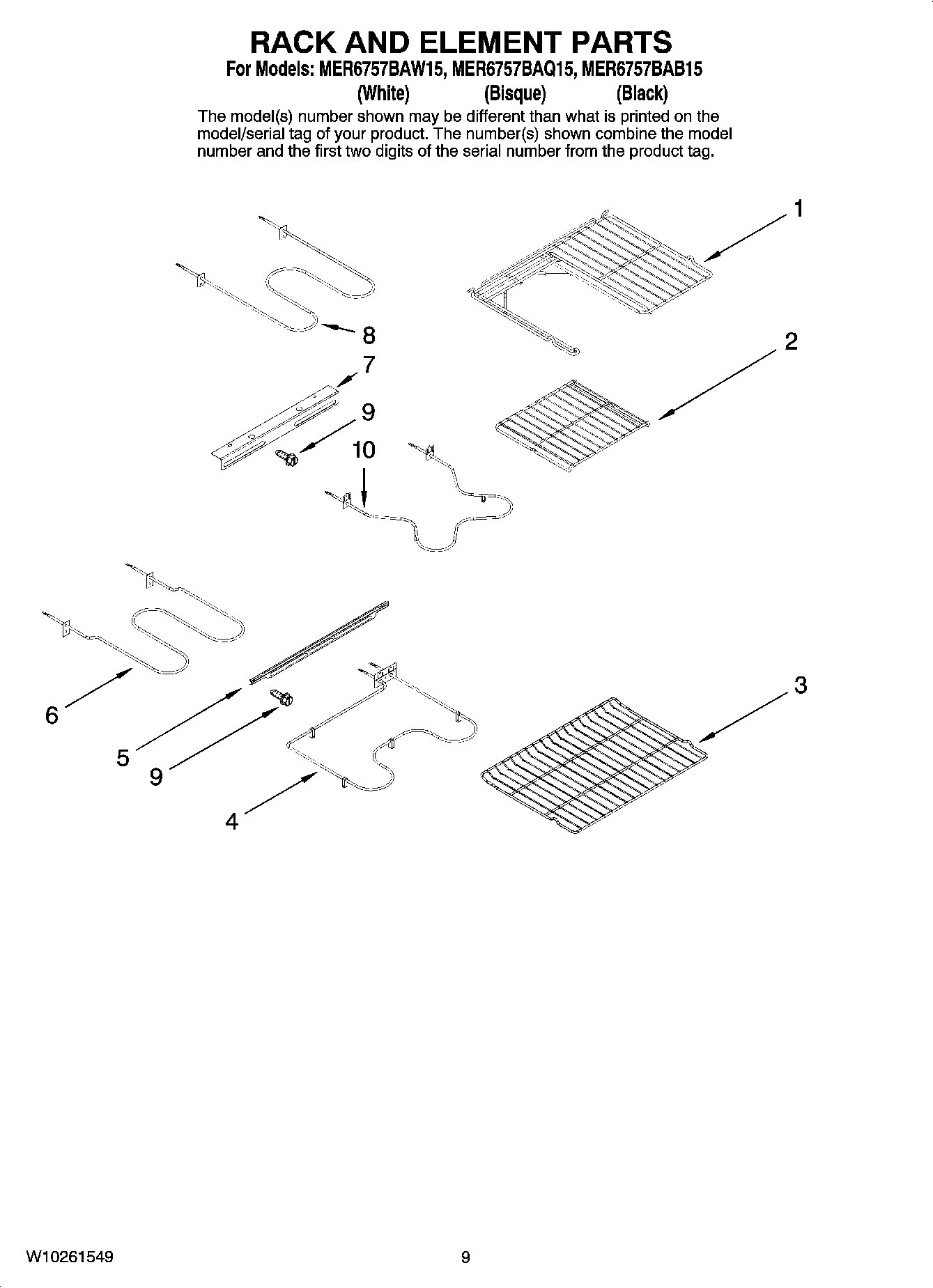

06 - RACK AND ELEMENT PARTS

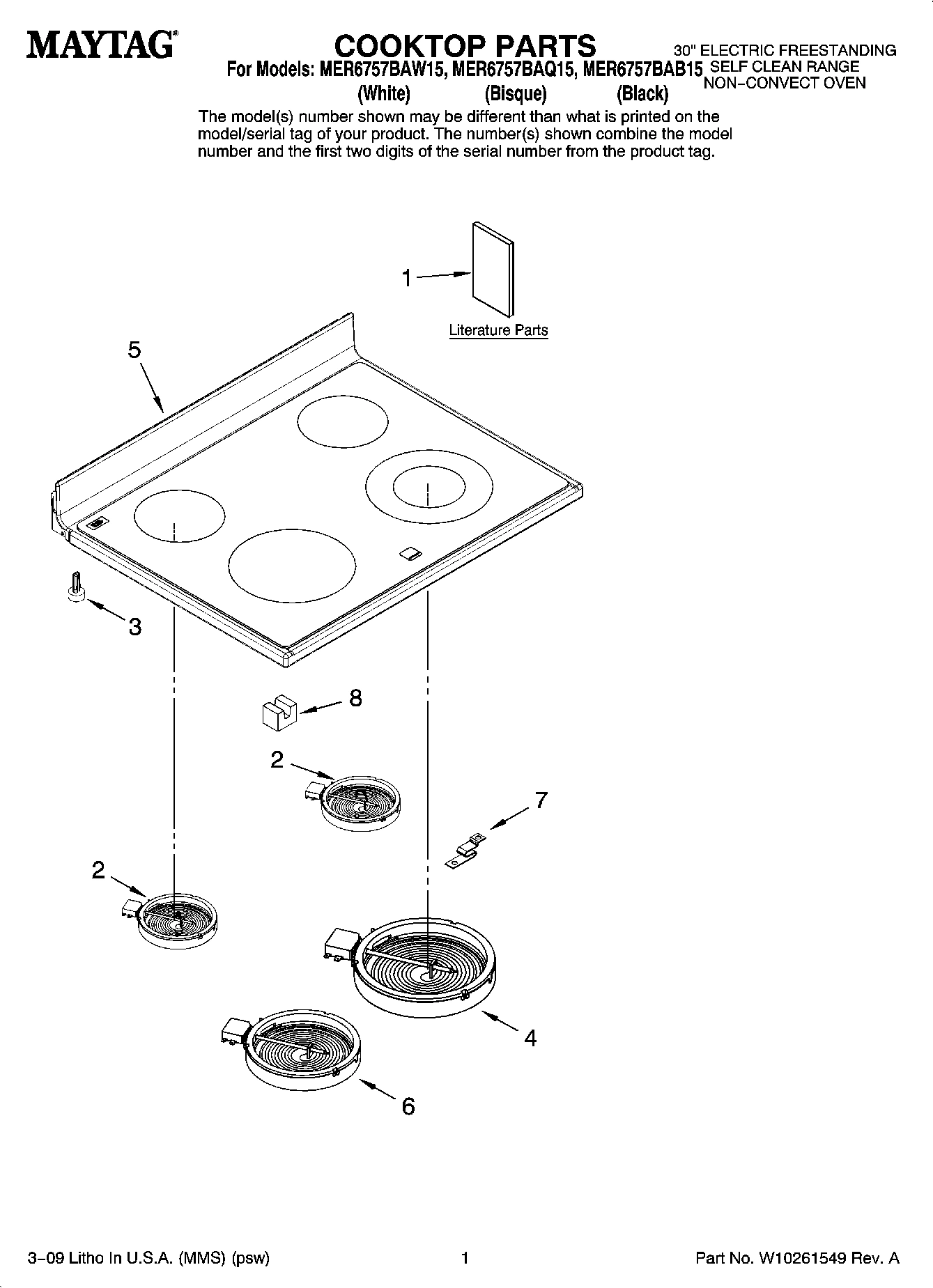

01 - COOKTOP PARTS

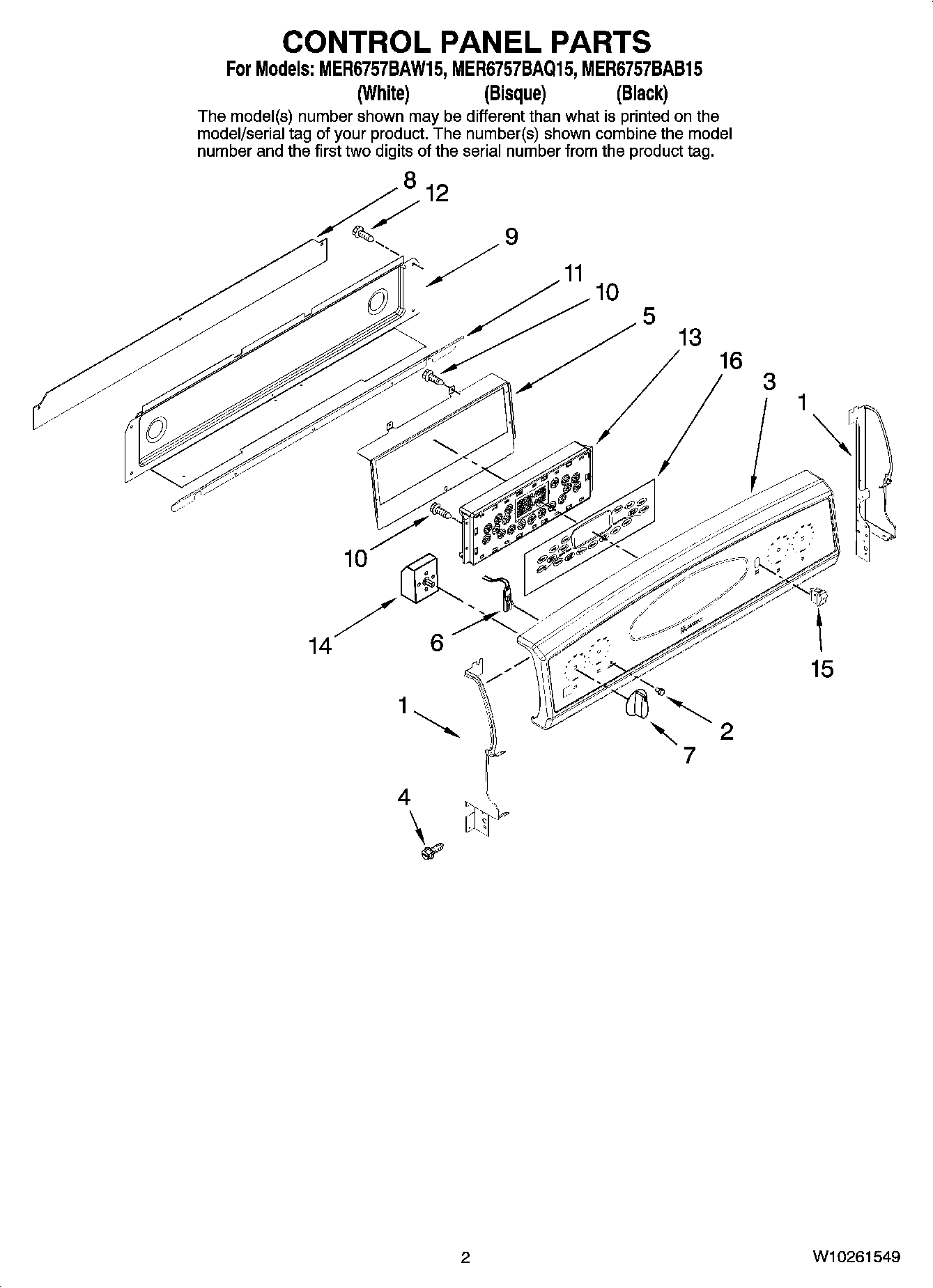

02 - CONTROL PANEL PARTS

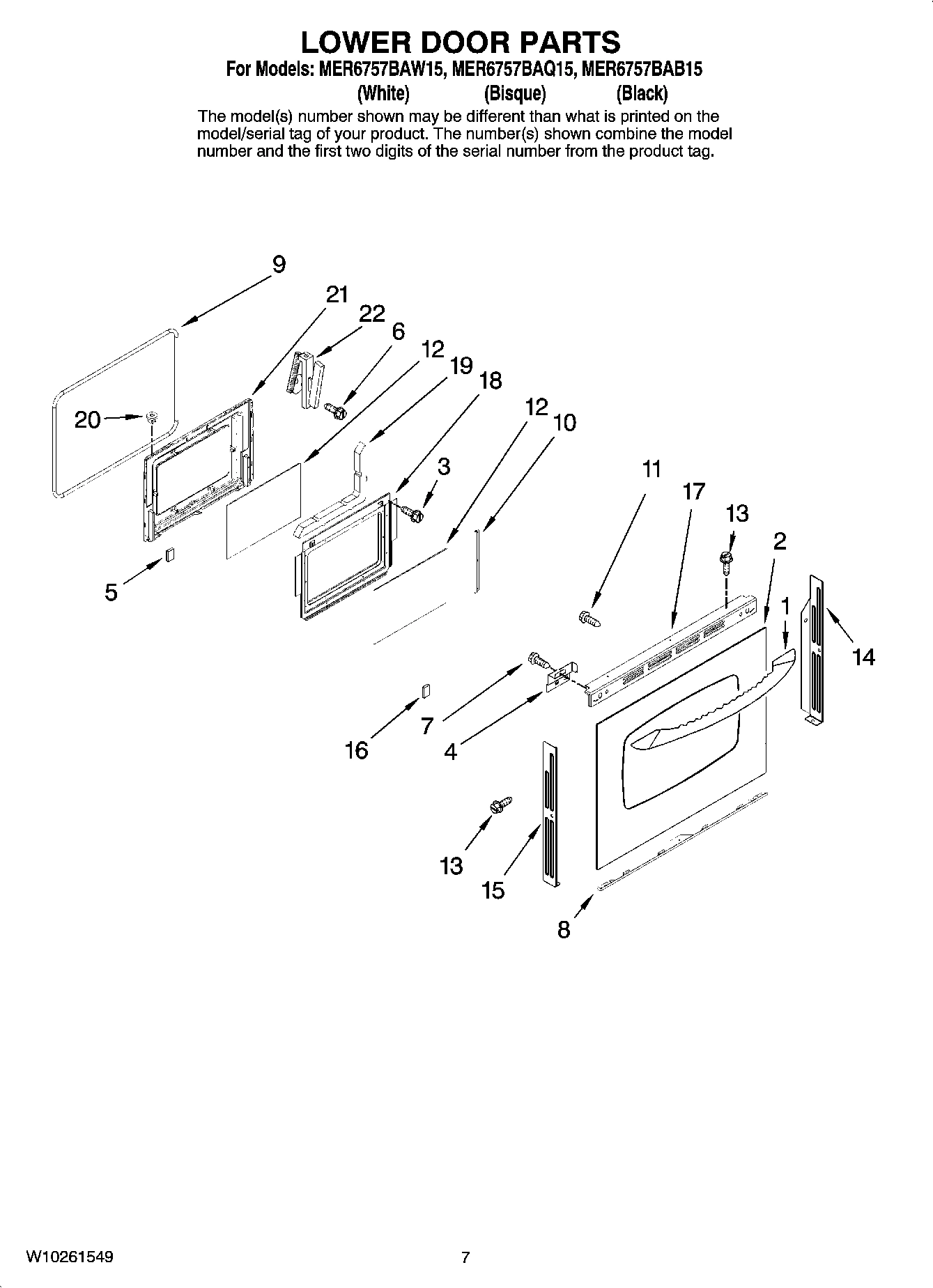

05 - LOWER DOOR PARTS
Common parts from model Whirlpool MER6757BAB15 ELECTRIC RANGE
1
Lining, Door WPL 2402W2481 Contact Us For Availability
1
Handle, Door (Black) WPL 7701P51660 Contact Us For Availability
1
Handle, Door (Bisque) WPL 7701P51860 Contact Us For Availability
1
Rack, Half WPL 7801P13760 Contact Us For Availability
1
Installation Instructions WPL 8101P63060 Contact Us For Availability
1
Owners Manual WPL 8113P70960 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING WPL 9762761 Contact Us For Availability
1
Support, Backguard (Black Right) WPL 3807F73370 Contact Us For Availability
1
Support, Backguard (White Right) WPL 3807F73371 Contact Us For Availability
1
SUPPORT, BACKGUARD (BISQUE, RIGHT) WPL 3807F73378 Contact Us For Availability
1
Support, Backguard (Black Left) WPL 3807F73470 Contact Us For Availability
1
Support, Backguard (White Left) WPL 3807F73471 Contact Us For Availability
1
Support, Backguard (Bisque Left) WPL 3807F73478 Contact Us For Availability
1
Handle, Door (White) WPL 7701P53660 Contact Us For Availability
2
Insert, Rack WPL 7801P14260 Contact Us For Availability
2
Lens, Indicator WPL 7730P01160 Contact Us For Availability
2
Kit, Door Glass (Incl. Foil Tape) (Black) WPL 12002395 Contact Us For Availability
2
Kit, Door Glass (Incl. Foil Tape) (White) WPL 12002396 Contact Us For Availability
3
Gasket, Door WPL 7201P09160 Contact Us For Availability
3
Screw WPL 7101P38860 Contact Us For Availability
3
Rack, Lwr Oven (2) WPL 7801P17360 Contact Us For Availability
3
Glide, Main Top WPL 8016P02260 Contact Us For Availability
3
Panel, Control (Black) WPL 2602D36709 Contact Us For Availability
3
Panel, Control (White) WPL 2602D36781 Contact Us For Availability
3
Panel, Control (Bisque) WPL 2602D36788 Contact Us For Availability
4
Glass, Inner (2) WPL 7902P52160 Contact Us For Availability
4
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
4
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
4
Element, Bake Lower WPL 7406P42860 Contact Us For Availability
5
Frame, Glass WPL 7907P03460 Contact Us For Availability
5
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
5
Support, Broil Element WPL 3807F49445 Contact Us For Availability
5
Cooktop (Black) WPL 5706X61509 Contact Us For Availability
5
Cooktop (White) WPL 5706X63281 Contact Us For Availability
5
Cooktop (Bisque) WPL 5706X63288 Contact Us For Availability
5
Bracket, Control WPL 3801F84451 Contact Us For Availability
6
Element, Broil WPL 7406P20560 Contact Us For Availability
6
Light, Indicator WPL 7407P13660 Contact Us For Availability
6
Screw (10ABx1/4P) WPL 7101P20860 Contact Us For Availability
7
Baffel, Door WPL 3601F35445 Contact Us For Availability
7
Screw, Handle WPL 7101P54460 Contact Us For Availability
7
Support, Broil Element (Upper) WPL 3807F74945 Contact Us For Availability
7
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
7
Knobs (4) (Black) WPL 7737P23260 Contact Us For Availability
7
Knobs (4) (Bisque) WPL 7737P23360 Contact Us For Availability
7
Knobs (4) (White) WPL 7737P23460 Contact Us For Availability
8
Insulation, Door WPL 7002P48860 Contact Us For Availability
8
Support, Glass (Black) WPL 3807F70870 Contact Us For Availability
8
Support, Glass (White) WPL 3807F70871 Contact Us For Availability
8
Support, Glass (Bisque) WPL 3807F70878 Contact Us For Availability
8
Block, Element Support WPL 8255P41260 Contact Us For Availability
8
Shield, Sight WPL 3604F38751 Contact Us For Availability
9
Cover, Rear Wire WPL 4005F80351 Contact Us For Availability
10
Retainer, Glass WPL 3804F17945 Contact Us For Availability
10
Element, Bake (Upper) WPL 7406P42760 Contact Us For Availability
10
Screw WPL 7101P50060 Contact Us For Availability
10
Bracket, Glass WPL 3801F88651 Contact Us For Availability
11
Kit, Door Glass (Incl. Foil Tape) (Black) WPL 12002454 Contact Us For Availability
11
SCREW WPL 7101P37660 Contact Us For Availability
11
Kit, Door Glass (Incl. Foil Tape) (White) WPL 12002455 Contact Us For Availability
11
Kit, Door Glass (Incl. Foil Tape) (Bisque) WPL 12002456 Contact Us For Availability
11
Shield, Wire WPL 3604F40551 Contact Us For Availability
12
Screw WPL 7101P43460 Contact Us For Availability
12
Glass, Inner (2) WPL 7902P43660 Contact Us For Availability
13
Screw WPL 7101P63360 Contact Us For Availability
14
Switch, Infinite (LF) WPL W10177711 Contact Us For Availability
14
Screw W/Washer WPL 7101P54360 Contact Us For Availability
14
Switch, Infinite (RF) WPL 7403P37260 Contact Us For Availability
14
SWITCH, INFINITE (LR, RR) WPL 7403P37360 Contact Us For Availability
14
Trim, Door (Rt) (Black) WPL 3608F11670 Contact Us For Availability
14
Trim, Door (Rt) (White) WPL 3608F11671 Contact Us For Availability
14
Trim, Door (Rt) (Bisque) WPL 3608F11678 Contact Us For Availability
15
Bracket (Left) WPL 3801F70651 Contact Us For Availability
15
Switch, Rocker WPL 7403P98560 Contact Us For Availability
15
Trim, Door (Lt) (Black) WPL 3608F11770 Contact Us For Availability
15
Trim, Door (Lt) (White) WPL 3608F11771 Contact Us For Availability
15
Trim, Door (Lt) (Bisque) WPL 3608F11778 Contact Us For Availability
16
Back, Main WPL 4002F33251 Contact Us For Availability
16
TAPE WPL 8270P13960 Contact Us For Availability
16
Overlay (Bisque) WPL W10168438 Contact Us For Availability
16
Overlay (Black) WPL W10168439 Contact Us For Availability
16
Overlay (White) WPL W10168440 Contact Us For Availability
17
Trim, Door Top (Bisque) WPL 3608F14178 Contact Us For Availability
17
Trim, Door Top (White) WPL W10165726 Contact Us For Availability
17
Trim, Door Top (Black) WPL W10165729 Contact Us For Availability
18
Trim, Door (Rt) (Black) WPL 3608F11870 Contact Us For Availability
18
Trim, Door (Rt) (White) WPL 3608F11871 Contact Us For Availability
18
Trim, Door (Rt) (Bisque) WPL 3608F11878 Contact Us For Availability
18
Baffle, Door WPL 3601F37351 Contact Us For Availability
19
Screen, Smoke WPL 8034P00860 Contact Us For Availability
19
Trim, Door (Lt) (Black) WPL 3608F11970 Contact Us For Availability
19
Trim, Door (Lt) (White) WPL 3608F11971 Contact Us For Availability
19
Trim, Door (Lt) (Bisque) WPL 3608F11978 Contact Us For Availability
19
Insulation, Door WPL 7002P24660 Contact Us For Availability
20
Bulb, Oven WPL 7407P11460 Contact Us For Availability
20
Nut, Snap (White) WPL 7103P03960 Contact Us For Availability
20
Nut, Snap (Black) WPL 7103P14160 Contact Us For Availability
20
Screw, Trim (White) WPL 7101P63660 Contact Us For Availability
20
Screw, Trim (Bisque) WPL 7101P63760 Contact Us For Availability
21
Screw WPL 7101P48560 Contact Us For Availability
21
Lining, Door WPL 2402W31219 Contact Us For Availability
22
Sheild, Cord WPL 8036P01260 Contact Us For Availability
22
Hinge, Door (2) WPL 7106P14160 Contact Us For Availability
23
Support, Lwr Oven WPL 3807F58051 Contact Us For Availability
23
Handle, Door (White) WPL 7701P51760 Contact Us For Availability
24
Hinge, Door (2) WPL W10202401 Contact Us For Availability
24
Light Assy. (Lower) WPL 7407P18160 Contact Us For Availability
24
Light Assy. (Upper) WPL 7407P17960 Contact Us For Availability
25
Screw (4) WPL 7101P28260 Contact Us For Availability
26
Latch, Door Lock WPL 8002P07760 Contact Us For Availability
26
Glass, Door WPL 7902P52060 Contact Us For Availability
27
Bottom, Burner Box (Right) WPL W10163331 Contact Us For Availability
27
Bottom, Burner Box (Left) WPL W10163332 Contact Us For Availability
28
Gasket, Vent WPL 7201P08960 Contact Us For Availability
29
Sheild, Door Lock WPL 3604F33551 Contact Us For Availability
30
Vent, Oven WPL W10201612 Contact Us For Availability
31
Vent, Box (Lower) WPL 4006W12945 Contact Us For Availability
31
Vent, Box (Upper) WPL 4006W13945 Contact Us For Availability
32
Screw WPL 7101P37560 Contact Us For Availability
33
Bracket, Pwr Sply WPL 3801F57451 Contact Us For Availability
34
Seal, Frame WPL 7212P06660 Contact Us For Availability
35
Plug, Hole WPL 7718P03060 Contact Us For Availability
36
Trim, Kickplate WPL 3608F09170 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
Insulation, Wrap (Lower Oven) WPL 7002P23360 Contact Us For Availability
NI
Insulation, Back (Upper Oven) WPL 7002P43460 Contact Us For Availability
NI
Insulation, Wrap (Upper Oven) WPL 7002P49060 Contact Us For Availability
NI
INSULATION WPL ARI4679A83 Contact Us For Availability
NI
PAINT PRESSURIZED SPRAY (12 oz.) (PRIMER WHIT WPL 2060922 Contact Us For Availability
NI
Harness, Sensor WPL 5171P43260 Contact Us For Availability
NI
Harness, Side Mount Lock WPL 5171P46760 Contact Us For Availability
NI
Harness, Inf.Sw. (Right) WPL 5171P86560 Contact Us For Availability
NI
Harness, Main WPL 5171P95360 Contact Us For Availability
NI
Harness, Door Position WPL 5175P36560 Contact Us For Availability
NI
Harness, Inf.Sw. (Left) WPL 5717P91060 Contact Us For Availability
NI
Blocks, Bare Wire Adapter (Kit of 3) WPL 7401P15760 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799340 Contact Us For Availability
NI
Kit, Porcelain Repair (White) WPL 799832 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
Clip, Harness WPL 8019P02660 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI4680A46 Contact Us For Availability
NI
Refinishing Material WPL ARI4681A93 Contact Us For Availability
NI
INSULATION WPL ARI4682A35 Contact Us For Availability
NI
ACCESSORY PARTS WPL ARI4683A26 Contact Us For Availability
NI
WIRING HARNESS PARTS WPL ARI4684A38 Contact Us For Availability
× ![]()
