Model Whirlpool MER6755ABW25 ELECTRIC RANGE – Common Parts &amp; Diagrams

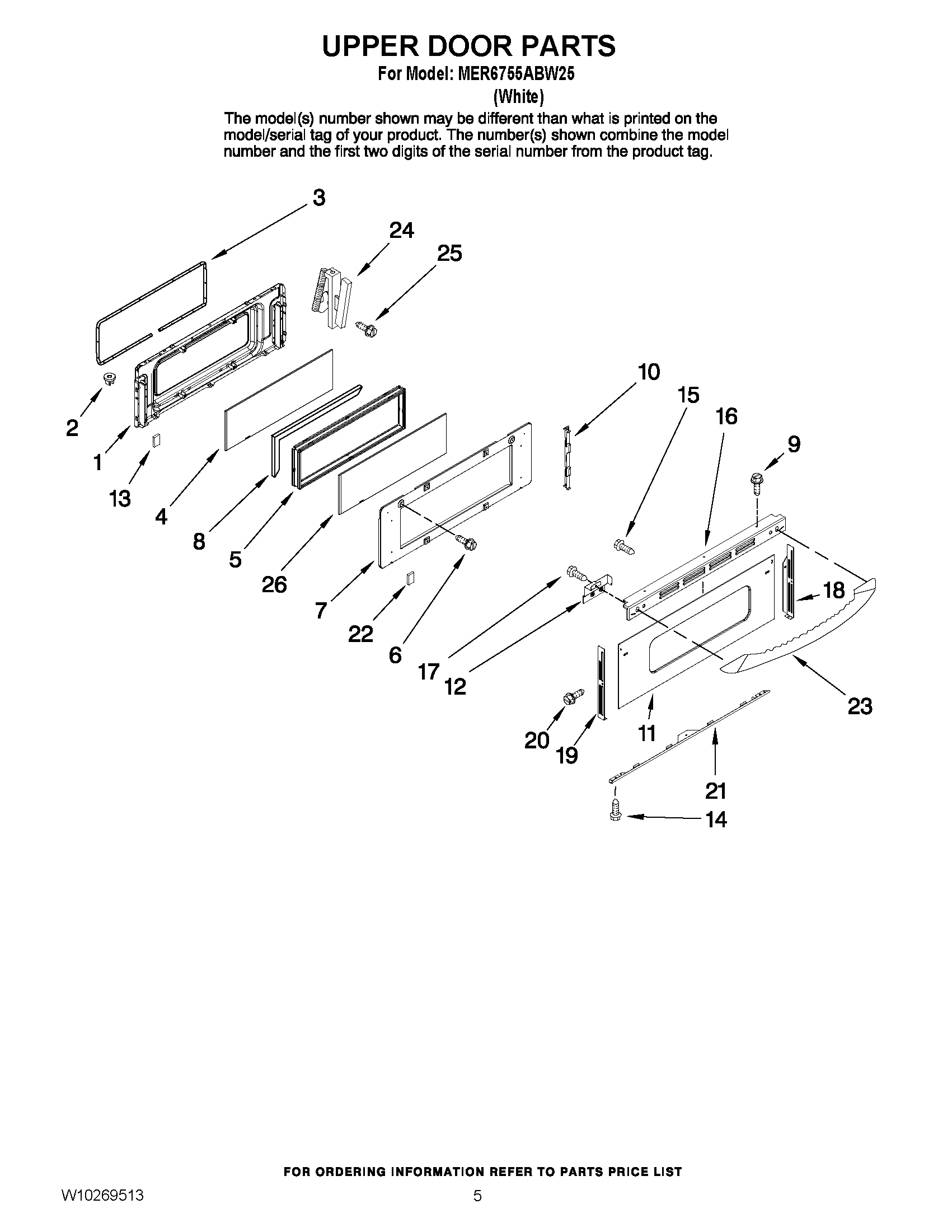

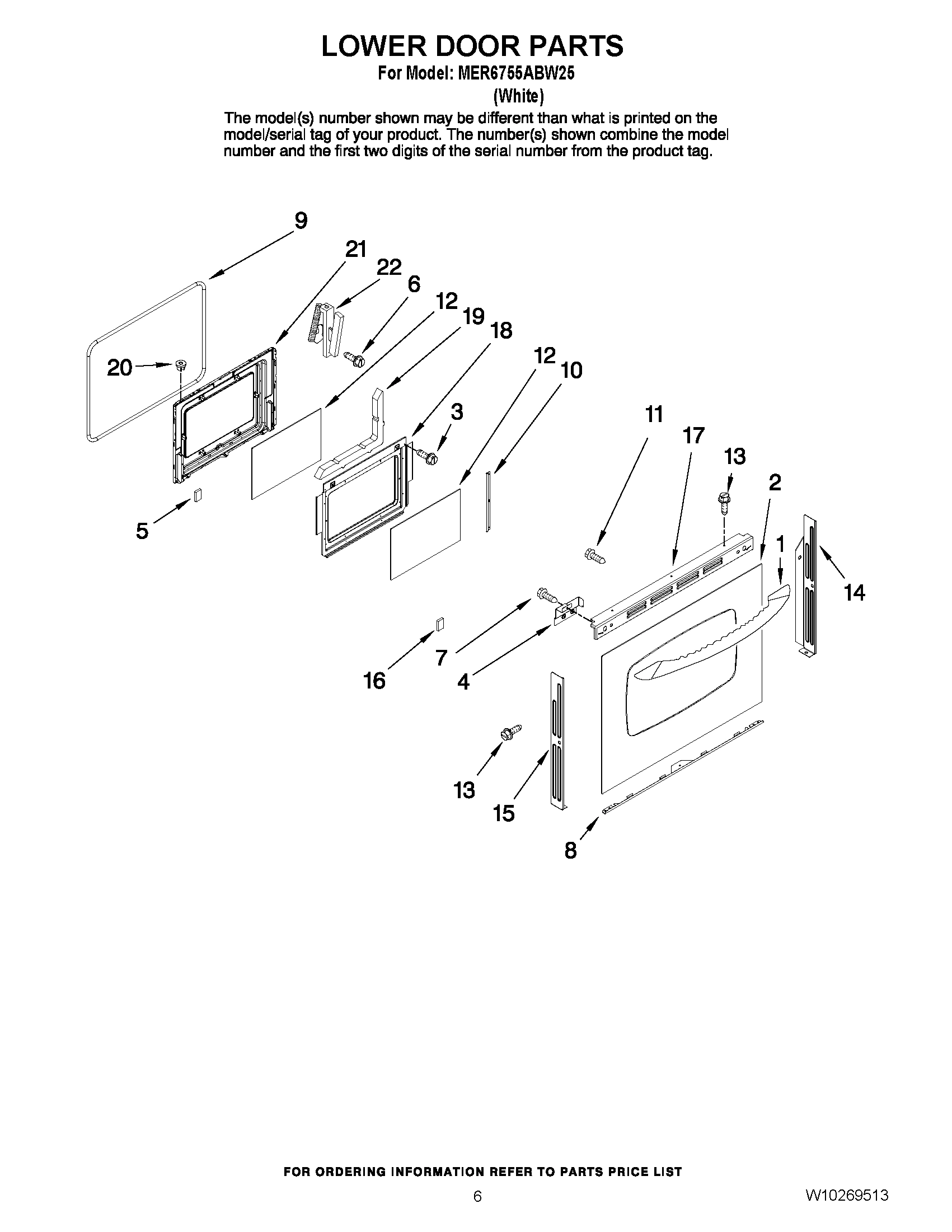

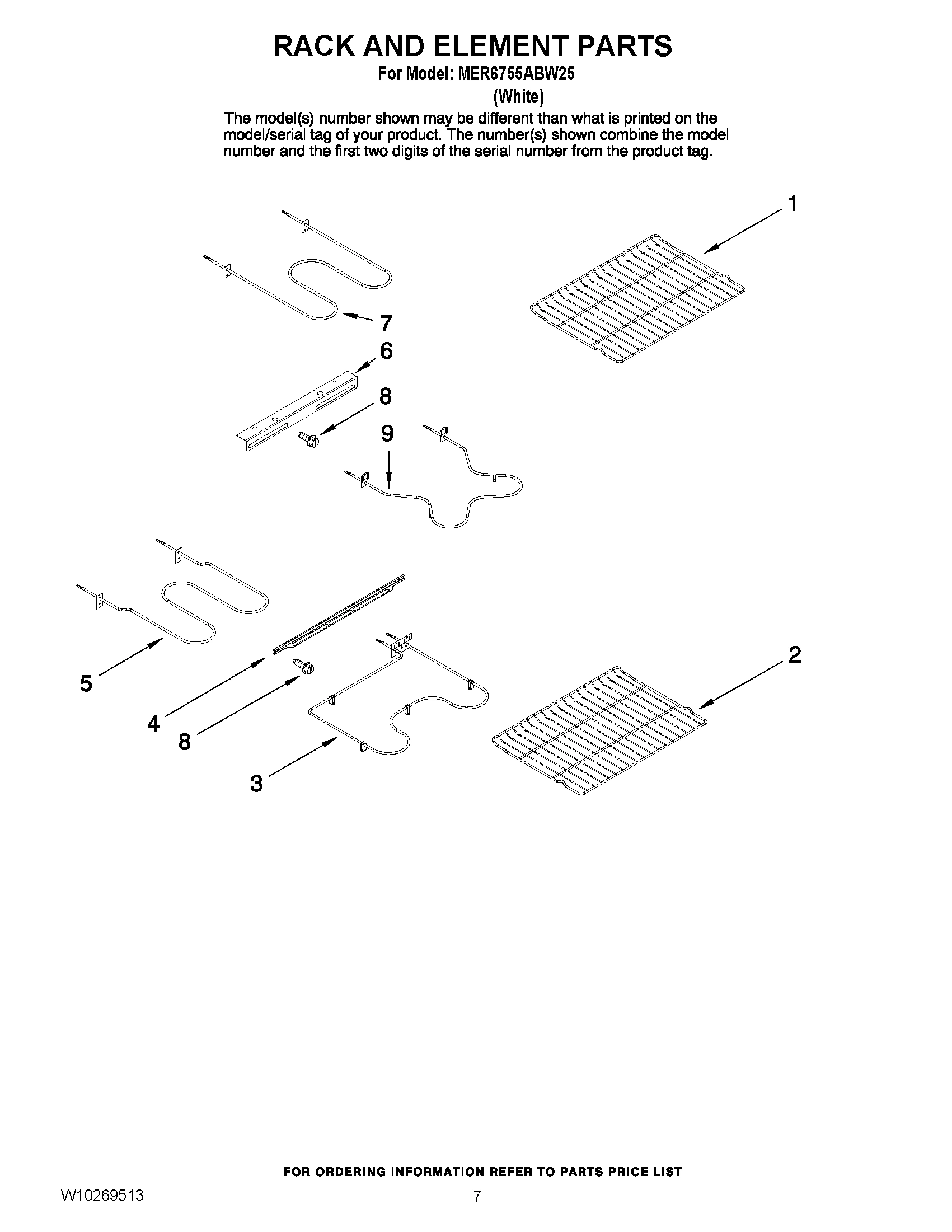

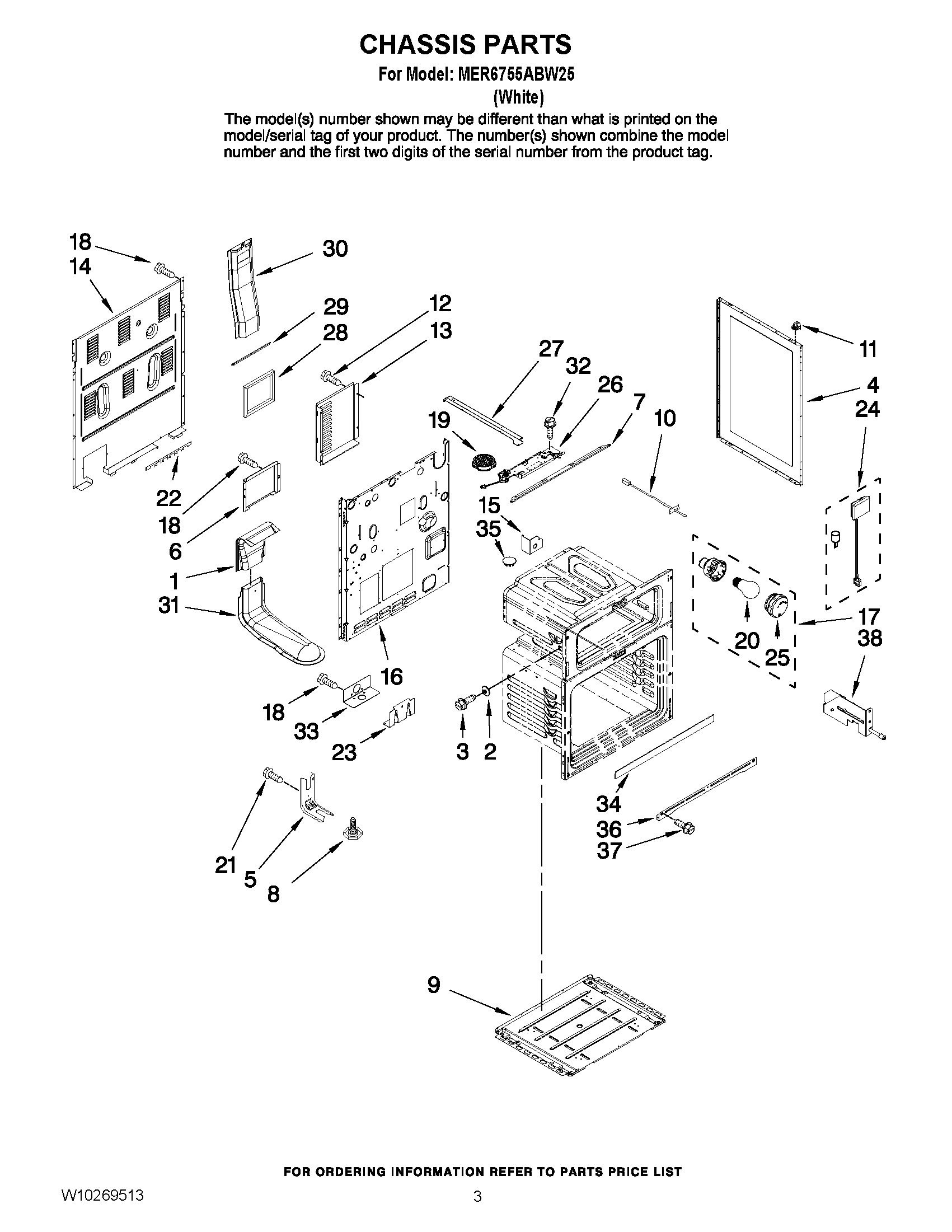

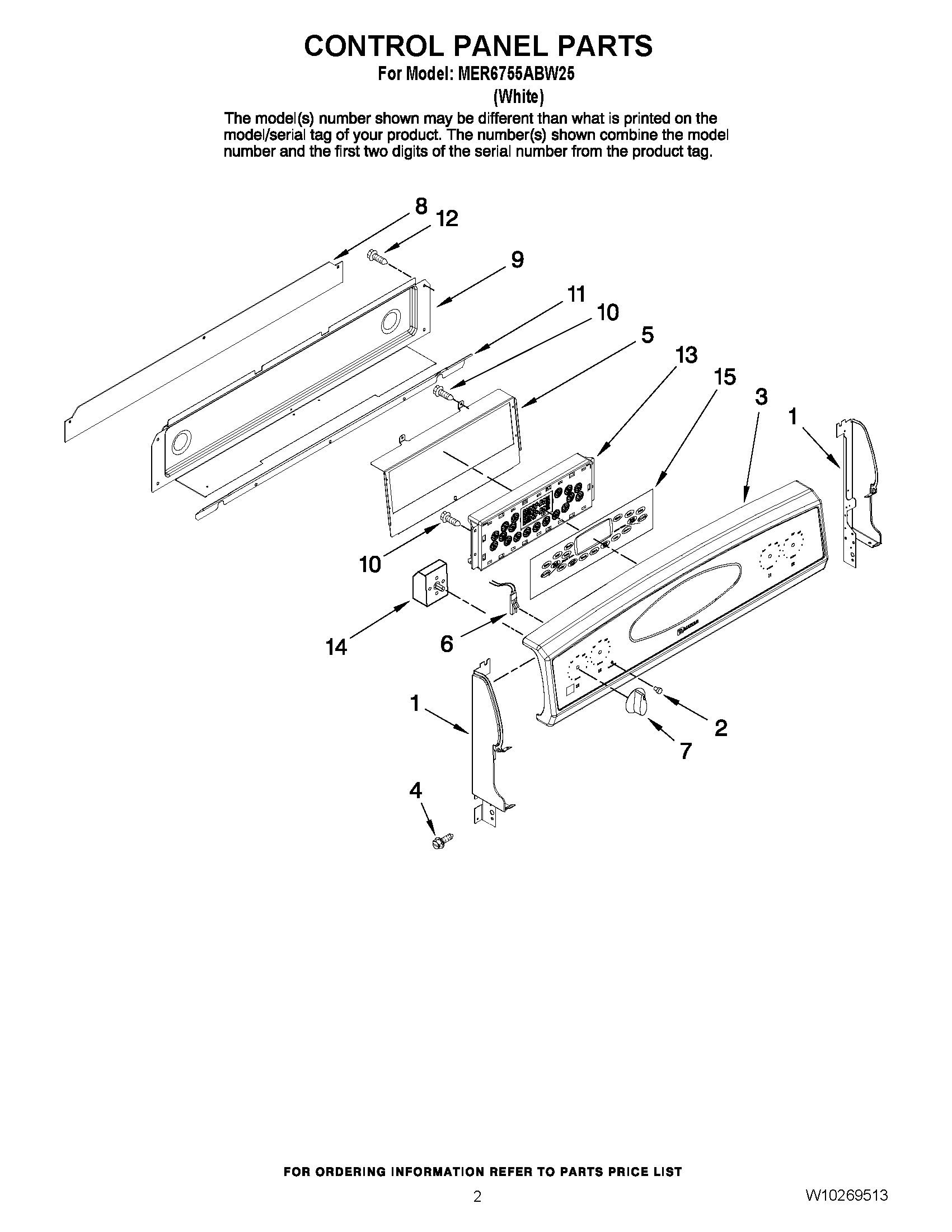

1

HANDLE, DOOR WPL 7701P51760 Contact Us For Availability

1

SUPPORT, BACKGUARD (RIGHT) WPL 3807F73371 Contact Us For Availability

1

SUPPORT, BACKGUARD (LEFT) WPL 3807F73471 Contact Us For Availability

1

Extension, Vent WPL 8026P08260 Contact Us For Availability

2

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $95.26

2

KIT, DOOR GLASS WPL 7902P73660 Contact Us For Availability

2

Lens, Indicator WPL 7730P01160 Contact Us For Availability

2

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

2

RACK, LWR OVEN WPL 7801P17360 Contact Us For Availability

3

PANEL, CONTROL WPL 2602D24781 Contact Us For Availability

3

Screw, Shoulder WPL 7101P61860 Contact Us For Availability

3

Element, Bake Lower WPL 7406P42860 Contact Us For Availability

4

ELEMENT, (RF) WPL W10204679 Contact Us For Availability

4

Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability

4

Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability

4

PANEL, SIDE WPL 2618F19471 Contact Us For Availability

4

Support, Broil Element WPL 3807F49445 Contact Us For Availability

5

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $73.73

5

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

5

Bracket, Control WPL 3801F84451 Contact Us For Availability

5

Brack, Anti-Tip WPL 3801F65651 Contact Us For Availability

6

WPW10187838 Whirlpool Surface Element Backorder WPL WPW10187838 $151.09

6

Screw WPL 7101P20860 Contact Us For Availability

6

Light, Indicator WPL 7407P13660 Contact Us For Availability

6

Cover, Access WPL 4005F74751 Contact Us For Availability

6

Support, Broil Element (Upper) WPL 3807F74945 Contact Us For Availability

7

Baffle, Door WPL 3601F35445 Contact Us For Availability

7

SCREW, HANDLE WPL 7101P68160 Contact Us For Availability

7

KNOBS WPL 7737P23460 Contact Us For Availability

7

Bracket, Cooktop WPL 3801F92480 Contact Us For Availability

7

Element, Broil (Upper) WPL 7406P47460 Contact Us For Availability

8

Insulation, Door WPL 7002P48860 Contact Us For Availability

8

SCREW WPL 7101P37660 Contact Us For Availability

8

SUPPORT, GLASS WPL 3807F70871 Contact Us For Availability

8

Shield, Sight WPL 3604F38751 Contact Us For Availability

8

FOOT, LEVELER WPL 7101P50760 Contact Us For Availability

9

W10312768 Whirlpool Base Unit Backorder WPL W10312768 $129.04

9

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $62.13

9

Cover, Rear Wire WPL 4005F80351 Contact Us For Availability

9

Element, Bake (Upper) WPL 7406P42760 Contact Us For Availability

Retainer, Glass WPL 3804F17945 Contact Us For Availability

Bracket, Glass WPL 3801F88651 Contact Us For Availability

Screw WPL 7101P50060 Contact Us For Availability

Sensor, Oven (Lower Oven) WPL 7430P04260 Contact Us For Availability

Sensor, Oven (Upper Oven) WPL 7430P04460 Contact Us For Availability

KIT, DOOR GLASS WPL 7902P73360 Contact Us For Availability

Shield, Wire WPL 3604F40551 Contact Us For Availability

Spacer, Top (Left) WPL 8010P08760 Contact Us For Availability

Spacer, Top (Right) WPL 8010P08860 Contact Us For Availability

12

Screw WPL 7101P38860 Contact Us For Availability

12

Glass, Inner WPL 7902P43660 Contact Us For Availability

12

Screw WPL 7101P43460 Contact Us For Availability

13

W10769079-includeCORE Whirlpool W10769079 Ran Backorder WPL W10769079-includeCORE $383.92

13

Cover, Bottom Wire WPL 4005F59251 Contact Us For Availability

Screw W/Washer WPL 7101P54360 Contact Us For Availability

TRIM, DOOR (RT) WPL 3608F11871 Contact Us For Availability

Switch, Infinite (LF, RF) WPL 7403P37260 Contact Us For Availability

SWITCH, INFINITE (LR, RR) WPL 7403P37360 Contact Us For Availability

Cover, Upper Wire WPL 4005F59151 Contact Us For Availability

TRIM, DOOR (LT) WPL 3608F11971 Contact Us For Availability

OVERLAY WPL 7728P49960 Contact Us For Availability

Bracket (Right) WPL 3801F70551 Contact Us For Availability

Bracket (Left) WPL 3801F70651 Contact Us For Availability

16

TAPE WPL W10250536 Contact Us For Availability

16

Back, Main WPL 4002F33251 Contact Us For Availability

17

TRIM, DOOR TOP WPL 3608F14171 Contact Us For Availability

18

TRIM, DOOR (RT) WPL 3608F11671 Contact Us For Availability

18

Baffle, Door WPL 3601F37351 Contact Us For Availability

19

TRIM, DOOR (LT) WPL 3608F11771 Contact Us For Availability

19

Insulation, Door WPL 7002P24660 Contact Us For Availability

19

Screen, Smoke WPL 8034P00860 Contact Us For Availability

20

SCREW, TRIM WPL 7101P63660 Contact Us For Availability

20

NUT, SNAP WPL 7103P14160 Contact Us For Availability

20

Bulb, Oven WPL 7407P11460 Contact Us For Availability

21

SUPPORT, GLASS WPL 3607F70871 Contact Us For Availability

21

Lining, Door WPL 2402W31219 Contact Us For Availability

21

Screw WPL 7101P48560 Contact Us For Availability

22

HINGE, DOOR WPL 7106P14160 Contact Us For Availability

22

Sheild, Cord WPL 8036P01260 Contact Us For Availability

23

W10260703 Whirlpool Support Backorder WPL W10260703 $30.29

24

HINGE, DOOR WPL 7106P14860 Contact Us For Availability

24

Light Assy. (Lower/Upper) WPL 7407P18160 Contact Us For Availability

25

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $45.28

25

Screw WPL 7101P28260 Contact Us For Availability

26

Glass, Door WPL 7902P52060 Contact Us For Availability

26

Latch, Door Lock WPL 8002P07760 Contact Us For Availability

27

BOTTOM, BURNER BOX (RIGHT) WPL W10283688 Contact Us For Availability

27

BOTTOM, BURNER BOX (LEFT) WPL W10283722 Contact Us For Availability

28

Gasket, Vent WPL 7201P08960 Contact Us For Availability

29

Sheild, Door Lock WPL 3604F33551 Contact Us For Availability

30

Vent, Oven WPL 4022W01745 Contact Us For Availability

31

Vent, Box (Lower) WPL 4006W12945 Contact Us For Availability

31

Vent, Box (Upper) WPL 4006W13945 Contact Us For Availability

32

Screw WPL 7101P37560 Contact Us For Availability

33

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.93

34

Seal, Frame WPL 7212P06660 Contact Us For Availability

35

Plug, Hole WPL 7718P03060 Contact Us For Availability

36

Trim, Kickplate WPL 3608F09170 Contact Us For Availability

37

Screw WPL 7101P63360 Contact Us For Availability

38

SWTCH-LITE WPL 7450P10860 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $46.08

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.95

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $37.05

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $33.29

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Harness, Side Mount Lock WPL 5171P46760 Contact Us For Availability

HARNESS, SENSOR WPL 5171P49760 Contact Us For Availability

HARNESS, DOOR LOCK UPPER WPL 5171P49860 Contact Us For Availability

Harness, Inf.Sw. (Left) WPL 5171P91060 Contact Us For Availability

Harness, Inf.Sw. (Right) WPL 5171P91160 Contact Us For Availability

Harness, Door Position WPL 5175P36560 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

Blocks, Bare Wire Adapter (Kit of 3) WPL 7401P15760 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799340 Contact Us For Availability

REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability

Clip, Harness WPL 8019P02660 Contact Us For Availability

HARNESS, MAIN TOP WPL W10196182 Contact Us For Availability

Insulation, Back (Lower Oven) WPL 7002P23360 Contact Us For Availability

Insulation, Back (Upper Oven) WPL 7002P43460 Contact Us For Availability

Insulation, Wrap (Upper Oven) WPL 7002P49060 Contact Us For Availability
