Model Maytag MER6755AAS26 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

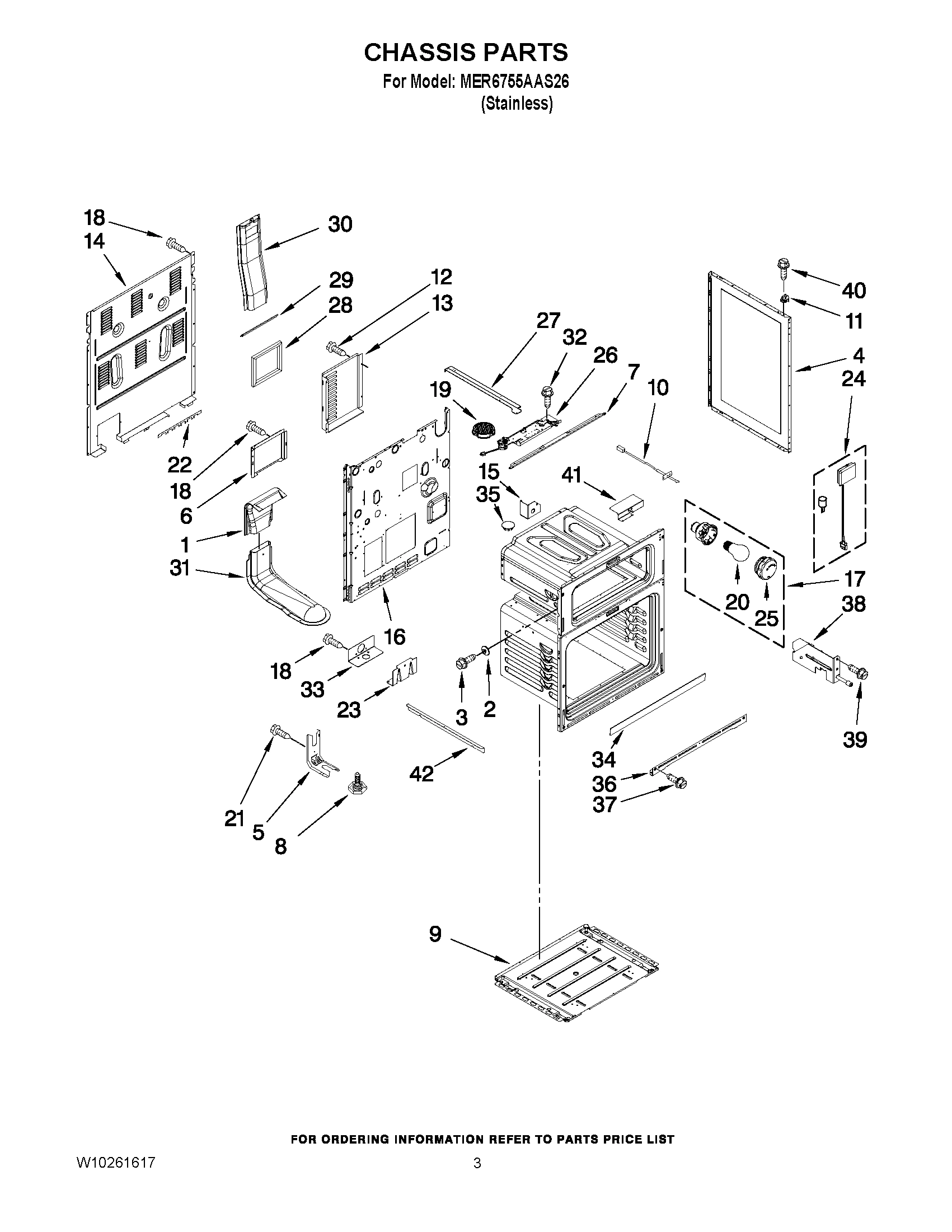

03 - CHASSIS PARTS

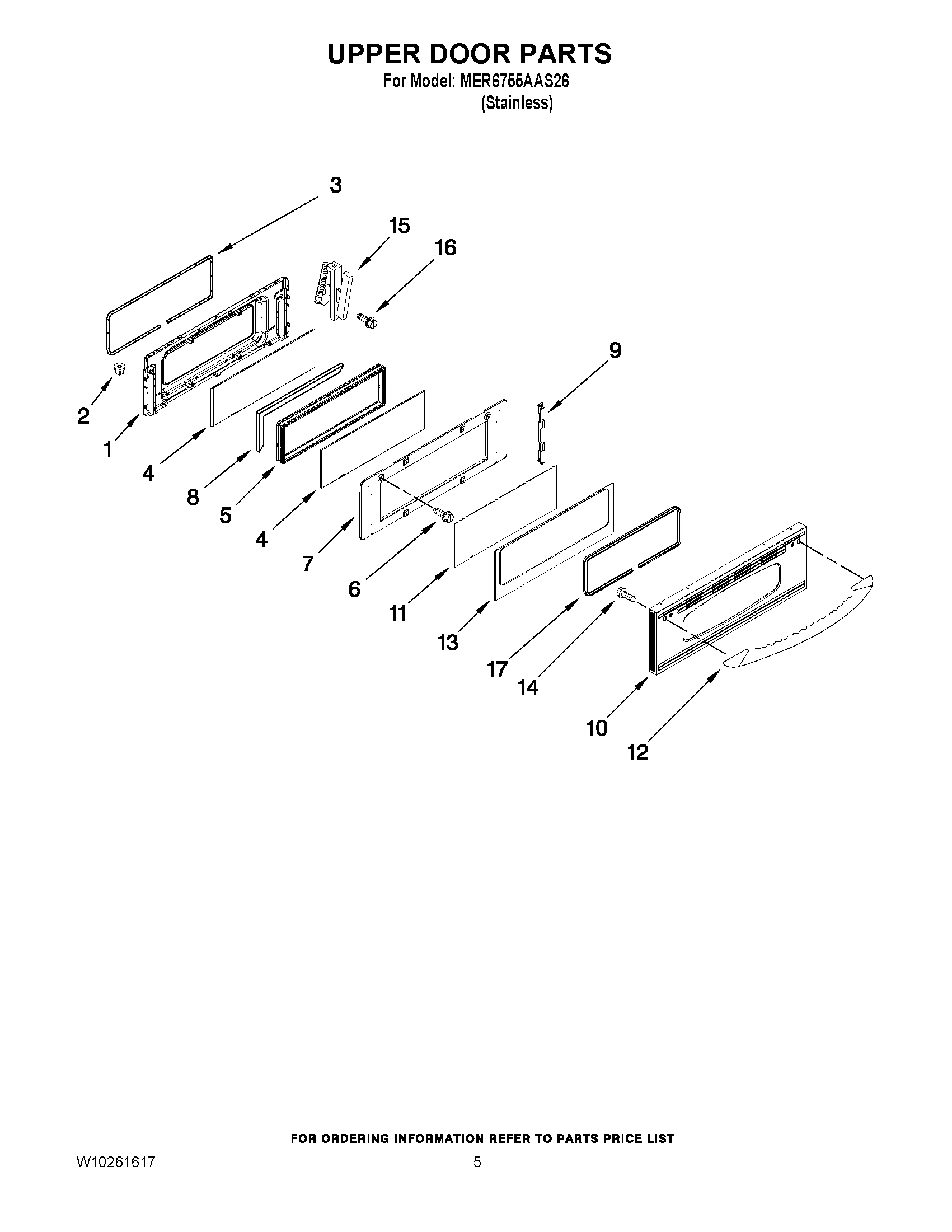

04 - UPPER DOOR PARTS
05 - LOWER DOOR PARTS

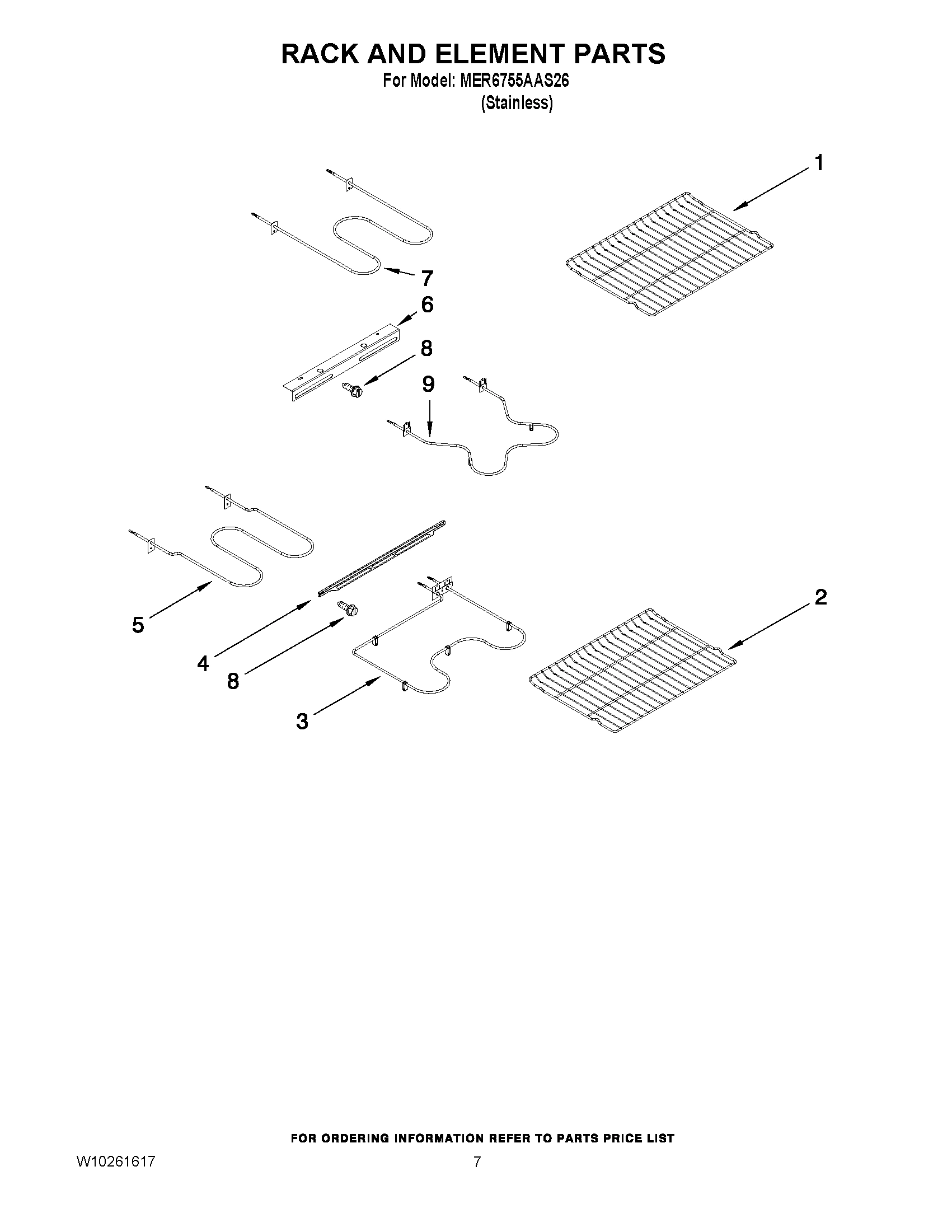

06 - RACK AND ELEMENT PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MER6755AAS26 ELECTRIC RANGE
1
MAY 8119P429-60 MAY 8119P429-60 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING MAY 9762761 Contact Us For Availability
1
Support, Backguard (Black Right) MAY 3807F733-70 Contact Us For Availability
1
Support, Backguard (Black Left) MAY 3807F734-70 Contact Us For Availability
1
MAY 8026P082-60 MAY 8026P082-60 Contact Us For Availability
1
MAY 2402W248-19 MAY 2402W248-19 Contact Us For Availability
1
Handle, Door MAY 7701P526-60 Contact Us For Availability
1
Rack, Upper MAY 7801P159-60 Contact Us For Availability
2
Element (RR,LR) MAY 8273994 Contact Us For Availability
2
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
2
MAY 7760P154-60 MAY 7760P154-60 Contact Us For Availability
2
RACK, LWR OVEN MAY 7801P173-60 Contact Us For Availability
3
MAY 8016P022-60 MAY 8016P022-60 Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) MAY 7704P001-60 Contact Us For Availability
3
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
3
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
3
MAY 7201P091-60 MAY 7201P091-60 Contact Us For Availability
3
MAY 7406P428-60 MAY 7406P428-60 Contact Us For Availability
4
MAY W10204679 MAY W10204679 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY 2618F194-70 Contact Us For Availability
4
GLASS, INNER MAY 7902P521-60 Contact Us For Availability
4
Screw MAY 7101P282-60 Contact Us For Availability
4
MAY 3807F494-45 MAY 3807F494-45 Contact Us For Availability
5
MAY 5706X501-09 MAY 5706X501-09 Contact Us For Availability
5
MAY 3801F656-51 MAY 3801F656-51 Contact Us For Availability
5
MAY 7907P034-60 MAY 7907P034-60 Contact Us For Availability
5
SCREW, HANDLE MAY 7101P675-60 Contact Us For Availability
5
MAY 7406P205-60 MAY 7406P205-60 Contact Us For Availability
6
MAY W10187838 MAY W10187838 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
MAY 4005F747-51 MAY 4005F747-51 Contact Us For Availability
6
MAY W10162384 MAY W10162384 Contact Us For Availability
6
MAY 3807F749-45 MAY 3807F749-45 Contact Us For Availability
7
SUPPORT, ELEMENT MAY 8004P093-60 Contact Us For Availability
7
KNOBS (BLACK) MAY 7737P232-60 Contact Us For Availability
7
MAY 3801F924-80 MAY 3801F924-80 Contact Us For Availability
7
MAY 3601F354-45 MAY 3601F354-45 Contact Us For Availability
7
MAY 3801F886-51 MAY 3801F886-51 Contact Us For Availability
7
MAY 7406P474-60 MAY 7406P474-60 Contact Us For Availability
8
MAY 8255P412-60 MAY 8255P412-60 Contact Us For Availability
8
MAY 3604F387-51 MAY 3604F387-51 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
8
MAY 7002P488-60 MAY 7002P488-60 Contact Us For Availability
9
MAY 4005F803-51 MAY 4005F803-51 Contact Us For Availability
9
MAY 4003F070-51 MAY 4003F070-51 Contact Us For Availability
9
MAY 3804F184-45 MAY 3804F184-45 Contact Us For Availability
9
Glass, Inner MAY 7902P436-60 Contact Us For Availability
9
MAY 7406P427-60 MAY 7406P427-60 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7430P042-60 MAY 7430P042-60 Contact Us For Availability
10
MAY 7430P044-60 MAY 7430P044-60 Contact Us For Availability
10
MAY 7760P150-60 MAY 7760P150-60 Contact Us For Availability
10
BRACKET, INNER MAY 3804F265-45 Contact Us For Availability
11
MAY 3604F405-51 MAY 3604F405-51 Contact Us For Availability
11
MAY 8010P087-60 MAY 8010P087-60 Contact Us For Availability
11
MAY 8010P088-60 MAY 8010P088-60 Contact Us For Availability
11
GLASS, OVEN DOOR MAY 7902P542-60 Contact Us For Availability
11
MAY 3601F373-51 MAY 3601F373-51 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
13
MAY W10166967 MAY W10166967 Contact Us For Availability
13
MAY 4005F592-51 MAY 4005F592-51 Contact Us For Availability
13
MAY 7103P141-60 MAY 7103P141-60 Contact Us For Availability
13
MAY 7902P751-60 MAY 7902P751-60 Contact Us For Availability
14
Switch, Infinite (LF, RF) MAY 7403P372-60 Contact Us For Availability
14
MAY 7403P373-60 MAY 7403P373-60 Contact Us For Availability
14
MAY W10167412 MAY W10167412 Contact Us For Availability
14
MAY 2402W312-19 MAY 2402W312-19 Contact Us For Availability
15
Overlay (Black) MAY 7728P500-60 Contact Us For Availability
15
MAY 3801F705-51 MAY 3801F705-51 Contact Us For Availability
15
MAY 3801F706-51 MAY 3801F706-51 Contact Us For Availability
15
HINGE, DOOR MAY 7106P148-60 Contact Us For Availability
15
HINGE, DOOR MAY 7106P141-60 Contact Us For Availability
16
SCREW MAY 7101P280-60 Contact Us For Availability
16
MAY 4002F332-51 MAY 4002F332-51 Contact Us For Availability
16
MAY 3604F441-51 MAY 3604F441-51 Contact Us For Availability
17
BRACKET, VENT EXT. MAY 3801F930-51 Contact Us For Availability
17
MAY 7201P138-60 MAY 7201P138-60 Contact Us For Availability
19
MAY 8034P008-60 MAY 8034P008-60 Contact Us For Availability
20
MAY 7407P114-60 MAY 7407P114-60 Contact Us For Availability
21
Screw MAY 7101P485-60 Contact Us For Availability
22
MAY 8036P012-60 MAY 8036P012-60 Contact Us For Availability
23
SUPPORT,OVEN (LOWER OVEN) MAY 3807F580-51 Contact Us For Availability
23
SUPPORT,OVEN (UPPER OVEN) MAY 3807F587-51 Contact Us For Availability
24
Light Assy. (Lower/Upper) MAY 7407P181-60 Contact Us For Availability
25
MAY 209429 MAY 209429 Contact Us For Availability
26
MAY 8002P077-60 MAY 8002P077-60 Contact Us For Availability
27
MAY 4011F524-51 MAY 4011F524-51 Contact Us For Availability
27
MAY 4011F525-51 MAY 4011F525-51 Contact Us For Availability
28
MAY 7201P089-60 MAY 7201P089-60 Contact Us For Availability
29
MAY 3604F335-51 MAY 3604F335-51 Contact Us For Availability
30
MAY 4022W017-45 MAY 4022W017-45 Contact Us For Availability
31
MAY 4006W129-45 MAY 4006W129-45 Contact Us For Availability
31
MAY 4006W139-45 MAY 4006W139-45 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
MAY W10190166 MAY W10190166 Contact Us For Availability
34
MAY 7212P066-60 MAY 7212P066-60 Contact Us For Availability
35
MAY 7718P030-60 MAY 7718P030-60 Contact Us For Availability
36
MAY 3608F091-70 MAY 3608F091-70 Contact Us For Availability
37
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
38
MAY 7450P108-60 MAY 7450P108-60 Contact Us For Availability
40
SCREW MAY 7101P313-60 Contact Us For Availability
41
MAY 3604F440-51 MAY 3604F440-51 Contact Us For Availability
42
SPACER, SIDE PANEL MAY 3823F015-51 Contact Us For Availability
NI
MAY 7002P233-60 MAY 7002P233-60 Contact Us For Availability
NI
MAY 7002P434-60 MAY 7002P434-60 Contact Us For Availability
NI
MAY 7002P490-60 MAY 7002P490-60 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P462-60 MAY 5171P462-60 Contact Us For Availability
NI
MAY 5171P467-60 MAY 5171P467-60 Contact Us For Availability
NI
MAY 5171P909-60 MAY 5171P909-60 Contact Us For Availability
NI
Harness, Inf.Sw. (Left) MAY 5171P910-60 Contact Us For Availability
NI
Harness, Inf.Sw. (Right) MAY 5171P911-60 Contact Us For Availability
NI
MAY 5175P365-60 MAY 5175P365-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer (Wh MAY 62069220 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
MAY 7401P157-60 MAY 7401P157-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
NI
MAY 8019P026-60 MAY 8019P026-60 Contact Us For Availability
NI
MAY W10196182 MAY W10196182 Contact Us For Availability
× ![]()
