Model Maytag MER6550BAQ ELECTRIC OVEN – Common Parts & Diagrams

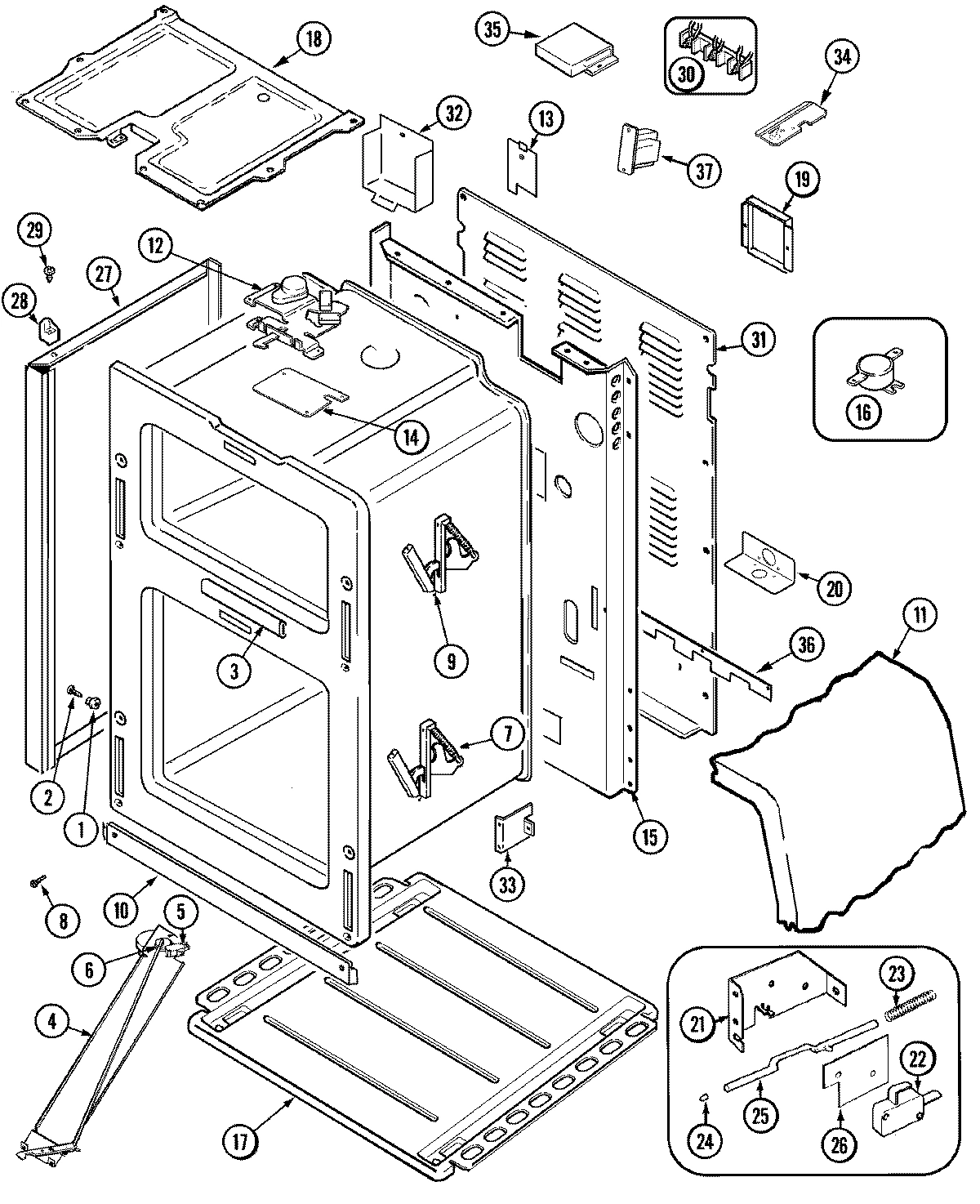

01 - BODY

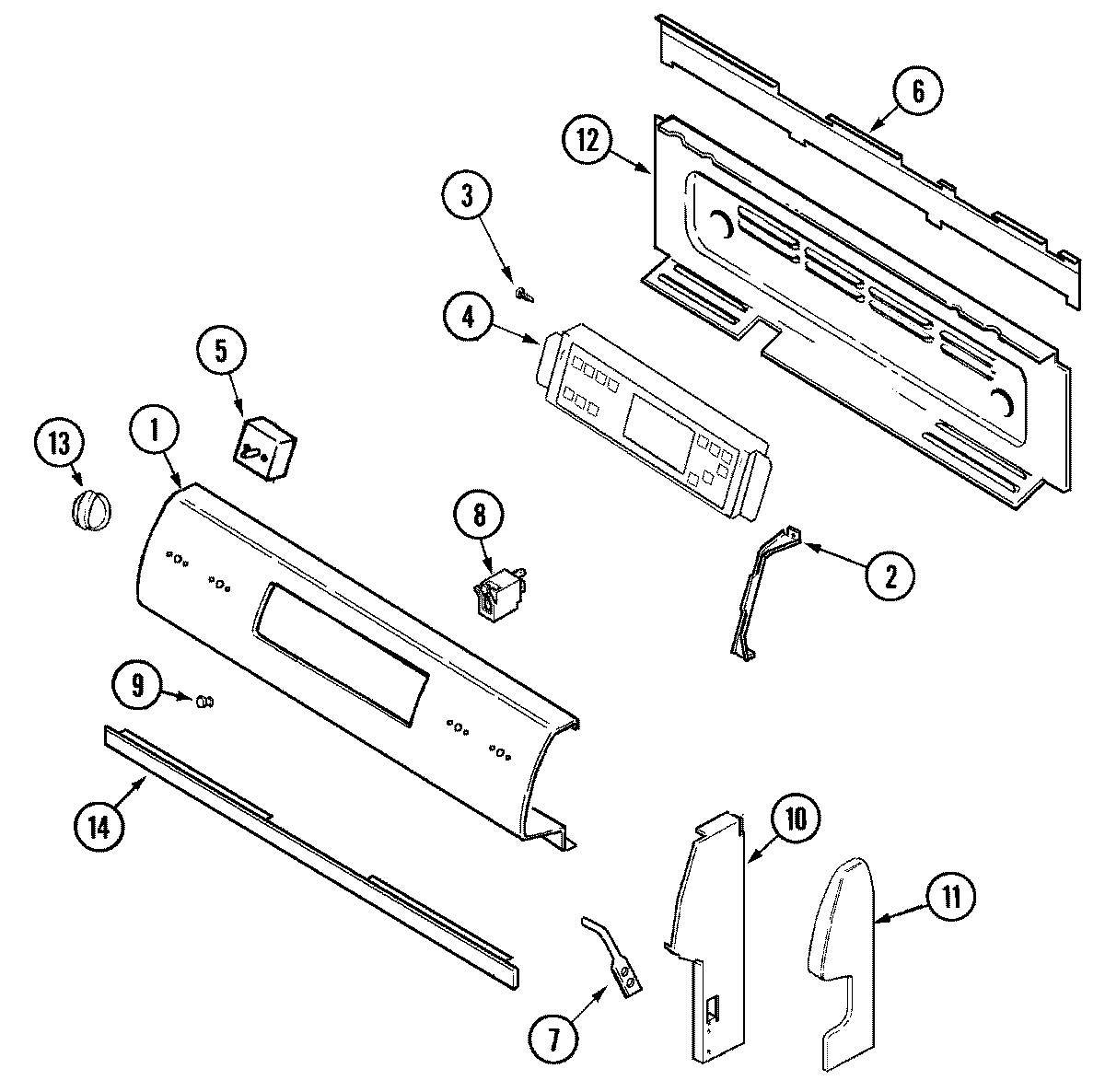

02 - CONTROL PANEL

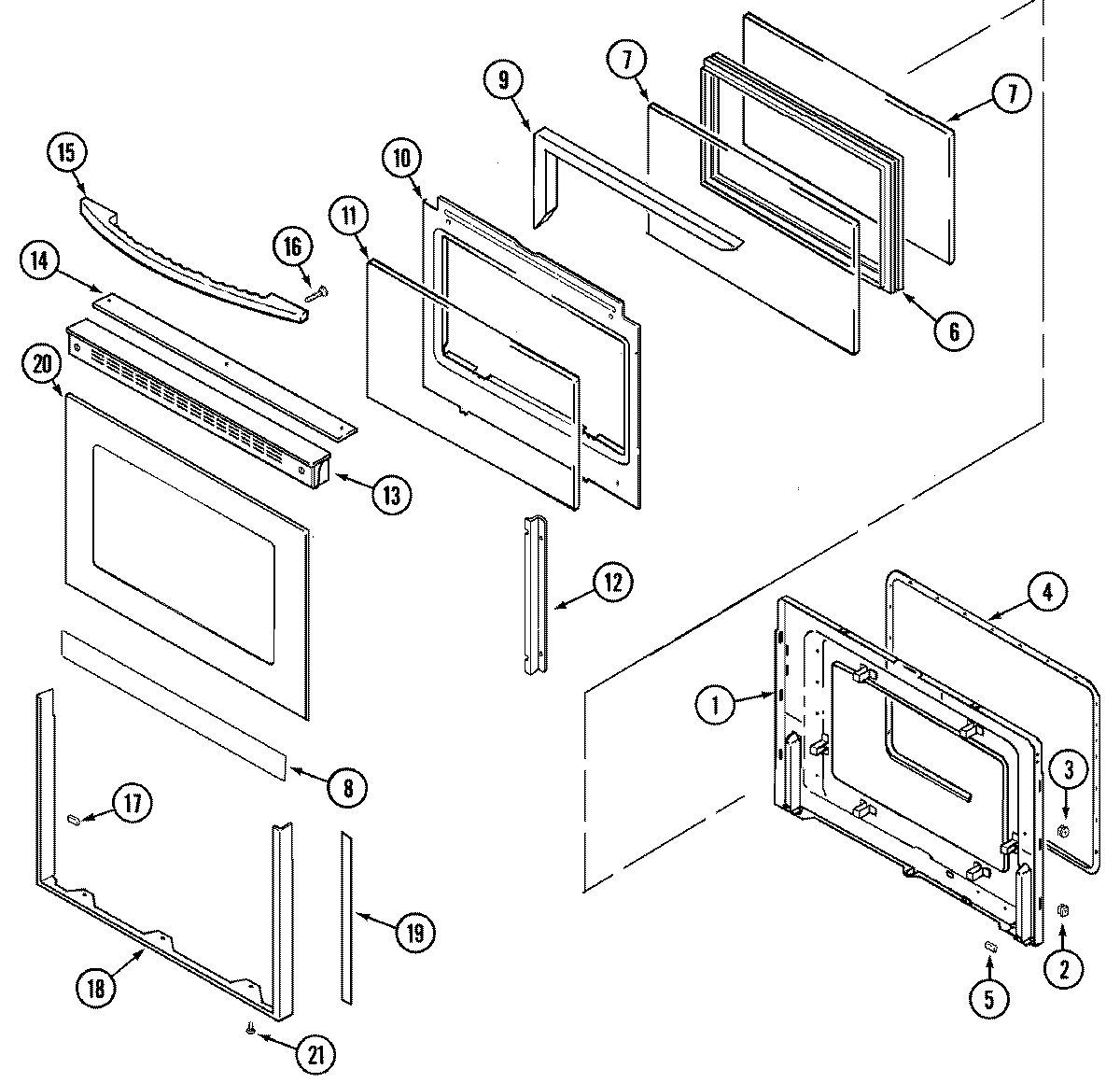

03 - DOOR (LOWER)

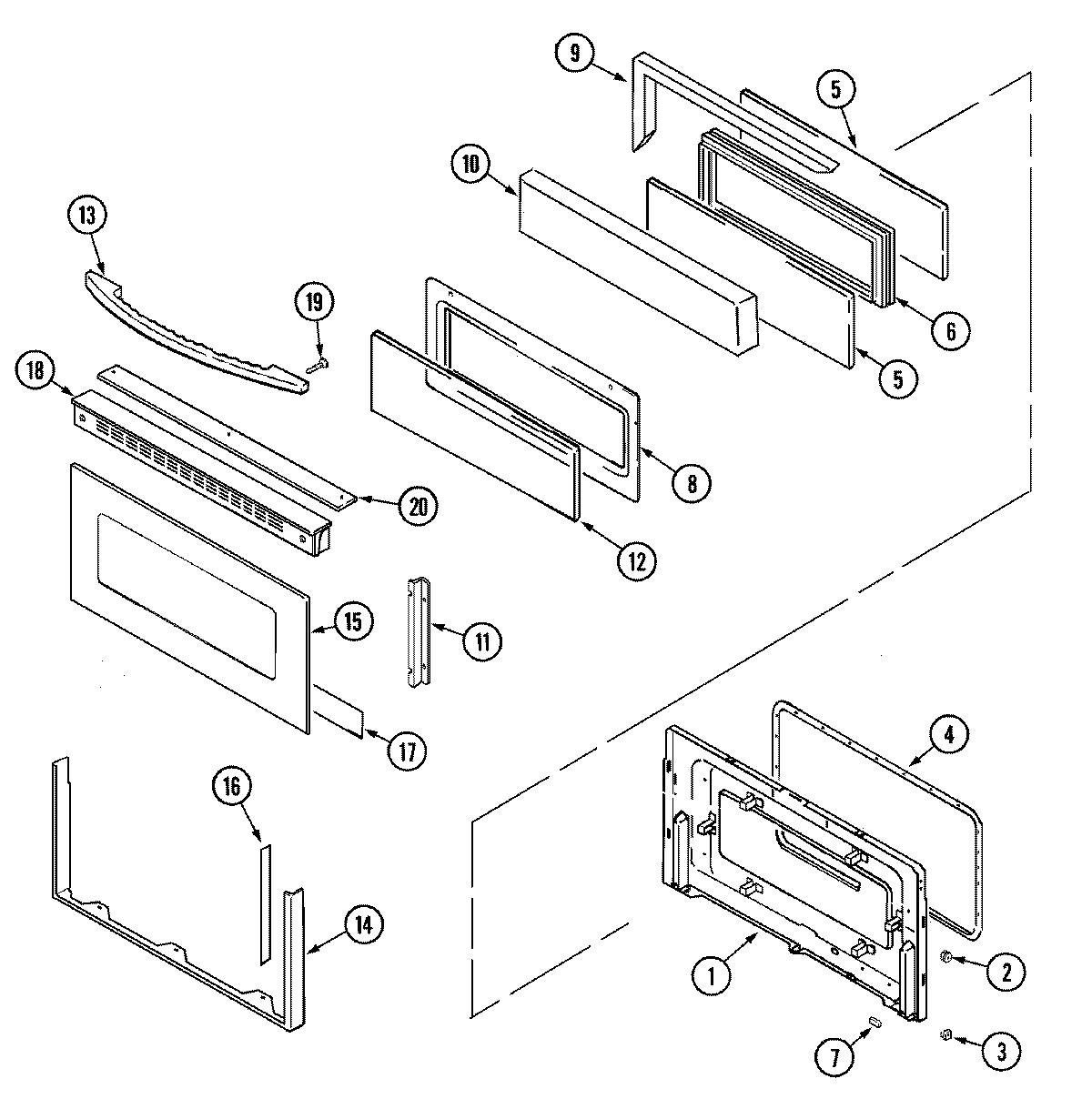

04 - DOOR (UPPER)

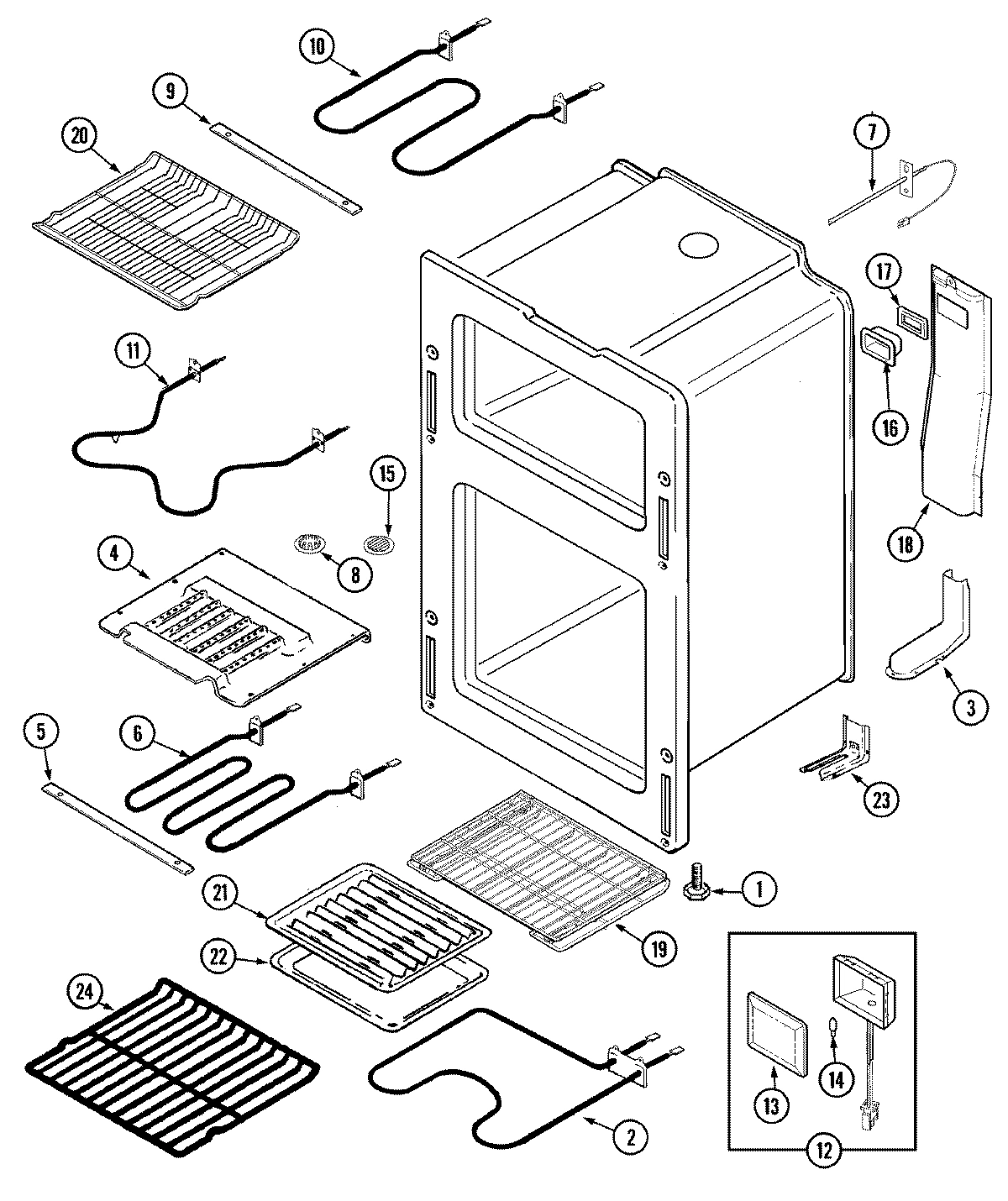

05 - OVEN

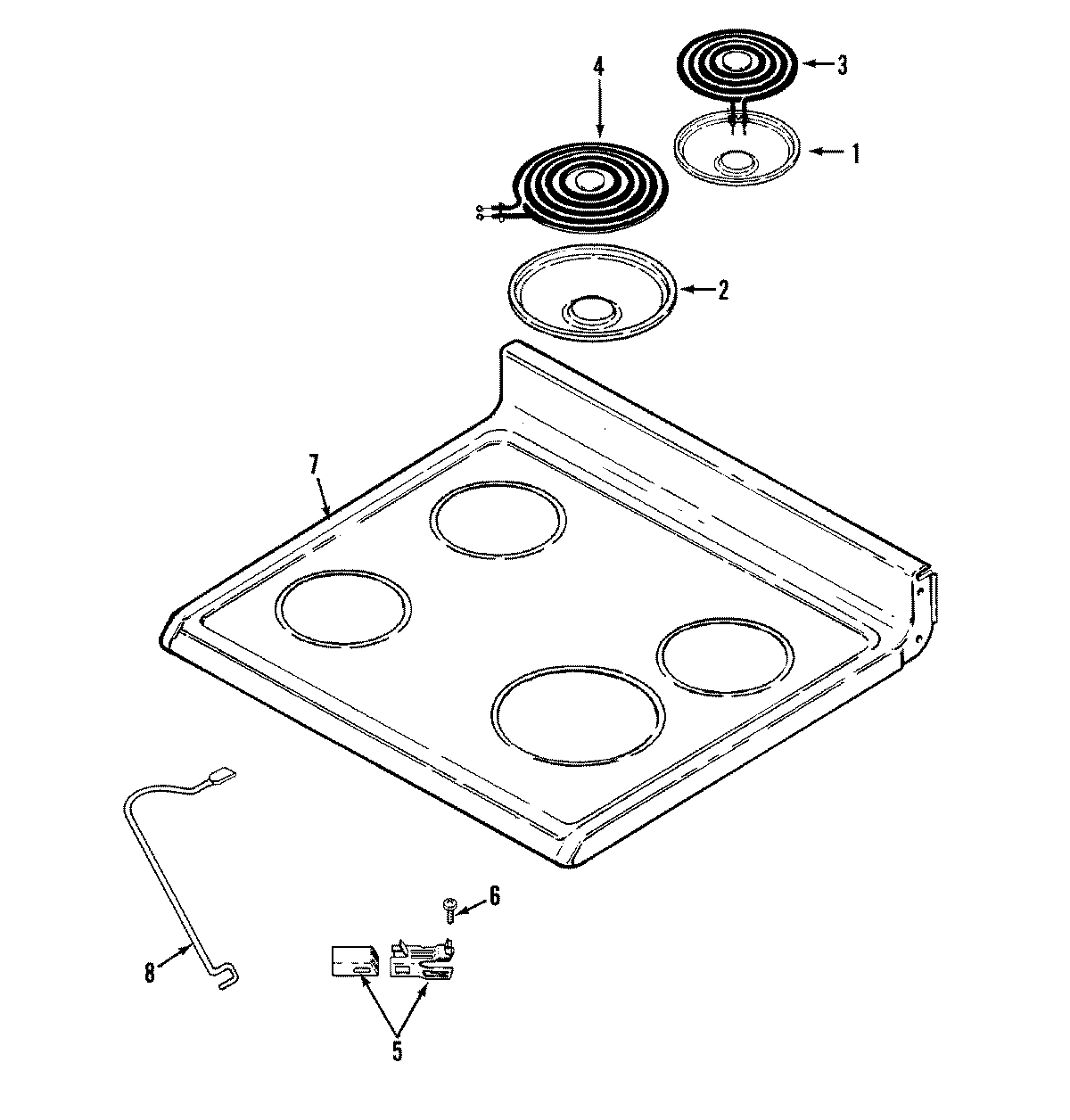

06 - TOP ASSEMBLY

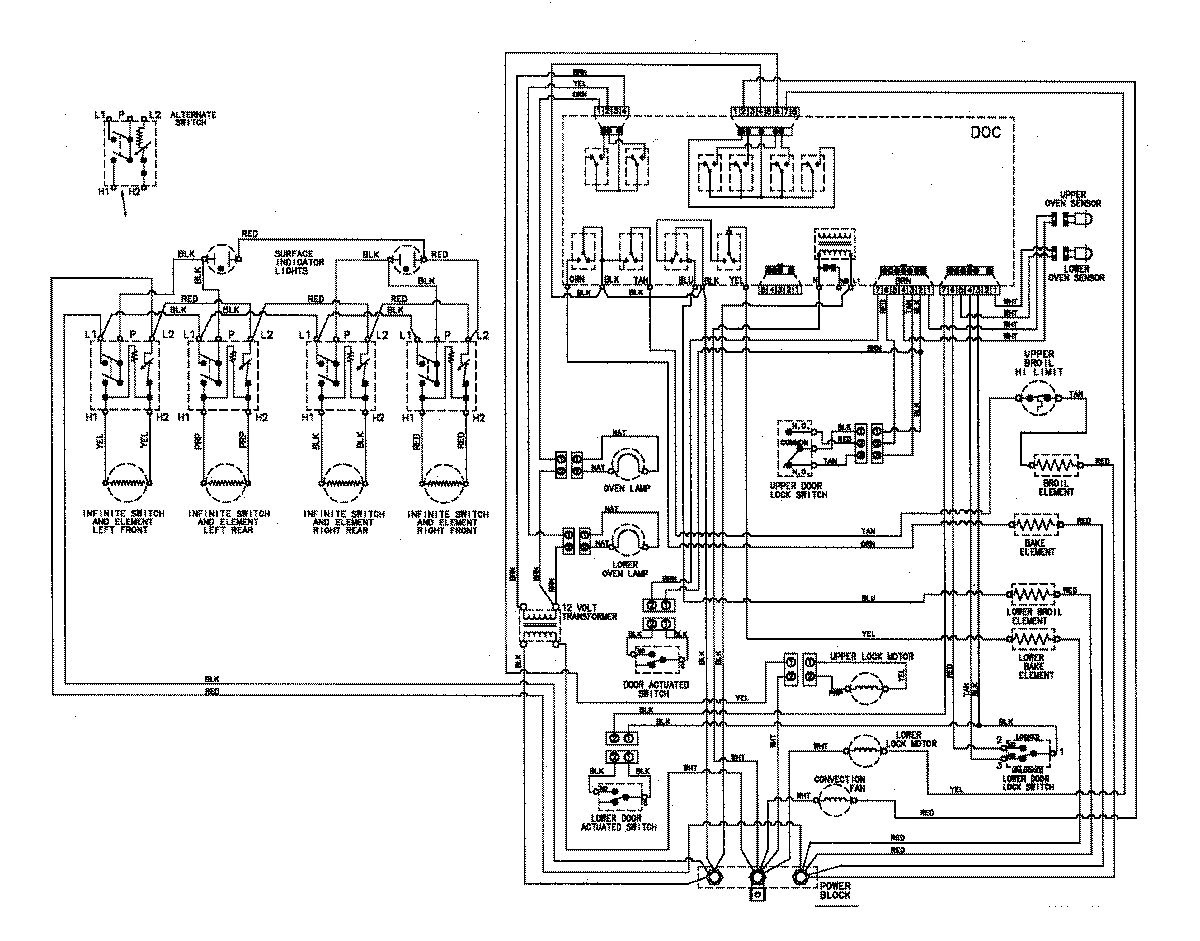

07 - WIRING INFORMATION

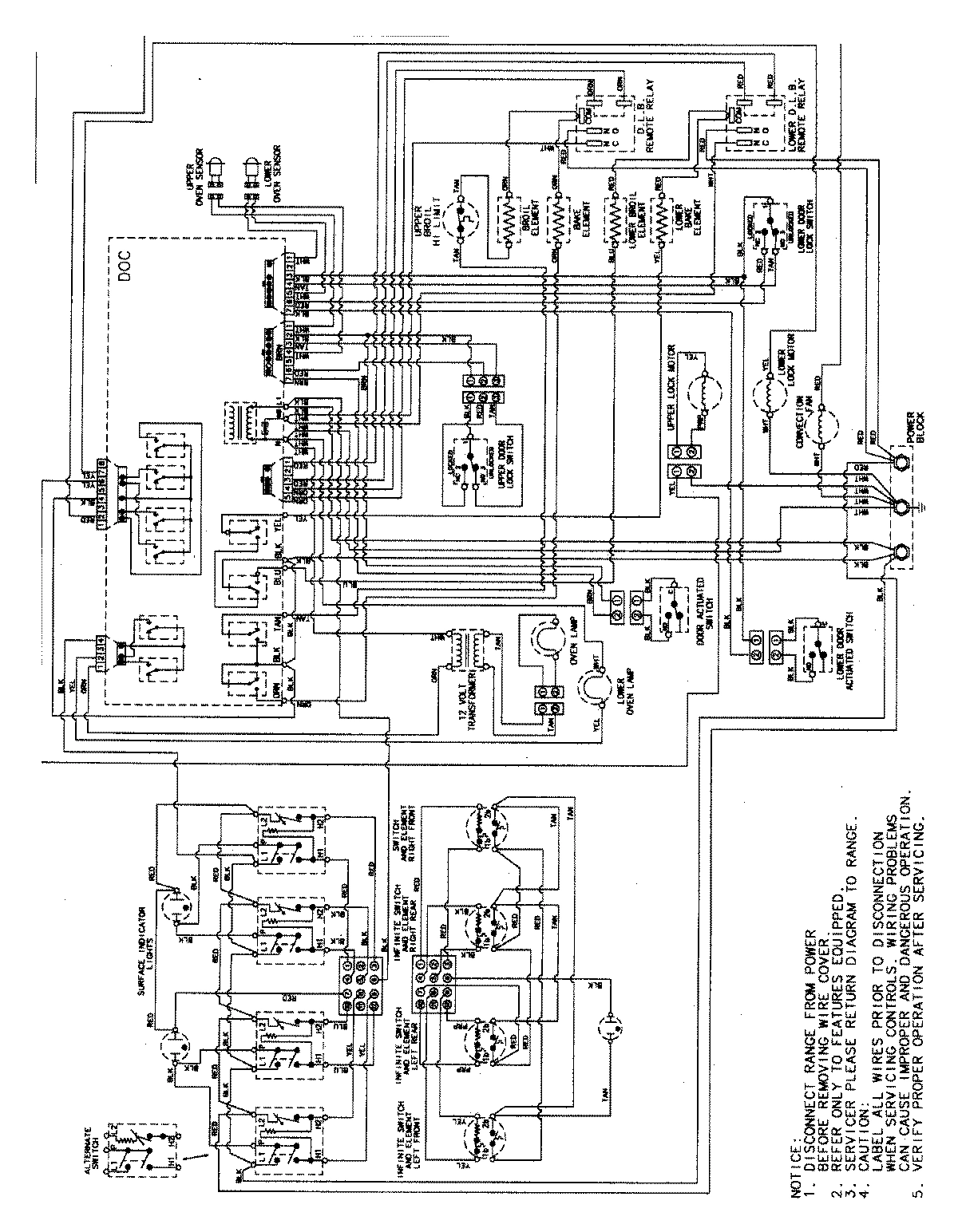

08 - WIRING INFORMATION (AT SERIES 16)
Common parts from model Maytag MER6550BAQ ELECTRIC OVEN
1
MAY 74006558 MAY 74006558 Contact Us For Availability
1
MAY 74003642 MAY 74003642 Contact Us For Availability
1
MAY 74004564 MAY 74004564 Contact Us For Availability
2
MAY 7101P348-60 MAY 7101P348-60 Contact Us For Availability
2
MAY 74005388 MAY 74005388 Contact Us For Availability
2
MAY 74003643 MAY 74003643 Contact Us For Availability
2
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
2
MAY 74006630 MAY 74006630 Contact Us For Availability
3
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
3
MAY 74003394 MAY 74003394 Contact Us For Availability
3
MAY 74004522 MAY 74004522 Contact Us For Availability
3
MAY 74004090 MAY 74004090 Contact Us For Availability
4
SCREW MAY 7101P349-60 Contact Us For Availability
4
MAY 74006214 MAY 74006214 Contact Us For Availability
4
MAY 3601F237-45 MAY 3601F237-45 Contact Us For Availability
4
MAY 74004089 MAY 74004089 Contact Us For Availability
5
MAY 74004566 MAY 74004566 Contact Us For Availability
5
MAY 74003563 MAY 74003563 Contact Us For Availability
5
MAY 1430306K MAY 1430306K Contact Us For Availability
6
MAY 74006376 MAY 74006376 Contact Us For Availability
6
FRAME, GLASS MAY 74003644 Contact Us For Availability
6
MAY 74004567 MAY 74004567 Contact Us For Availability
6
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
7
MAY 74003371 MAY 74003371 Contact Us For Availability
7
MAY 74003095 MAY 74003095 Contact Us For Availability
7
MAY 74003285 MAY 74003285 Contact Us For Availability
7
MAY 74005467 MAY 74005467 Contact Us For Availability
8
TAPE, FOIL 29`` X 2`` MAY 74003664 Contact Us For Availability
8
MAY 74004568 MAY 74004568 Contact Us For Availability
8
MAY 74004517 MAY 74004517 Contact Us For Availability
8
MAY 74001256 MAY 74001256 Contact Us For Availability
8
MAY 74004084 MAY 74004084 Contact Us For Availability
9
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
9
MAY 74004569 MAY 74004569 Contact Us For Availability
9
MAY 3807F176-19 MAY 3807F176-19 Contact Us For Availability
10
MAY 74005392 MAY 74005392 Contact Us For Availability
10
MAY 74005393 MAY 74005393 Contact Us For Availability
10
MAY 74003648 MAY 74003648 Contact Us For Availability
10
INSULATION, DOOR (3 X 8.7) MAY 74004570 Contact Us For Availability
11
MAY 74004982 MAY 74004982 Contact Us For Availability
11
MAY 74005236 MAY 74005236 Contact Us For Availability
11
MAY 74005237 MAY 74005237 Contact Us For Availability
11
GLASS, DOOR MAY 74003649 Contact Us For Availability
11
MAY 74004592 MAY 74004592 Contact Us For Availability
12
MAY 74005495 MAY 74005495 Contact Us For Availability
12
MAY 74004550 MAY 74004550 Contact Us For Availability
12
MAY 74003650 MAY 74003650 Contact Us For Availability
12
MAY 74004571 MAY 74004571 Contact Us For Availability
12
MAY 74004521 MAY 74004521 Contact Us For Availability
13
MAY 74005143 MAY 74005143 Contact Us For Availability
14
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
14
MAY 74003374 MAY 74003374 Contact Us For Availability
14
MAY 74005242 MAY 74005242 Contact Us For Availability
15
MAY 74006377 MAY 74006377 Contact Us For Availability
15
MAY 74006550 MAY 74006550 Contact Us For Availability
15
MAY 74004537 MAY 74004537 Contact Us For Availability
15
MAY 74004687 MAY 74004687 Contact Us For Availability
15
MAY 74005489 MAY 74005489 Contact Us For Availability
15
MAY 74005492 MAY 74005492 Contact Us For Availability
15
MAY 74005493 MAY 74005493 Contact Us For Availability
15
MAY 74005504 MAY 74005504 Contact Us For Availability
15
MAY 74009386 MAY 74009386 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE NOT REQ`D PURSE MAY W10124350 Contact Us For Availability
15
MAY 74006632 MAY 74006632 Contact Us For Availability
15
MAY 74003633 MAY 74003633 Contact Us For Availability
16
MAY 74005475 MAY 74005475 Contact Us For Availability
16
MAY 74005918 MAY 74005918 Contact Us For Availability
16
MAY 74003660 MAY 74003660 Contact Us For Availability
16
MAY 74004534 MAY 74004534 Contact Us For Availability
17
MAY 74004828 MAY 74004828 Contact Us For Availability
17
MAY 74007449 MAY 74007449 Contact Us For Availability
17
MAY 16010107 MAY 16010107 Contact Us For Availability
17
MAY 74005884 MAY 74005884 Contact Us For Availability
17
MAY 74004593 MAY 74004593 Contact Us For Availability
17
MAY 74004533 MAY 74004533 Contact Us For Availability
18
MAY 74005505 MAY 74005505 Contact Us For Availability
18
MAY 74006634 MAY 74006634 Contact Us For Availability
18
MAY 74005162 MAY 74005162 Contact Us For Availability
18
MAY 74004535 MAY 74004535 Contact Us For Availability
19
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
19
MAY 74005218 MAY 74005218 Contact Us For Availability
20
MAY 74004978 MAY 74004978 Contact Us For Availability
20
MAY 74006637 MAY 74006637 Contact Us For Availability
21
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
21
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
22
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
22
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
24
MAY 74001631 MAY 74001631 Contact Us For Availability
25
ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability
26
MAY 74001872 MAY 74001872 Contact Us For Availability
27
MAY 74004965 MAY 74004965 Contact Us For Availability
28
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
28
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
29
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
30
MAY 74004532 MAY 74004532 Contact Us For Availability
31
MAY 74004576 MAY 74004576 Contact Us For Availability
32
MAY 74004577 MAY 74004577 Contact Us For Availability
33
MAY 74005499 MAY 74005499 Contact Us For Availability
33
MAY 74005500 MAY 74005500 Contact Us For Availability
34
MAY 74001598 MAY 74001598 Contact Us For Availability
35
MAY 74003479 MAY 74003479 Contact Us For Availability
36
MAY 74005653 MAY 74005653 Contact Us For Availability
37
MAY 74005456 MAY 74005456 Contact Us For Availability
NI
MAY 15002791 MAY 15002791 Contact Us For Availability
NI
MAY 15003397 MAY 15003397 Contact Us For Availability
× ![]()
