Model Whirlpool MER5875RCW ELECTRIC RANGE – Common Parts & Diagrams
06 - WIRING INFORMATION
09 - WIRING INFORMATION (SERIES 12)

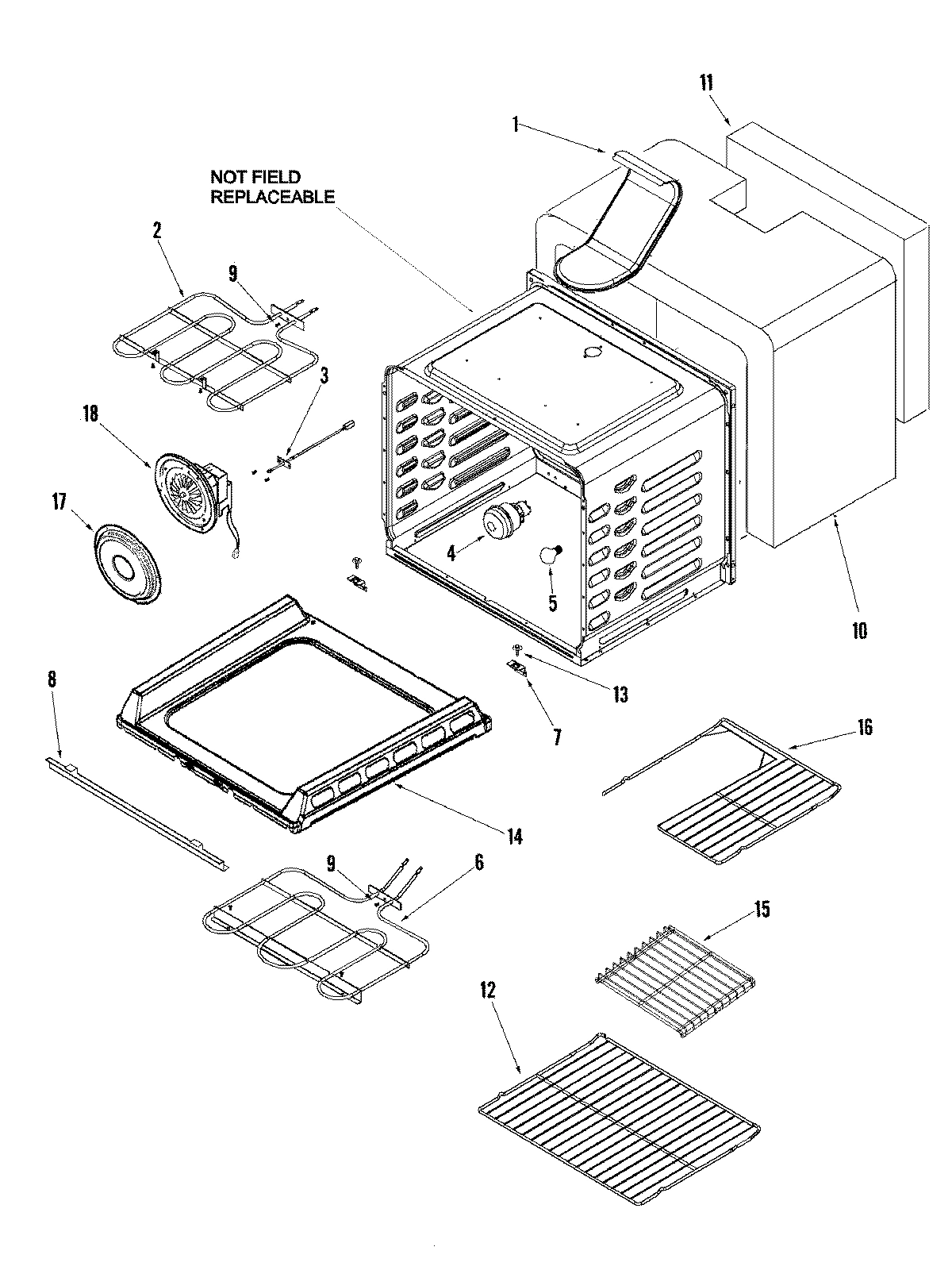

02 - CAVITY
05 - SUPPLEMENTAL INFORMATION
07 - WIRING INFORMATION (FRC)

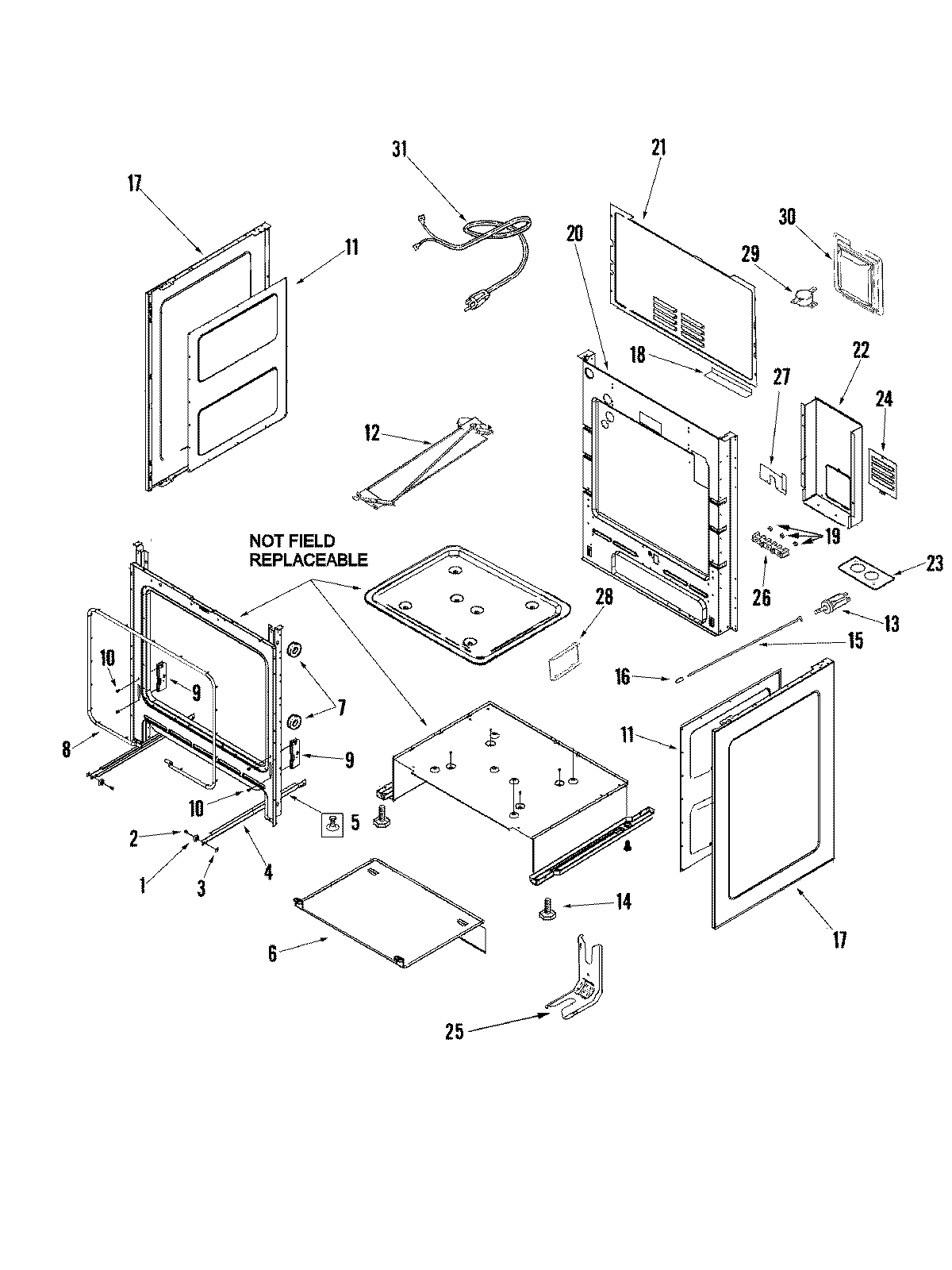

01 - CABINET

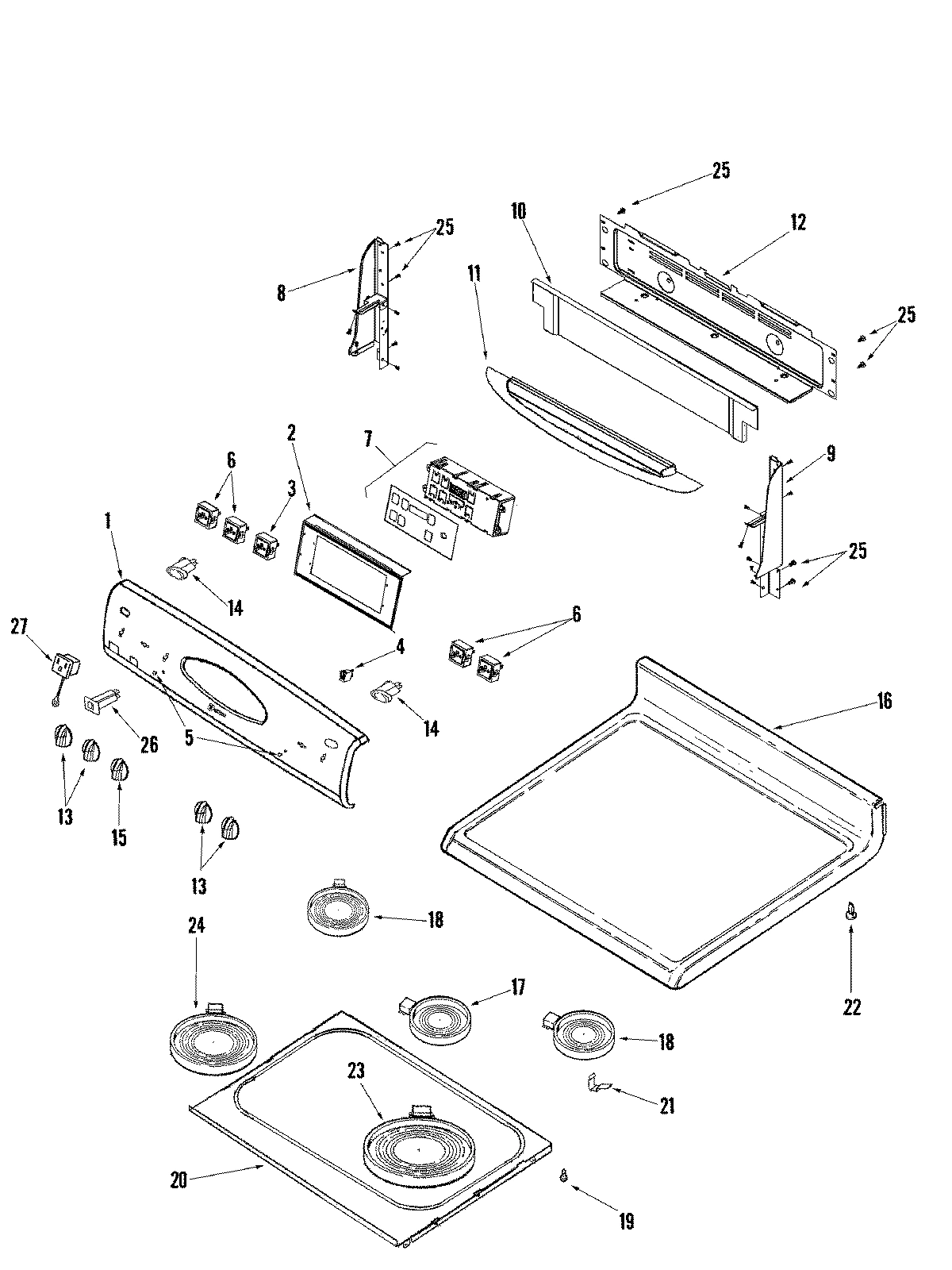

03 - CONTROL PANEL/TOP ASSEMBLY

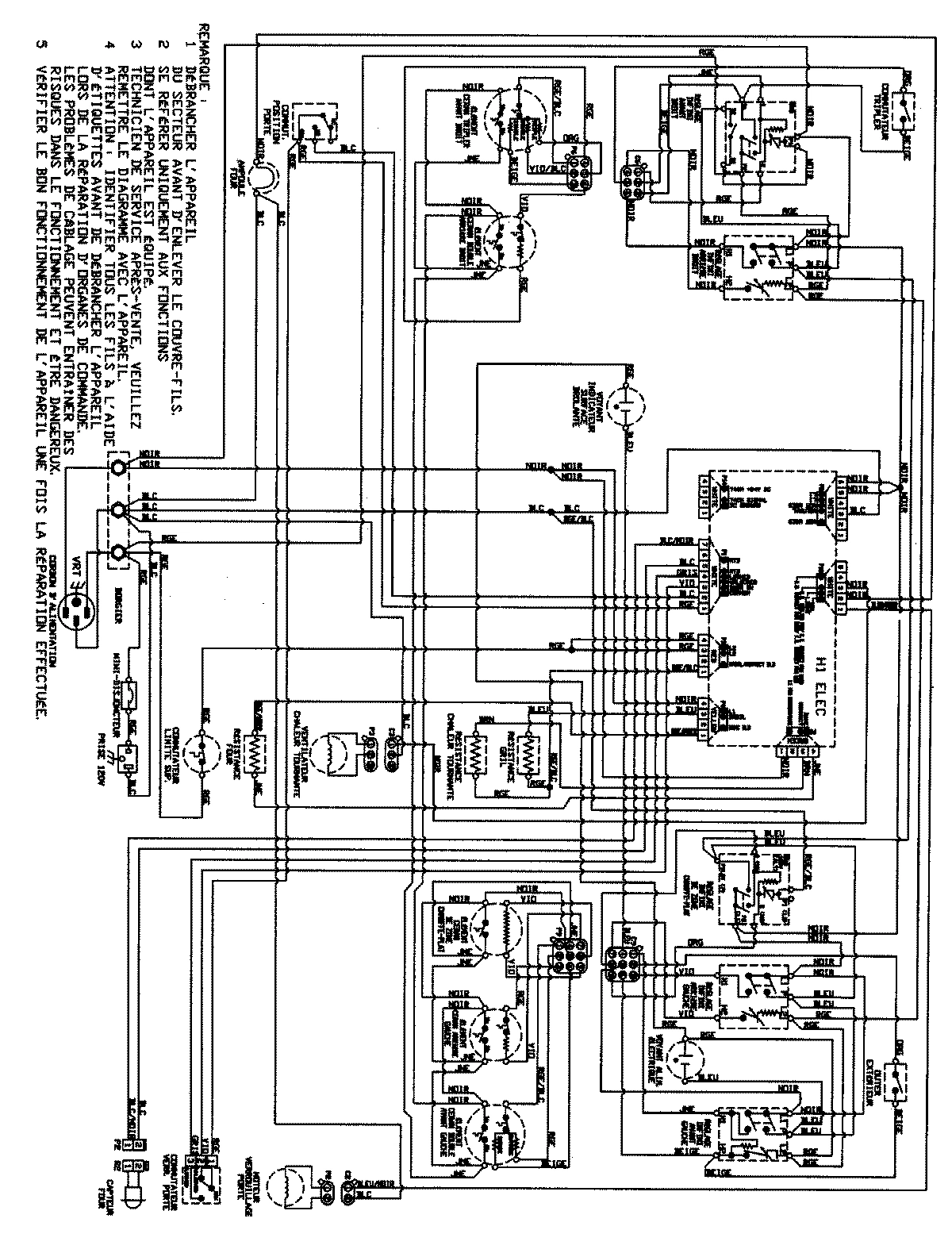

08 - WIRING INFORMATION (FRC-SERIES 12)

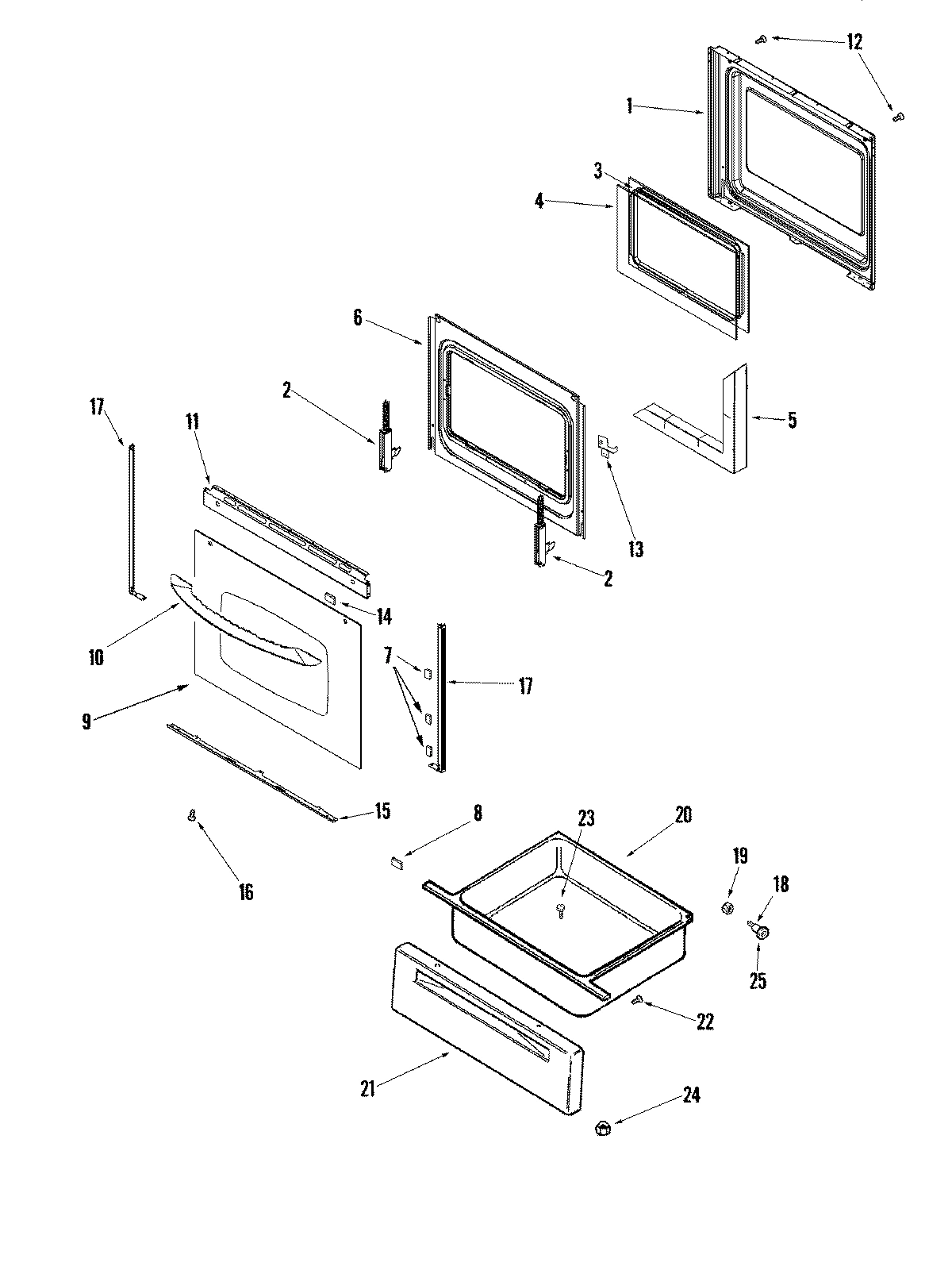

04 - DOOR/DRAWER
Common parts from model Whirlpool MER5875RCW ELECTRIC RANGE
1
MANUAL, USE & CARE WPL 8113P49260 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P56660 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P73860 Contact Us For Availability
1
WIRING INFORMATION (FRC) WPL 15003759 Contact Us For Availability
1
PANEL, BACKGUARD (WHT) WPL 74011281 Contact Us For Availability
1
LINING, DOOR WPL 74008926 Contact Us For Availability
2
HARNESS, INF. SWITCH (RT) WPL 5171P87260 Contact Us For Availability
2
HARNESS, INF. SWITCH (RT) WPL 74011274 Contact Us For Availability
2
BRACKET, CLOCK WPL 74009052 Contact Us For Availability
3
SWITCH, INFINITE (WARMING) WPL W10129627 Contact Us For Availability
3
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
3
HARNESS, INF. SWITCH (LT) WPL 5171P87160 Contact Us For Availability
3
HARNESS, INF. SWITCH (LT) WPL 74009343 Contact Us For Availability
3
SWITCH, INFINITE (WARMING) WPL 74006589 Contact Us For Availability
3
FRAME, GLASS WPL 74003644 Contact Us For Availability
4
HARNESS, MAIN WPL 5171P87060 Contact Us For Availability
4
HARNESS, MAIN WPL 74011284 Contact Us For Availability
4
RUNNER, SERVICE DRAWER WPL 74008687 Contact Us For Availability
5
HARNESS, BURNER BOX WPL 74008899 Contact Us For Availability
5
HARNESS, BURNER BOX WPL 74011677 Contact Us For Availability
5
STOP, DRAWER WPL 74008688 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
5
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
6
SWITCH, INFINITE (DUAL) WPL W10177711 Contact Us For Availability
6
KIT, BROILER PAN/INSERT WPL Y12500100 Contact Us For Availability
6
SHIELD, HEAT WPL 74008689 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
SWITCH, DUAL ELEMENT WPL 74011102 Contact Us For Availability
6
BAFFLE/INSULATION RETAINER WPL 3601F38051 Contact Us For Availability
6
BAFFLE, DOOR WPL 74008744 Contact Us For Availability
7
SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability
7
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
7
CLOCK/OVERLAY (WHT) WPL 74008656 Contact Us For Availability
7
TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability
8
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
8
END CAP (RT-WHT) WPL 74009077 Contact Us For Availability
9
END CAP (LT-WHT) WPL 74009079 Contact Us For Availability
9
GLASS, DOOR (WHT) WPL 74008681 Contact Us For Availability
10
INSULATION, WRAPPER WPL 74008700 Contact Us For Availability
10
SHIELD, VENT WPL 74009444 Contact Us For Availability
11
INSULATION, BACK WPL 74008698 Contact Us For Availability
11
RETAINER, SIDE WPL 3804F31651 Contact Us For Availability
11
RETAINER, SIDE WPL 74008701 Contact Us For Availability
11
SHIELD, HEAT VISOR (WHT) WPL 74009203 Contact Us For Availability
11
TRIM, TOP (WHT) WPL 74008932 Contact Us For Availability
12
LATCH ASSEMBLY WPL 74008702 Contact Us For Availability
12
Latch Assembly WPL 8002P10460 Contact Us For Availability
12
INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability
12
COVER, REAR WIRE WPL 74010983 Contact Us For Availability
13
SWITCH, DOOR WPL 74008703 Contact Us For Availability
13
INSULATOR, SHIELD WPL 74008704 Contact Us For Availability
13
BRACKET, DOOR HANDLE (LT) WPL 74009412 Contact Us For Availability
13
BRACKET, DOOR HANDLE (RT) WPL 74009413 Contact Us For Availability
15
INSERT, HALF RACK 30`` WPL 74009587 Contact Us For Availability
15
SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability
15
ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability
16
RACK, CREATE A SPACE HALF ``Q`` WPL 74008924 Contact Us For Availability
16
BUMPER WPL 74008707 Contact Us For Availability
16
TOP, MAIN ASY. (WHT) WPL 74011153 Contact Us For Availability
16
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
17
ELEMENT, WARM ZONE WPL 74011676 Contact Us For Availability
17
COVER, CONVECT WPL 74005783 Contact Us For Availability
17
SCREW WPL 74004208 Contact Us For Availability
17
PANEL, SIDE (WHT) WPL 74008709 Contact Us For Availability
17
ELEMENT, WARMING WPL 74008898 Contact Us For Availability
17
TRIM, SIDE (WHT) WPL 74010561 Contact Us For Availability
18
SCREW WPL 74005401 Contact Us For Availability
18
FAN, CONVECTION ASY. WPL 74009430 Contact Us For Availability
18
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
18
BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability
19
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
19
SCREW WPL 74009538 Contact Us For Availability
19
NUT WPL 7103P08260 Contact Us For Availability
20
BACK, MAIN WPL 74008699 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability
20
DRAWER, STORAGE WPL 3405F03780 Contact Us For Availability
20
BRACKET, MOUNTING WPL 3605P33751 Contact Us For Availability
20
DRAWER, STORAGE WPL 74008333 Contact Us For Availability
21
PANEL, DRAWER (WHT) WPL W10163040 Contact Us For Availability
21
COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability
21
PANEL, DRAWER (WHT) WPL 74008755 Contact Us For Availability
22
COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
23
SCREW WPL 7101P07260 Contact Us For Availability
24
PANEL, ACCESS WPL 74008340 Contact Us For Availability
24
NUT, LOCK WPL 7103P13960 Contact Us For Availability
25
SCREW WPL 7101P35260 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
26
BREAKER, CIRCUIT (WHT) WPL 74009322 Contact Us For Availability
27
INSULATOR, POWER CORD WPL 74008759 Contact Us For Availability
27
RECEPTACLE, OUTLET (WHT) WPL 71003069 Contact Us For Availability
28
BRACKET, OVEN SUPPORT WPL 74011187 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003884 Contact Us For Availability
× ![]()
