Model Whirlpool MER5875RCQ1 ELECTRIC RANGE – Common Parts &amp; Diagrams

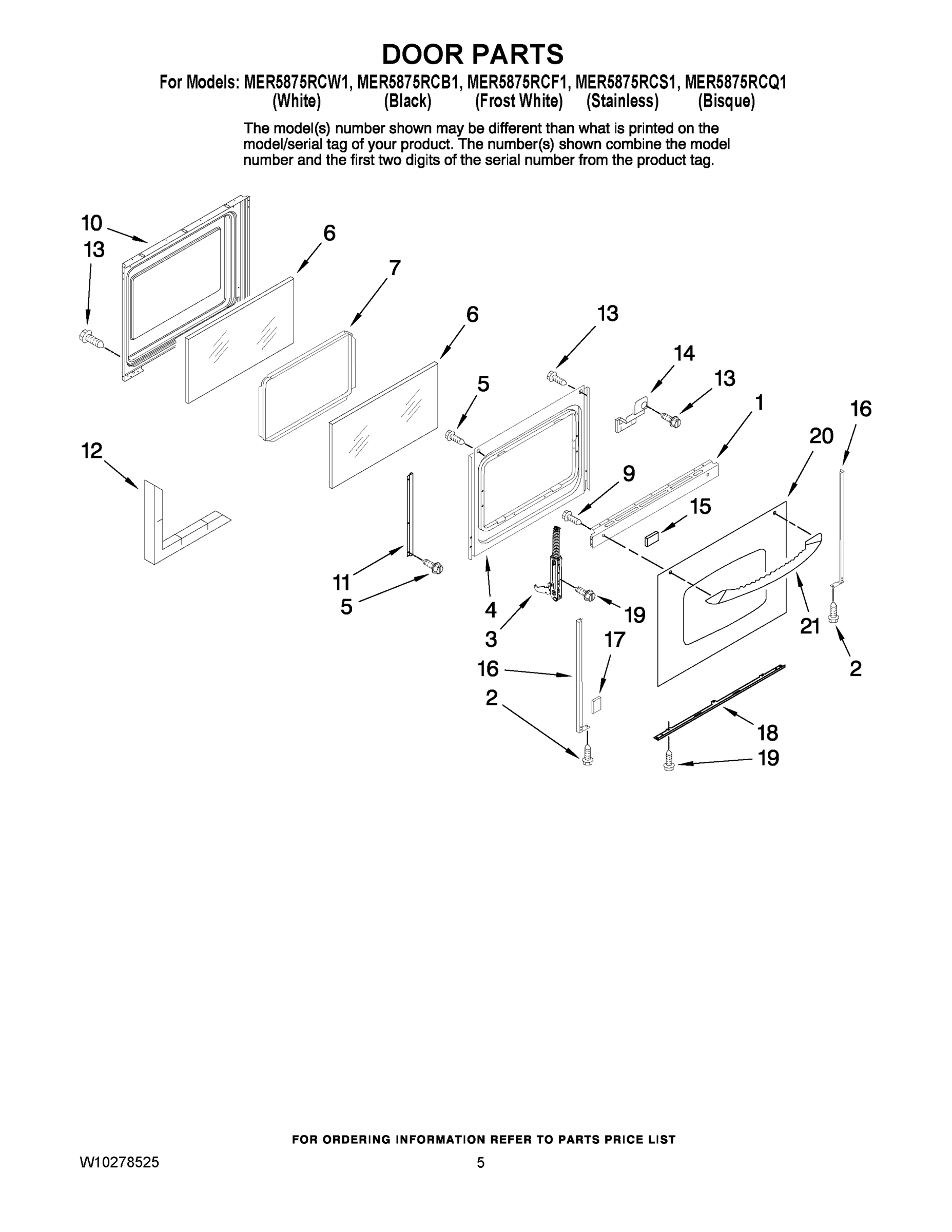

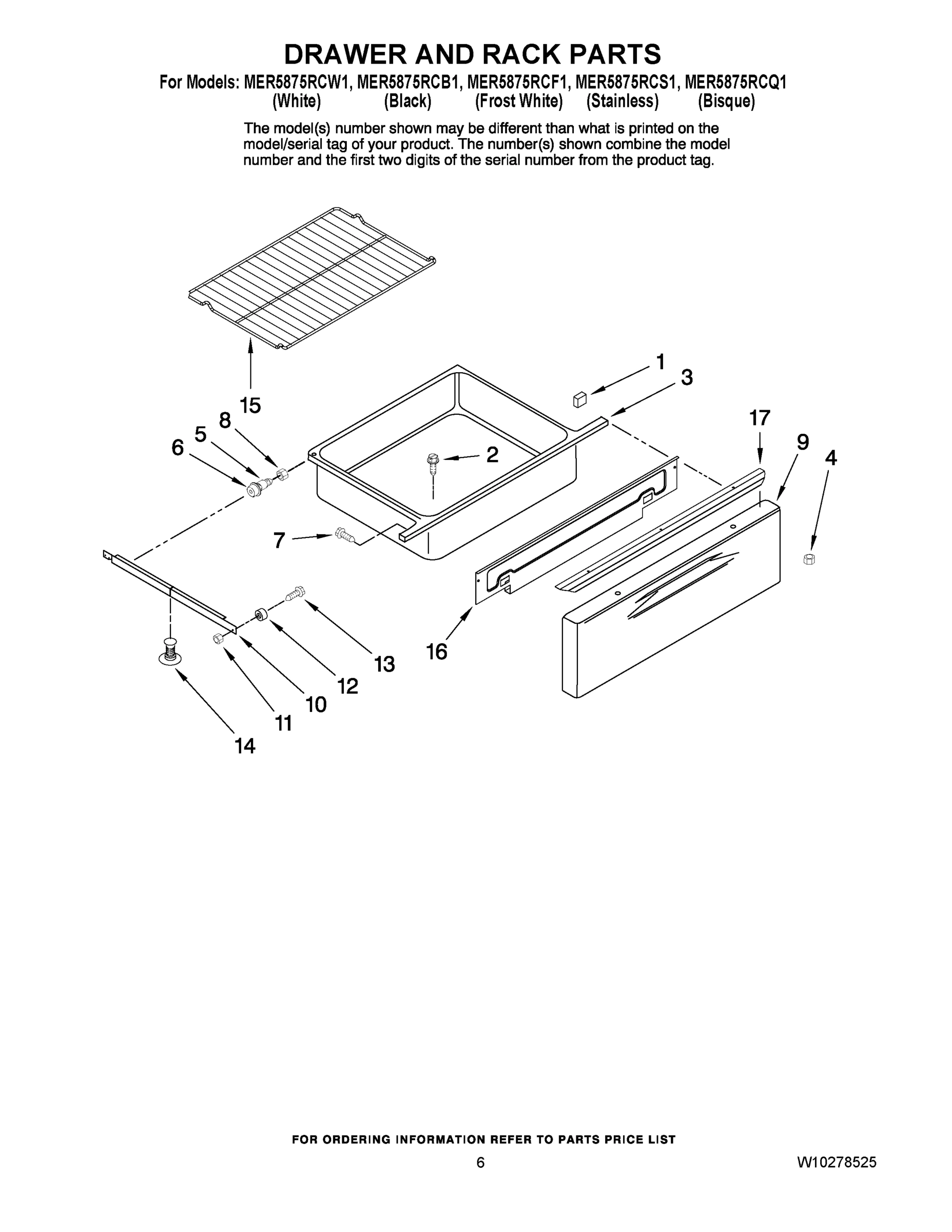

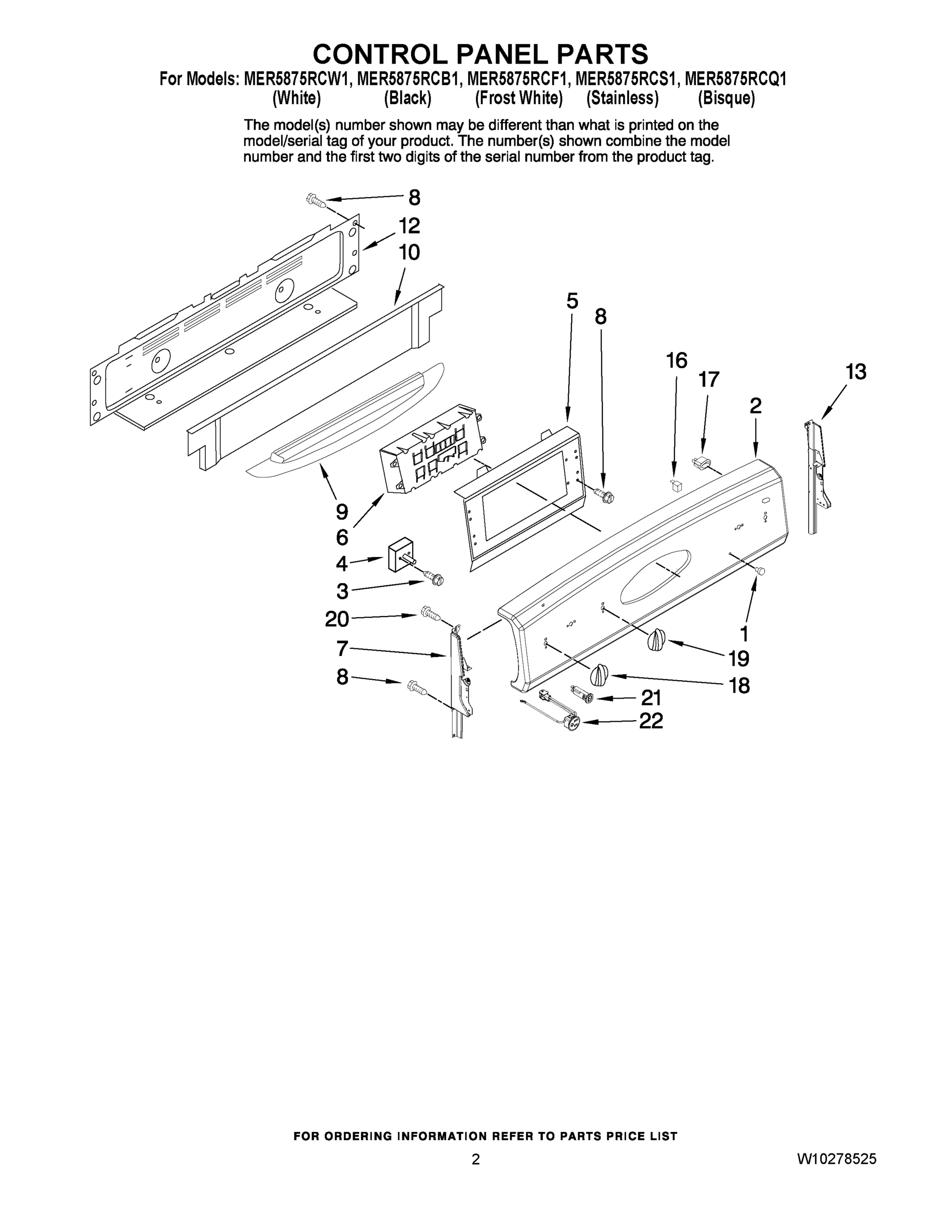

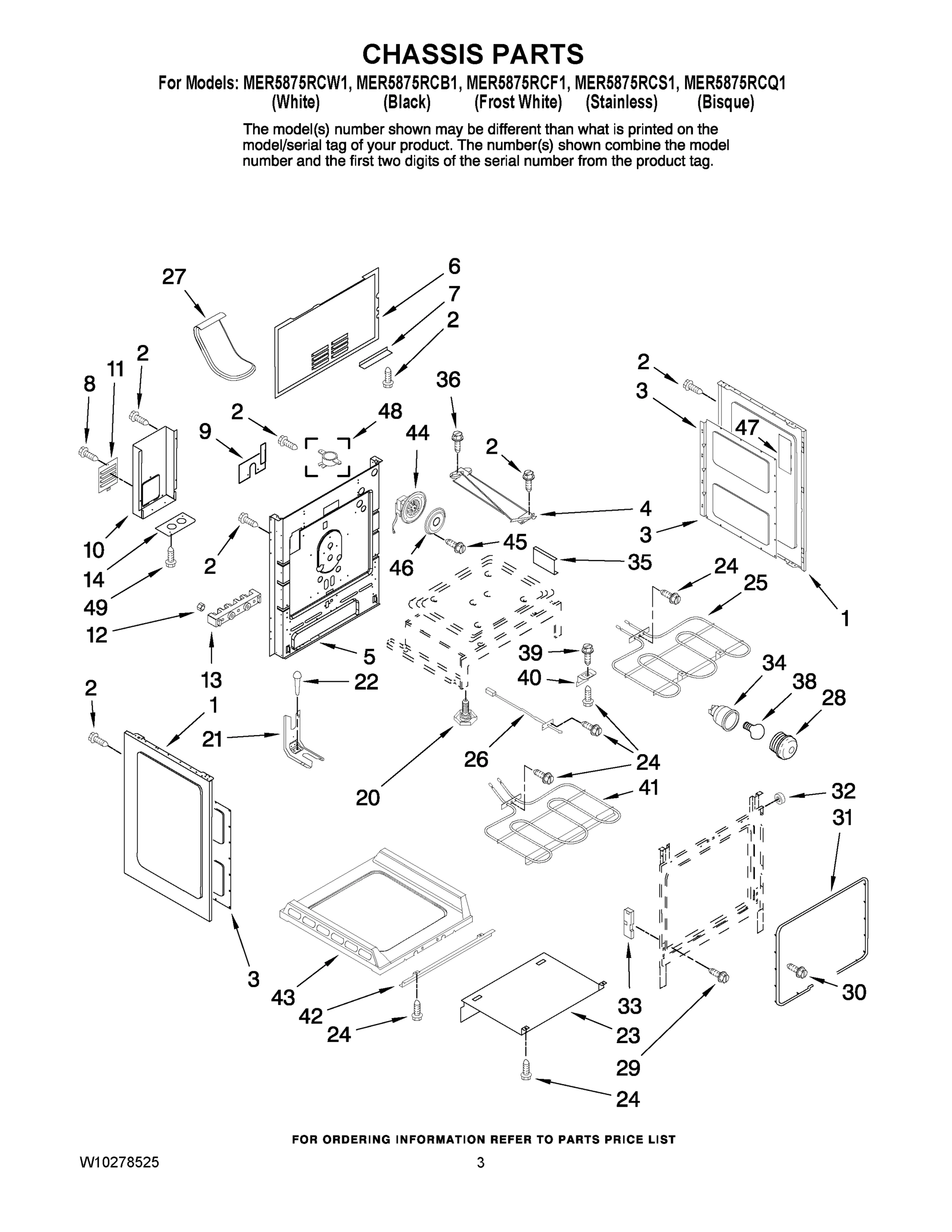

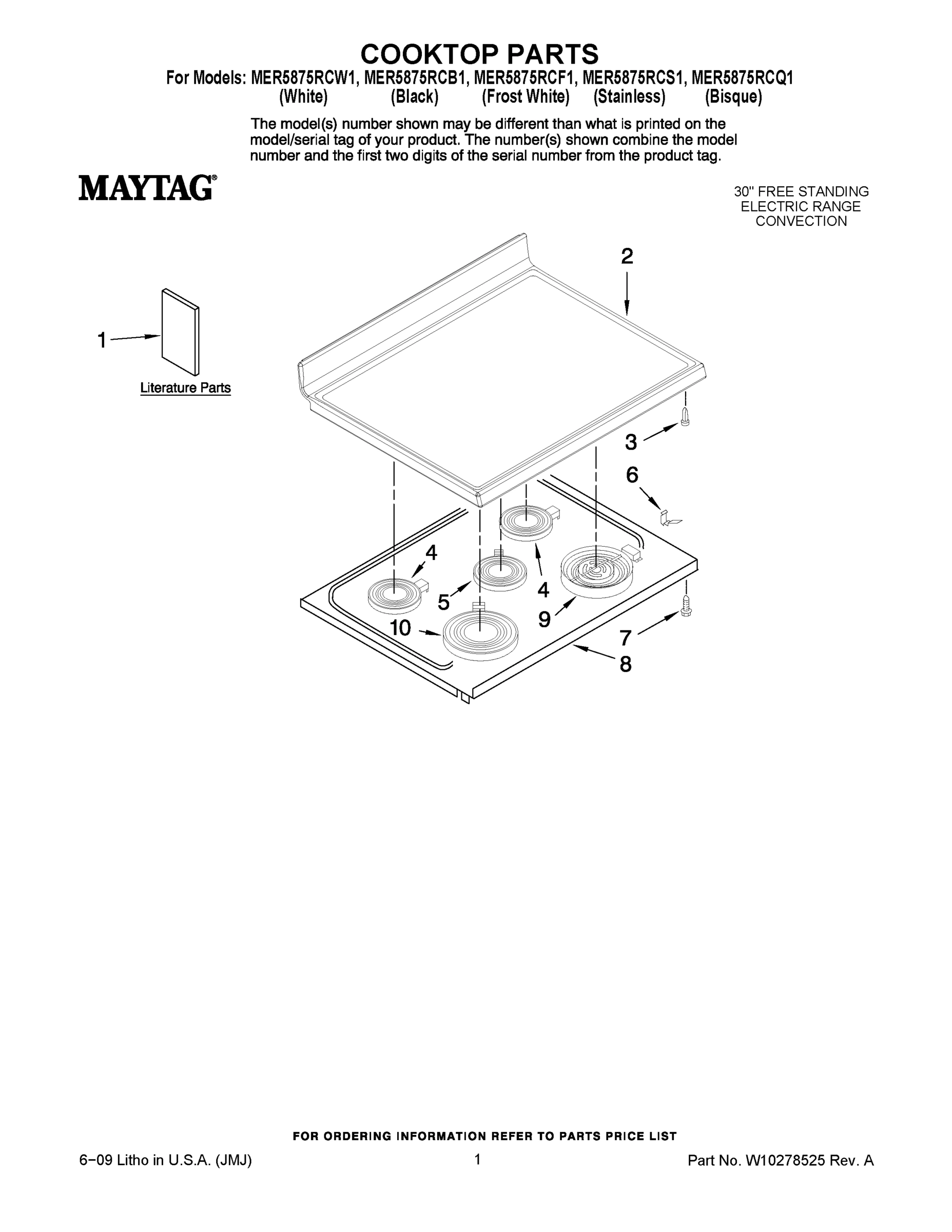

1

Trim, Door Top (Black) WPL 3608F14070 Contact Us For Availability

1

Trim, Door Top (White) WPL 3608F14071 Contact Us For Availability

1

Trim, Door Top (Bisque) WPL 3608F14078 Contact Us For Availability

1

Tape, Double Sided WPL W10208308 Contact Us For Availability

1

Installation Instructions WPL 8101P50660 Contact Us For Availability

1

USE & CARE GUIDE WPL 8113P73860 Contact Us For Availability

1

WIRING DIAGRAM WPL 8119P40460 Contact Us For Availability

1

Brochure, Safe Tip WPL 9762761 Contact Us For Availability

1

Panel, Side (Bisque) WPL 2618F17257 Contact Us For Availability

1

Panel, Side (White) WPL 2618F17258 Contact Us For Availability

1

Panel, Side (Black) WPL 2618F17269 Contact Us For Availability

2

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.74

2

Screw, Handle (Black) WPL 7101P63360 Contact Us For Availability

2

SCREW, HANDLE (BISQUE) WPL 7101P63760 Contact Us For Availability

2

COOKTOP (BLACK) WPL W10217620 Contact Us For Availability

2

COOKTOP (WHITE) WPL W10217629 Contact Us For Availability

2

COOKTOP (BISQUE) WPL W10217635 Contact Us For Availability

2

COOKTOP (FROST WHITE) WPL W10260321 Contact Us For Availability

3

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.74

3

Hinge, Door (2) WPL 7106P12460 Contact Us For Availability

3

Retainer, Side WPL 3601F38051 Contact Us For Availability

3

Spacer Snap-In (4) WPL 8010P14960 Contact Us For Availability

3

Drawer, Storage WPL 3405F03761 Contact Us For Availability

4

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $102.83

4

Latch Assembly WPL 8002P10460 Contact Us For Availability

5

WP9762851 Whirlpool Surface Element Backorder WPL WP9762851 $138.23

5

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

6

Glass, Inner (2) WPL 7902P43660 Contact Us For Availability

6

Spring, Element WPL 7803P08760 Contact Us For Availability

6

Cover, Main Wire WPL 4005F75451 Contact Us For Availability

7

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.60

8

Bottom, Burner Box WPL 4011F49751 Contact Us For Availability

8

NUT WPL 7103P08260 Contact Us For Availability

9

Panel, Drawer (White) WPL W10163040 Contact Us For Availability

9

Screw, Mounting WPL 7101P68160 Contact Us For Availability

9

ELEMENT 2700W (RF) WPL 7406P44160 Contact Us For Availability

9

Insulator, Cord WPL 7003P14560 Contact Us For Availability

9

Panel, Drawer (Black) WPL W10163038 Contact Us For Availability

9

Panel, Drawer (Bisque) WPL W10163041 Contact Us For Availability

9

PANEL, DRAWER (STAINLESS STEEL) WPL W10165339 Contact Us For Availability

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $135.88

Lining, Door WPL 2402W29719 Contact Us For Availability

Cover, Wire (LWR) WPL 4005P70351 Contact Us For Availability

Runner, Drawer WPL 3406P03451 Contact Us For Availability

11

Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability

11

Panel, Access WPL 4005P70451 Contact Us For Availability

11

Nut, Lock WPL 7103P19060 Contact Us For Availability

12

Cover, Rear Wire WPL 4005F80351 Contact Us For Availability

12

Insulation, Door WPL 7002P24660 Contact Us For Availability

12

Roller, Drawer WPL 8014P02260 Contact Us For Availability

End Cap, Right (Black) WPL 3807F70270 Contact Us For Availability

End Cap, Right (White) WPL 3807F70271 Contact Us For Availability

End Cap, Right (Bisque) WPL 3807F70278 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

Shaft, Roller WPL 7118P03260 Contact Us For Availability

Bracket, Handle (Right) WPL 3801P85745 Contact Us For Availability

Bracket, Handle (Left) WPL 3801P85845 Contact Us For Availability

Plate, Conduit WPL 4005P71251 Contact Us For Availability

Stop, Drawer WPL 8038P03760 Contact Us For Availability

15

W11520287 Whirlpool Rack Assembly In Stock WPL W11520287 $33.88

15

Tape (White) WPL W10208309 Contact Us For Availability

Light, Indicator WPL 7407P13660 Contact Us For Availability

Trim, Door Side (White) WPL 3608F12661 Contact Us For Availability

Trim, Door Side (Black) WPL 3608F12670 Contact Us For Availability

Trim, Door Side (Bisque) WPL 3608F12678 Contact Us For Availability

PLATE, PANEL MTG. WPL 3605P33751 Contact Us For Availability

Switch, Dual (White) WPL 7403P92660 Contact Us For Availability

Switch, Dual (Bisque) WPL 7403P98460 Contact Us For Availability

Switch, Dual (Black) WPL 7403P98560 Contact Us For Availability

Tape, Double Sided (Black) WPL 8270P19360 Contact Us For Availability

HANDLE, SS MODEL WPL 7701P54760 Contact Us For Availability

KNOB (4) (BLACK/CHROME) WPL 7737P23260 Contact Us For Availability

KNOB (4) (BISQUE/CHROME) WPL 7737P23360 Contact Us For Availability

KNOB (4) (WHITE/CHROME) WPL 7737P23460 Contact Us For Availability

Trim, Door Bottom (White) WPL 3608F09261 Contact Us For Availability

TRIM, DOOR BOTTOM (BISQUE) WPL 3608F09278 Contact Us For Availability

Trim, Door Bottom (Black) WPL 3804P23651 Contact Us For Availability

19

KNOB, WARM (1) (BLACK/CHROME) WPL 7737P23560 Contact Us For Availability

19

KNOB, WARM (1) (BISQUE/CHROME) WPL 7737P23760 Contact Us For Availability

19

KNOB, WARM (1) (WHITE/CHROME) WPL 7737P23860 Contact Us For Availability

Screw (2) (White) WPL 7101P66360 Contact Us For Availability

Screw (2) (Bisque) WPL 7101P66460 Contact Us For Availability

GLASS, DOOR (WHITE) WPL 7902P78160 Contact Us For Availability

GLASS, DOOR (BISQUE) WPL 7902P78260 Contact Us For Availability

GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN RE WPL 7902P79160 Contact Us For Availability

Leg, Leveling WPL 7101P50760 Contact Us For Availability

BRKR., CIRCUIT (BLACK) WPL 7429P00760 Contact Us For Availability

BRKR., CIRCUIT (WHITE) WPL 7429P00960 Contact Us For Availability

BRKR., CIRCUIT (BISQUE) WPL 7429P01060 Contact Us For Availability

Handle, Door (Black) WPL 7701P51660 Contact Us For Availability

Handle, Door (White) WPL 7701P51760 Contact Us For Availability

Handle, Door (Bisque) WPL 7701P51860 Contact Us For Availability

HANDLE, DOOR (STAINLESS STEEL) WPL 7701P52660 Contact Us For Availability

22

RECEPTACLE (BLACK) WPL 7408P05660 Contact Us For Availability

22

RECEPTACLE (WHITE) WPL 7408P05760 Contact Us For Availability

22

RECEPTA WPL 7408P07660 Contact Us For Availability

23

Shield, Heat WPL 3604F37151 Contact Us For Availability

25

Element, Broil WPL 7406P49360 Contact Us For Availability

26

Sensor, Oven WPL 7430P04260 Contact Us For Availability

27

Vent, Oven WPL 8026P08160 Contact Us For Availability

28

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.96

29

Screw (4) WPL 7101P28260 Contact Us For Availability

31

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $30.52

32

Spacer, Side Pnl. WPL 8010P14860 Contact Us For Availability

33

Receiver, Hinge WPL 7106P12560 Contact Us For Availability

36

Screw (Black) (2) WPL 7101P37560 Contact Us For Availability

38

Bulb, Oven WPL 7407P18160 Contact Us For Availability

39

Screw, Shoulder WPL 7101P61860 Contact Us For Availability

40

Support, Ov BTM WPL 3801P82245 Contact Us For Availability

41

Element, Bake WPL 7406P45160 Contact Us For Availability

42

Support, Oven WPL 3807P68045 Contact Us For Availability

43

Bottom, Oven WPL 2205F05319 Contact Us For Availability

44

FAN ASSY, CONVECT WPL 7427P10560 Contact Us For Availability

45

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.60

46

Plate, Convection WPL 3605F30519 Contact Us For Availability

47

Insulation WPL 7002P49460 Contact Us For Availability

48

Switch, Thermal WPL 7403P85760 Contact Us For Availability

49

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

285006 Whirlpool Spray In Stock WPL 285006 $46.08

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.93

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.95

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $37.05

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $33.29

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

HARNESS, WIRE (BURNER BOX) WPL 5171P70560 Contact Us For Availability

HARNESS, WIRE (COOKTOP RIGHT) WPL 5171P87060 Contact Us For Availability

HARNESS, WIRE (COOKTOP LEFT) WPL 5171P87160 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability

Retainer, Insulation WPL 3804F31651 Contact Us For Availability

Insulation, Wrap WPL 7002P36260 Contact Us For Availability

INSULATION, BACK WPL 7022P49260 Contact Us For Availability

CORD, POWER WPL W10190168 Contact Us For Availability
