Model Maytag MER5875RAB ELECTRIC RANGE – Common Parts & Diagrams

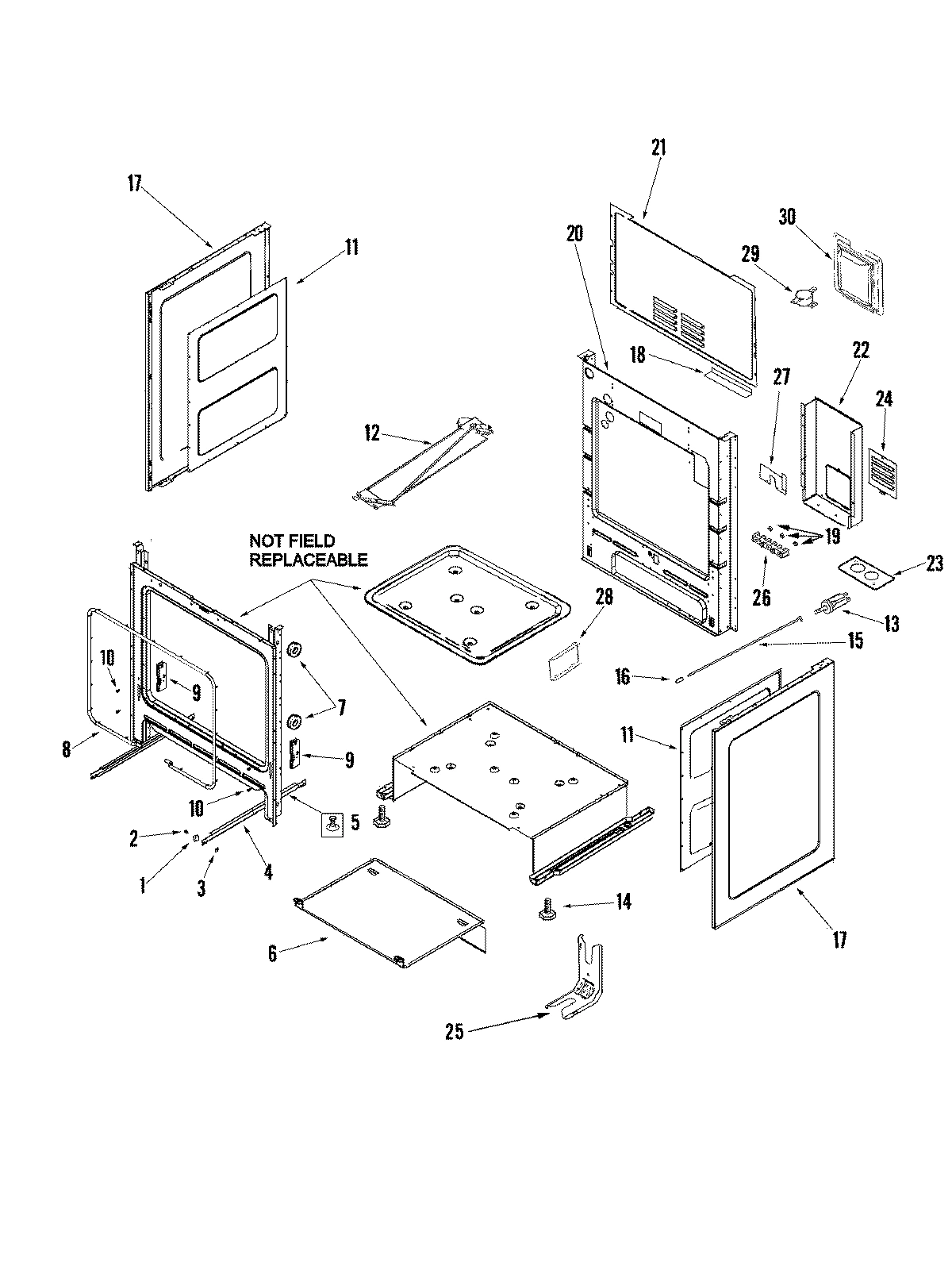

01 - CABINET

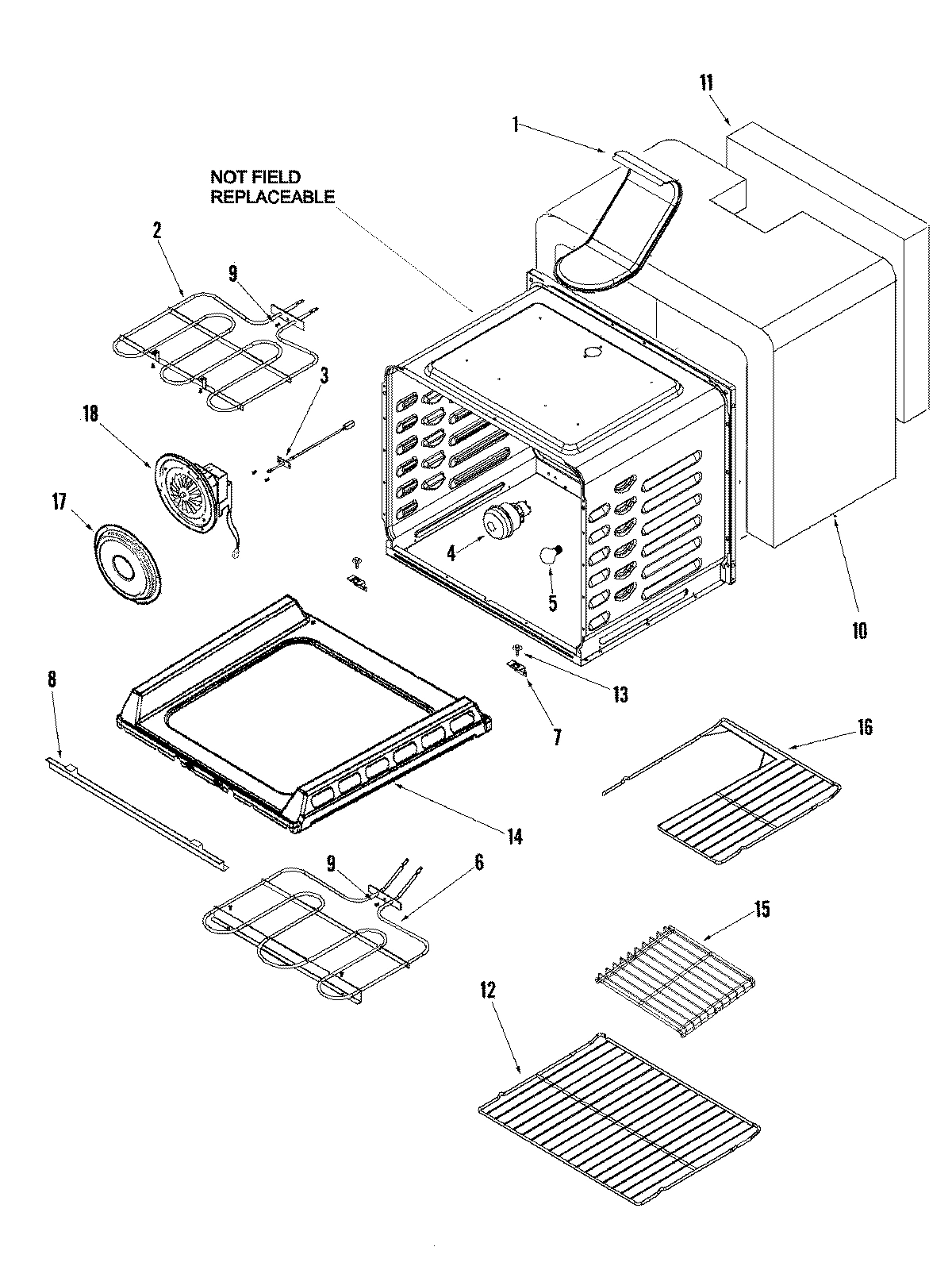

02 - CAVITY

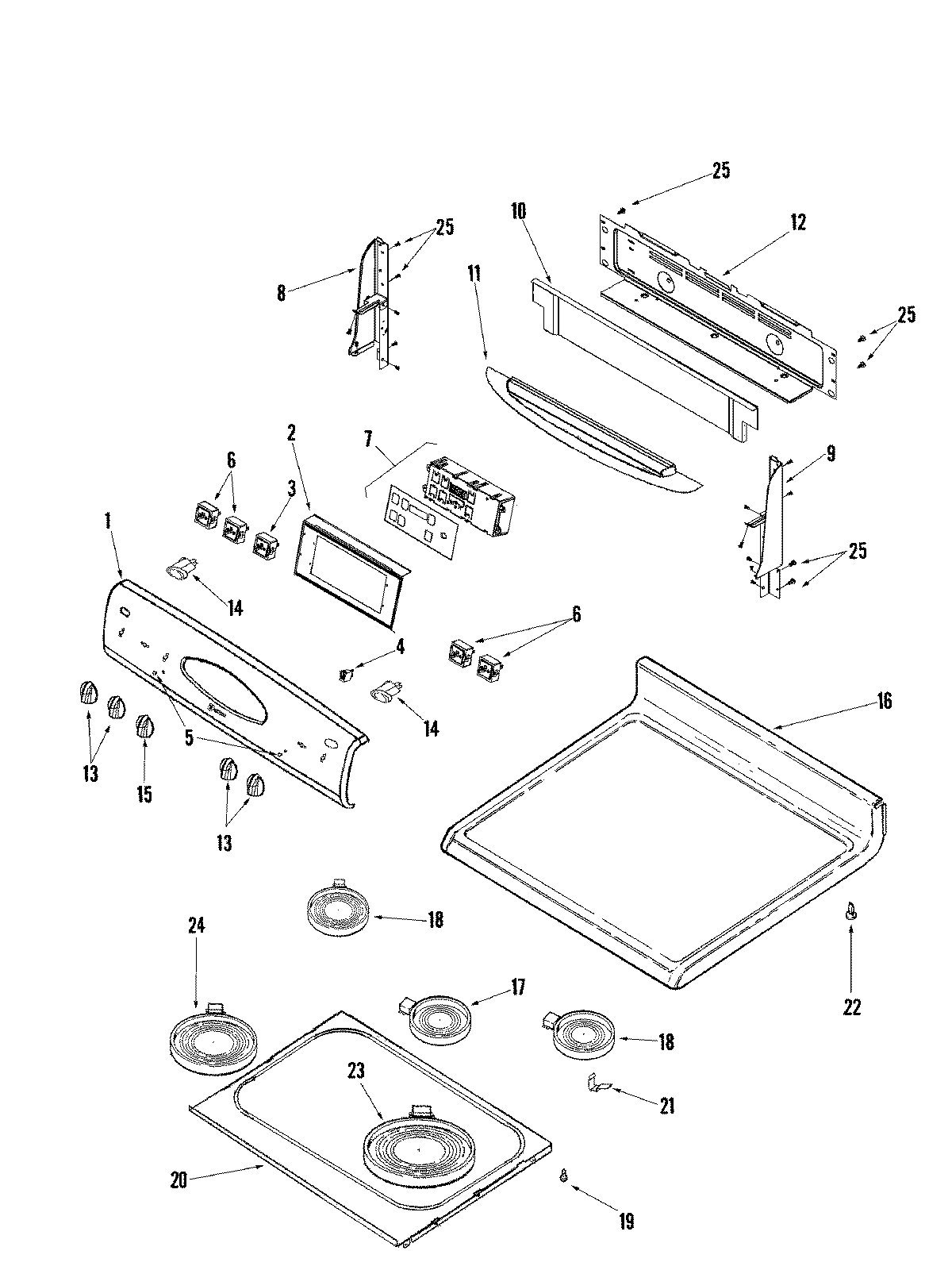

03 - CONTROL PANEL/TOP ASSEMBLY

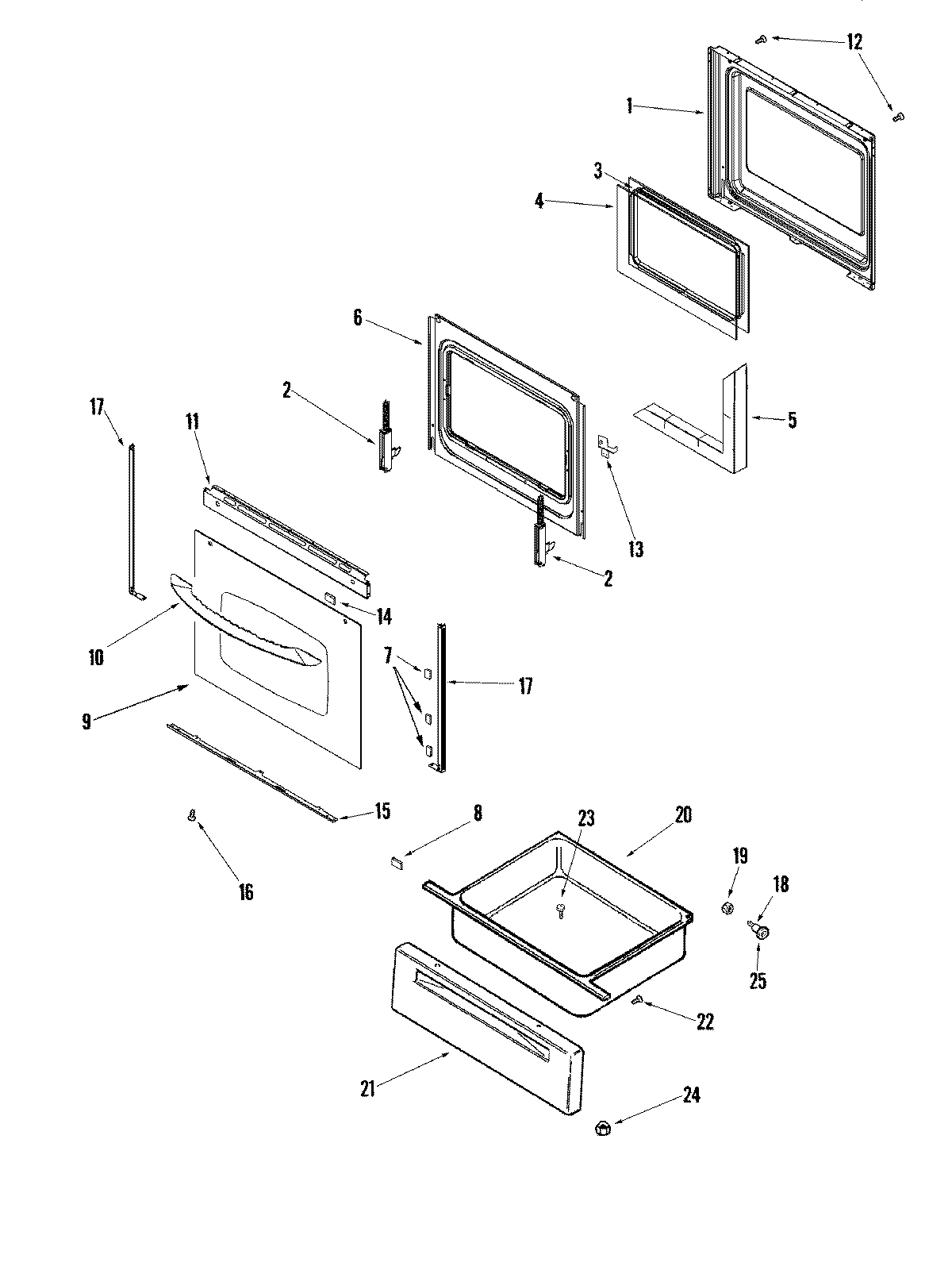

04 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION
06 - WIRING INFORMATION
07 - WIRING INFORMATION (SERIES 12)
Common parts from model Maytag MER5875RAB ELECTRIC RANGE
1
MAY 74008691 MAY 74008691 Contact Us For Availability
1
MAY 74011211 MAY 74011211 Contact Us For Availability
1
MAY 74008926 MAY 74008926 Contact Us For Availability
1
MAY 8113P492-60 MAY 8113P492-60 Contact Us For Availability
1
MAY 8113P566-60 MAY 8113P566-60 Contact Us For Availability
1
MAY 8113P738-60 MAY 8113P738-60 Contact Us For Availability
2
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
2
BRACKET, CLOCK MAY 74009052 Contact Us For Availability
2
HARNESS, SWITCH/TOP (RT) MAY 5171P872-60 Contact Us For Availability
2
MAY 74011216 MAY 74011216 Contact Us For Availability
3
MAY 74006589 MAY 74006589 Contact Us For Availability
3
MAY W10129627 MAY W10129627 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 5171P871-60 MAY 5171P871-60 Contact Us For Availability
3
MAY 74008934 MAY 74008934 Contact Us For Availability
4
MAY 71001867 MAY 71001867 Contact Us For Availability
4
MAY 5171P870-60 MAY 5171P870-60 Contact Us For Availability
4
MAY 74011215 MAY 74011215 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
5
MAY 74011217 MAY 74011217 Contact Us For Availability
5
MAY 74011680 MAY 74011680 Contact Us For Availability
6
MAY 74011102 MAY 74011102 Contact Us For Availability
6
MAY W10177711 MAY W10177711 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
7
TAPE, DBL SIDED (BLK) MAY 74009025 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
7
MAY 74008658 MAY 74008658 Contact Us For Availability
7
MAY 74009330 MAY 74009330 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
END CAP (RT-BLK) MAY 74009022 Contact Us For Availability
8
MAY 20001080 MAY 20001080 Contact Us For Availability
9
END CAP (LT-BLK) MAY 74009023 Contact Us For Availability
9
GLASS, DOOR (BLK) MAY 74009018 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74009444 MAY 74009444 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (BLK) MAY 74009202 Contact Us For Availability
11
TRIM, TOP (BLK) MAY 74008931 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
MAY 74008836 MAY 74008836 Contact Us For Availability
12
MAY 74010983 MAY 74010983 Contact Us For Availability
13
MAY 74008945 MAY 74008945 Contact Us For Availability
13
BRACKET, DOOR HANDLE (LT) MAY 74009412 Contact Us For Availability
13
BRACKET, DOOR HANDLE (RT) MAY 74009413 Contact Us For Availability
15
INSERT, HALF RACK 30`` MAY 74009587 Contact Us For Availability
15
TRIM, BOTTOM (BLK) MAY 74008889 Contact Us For Availability
16
MAY 74008924 MAY 74008924 Contact Us For Availability
16
MAY 74011154 MAY 74011154 Contact Us For Availability
16
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
17
COVER, CONVECT MAY 74005783 Contact Us For Availability
17
ELEMENT, WARM ZONE MAY 74011676 Contact Us For Availability
17
TRIM, SIDE (BLK) MAY 74010560 Contact Us For Availability
18
MAY 74009430 MAY 74009430 Contact Us For Availability
20
MAY 74008900 MAY 74008900 Contact Us For Availability
20
MAY 3405F037-60 MAY 3405F037-60 Contact Us For Availability
20
BRACKET, MOUNTING MAY 3605P337-51 Contact Us For Availability
20
DRAWER, STORAGE MAY 74008333 Contact Us For Availability
21
MAY 74008885 MAY 74008885 Contact Us For Availability
21
PANEL, DRAWER (BLK) MAY W10163038 Contact Us For Availability
30
MAY 74010814 MAY 74010814 Contact Us For Availability
NI
MAY 15003741 MAY 15003741 Contact Us For Availability
NI
MAY 15003878 MAY 15003878 Contact Us For Availability
× ![]()
