Model Whirlpool MER5875QCF ELECTRIC RANGE – Common Parts & Diagrams
01 - CABINET

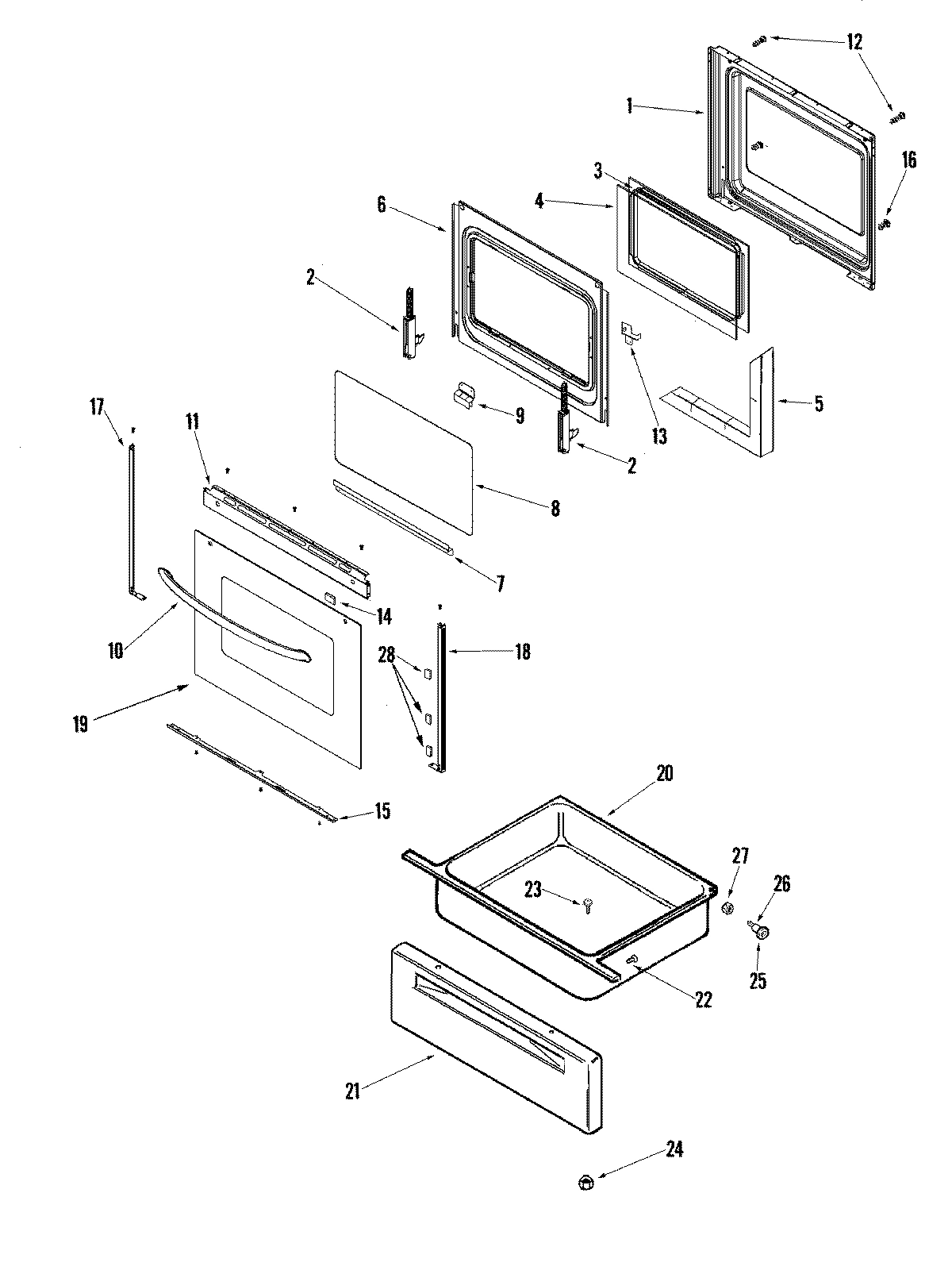

04 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION
07 - WIRING INFORMATION
02 - CAVITY

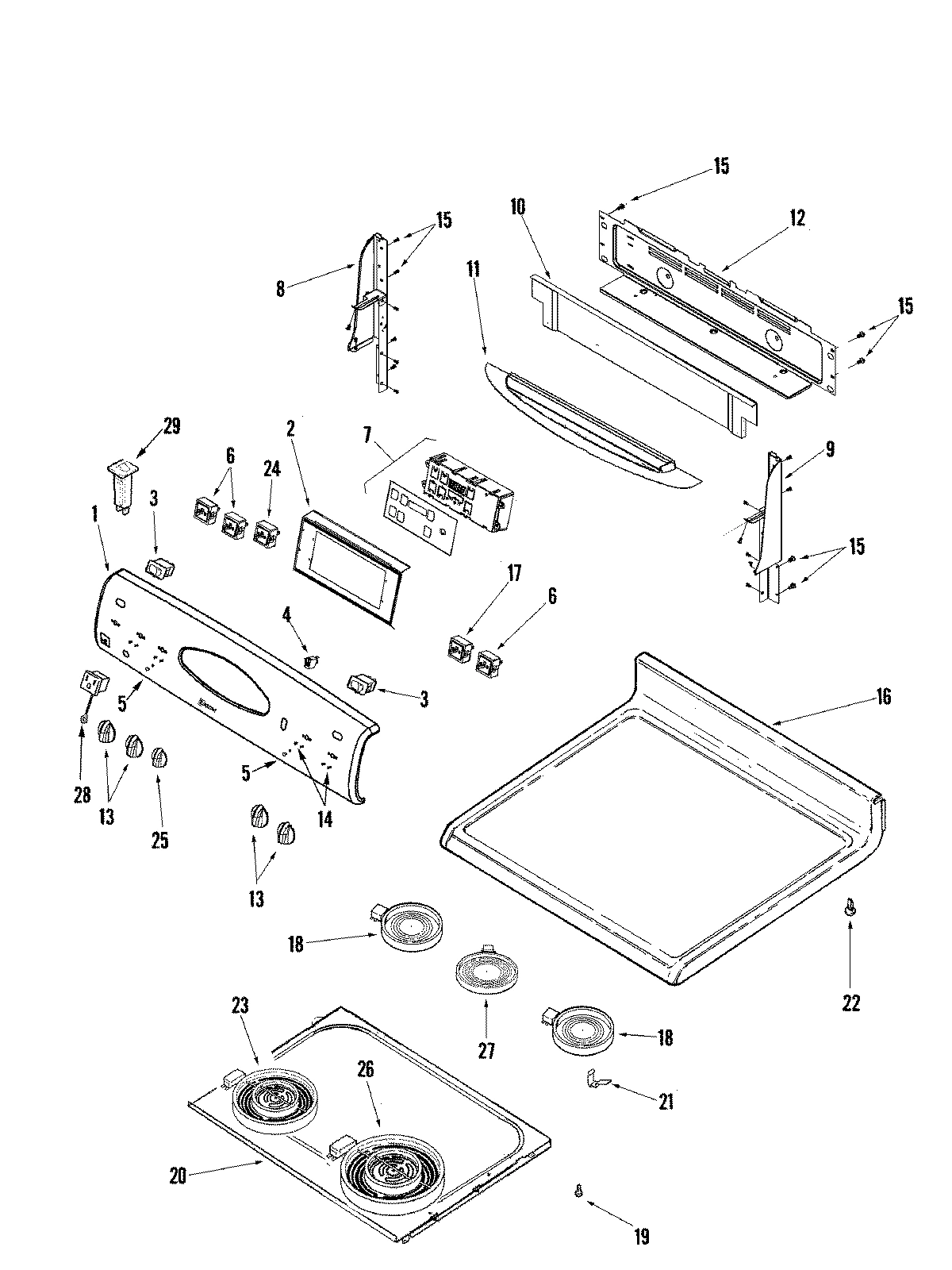

03 - CONTROL PANEL/TOP ASSEMBLY
06 - WIRING INFORMATION
Common parts from model Whirlpool MER5875QCF ELECTRIC RANGE
1
LINING, DOOR WPL 74008926 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P39760 Contact Us For Availability
1
VENT, OVEN WPL 74008691 Contact Us For Availability
1
PANEL, BACKGUARD (WHT) WPL 74009353 Contact Us For Availability
2
HARNESS, BURNER BOX WPL 74009345 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED-BR WPL W10124350 Contact Us For Availability
2
BRACKET, CLOCK WPL 74009052 Contact Us For Availability
3
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
3
FRAME, GLASS WPL 74003644 Contact Us For Availability
3
HARNESS, INF. SWITCH (LT) WPL 74009343 Contact Us For Availability
4
HARNESS, INF. SWITCH (RT) WPL 74009344 Contact Us For Availability
5
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
5
HARNESS, MAIN WPL 74009355 Contact Us For Availability
5
BULB-OVEN WPL 7407P10360 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
6
BAFFLE, DOOR WPL 74008744 Contact Us For Availability
6
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability
7
RETAINER, DOOR GLASS (LWR) WPL 74008745 Contact Us For Availability
7
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability
7
CLOCK/OVERLAY (WHT) WPL 74008656 Contact Us For Availability
8
GLASS, DOOR WPL 74003649 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability
8
END CAP (RT-WHT) WPL 74009077 Contact Us For Availability
9
RETAINER, DOOR GLASS (UPR) WPL 74008746 Contact Us For Availability
9
TECH SHT, RANGE ELECT WPL 16026110 Contact Us For Availability
9
END CAP (LT-WHT) WPL 74009079 Contact Us For Availability
10
SCREW WPL 7101P11260 Contact Us For Availability
10
INSULATION, WRAPPER WPL 74008700 Contact Us For Availability
10
SHIELD, VENT (WHT) WPL 74009206 Contact Us For Availability
11
RETAINER, SIDE WPL 74008701 Contact Us For Availability
11
INSULATION, SIDE BAFFLE WPL 74009956 Contact Us For Availability
11
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
11
TRIM, TOP (WHT) WPL 74008932 Contact Us For Availability
11
INSULATION, BACK WPL 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (WHT) WPL 74009203 Contact Us For Availability
12
LATCH ASSEMBLY WPL 74008702 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability
12
COVER, BACKGUARD WIRE WPL 74009335 Contact Us For Availability
13
SWITCH, DOOR WPL 74008703 Contact Us For Availability
13
INSULATOR, SHIELD WPL 74008704 Contact Us For Availability
13
BRACKET, HANDLE (LT) WPL 74008749 Contact Us For Availability
13
BRACKET, HANDLE (RT) WPL 74008750 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
14
SCREW WPL 7101P30960 Contact Us For Availability
15
SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability
15
ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability
16
BUMPER WPL 74008707 Contact Us For Availability
16
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
16
INSERT, HALF RACK 30`` WPL 74008473 Contact Us For Availability
16
TOP ASSEMBLY (WHT) WPL 74008557 Contact Us For Availability
17
SCREW WPL 74004208 Contact Us For Availability
17
PANEL, SIDE (WHT) WPL 74008709 Contact Us For Availability
17
TRIM, SIDE (WHT-LT) WPL 74008753 Contact Us For Availability
17
RACK, CREATE A SPACE HALF ``Q`` WPL 74008924 Contact Us For Availability
18
TRIM, SIDE (WHT) WPL 74010561 Contact Us For Availability
18
TRIM, SIDE (WHT-RT) WPL 74008751 Contact Us For Availability
19
BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability
19
GLASS, DOOR (WHT) WPL 74008681 Contact Us For Availability
19
COVER, CONVECT WPL 74005783 Contact Us For Availability
19
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
20
BACK, MAIN WPL 74008699 Contact Us For Availability
20
DRAWER, STORAGE WPL 74008333 Contact Us For Availability
20
SCREW WPL 74005401 Contact Us For Availability
20
FAN, CONVECTION ASY. WPL 74009430 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability
21
COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability
21
PANEL, DRAWER (WHT) WPL 74008755 Contact Us For Availability
22
COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
23
SCREW WPL 7101P07260 Contact Us For Availability
24
PANEL, ACCESS WPL 74008340 Contact Us For Availability
24
NUT, LOCK WPL 7103P13960 Contact Us For Availability
24
SWITCH, INFINITE (WARMING) WPL 74006589 Contact Us For Availability
25
SCREW WPL 7101P35260 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
26
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
27
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
27
NUT WPL 7103P08260 Contact Us For Availability
27
ELEMENT, WARMING WPL 74008898 Contact Us For Availability
28
CORD, POWER WPL 7402P05060 Contact Us For Availability
28
TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability
28
RECEPTACLE, OUTLET (WHT) WPL 71003069 Contact Us For Availability
29
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
29
BREAKER, CIRCUIT (WHT) WPL 74009322 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003380 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003379 Contact Us For Availability
× ![]()
