Model Maytag MER5775RCS ELECTRIC RANGE – Common Parts & Diagrams

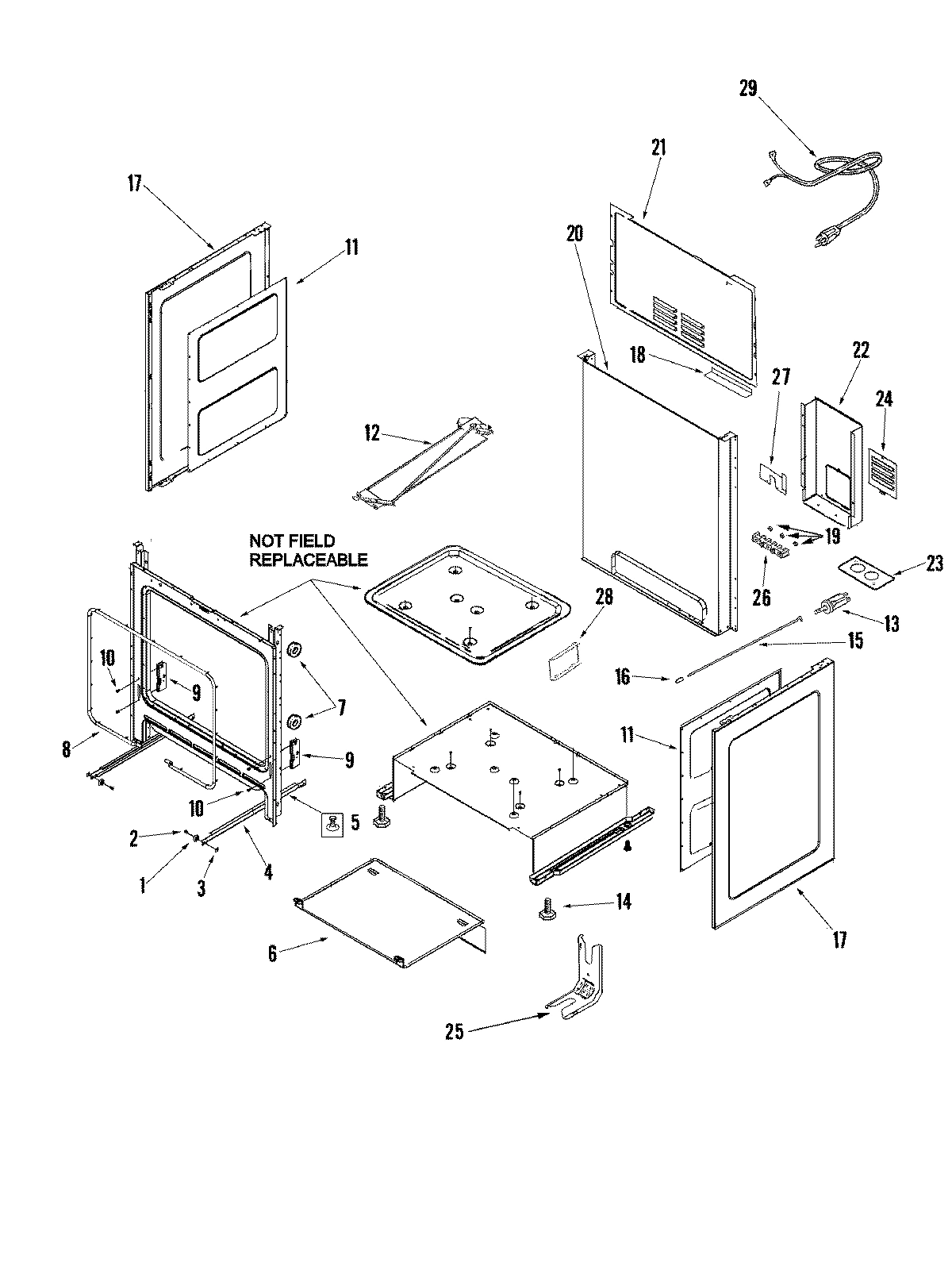

01 - CABINET

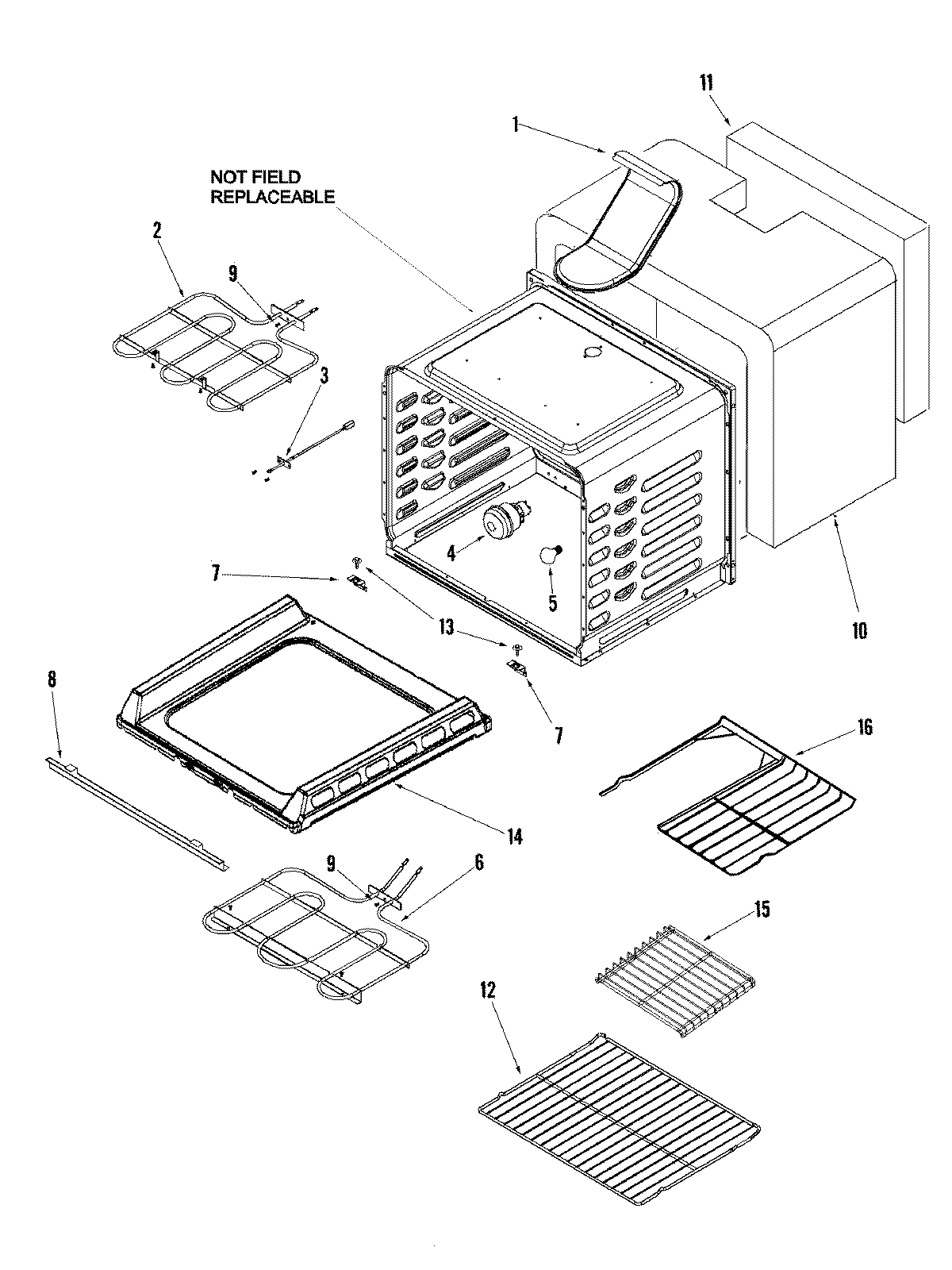

02 - CAVITY

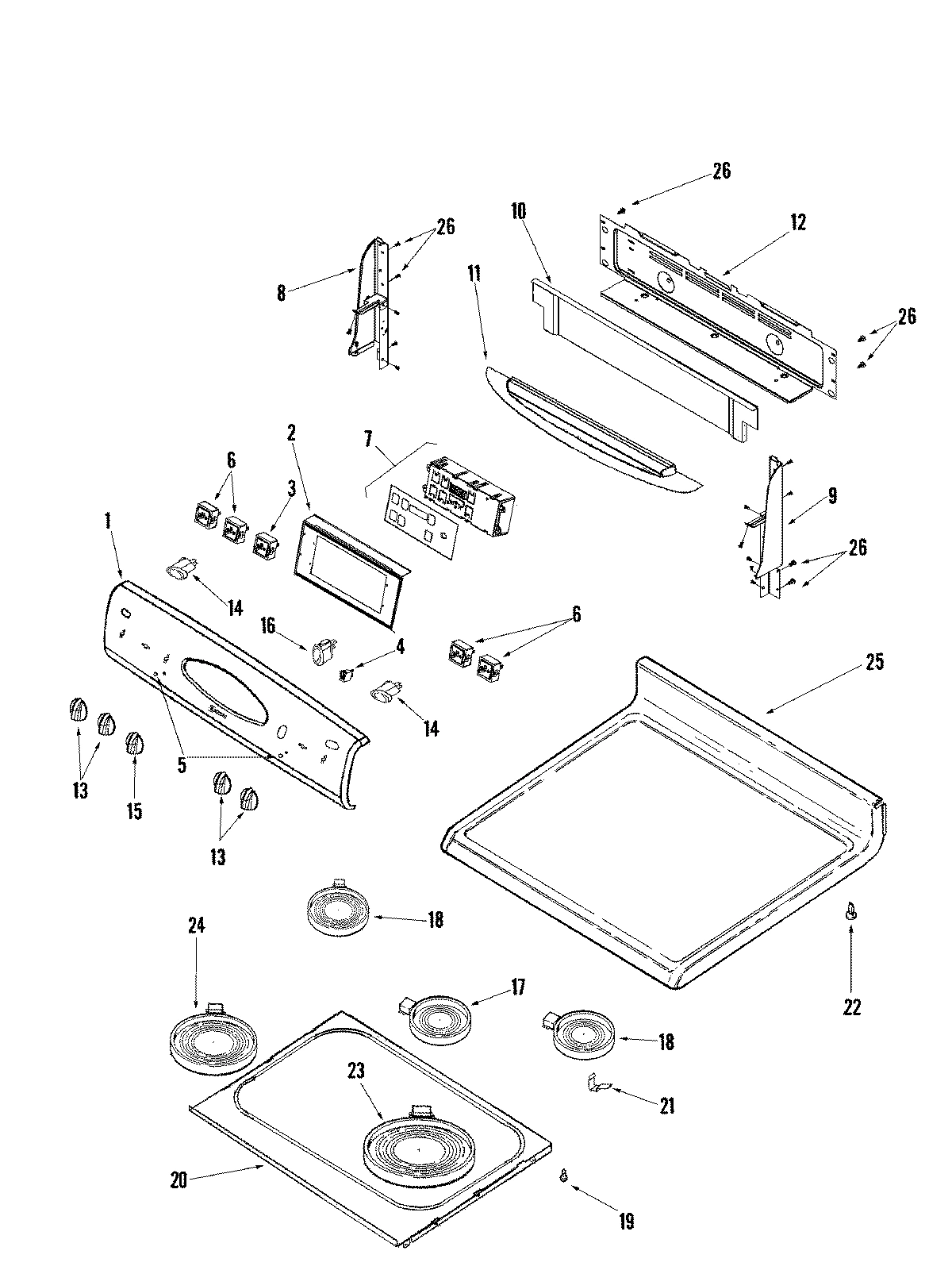

03 - CONTROL PANEL/TOP ASSEMBLY

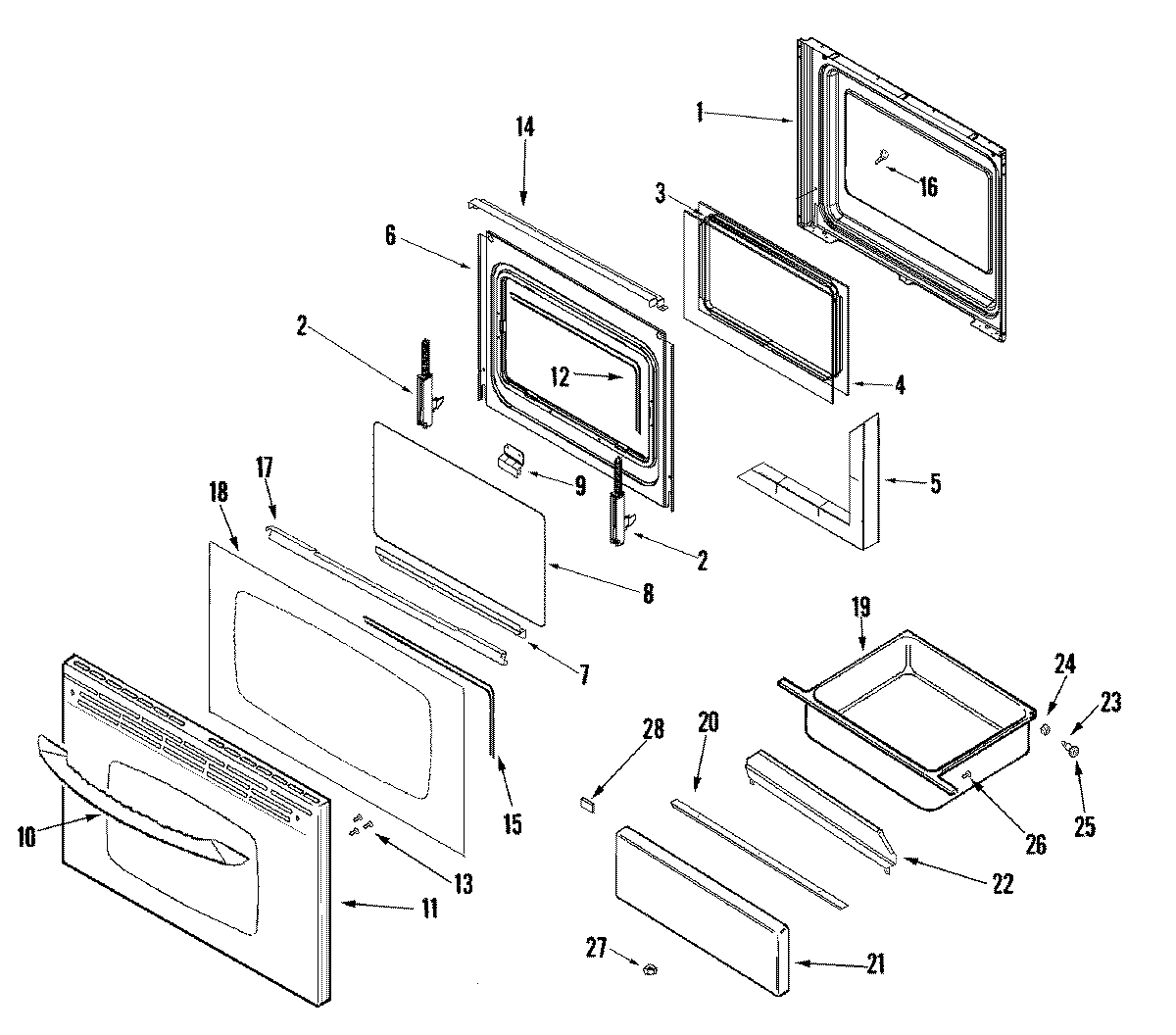

04 - DOOR/DRAWER (STL)
05 - SUPPLEMENTAL INFORMATION

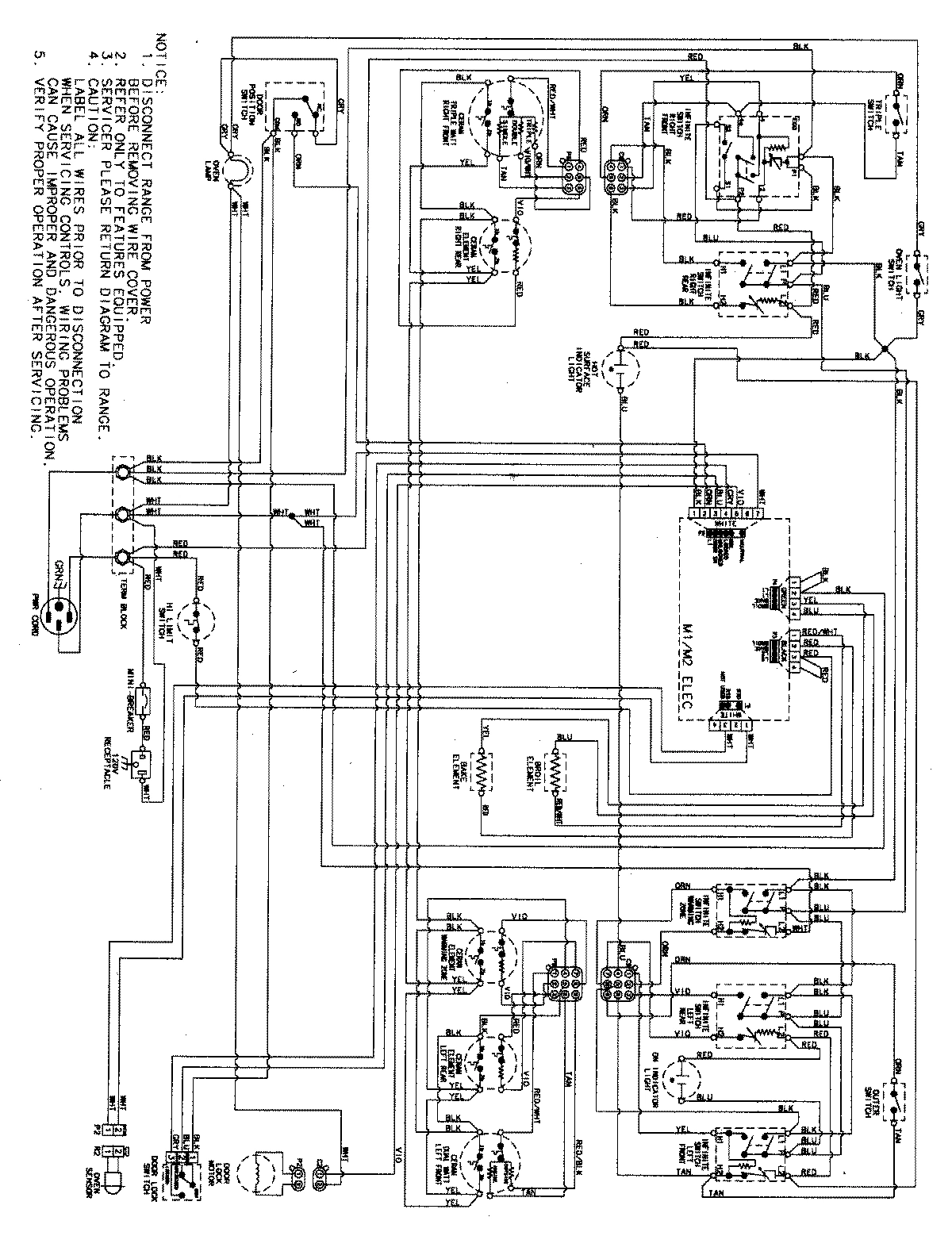

06 - WIRING INFORMATION

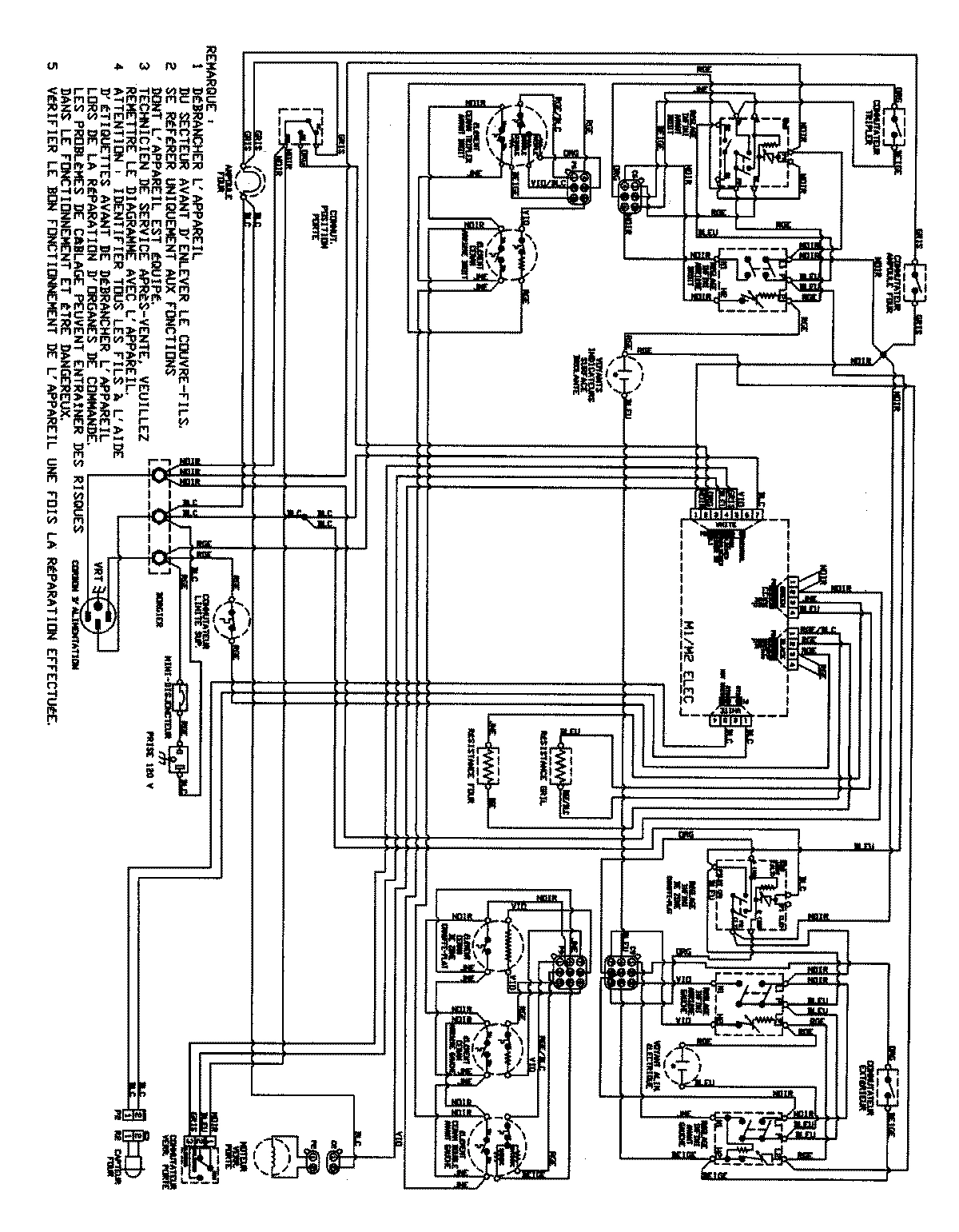

07 - WIRING INFORMATION (FRC SERIES 12)

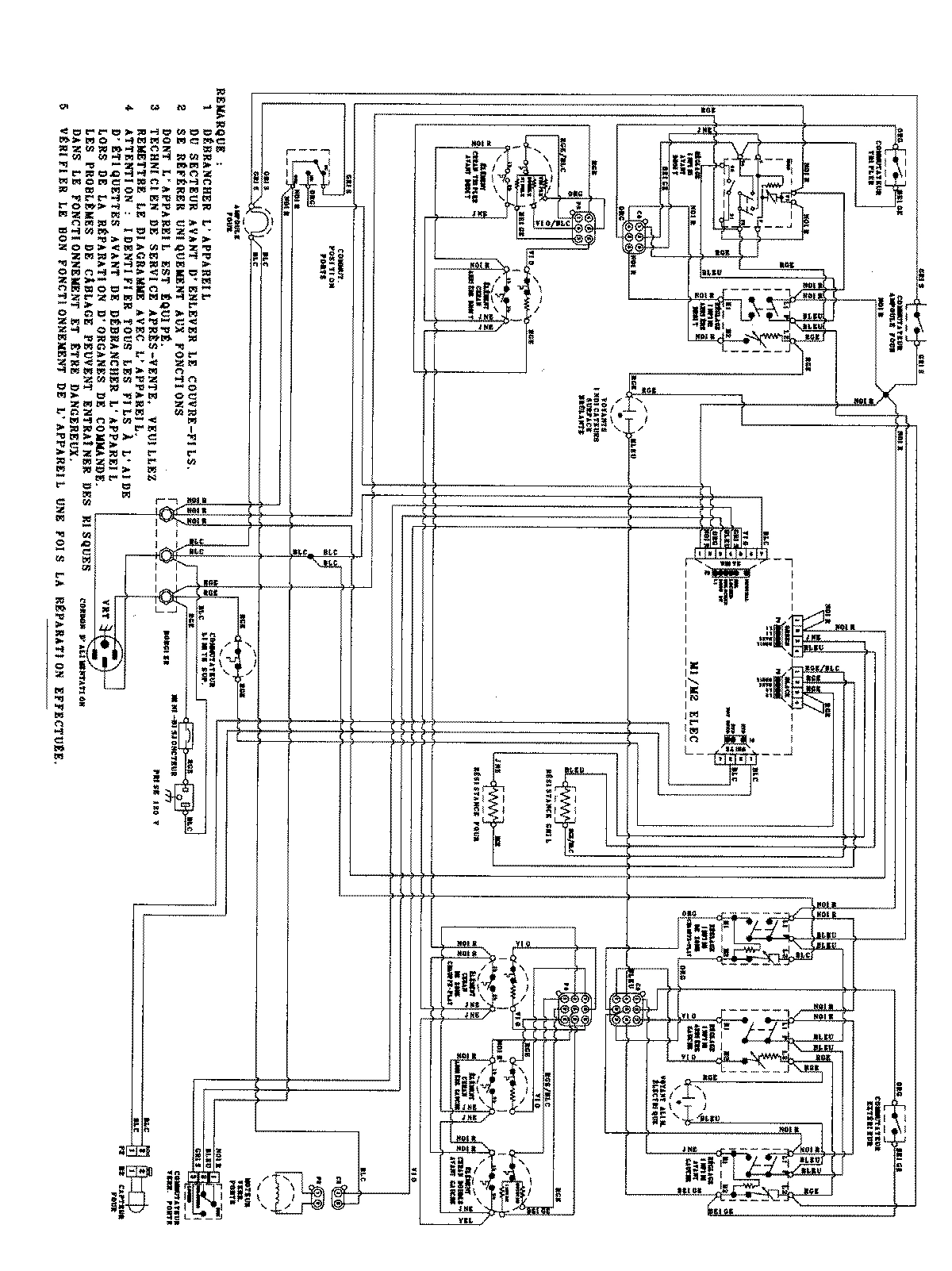

08 - WIRING INFORMATION (FRC)

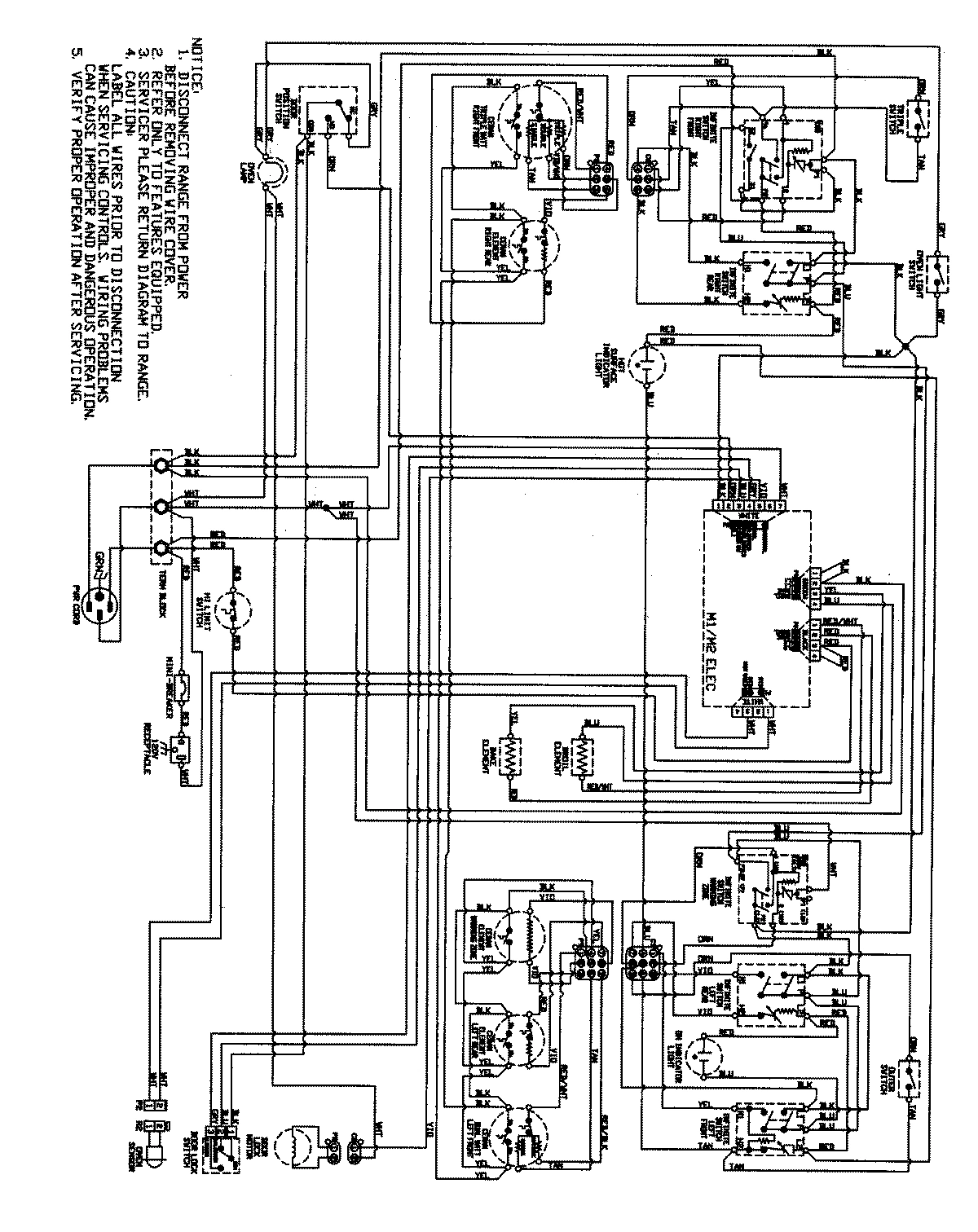

09 - WIRING INFORMATION (SERIES 12)
Common parts from model Maytag MER5775RCS ELECTRIC RANGE
1
MAY 74008691 MAY 74008691 Contact Us For Availability
1
MAY 74011275 MAY 74011275 Contact Us For Availability
1
MAY 74008926 MAY 74008926 Contact Us For Availability
1
MAY 8113P493-60 MAY 8113P493-60 Contact Us For Availability
1
MAY 8113P567-60 MAY 8113P567-60 Contact Us For Availability
1
MAY 8113P698-60 MAY 8113P698-60 Contact Us For Availability
1
MAY 8113P699-60 MAY 8113P699-60 Contact Us For Availability
1
MAY 15003886 MAY 15003886 Contact Us For Availability
1
MAY 15003757 MAY 15003757 Contact Us For Availability
2
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
2
HARNESS, INF. SWITCH (RT) MAY 5171P872-60 Contact Us For Availability
2
MAY 74011274 MAY 74011274 Contact Us For Availability
3
MAY 74006589 MAY 74006589 Contact Us For Availability
3
MAY W10129627 MAY W10129627 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 5171P871-60 MAY 5171P871-60 Contact Us For Availability
3
MAY 74008934 MAY 74008934 Contact Us For Availability
4
MAY 71001867 MAY 71001867 Contact Us For Availability
4
MAY 5171P876-60 MAY 5171P876-60 Contact Us For Availability
4
MAY 74011273 MAY 74011273 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
5
MAY 74011272 MAY 74011272 Contact Us For Availability
5
MAY 74011683 MAY 74011683 Contact Us For Availability
6
MAY 74011102 MAY 74011102 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
7
MAY 74009223 MAY 74009223 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
7
RETAINER, DOOR GLASS (LWR) MAY 74008745 Contact Us For Availability
7
MAY 74009330 MAY 74009330 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
END CAP (RT-BLK) MAY 74009022 Contact Us For Availability
8
GLASS, DOOR MAY 74003649 Contact Us For Availability
8
MAY 20001080 MAY 20001080 Contact Us For Availability
9
END CAP (LT-BLK) MAY 74009023 Contact Us For Availability
9
MAY 74008746 MAY 74008746 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74009444 MAY 74009444 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (BLK) MAY 74009202 Contact Us For Availability
11
MAY 74008951 MAY 74008951 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
MAY 74008836 MAY 74008836 Contact Us For Availability
12
MAY 74010983 MAY 74010983 Contact Us For Availability
12
MAY 74008917 MAY 74008917 Contact Us For Availability
13
MAY 74008945 MAY 74008945 Contact Us For Availability
13
MAY 74011772 MAY 74011772 Contact Us For Availability
14
MAY 74009027 MAY 74009027 Contact Us For Availability
15
INSERT, HALF RACK 30`` MAY 74009587 Contact Us For Availability
16
MAY 74008924 MAY 74008924 Contact Us For Availability
16
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
17
MAY 74008898 MAY 74008898 Contact Us For Availability
17
ELEMENT, WARM ZONE MAY 74011676 Contact Us For Availability
17
MAY 74009028 MAY 74009028 Contact Us For Availability
18
MAY 74008855 MAY 74008855 Contact Us For Availability
19
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
19
BRACKET, MOUNTING MAY 3605P337-51 Contact Us For Availability
19
MAY 74008337 MAY 74008337 Contact Us For Availability
20
MAY 74008900 MAY 74008900 Contact Us For Availability
20
MAY 74008909 MAY 74008909 Contact Us For Availability
20
HANDLE, DRAWER MAY 7701P547-60 Contact Us For Availability
21
PANEL, DRAWER (STL-ELEC) MAY W10165339 Contact Us For Availability
22
MAY 74009517 MAY 74009517 Contact Us For Availability
25
MAY 74011154 MAY 74011154 Contact Us For Availability
27
MAY 71003070 MAY 71003070 Contact Us For Availability
28
BRACKET, OVEN SUPPORT MAY 74011187 Contact Us For Availability
28
MAY 71003068 MAY 71003068 Contact Us For Availability
29
MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability
NI
MAY 15003756 MAY 15003756 Contact Us For Availability
NI
MAY 15003885 MAY 15003885 Contact Us For Availability
× ![]()
