Model Maytag MER5775RAQ ELECTRIC RANGE – Common Parts & Diagrams

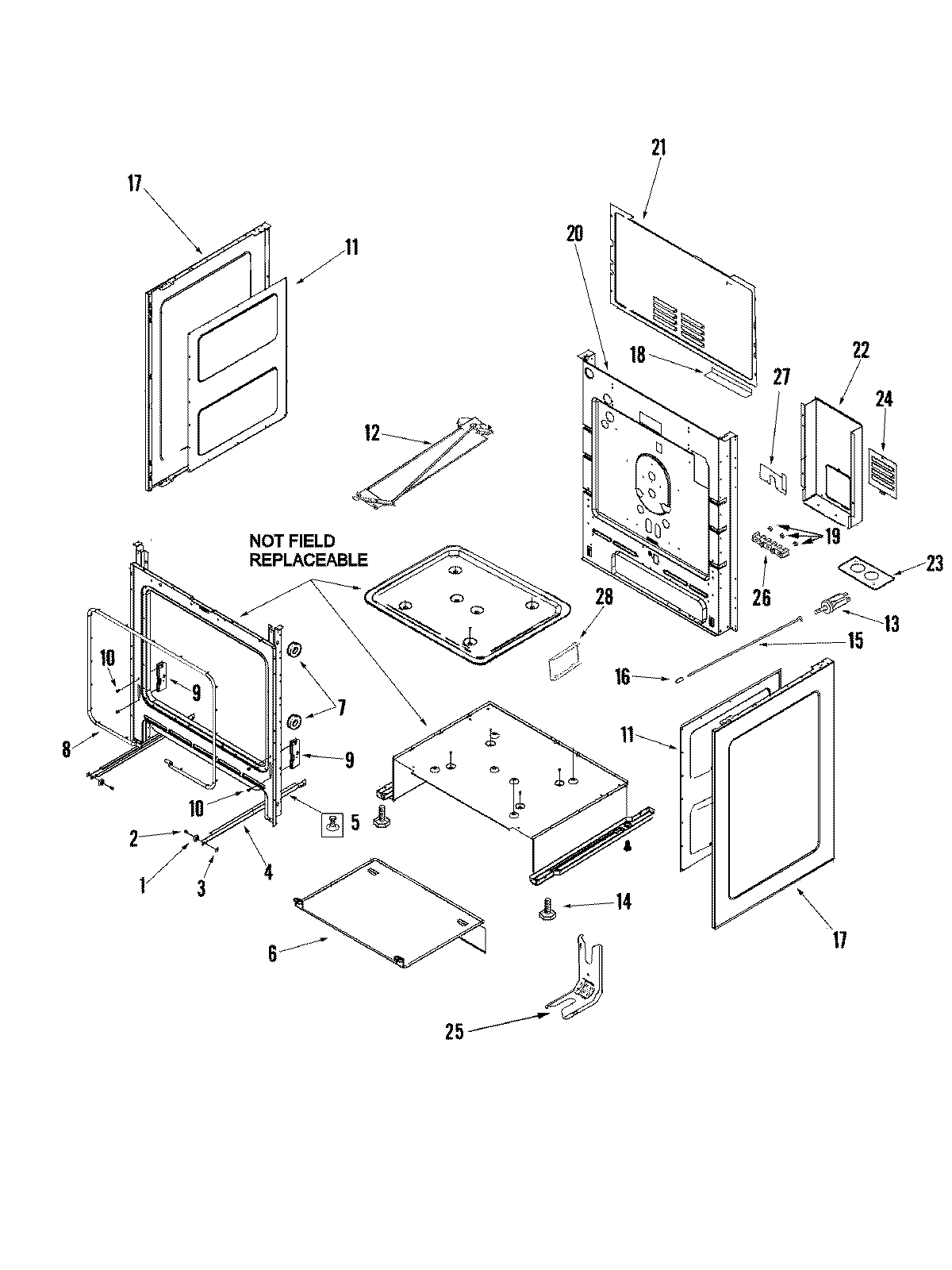

01 - CABINET

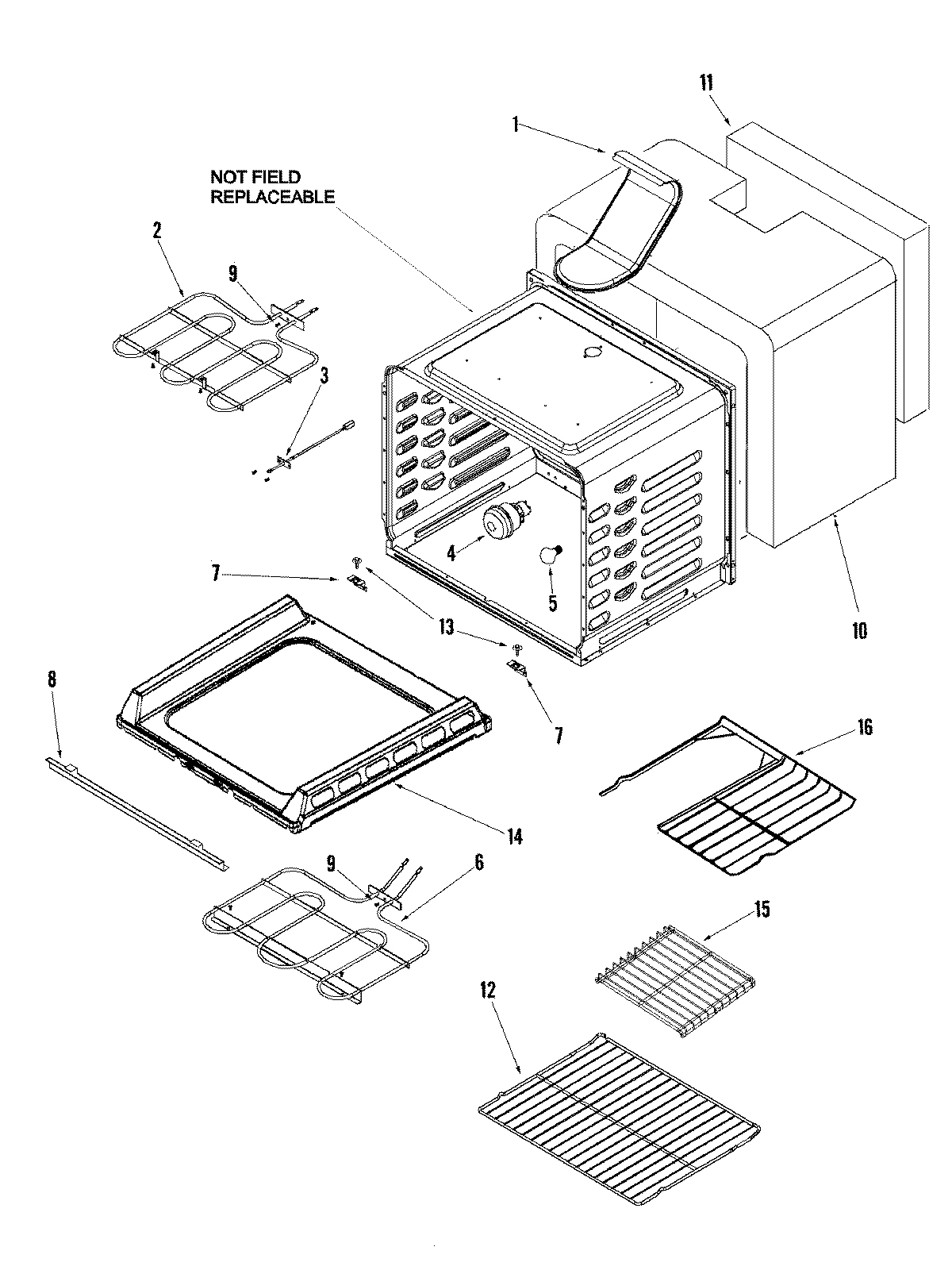

02 - CAVITY

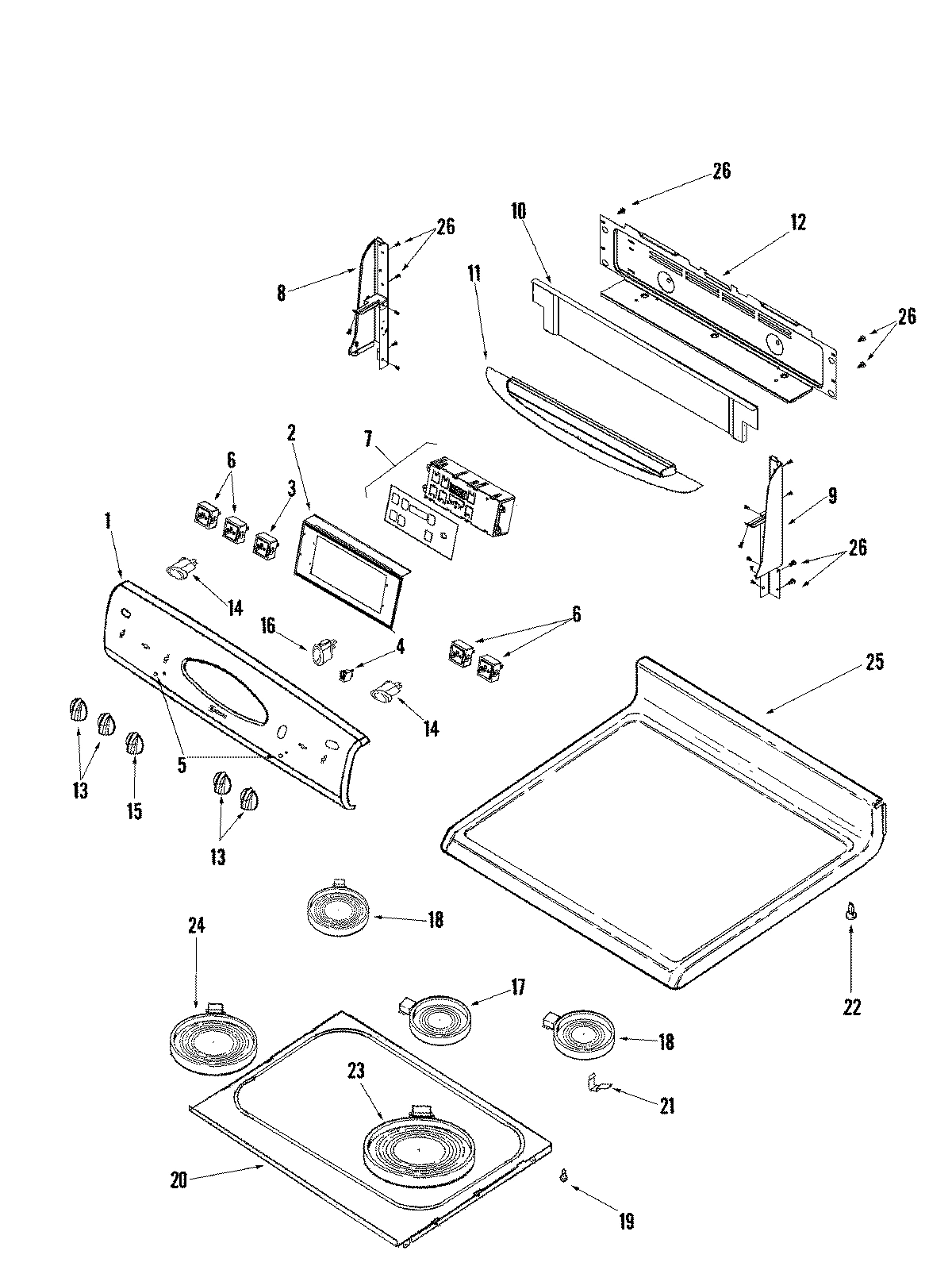

03 - CONTROL PANEL/TOP ASSEMBLY

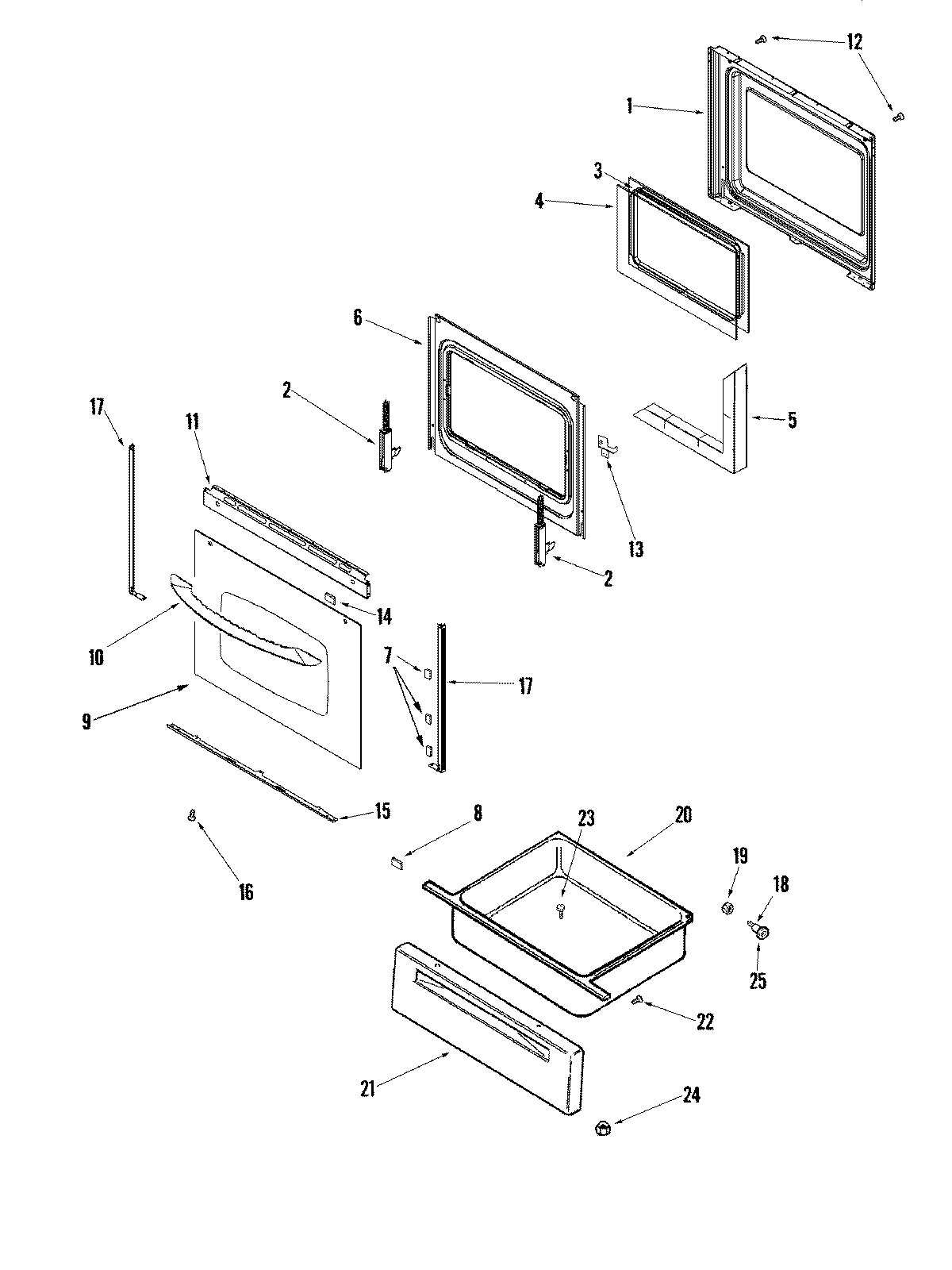

04 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION

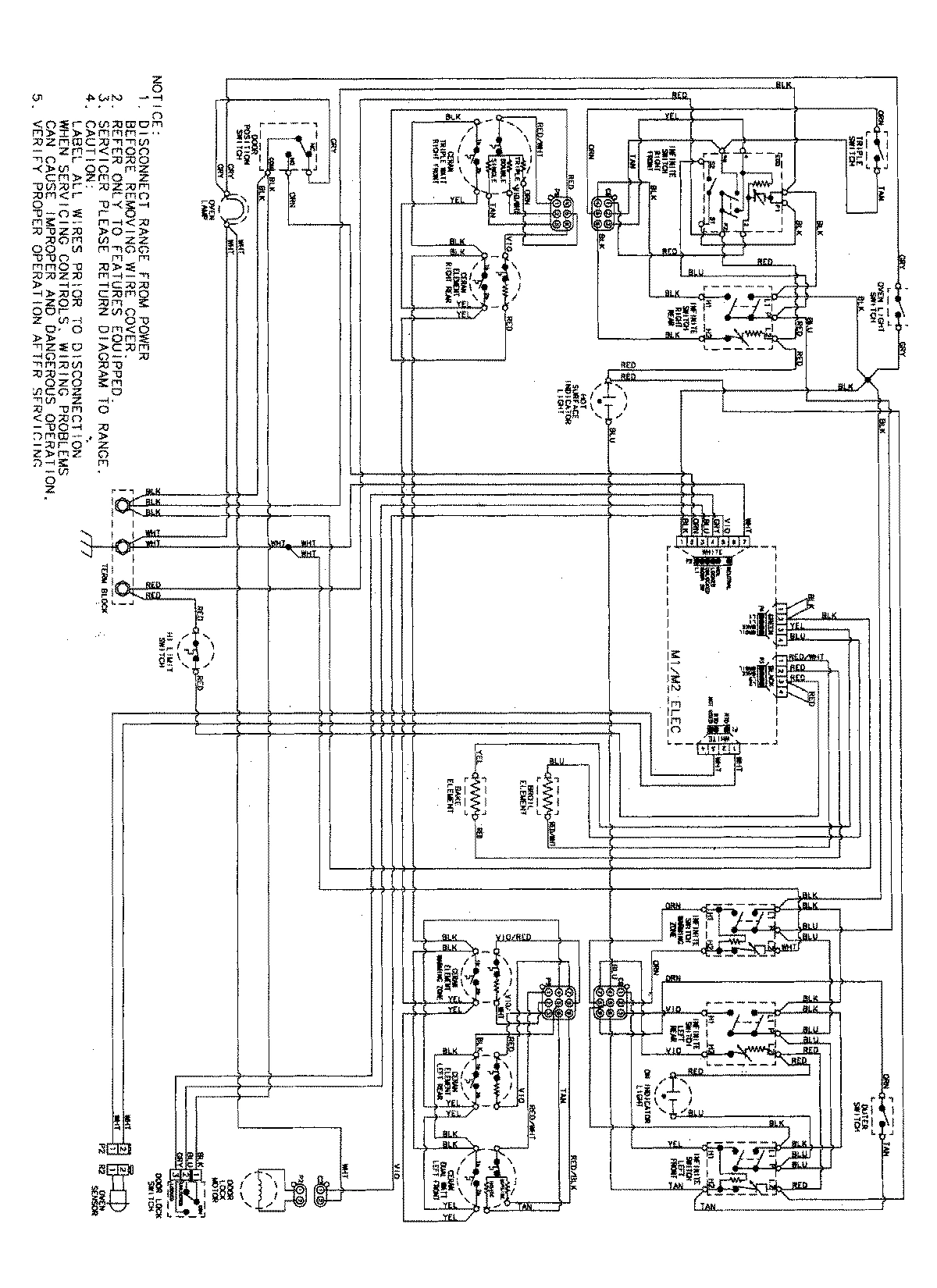

06 - WIRING INFORMATION

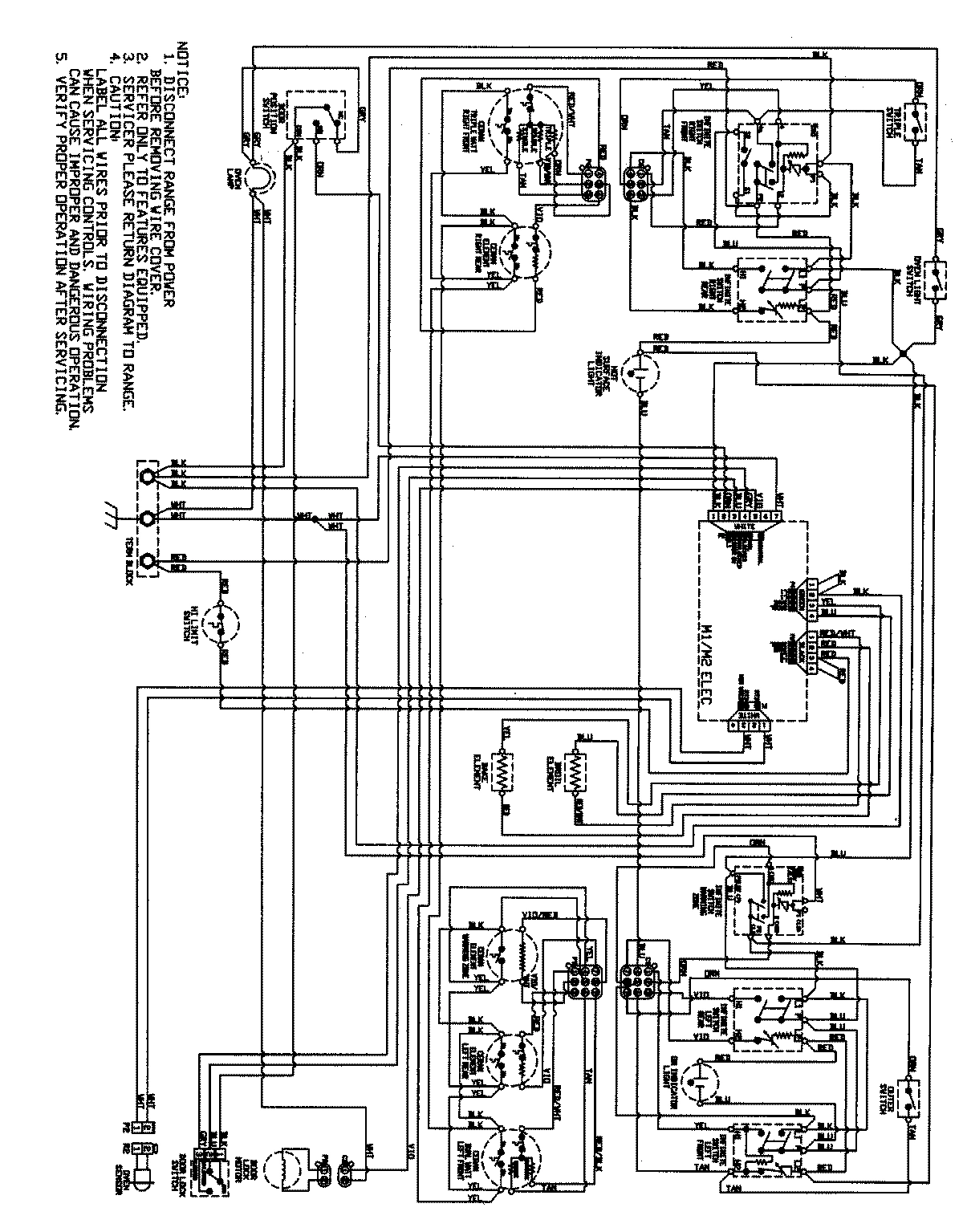

07 - WIRING INFORMATION (SERIES 12)
Common parts from model Maytag MER5775RAQ ELECTRIC RANGE
1
MAY 74011224 MAY 74011224 Contact Us For Availability
1
MAY 74008926 MAY 74008926 Contact Us For Availability
1
MAY 8113P567-60 MAY 8113P567-60 Contact Us For Availability
2
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
2
BRACKET, CLOCK MAY 74009052 Contact Us For Availability
3
MAY 74006589 MAY 74006589 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
HARNESS, SWITCH/TOP (LT) MAY 5171P858-60 Contact Us For Availability
4
MAY 71001867 MAY 71001867 Contact Us For Availability
4
MAY 5171P862-60 MAY 5171P862-60 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
6
SWITCH, INFINITE (DUAL) MAY W10129627 Contact Us For Availability
6
MAY 74011102 MAY 74011102 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
7
MAY 74009222 MAY 74009222 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
END CAP (RT-BSQ) MAY 74009078 Contact Us For Availability
9
END CAP (LT-BSQ) MAY 74009080 Contact Us For Availability
9
GLASS, DOOR (BSQ) MAY 74008682 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74009444 MAY 74009444 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (BSQ) MAY 74009204 Contact Us For Availability
11
TRIM, TOP (BSQ) MAY 74008933 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
MAY 74008836 MAY 74008836 Contact Us For Availability
12
MAY 74010983 MAY 74010983 Contact Us For Availability
13
BRACKET, DOOR HANDLE (LT) MAY 74009412 Contact Us For Availability
13
BRACKET, DOOR HANDLE (RT) MAY 74009413 Contact Us For Availability
15
INSERT, HALF RACK 30`` MAY 74009587 Contact Us For Availability
15
MAY 74008949 MAY 74008949 Contact Us For Availability
15
TRIM, BOTTOM (BSQ) MAY 74008758 Contact Us For Availability
16
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
17
MAY 74008898 MAY 74008898 Contact Us For Availability
17
ELEMENT, WARM ZONE MAY 74011676 Contact Us For Availability
17
TRIM, SIDE (BSQ) MAY 74010562 Contact Us For Availability
20
MAY 74008900 MAY 74008900 Contact Us For Availability
20
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
20
DRAWER, STORAGE MAY 74008333 Contact Us For Availability
21
BRACKET, MOUNTING MAY 3605P337-51 Contact Us For Availability
21
MAY 74008756 MAY 74008756 Contact Us For Availability
21
PANEL, DRAWER (BSQ) MAY W10163041 Contact Us For Availability
25
MAY 74011155 MAY 74011155 Contact Us For Availability
NI
MAY 15003744 MAY 15003744 Contact Us For Availability
NI
MAY 15003878 MAY 15003878 Contact Us For Availability
× ![]()
