Model Maytag MER5775QCF ELECTRIC RANGE – Common Parts & Diagrams

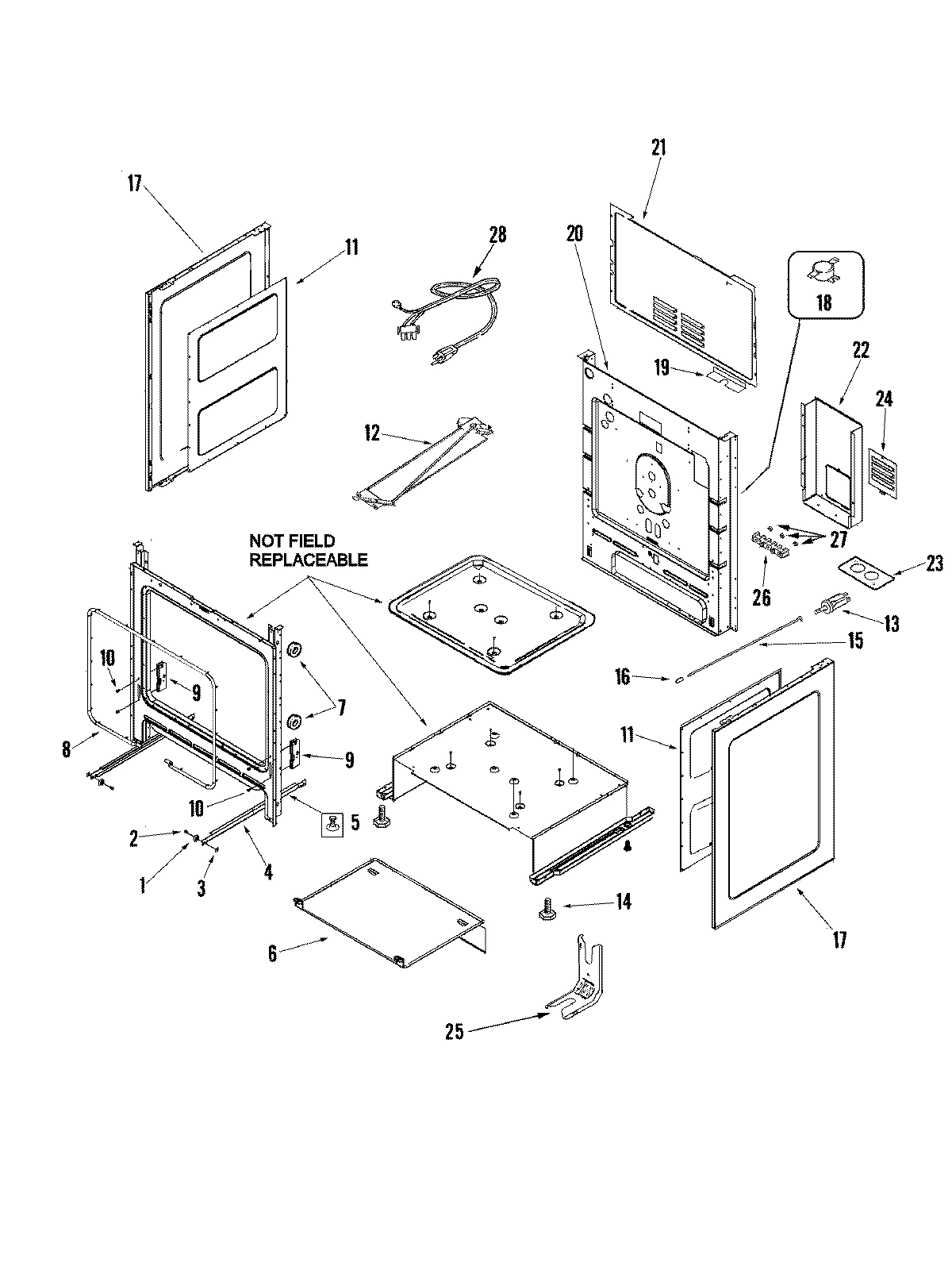

01 - CABINET

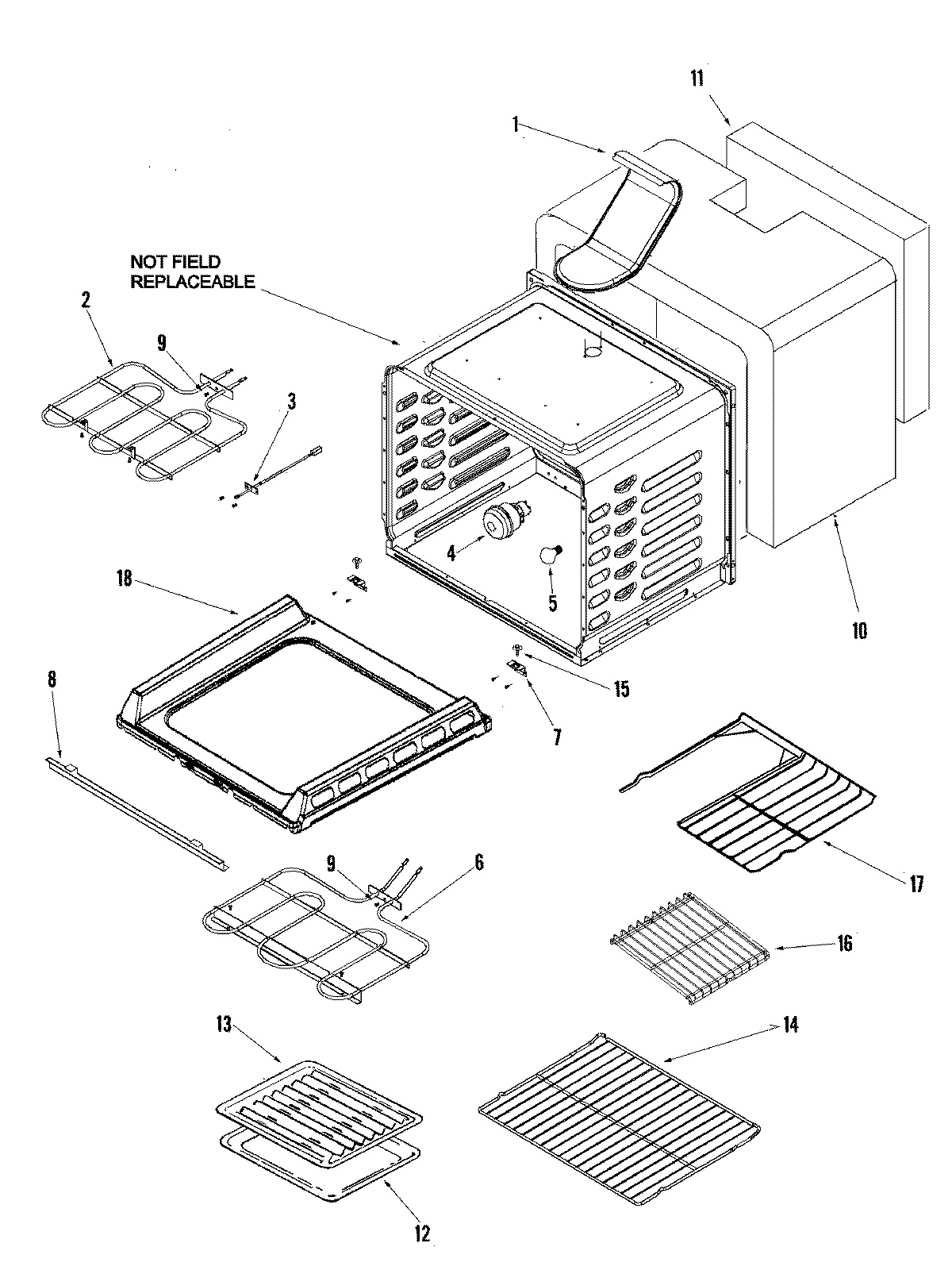

02 - CAVITY
03 - CONTROL PANEL/TOP ASSEMBLY
04 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION
06 - WIRING INFORMATION
07 - WIRING INFORMATION
Common parts from model Maytag MER5775QCF ELECTRIC RANGE
1
MAY 74009347 MAY 74009347 Contact Us For Availability
1
MAY 74008926 MAY 74008926 Contact Us For Availability
1
MAY 8113P396-60 MAY 8113P396-60 Contact Us For Availability
1
MAY 15003378 MAY 15003378 Contact Us For Availability
2
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED-BR MAY W10124350 Contact Us For Availability
2
BRACKET, CLOCK MAY 74009052 Contact Us For Availability
2
MAY 74009345 MAY 74009345 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 74009343 MAY 74009343 Contact Us For Availability
4
MAY 71001867 MAY 71001867 Contact Us For Availability
4
MAY 74009344 MAY 74009344 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
5
MAY 74009512 MAY 74009512 Contact Us For Availability
5
MAY 74009936 MAY 74009936 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
6
MAY 74007136 MAY 74007136 Contact Us For Availability
7
MAY 74009221 MAY 74009221 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
7
RETAINER, DOOR GLASS (LWR) MAY 74008745 Contact Us For Availability
7
MAY 20001080 MAY 20001080 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
END CAP (RT-WHT) MAY 74009077 Contact Us For Availability
8
GLASS, DOOR MAY 74003649 Contact Us For Availability
9
END CAP (LT-WHT) MAY 74009079 Contact Us For Availability
9
MAY 74008746 MAY 74008746 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74009206 MAY 74009206 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (WHT) MAY 74009203 Contact Us For Availability
11
TRIM, TOP (WHT) MAY 74008932 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
12
MAY 74008836 MAY 74008836 Contact Us For Availability
12
MAY 74009335 MAY 74009335 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
13
MAY 74008749 MAY 74008749 Contact Us For Availability
13
MAY 74008750 MAY 74008750 Contact Us For Availability
15
SCREW (6ABX.25-ZN) MAY 74003357 Contact Us For Availability
15
TRIM, BOTTOM (WHT) MAY 74008757 Contact Us For Availability
16
INSERT, HALF RACK 30`` MAY 74008473 Contact Us For Availability
16
MAY 74008548 MAY 74008548 Contact Us For Availability
16
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
17
MAY 74008924 MAY 74008924 Contact Us For Availability
17
MAY 74006589 MAY 74006589 Contact Us For Availability
17
MAY 74008753 MAY 74008753 Contact Us For Availability
18
TRIM, SIDE (WHT) MAY 74010561 Contact Us For Availability
18
MAY 74008751 MAY 74008751 Contact Us For Availability
19
GLASS, DOOR (WHT) MAY 74008681 Contact Us For Availability
20
MAY 74008900 MAY 74008900 Contact Us For Availability
20
DRAWER, STORAGE MAY 74008333 Contact Us For Availability
21
SPRING, ELEMENT SUPPORT MAY Y04100418 Contact Us For Availability
21
MAY 74008755 MAY 74008755 Contact Us For Availability
26
MAY 74008898 MAY 74008898 Contact Us For Availability
27
MAY 74009322 MAY 74009322 Contact Us For Availability
28
TAPE, DBL SIDED (BLK) MAY 74009025 Contact Us For Availability
28
MAY 71003069 MAY 71003069 Contact Us For Availability
NI
MAY 15003377 MAY 15003377 Contact Us For Availability
× ![]()
