Model Whirlpool MER5752BAQ ELECTRIC RANGE – Common Parts & Diagrams

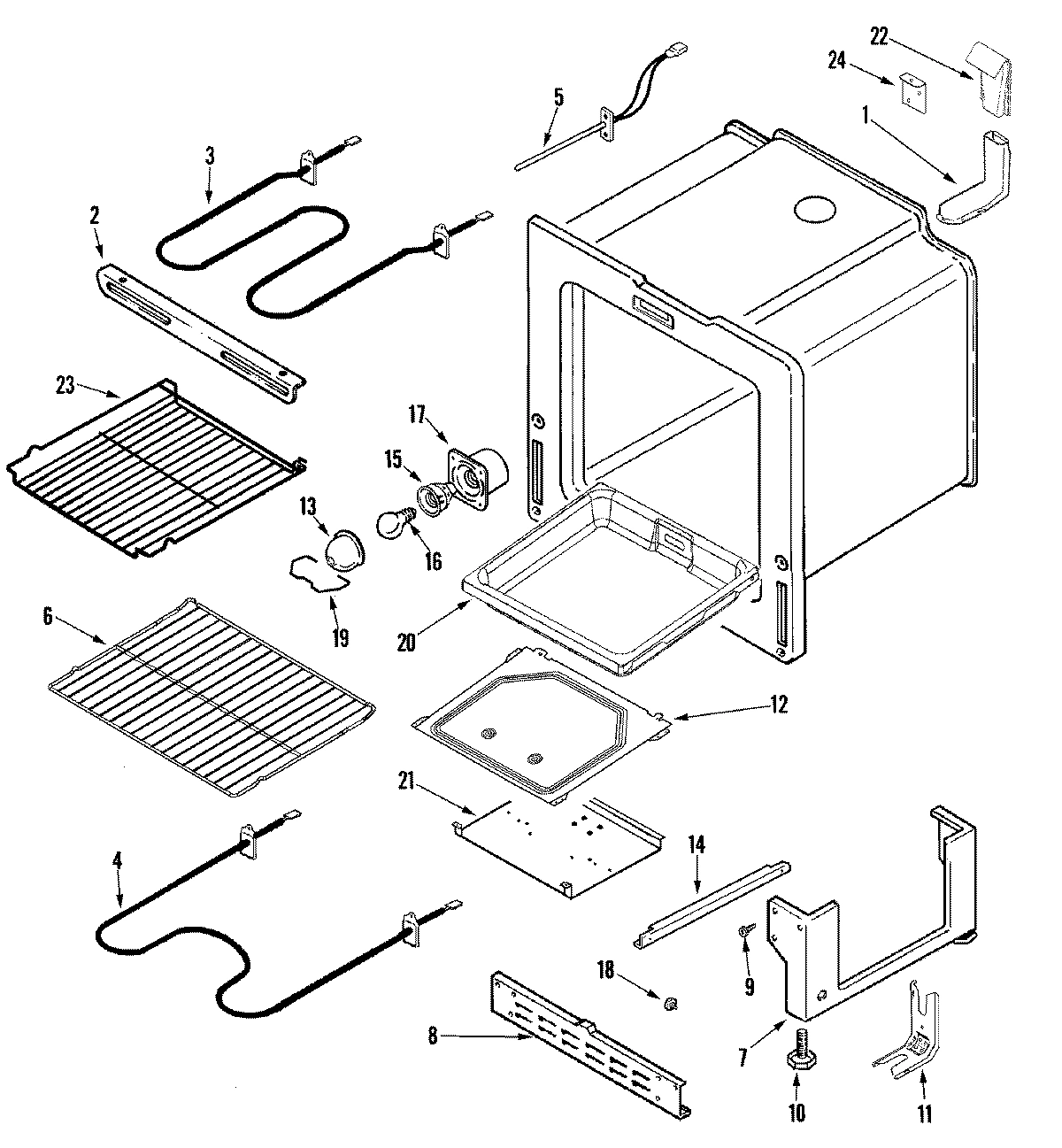

04 - OVEN/BASE

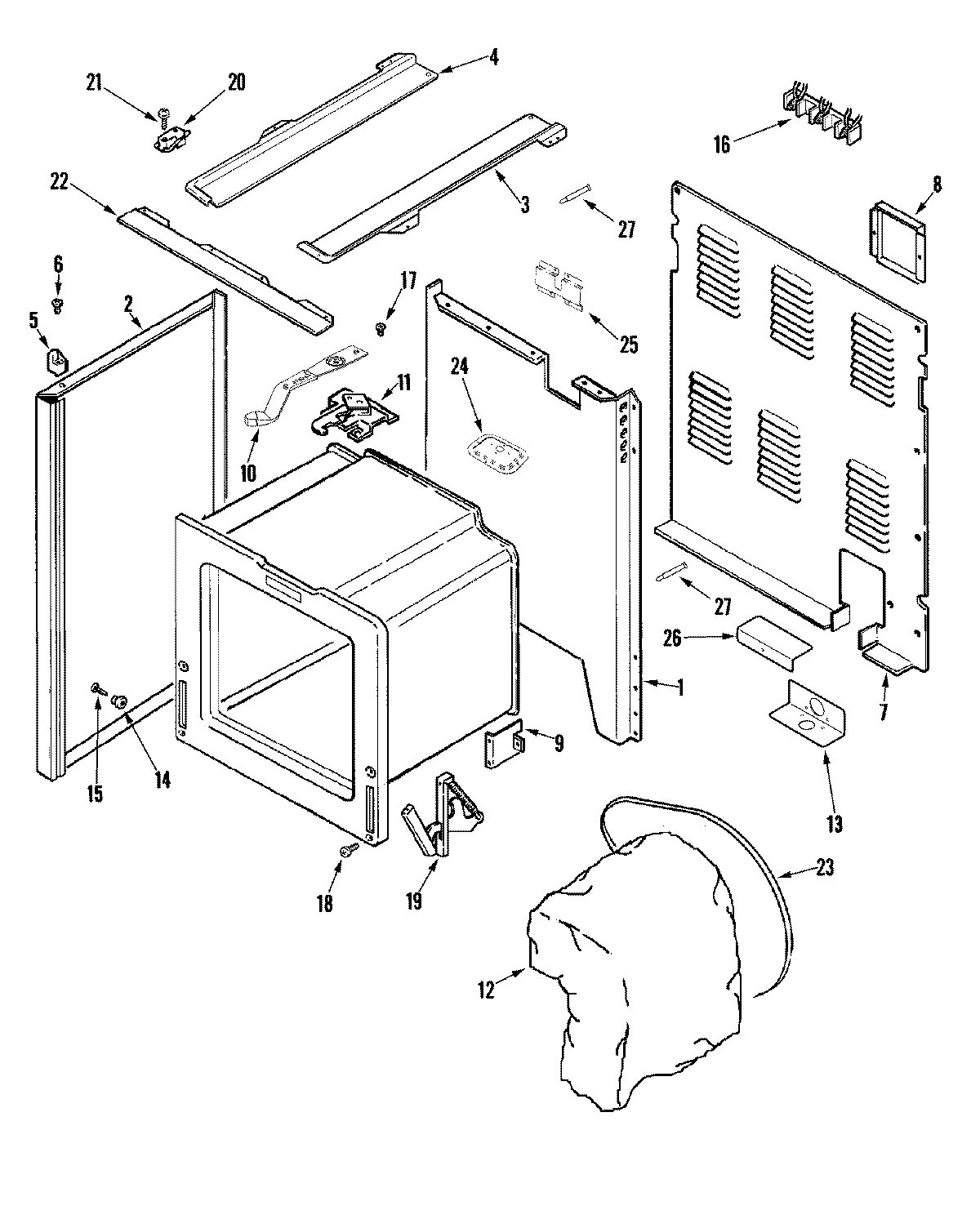

01 - BODY

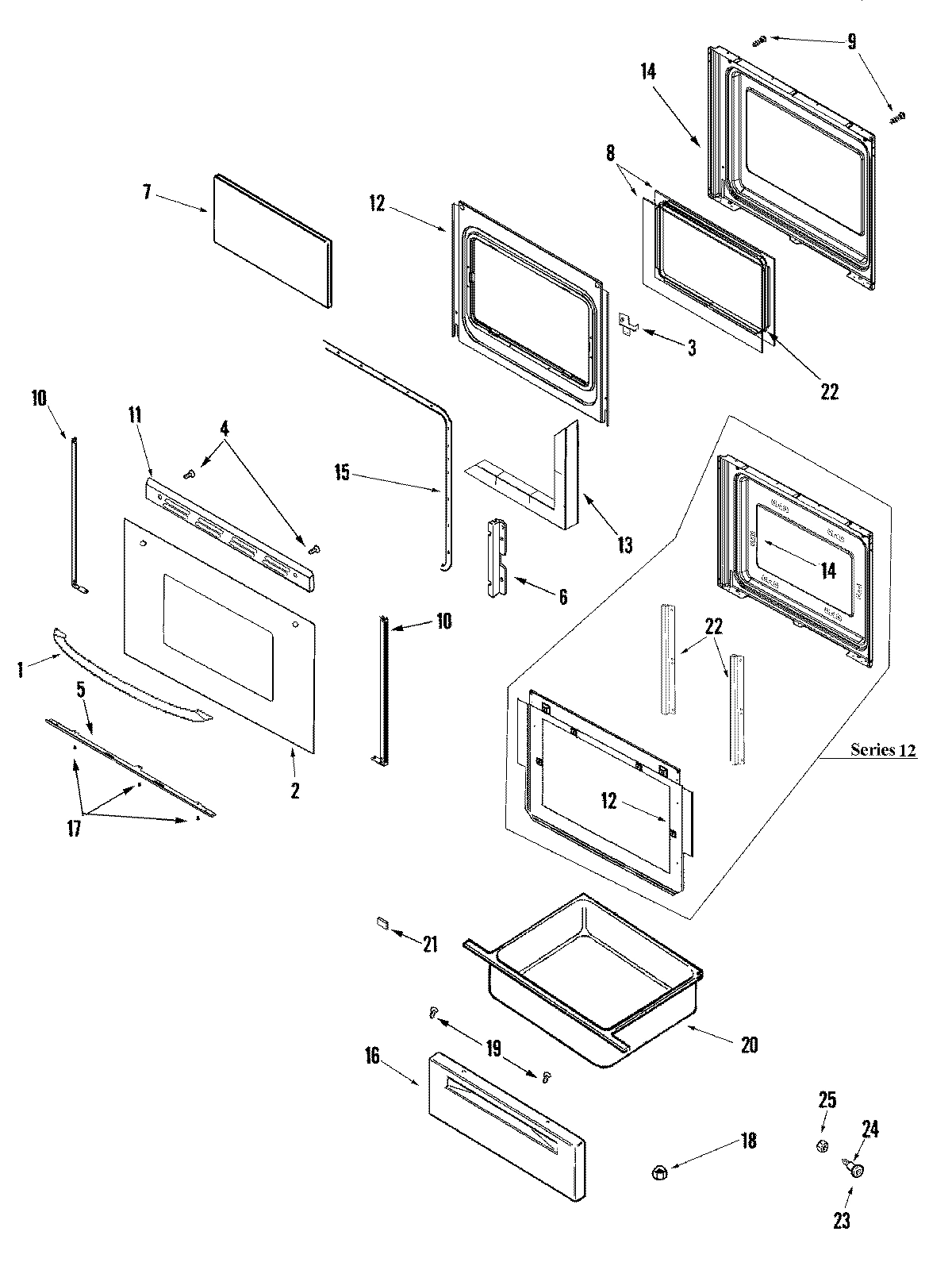

03 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION

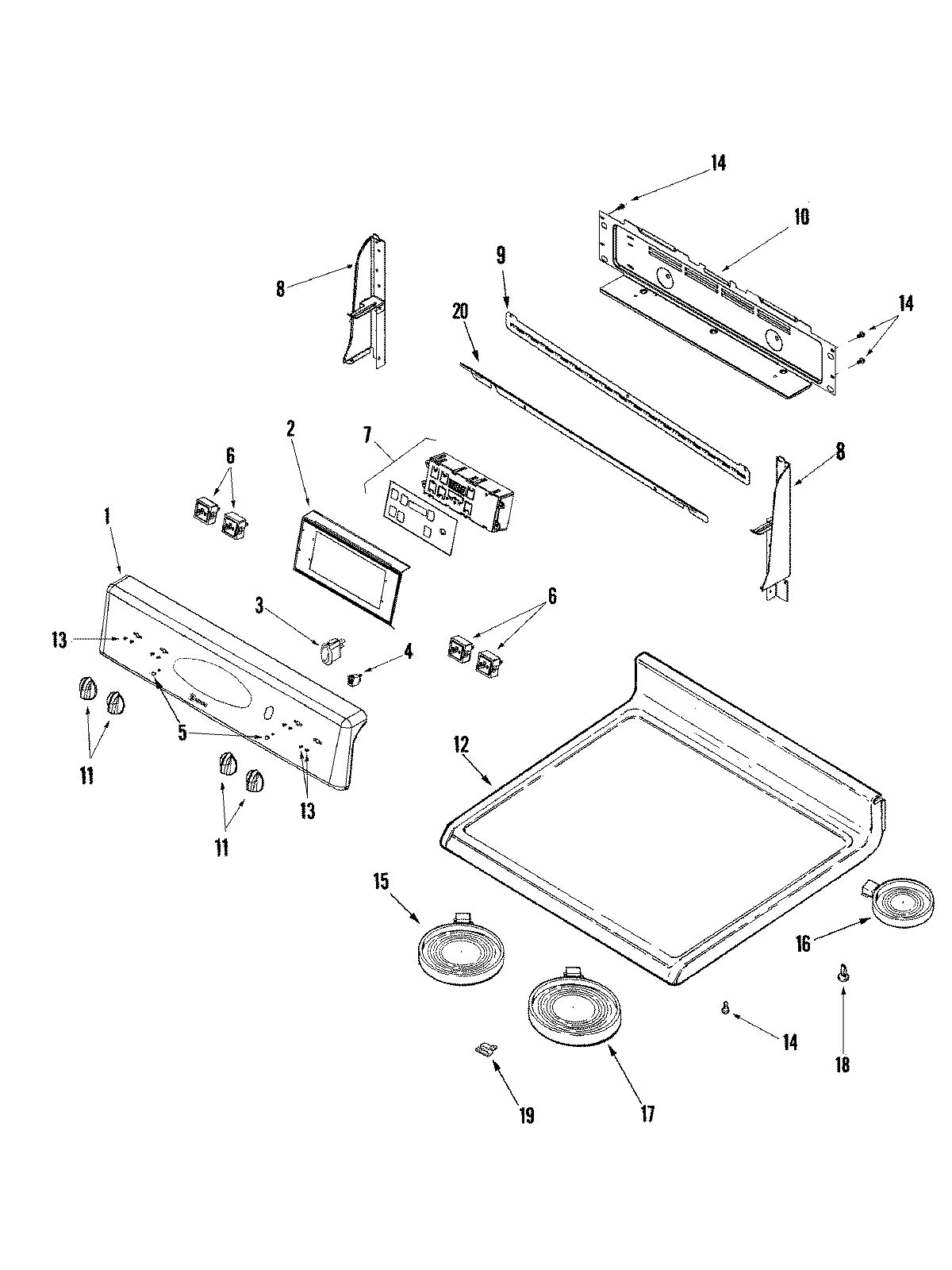

02 - CONTROL PANEL/TOP ASSEMBLY
06 - WIRING INFORMATION
Common parts from model Whirlpool MER5752BAQ ELECTRIC RANGE
1
HARNESS, MAIN WPL 74009740 Contact Us For Availability
1
BACK, MAIN (ELEC) WPL 74010934 Contact Us For Availability
1
HANDLE, DOOR (BSQ) WPL 74009185 Contact Us For Availability
1
HANDLE, DOOR (BSQ) WPL 74011779 Contact Us For Availability
1
PANEL, BACKGUARD (BSQ) WPL 74011068 Contact Us For Availability
2
PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability
2
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
2
HARNESS, DUAL INFINITE WPL 74009762 Contact Us For Availability
2
BRACKET, CLOCK WPL 74009052 Contact Us For Availability
3
HARNESS, INFINITE (LT) WPL 74009741 Contact Us For Availability
3
BOX, BURNER (RT) WPL 74003378 Contact Us For Availability
4
BOX, BURNER (LT) WPL 74003379 Contact Us For Availability
4
WASHER (1``) WPL 74001521 Contact Us For Availability
4
HARNESS, DOOR LOCK WPL 74006792 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SUPPORT, GLASS (BSQ) WPL 74009688 Contact Us For Availability
5
HARNESS, CERAN TOP WPL 74011069 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
6
SWITCH, INFINITE WPL 74011070 Contact Us For Availability
6
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
6
RETAINER, GLASS WPL 74003650 Contact Us For Availability
6
MANUAL, USE & CARE WPL 8113P50660 Contact Us For Availability
6
MANUAL, USE & CARE WPL 8113P56560 Contact Us For Availability
6
Manual, Use & Care WPL 8113P73060 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 74009744 Contact Us For Availability
7
GLASS, DOOR WPL 74003649 Contact Us For Availability
7
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
COVER, ACCESS WPL 74010256 Contact Us For Availability
8
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
8
SUPPORT, BACKGUARD (LT-BSQ) WPL 74010712 Contact Us For Availability
8
SUPPORT, BACKGUARD (RT-BSQ) WPL 74010714 Contact Us For Availability
9
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
9
SHIELD, REAR SIGHT WPL 74009701 Contact Us For Availability
10
SPACER, RUBBER (BLK-SQUARE) WPL 74010267 Contact Us For Availability
10
LEVER, LATCH (BRN) WPL 74003006 Contact Us For Availability
10
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
10
TRIM, DOOR (BSQ-RT) WPL 74009696 Contact Us For Availability
10
TRIM, DOOR (BSQ-LT) WPL 74009697 Contact Us For Availability
10
COVER, REAR WIRE WPL 74010935 Contact Us For Availability
11
SCREW WPL 7101P35260 Contact Us For Availability
11
LATCH, MANUAL DOOR LOCK WPL 74009764 Contact Us For Availability
11
SCREW WPL 7101P35660 Contact Us For Availability
11
TRIM, DOOR TOP (BSQ) WPL 74009691 Contact Us For Availability
11
KNOB (BSQ) WPL 74009189 Contact Us For Availability
12
INSULATION, BACK/BOTTOM WPL 74010942 Contact Us For Availability
12
RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74009201 Contact Us For Availability
12
BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability
12
TOP, MAIN ASY. (BSQ) WPL 74011065 Contact Us For Availability
13
COVER, BULB WPL 74003389 Contact Us For Availability
13
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
14
LINING, DOOR WPL 74003642 Contact Us For Availability
14
LINING, DOOR WPL 74011456 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
15
SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability
16
PANEL, DRAWER (BSQ) WPL 74005055 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
16
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
17
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
17
ELEMENT (12``) WPL 74009082 Contact Us For Availability
18
NUT, LOCK WPL 7103P13960 Contact Us For Availability
18
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
20
DRAWER, STORAGE WPL 74008337 Contact Us For Availability
20
SWITCH, DOOR LATCH WPL 74009591 Contact Us For Availability
20
SHIELD, WIRE WPL 74009978 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
22
BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability
22
FRAME, GLASS WPL 74003644 Contact Us For Availability
23
STRAP, INSULATION WPL 74003385 Contact Us For Availability
24
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
24
PLATE, VENT COVER WPL 74011044 Contact Us For Availability
24
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
25
NUT WPL 7103P08260 Contact Us For Availability
25
INSULATOR, HEAT SHIELD WPL 74004532 Contact Us For Availability
26
SHIELD, ELEMENT WPL 74011046 Contact Us For Availability
27
SCREW WPL 7101P33760 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003512 Contact Us For Availability
× ![]()
