Model Whirlpool MER5570BCW ELECTRIC RANGE – Common Parts & Diagrams

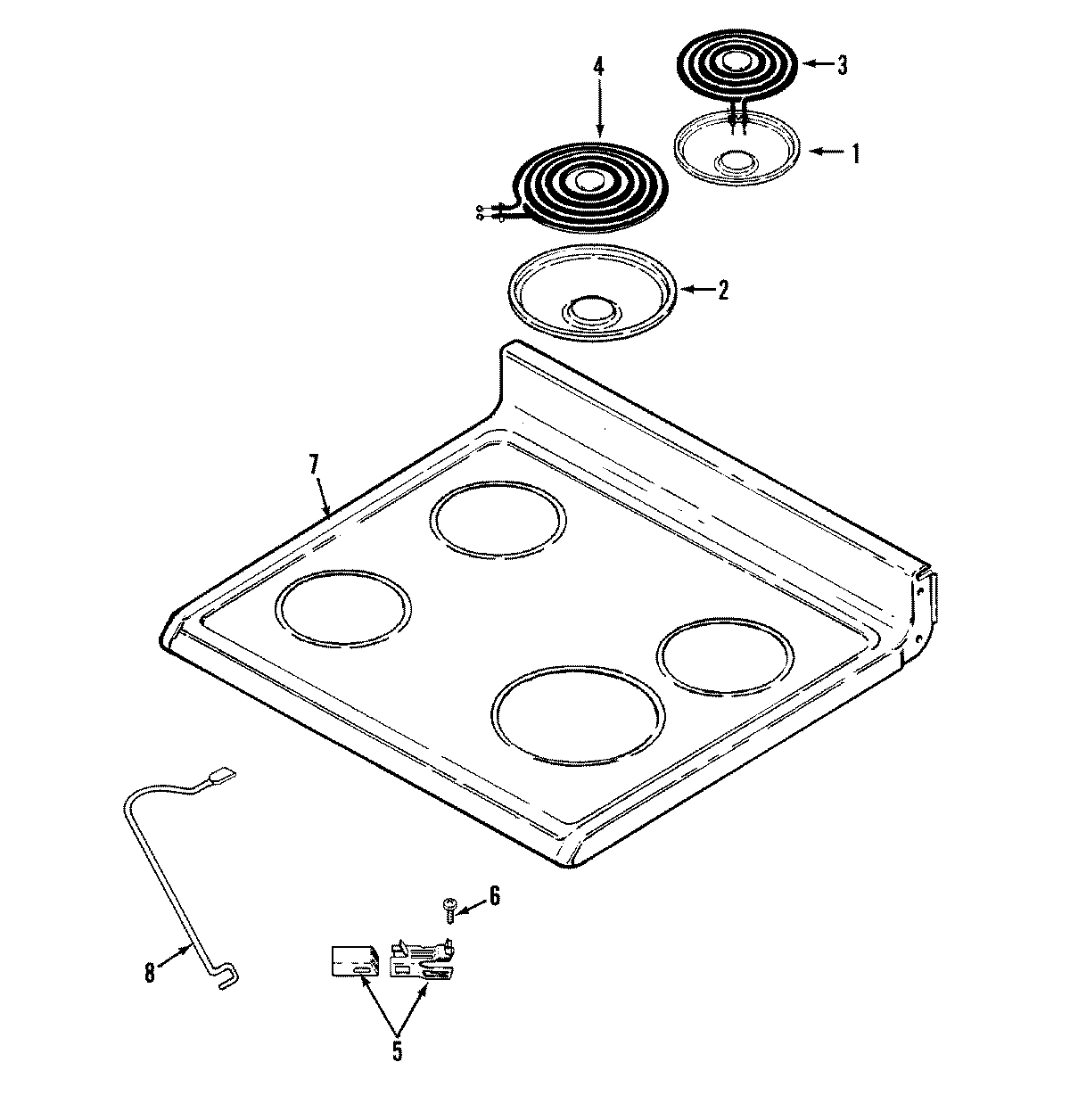

06 - TOP ASSEMBLY

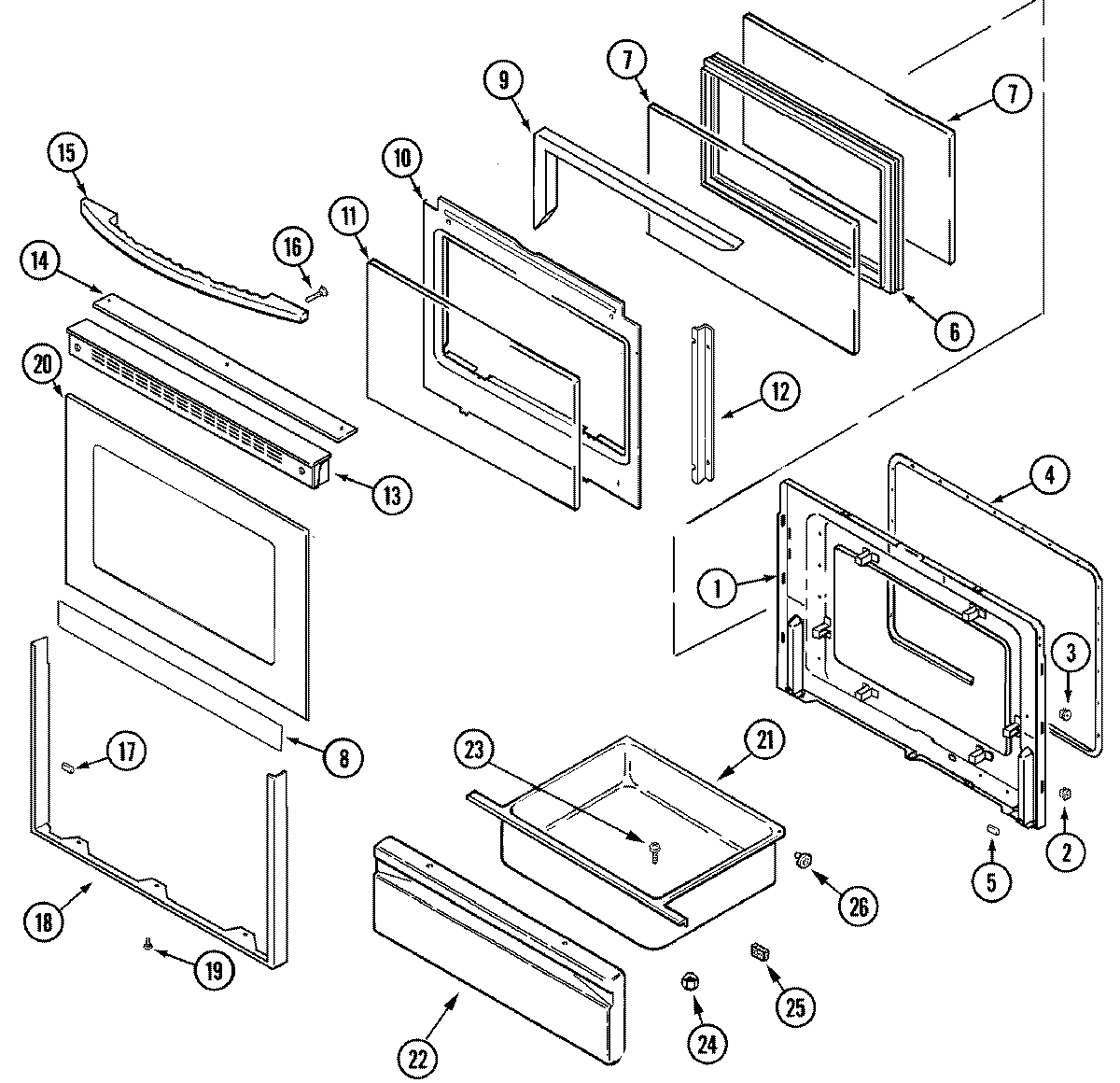

03 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION

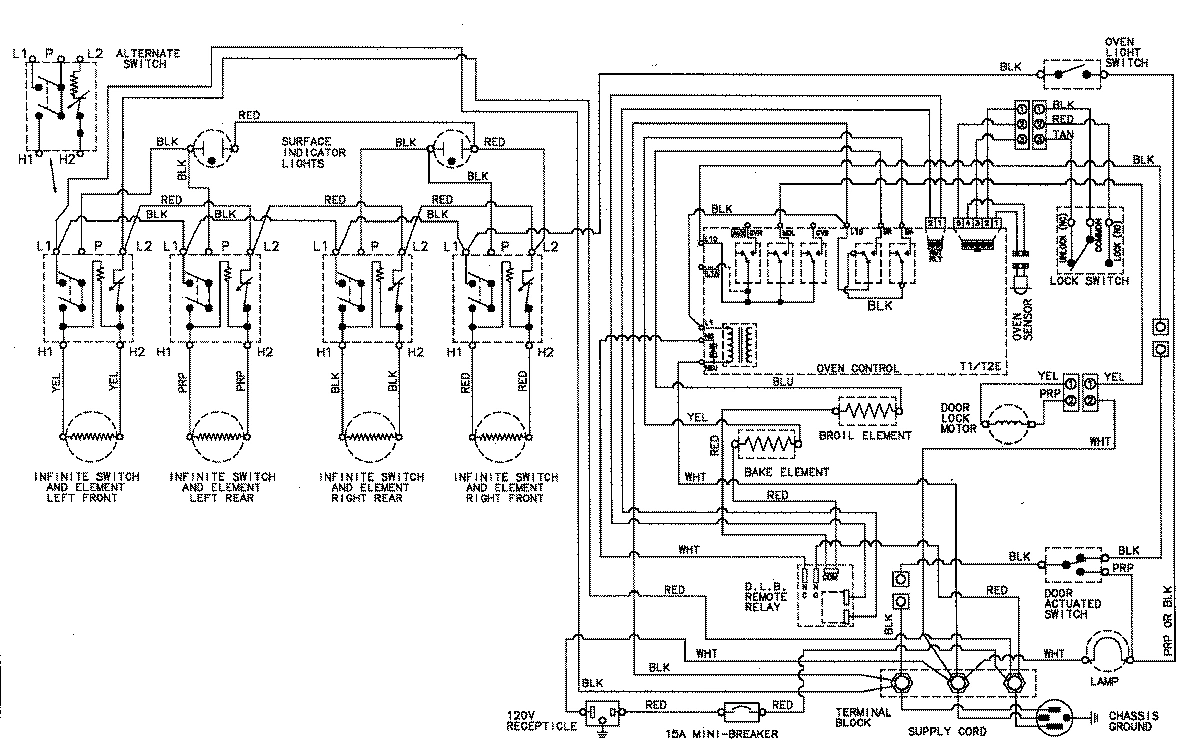

07 - WIRING INFORMATION

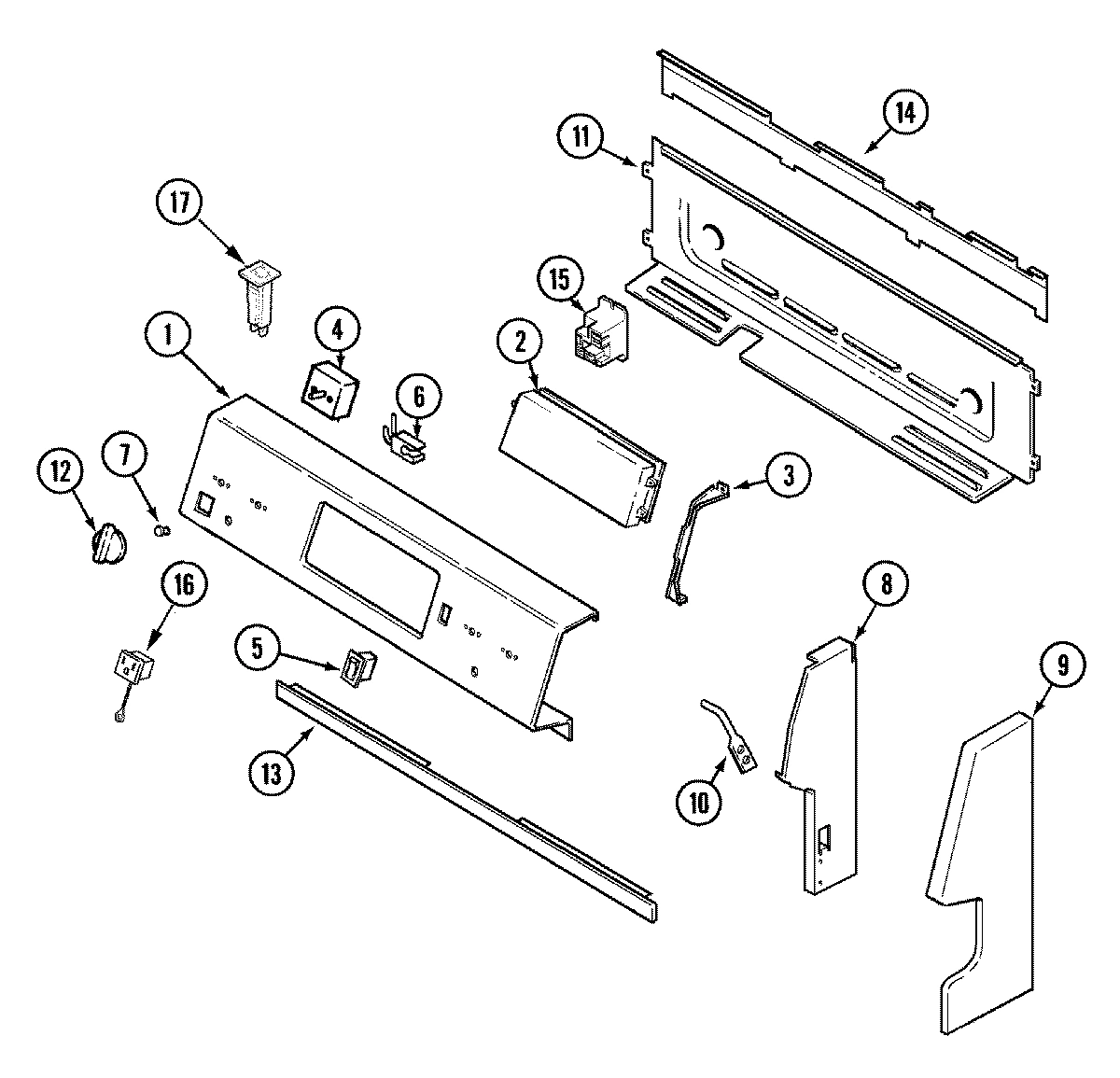

02 - CONTROL PANEL

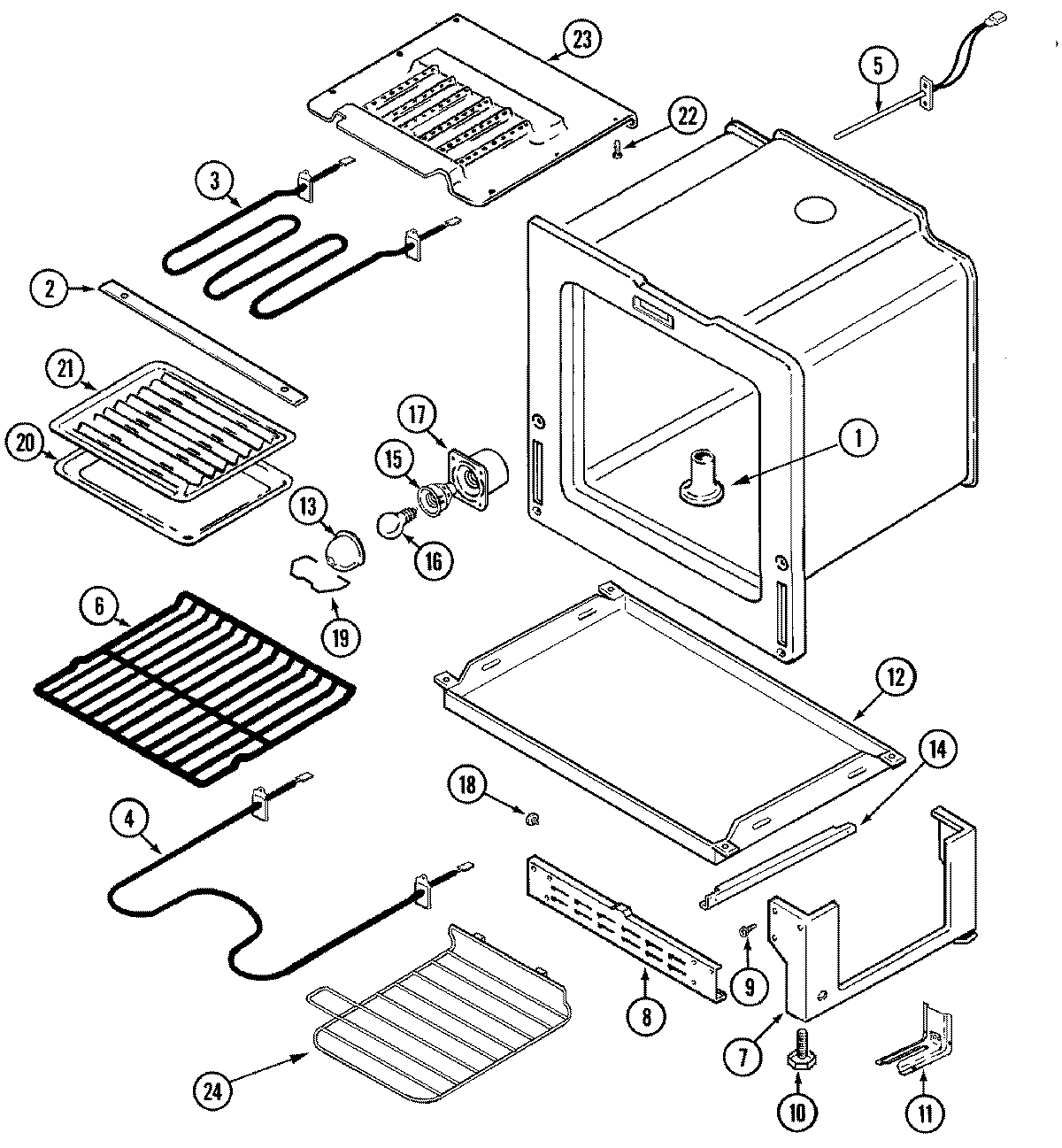

04 - OVEN/BASE

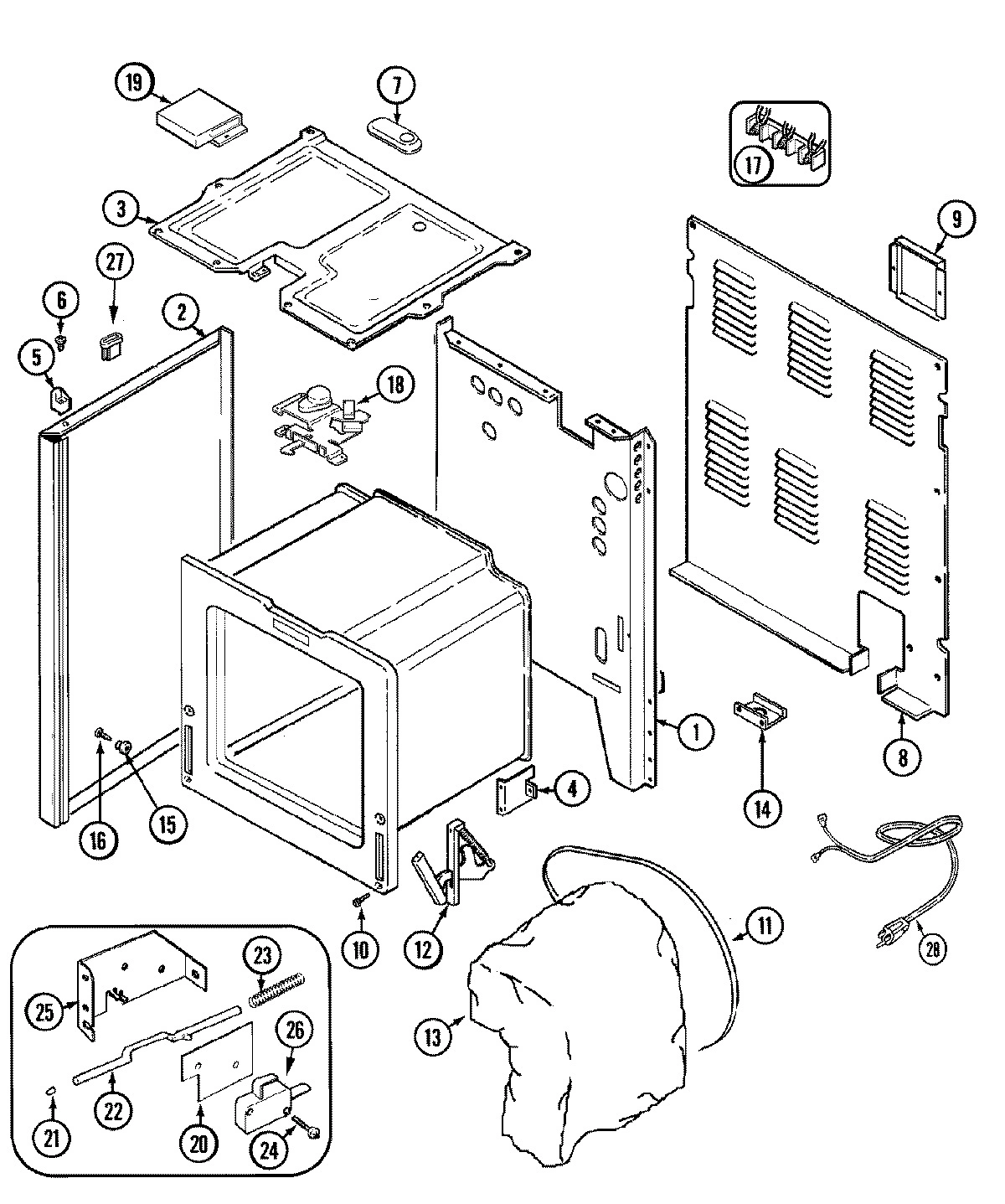

01 - BODY

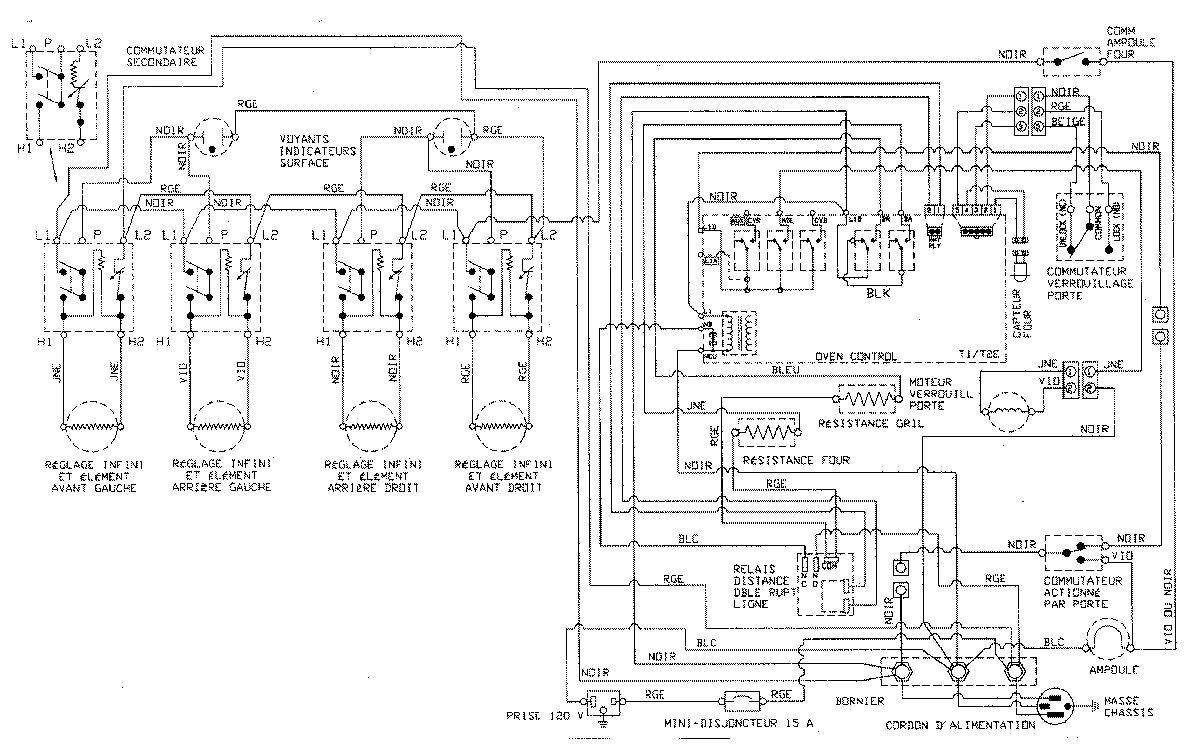

08 - WIRING INFORMATION
Common parts from model Whirlpool MER5570BCW ELECTRIC RANGE
1
LINING, DOOR WPL 74003642 Contact Us For Availability
1
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
1
MANUAL, USE & CARE WPL 74005908 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 74006418 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
2
NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability
2
HARNESS, SENSOR/LOCK WPL 74003557 Contact Us For Availability
2
HARNESS, SENSOR TO LOCK WPL 74003638 Contact Us For Availability
2
HARNESS, DOOR LOCK MOTOR WPL 74005489 Contact Us For Availability
2
HARNESS, BKGD WPL 74007603 Contact Us For Availability
2
HARNESS, BACKGUARD WPL 74007614 Contact Us For Availability
2
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
2
CLOCK W/OVERLAY (WHT) WPL 74006199 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
2
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
3
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
3
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
3
BRACKET, CLOCK WPL 74003627 Contact Us For Availability
3
BOX, BURNER WPL 74003403 Contact Us For Availability
4
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
4
SCREW WPL 7101P30960 Contact Us For Availability
4
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
FRAME, GLASS WPL 74003644 Contact Us For Availability
6
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 74003428 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74006325 Contact Us For Availability
7
COVER, VENT WPL 4005F43245 Contact Us For Availability
8
SUPPORT, TOP WPL 74001170 Contact Us For Availability
8
TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (RT) WPL 74003603 Contact Us For Availability
8
SUPPORT, CONTROL PANEL (LT) WPL 74003604 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability
9
END CAP, CONTROL PNL (RT-WHT) WPL 74003607 Contact Us For Availability
9
END CAP, CONTROL PNL (LT-WHT) WPL 74003608 Contact Us For Availability
9
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
9
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
9
SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability
9
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
BAFFLE, DOOR WPL 74003648 Contact Us For Availability
10
HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability
10
SCREW WPL 7101P11260 Contact Us For Availability
11
GLASS W/TAPE ASSY WPL 74004857 Contact Us For Availability
11
HOUSING, CONTROL PANEL WPL 74004550 Contact Us For Availability
11
SCREW WPL 7101P34460 Contact Us For Availability
11
STRAP, INSULATION WPL 74003385 Contact Us For Availability
12
RETAINER, GLASS WPL 74003650 Contact Us For Availability
13
TRIM, DOOR TOP (WHT) WPL 74006401 Contact Us For Availability
13
SHIELD, SIGHT WPL 74003374 Contact Us For Availability
13
COVER, BULB WPL 74003389 Contact Us For Availability
13
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
14
INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability
14
EXTENSION, CONTROL PANEL WPL 74003614 Contact Us For Availability
14
EXTENSION, CONTROL PANEL WPL 74006376 Contact Us For Availability
14
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
15
WASHER (1``) WPL 74001521 Contact Us For Availability
15
SCREW WPL 74006394 Contact Us For Availability
15
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
15
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
16
RECEPTACLE, OUTLET (WHT) WPL 71003069 Contact Us For Availability
16
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
17
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
17
BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability
17
HOUSING, BULB WPL 74003388 Contact Us For Availability
17
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
17
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
18
FRAME, DOOR (WHT) WPL 74004325 Contact Us For Availability
18
NUT WPL 7103P08260 Contact Us For Availability
18
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
18
INSULATION, LATCH WPL 74003560 Contact Us For Availability
18
DOOR LOCK MOTOR ASSY. WPL 74005575 Contact Us For Availability
18
RETAINER, INSULATION WPL 74006400 Contact Us For Availability
19
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
19
COVER, DOOR LATCH WPL 74003479 Contact Us For Availability
20
GLASS, DOOR (WHT) WPL 74006404 Contact Us For Availability
20
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
20
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
21
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
21
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
21
BUMPER, ROD WPL 74001631 Contact Us For Availability
22
PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability
22
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
23
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
23
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
24
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
24
RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability
24
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
25
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
25
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
26
SHIELD, DOOR LIGHT SWITCH WPL 74001598 Contact Us For Availability
26
SWITCH WPL 74001802 Contact Us For Availability
27
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
27
BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability
28
TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability
28
CORD, POWER WPL 7402P05060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002783 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003091 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002778 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003092 Contact Us For Availability
× ![]()
