Model Whirlpool MER5555QCB ELECTRIC RANGE – Common Parts & Diagrams
05 - SUPPLEMENTAL INFORMATION

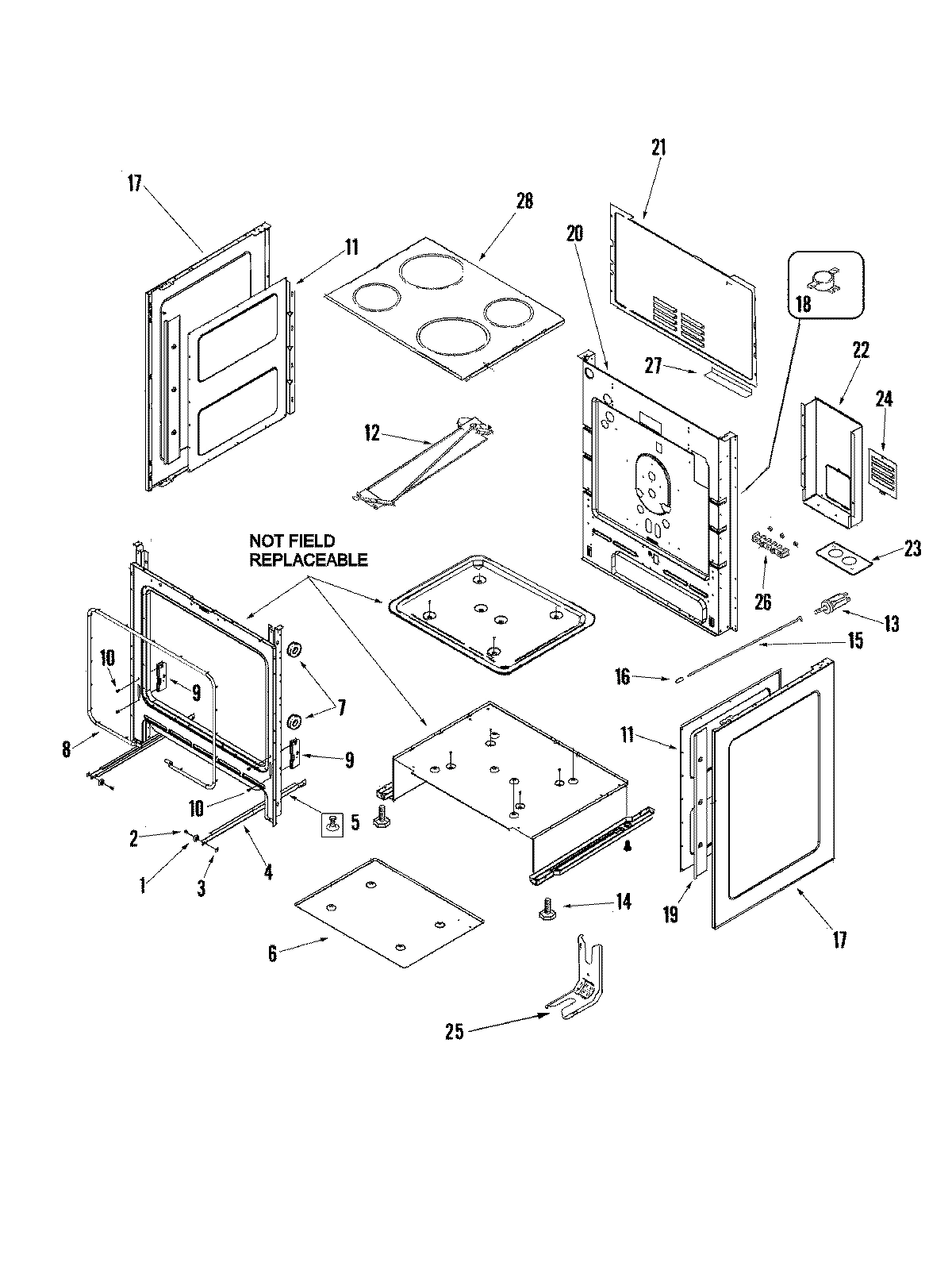

01 - CABINET

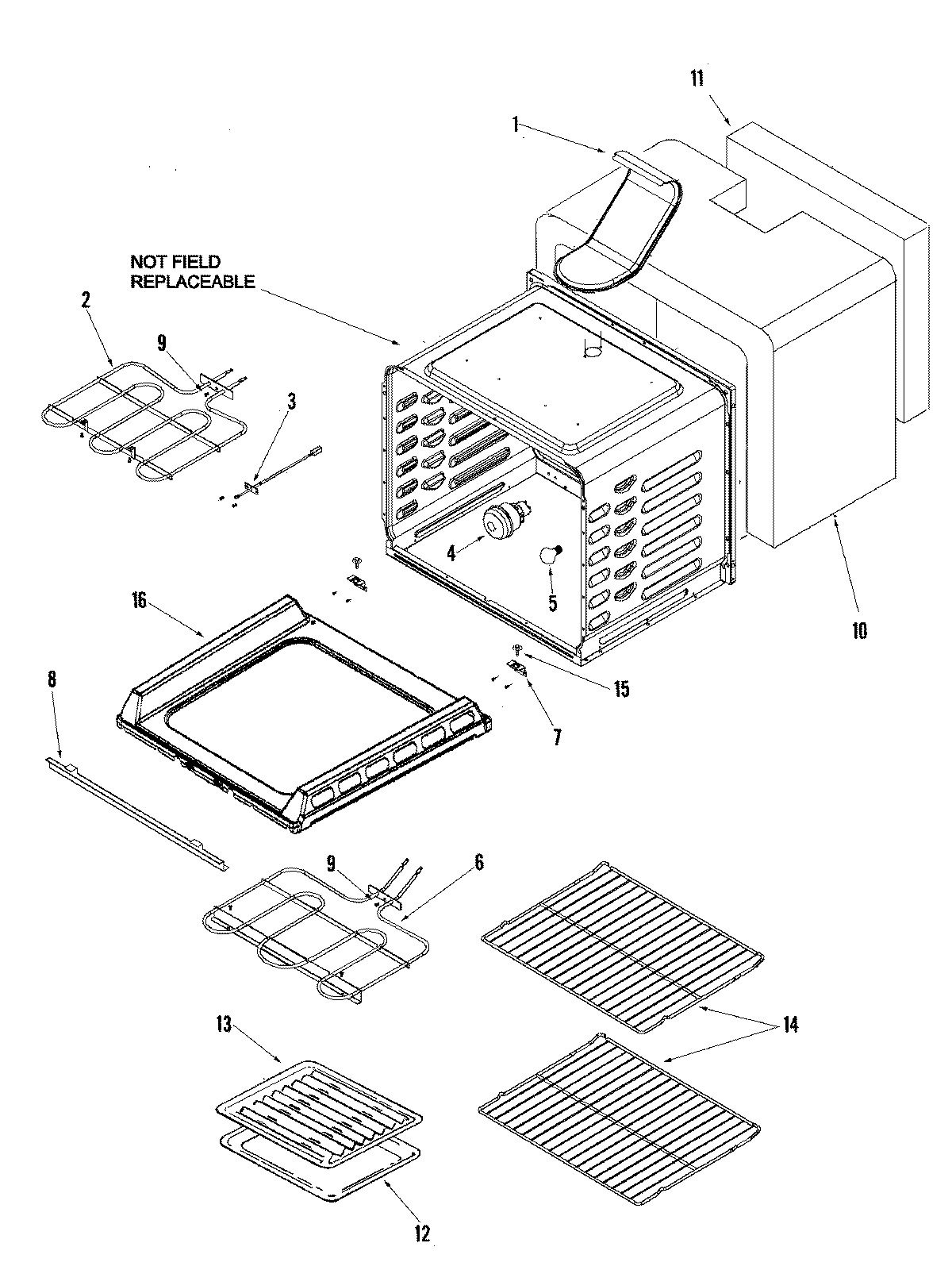

02 - CAVITY

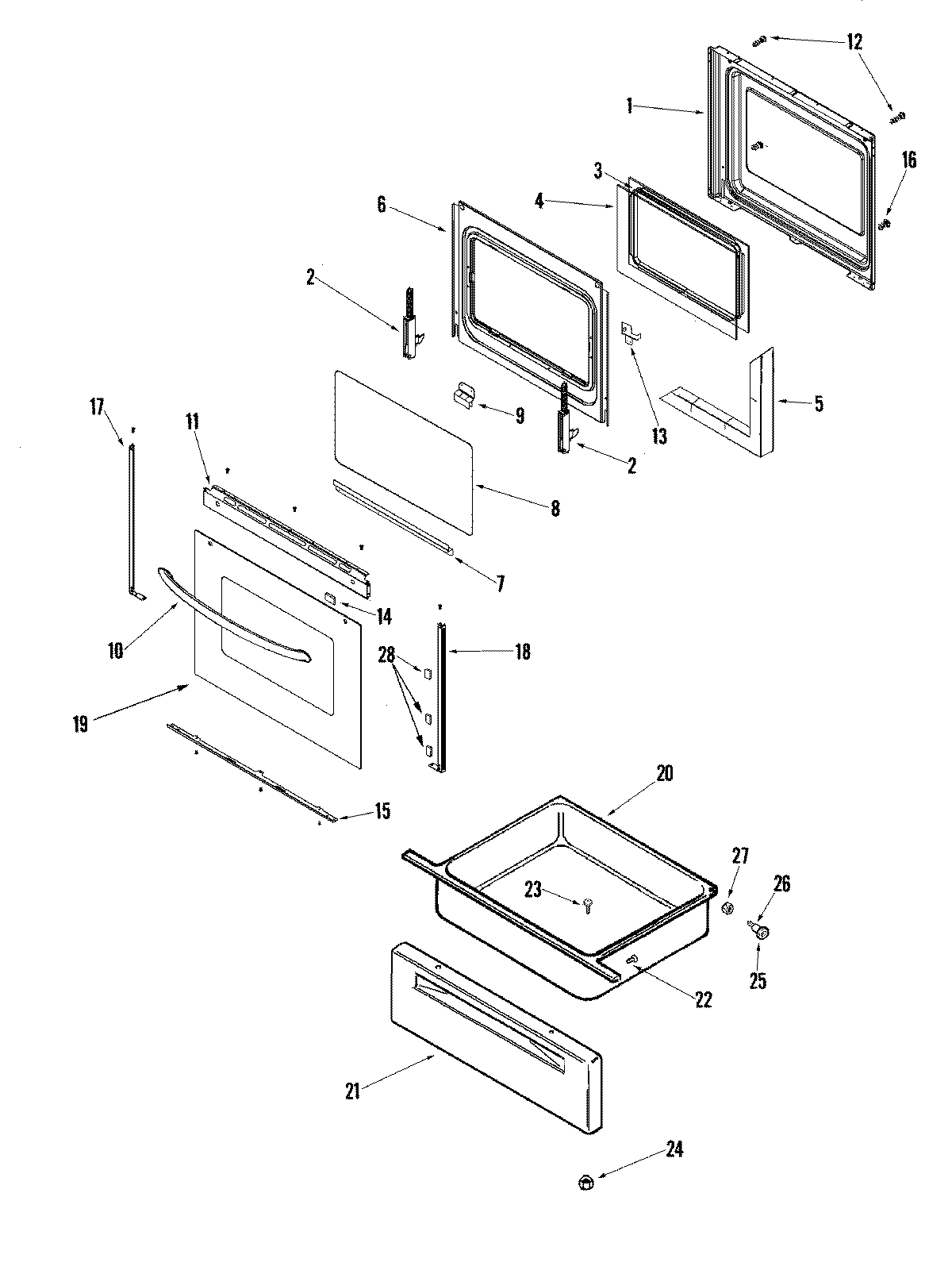

04 - DOOR/DRAWER

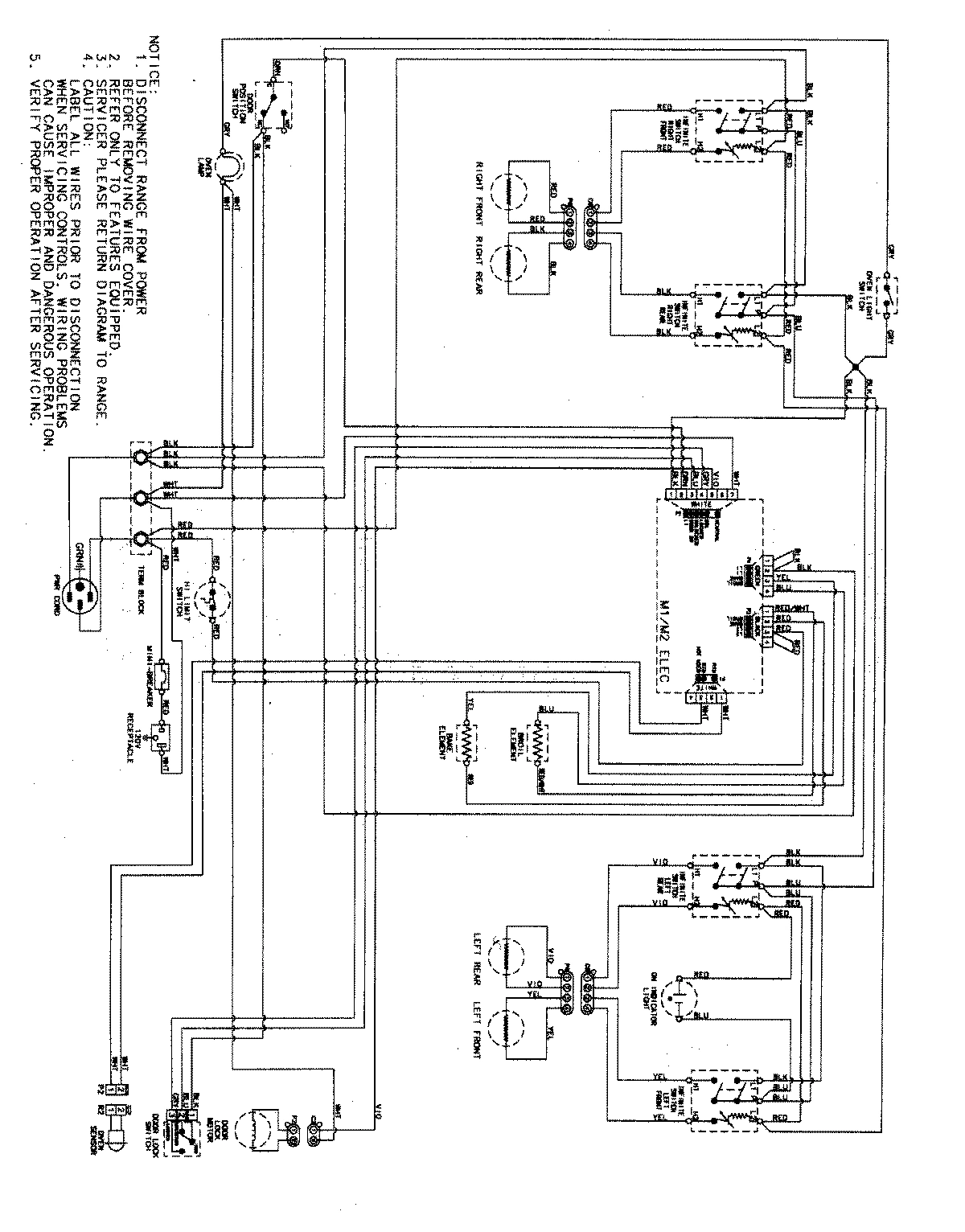

06 - WIRING INFORMATION

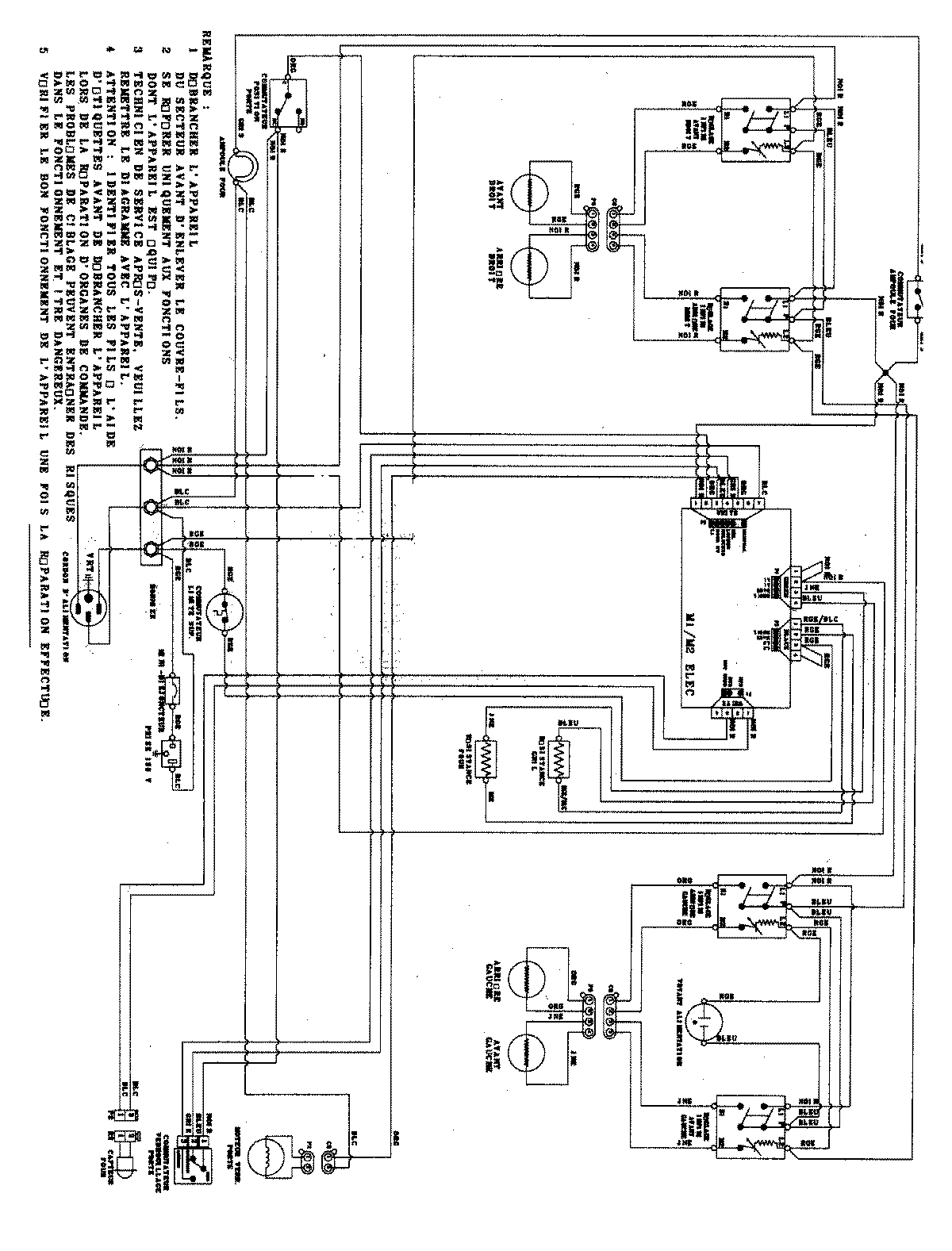

07 - WIRING INFORMATION (FRC)

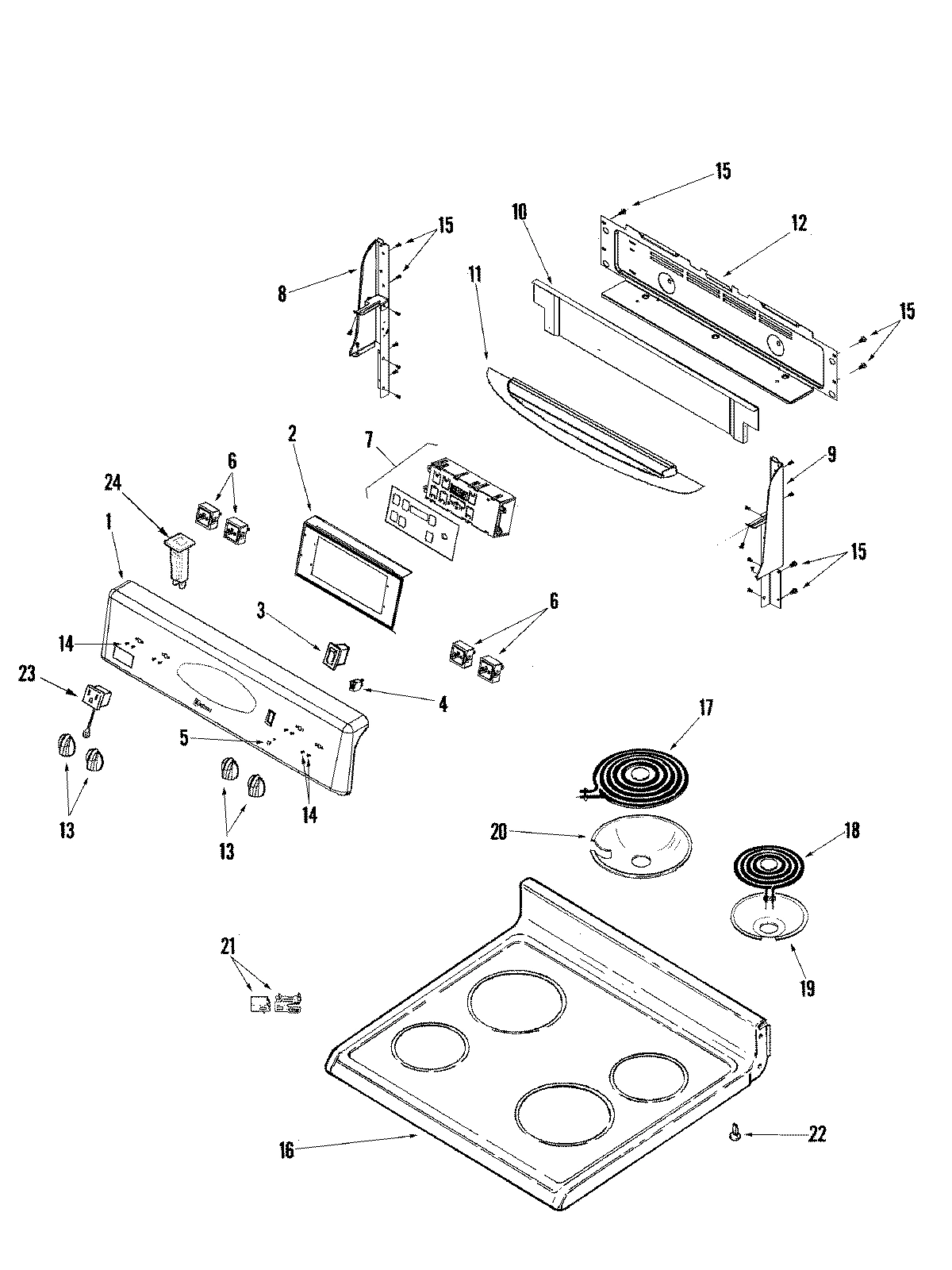

03 - CONTROL PANEL/TOP ASSEMBLY
Common parts from model Whirlpool MER5555QCB ELECTRIC RANGE
1
VENT, OVEN WPL 74008691 Contact Us For Availability
1
LINING, DOOR WPL 74008926 Contact Us For Availability
1
WIRING INFORMATION (FRC) WPL 15003373 Contact Us For Availability
1
PANEL, CONTROL (BLK) WPL 74009333 Contact Us For Availability
2
BRACKET, CLOCK WPL 74009052 Contact Us For Availability
3
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
3
FRAME, GLASS WPL 74003644 Contact Us For Availability
4
RUNNER, SERVICE DRAWER WPL 74008687 Contact Us For Availability
5
STOP, DRAWER WPL 74008688 Contact Us For Availability
5
BULB-OVEN WPL 7407P10360 Contact Us For Availability
5
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
6
SHIELD, HEAT WPL 74008689 Contact Us For Availability
6
BAFFLE, DOOR WPL 74008744 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability
7
RETAINER, DOOR GLASS (LWR) WPL 74008745 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability
8
GLASS, DOOR WPL 74003649 Contact Us For Availability
8
END CAP (RT-BLK) WPL 74009022 Contact Us For Availability
9
RETAINER, DOOR GLASS (UPR) WPL 74008746 Contact Us For Availability
9
END CAP (LT-BLK) WPL 74009023 Contact Us For Availability
10
SCREW WPL 7101P11260 Contact Us For Availability
10
INSULATION, WRAPPER WPL 74008700 Contact Us For Availability
10
SHIELD, VENT (BLK) WPL 74009205 Contact Us For Availability
11
RETAINER, SIDE WPL 74008701 Contact Us For Availability
11
INSULATION, BACK WPL 74008698 Contact Us For Availability
11
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
11
TRIM, TOP (BLK) WPL 74008931 Contact Us For Availability
11
SHIELD, HEAT VISOR (BLK) WPL 74009202 Contact Us For Availability
12
LATCH ASSEMBLY WPL 74008702 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
COVER, BACKGUARD WIRE WPL 74009053 Contact Us For Availability
12
COVER, BACKGUARD WIRE WPL 74009335 Contact Us For Availability
13
SWITCH, DOOR WPL 74008703 Contact Us For Availability
13
INSULATOR, SHIELD WPL 74008704 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL WPL W10124350 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
BRACKET, HANDLE (LT) WPL 74008749 Contact Us For Availability
13
BRACKET, HANDLE (RT) WPL 74008750 Contact Us For Availability
13
KNOB (BLK/CHR) WPL 74008945 Contact Us For Availability
14
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
14
SCREW WPL 7101P30960 Contact Us For Availability
15
SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability
15
ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability
15
TRIM, BOTTOM (BLK) WPL 74008889 Contact Us For Availability
16
BUMPER WPL 74008707 Contact Us For Availability
16
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
16
TOP, MAIN (BLK) WPL 74009055 Contact Us For Availability
17
SCREW WPL 74004208 Contact Us For Availability
17
PANEL, SIDE (BLK) WPL 74008710 Contact Us For Availability
17
TRIM, SIDE (BLK-LT) WPL 74008902 Contact Us For Availability
18
TRIM, SIDE (BLK) WPL 74010560 Contact Us For Availability
18
TRIM, SIDE (BLK-RT) WPL 74008901 Contact Us For Availability
19
BAFFLE, HEAT WPL 74008831 Contact Us For Availability
19
INSULATION, SIDE BAFFLE WPL 74009956 Contact Us For Availability
19
GLASS, DOOR (BLK) WPL 74009018 Contact Us For Availability
20
BACK, MAIN WPL 74008699 Contact Us For Availability
20
DRAWER, STORAGE WPL 74008333 Contact Us For Availability
21
COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability
21
PANEL, DRAWER (BLK) WPL 74008885 Contact Us For Availability
22
COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
23
SCREW WPL 7101P07260 Contact Us For Availability
23
RECEPTACLE, OUTLET (BLK) WPL 71003068 Contact Us For Availability
24
PANEL, ACCESS WPL 74008340 Contact Us For Availability
24
NUT, LOCK WPL 7103P13960 Contact Us For Availability
24
BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability
25
SCREW WPL 7101P35260 Contact Us For Availability
26
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
27
BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability
27
NUT WPL 7103P08260 Contact Us For Availability
28
BOTTOM, BURNER BOX WPL 74008739 Contact Us For Availability
29
CORD, POWER WPL 7402P05060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003372 Contact Us For Availability
× ![]()
