Model Maytag MER5555QAB ELECTRIC RANGE – Common Parts & Diagrams

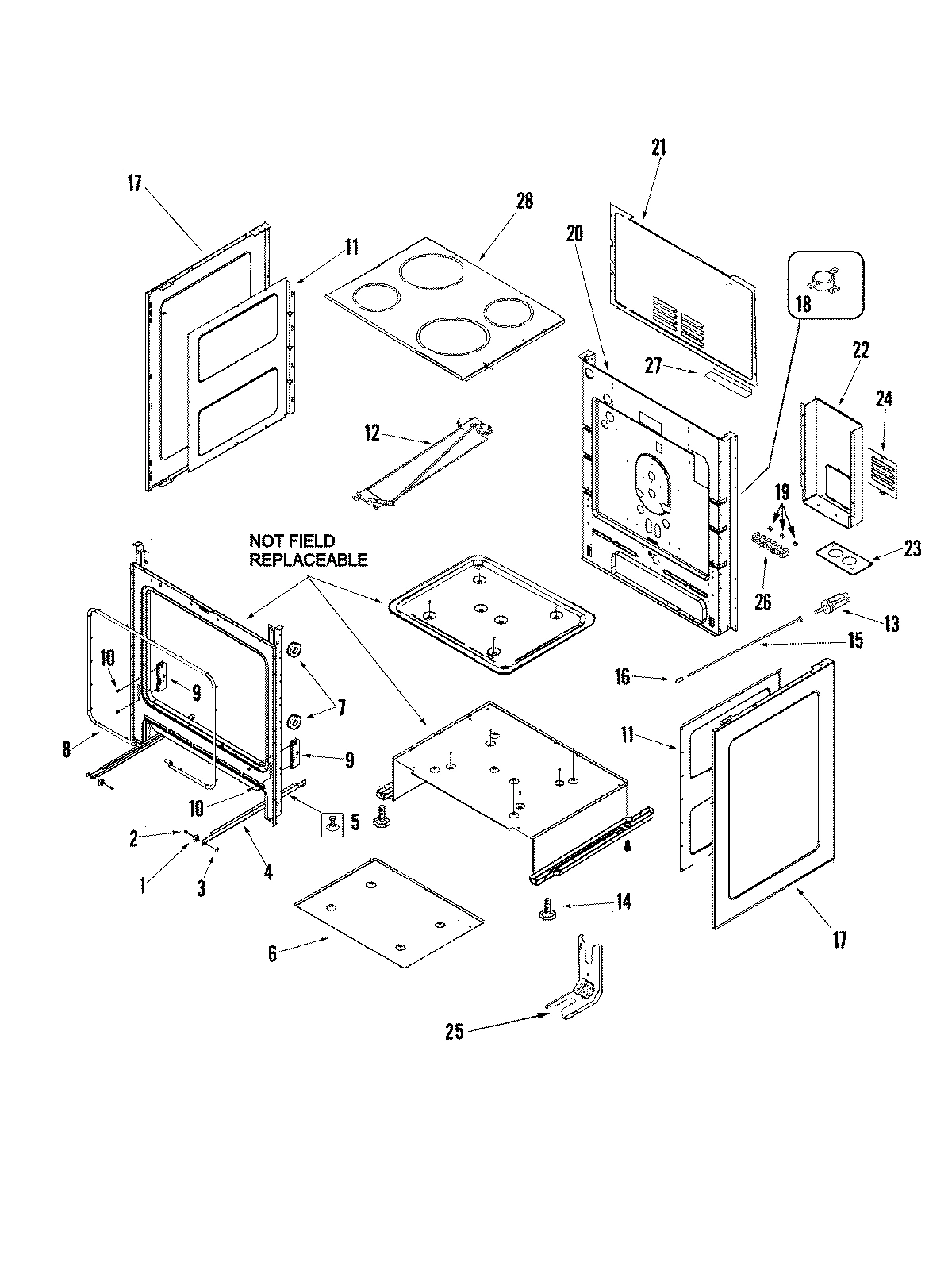

01 - CABINET

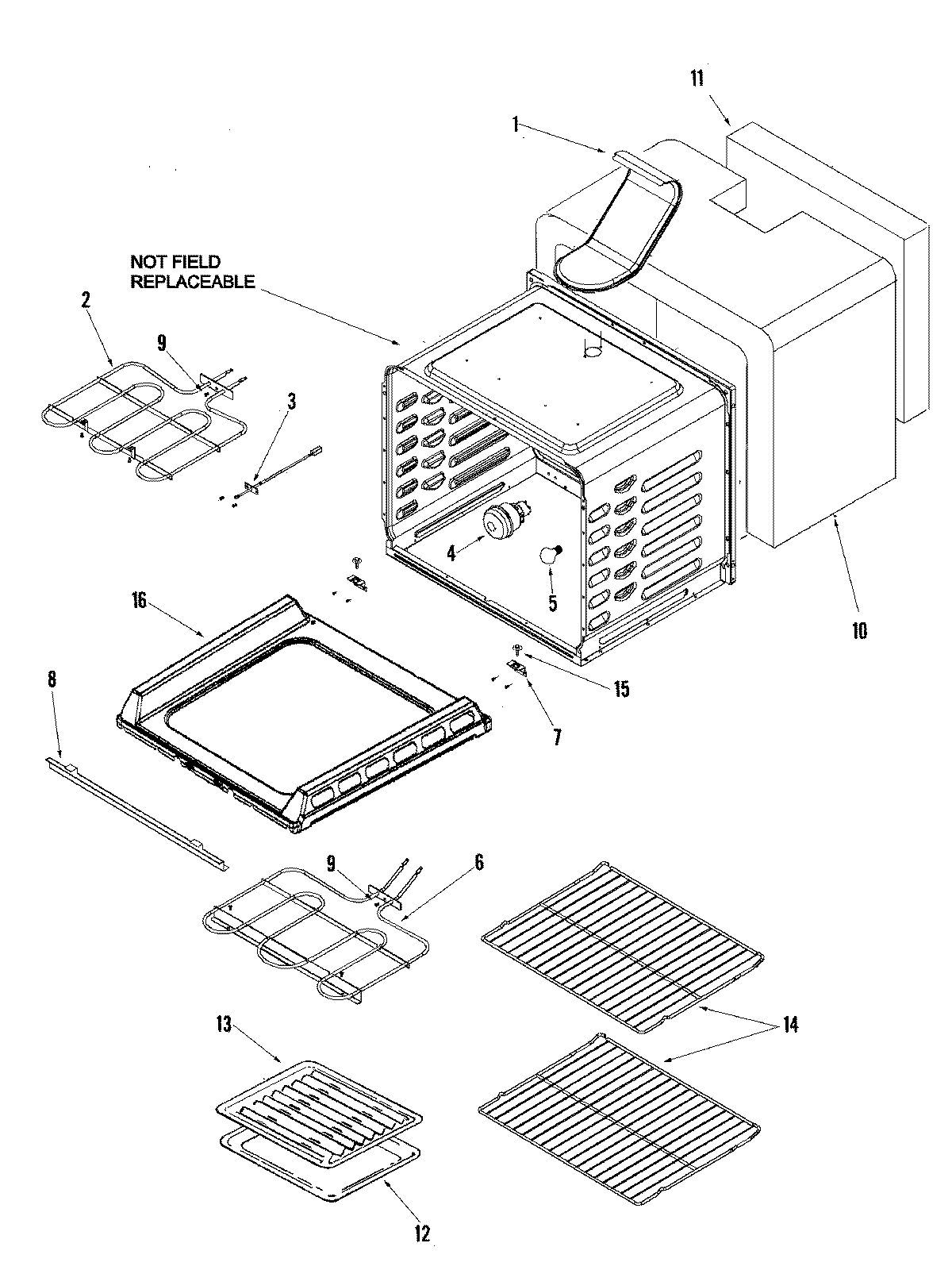

02 - CAVITY
03 - CONTROL PANEL/TOP ASSEMBLY
04 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION
06 - WIRING INFORMATION
07 - WIRING INFORMATION
Common parts from model Maytag MER5555QAB ELECTRIC RANGE
1
MAY 74008691 MAY 74008691 Contact Us For Availability
1
MAY 74009051 MAY 74009051 Contact Us For Availability
1
MAY 74008742 MAY 74008742 Contact Us For Availability
1
MAY 8113P394-60 MAY 8113P394-60 Contact Us For Availability
1
MAY 8113P491-60 MAY 8113P491-60 Contact Us For Availability
1
MAY 8113P564-60 MAY 8113P564-60 Contact Us For Availability
2
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
2
BRACKET, CLOCK MAY 74009052 Contact Us For Availability
2
MAY 74009938 MAY 74009938 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 74008735 MAY 74008735 Contact Us For Availability
4
MAY 71001867 MAY 71001867 Contact Us For Availability
4
MAY 74009929 MAY 74009929 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
5
MAY 74008740 MAY 74008740 Contact Us For Availability
5
MAY 74011118 MAY 74011118 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
7
RETAINER, DOOR GLASS (LWR) MAY 74008745 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
MAY 74008719 MAY 74008719 Contact Us For Availability
8
GLASS, DOOR MAY 74003649 Contact Us For Availability
9
MAY 74008722 MAY 74008722 Contact Us For Availability
9
MAY 74008746 MAY 74008746 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74008725 MAY 74008725 Contact Us For Availability
10
MAY 74009205 MAY 74009205 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
MAY 74008891 MAY 74008891 Contact Us For Availability
11
SHIELD, HEAT VISOR (BLK) MAY 74009202 Contact Us For Availability
11
TRIM, TOP (BLK) MAY 74008931 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
12
MAY 74009053 MAY 74009053 Contact Us For Availability
13
MAY 74008945 MAY 74008945 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL MAY W10124350 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
13
MAY 74008749 MAY 74008749 Contact Us For Availability
13
MAY 74008750 MAY 74008750 Contact Us For Availability
15
TRIM, BOTTOM (BLK) MAY 74008889 Contact Us For Availability
16
MAY 74009055 MAY 74009055 Contact Us For Availability
16
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
17
MAY 74008902 MAY 74008902 Contact Us For Availability
18
MAY 74008901 MAY 74008901 Contact Us For Availability
18
TRIM, SIDE (BLK) MAY 74010560 Contact Us For Availability
19
GLASS, DOOR (BLK) MAY 74009018 Contact Us For Availability
19
TRIM, SIDE (WHT) MAY 74010561 Contact Us For Availability
20
MAY Y04100393 MAY Y04100393 Contact Us For Availability
20
DRAWER, STORAGE MAY 74008333 Contact Us For Availability
21
MAY 74008885 MAY 74008885 Contact Us For Availability
27
BOTTOM, WIRE COVER MAY 74008762 Contact Us For Availability
28
TAPE, DBL SIDED (BLK) MAY 74009025 Contact Us For Availability
28
MAY 74008739 MAY 74008739 Contact Us For Availability
NI
MAY 15003311 MAY 15003311 Contact Us For Availability
NI
MAY 15003729 MAY 15003729 Contact Us For Availability
× ![]()
