Model Whirlpool MER4530ACW ELECTRIC RANGE – Common Parts &amp; Diagrams

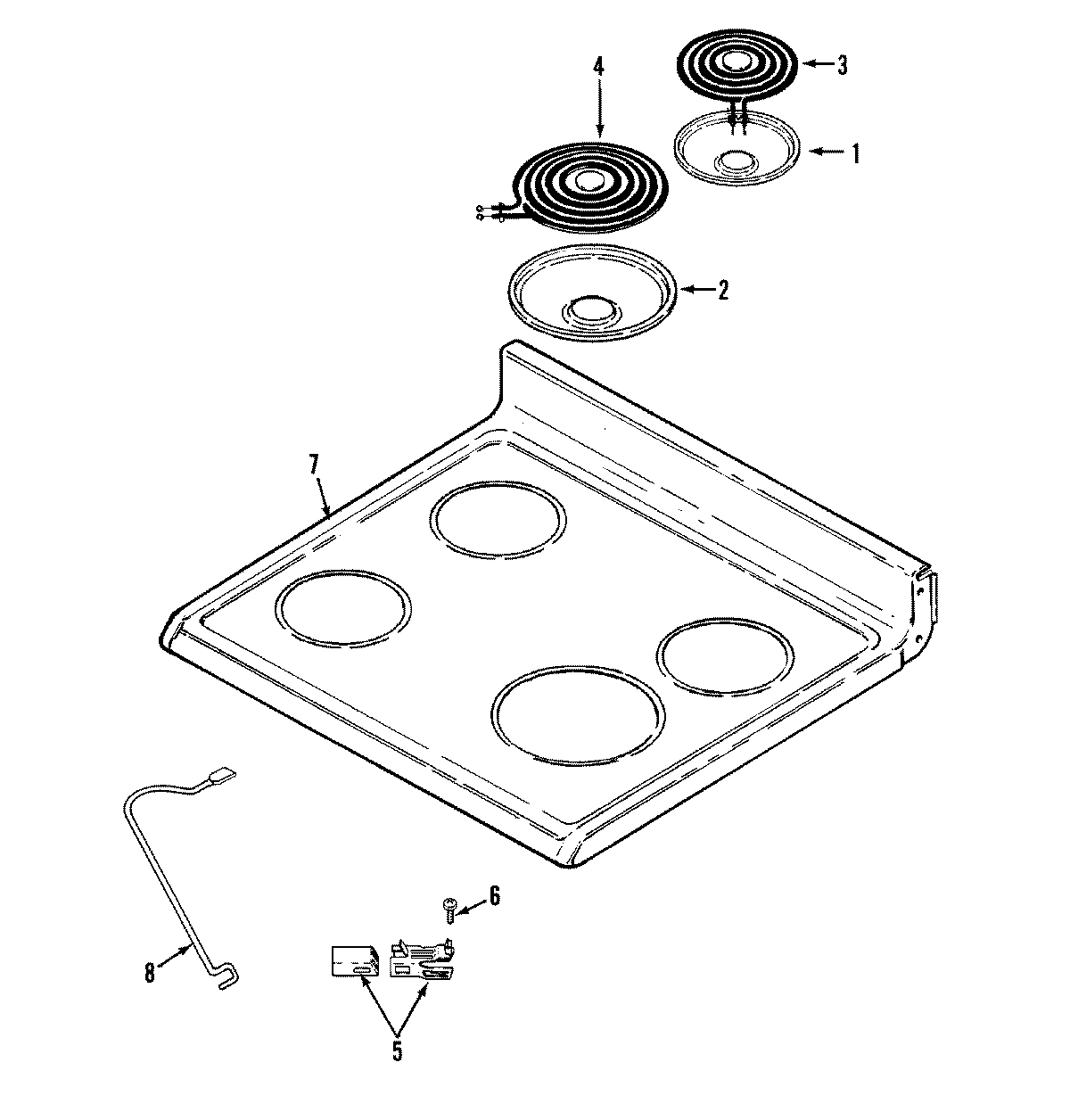

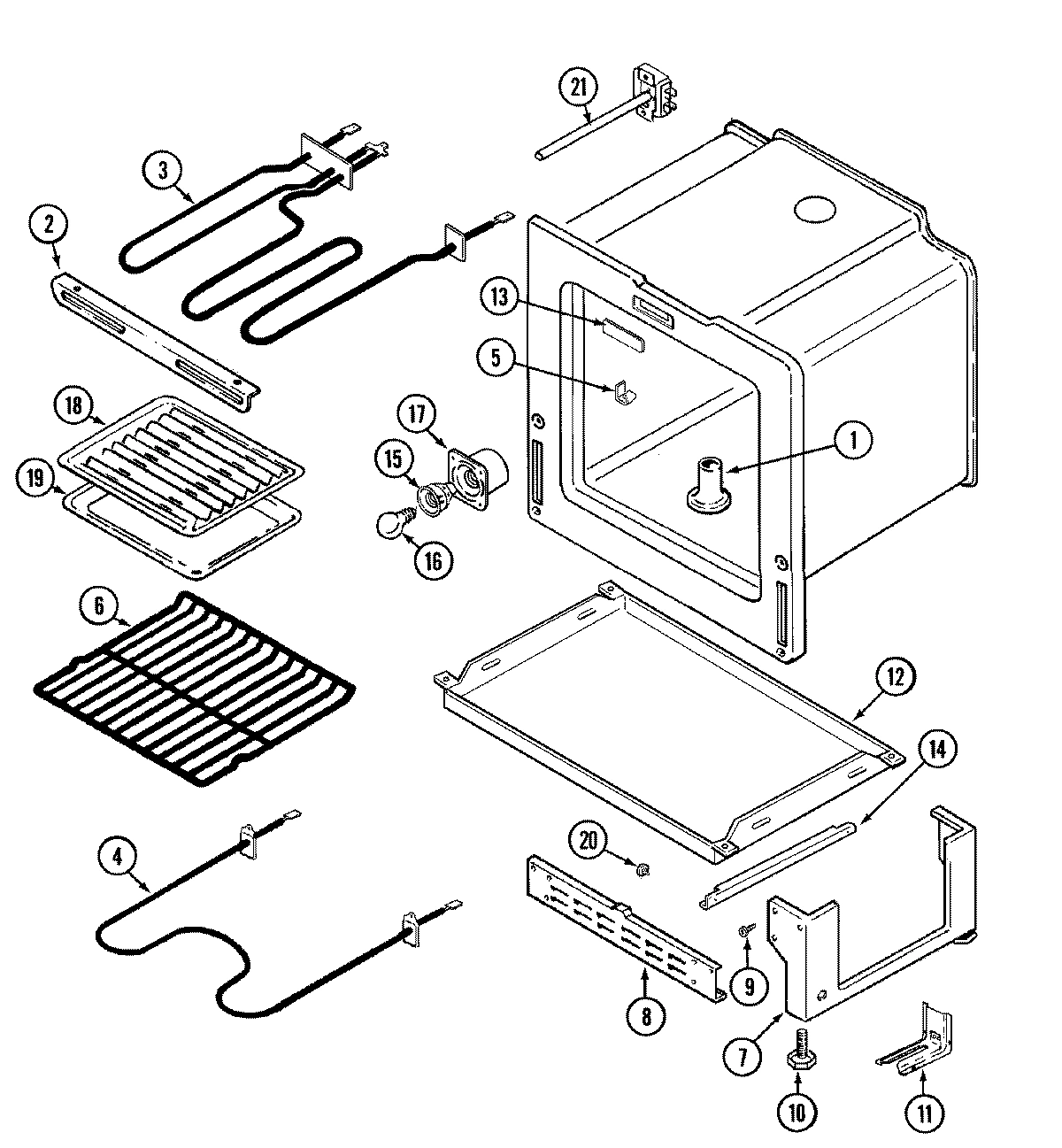

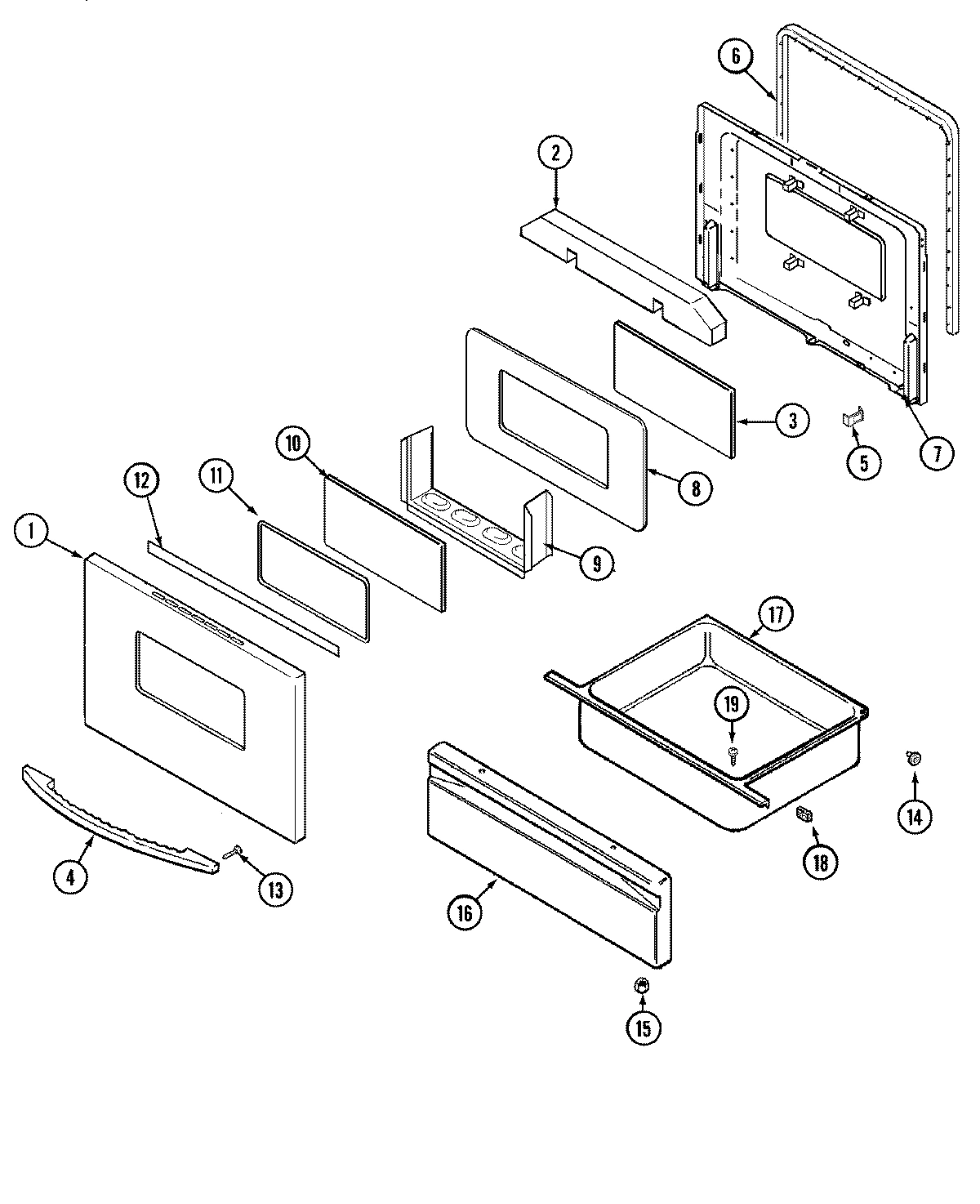

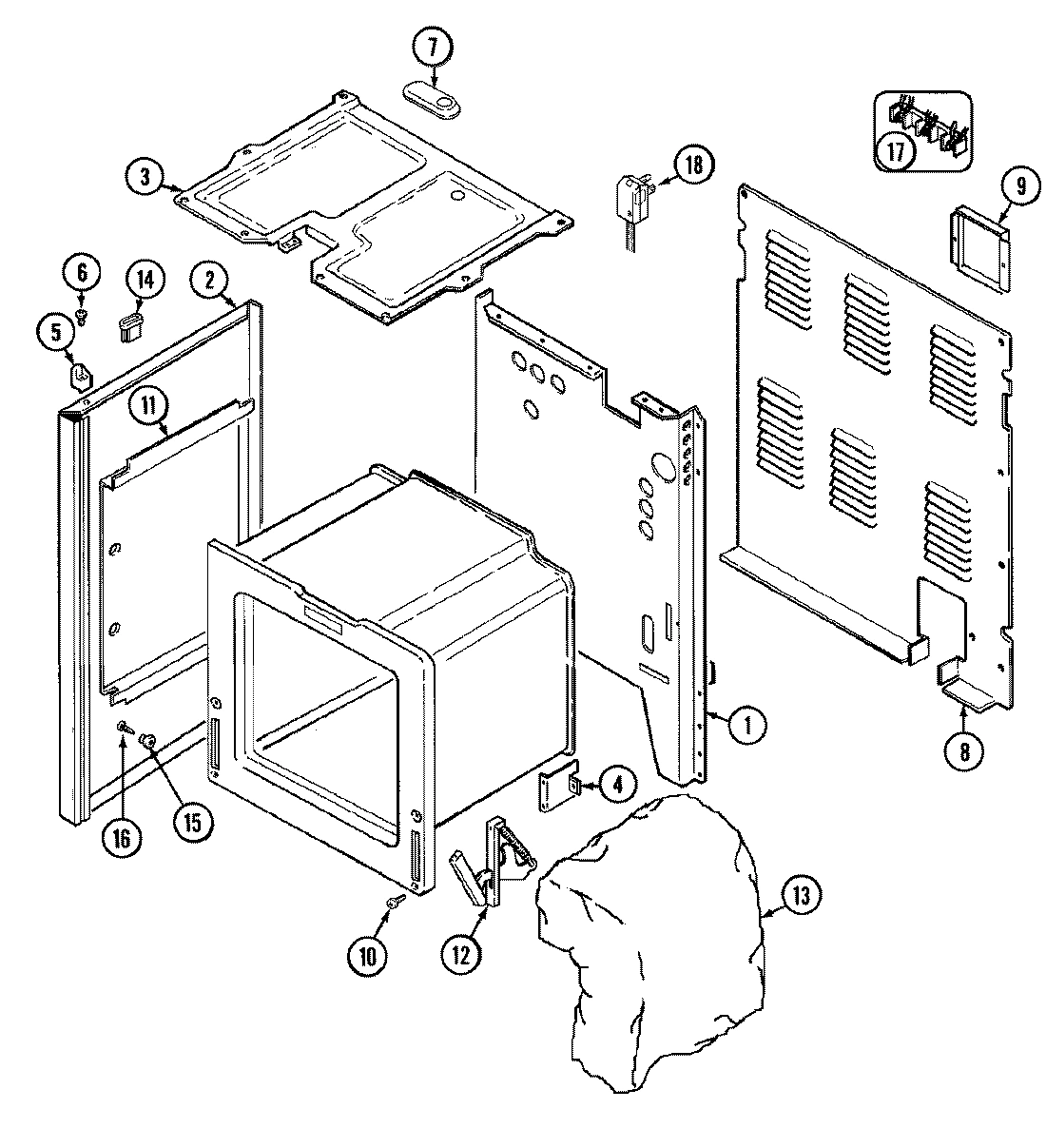

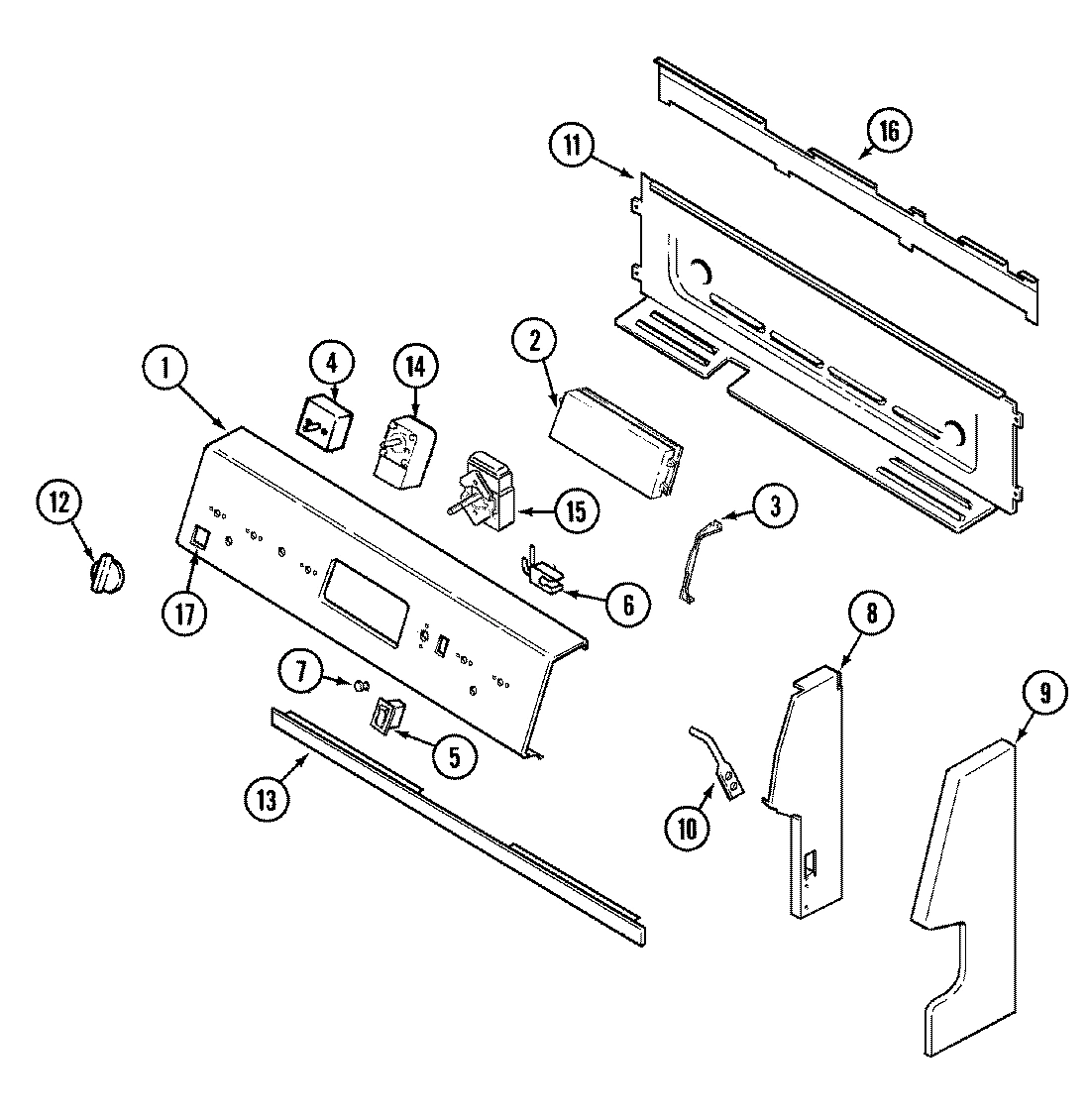

1

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $8.91

1

PANEL, CONTROL (WHT) WPL 74003809 Contact Us For Availability

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

2

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $6.42

2

INSULATION, DOOR WPL 74002458 Contact Us For Availability

2

SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability

2

CLOCK (WHT) WPL 74003811 Contact Us For Availability

2

CLOCK (WHT) WPL 74004801 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

3

WP12001559 Whirlpool Element Kit Backorder WPL WP12001559 $73.18

3

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $78.23

3

GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability

3

SCREW (WHT) WPL 7101P34860 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003602 Contact Us For Availability

3

ELEMENT, BROIL WPL Y04000057 Contact Us For Availability

3

BOX, BURNER WPL 4011F23919 Contact Us For Availability

4

WP12001560 Whirlpool Surface Element Backorder WPL WP12001560 $88.60

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $23.48

4

HANDLE, DOOR (WHT) WPL 74003620 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $8.93

5

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $34.89

5

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $46.57

6

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

6

SCREW WPL 7118P01360 Contact Us For Availability

6

LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability

7

LINING, DOOR WPL 74003248 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 74003428 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

8

SCREW WPL 7101P20960 Contact Us For Availability

8

BAFFLE, DOOR WPL 74002461 Contact Us For Availability

8

SUPPORT, TOP WPL 74001170 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003603 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003604 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

9

END CAP, CONTROL PNL (RT-WHT) WPL 74003607 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-WHT) WPL 74003608 Contact Us For Availability

9

SUPPORT, OUTER GLASS WPL 74002462 Contact Us For Availability

9

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

9

SCREW (1 3/16``-WHT) WPL 74002451 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

GLASS, DOOR (OUTER-WHT) WPL 74002464 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.20

GASKET, WINDOW WPL 7201P01760 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

RETAINER, INSULATION (SIDE) WPL 74003422 Contact Us For Availability

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $84.42

WP74003611 Whirlpool Range White Knob Backorder WPL WP74003611 $10.36

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

RETAINER, INSULATION (BOTTOM) WPL 74003392 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

INSULATION, WRAP WPL 74003112 Contact Us For Availability

WP7403P255-60 Whirlpool Selector Switch Backorder WPL WP7403P255-60 $76.91

SCREW WPL 7101P30960 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

THERMOSTAT, OVEN WPL 74003708 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.24

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

EXTENSION, CONTROL PANEL WPL 74003614 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

RECEPTACLE, OUTLET (WHT) WPL 71003069 Contact Us For Availability

BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

CORD, POWER WPL 7402P05060 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.80

SCREW WPL 7101P07260 Contact Us For Availability

MANUAL, USE & CARE WPL 74003616 Contact Us For Availability

MANUAL, USE & CARE (FRCH) WPL 74003728 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

20

NUT WPL 7103P08260 Contact Us For Availability

20

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

20

GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability

21

THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability

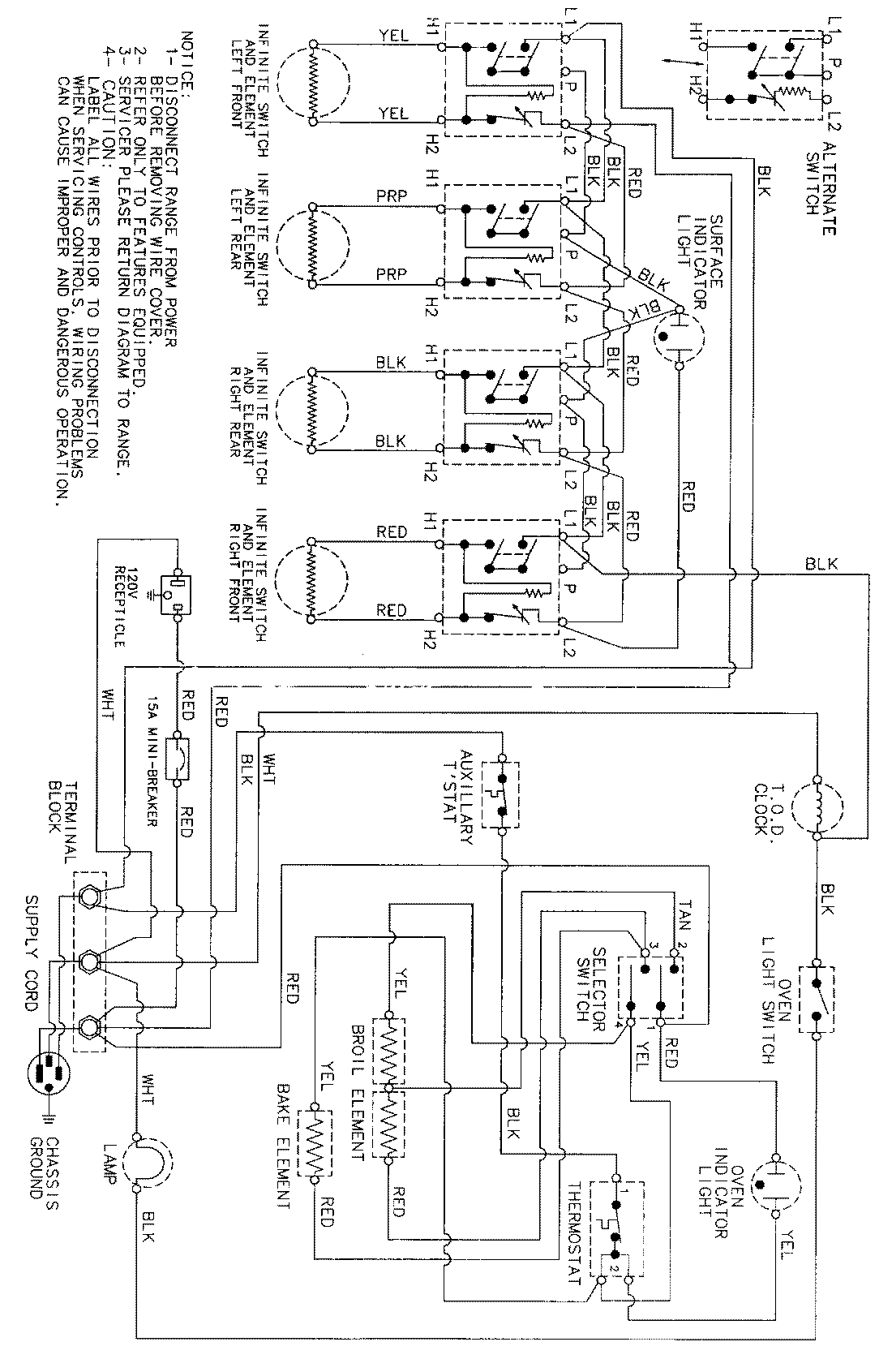

NI

WIRING INFORMATION WPL 15002341 Contact Us For Availability
