Model Electrolux MEF402WFD4 RANGE – Common Parts & Diagrams

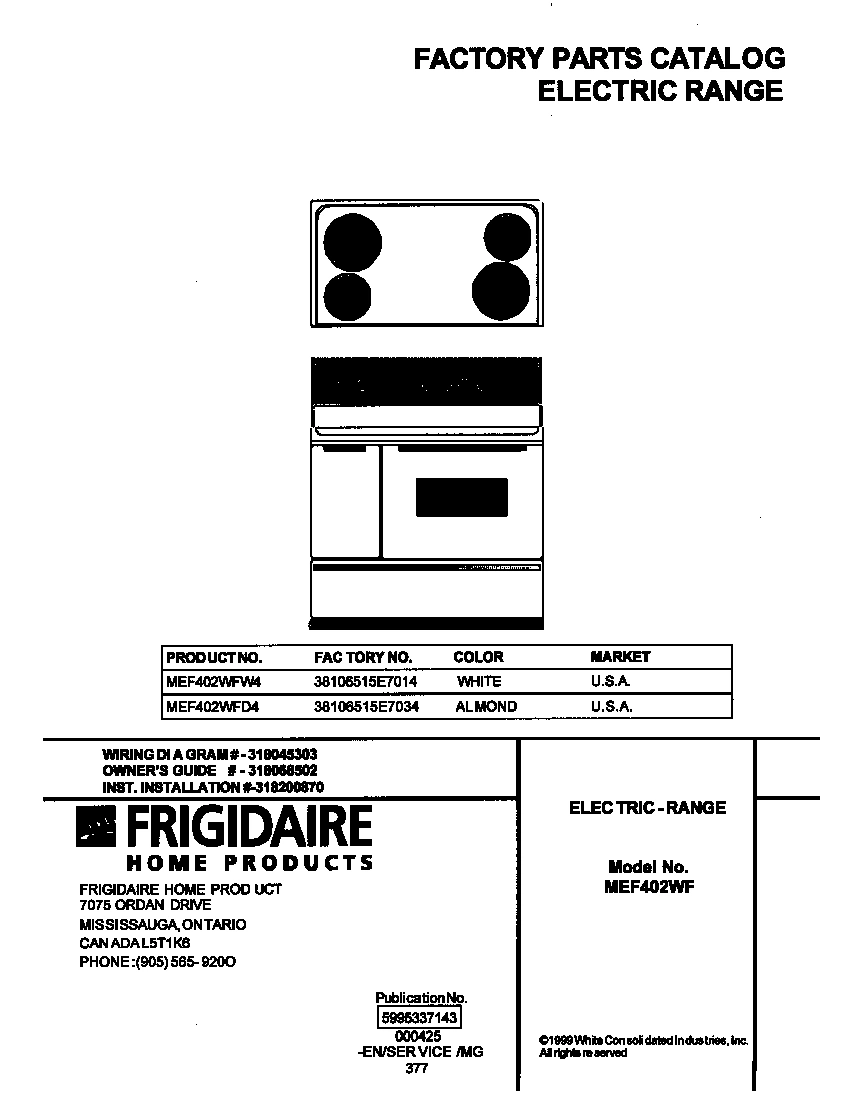

01 - COVER

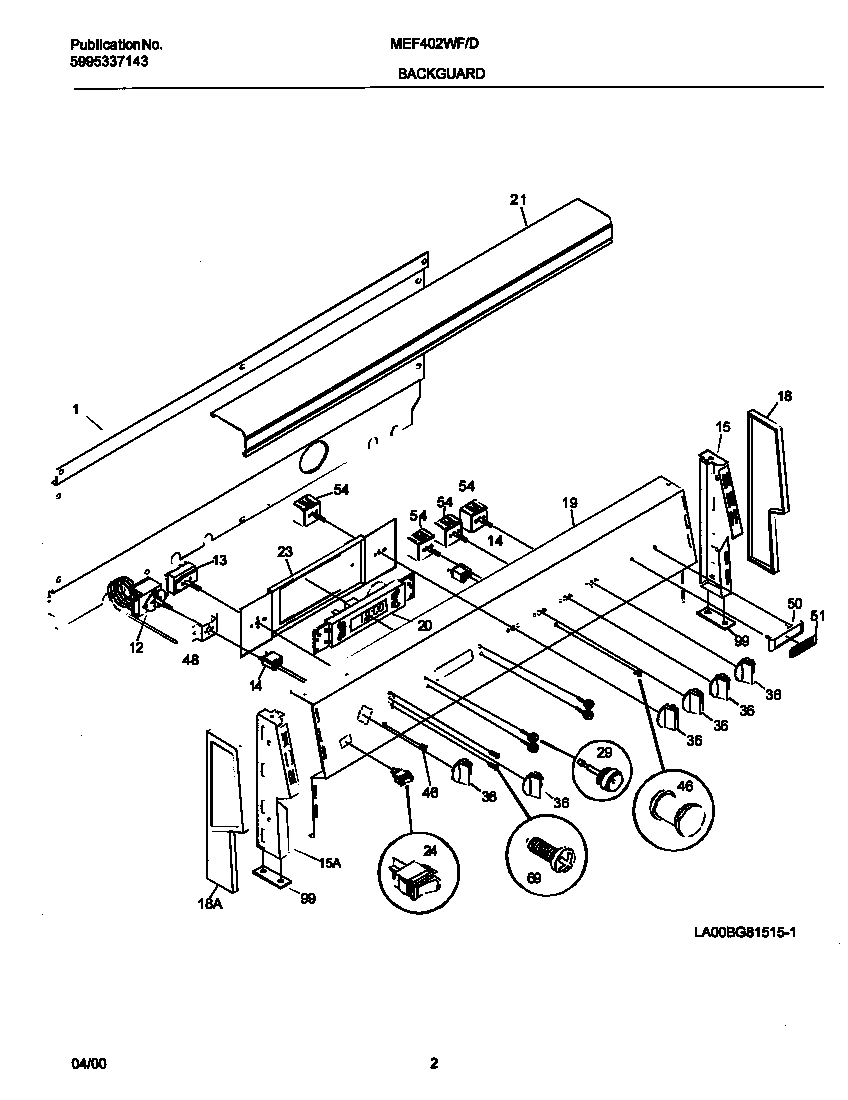

02 - BACKGUARD

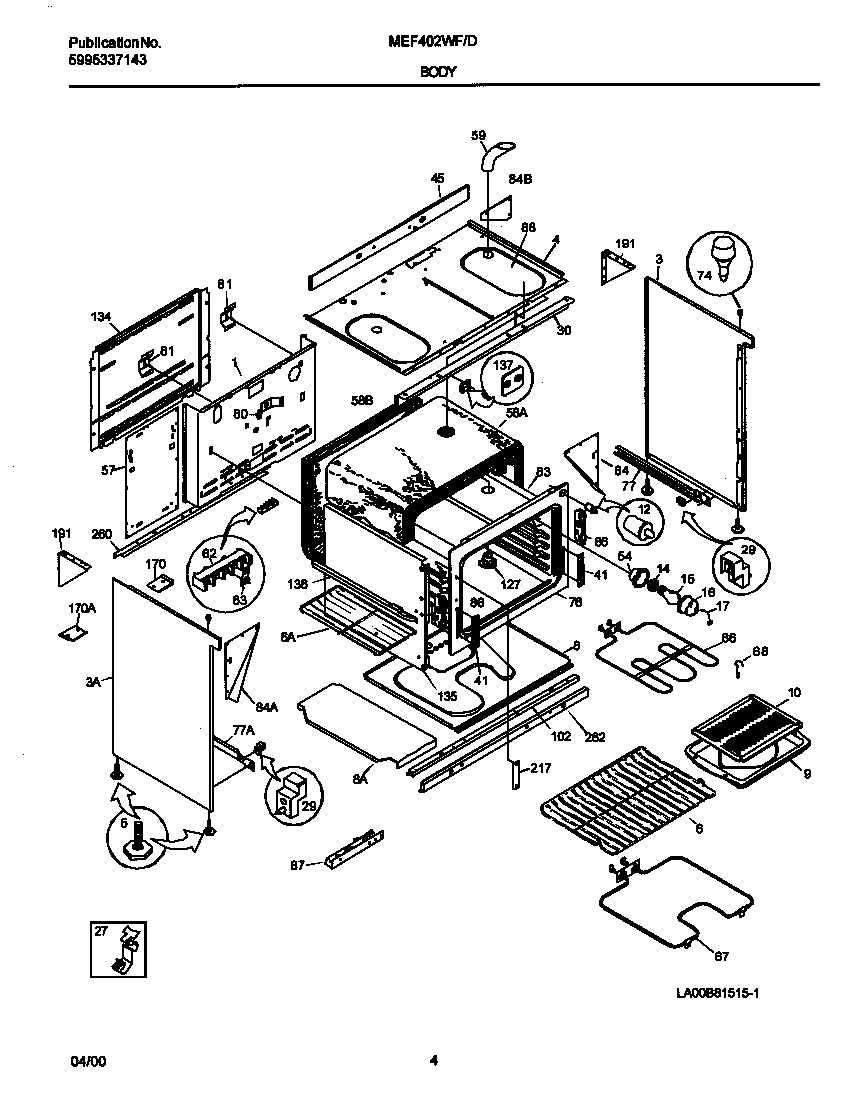

03 - BODY

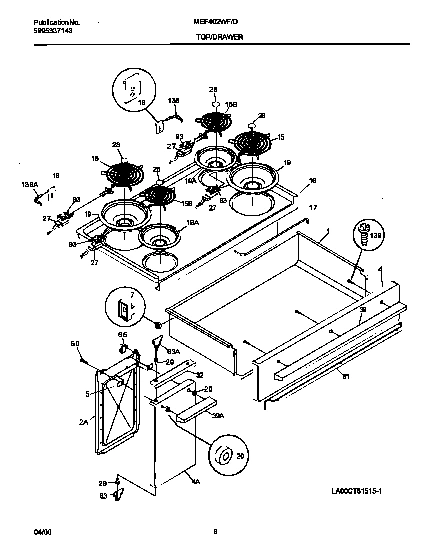

04 - TOP/DRAWER

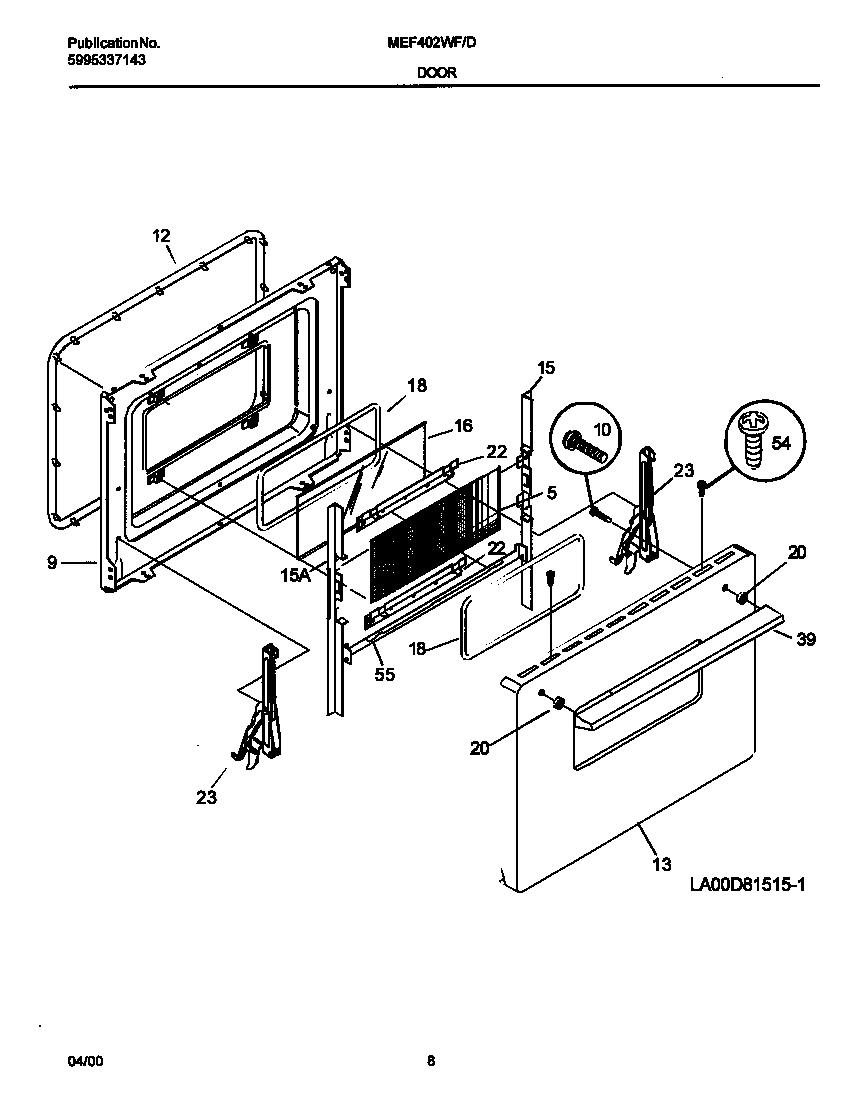

05 - DOOR

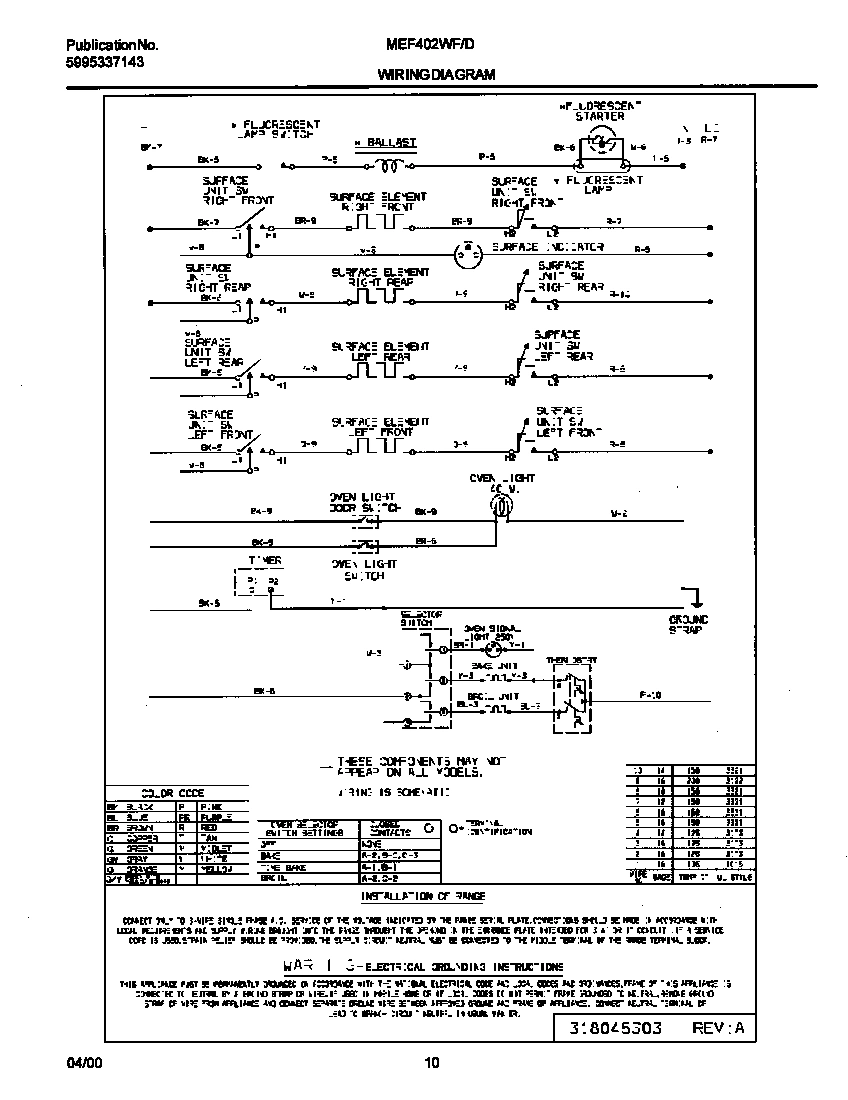

06 - WIRING DIAGRAM
Common parts from model Electrolux MEF402WFD4 RANGE
*36022
WCI 08002868 WCI 08002868 Contact Us For Availability
*36029
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*36030
SCREW,TRUSS HEAD ,8-18 X 0.375 ,(4) WCI 08016432 Contact Us For Availability
*36031
FLAT WASHER WCI 318086002 Contact Us For Availability
*36032
SCREW, TOP TRIM, 6-32 X 3/8 WCI 5303131766 Contact Us For Availability
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
2
WCI 318048201 WCI 318048201 Contact Us For Availability
3
WCI 318066004 WCI 318066004 Contact Us For Availability
3
PANEL-BODYSIDE, ALMOND, RH WCI 5308012529 Contact Us For Availability
4
WCI 318073705 WCI 318073705 Contact Us For Availability
4
WCI 318009309 WCI 318009309 Contact Us For Availability
4
WCI 5303326191 WCI 5303326191 Contact Us For Availability
5
SCREW-LEVELLING WCI 318175503 Contact Us For Availability
5
SPACER-HANDLE WCI 318014500 Contact Us For Availability
5
WCI 5303310508 WCI 5303310508 Contact Us For Availability
6
RACK-OVEN, SMALL WCI 08011960 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
7
DRAWER GUIDE WCI 5303326236 Contact Us For Availability
8
WCI 5303326189 WCI 5303326189 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048707 WCI 318048707 Contact Us For Availability
10
SCREW-HANDLE WCI 5303317085 Contact Us For Availability
10A
WCI 5303317976 WCI 5303317976 Contact Us For Availability
13
SWITCH, SELECTOR WCI 08015934 Contact Us For Availability
13
WCI 318009102 WCI 318009102 Contact Us For Availability
15
WCI 318024002 WCI 318024002 Contact Us For Availability
15
WCI 5303311137 WCI 5303311137 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 08011984 Contact Us For Availability
16
WCI 318041620 WCI 318041620 Contact Us For Availability
17
RETAINER LENZ WCI 5304400195 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
18
RETAINER-HINGE PIN 57034000 WCI 3051745 Contact Us For Availability
18
WCI 5303310505 WCI 5303310505 Contact Us For Availability
20
WCI 318184800 WCI 318184800 Contact Us For Availability
20
SPACER-DOOR HANDLE,(2) WCI 5303310504 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
WCI 5303325091 WCI 5303325091 Contact Us For Availability
27
WCI 5303323704 WCI 5303323704 Contact Us For Availability
28
WCI 5303309002 WCI 5303309002 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
29
SPACER-HINGE PIN WCI 318141800 Contact Us For Availability
30
WCI 318023907 WCI 318023907 Contact Us For Availability
39
WCI 3201576 WCI 3201576 Contact Us For Availability
39
HANDLE-DOOR, SMALL WCI 5303304011 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303304012 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
45
SHIELD-WIRE WCI 318057401 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, RED, (2) WCI 5308006417 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
54
SCREW < 10 X 1/2 >,10 X 1/2 WCI 5303317975 Contact Us For Availability
54B
WCI 318120500 WCI 318120500 Contact Us For Availability
55
BRACKET-GLASS WCI 318122300 Contact Us For Availability
57
WCI 318055700 WCI 318055700 Contact Us For Availability
58
WCI 5303310516 WCI 5303310516 Contact Us For Availability
58
WCI 5303310519 WCI 5303310519 Contact Us For Availability
59
WCI 318072501 WCI 318072501 Contact Us For Availability
60
WCI 5303326253 WCI 5303326253 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
63
WCI 318024505 WCI 318024505 Contact Us For Availability
63
WCI 318024507 WCI 318024507 Contact Us For Availability
65
LATCH-DOOR, SMALL WCI 3204306 Contact Us For Availability
74
WCI 5308003107 WCI 5308003107 Contact Us For Availability
76
FRAME-FRONT WCI 318056004 Contact Us For Availability
77
RAIL-DRAWER RH WCI 318018000 Contact Us For Availability
77
RAIL-DRAWER LH WCI 318018001 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089600 WCI 318089600 Contact Us For Availability
84
WCI 318055901 WCI 318055901 Contact Us For Availability
84
GUSSET-REAR,RH WCI 5303326184 Contact Us For Availability
84
GUSSET-REAR,LH WCI 5303326185 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING,CORD SET WCI 318111800 Contact Us For Availability
93
WCI 318122500 WCI 318122500 Contact Us For Availability
102
SUPPORT OVEN FRONT WCI 318111901 Contact Us For Availability
132
COVER-WIRING WCI 5303310515 Contact Us For Availability
135
WCI 318072401 WCI 318072401 Contact Us For Availability
136
WCI 5301315199 WCI 5301315199 Contact Us For Availability
137
WCI 3204318 WCI 3204318 Contact Us For Availability
138A
BRACKET-HINGE, MAIN TOP RH WCI 5301315631 Contact Us For Availability
138B
BRACKET-HINGE, MAIN TOP LH WCI 3051658 Contact Us For Availability
170A
WCI 318175700 WCI 318175700 Contact Us For Availability
170B
WCI 318175701 WCI 318175701 Contact Us For Availability
191
BRACKET CORNER WCI 5303304030 Contact Us For Availability
217
PLATE-WARNING,217 WCI 316042301 Contact Us For Availability
260
SUPPORT-GUSSET WCI 318055500 Contact Us For Availability
262
SUPPORT-OVEN FRONT WCI 08011954 Contact Us For Availability
× ![]()
