Model Electrolux MEF402WCDA RANGE – Common Parts & Diagrams

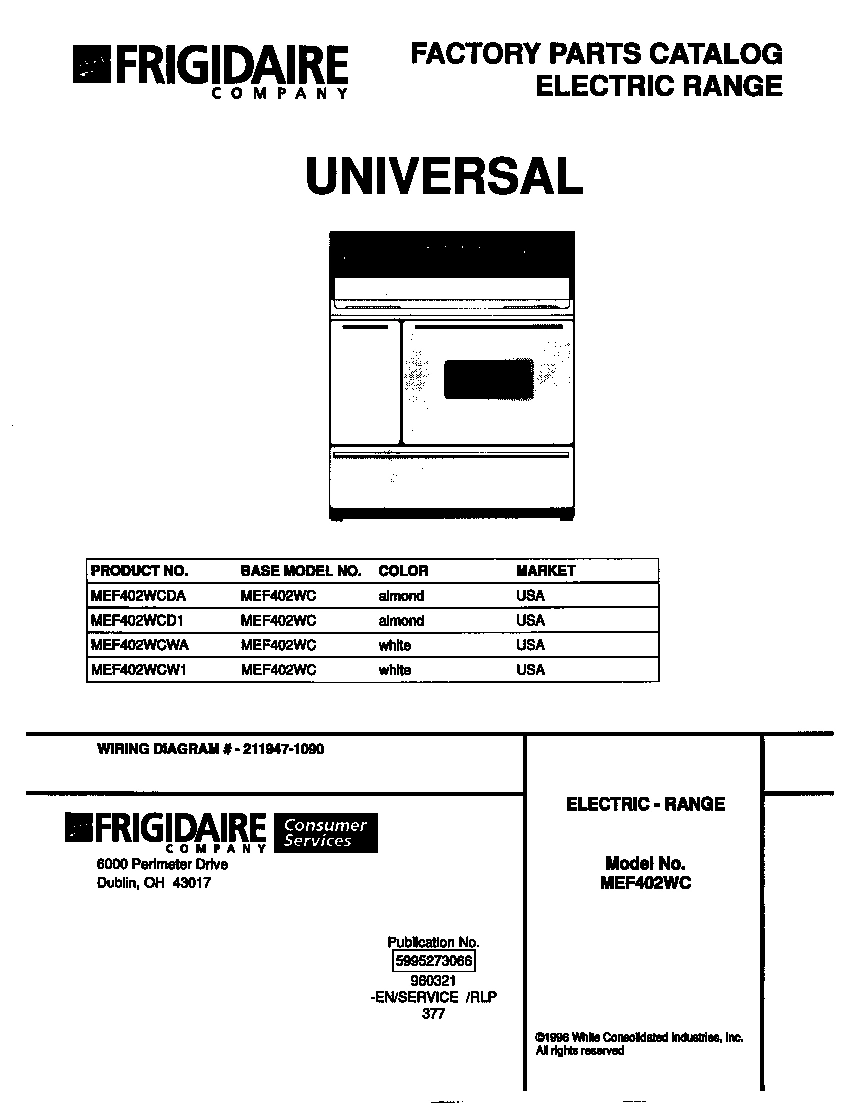

01 - COVER

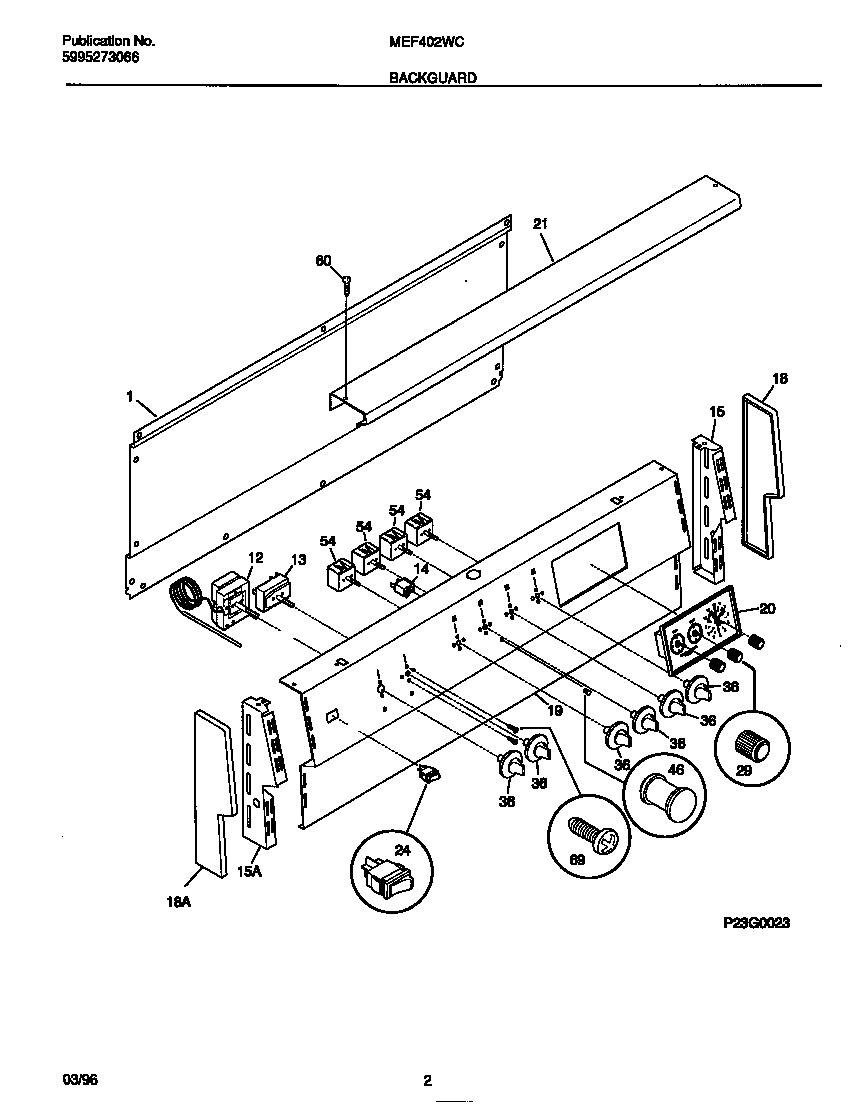

02 - BACKGUARD

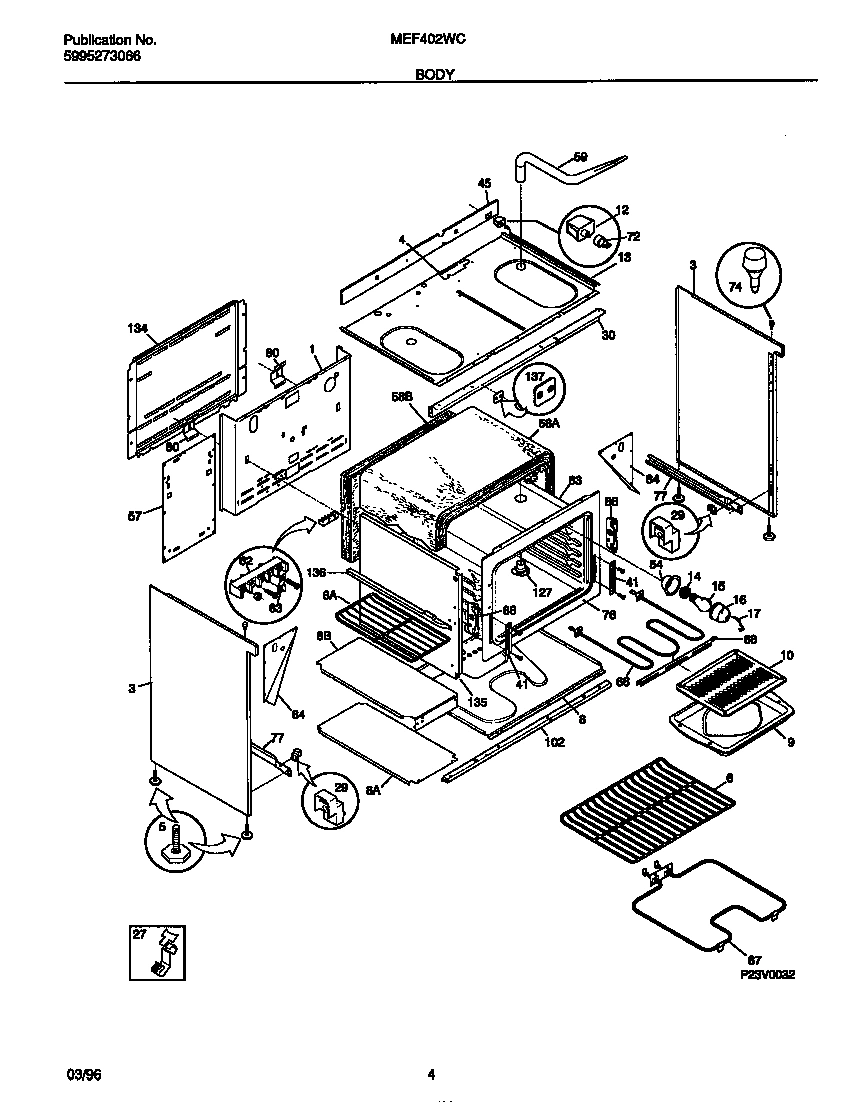

03 - BODY

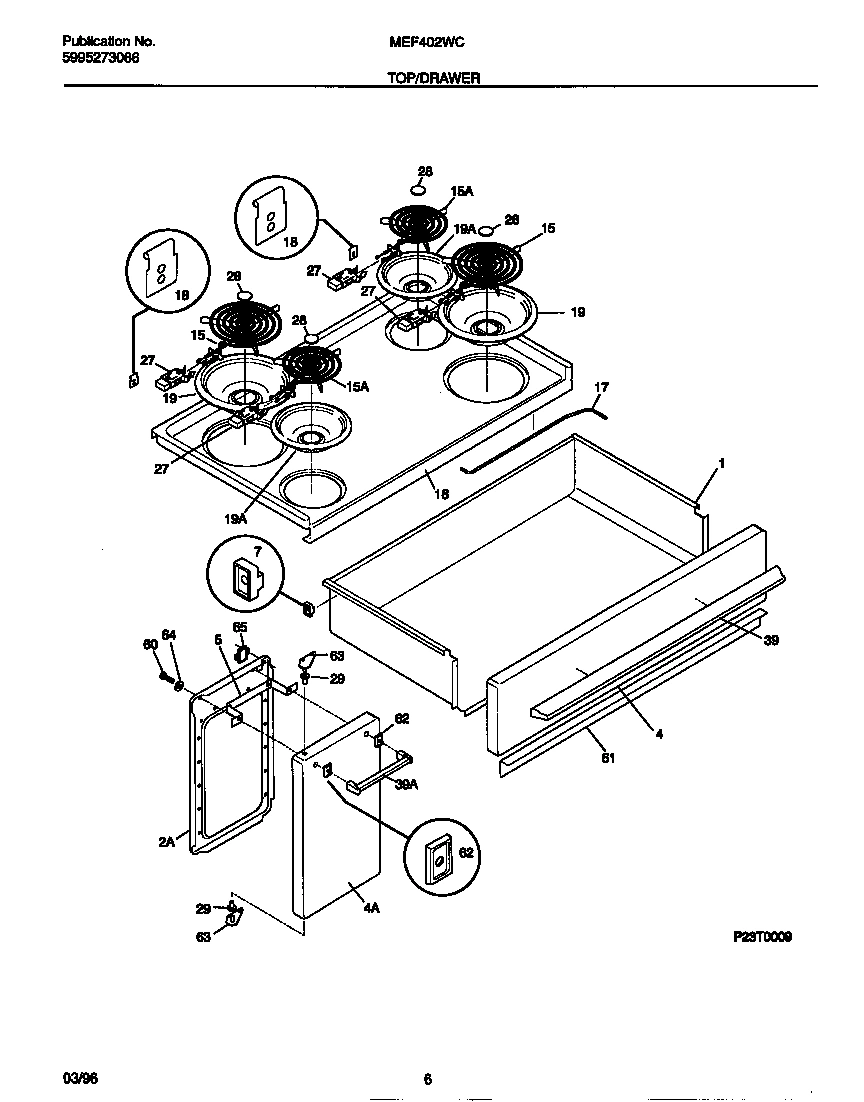

04 - TOP/DRAWER

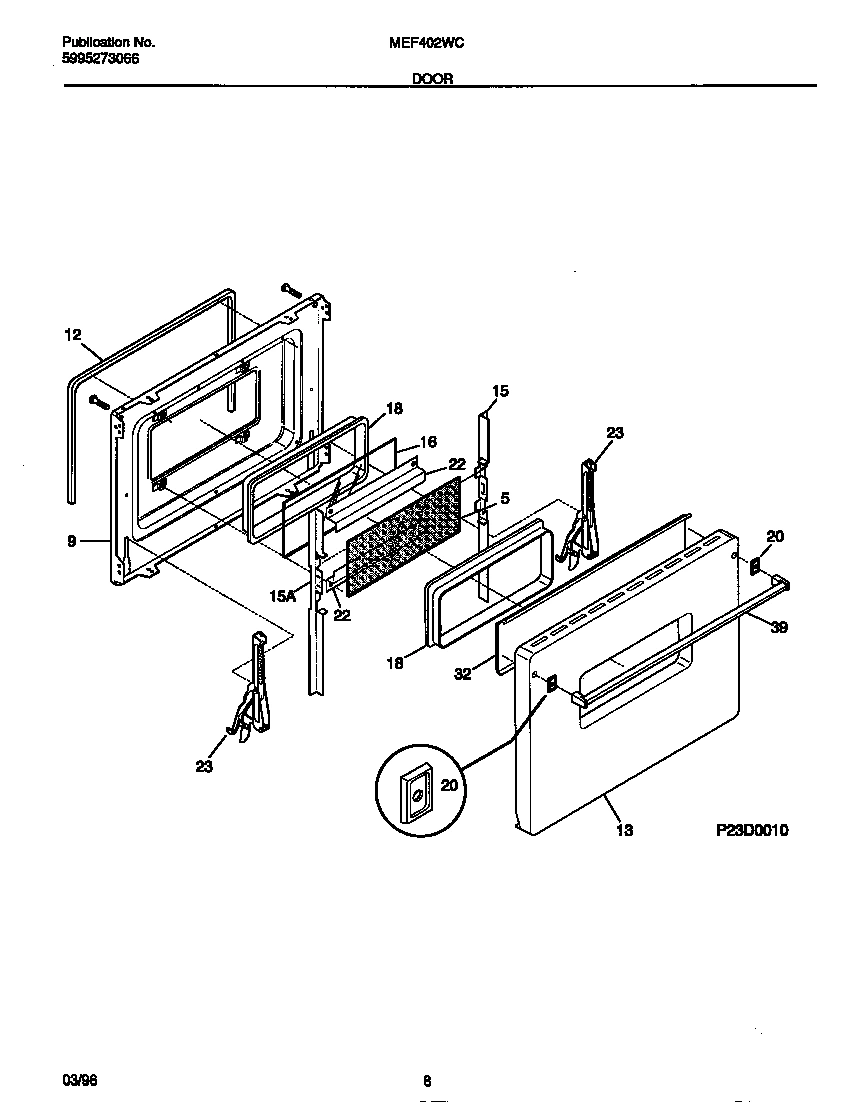

05 - DOOR
Common parts from model Electrolux MEF402WCDA RANGE
*11081
ANTI-TIP BRACKET WCI 3203575 Contact Us For Availability
*11082
ANTI-TIP BRACKET WCI 3203576 Contact Us For Availability
*11083
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
2
WCI 318048201 WCI 318048201 Contact Us For Availability
3
PANEL-BODYSIDE, ALMOND, RH WCI 5308012529 Contact Us For Availability
3
PANEL-BODYSIDE, ALMOND, LH WCI 5308012530 Contact Us For Availability
4
WCI 318073701 WCI 318073701 Contact Us For Availability
4
WCI 318009303 WCI 318009303 Contact Us For Availability
4
PANEL-DRAWER, ALMOND WCI 5301322709 Contact Us For Availability
5
SPACER-HANDLE WCI 318014500 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303310508 Contact Us For Availability
6
RACK-OVEN, SMALL WCI 08011960 Contact Us For Availability
7
GLIDE-DRAWER WCI 5301315217 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 318071900 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303311141 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI K1315129 Contact Us For Availability
9
WCI 5303310521 WCI 5303310521 Contact Us For Availability
9
WCI 318048701 WCI 318048701 Contact Us For Availability
10
WCI 5303310520 WCI 5303310520 Contact Us For Availability
12
WCI 08003081 WCI 08003081 Contact Us For Availability
13
SWITCH, SELECTOR WCI 08015934 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 5303305163 Contact Us For Availability
13
WCI 318009102 WCI 318009102 Contact Us For Availability
14B
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
WCI 318024002 WCI 318024002 Contact Us For Availability
15
WCI 318024003 WCI 318024003 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 08011984 Contact Us For Availability
16
WCI 5303310507 WCI 5303310507 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
18
WCI 5303310505 WCI 5303310505 Contact Us For Availability
18A
BRACKET-HINGE, MAIN TOP RH WCI 5301315631 Contact Us For Availability
18B
BRACKET-HINGE, MAIN TOP LH WCI 3051658 Contact Us For Availability
19
WCI 318005701 WCI 318005701 Contact Us For Availability
20
CLOCK/TIMER, ANALOG 3 STEM WCI 5303304817 Contact Us For Availability
20
SPACER-HANDLE, SMALL OVEN, (2) WCI 5303310504 Contact Us For Availability
21
WCI 5303304545 WCI 5303304545 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
HINGE ASSY WCI 5303310506 Contact Us For Availability
27
CLIP-THERMO BULB WCI 3051552 Contact Us For Availability
28
WCI 5303309002 WCI 5303309002 Contact Us For Availability
29
WCI 316029000 WCI 316029000 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
29
WCI 5301306686 WCI 5301306686 Contact Us For Availability
30
WCI 318023901 WCI 318023901 Contact Us For Availability
32
WCI 5303310509 WCI 5303310509 Contact Us For Availability
36
KNOB-CONTROL, (6) WCI 5303304954 Contact Us For Availability
39
WCI 3201576 WCI 3201576 Contact Us For Availability
39
HANDLE-DOOR, SMALL WCI 5303304011 Contact Us For Availability
39A
HANDLE-DOOR, OVEN WCI 5303304012 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
45
WCI 318057400 WCI 318057400 Contact Us For Availability
46
WCI 5303271239 WCI 5303271239 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
WCI 318055700 WCI 318055700 Contact Us For Availability
58
WCI 5303310516 WCI 5303310516 Contact Us For Availability
58
WCI 5303310519 WCI 5303310519 Contact Us For Availability
59
WCI 318072501 WCI 318072501 Contact Us For Availability
60
SCREW, DOOR HANDLE WCI 08013443 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
63A
WCI 5303310517 WCI 5303310517 Contact Us For Availability
63A
WCI 318024501 WCI 318024501 Contact Us For Availability
63B
WCI 318024503 WCI 318024503 Contact Us For Availability
65
LATCH-DOOR, SMALL WCI 3204306 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
72
COVER-ROD END WCI 08007444 Contact Us For Availability
74
WCI 08003107 WCI 08003107 Contact Us For Availability
76
WCI 318056001 WCI 318056001 Contact Us For Availability
77A
RAIL-DRAWER RH WCI 318018000 Contact Us For Availability
77B
RAIL-DRAWER LH WCI 318018001 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 5303310523 WCI 5303310523 Contact Us For Availability
84A
WCI 3204823 WCI 3204823 Contact Us For Availability
84B
GUSSET-REAR, RH (NOT ILLUSTRATED) WCI 3204822 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
102
SUPPORT-OVEN FRONT WCI 08011954 Contact Us For Availability
134
COVER-WIRING WCI 5303310515 Contact Us For Availability
135
WCI 318072401 WCI 318072401 Contact Us For Availability
136
WCI 5301315199 WCI 5301315199 Contact Us For Availability
137
WCI 3204318 WCI 3204318 Contact Us For Availability
× ![]()
