Model Frigidaire MEF367CGB2 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

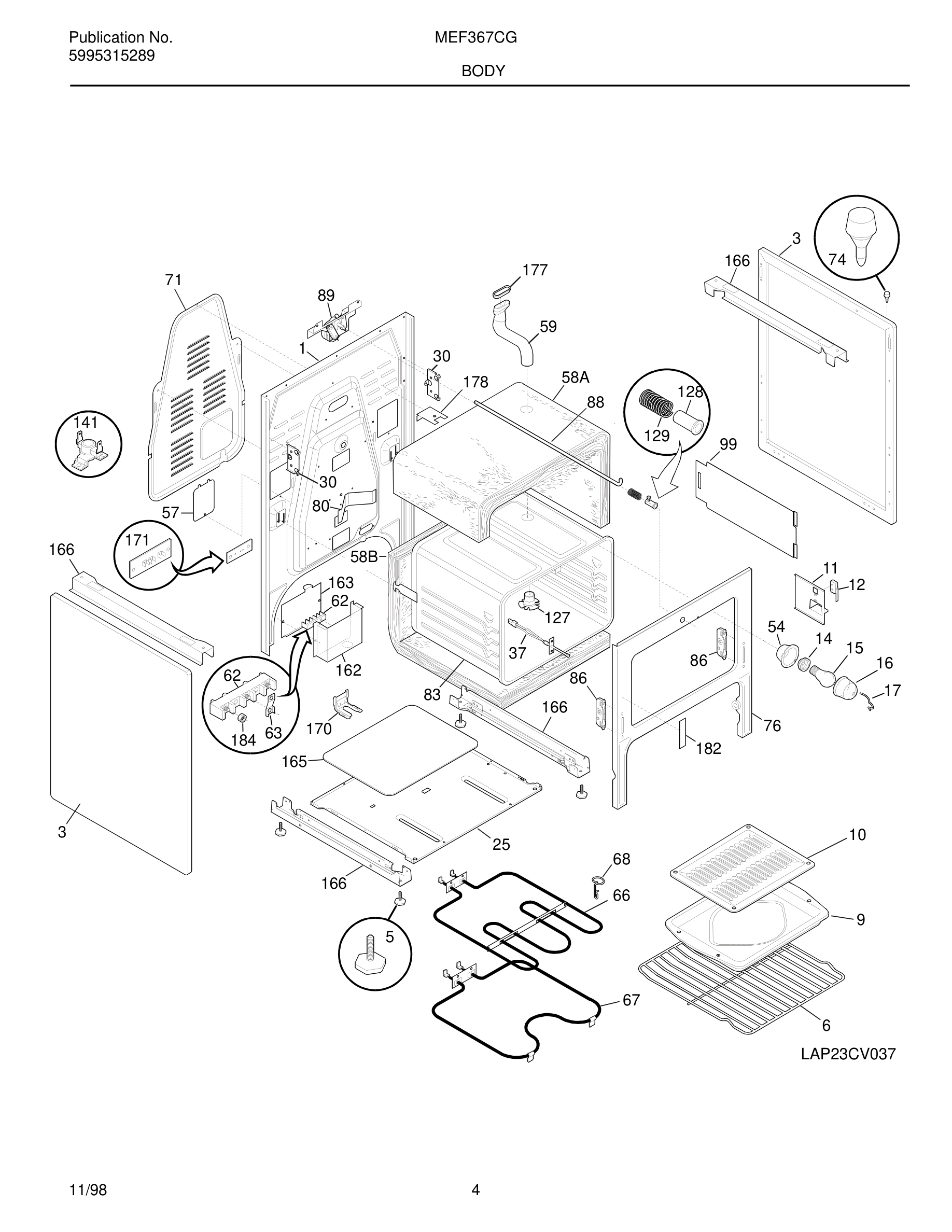

05 - BODY

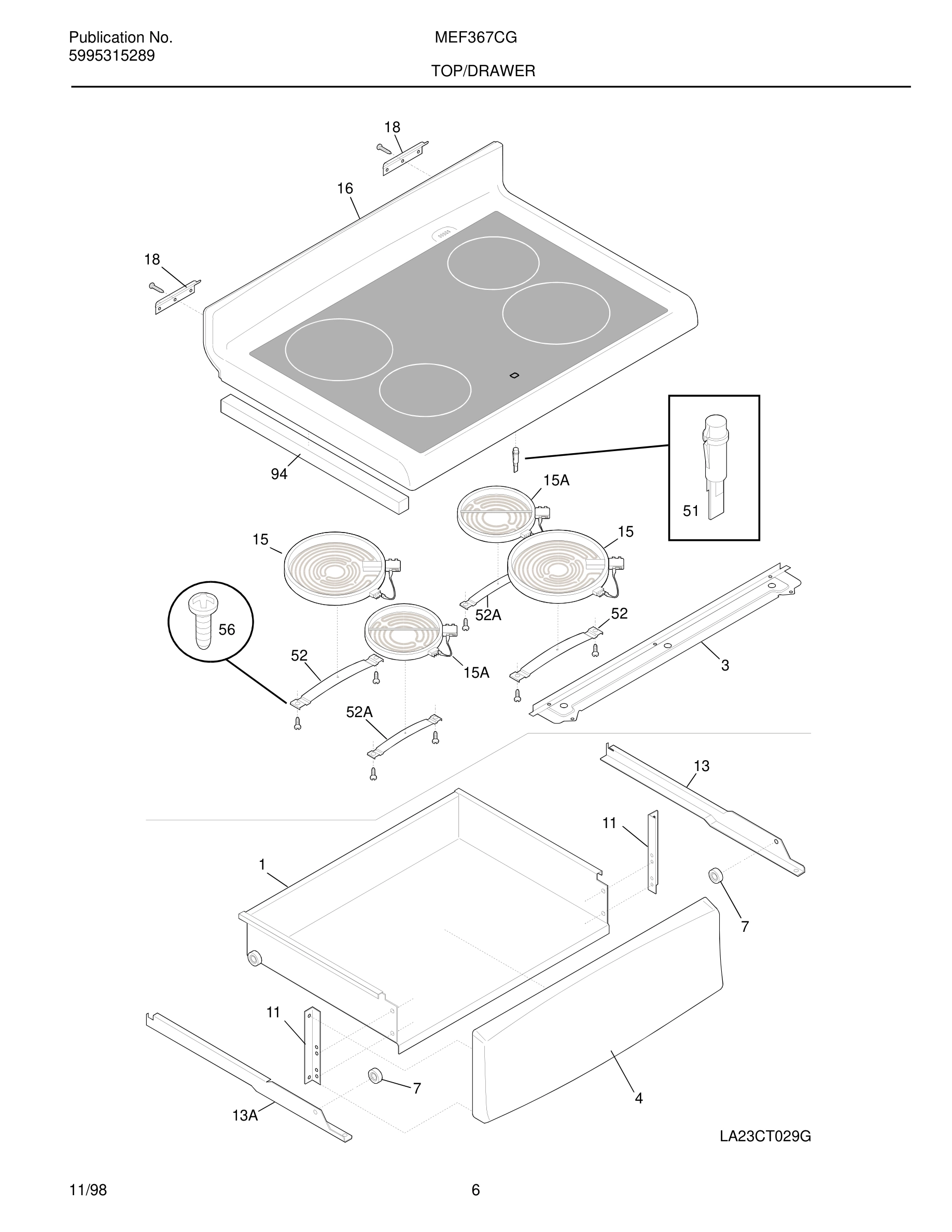

07 - TOP/DRAWER

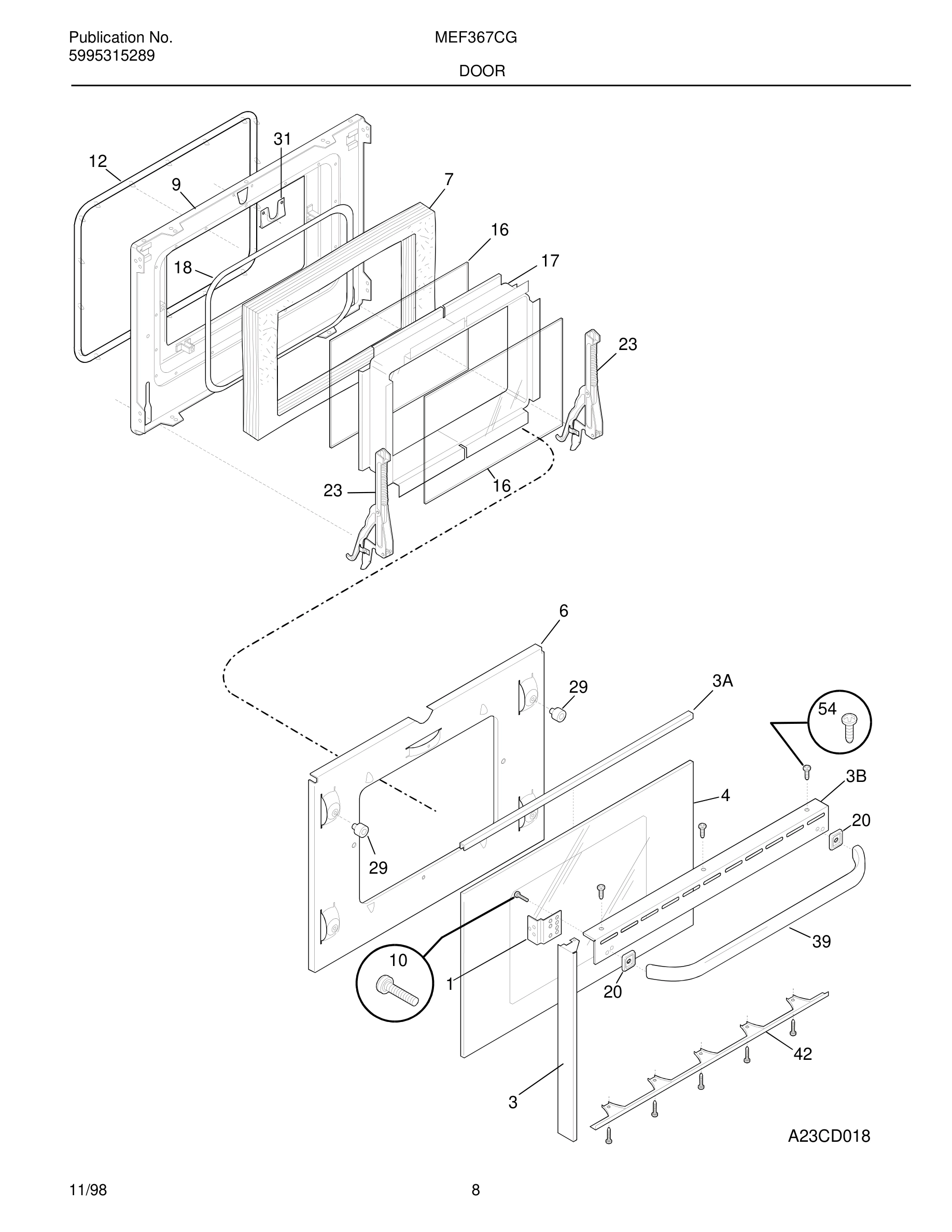

09 - DOOR
Common parts from model Frigidaire MEF367CGB2 RANGE
*
Screw, 10 X 3/8 WCI 5303131801 Contact Us For Availability
1
Bracket- trim,han dle ,(2) WCI 318043100 Contact Us For Availability
1
Drawer- utility WCI 318107103 Contact Us For Availability
3
Sup port,main top WCI 318144301 Contact Us For Availability
3
Trim- oven door,black ,side WCI 318049205 Contact Us For Availability
3A
Trim- oven door,up per WCI 318028900 Contact Us For Availability
3B
Trim- oven door,black ,upper WCI 318049019 Contact Us For Availability
4
Panel- drawer,black WCI 318044303 Contact Us For Availability
4
Glass- oven door,black ,outer WCI 318041109 Contact Us For Availability
6
Rack- oven WCI 5303310522 Contact Us For Availability
6
Shield- insulation WCI 318056802 Contact Us For Availability
7
Insulation- door WCI 318106001 Contact Us For Availability
9
Pan- broiler WCI 5303317977 Contact Us For Availability
9
Liner- oven door WCI 318048802 Contact Us For Availability
10
Insert- broiler pan WCI 5303317976 Contact Us For Availability
10
Screw,10- 24 x 5/8 WCI 5303324305 Contact Us For Availability
11
Bracket- light switch WCI 318086100 Contact Us For Availability
11
Bracket- support,drawer WCI 318107500 Contact Us For Availability
12#
Switch- door WCI 318089800 Contact Us For Availability
13
Channel- drawer,RH WCI 318018100 Contact Us For Availability
13A
Channel- drawer,LH WCI 318018101 Contact Us For Availability
16
Glass- oven door,in ner WCI 318041603 Contact Us For Availability
16
Main top, glass, black WCI 318043865 Contact Us For Availability
17
Clip WCI 3204483 Contact Us For Availability
17
Spacer- glass WCI 318042102 Contact Us For Availability
18
Hinge- main top, WCI 318074400 Contact Us For Availability
18
Seal- window WCI 318053001 Contact Us For Availability
20
Spacer- handle,black WCI 318014300 Contact Us For Availability
23
Hinge- oven door,assy WCI 5303311215 Contact Us For Availability
25
Shield- heat,lower WCI 318108700 Contact Us For Availability
29
Bumper WCI 5303310535 Contact Us For Availability
30
Bracket- hinge,main top WCI 318110800 Contact Us For Availability
31
Latch- door WCI 5303310536 Contact Us For Availability
39
Handle- door,black WCI 316091118 Contact Us For Availability
42
Trim- oven door,black ,lower WCI 5303311200 Contact Us For Availability
51
Light in di ca tor hot surface WCI 530297484 Contact Us For Availability
52
Spring element WCI 318122007 Contact Us For Availability
54
Housing- oven light WCI 5303310514 Contact Us For Availability
54#
Switch-surface unit WCI 318120500 Contact Us For Availability
57
Cover- access WCI 318036500 Contact Us For Availability
58A
In su la tion,oven wrap per WCI 5303310539 Contact Us For Availability
58B
In su la tion,oven back WCI 5303310538 Contact Us For Availability
59
Tube oven vent WCI 318072518 Contact Us For Availability
63
Plate- ground strap WCI 5303310517 Contact Us For Availability
71
Cover wire WCI 318086600 Contact Us For Availability
74
Bumper- bodyside WCI 318141900 Contact Us For Availability
76
Frame- front,wheels incl WCI 318108502 Contact Us For Availability
83
Liner- oven assy WCI 318109405 Contact Us For Availability
86
Channel- hinge WCI 5303310524 Contact Us For Availability
88
Rod- latch WCI 318118902 Contact Us For Availability
89#
Motor- latch assy WCI 318095900 Contact Us For Availability
89*
Switch-latch WCI 318120702 Contact Us For Availability
89*
Switch-latch WCI 318120704 Contact Us For Availability
94
In su la tion top WCI 318132608 Contact Us For Availability
99
Support- side WCI 318126101 Contact Us For Availability
128
Bush ing WCI 5303311163 Contact Us For Availability
162
Con nec tion box WCI 318096401 Contact Us For Availability
163
Cover con nec tion box WCI 318135802 Contact Us For Availability
165
Shield- plate WCI 318003100 Contact Us For Availability
166
Sup port base WCI 318111000 Contact Us For Availability
170
Anti- tip bracket WCI 318170400 Contact Us For Availability
171
Plate- connecting WCI 318111202 Contact Us For Availability
177
Gas ket vent WCI 5303324040 Contact Us For Availability
178
Bracket vent WCI 318125700 Contact Us For Availability
182
Plate-warning WCI 316042300 Contact Us For Availability
× ![]()
