Model Electrolux MEF355CGS1 RANGE – Common Parts & Diagrams

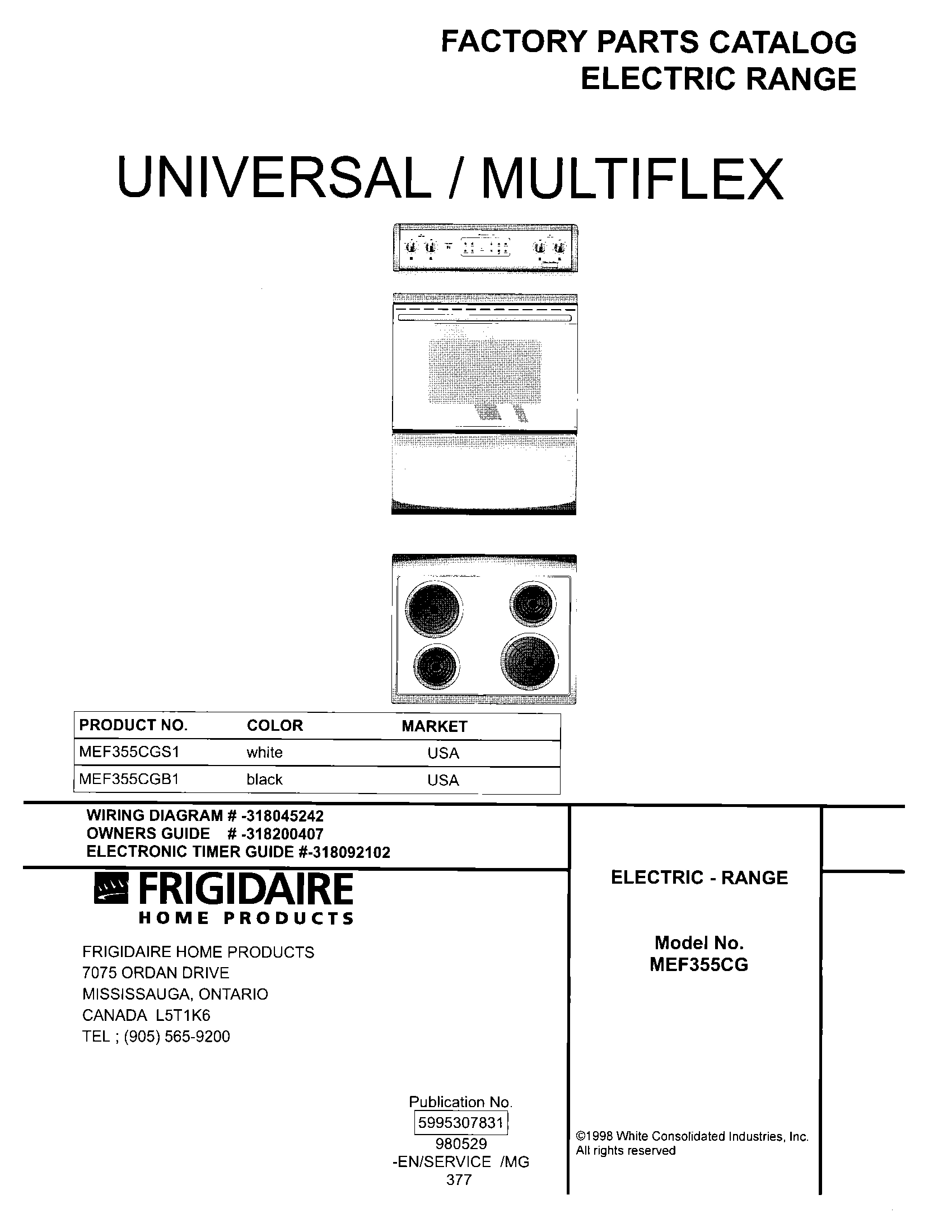

01 - COVER

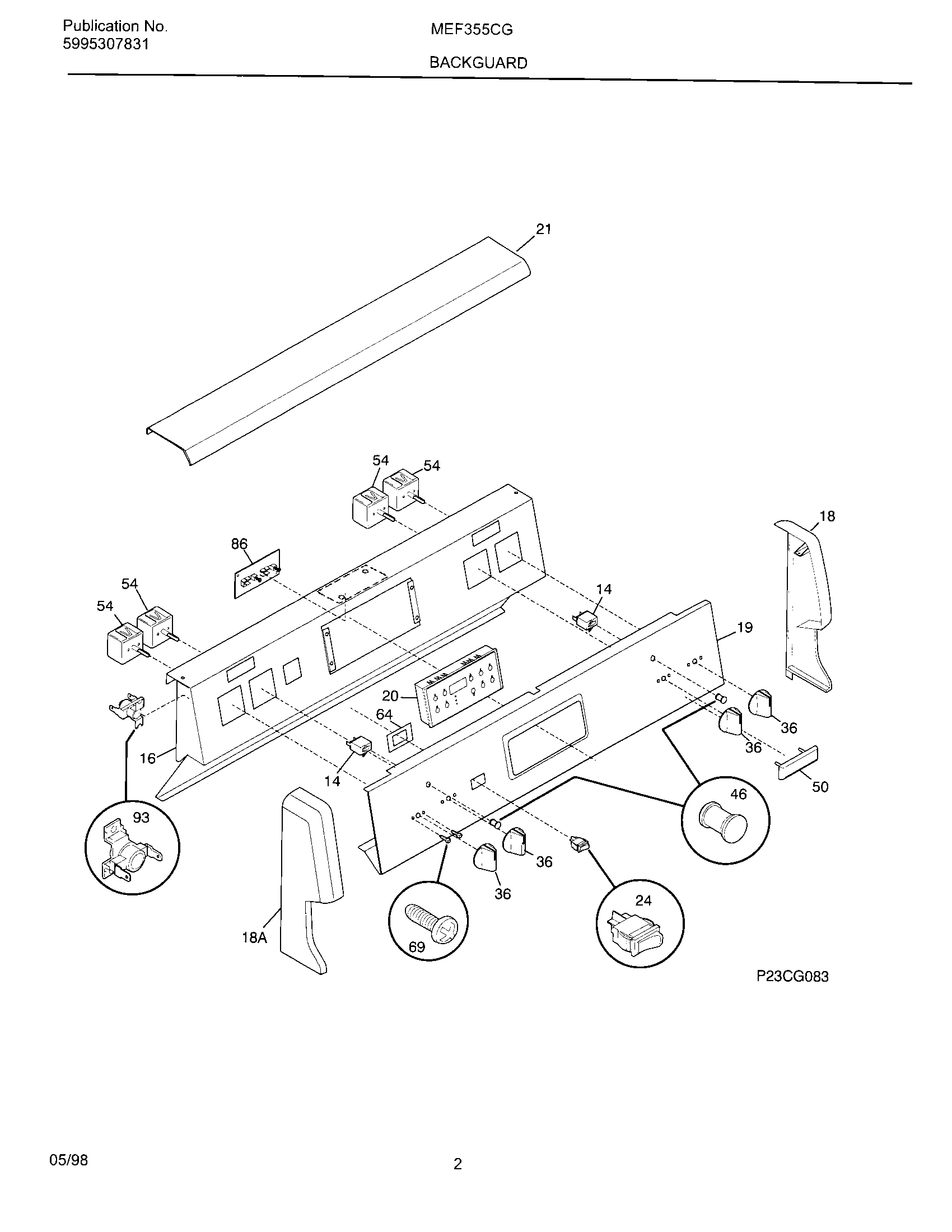

03 - BACKGUARD

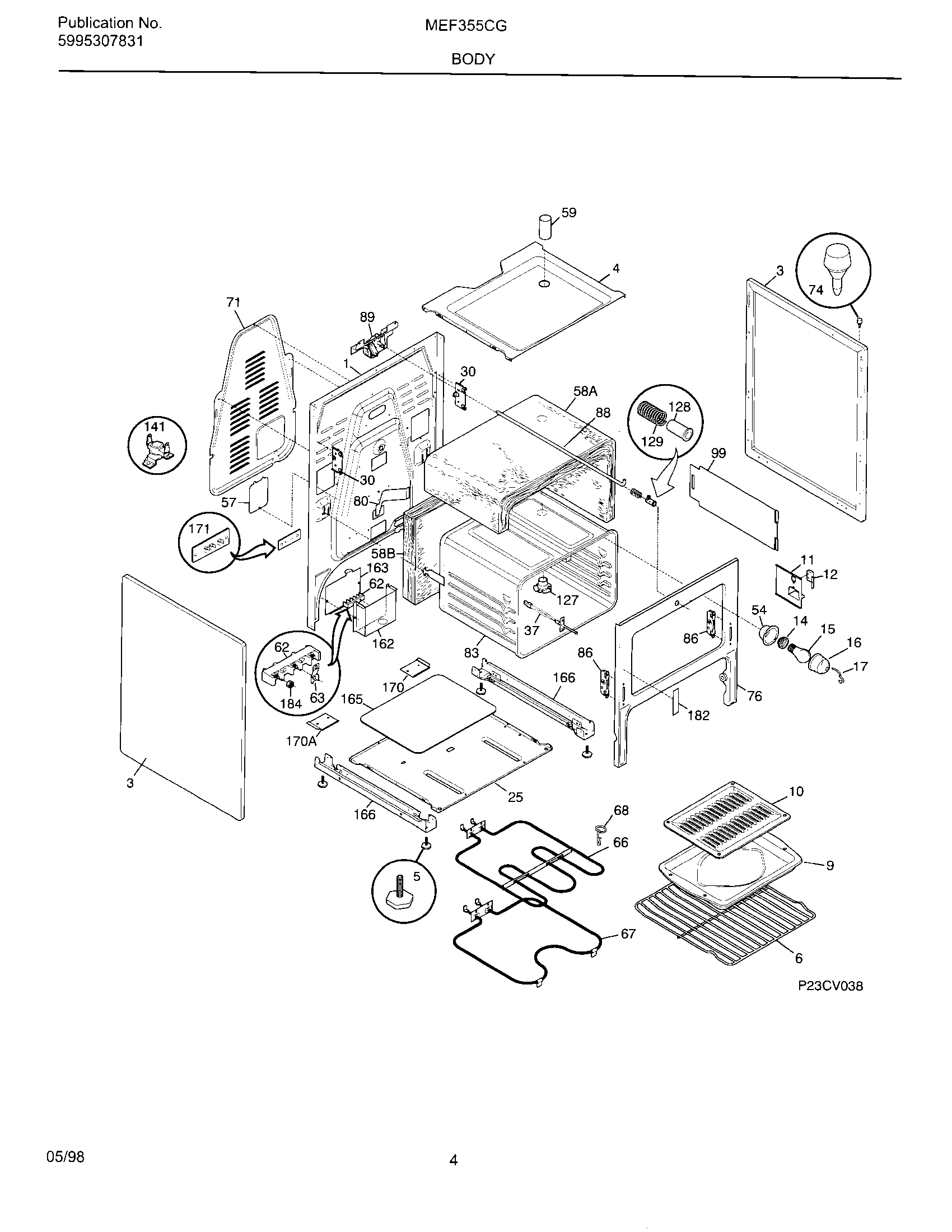

05 - BODY

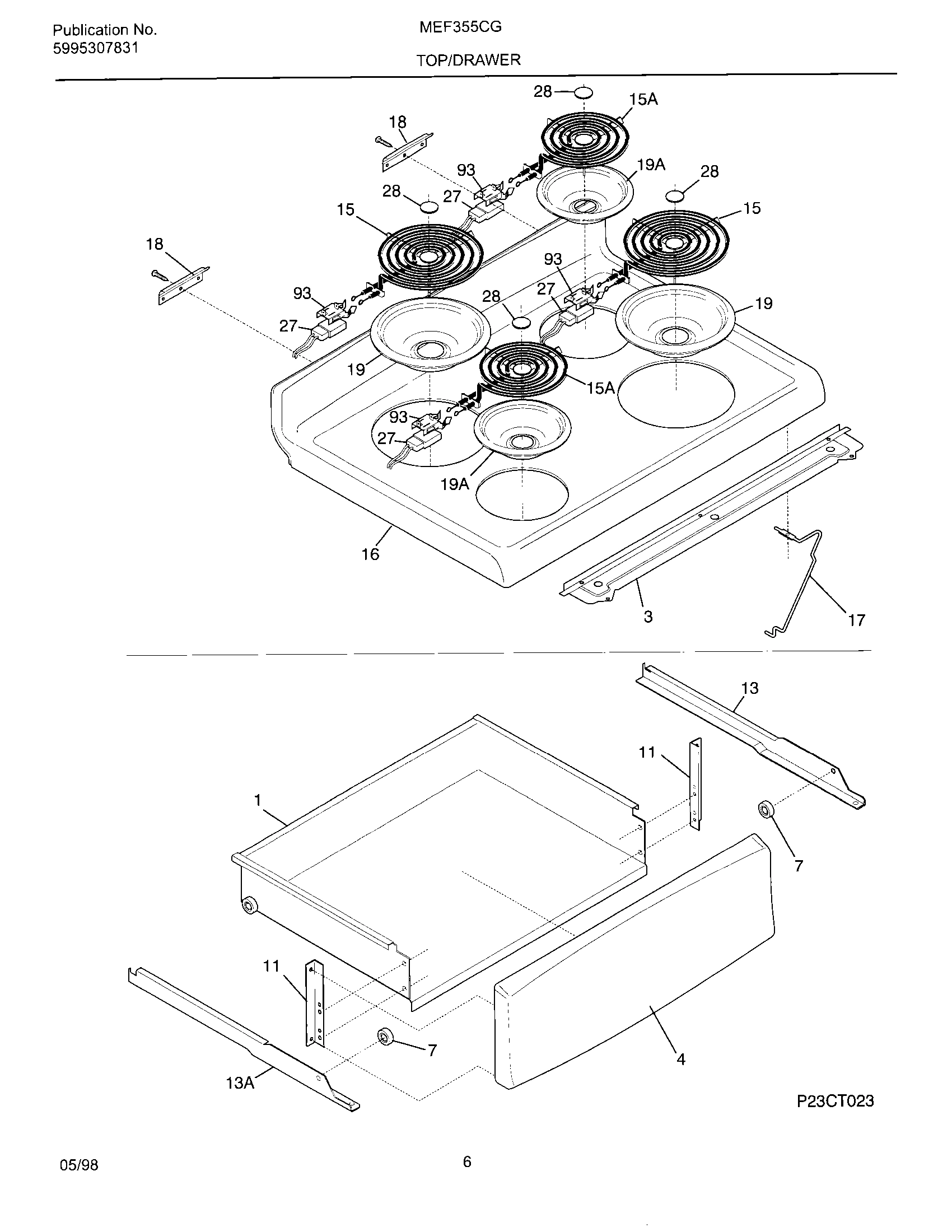

07 - TOP/DRAWER

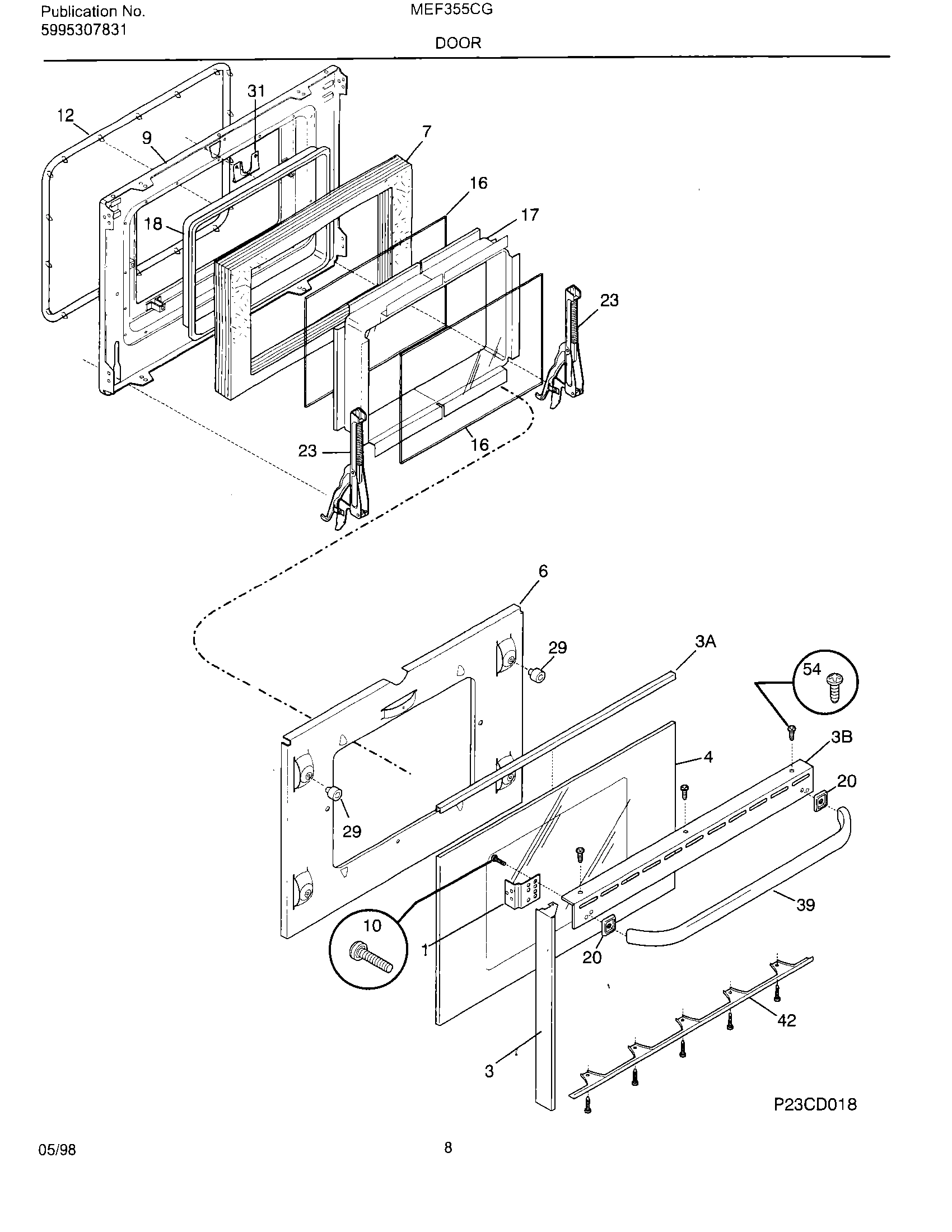

09 - DOOR

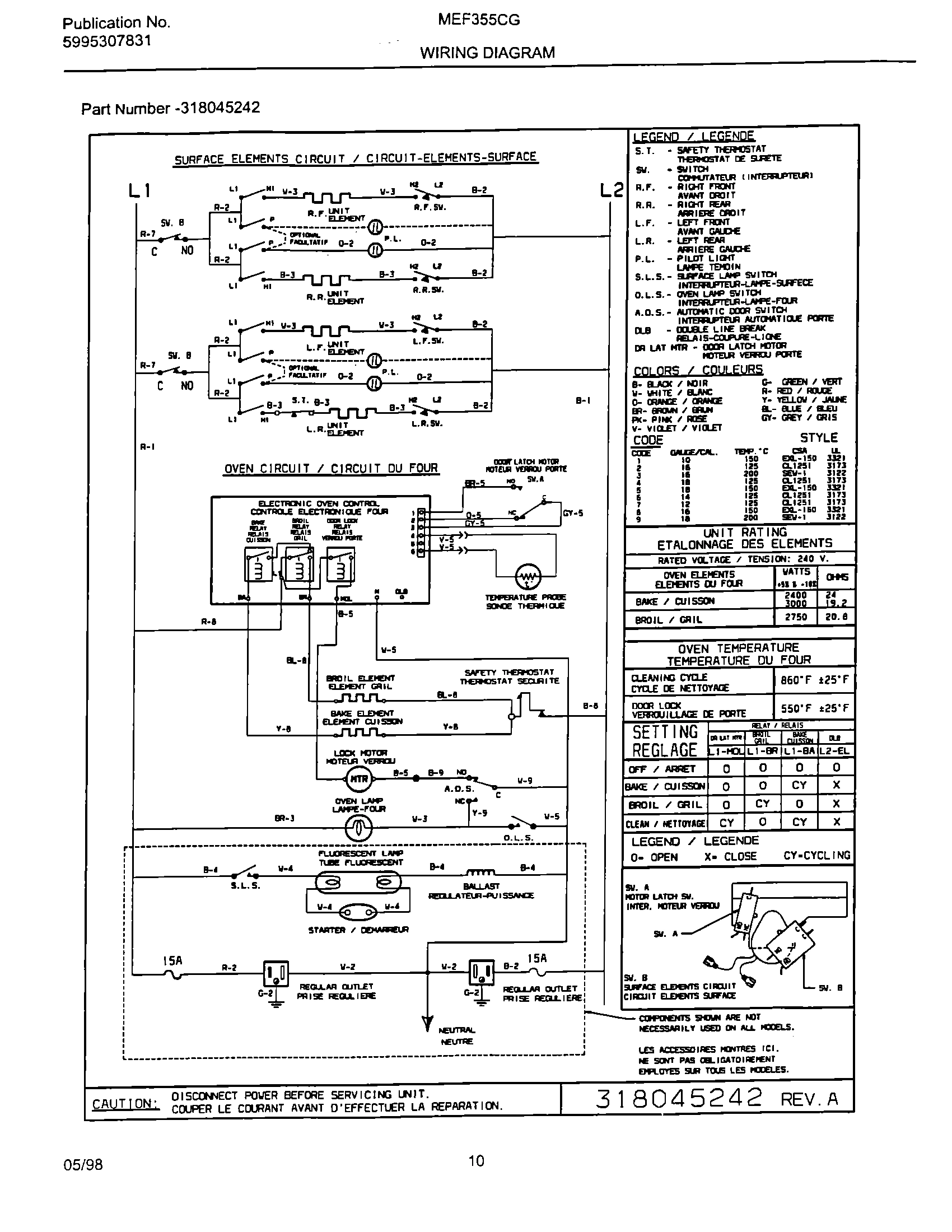

10 - WIRING DIAGRAM
Common parts from model Electrolux MEF355CGS1 RANGE
WCI 318120702 WCI 318120702 Contact Us For Availability
SCREW, 10 X 3/8 WCI 5303131801 Contact Us For Availability
1
WCI 318043100 WCI 318043100 Contact Us For Availability
1
WCI 318107103 WCI 318107103 Contact Us For Availability
3
WCI 318144311 WCI 318144311 Contact Us For Availability
3
TRIM-OVEN DOOR, WHITE, SIDE, (2) WCI 318049206 Contact Us For Availability
3A
TRIM-OVEN DOOR,UPPER WCI 318028900 Contact Us For Availability
3B
TRIM-OVEN DOOR, WHITE, UPPER WCI 318049020 Contact Us For Availability
4
PANEL-DRAWER,WHITE WCI 318044301 Contact Us For Availability
4
WCI 318041110 WCI 318041110 Contact Us For Availability
6
SHIELD-INSULATION WCI 318056802 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 318048802 WCI 318048802 Contact Us For Availability
10
SCREW, 10-24 X 5/8 WCI 5303324305 Contact Us For Availability
11
BRACKET-SUPPORT,DRAWER ,(2) WCI 318107500 Contact Us For Availability
12
WCI 318089800 WCI 318089800 Contact Us For Availability
13
WCI 318018100 WCI 318018100 Contact Us For Availability
13A
WCI 318018101 WCI 318018101 Contact Us For Availability
16
GLASS-OVEN DOOR,INNER WCI 318041603 Contact Us For Availability
16
WCI 318065731 WCI 318065731 Contact Us For Availability
17
CLIP WCI 5304400195 Contact Us For Availability
17
WCI 318119100 WCI 318119100 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
HINGE-MAIN TOP WCI 318074400 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
SPACER-HANDLE,WHITE WCI 318014301 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSY WCI 5303311215 Contact Us For Availability
25
WCI 318108700 WCI 318108700 Contact Us For Availability
27
TERMINAL BLOCK, SURFACE ELEMENT WCI 5303323704 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
BUMPER WCI 5303310535 Contact Us For Availability
30
WCI 318110800 WCI 318110800 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
39
HANDLE-DOOR, WHITE WCI 316091119 Contact Us For Availability
42
Trim,oven door ,white ,lower WCI 5303311194 Contact Us For Availability
54
WCI 318120500 WCI 318120500 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
WCI 318036500 WCI 318036500 Contact Us For Availability
58A
WCI 5303324419 WCI 5303324419 Contact Us For Availability
58B
WCI 5303324420 WCI 5303324420 Contact Us For Availability
59
TUBE-OVEN VENT WCI 318072517 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
71
WCI 318086600 WCI 318086600 Contact Us For Availability
74
WCI 318141900 WCI 318141900 Contact Us For Availability
76
WCI 318108502 WCI 318108502 Contact Us For Availability
83
WCI 318109405 WCI 318109405 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 318118902 WCI 318118902 Contact Us For Availability
89
WCI 318095900 WCI 318095900 Contact Us For Availability
93
SWITCH-THERMAL WCI 3202388 Contact Us For Availability
93
WCI 318122501 WCI 318122501 Contact Us For Availability
99
SUPPORT-SIDE WCI 318126101 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
162
CONNECTION BOX WCI 318096401 Contact Us For Availability
163
WCI 318135802 WCI 318135802 Contact Us For Availability
165
SHIELD-PLATE WCI 318003100 Contact Us For Availability
166
SUPPORT BASE WCI 318111000 Contact Us For Availability
170
ANTI-TIP BRACKET WCI 3203575 Contact Us For Availability
170A
ANTI-TIP BRACKET WCI 3203576 Contact Us For Availability
171
WCI 318111202 WCI 318111202 Contact Us For Availability
182
WCI 316042300 WCI 316042300 Contact Us For Availability
× ![]()
