Model Electrolux MEF325CGS4 RANGE – Common Parts & Diagrams

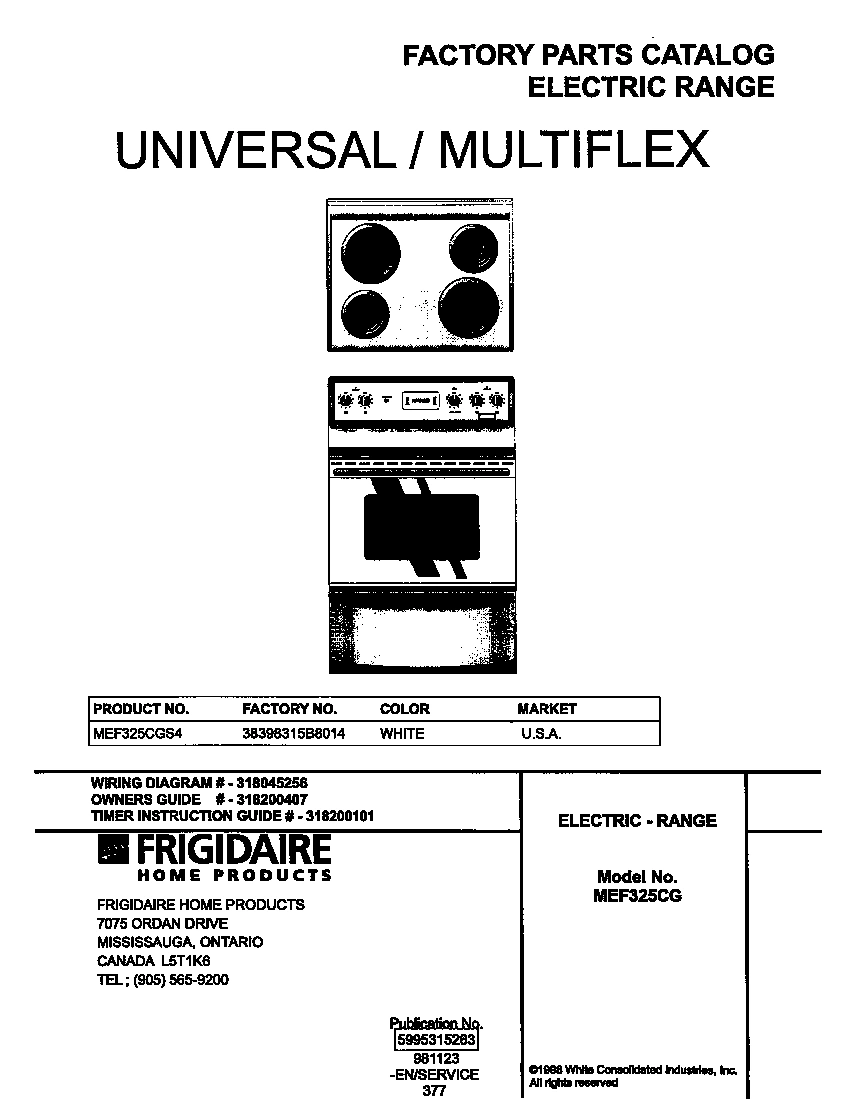

01 - COVER

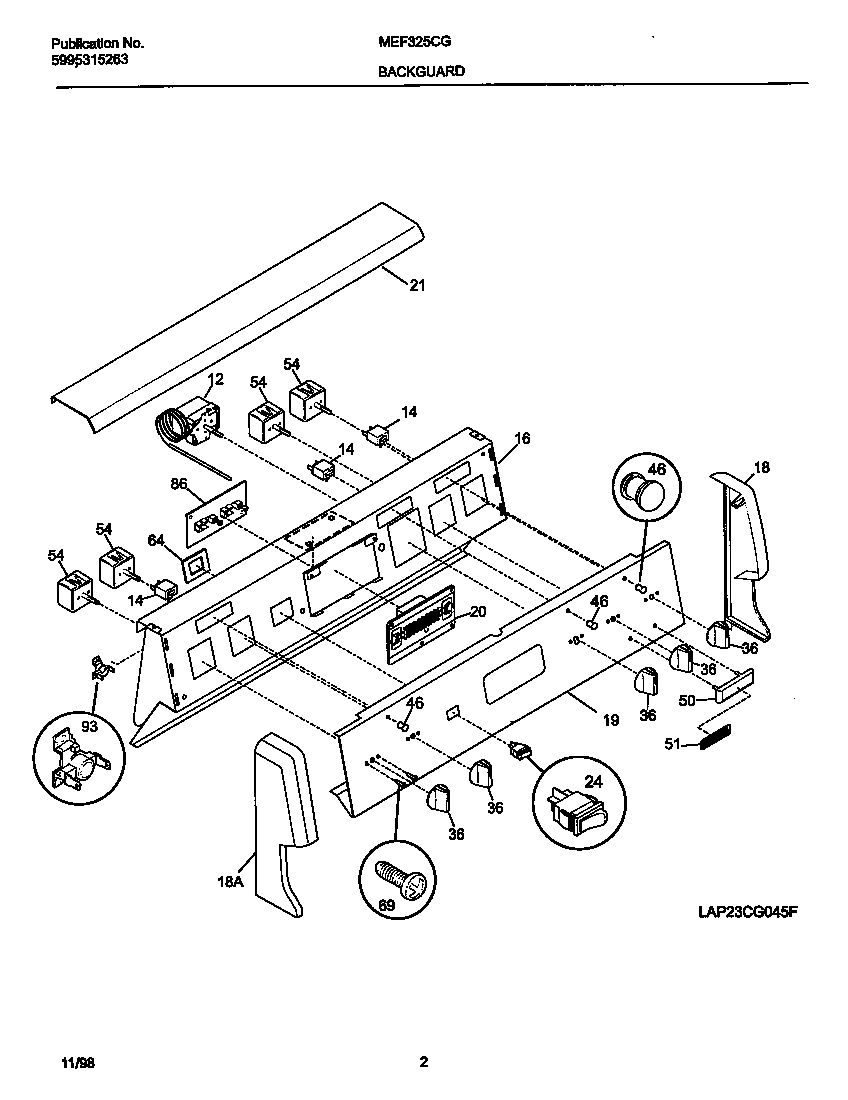

02 - BACKGUARD

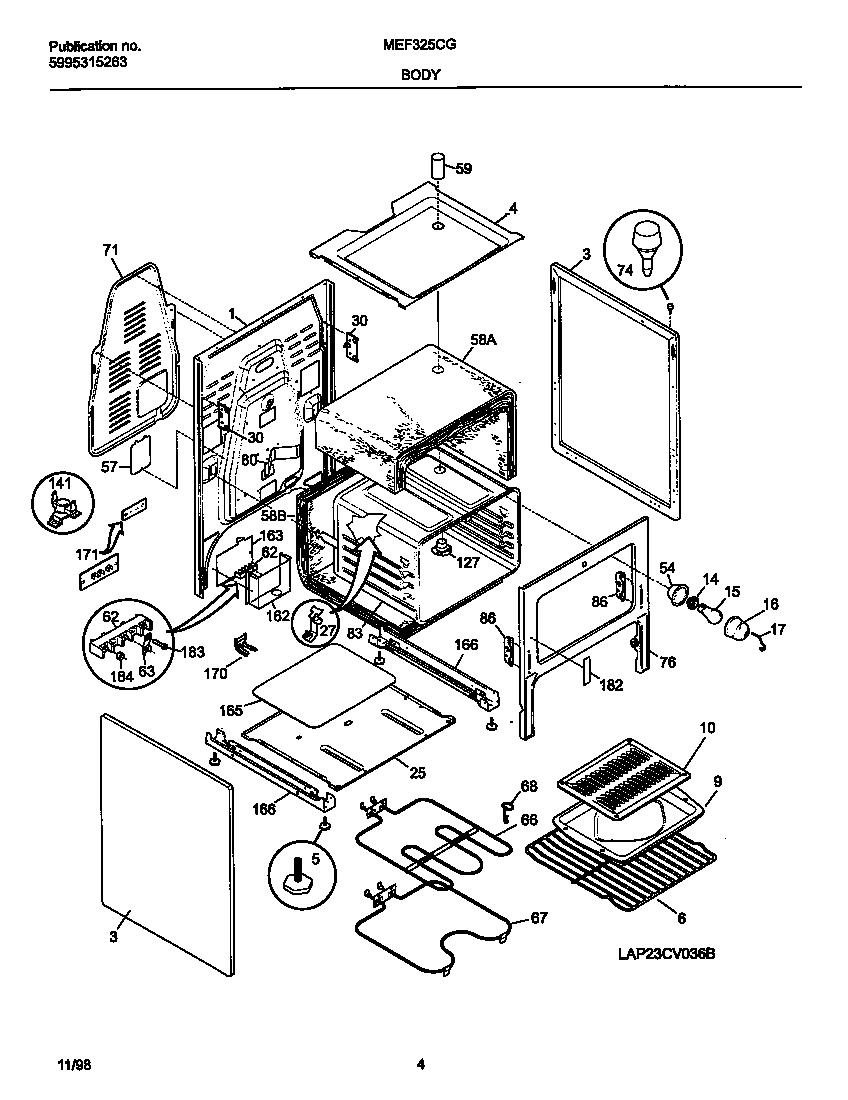

03 - BODY

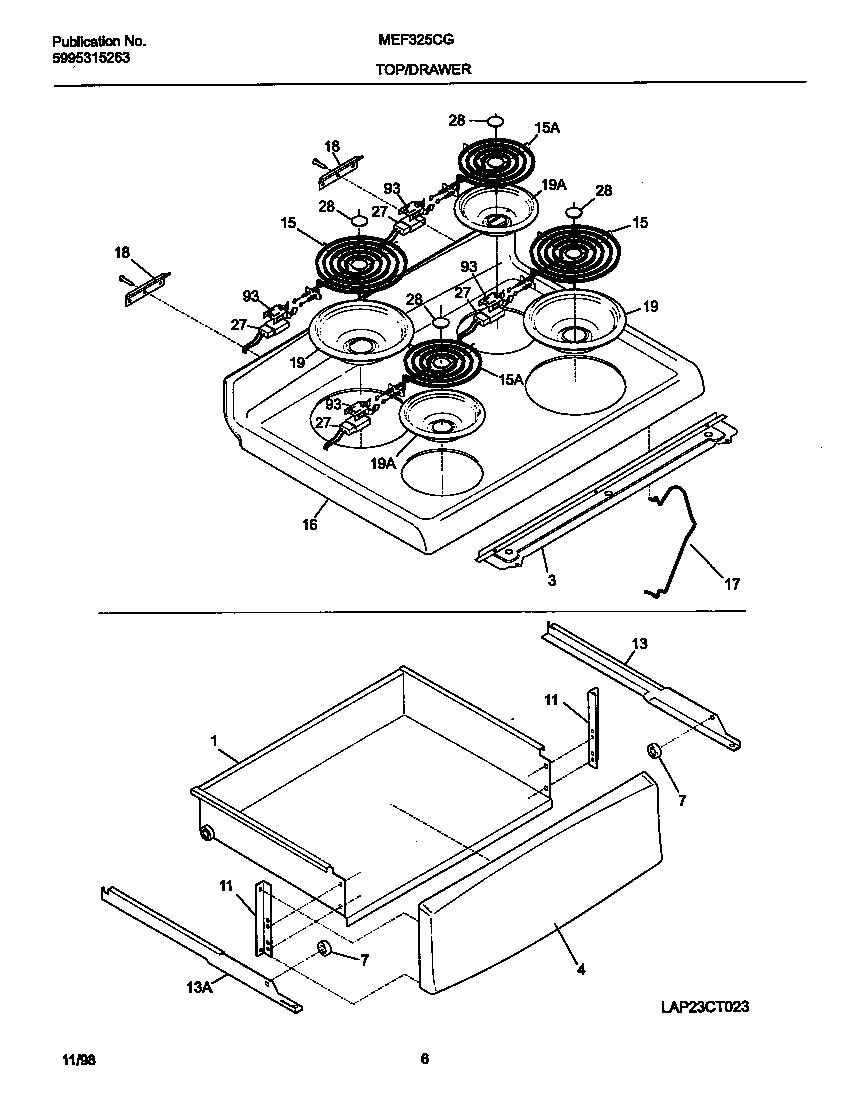

04 - TOP/DRAWER

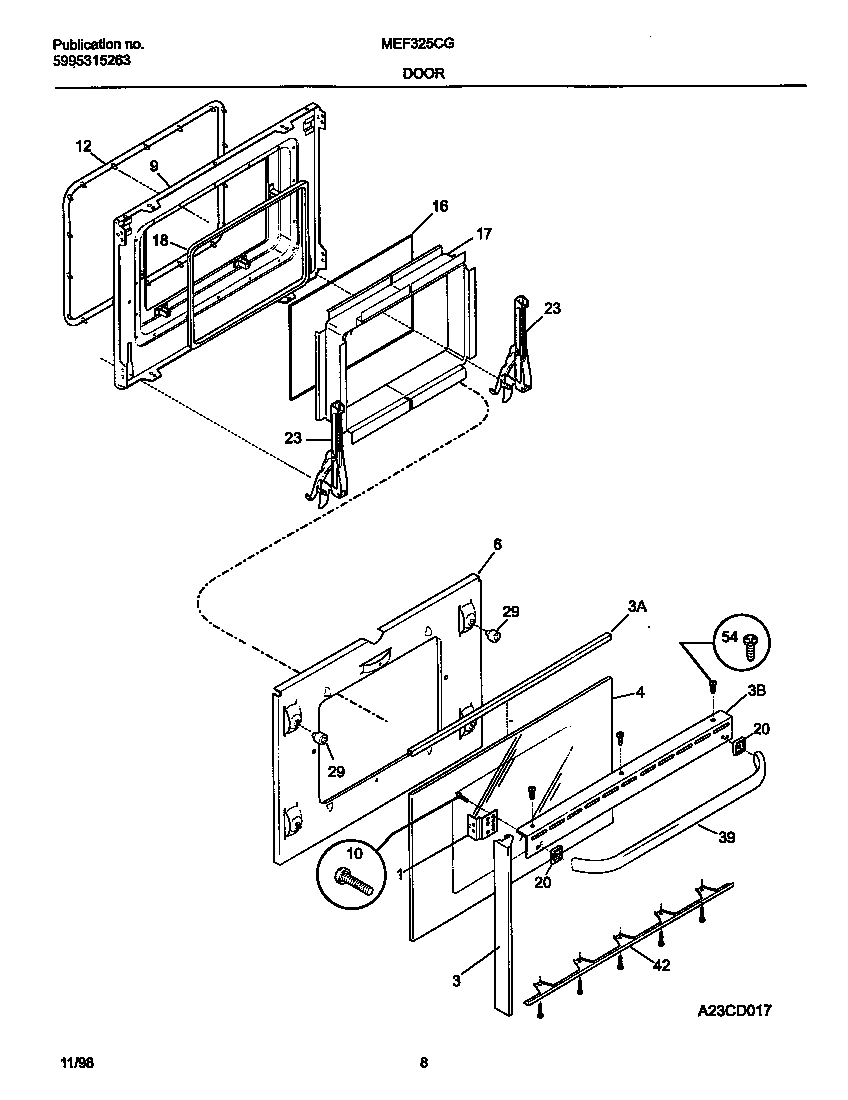

05 - DOOR

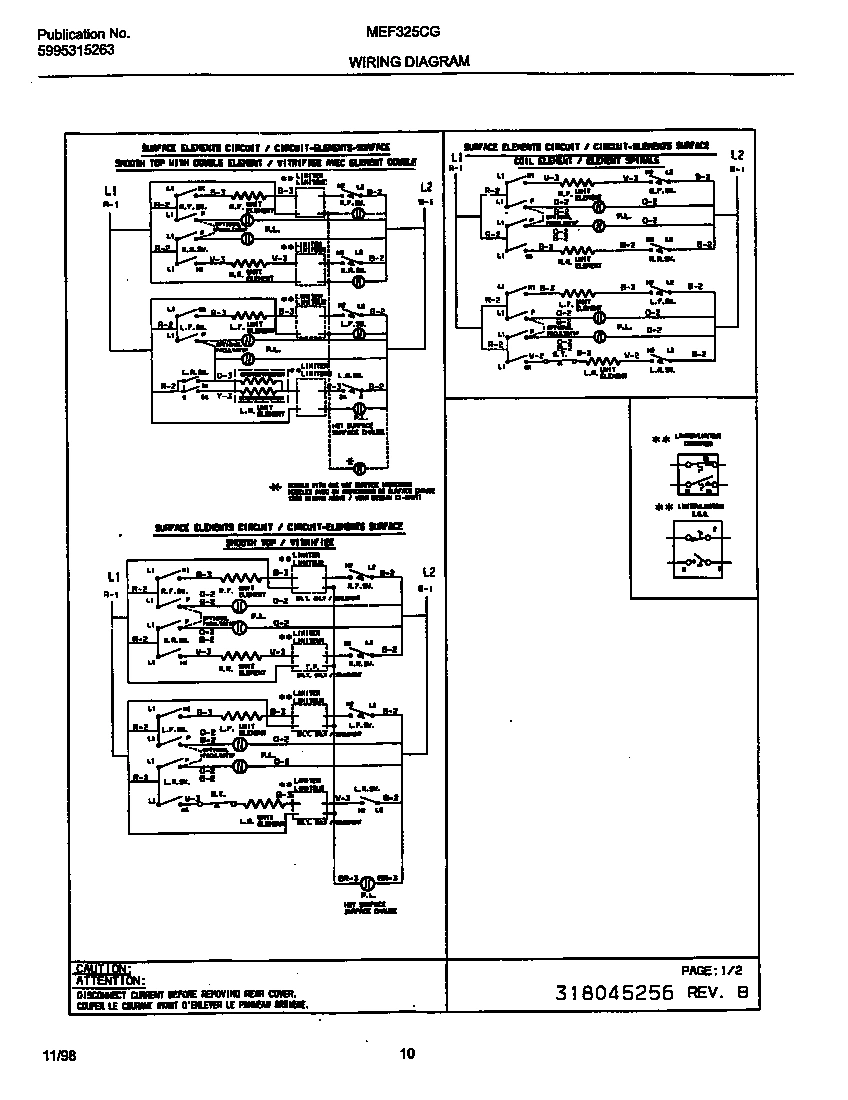

06 - WIRING DIAGRAM

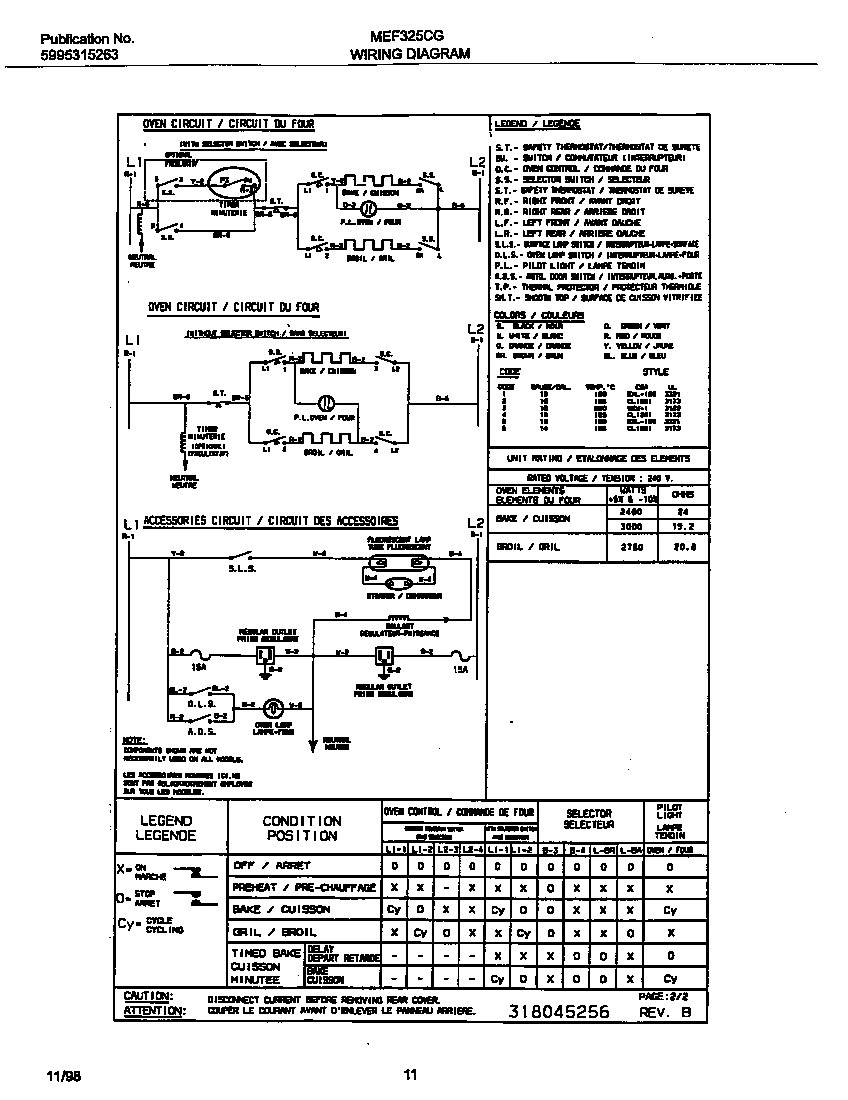

07 - WIRING DIAGRAM
Common parts from model Electrolux MEF325CGS4 RANGE
*04167
SCREW, 10 X 3/8 WCI 5303131801 Contact Us For Availability
1
BRACKET-TRIM,HANDLE WCI 318043100 Contact Us For Availability
1
WCI 318107103 WCI 318107103 Contact Us For Availability
3
WCI 318144311 WCI 318144311 Contact Us For Availability
3
TRIM-OVEN DOOR,UPPER WCI 318028900 Contact Us For Availability
3
TRIM-OVEN DOOR, WHITE, UPPER WCI 318049020 Contact Us For Availability
3
WCI 318049202 WCI 318049202 Contact Us For Availability
4
WCI 318073801 WCI 318073801 Contact Us For Availability
4
PANEL-DRAWER,WHITE WCI 318044301 Contact Us For Availability
4
WCI 318041110 WCI 318041110 Contact Us For Availability
5
WCI 318175500 WCI 318175500 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
6
SHIELD-INSULATION WCI 318056802 Contact Us For Availability
7
WCI 318014800 WCI 318014800 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048803 WCI 318048803 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
BRACKET-SUPPORT DRAWER WCI 318107500 Contact Us For Availability
12
WCI 318053301 WCI 318053301 Contact Us For Availability
13
WCI 318018100 WCI 318018100 Contact Us For Availability
13
WCI 318018101 WCI 318018101 Contact Us For Availability
15
LIGHT BULB/LAMP WCI 5303299720 Contact Us For Availability
16
GLASS-OVEN DOOR,INNER WCI 318041603 Contact Us For Availability
16
MAIN TOP WCI 318065731 Contact Us For Availability
17
CLIP WCI 5304400195 Contact Us For Availability
17
ROD-MAIN TOP WCI 318119100 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
HINGE-MAIN TOP WCI 318074400 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
SPACER-HANDLE,WHITE WCI 318014301 Contact Us For Availability
23
WCI 5303320452 WCI 5303320452 Contact Us For Availability
25
WCI 318108700 WCI 318108700 Contact Us For Availability
27
WCI 5303323704 WCI 5303323704 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
BUMPER WCI 5303310535 Contact Us For Availability
30
BRACKET-MAIN TOP WCI 318110800 Contact Us For Availability
39
HANDLE-DOOR, WHITE, OVEN WCI 316091119 Contact Us For Availability
42
WCI 5303311194 WCI 5303311194 Contact Us For Availability
54
WCI 318120500 WCI 318120500 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
WCI 318036500 WCI 318036500 Contact Us For Availability
58
WCI 5303310516 WCI 5303310516 Contact Us For Availability
58
WCI 5303310519 WCI 5303310519 Contact Us For Availability
59
TUBE-OVEN VENT WCI 318072517 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
71
WCI 318086600 WCI 318086600 Contact Us For Availability
74
WCI 318141900 WCI 318141900 Contact Us For Availability
76
WCI 318108503 WCI 318108503 Contact Us For Availability
83
WCI 318109402 WCI 318109402 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
93
SWITCH-THERMAL WCI 3202388 Contact Us For Availability
93
WCI 318122501 WCI 318122501 Contact Us For Availability
141
THERMOSTAT-SAFETY WCI 5303299721 Contact Us For Availability
162
CONNECTION BOX WCI 318096401 Contact Us For Availability
163
WCI 318135802 WCI 318135802 Contact Us For Availability
165
SHIELD-PLATE WCI 318003100 Contact Us For Availability
166
BRACKET-BASE WCI 318111000 Contact Us For Availability
170
WCI 318170400 WCI 318170400 Contact Us For Availability
171
WCI 318111202 WCI 318111202 Contact Us For Availability
182
WCI 316042301 WCI 316042301 Contact Us For Availability
× ![]()
