Model Electrolux MEF322WGSD RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

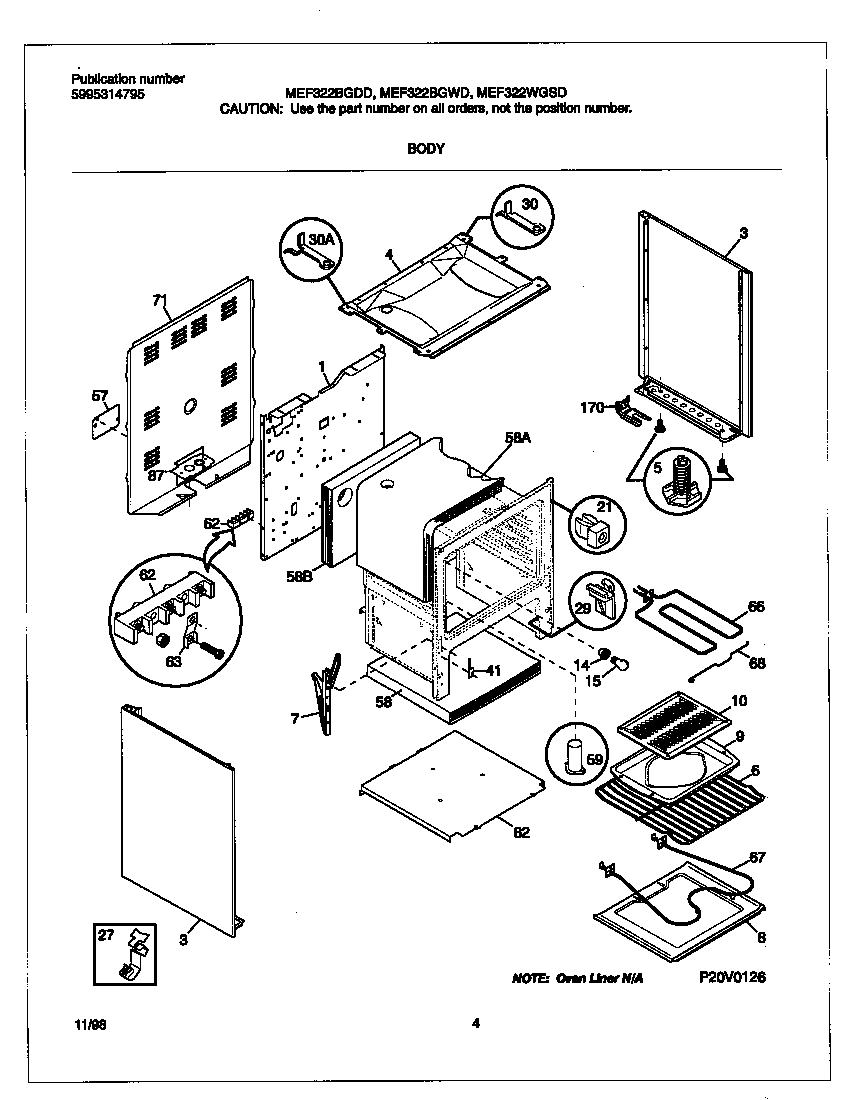

03 - BODY

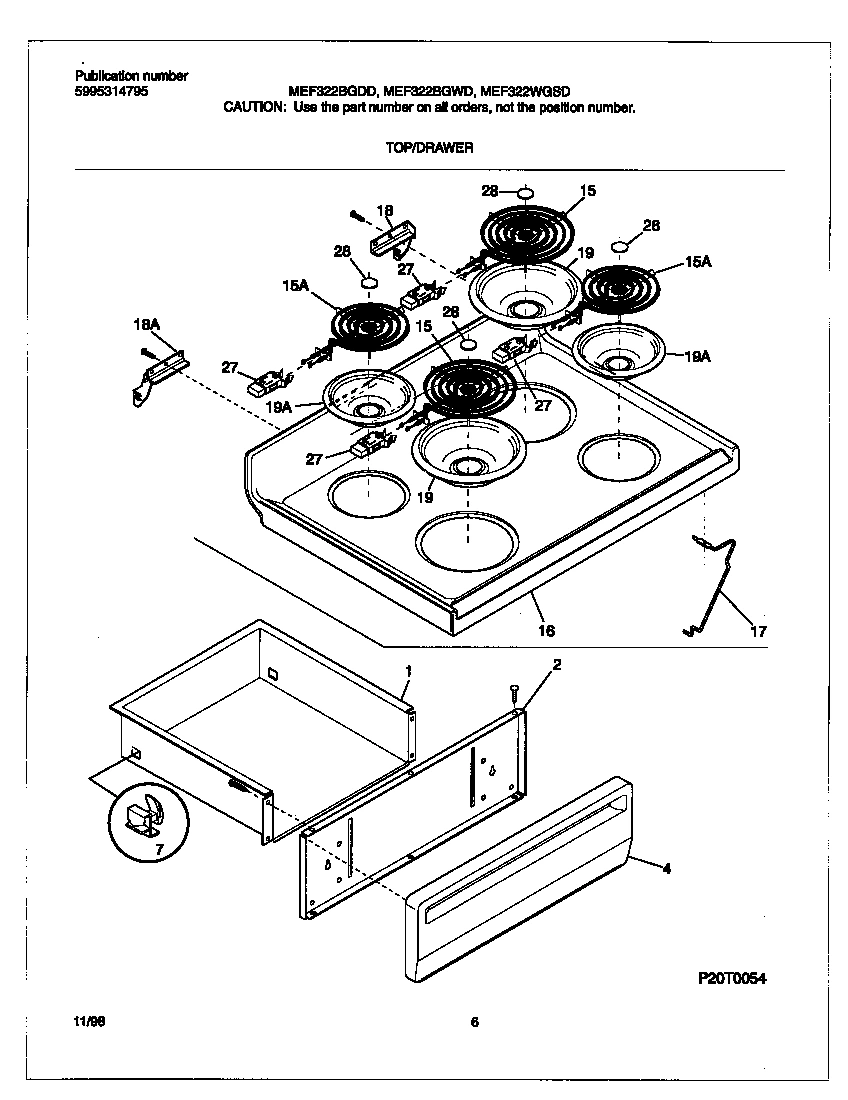

04 - TOP/DRAWER

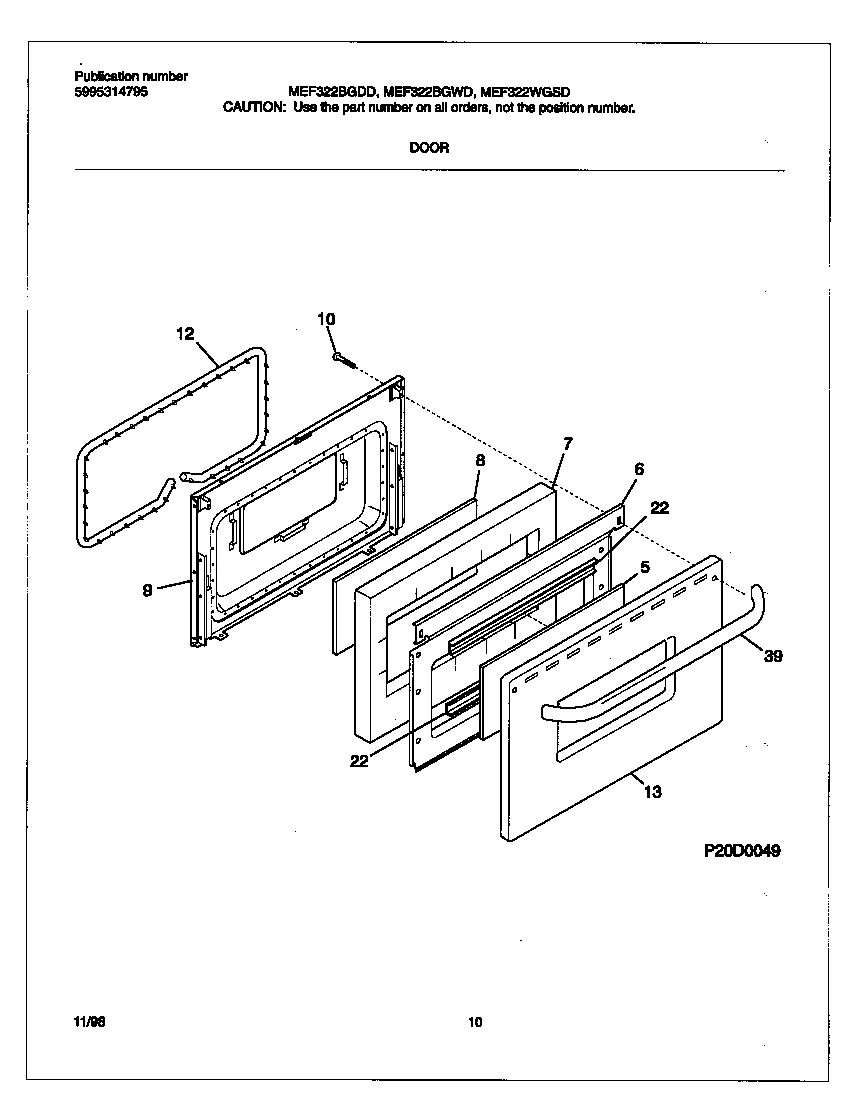

06 - DOOR

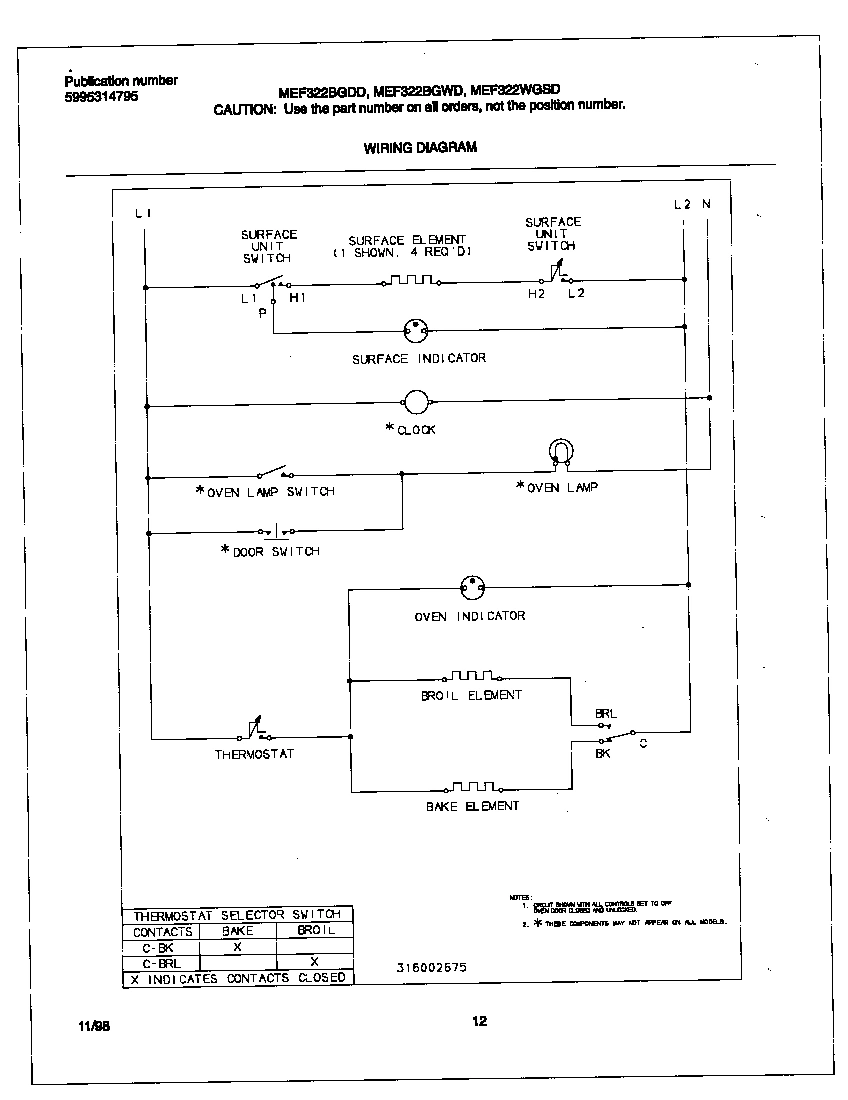

07 - WIRING DIAGRAM
Common parts from model Electrolux MEF322WGSD RANGE
*70121
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*70128
WCI 316001725 WCI 316001725 Contact Us For Availability
*70134
WCI 316089600 WCI 316089600 Contact Us For Availability
*70146
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
5
Glass,oven door ,white ,outer WCI 316050300 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
20
WCI 316113200 WCI 316113200 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
28
BUTTON-CLOCK,WHITE , CLOCK SET WCI 316017303 Contact Us For Availability
29
WCI 316028402 WCI 316028402 Contact Us For Availability
36
WCI 316109601 WCI 316109601 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
× ![]()
