Model Electrolux MEF322WGSA RANGE – Common Parts & Diagrams

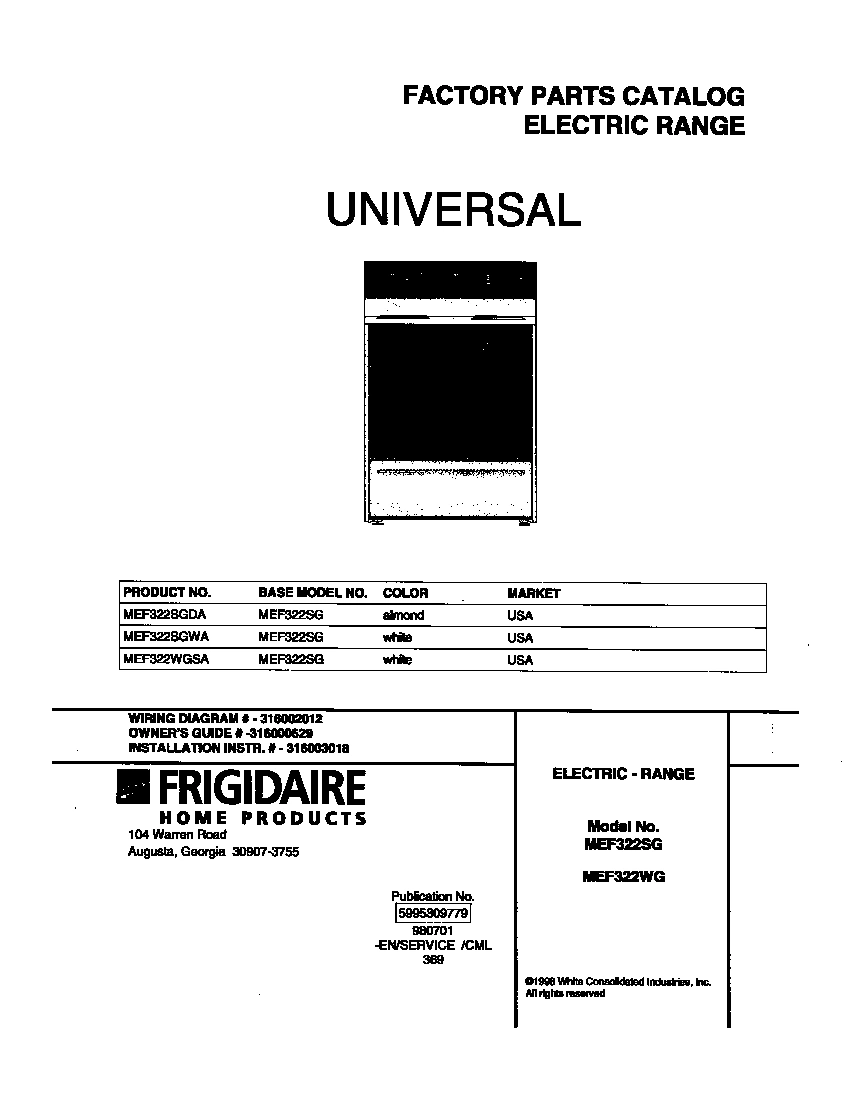

01 - COVER

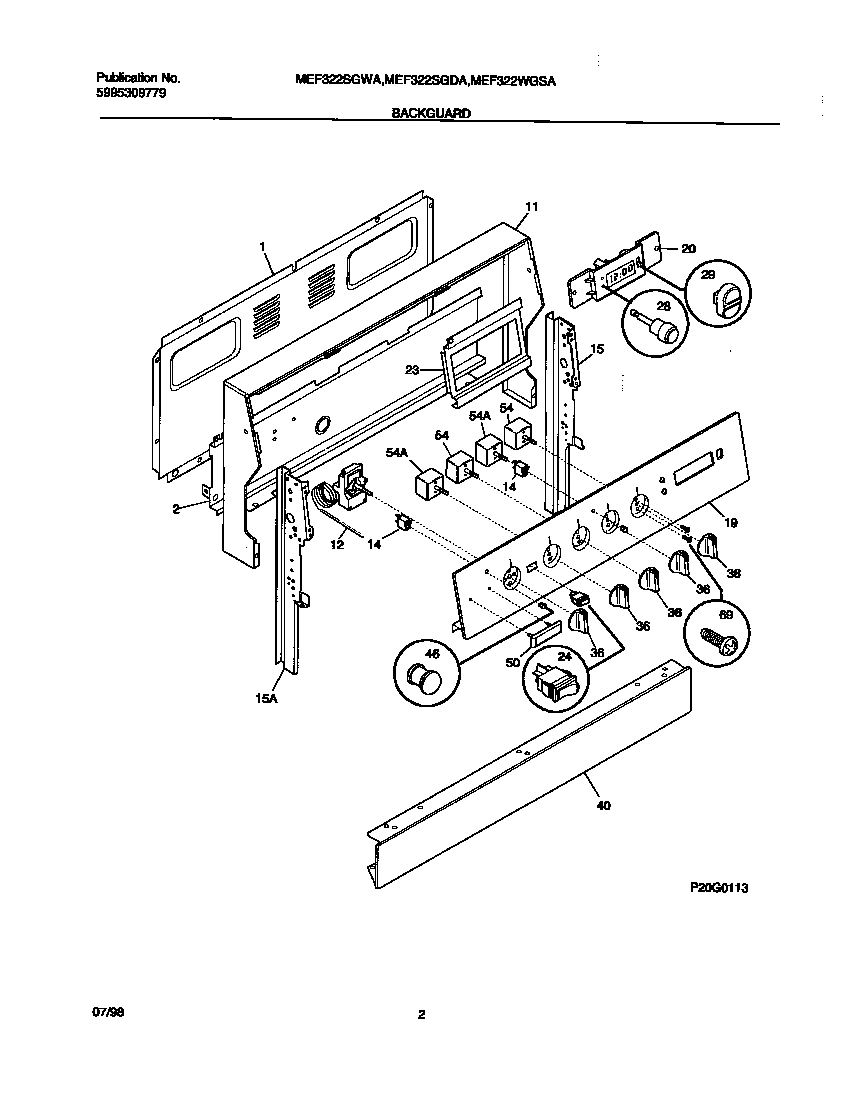

02 - BACKGUARD

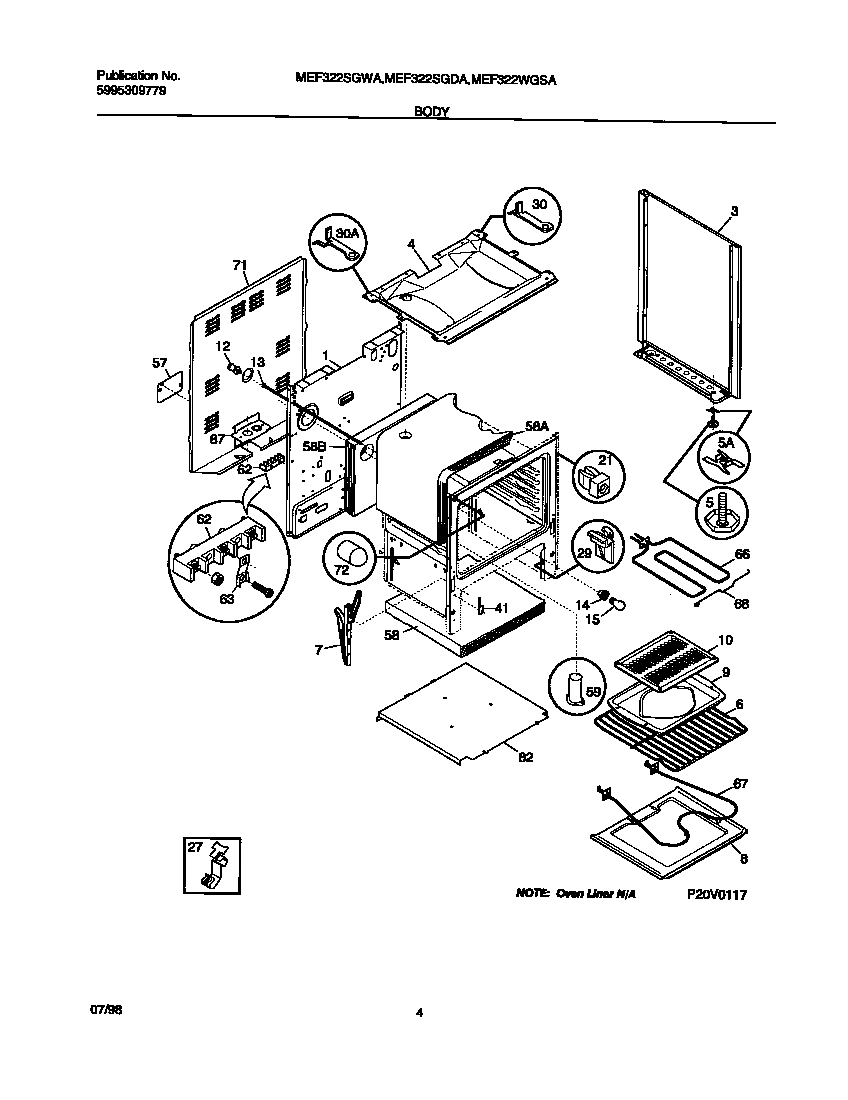

03 - BODY

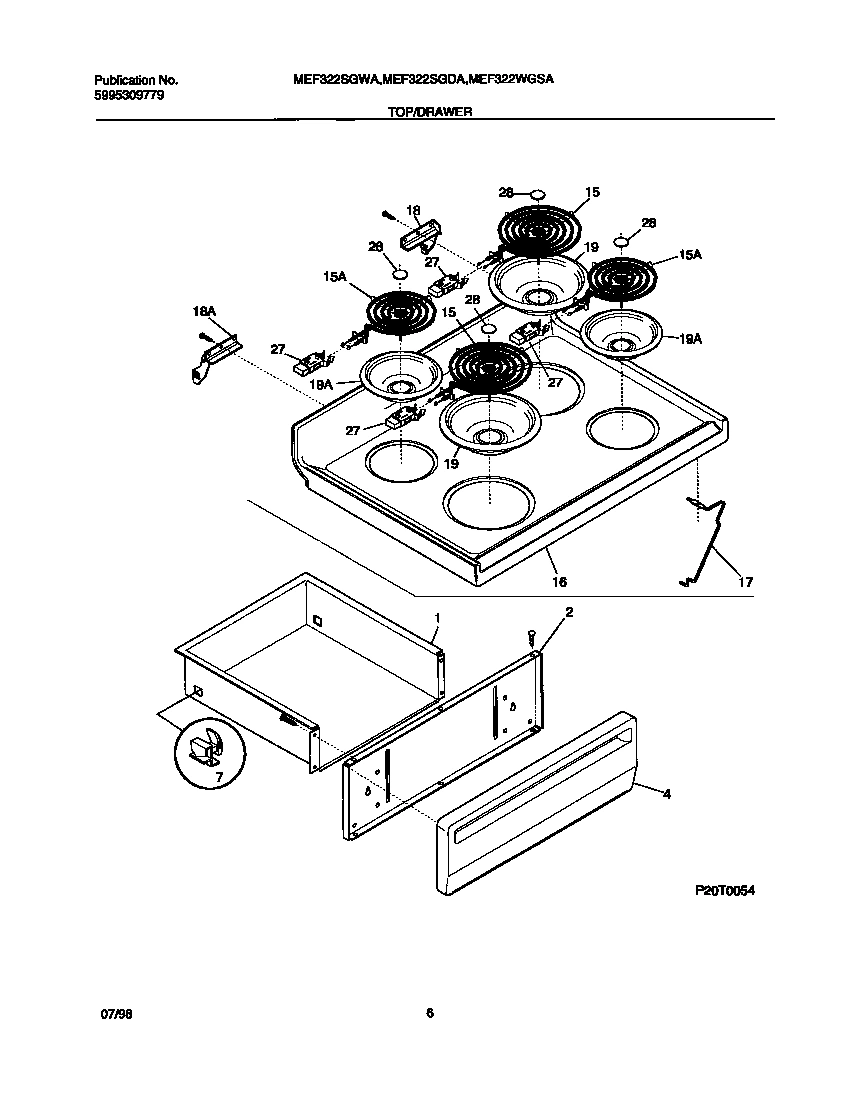

04 - TOP/DRAWER

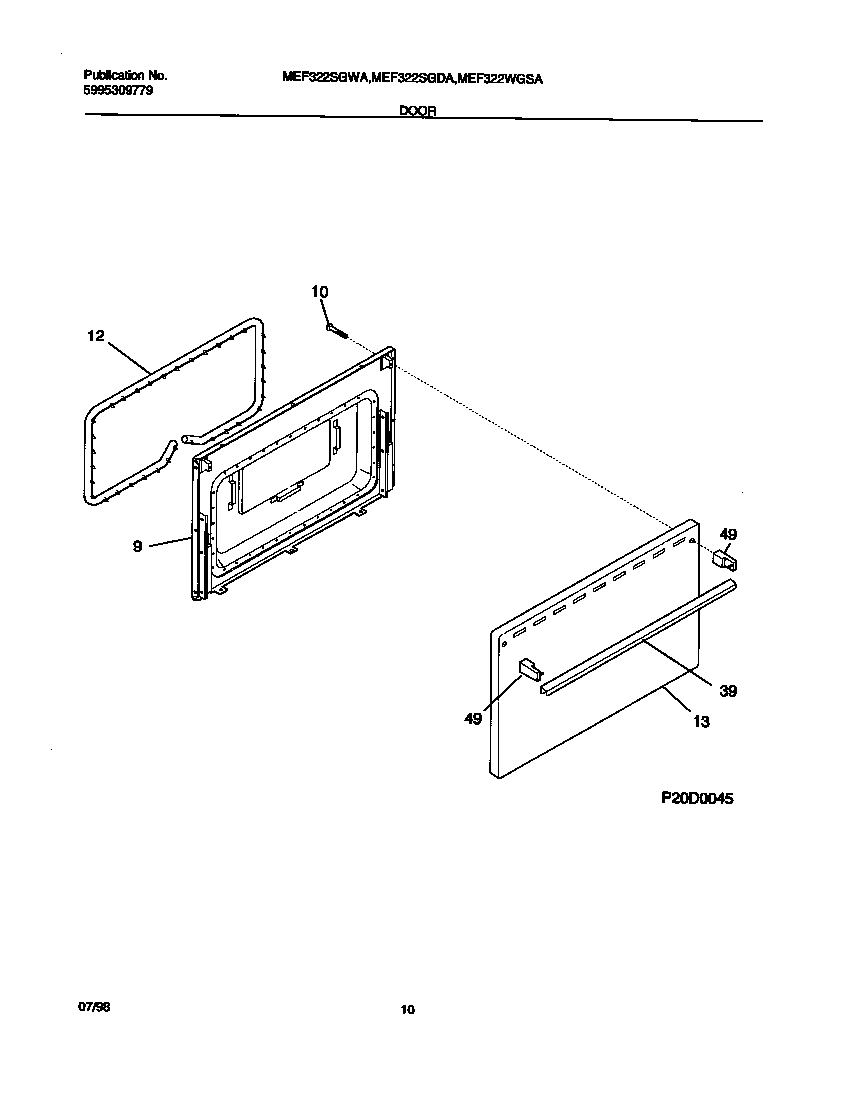

06 - DOOR

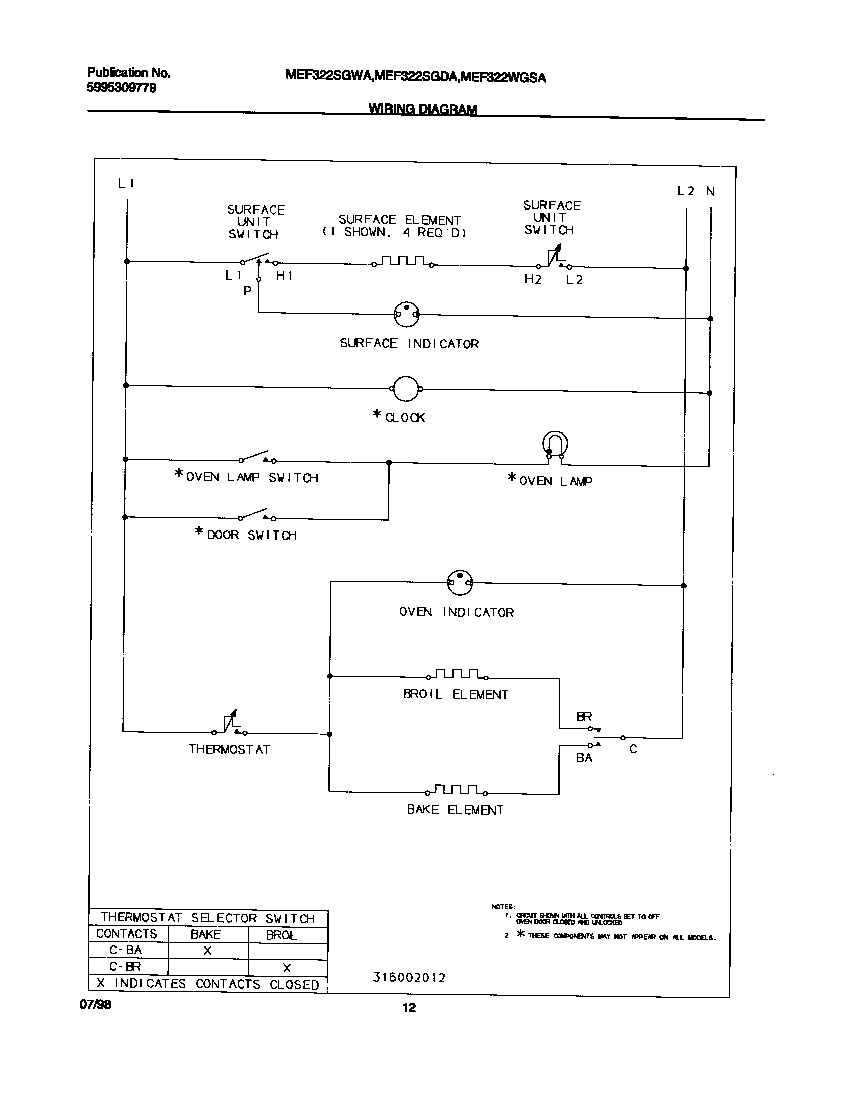

07 - WIRING DIAGRAM
Common parts from model Electrolux MEF322WGSA RANGE
*42566
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
*42575
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*42580
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*42588
WCI 318014301 WCI 318014301 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
WCI 316050300 WCI 316050300 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
GLASS-OVEN DOOR, AIRWASH WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
12
WCI 316032401 WCI 316032401 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
18A
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18B
WCI 5303288420 WCI 5303288420 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
28
BUTTON-CLOCK, WHITE WCI 316017303 Contact Us For Availability
28A
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
29
WCI 316028402 WCI 316028402 Contact Us For Availability
36
WCI 316109601 WCI 316109601 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
× ![]()
