Model Electrolux MEF322SBDB RANGE – Common Parts & Diagrams

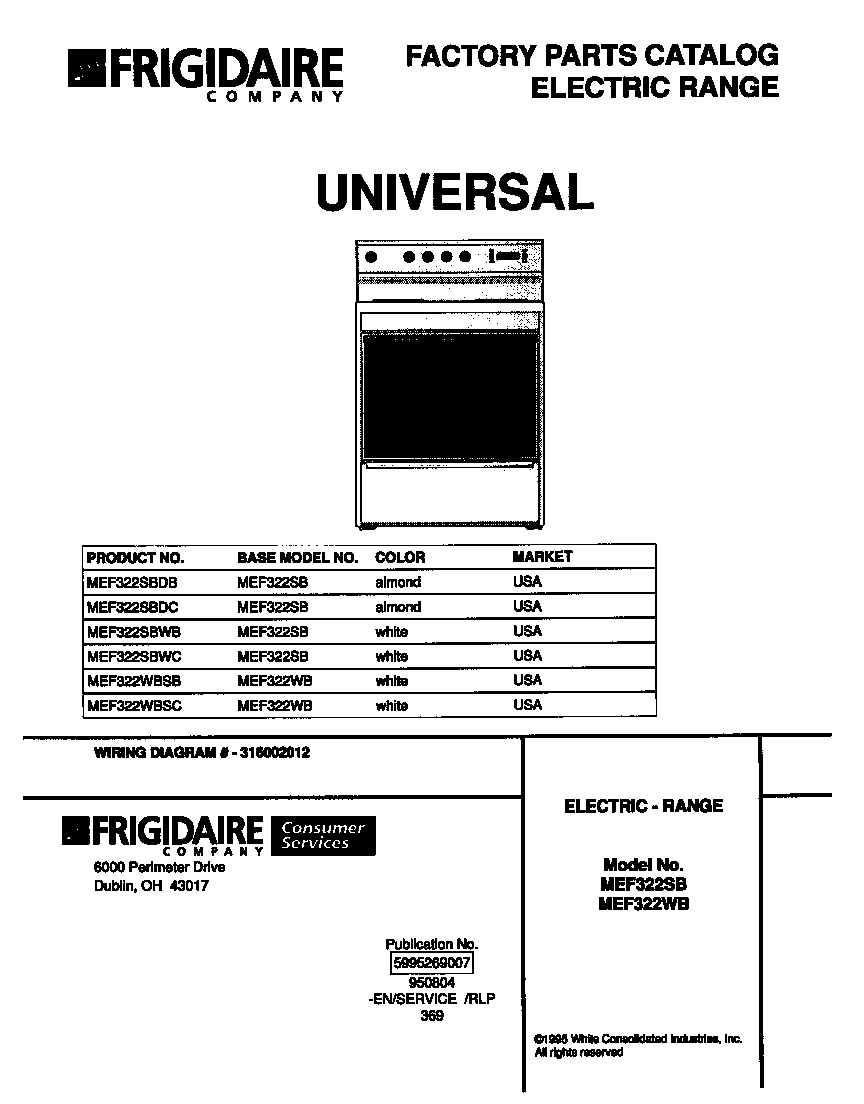

01 - COVER

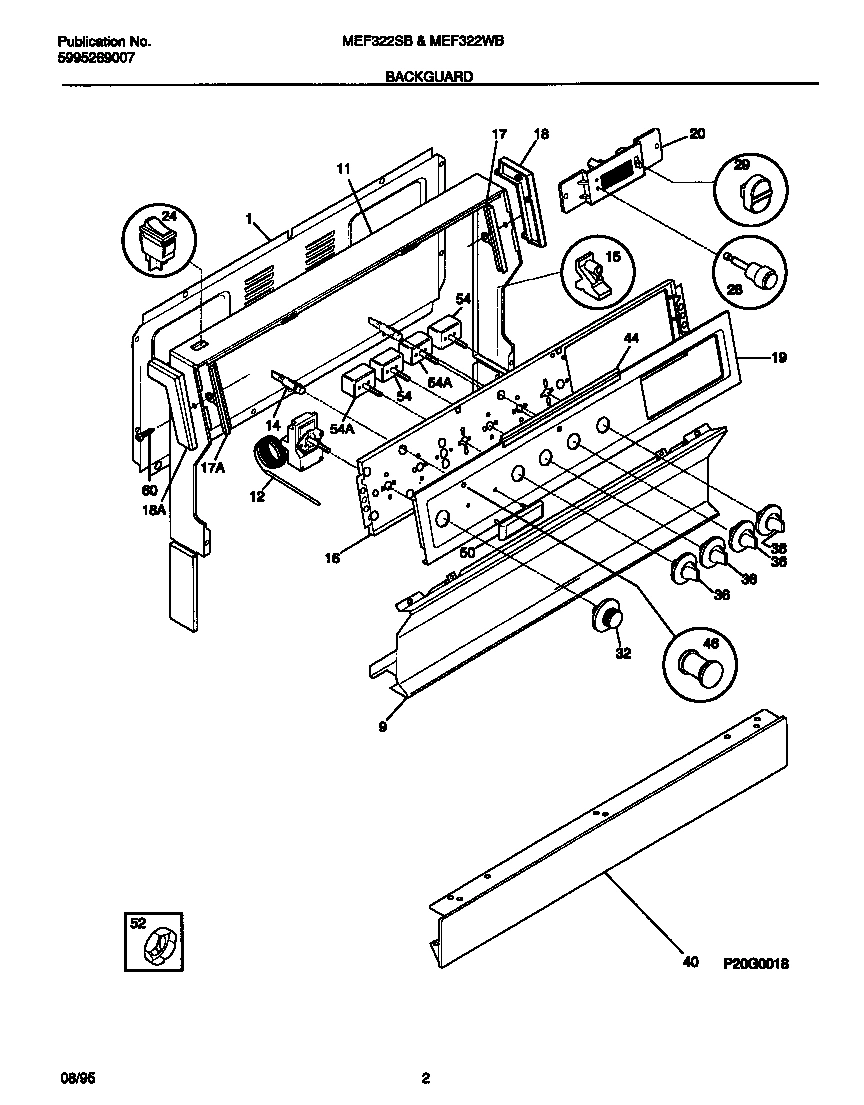

02 - BACKGUARD

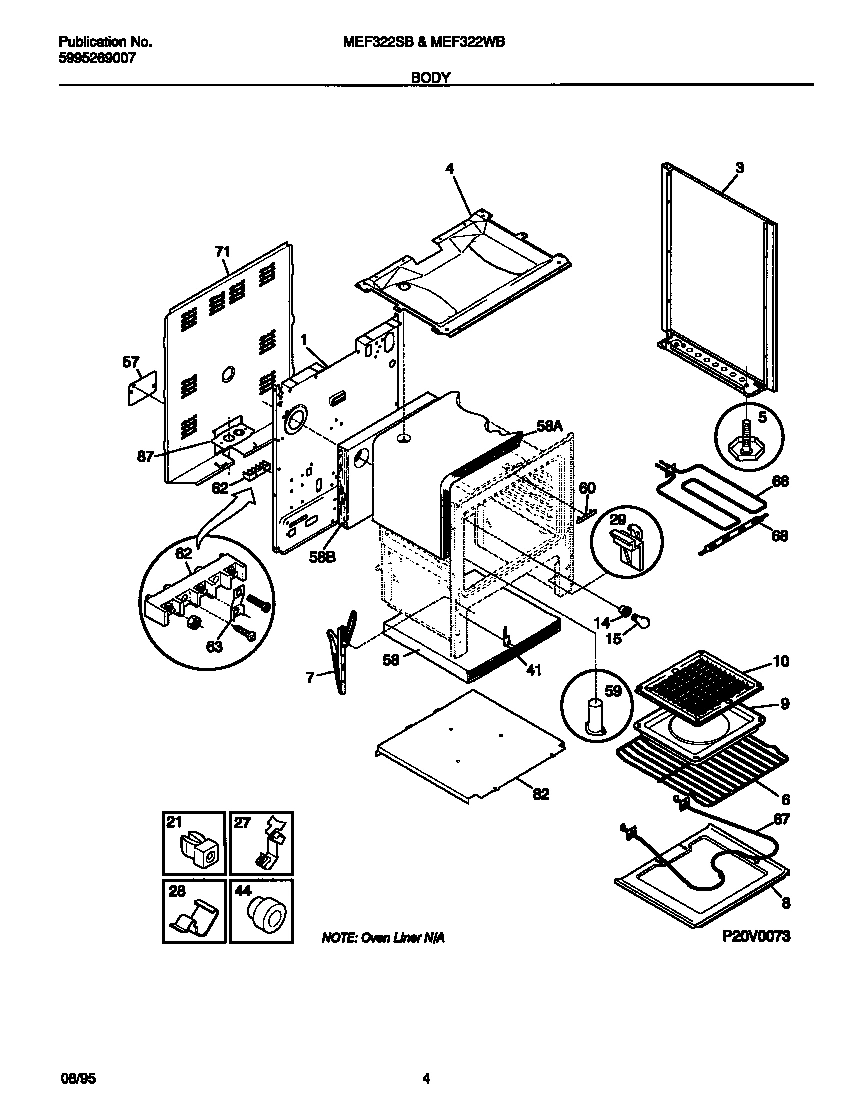

03 - BODY

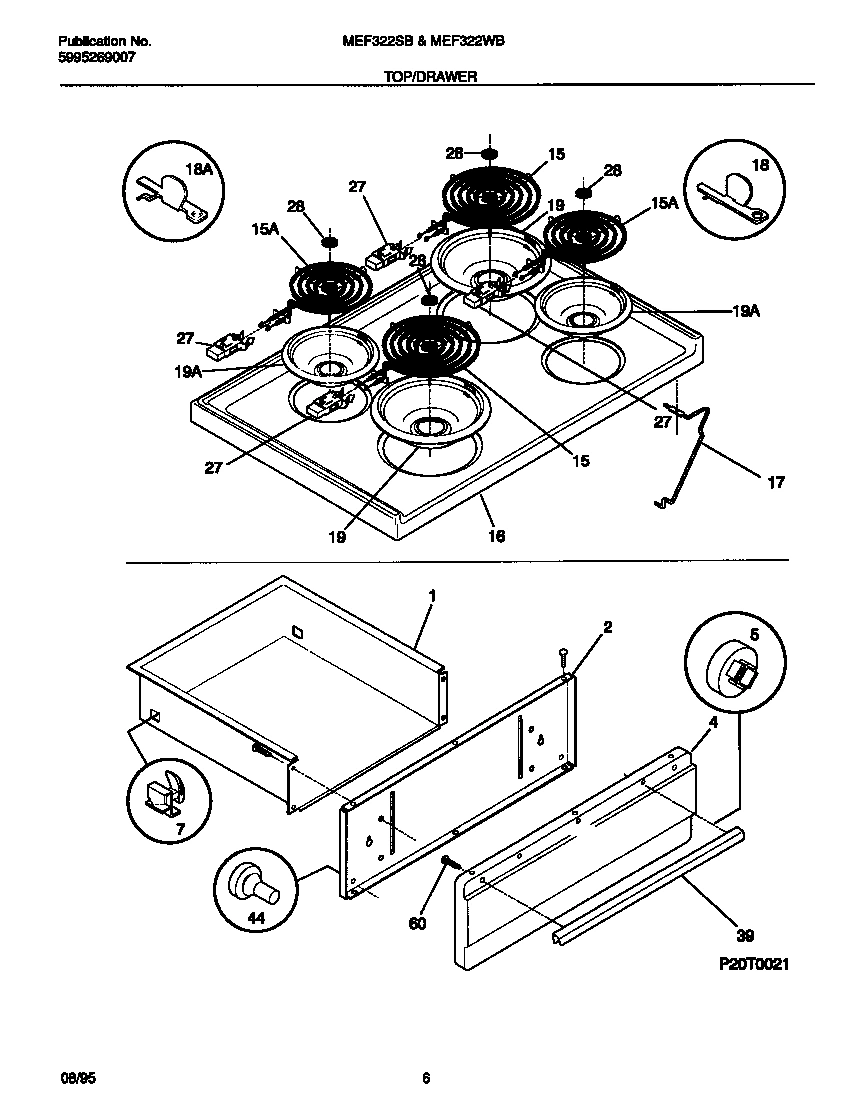

04 - TOP/DRAWER

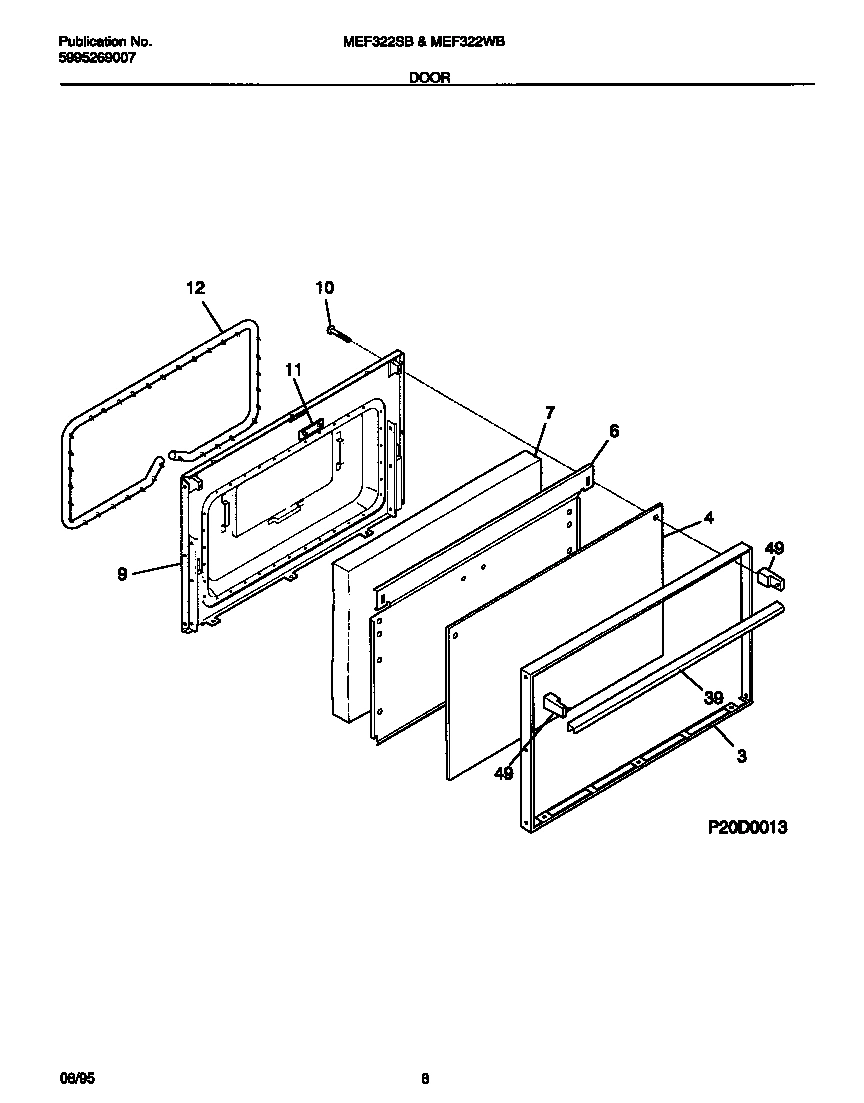

05 - DOOR

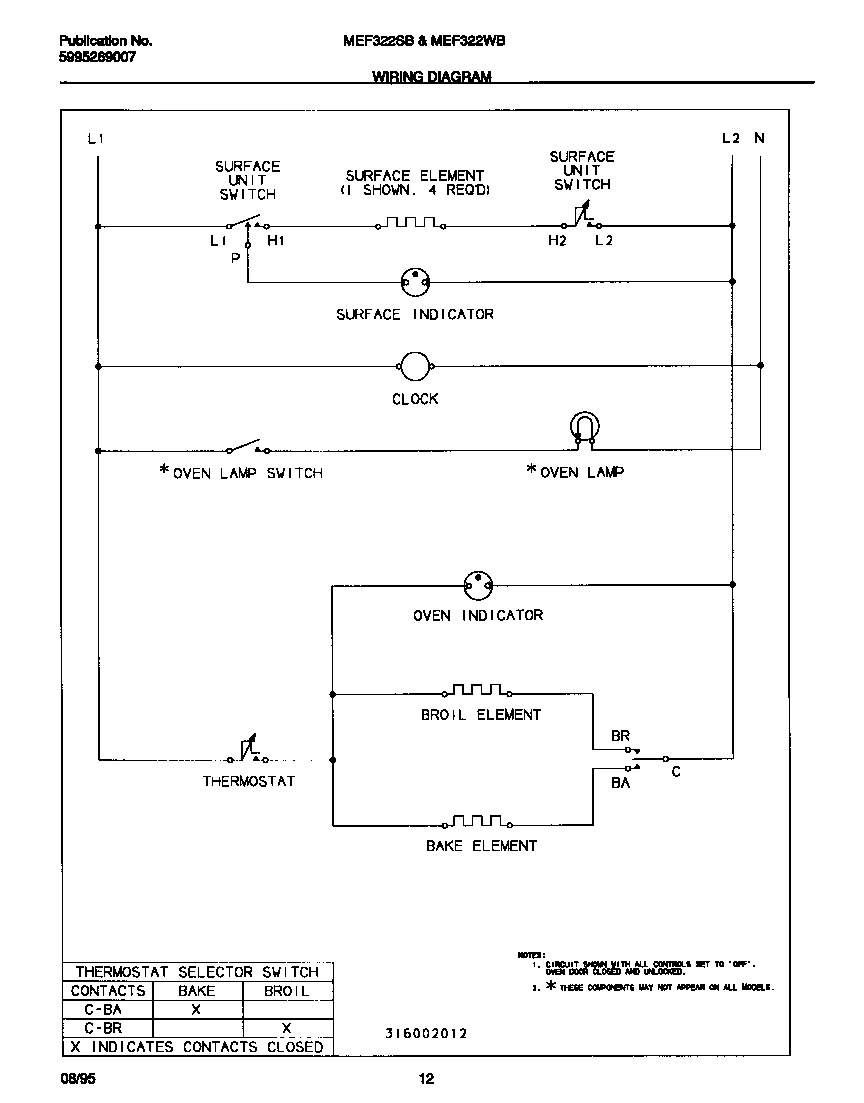

07 - WIRING DIAGRAM
Common parts from model Electrolux MEF322SBDB RANGE
*16204
WCI 3051218 WCI 3051218 Contact Us For Availability
*16209
WCI 316001110 WCI 316001110 Contact Us For Availability
*16212
WCI 5303281379 WCI 5303281379 Contact Us For Availability
*16213
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*16215
WCI 316071600 WCI 316071600 Contact Us For Availability
*16216
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*16218
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*16219
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
WCI 316080801 WCI 316080801 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WIRING DIAGRAM WCI 316002012 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316081006 WCI 316081006 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
3A
WCI 316081007 WCI 316081007 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
GLASS-OVEN DOOR, SOLID BLACK, OUTER WCI 5303051153 Contact Us For Availability
4A
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
WCI 3934058 WCI 3934058 Contact Us For Availability
5C
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066602 WCI 316066602 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
12
WCI 5303212745 WCI 5303212745 Contact Us For Availability
16
WCI 3013512 WCI 3013512 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
29
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
59
WCI 316073601 WCI 316073601 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
WCI 5303289970 WCI 5303289970 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 316081201 WCI 316081201 Contact Us For Availability
× ![]()
