Model Electrolux MEF318BBDE RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

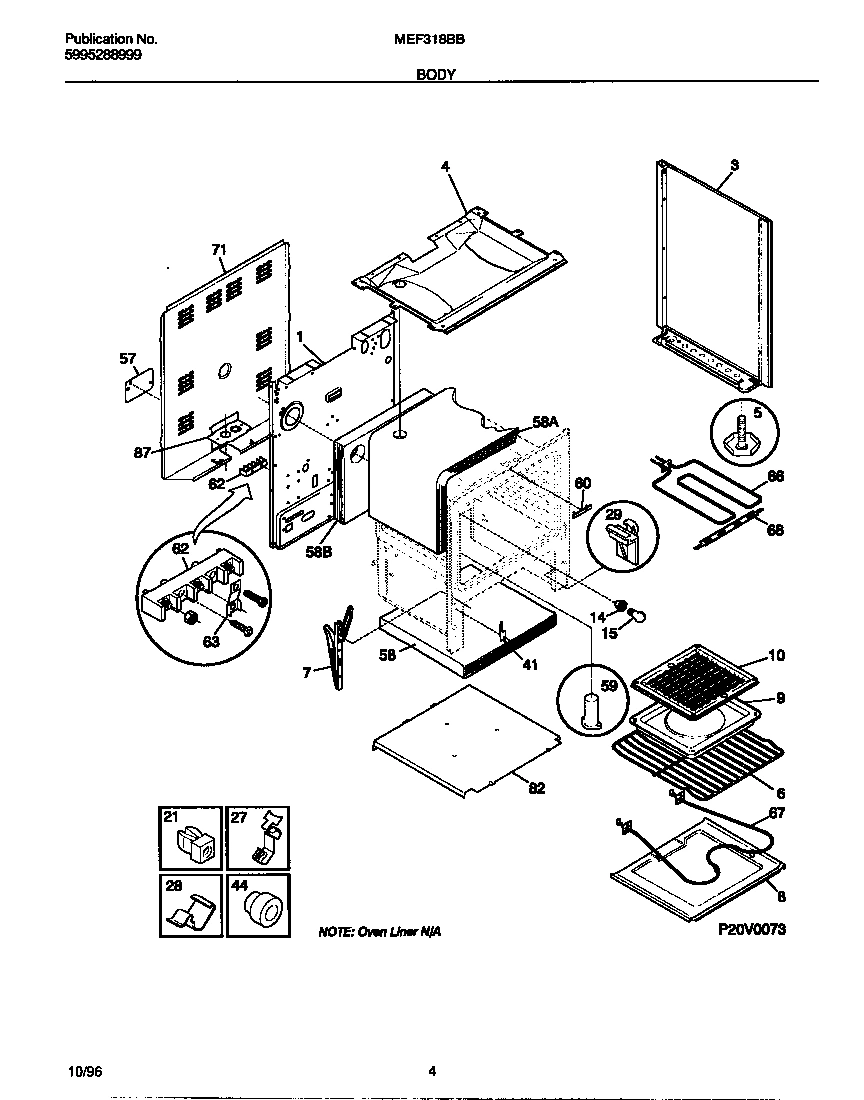

03 - BODY

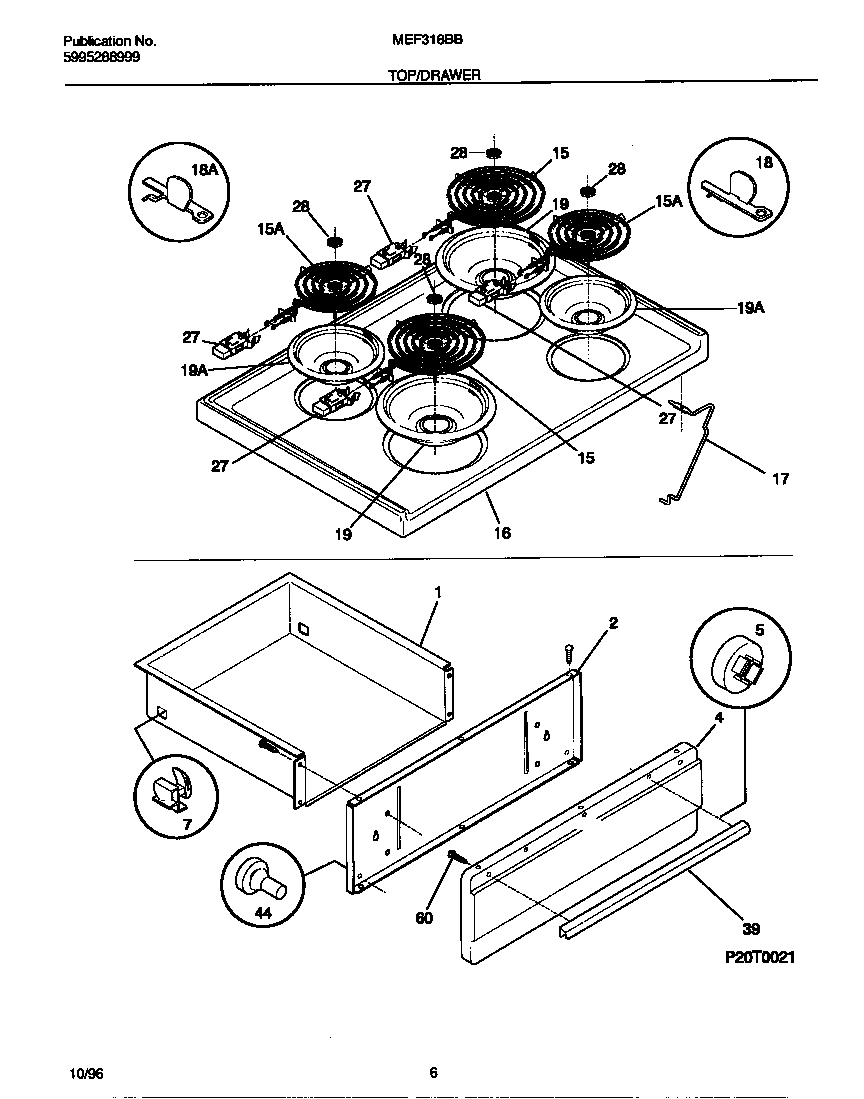

04 - TOP/DRAWER

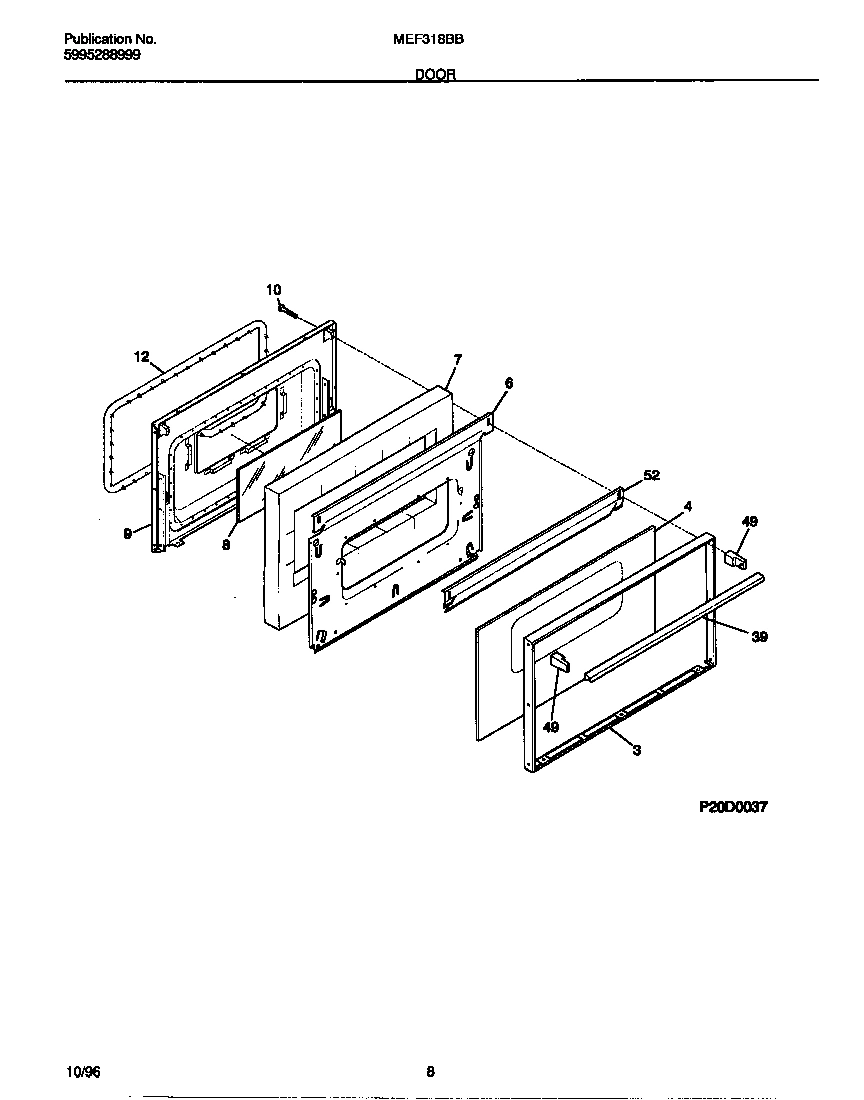

05 - DOOR
Common parts from model Electrolux MEF318BBDE RANGE
*45489
WCI 316021108 WCI 316021108 Contact Us For Availability
*45492
WCI 316071600 WCI 316071600 Contact Us For Availability
*45493
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*45496
WCI 5303280311 WCI 5303280311 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316067802 WCI 316067802 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
4
WCI 316089000 WCI 316089000 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
WCI 5303212745 WCI 5303212745 Contact Us For Availability
15
WCI 5300067016 WCI 5300067016 Contact Us For Availability
16
WCI 3013512 WCI 3013512 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28A
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
29
WCI 316029008 WCI 316029008 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
59
WCI 316073601 WCI 316073601 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 316081201 WCI 316081201 Contact Us For Availability
× ![]()
