Model Electrolux MEF303PCWF RANGE – Common Parts & Diagrams

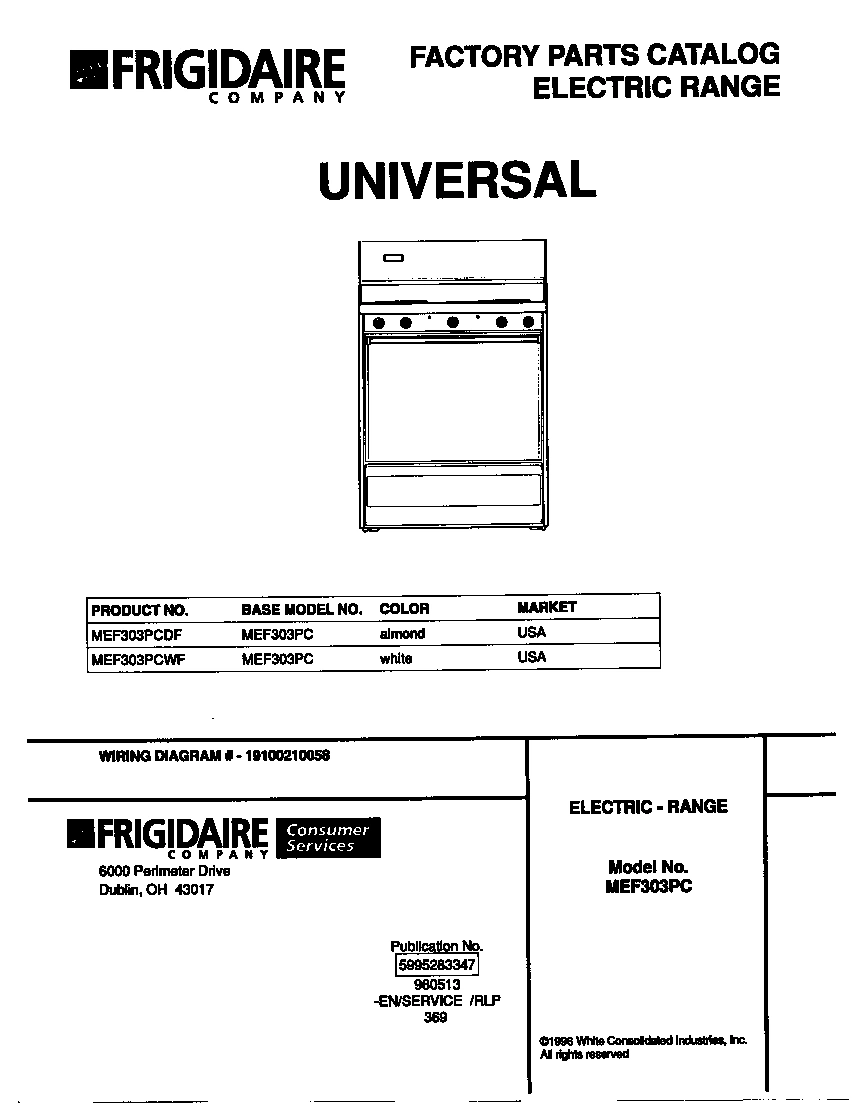

01 - COVER

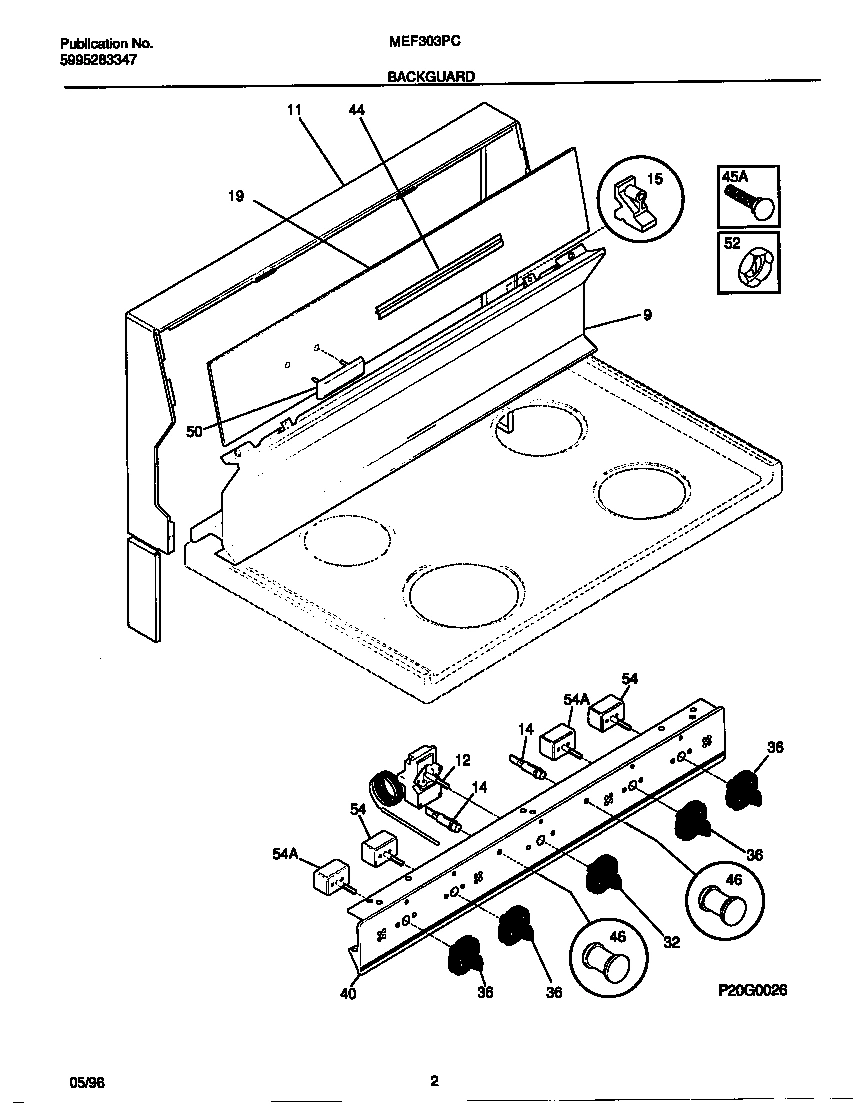

02 - BACKGUARD

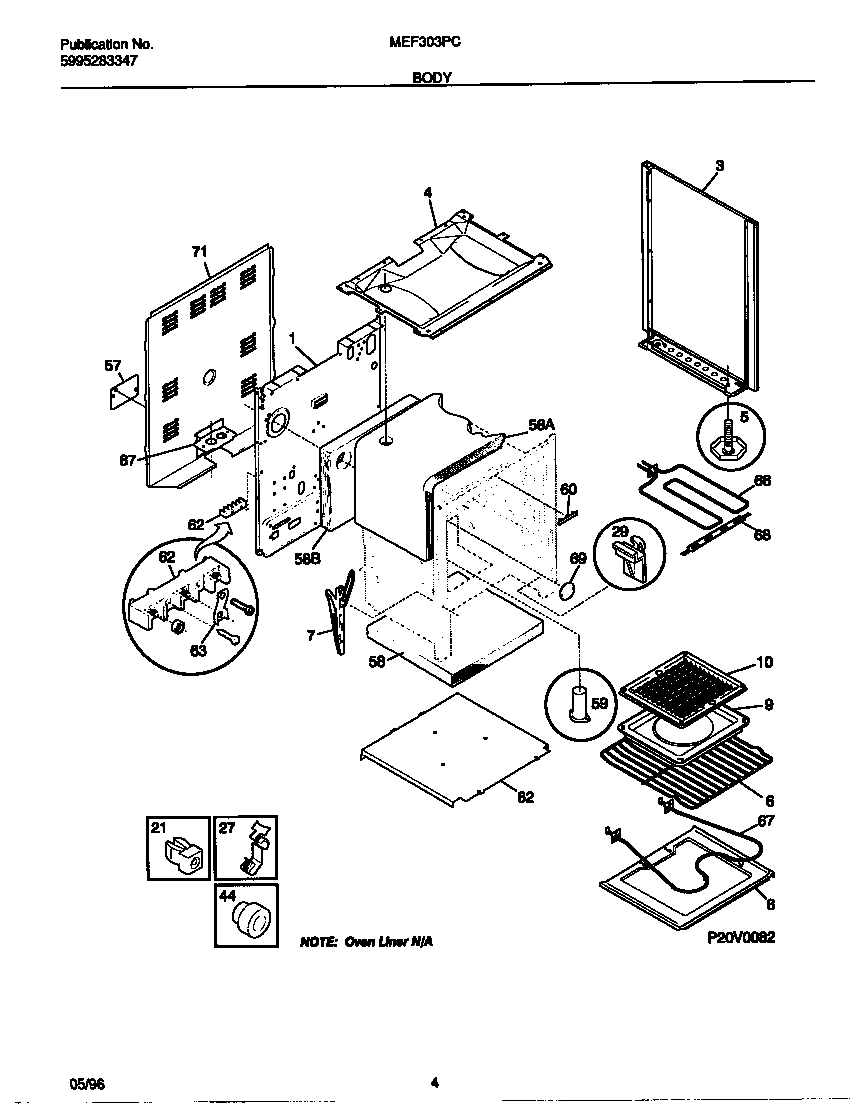

03 - BODY

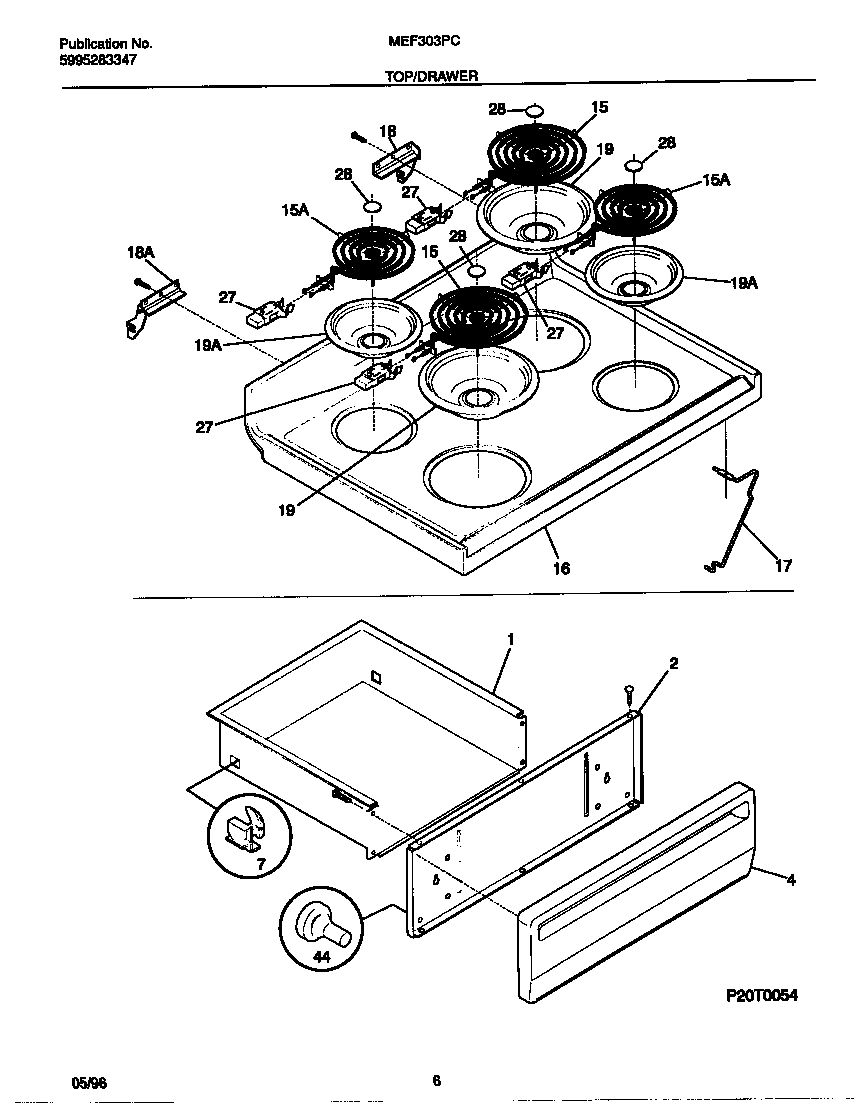

04 - TOP/DRAWER

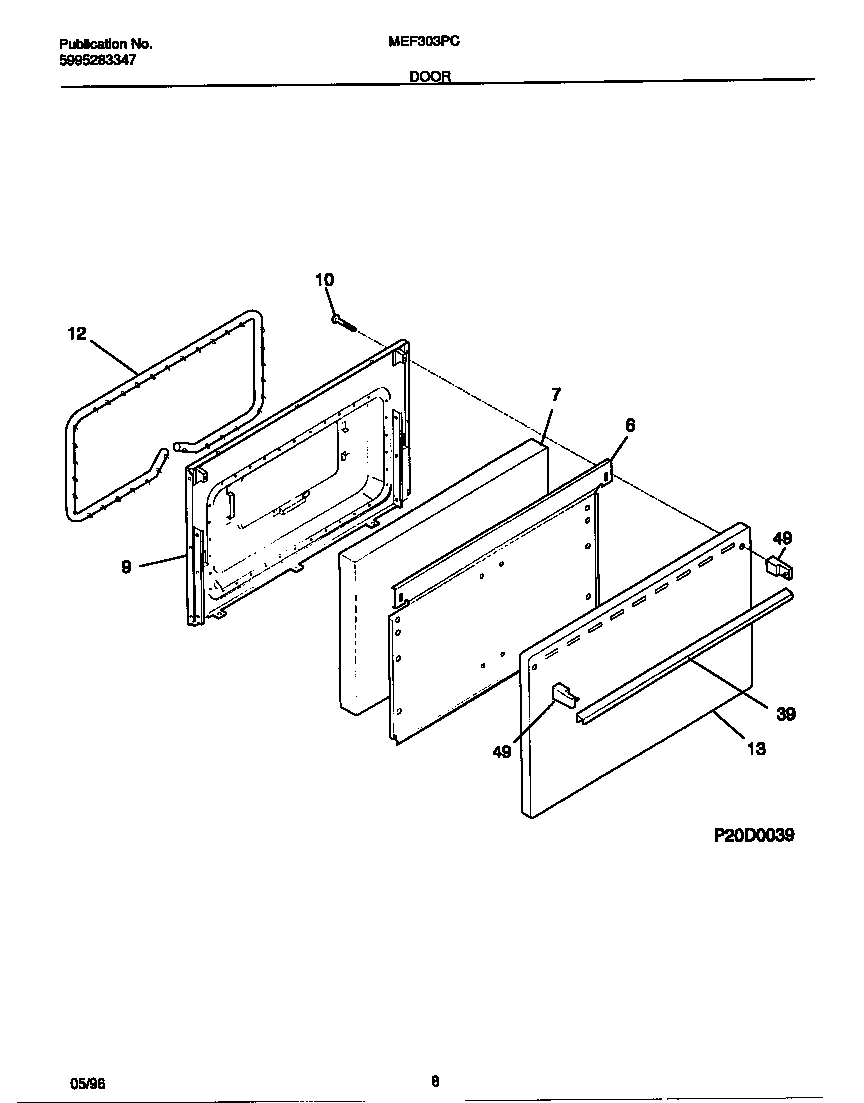

05 - DOOR

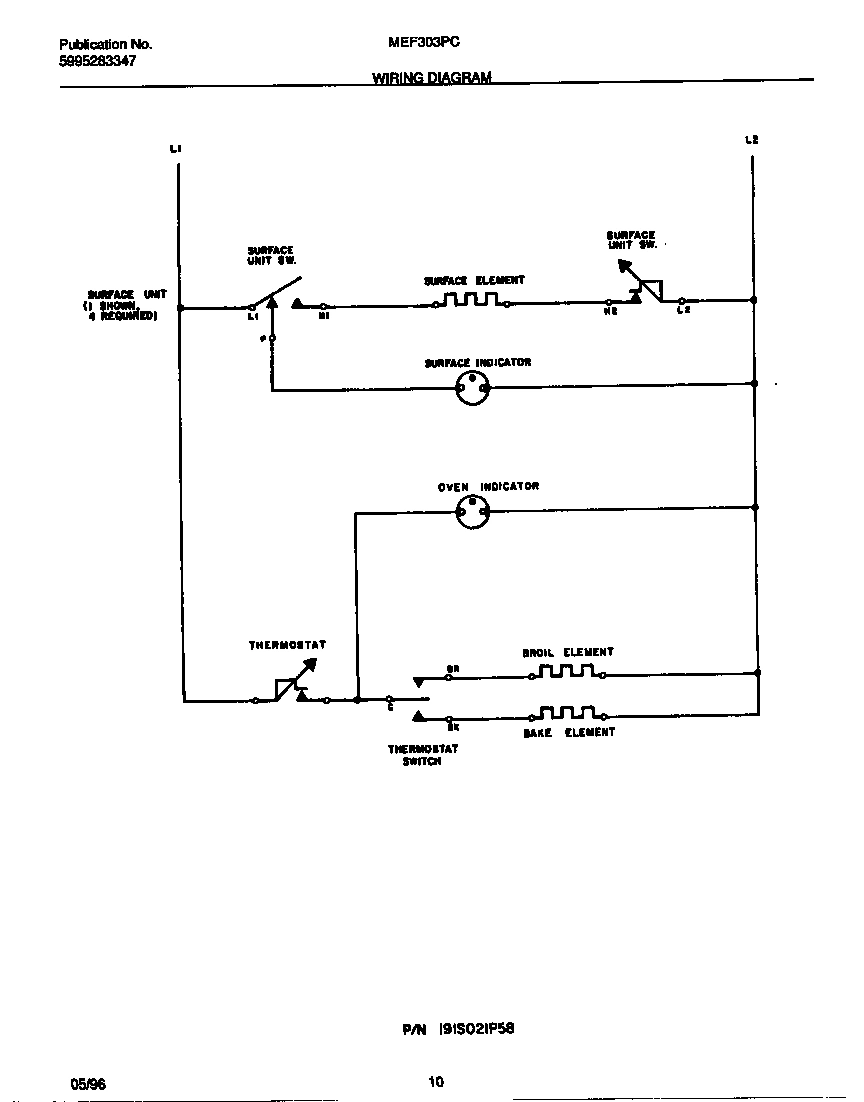

06 - WIRING DIAGRAM
Common parts from model Electrolux MEF303PCWF RANGE
*20880
SCREW,HEX, 8-18 X 3/8, BACK\BODYSIDE WCI 316021105 Contact Us For Availability
*20881
SCREW, CUP PT, 8-18 X 3/8 WCI 316021108 Contact Us For Availability
*20882
WCI 3131570 WCI 3131570 Contact Us For Availability
*20889
WCI 5303280311 WCI 5303280311 Contact Us For Availability
*20890
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*20891
WCI 5303271648 WCI 5303271648 Contact Us For Availability
*20893
WCI 5303285179 WCI 5303285179 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
6
WCI 316091402 WCI 316091402 Contact Us For Availability
7
Glide,drawer ,rear WCI 3051163 Contact Us For Availability
7
WCI 316007003 WCI 316007003 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066611 WCI 316066611 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
SEAL-OVEN DOOR, NON SELF-CLEAN WCI 5303202011 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3202315 Contact Us For Availability
16
WCI 3051379 WCI 3051379 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
29
GLIDE-DRAWER, FRONT WCI 3051162 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
44
WCI 3131903 WCI 3131903 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58
INSULATION,OVEN BACK WCI 316054202 Contact Us For Availability
58
INSULATION,OVEN WRAPPER WCI 316047707 Contact Us For Availability
59
WCI 316073601 WCI 316073601 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
66
WCI 5303051140 WCI 5303051140 Contact Us For Availability
69
WCI 3051218 WCI 3051218 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 316081201 WCI 316081201 Contact Us For Availability
× ![]()
