Model Electrolux MEF300PBDA RANGE – Common Parts & Diagrams

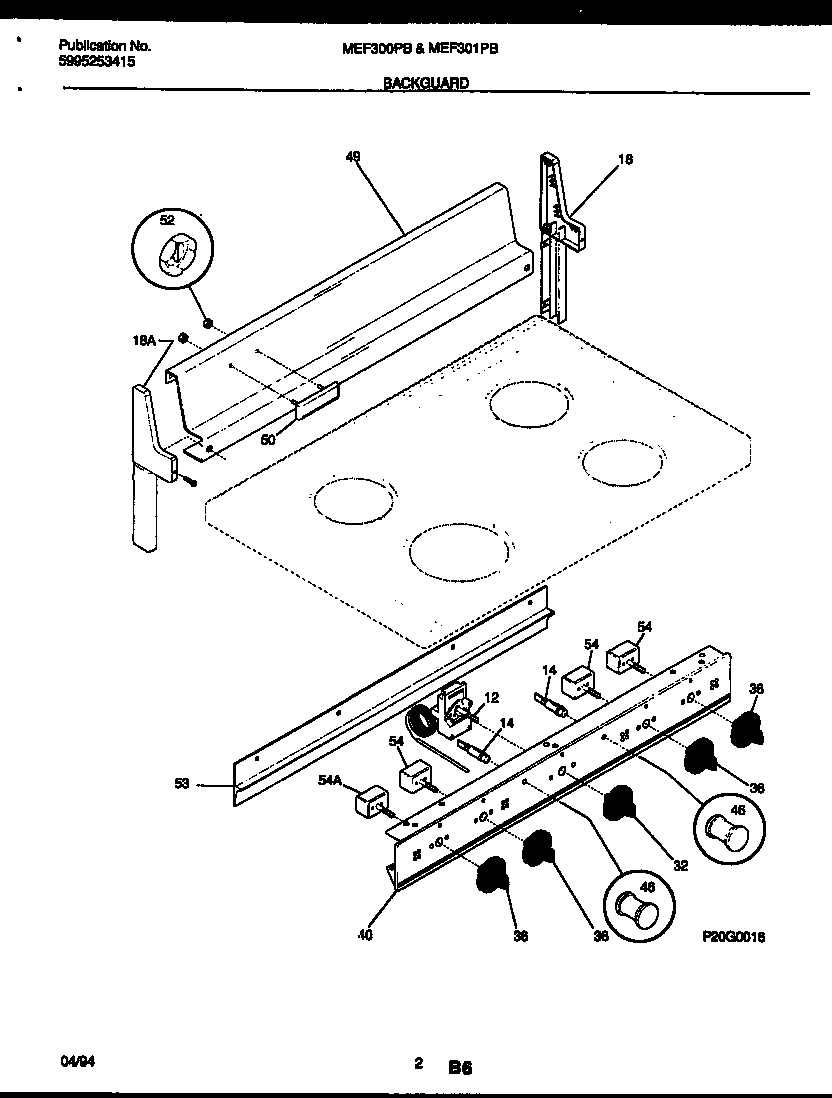

02 - BACKGUARD

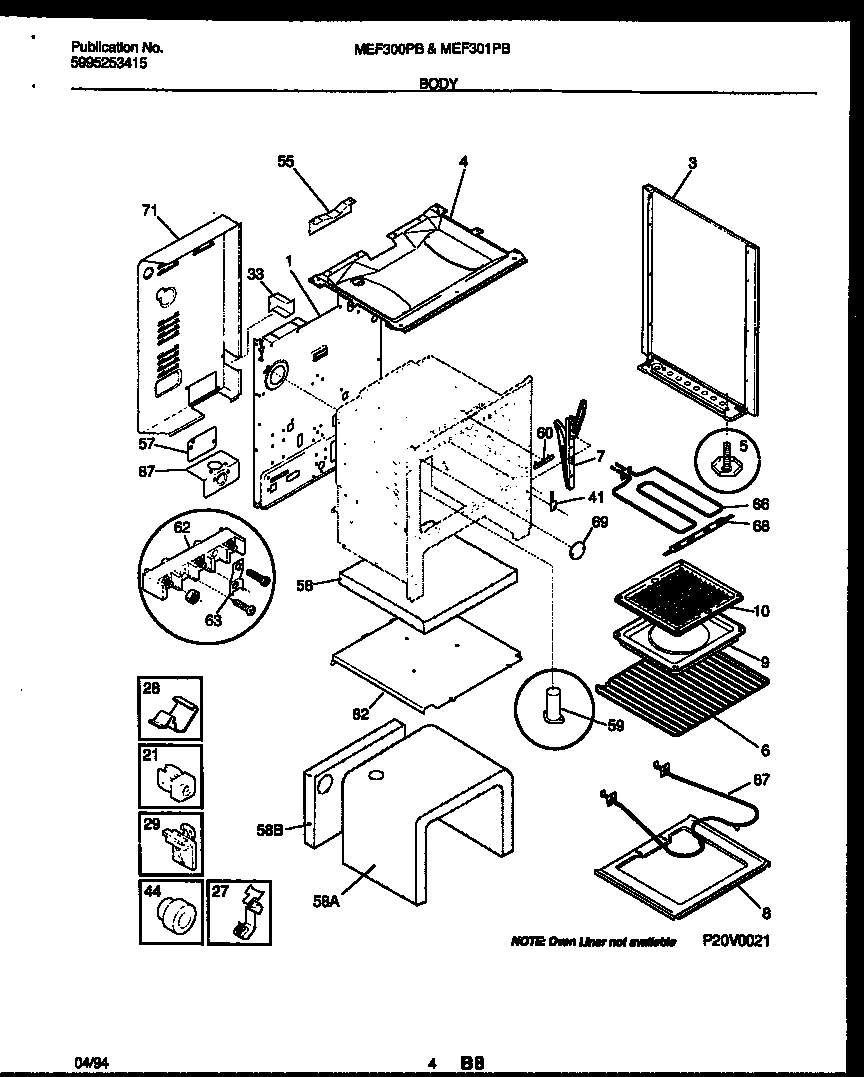

03 - BODY PARTS

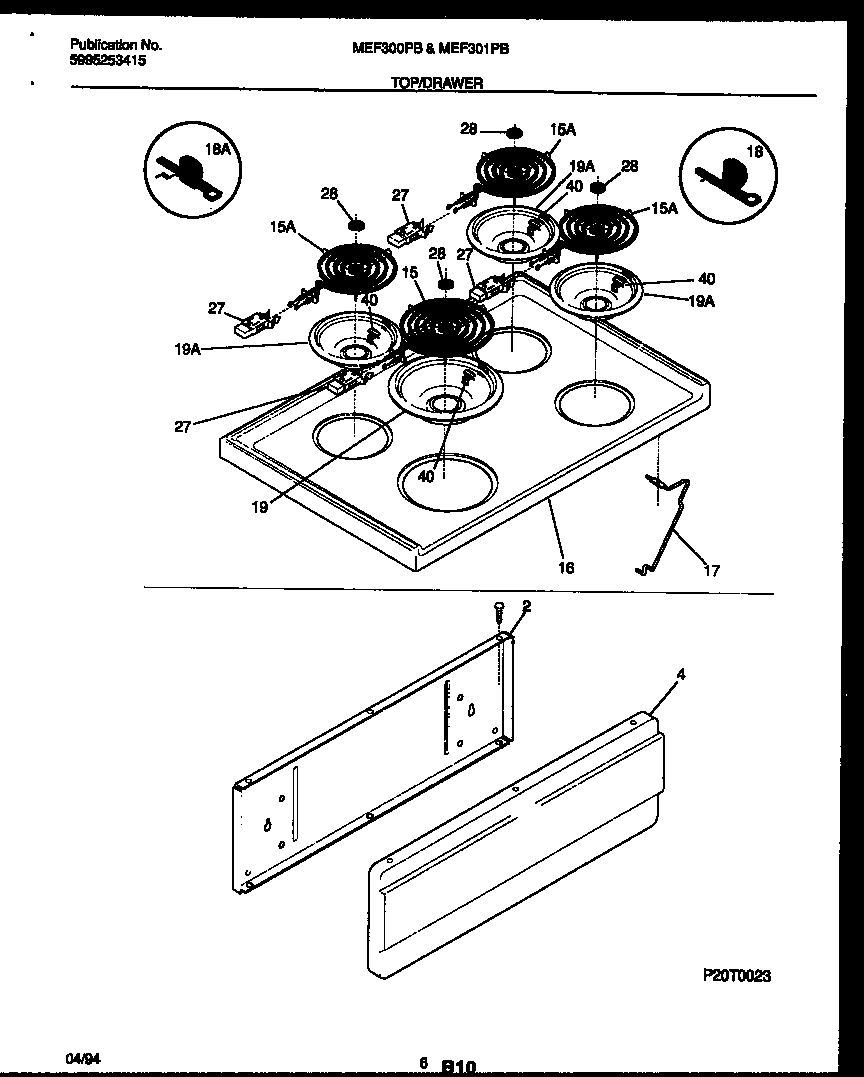

04 - COOKTOP AND DRAWER PARTS

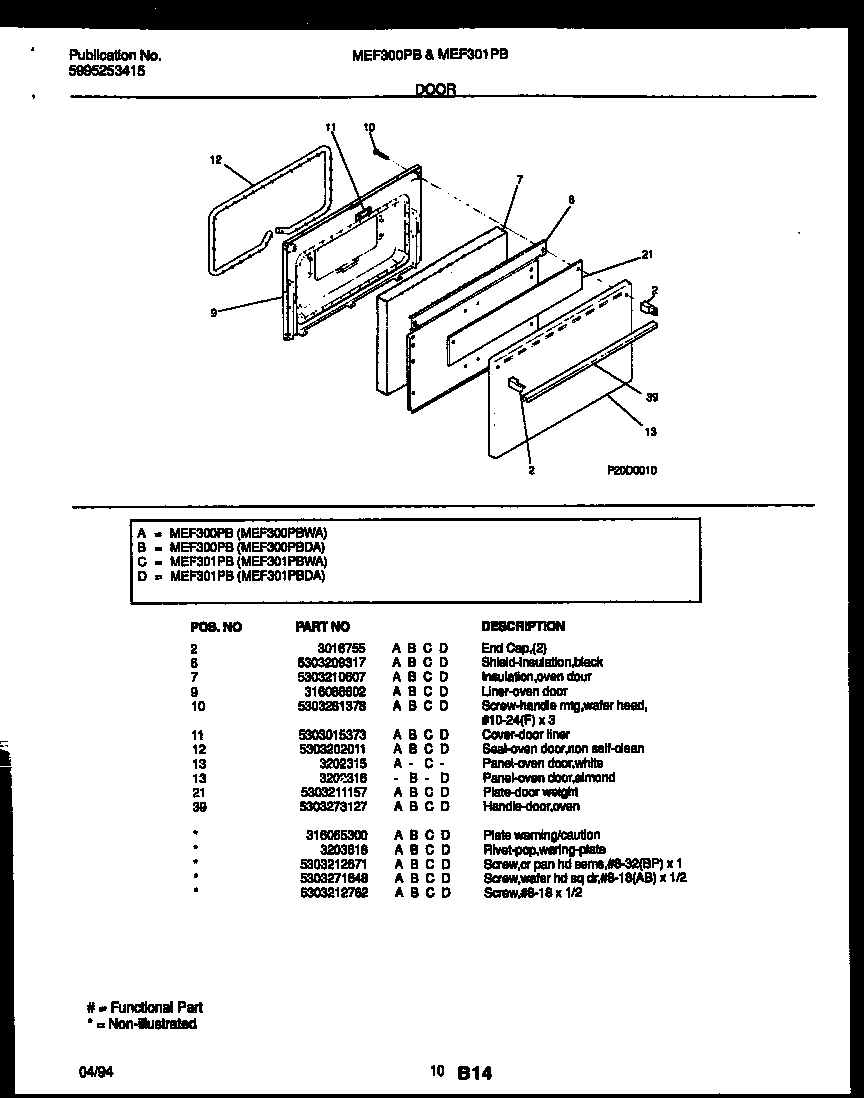

06 - DOOR PARTS
Common parts from model Electrolux MEF300PBDA RANGE
*97099
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*97099
WCI 5303300270 WCI 5303300270 Contact Us For Availability
*97102
WCI 316065300 WCI 316065300 Contact Us For Availability
*97102
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
*97102
WCI 5303212671 WCI 5303212671 Contact Us For Availability
1
WCI 316029405 WCI 316029405 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
PANEL-DUMMY, WHITE WCI 3051201 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066602 WCI 316066602 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3202315 Contact Us For Availability
16
WCI 3051379 WCI 3051379 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
End Cap,black ,RH WCI 3202802 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
End Cap,black ,LH WCI 3202801 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
WCI 5303211157 WCI 5303211157 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
33
WCI 3203582 WCI 3203582 Contact Us For Availability
39
HANDLE-DOOR, OVEN WCI 5303273127 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
59
WCI 5303283907 WCI 5303283907 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 3203549 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
× ![]()
