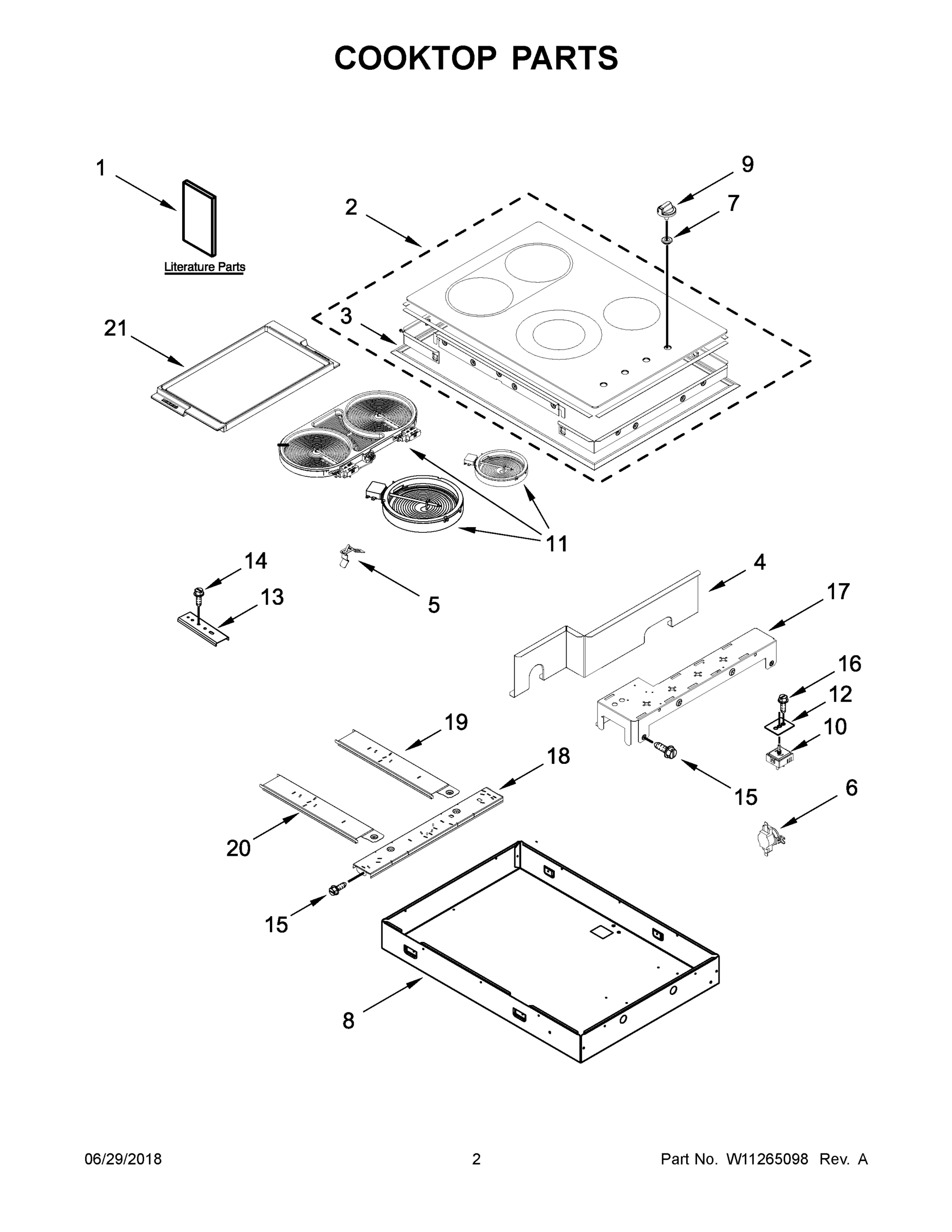

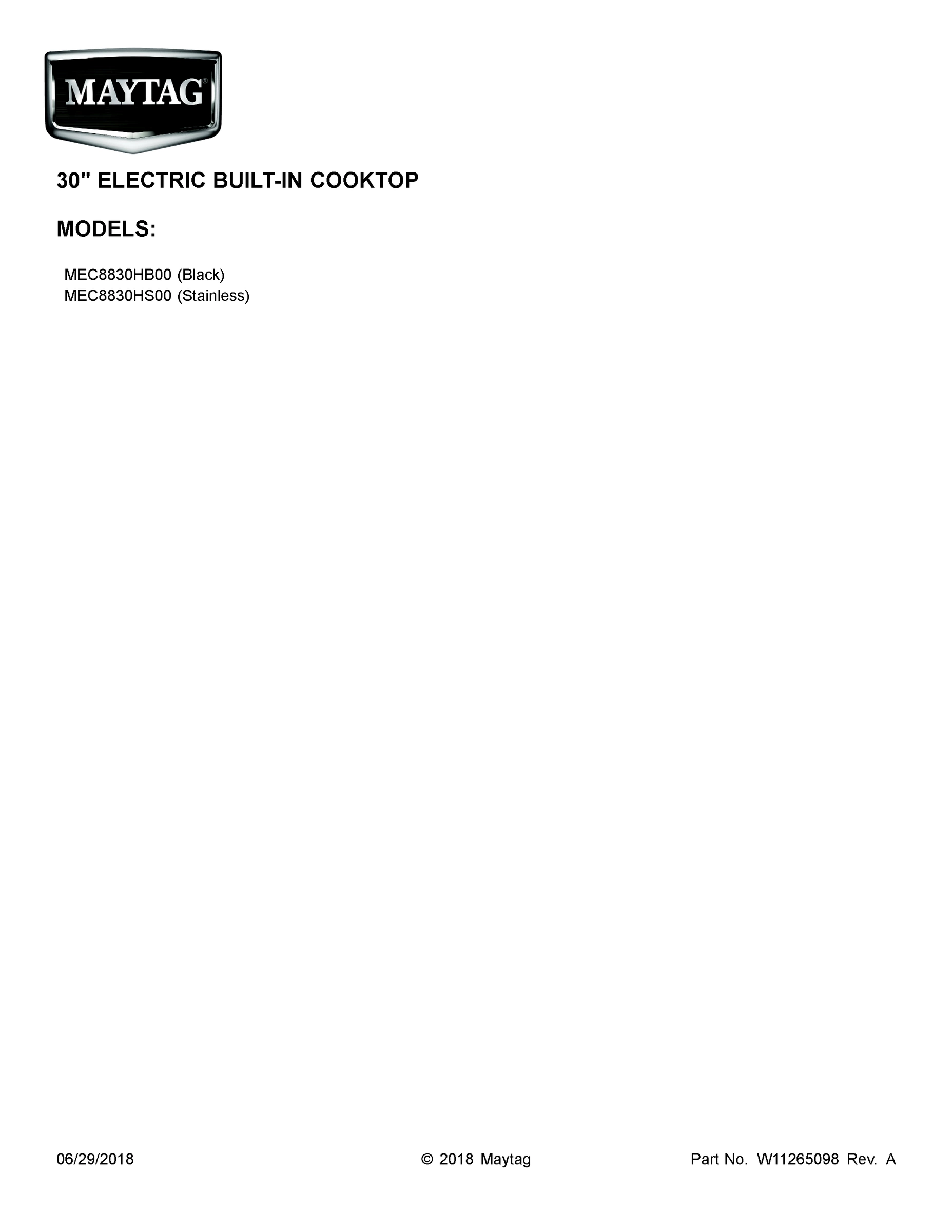

Model Maytag MEC8830HS00 COOKTOP, ELECTRIC, BUILT-IN, 30 INCH – Common Parts & Diagrams

1A
INSTRUCTIONS, UNDERCOUNTER INSTALLATION
INSTRUCTIONS, UNDERCOUNTER INSTALLATION MAY W11245478 Contact Us For Availability
View on Model
1B
MAY W11161590
MAY W11161590 MAY W11161590 Contact Us For Availability
View on Model
1C
MAY W11238363
MAY W11238363 MAY W11238363 Contact Us For Availability
View on Model
2
MAY W11120984
MAY W11120984 MAY W11120984 Contact Us For Availability
View on Model
2A
MAY W11120985
MAY W11120985 MAY W11120985 Contact Us For Availability
View on Model
4
SHIELD, SWITCH
SHIELD, SWITCH MAY W11172720 Contact Us For Availability
View on Model
5
SPRING, ELEMENT
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
View on Model
6
SWITCH, TOD HIGH LIMIT
SWITCH, TOD HIGH LIMIT MAY W10464566 Contact Us For Availability
View on Model
7
GROMMET (BLACK)
GROMMET (BLACK) MAY W10293874 Contact Us For Availability
View on Model
9
KNOB, CONTROL (BLACK)
KNOB, CONTROL (BLACK) MAY W10895122 Contact Us For Availability
View on Model
9A
KNOB, CONTROL (STAINLESS)
KNOB, CONTROL (STAINLESS) MAY W10859808 Contact Us For Availability
View on Model
10
SWITCH, INFINITE (LEFT FRONT AND RIGHT FRONT)
SWITCH, INFINITE (LEFT FRONT AND RIGHT FRONT) MAY W10437092 Contact Us For Availability
View on Model
10A
SWITCH, INFINITE (LEFT REAR)
SWITCH, INFINITE (LEFT REAR) MAY W10843843 Contact Us For Availability
View on Model
10B
SWITCH, INFINITE (RIGHT REAR)
SWITCH, INFINITE (RIGHT REAR) MAY W10578768 Contact Us For Availability
View on Model
11
ELEMENT, BRIDGE (LEFT FRONT AND LEFT REAR)
ELEMENT, BRIDGE (LEFT FRONT AND LEFT REAR) MAY W10248259 Contact Us For Availability
View on Model
11A
ELEMENT (3000/1400W) (RIGHT FRONT)
ELEMENT (3000/1400W) (RIGHT FRONT) MAY W10275048 Contact Us For Availability
View on Model
11B
ELEMENT (1200W) (RIGHT REAR)
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
View on Model
12
SEAL, SWITCH COVER
SEAL, SWITCH COVER MAY 3183956 Contact Us For Availability
View on Model
13
BRACKET, COOKTOP MOUNTING
BRACKET, COOKTOP MOUNTING MAY 4455917 Contact Us For Availability
View on Model
14
SCREW
SCREW MAY 3400093 Contact Us For Availability
View on Model
15
SCREW
SCREW MAY 7101P426-60 Contact Us For Availability
View on Model
17
PLATE, SWITCH
PLATE, SWITCH MAY W11215837 Contact Us For Availability
View on Model
18
MAY W11175477
MAY W11175477 MAY W11175477 Contact Us For Availability
View on Model
19
MAY W11175474
MAY W11175474 MAY W11175474 Contact Us For Availability
View on Model
20
MAY W11175476
MAY W11175476 MAY W11175476 Contact Us For Availability
View on Model
21
MAY W11192139
MAY W11192139 MAY W11192139 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
View on Model
NI
SEAL, LIMITER
SEAL, LIMITER MAY 3192439 Contact Us For Availability
View on Model
NI
SCREW, GROUNDING
SCREW, GROUNDING MAY 3400015 Contact Us For Availability
View on Model
NI
SCREW
SCREW MAY 7101P520-60 Contact Us For Availability
View on Model
NI
TAPE, FOAM
TAPE, FOAM MAY 8286642 Contact Us For Availability
View on Model
NI
MAY W11110551
MAY W11110551 MAY W11110551 Contact Us For Availability
View on Model
NI
INSULATION, COOKTOP (KNOB)
INSULATION, COOKTOP (KNOB) MAY W11161211 Contact Us For Availability
View on Model
NI
ACCESSORIES, PROTECTANT, COOKTOP
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY 31464 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, STAINLESS STEEL
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, COOKTOP
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
View on Model
NI
ACCESSORIES, SCRAPER, COOKTOP
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
View on Model
