Model Whirlpool ME3842VRV ELECTRIC RANGE – Common Parts & Diagrams
05 - TOP ASSEMBLY

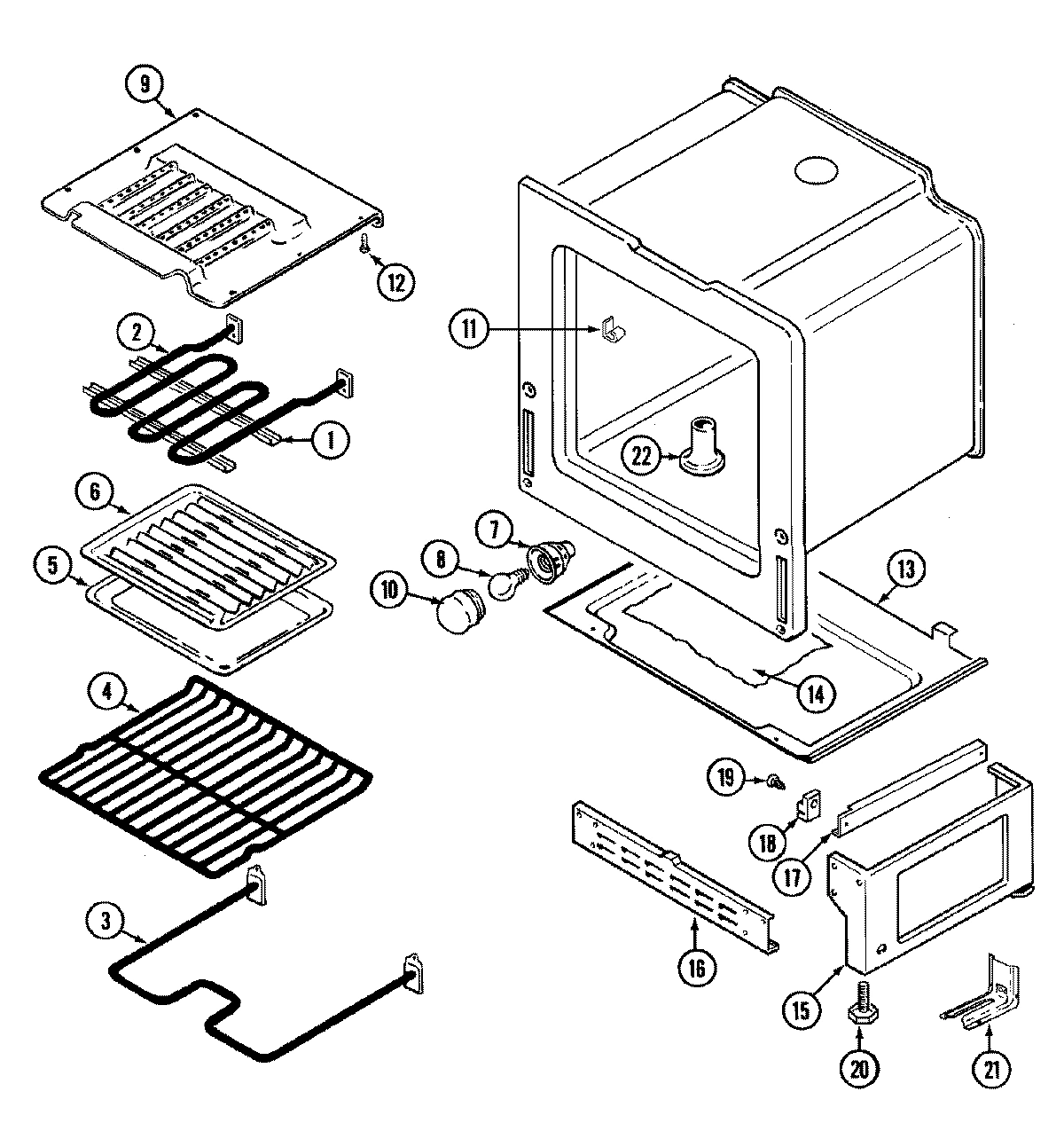

04 - OVEN/BASE

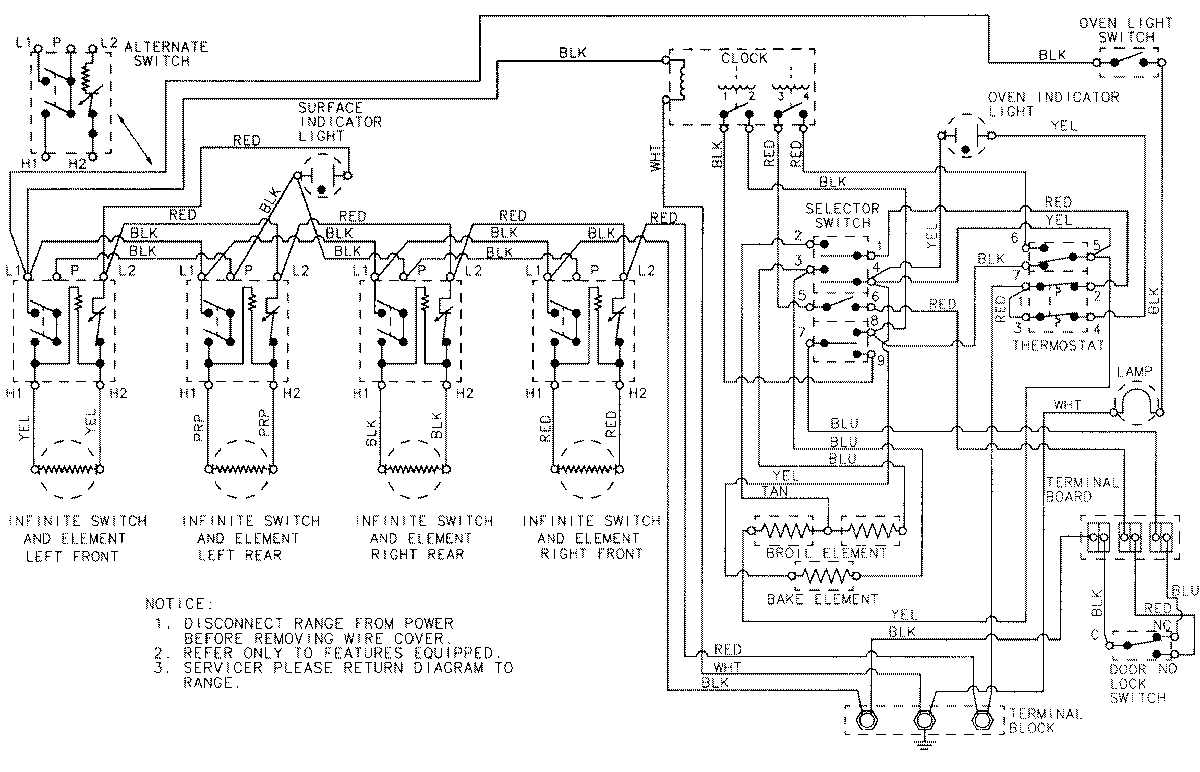

06 - WIRING INFORMATION

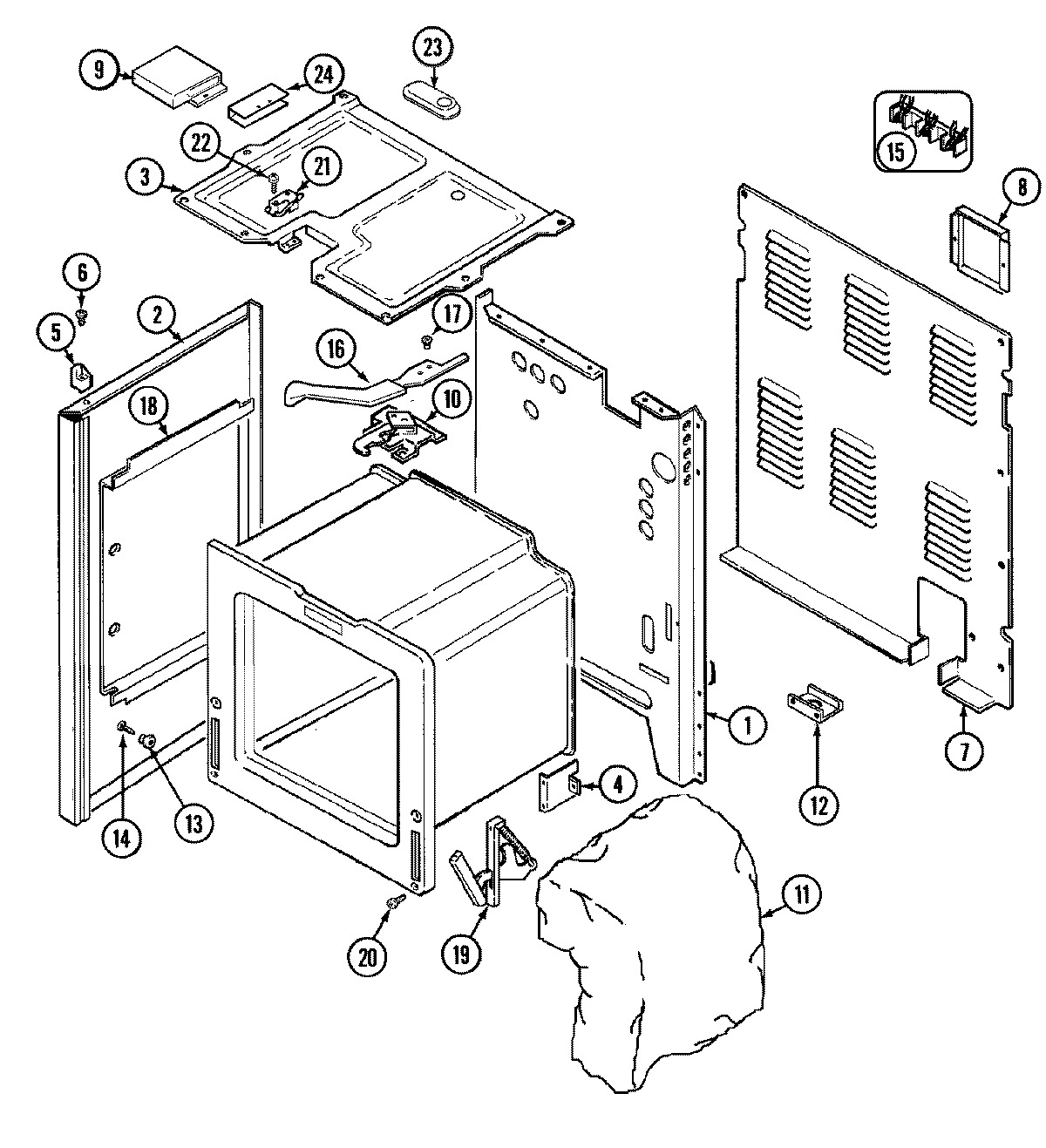

01 - BODY

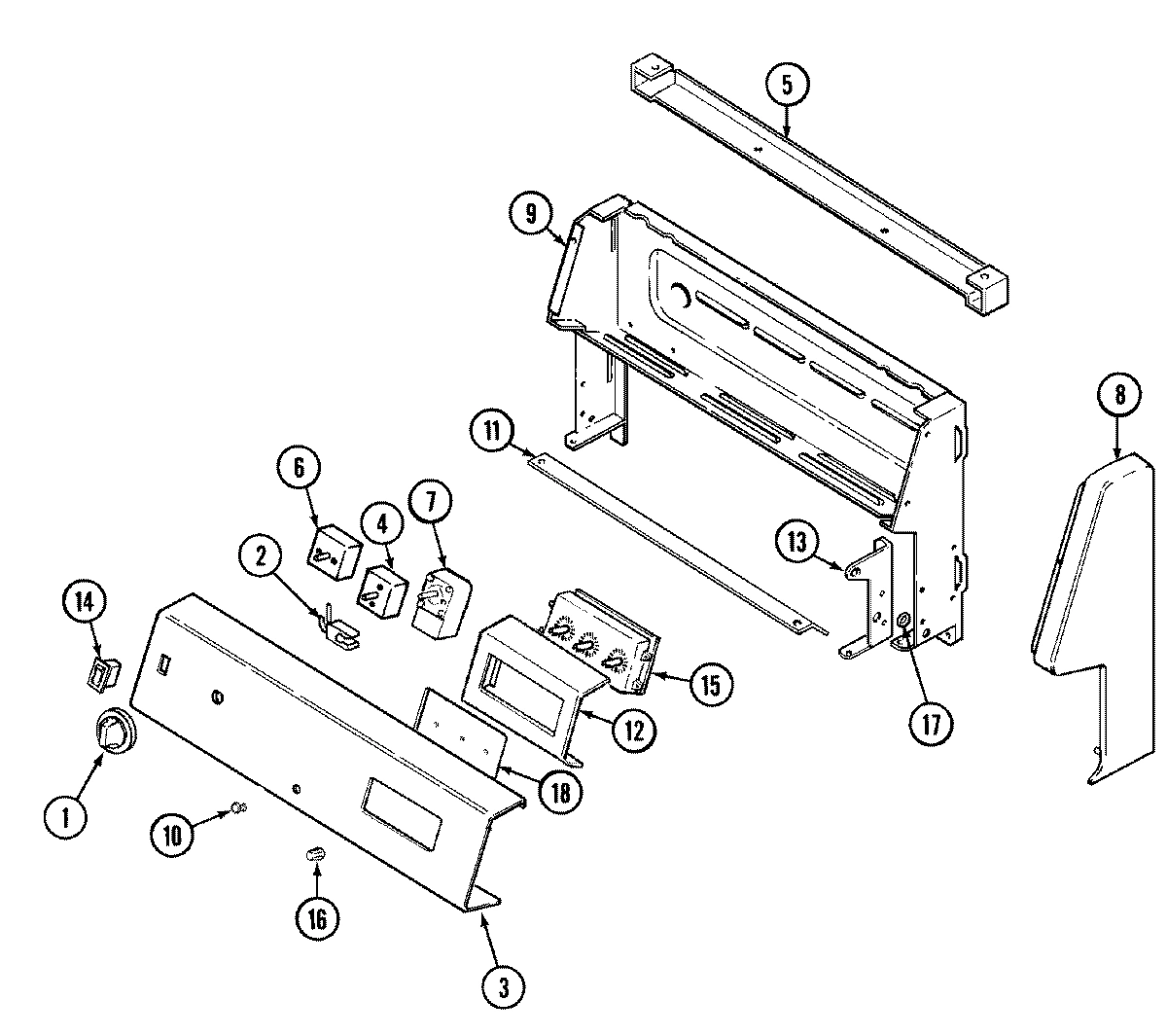

02 - CONTROL PANEL

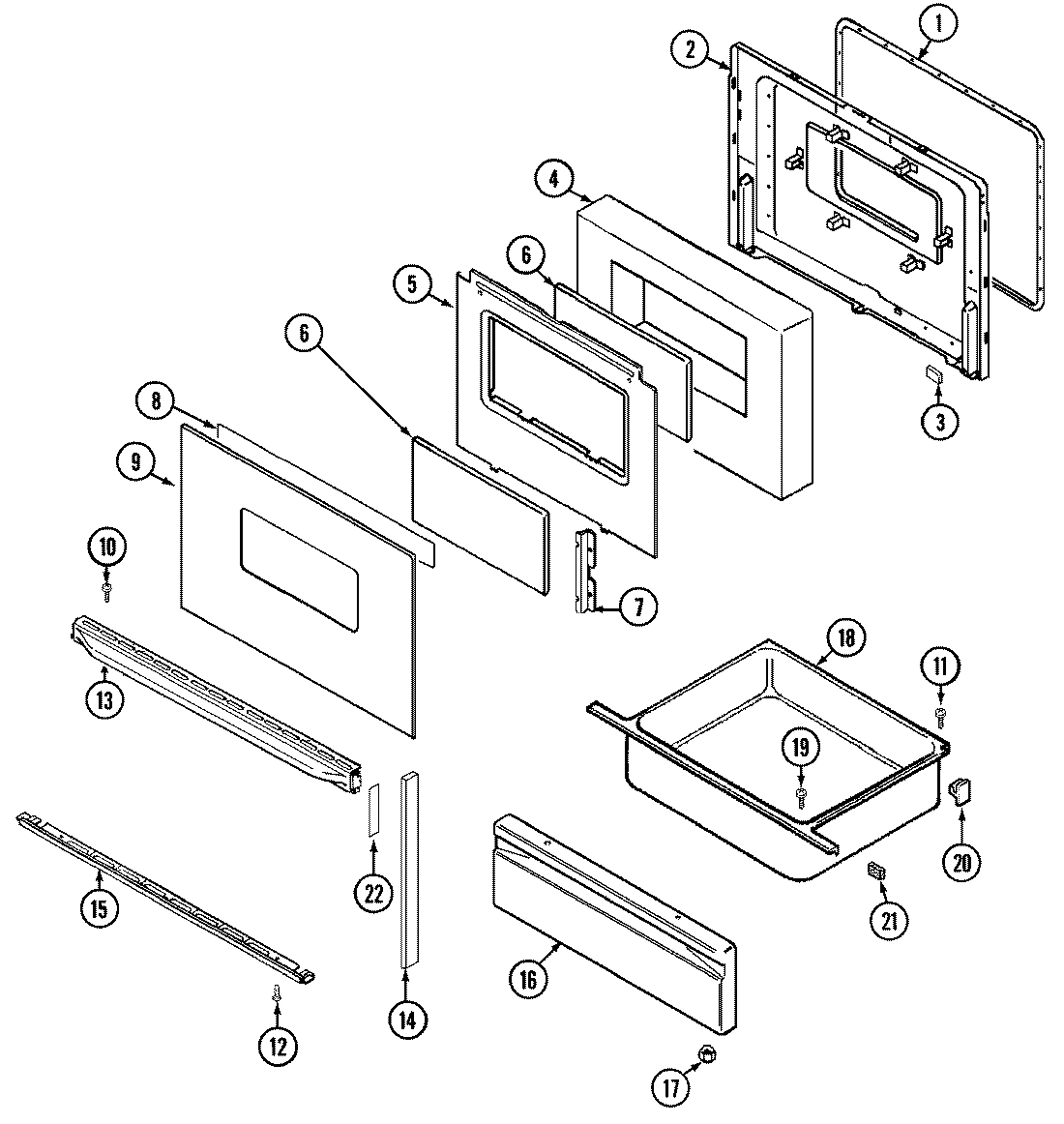

03 - DOOR/DRAWER
Common parts from model Whirlpool ME3842VRV ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
1
KNOB (WHT) WPL 7737P03960 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
LINING, DOOR WPL 74001058 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
PANEL, CONTROL (WHT) WPL 74003234 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P34260 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
6
SUPPORT, TOP WPL 74001170 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability
7
SCREW WPL 7101P30960 Contact Us For Availability
7
THERMOSTAT WPL 7404P10060 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
8
END CAP, TOP (RT-WHT) WPL 7746P03260 Contact Us For Availability
8
END CAP, TOP (LT-WHT) WPL 7746P03360 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
END CAP, PANEL (RT-WHT) WPL 74002338 Contact Us For Availability
8
END CAP, PANEL (LT-WHT) WPL 74002339 Contact Us For Availability
8
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
9
GLIDE WPL 74001663 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
9
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
9
GLASS, OUTER (WHT) WPL 74003395 Contact Us For Availability
9
GLASS, DOOR (WHT) WPL 7902P32860 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
10
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
10
LATCH, OVEN DOOR WPL 74003123 Contact Us For Availability
10
RETAINER, LATCH INSULATION WPL 74003139 Contact Us For Availability
10
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
10
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
NUT WPL 7103P08260 Contact Us For Availability
11
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
11
INSULATION, BACK WPL 74001800 Contact Us For Availability
11
INSULATION, OVEN WRAP WPL 74003037 Contact Us For Availability
11
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
12
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
12
BRACKET, CLOCK WPL 3801F31745 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
13
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 74001171 Contact Us For Availability
13
HANDLE, DOOR (WHT) WPL 74003396 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
SWITCH, ROCKER (WHT) WPL 7403P31460 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74002342 Contact Us For Availability
14
END CAP, DOOR (WHT) WPL 74003398 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
15
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
15
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
15
CLOCK WPL 7601P19360 Contact Us For Availability
15
TRIM, DOOR (BTM-WHT)----NA WPL 74003397 Contact Us For Availability
15
TRIM, BOTTOM (WHT) WPL 7744P10360 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
LEVER, LATCH (GRY) WPL 74002973 Contact Us For Availability
16
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
16
PANEL, DRAWER (WHT) WPL 2416F03962 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
17
SCREW WPL 7101P11560 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
18
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
18
RETAINER, INSULATION (SIDE) WPL 74002599 Contact Us For Availability
18
GASKET WPL 7201P05660 Contact Us For Availability
18
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
18
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
18
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
19
HINGE WPL 7106P05660 Contact Us For Availability
19
WIRE HARNESS, CONTROL PANEL WPL 5170D18860 Contact Us For Availability
19
WIRE HARNESS, DOOR LATCH WPL 5195D09360 Contact Us For Availability
19
HARNESS, CONTROL/TOP WPL 74001013 Contact Us For Availability
19
SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability
20
SCREW WPL 7101P11260 Contact Us For Availability
20
MANUAL, USE & CARE WPL 74002476 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
21
SCREW WPL 7101P34460 Contact Us For Availability
21
SWITCH, DOOR LOCK WPL 74001822 Contact Us For Availability
21
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
21
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
22
SCREW WPL 700520 Contact Us For Availability
22
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
23
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
23
COVER, VENT WPL 4005F43245 Contact Us For Availability
24
INSULATOR, DOOR LOCK SWITCH WPL 74001823 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001147 Contact Us For Availability
× ![]()
