Model Whirlpool MDG6700AWM GAS DRYER – Common Parts & Diagrams
01 - CABINET - CONTROL PANEL

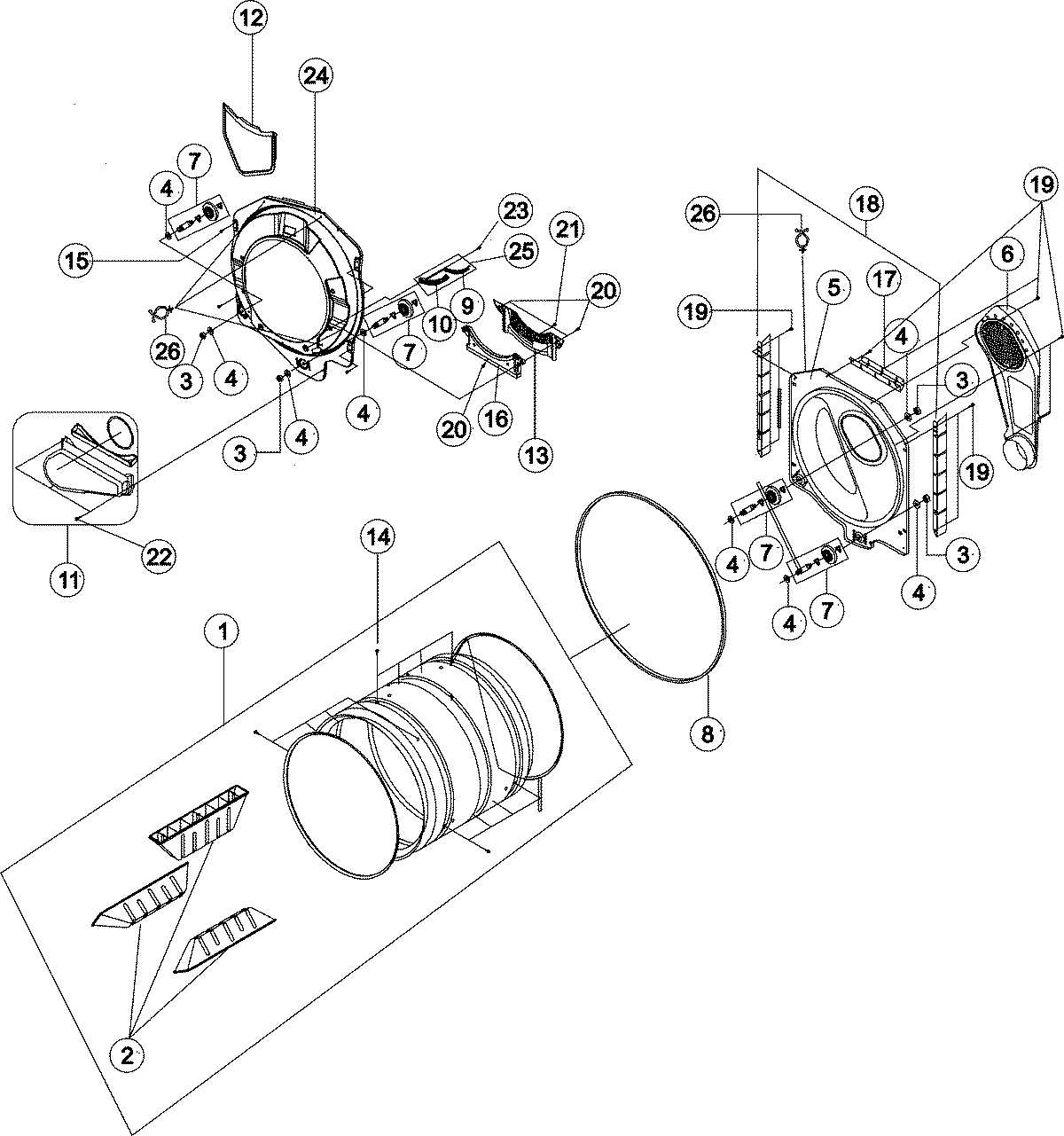

03 - DRUM

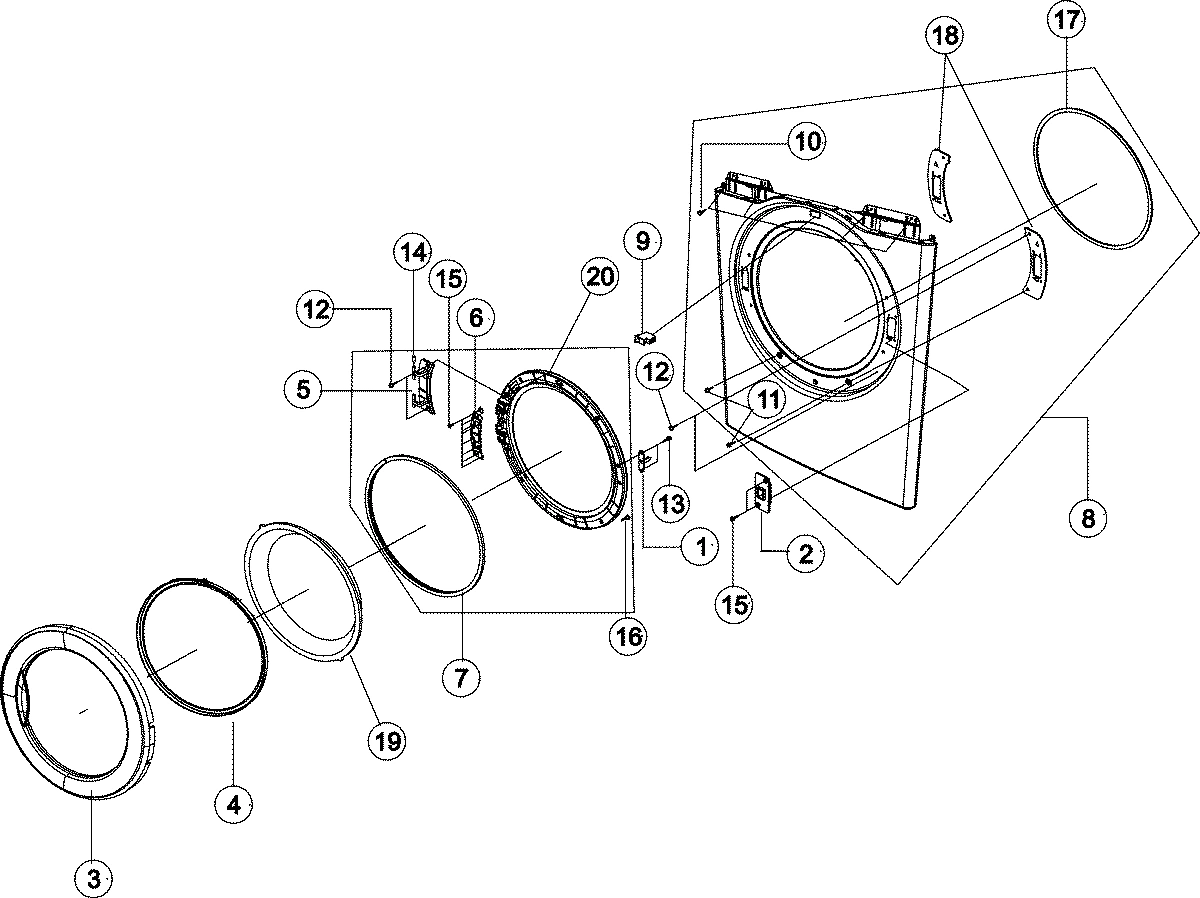

02 - DOOR - FRONT PANEL

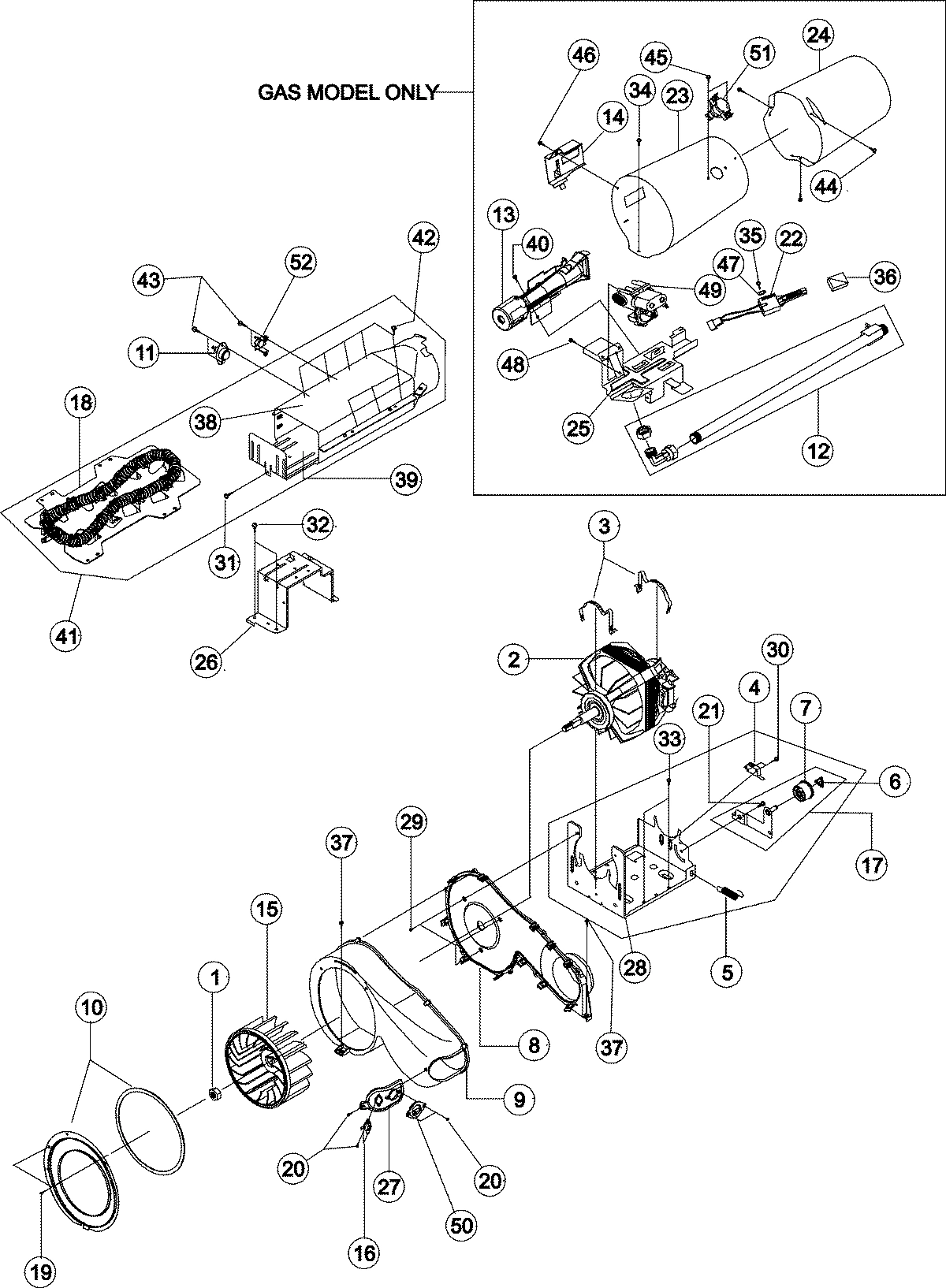

04 - DUCT, HEATER, MOTOR
05 - SUPPLEMENTAL INFORMATION
Common parts from model Whirlpool MDG6700AWM GAS DRYER
1
ASSY-DRUM WRAPPER WPL 35001238 Contact Us For Availability
1
LEVER-DOOR WPL 35001111 Contact Us For Availability
1
NUT-INCH WPL 35001079 Contact Us For Availability
1
ASSY-FLAT WIRE HARNESS WPL 35001151 Contact Us For Availability
2
DRUM-LIFTER WPL 35001131 Contact Us For Availability
2
ASSY-HOLDER LEVER WPL 35001112 Contact Us For Availability
2
ASSY-M-WIRE HARNESS (HEATER) WPL 35001152 Contact Us For Availability
2
ASSY-M.WIRE HARNESS (GAS) WPL 35001248 Contact Us For Availability
2
ASSY, WIRE GAS 6700 WPL 35001264 Contact Us For Availability
3
COVER-DOOR WPL 35001235 Contact Us For Availability
3
SPRING-PLATE WPL 35001081 Contact Us For Availability
3
ASSY-WIRE HARNESS (TOUCH SEN) WPL 35001164 Contact Us For Availability
4
WASHER WPL 35001133 Contact Us For Availability
4
DOOR-SAFETY WPL 35001236 Contact Us For Availability
4
SWITCH-MICRO WPL 35001082 Contact Us For Availability
4
SVC MAN, DOM DRYER ELECT WPL 16025911 Contact Us For Availability
5
DRUM-BACK WPL 35001239 Contact Us For Availability
5
HINGE-DOOR WPL 35001115 Contact Us For Availability
5
SPRING-TENSION WPL 35001083 Contact Us For Availability
5
SPRING-TENSION WPL 35001278 Contact Us For Availability
5
ASSY-POWER CORD WPL 35001200 Contact Us For Availability
6
HOLDER-SHAFT WPL 35001084 Contact Us For Availability
6
BRACKET-LEG WPL 35001156 Contact Us For Availability
6
ASSY-DUCT AIR WPL 35001135 Contact Us For Availability
6
ASSY-DUCT AIR WPL 35001240 Contact Us For Availability
6
SUPPORT-HINGE WPL 35001120 Contact Us For Availability
6
ANCHOR BRACKET KIT WPL 12002643 Contact Us For Availability
7
ASSY-COVER POWER WPL 35001157 Contact Us For Availability
7
SEAL-DOOR WPL 35001122 Contact Us For Availability
7
ASSY-ROLLER WPL 35001086 Contact Us For Availability
7
DUCT, EXHAUST (A) WPL 35001204 Contact Us For Availability
8
LEG WPL 35001158 Contact Us For Availability
8
ASSY-FRAME FRONT WPL 35001237 Contact Us For Availability
8
GUIDE-DUCT FAN WPL 35001088 Contact Us For Availability
8
DUCT, EXHAUST (B) WPL 35001205 Contact Us For Availability
9
ASSY-DUCT EXHAUST WPL 35001159 Contact Us For Availability
9
DUCT, EXHAUST ASSEMBLY WPL 12002640 Contact Us For Availability
9
PLATE-SENSOR WPL 35001241 Contact Us For Availability
9
DOOR-SWITCH WPL 35001125 Contact Us For Availability
9
COVER-DUCT FAN WPL 35001089 Contact Us For Availability
10
ASSY-PANEL CONTROL WPL 35001228 Contact Us For Availability
10
GUIDE-SENSOR WPL 35001242 Contact Us For Availability
10
ASSY-COVER FAN WPL 35001246 Contact Us For Availability
10
VENT KIT (27``) WPL 12002641 Contact Us For Availability
11
PANEL-CONTROL WPL 35001229 Contact Us For Availability
11
ASSY-DUCT OUTLET WPL 35001140 Contact Us For Availability
11
SCREW-TAPPING,TH,+,2S,M4,L12,- WPL 6002001006 Contact Us For Availability
12
BUTTON-PUSH (P) WPL 34001235 Contact Us For Availability
12
SCREW-MACHINE WPL 35001126 Contact Us For Availability
12
ASSY PIPE WPL 35001093 Contact Us For Availability
12
STACKING KIT (ELEC) WPL 35001254 Contact Us For Availability
13
LEVER-POWER WPL 34001279 Contact Us For Availability
13
COVER-FILTER (B) WPL 35001243 Contact Us For Availability
13
SCREW-TAPPING WPL 6002001204 Contact Us For Availability
13
TUBE-BURNER WPL 35001095 Contact Us For Availability
13
STACKING KIT (GAS) WPL 35001255 Contact Us For Availability
14
KNOB-ENCODER WPL 34001233 Contact Us For Availability
14
GUIDE-HINGE WPL 35001127 Contact Us For Availability
15
FRAME-PLATE (U) WPL 35001162 Contact Us For Availability
15
FAN - BLOWER WPL 35001097 Contact Us For Availability
15
TECH SHT, RPL 16026540 WPL 16026881 Contact Us For Availability
16
COVER-TOP LU WPL 35001163 Contact Us For Availability
16
COVER-FILTER (F) WPL 35001144 Contact Us For Availability
16
SCREW-TAPPING WPL 6002000525 Contact Us For Availability
17
BRACKET-IDLER WPL 35001277 Contact Us For Availability
17
BRACKET-DRUM BACK (T) WPL 35001145 Contact Us For Availability
17
SPONGE-EPDM WPL 35001128 Contact Us For Availability
17
ASSY-BRACKET IDLER WPL 35001098 Contact Us For Availability
18
BRACKET-DRUM BACK (S) WPL 35001146 Contact Us For Availability
18
BRACKET-HINGE WPL 35001129 Contact Us For Availability
19
SCREW-TAPPING WPL 6002000213 Contact Us For Availability
19
DOOR-GLASS WPL 35001182 Contact Us For Availability
20
SCREW-TAPPING WPL 35001147 Contact Us For Availability
20
HOLDER-GLASS WPL 35001183 Contact Us For Availability
20
SCREW-TAPPING WPL 6002000470 Contact Us For Availability
21
SCREW-SPECIAL WPL 35001099 Contact Us For Availability
23
SCREW-TAPPING WPL 6002001320 Contact Us For Availability
23
DUCT-CONE (F) WPL 35001101 Contact Us For Availability
24
ASSY-DRUM FRONT WPL 35001244 Contact Us For Availability
24
DUCT-CONE (B) WPL 35001102 Contact Us For Availability
25
ASSY-GUIDE SENSOR WPL 35001245 Contact Us For Availability
25
SCREW-TAPPING WPL 35001166 Contact Us For Availability
25
BRACKET-BURNER WPL 35001103 Contact Us For Availability
26
SCREW-ASSY TAPP WPL 6006001170 Contact Us For Availability
26
HOLDER-WIRE (RETAINER/CLIP) WPL 35001004 Contact Us For Availability
26
DIE-HEATER WPL 35001104 Contact Us For Availability
27
BRACKET-THERMISTOR WPL 35001105 Contact Us For Availability
27
CLAMPER-WIRE SADDLE WPL 35001171 Contact Us For Availability
28
BRACKET-MOTOR WPL 35001106 Contact Us For Availability
29
HOLDER-POWER WPL 35001167 Contact Us For Availability
30
HOLDER-PCB WPL 35001168 Contact Us For Availability
30
SCREW-TAPPING WPL 35001107 Contact Us For Availability
31
ASSY-FRAME (GAS) WHITE WPL 35001170 Contact Us For Availability
32
SCREW-TAPPING WPL 35001234 Contact Us For Availability
34
SCREW-TAPPING WPL 35001233 Contact Us For Availability
35
BRACKET-PANEL WPL 35001231 Contact Us For Availability
35
SCREW-TAPPING WPL 35001116 Contact Us For Availability
36
SUPPORT - PANEL WPL 35001232 Contact Us For Availability
36
ABSORBER-IGNITOR WPL 35001117 Contact Us For Availability
38
DUCT-HEATER (U) WPL 35001109 Contact Us For Availability
39
DUCT-HEATER (L) WPL 35001110 Contact Us For Availability
43
SCREW-TAPPING WPL 6002000239 Contact Us For Availability
46
SCREW-TAPPING WPL 35001108 Contact Us For Availability
47
NUT-CIRCULAR WPL 6021001130 Contact Us For Availability
48
SCREW-PUMP BRACKET WPL 34001211 Contact Us For Availability
50
THERMISTOR WPL WP35001191 No Longer Available
51
THERMOSTAT WPL 35001192 Contact Us For Availability
× ![]()
