Model Whirlpool MDG27PCABW GAS DRYER – Common Parts & Diagrams

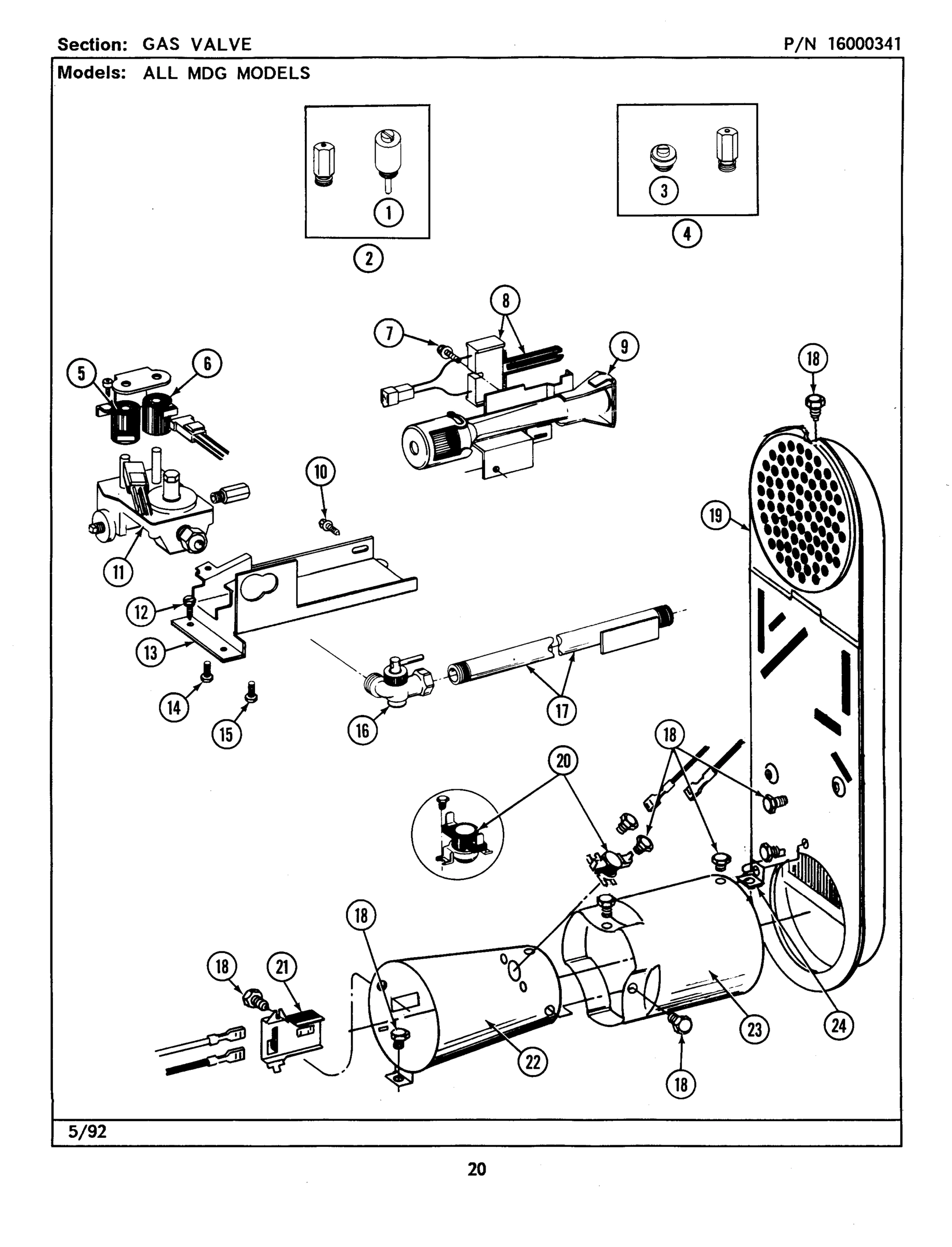

07 - GAS VALVE

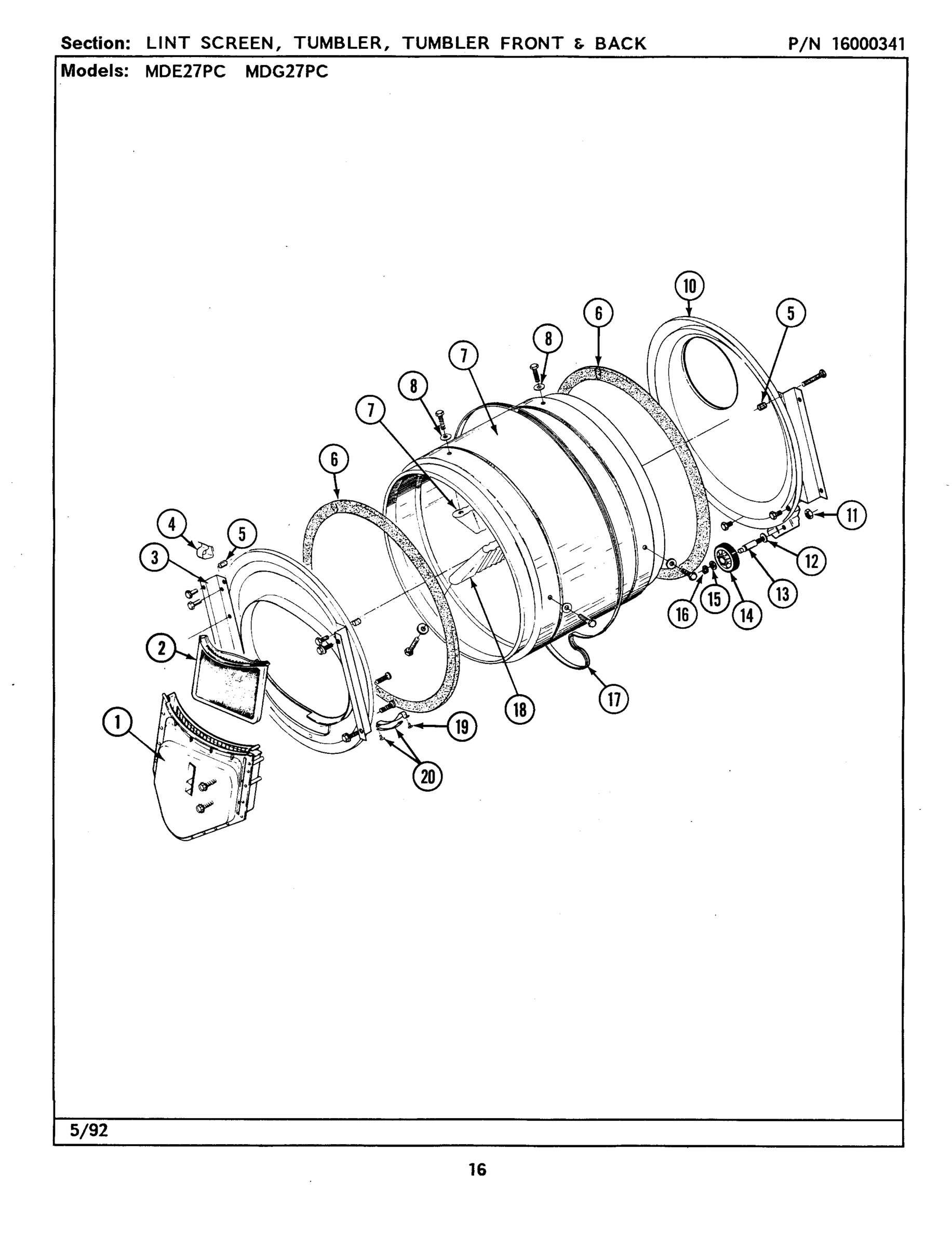

06 - LINT SCREEN, TUMBLER (FRONT & BACK)

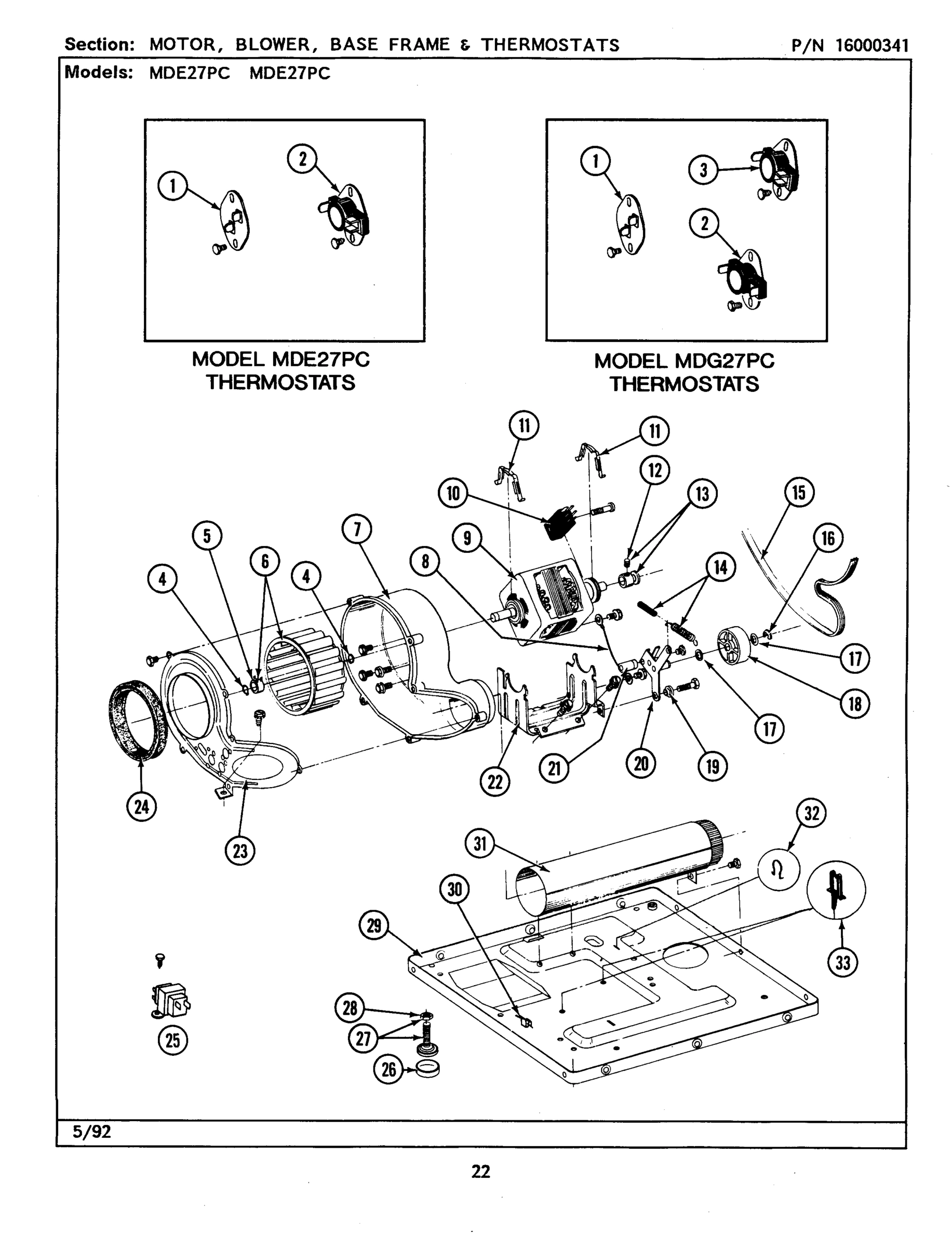

08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

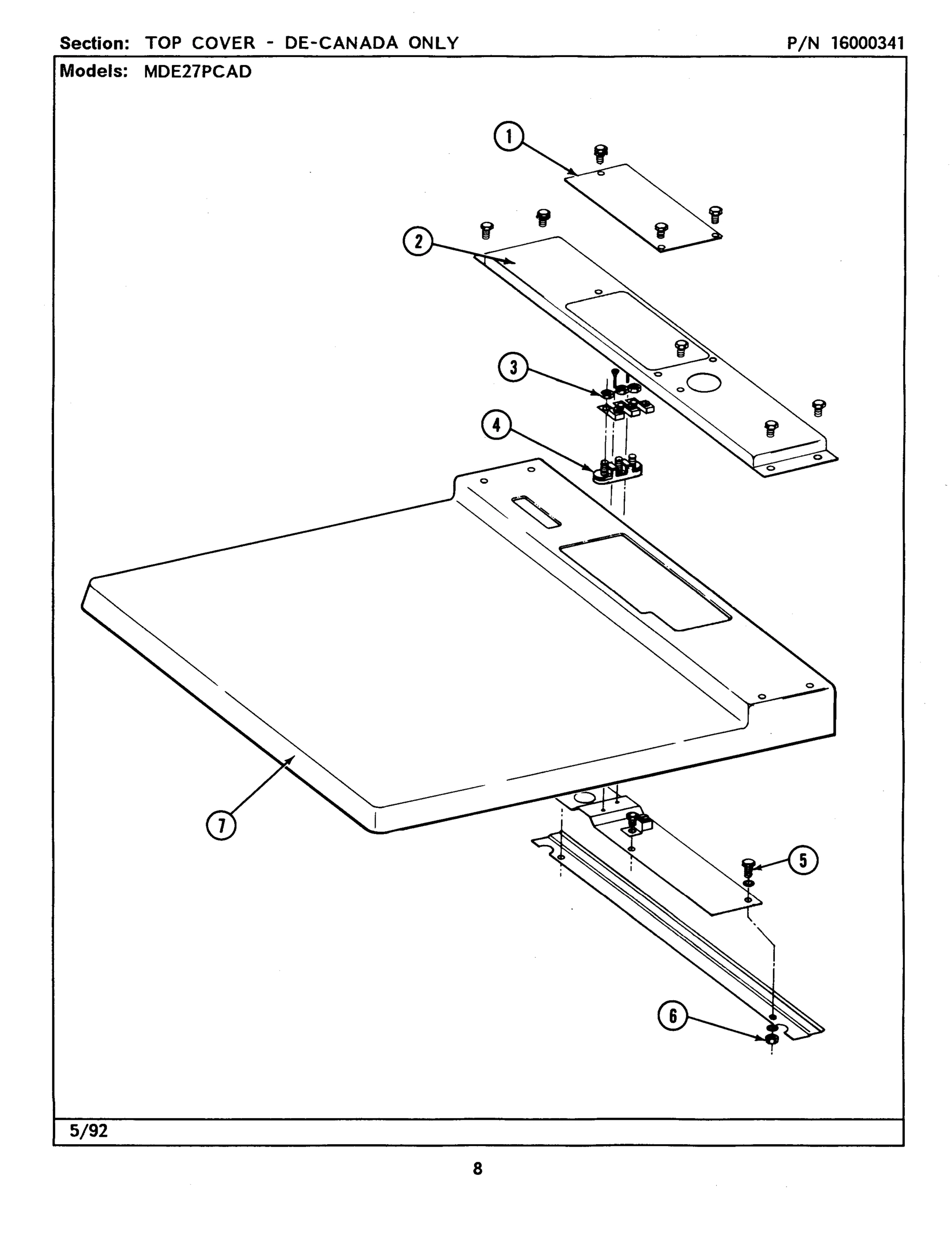

03 - TOP COVER

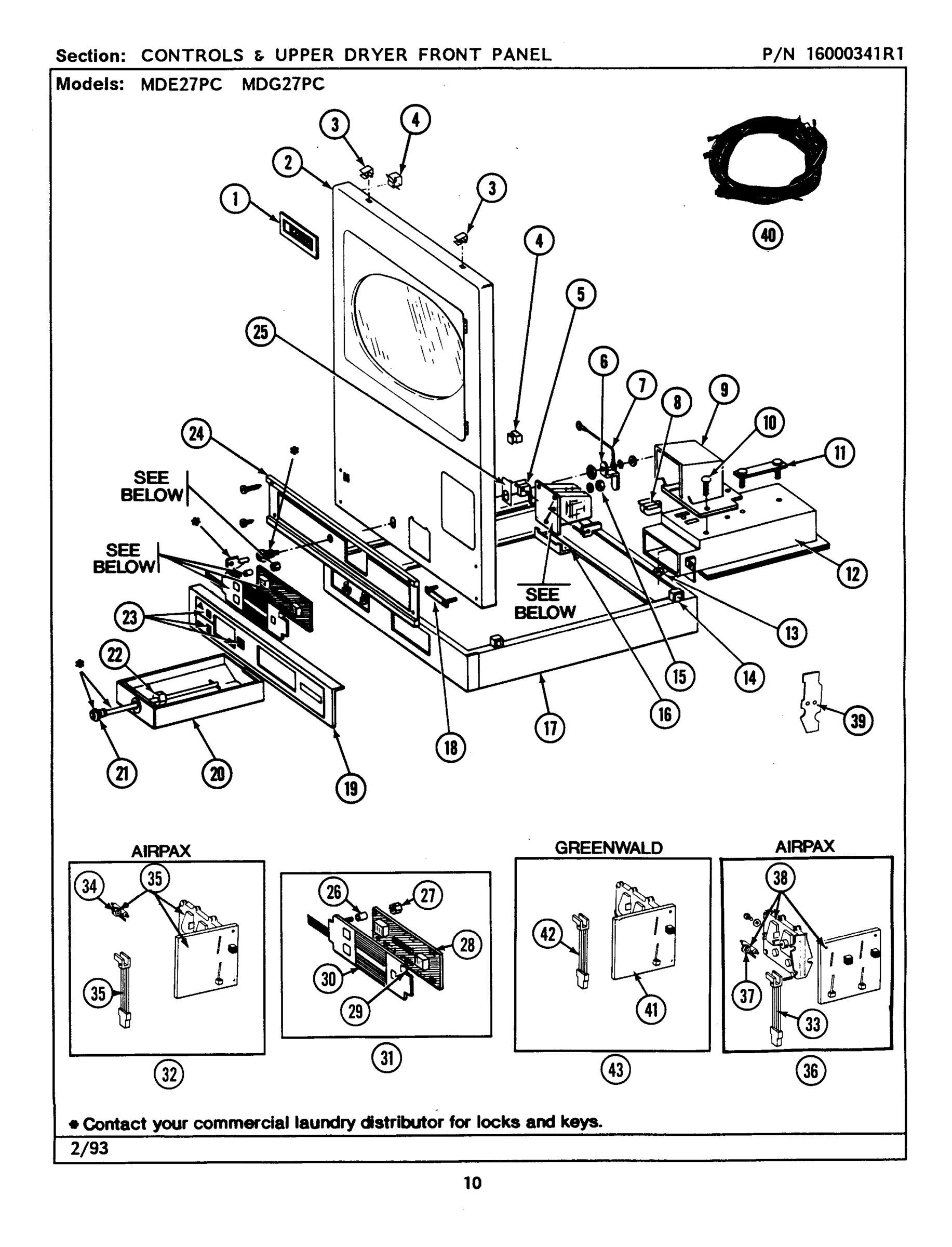

04 - CONTROLS & UPPER DRYER FRONT PANEL

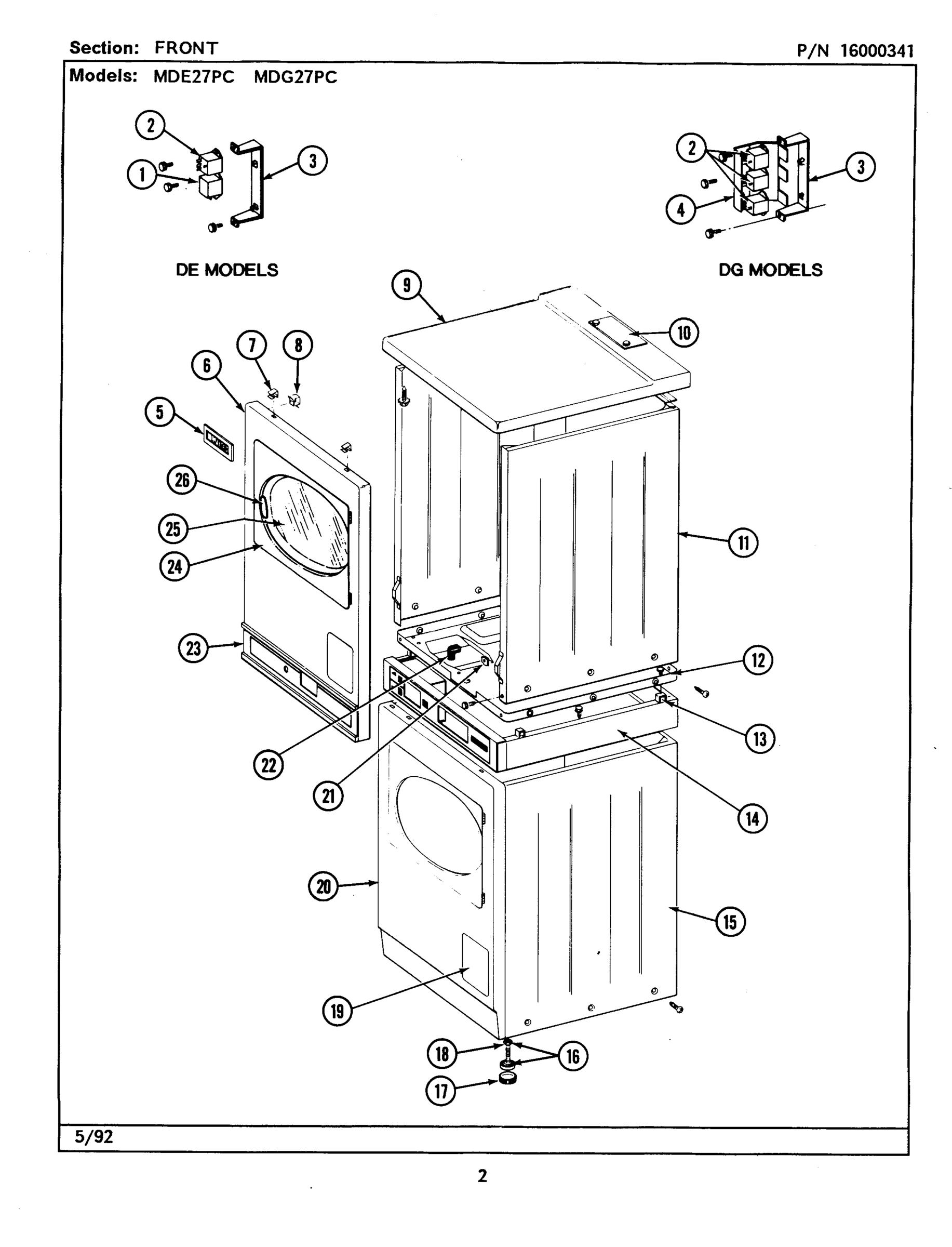

01 - FRONT

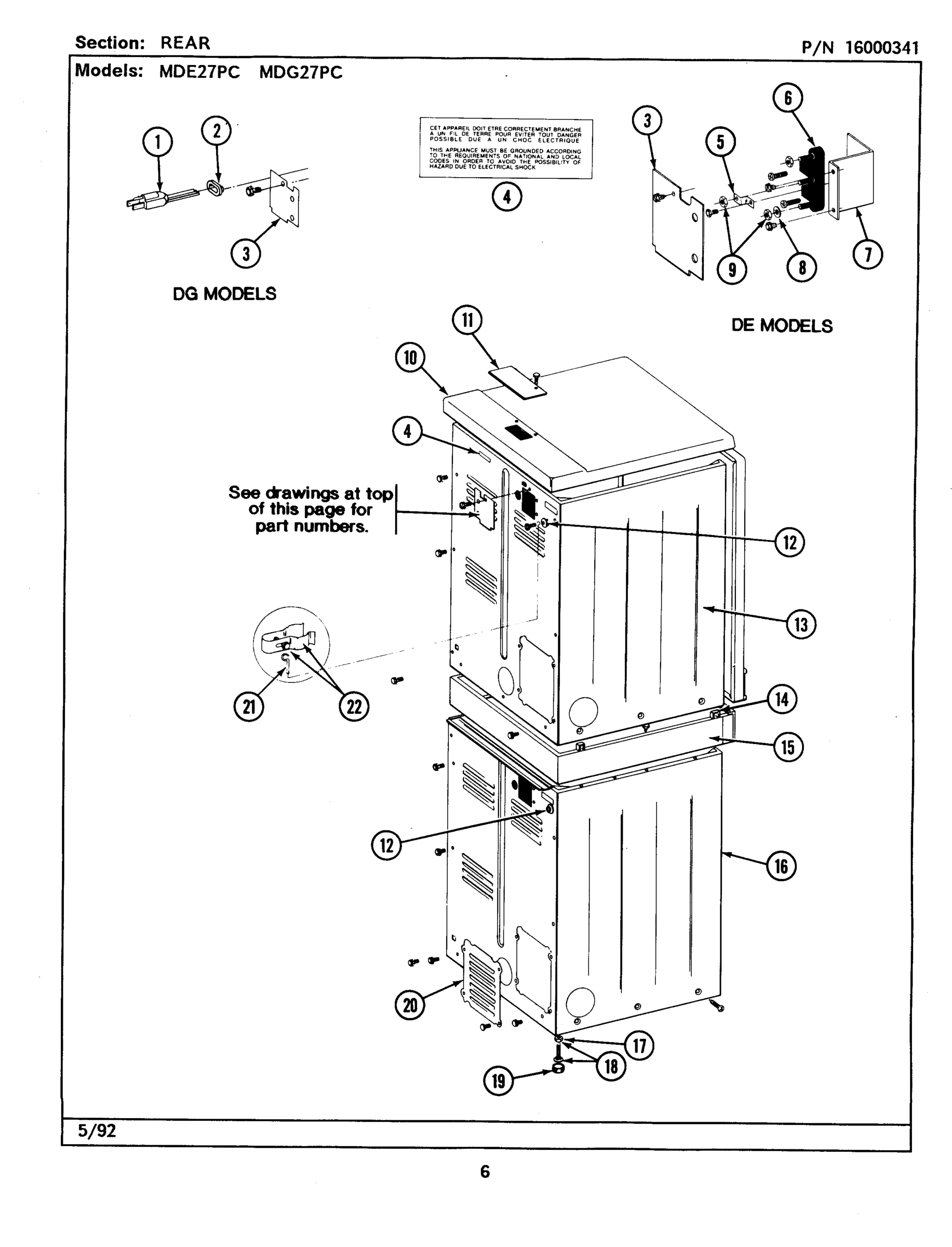

02 - REAR

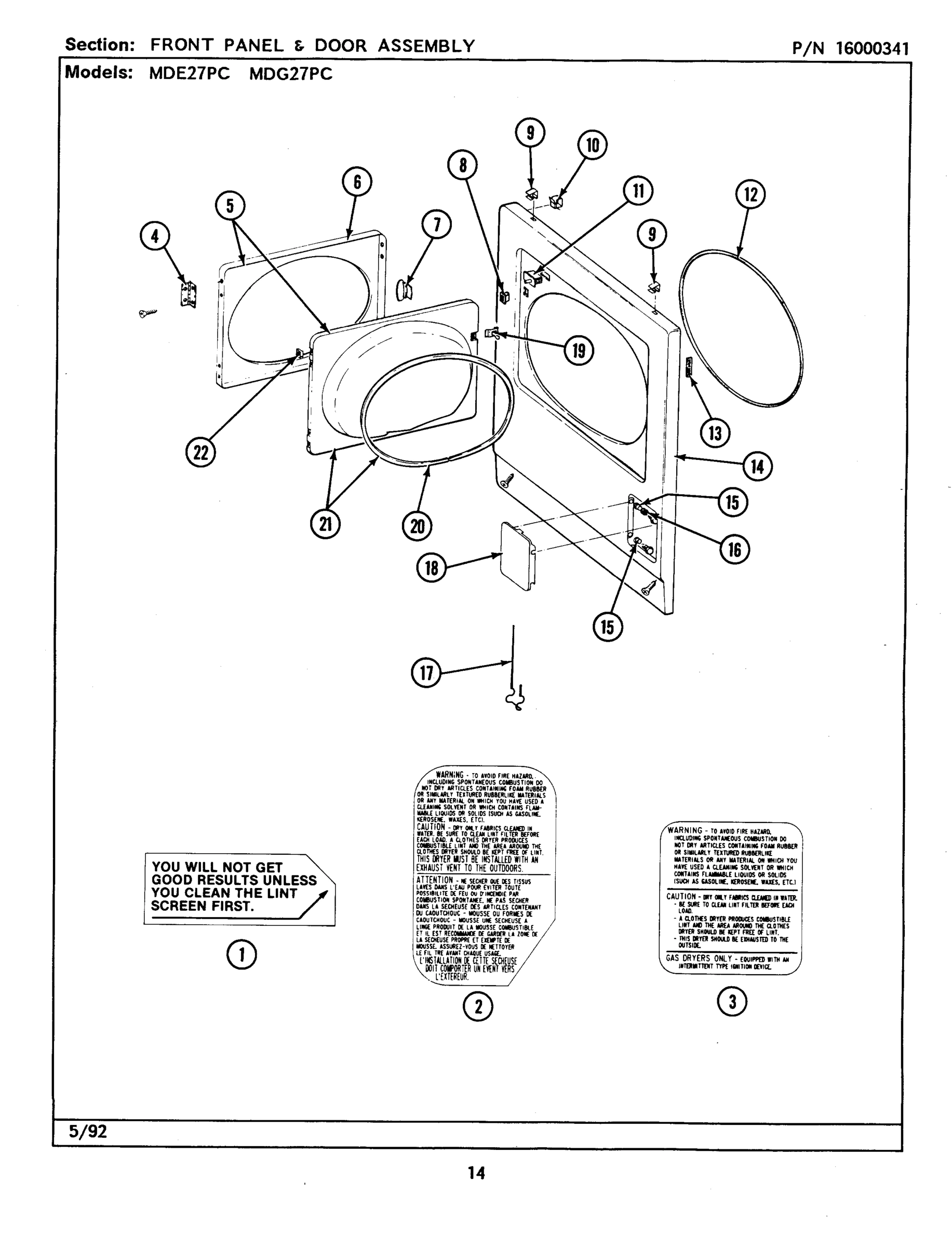

05 - FRONT PANEL & DOOR ASSEMBLY
Common parts from model Whirlpool MDG27PCABW GAS DRYER
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
001
TERMINAL COVER - CANADA WPL Y314174 Contact Us For Availability
001
PART NOT USED WPL 306398 Contact Us For Availability
001
CORD, POWER WPL 302521 Contact Us For Availability
001
DECAL, INSTRUCTION WPL Y313340 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
RELAY (4 CONTACT) WPL 901961 Contact Us For Availability
002
HOLDER, CORD WPL 211881 Contact Us For Availability
002
PART NOT USED WPL 314941 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
RELAY BRACKET WPL 314627 Contact Us For Availability
003
TERMINAL COVER WPL Y312905 Contact Us For Availability
004
ELECTRICAL INSTRUCTION LABEL WPL 214519 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
005
SHIELD, ACCESS SWITCH WPL 314979 Contact Us For Availability
005
SCREW WPL 912012 Contact Us For Availability
005
ACCESS SWITCH WPL Y306232 Contact Us For Availability
005
PART NOT USED WPL Y312184 Contact Us For Availability
006
PART NOT USED WPL 400008 Contact Us For Availability
006
LOCKING CAM WPL 314625 Contact Us For Availability
006
DOOR PANEL, OUTER HALF (WHITE) WPL 314967 Contact Us For Availability
007
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
WIRE, GROUND WPL Y306712 Contact Us For Availability
007
HANDLE, DOOR (WHITE) WPL 314939 Contact Us For Availability
007
(ALMOND) WPL 314974 Contact Us For Availability
007
PART NOT USED WPL Y312904 Contact Us For Availability
008
WASHER, BAFFLE TO TUMBLER WPL 314158 Contact Us For Availability
008
WIRE, GROUND WPL 901220 Contact Us For Availability
008
COIN CHUTE WPL 314635 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
010
CLIP, DOOR SWITCH HARNESS WPL Y310376 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
No.3-3358-8 & 3-3358-9 WPL 306207 Contact Us For Availability
010
SWITCH, MOTOR START PROD. No.3-3358-2, 3-3358 WPL Y303877 Contact Us For Availability
010
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- WPL Y303879 Contact Us For Availability
010
BOLT WPL 314654 Contact Us For Availability
010
TOP COVER ASSY. (WHITE) WPL 307104 Contact Us For Availability
011
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
012
SET SCREW, MOTOR PULLEY WPL Y053241 Contact Us For Availability
012
BASE ASSY., UPPER DRYER WPL 306261 Contact Us For Availability
012
LOCK WASHER WPL 910387 Contact Us For Availability
012
SCREW WPL 314663 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
013
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
013
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
013
FASTENER, TWIN WPL Y313907 Contact Us For Availability
014
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
014
FASTENER, COUPLING COLLAR WPL 310933 Contact Us For Availability
014
SCREW & FASTENER ASSY. WPL 204439 Contact Us For Availability
014
SCREW WPL 212949 Contact Us For Availability
014
PANEL, FRONT LOWER (WHITE) WPL Y308464 Contact Us For Availability
015
SCREW WPL Y310632 Contact Us For Availability
016
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
016
BRACKET, COIN MECHANISM WPL 314631 Contact Us For Availability
016
SLEEVE, RUBBER WPL 312369 Contact Us For Availability
017
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
017
LATCH, ACCESS DOOR WPL Y314025 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
DOOR, ACCESS (WHITE) WPL NLA Contact Us For Availability
018
COIN ACCEPTOR STRAP WPL 306233 Contact Us For Availability
019
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
019
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
020
SCREW WPL Y313561 Contact Us For Availability
020
COIN TRAY (WHITE) WPL 306219 Contact Us For Availability
020
ACCESS COVER, BACK WPL Y312951 Contact Us For Availability
020
SEAL, DOOR WPL 314935 Contact Us For Availability
021
DOOR, INNER W/GASKET WPL 308069 Contact Us For Availability
022
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
022
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
022
NUT, COIN BOX WPL 214104 Contact Us For Availability
022
STRAIN RELIEF WPL 314522 Contact Us For Availability
022
GROUND CLAMP WPL 301548 Contact Us For Availability
022
CLIP WPL Y313910 Contact Us For Availability
023
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
023
COVER, BLOWER WPL Y313770 Contact Us For Availability
023
LENS WPL 314618 Contact Us For Availability
024
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
024
SCREW WPL 314666 Contact Us For Availability
025
TRANSFORMER, LOWER DRYER BASE WPL 306062 Contact Us For Availability
025
SHIELD, TRANSFORMER WPL 315218 Contact Us For Availability
025
BRACKET, ACCESS SWITCH WPL 314634 Contact Us For Availability
026
SPACER, CIRCUIT BOARD WPL 912075 Contact Us For Availability
029
BASE ASSY. (LOWER DRYER) WPL Y303361 Contact Us For Availability
029
CLIP, SPEED (CONTROL SWITCH) WPL 912086 Contact Us For Availability
030
TOUCH PAD ASSEMBLY WPL 306443 Contact Us For Availability
030
SCREW WPL 910186 Contact Us For Availability
031
DUCT, EXHAUST WPL Y303442 Contact Us For Availability
032
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
033
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
037
BALANCE ARM W/WEIGHT-$.10 WPL 314713 Contact Us For Availability
038
REJECTOR ASSY. (.10 - ACCESS) WPL Y307401 Contact Us For Availability
039
COIN SLOT COVER (ACCESS) WPL 314710 Contact Us For Availability
040
(12 CIRCUITS FOR DE & DG WPL 306238 Contact Us For Availability
040
(14 CIRCUITS FOR DE & DG WPL 306239 Contact Us For Availability
040
TAPERED BEAM CONTACT (USAGE VARIES BETWEEN WPL 314652 Contact Us For Availability
041
REJECTOR ASSY. (.25) WPL Y308123 Contact Us For Availability
042
SWITCH, OPTIC WPL Y306224 Contact Us For Availability
043
COIN RE WPL Y308124 Contact Us For Availability
× ![]()
