Model Maytag MDG12PSAGW GAS DRYER – Common Parts & Diagrams

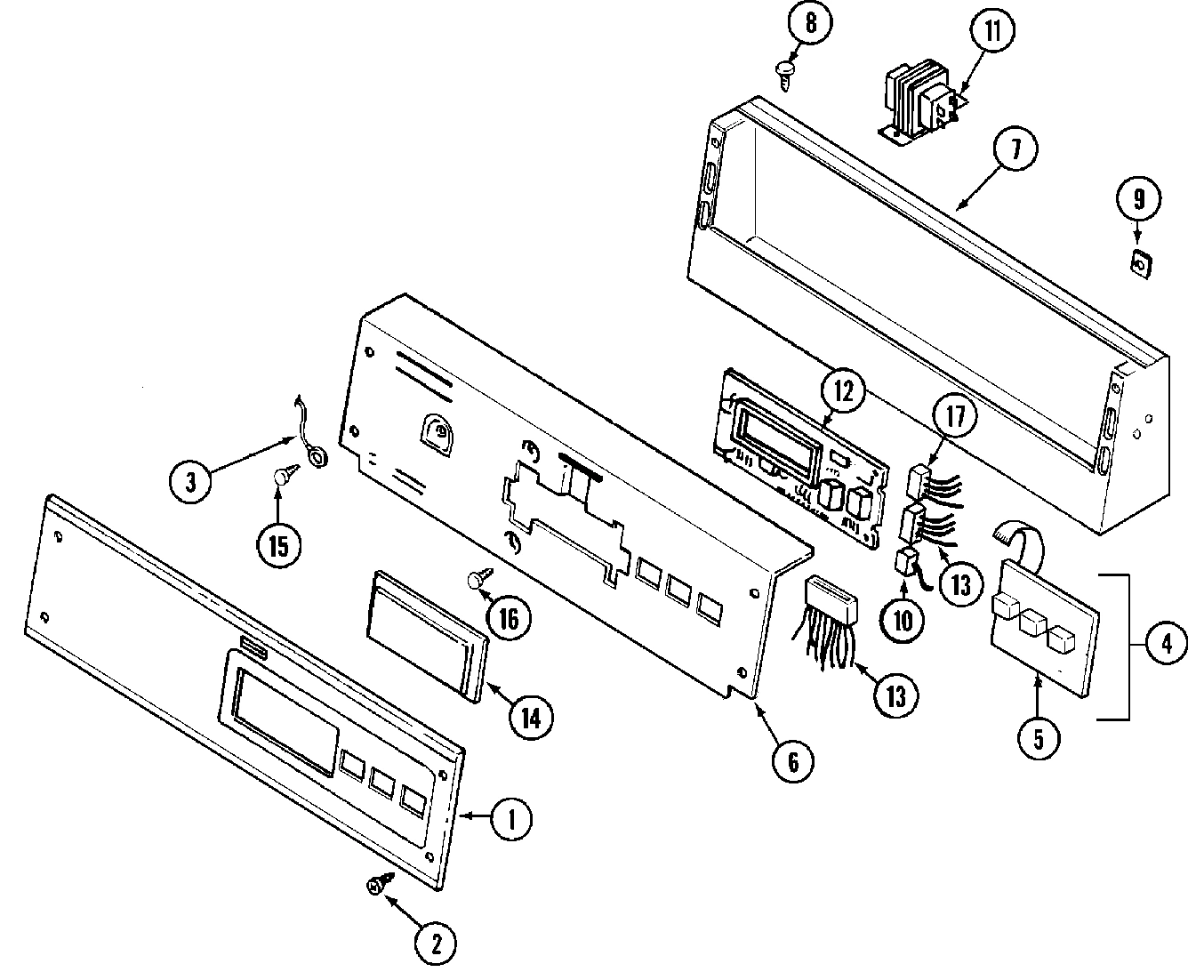

01 - CONTROL PANEL

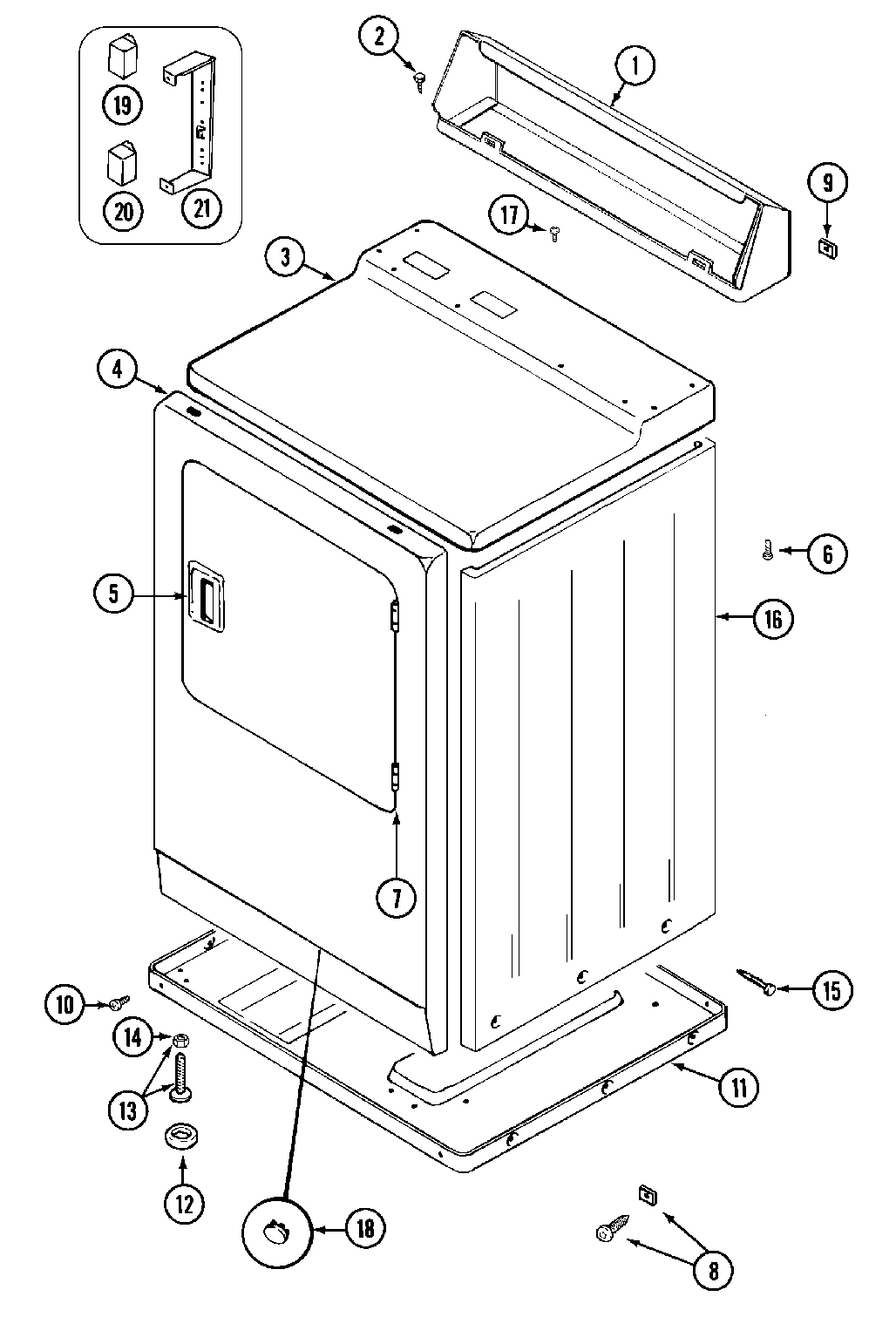

02 - CABINET-FRONT
03 - DOOR

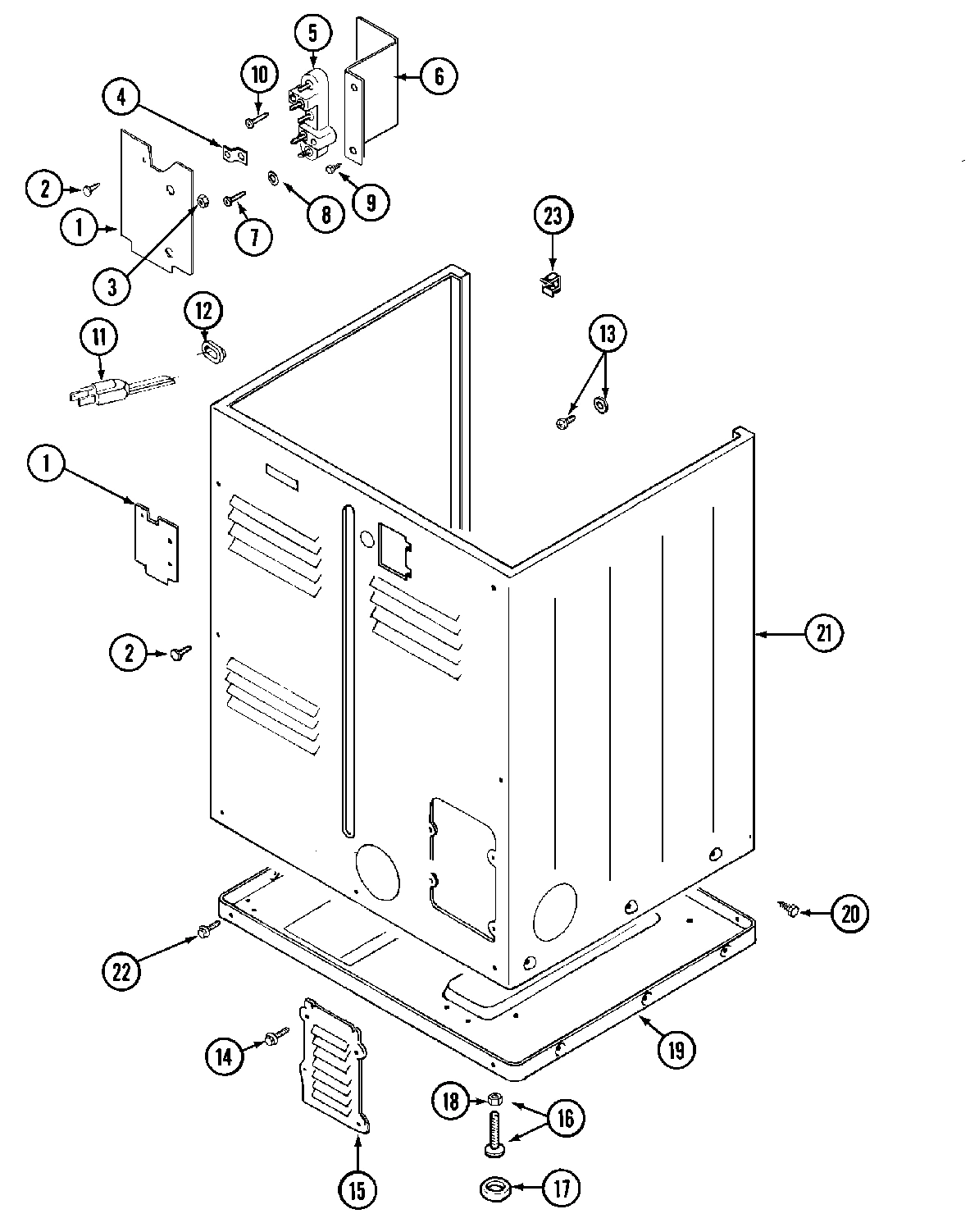

04 - CABINET-REAR
05 - TUMBLER

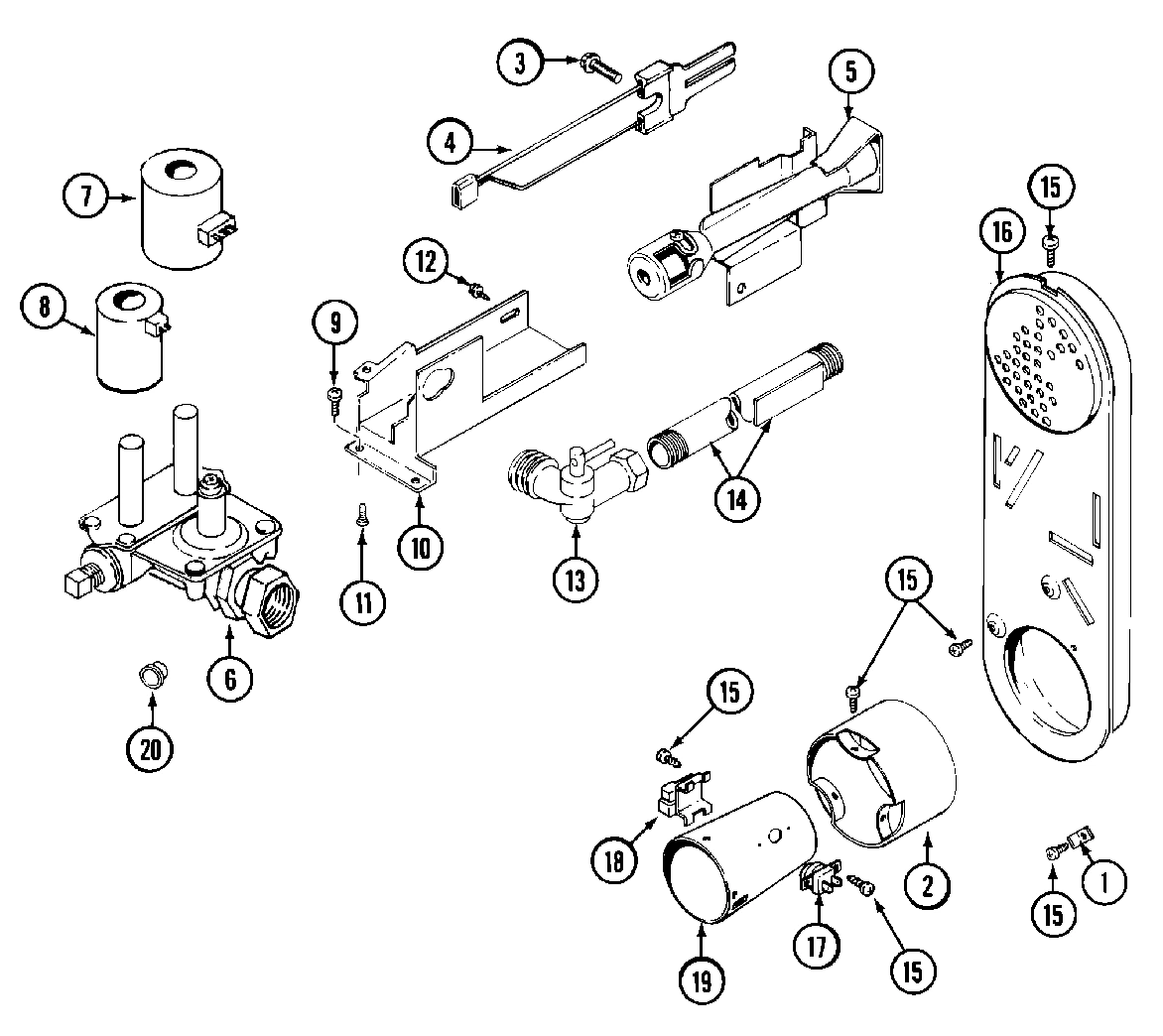

06 - GAS VALVE

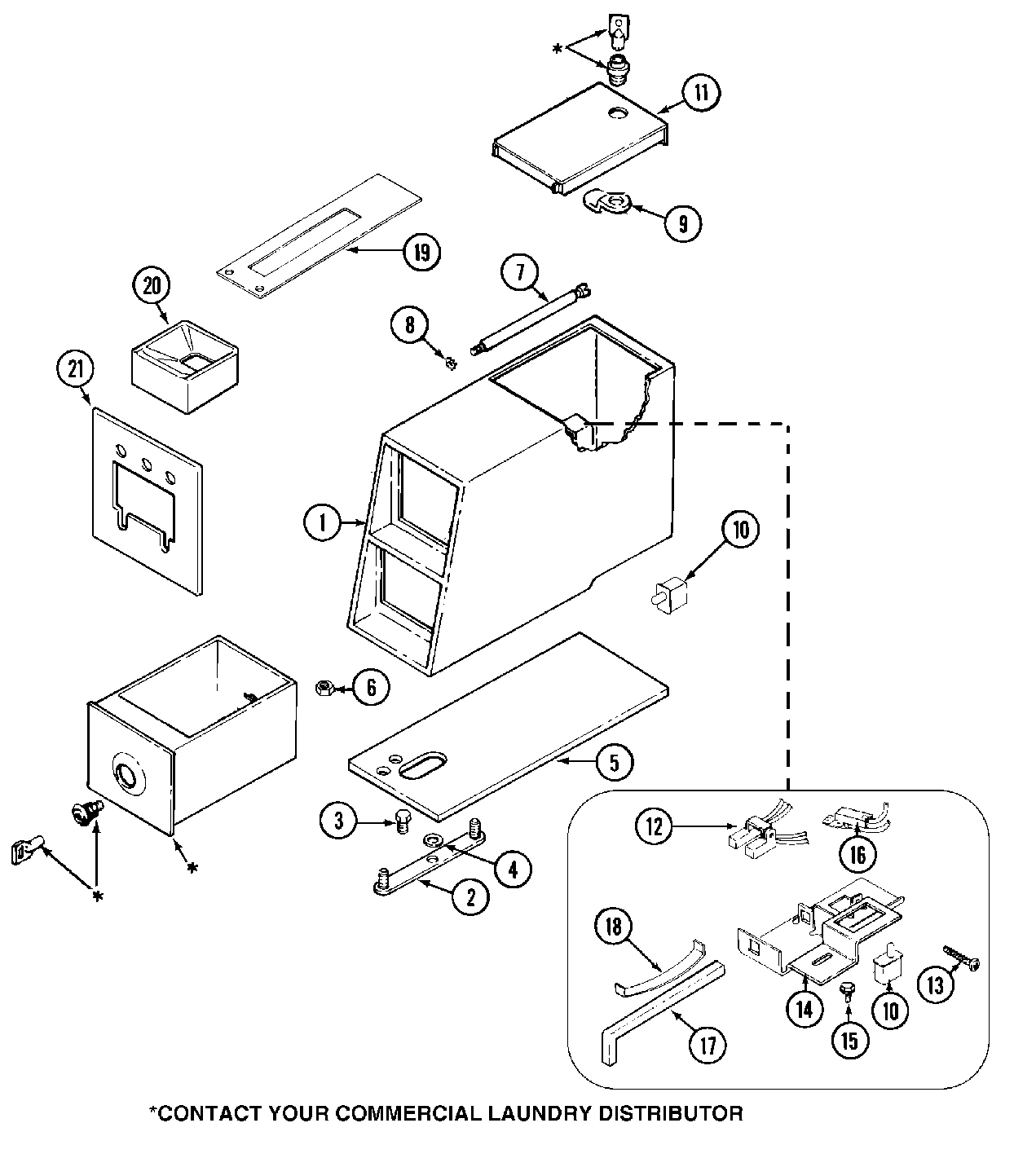

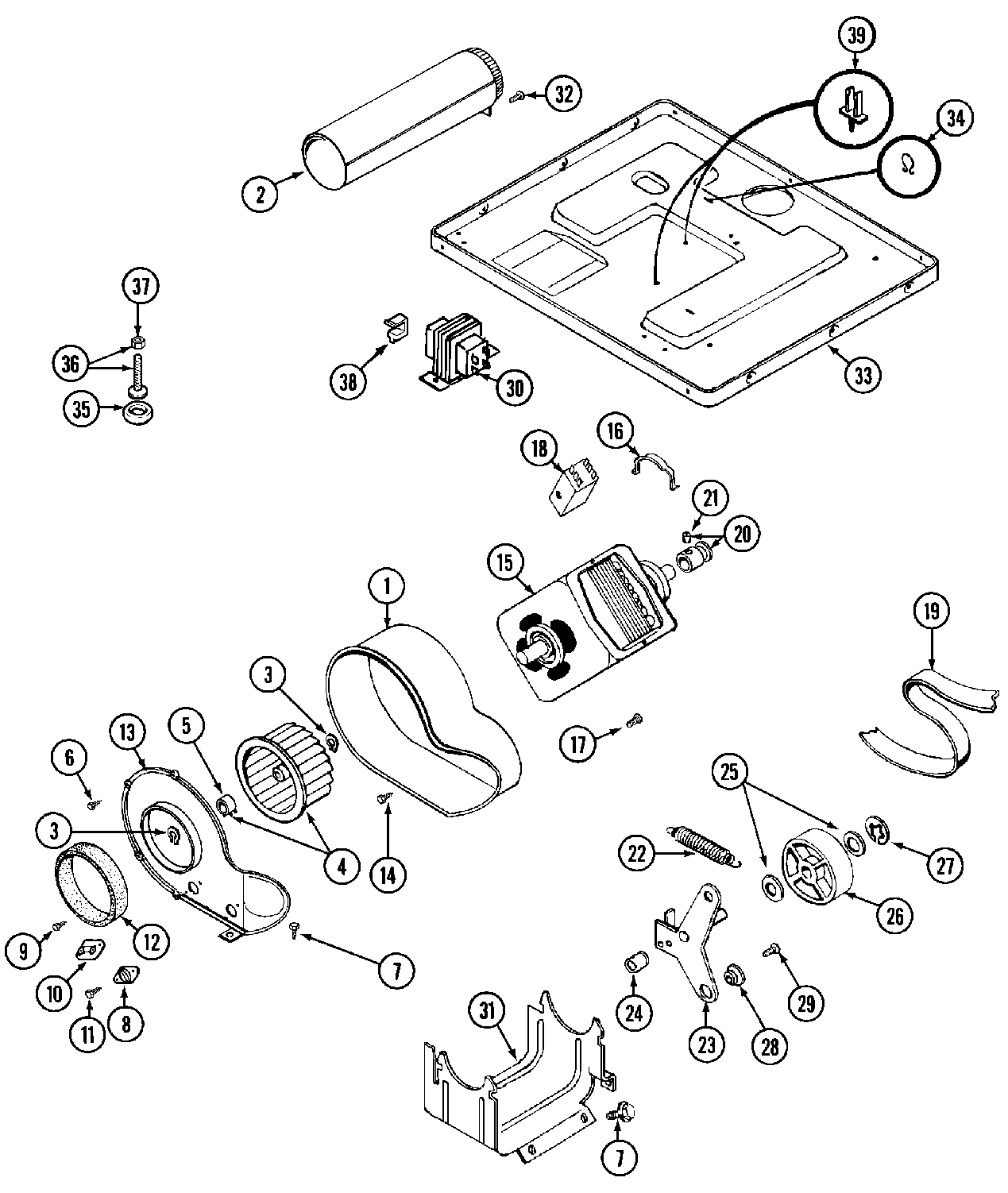

07 - MOTOR DRIVE
08 - CONTROL CENTER

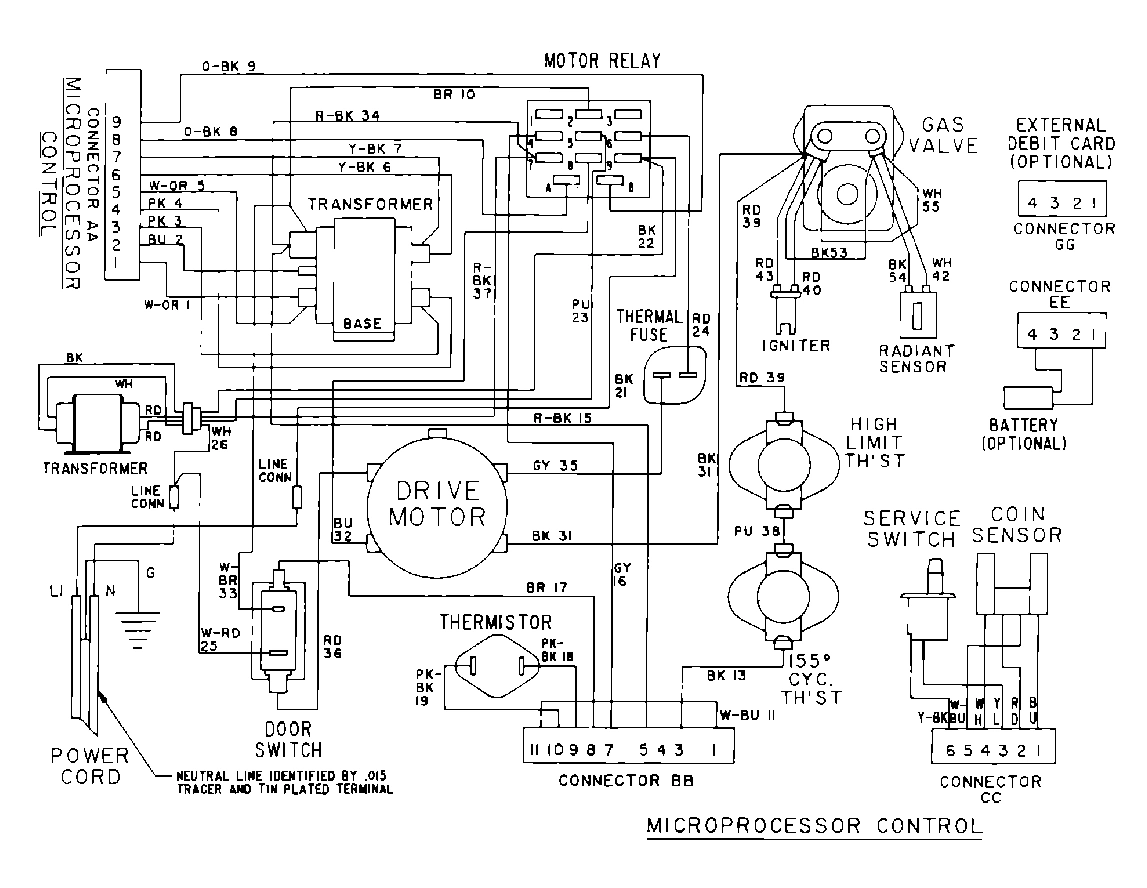

09 - WIRING INFORMATION
Common parts from model Maytag MDG12PSAGW GAS DRYER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY Y312905 MAY Y312905 Contact Us For Availability
001
MAY Y312890 MAY Y312890 Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
001
MAY 22001871 MAY 22001871 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
MAY Y303841 MAY Y303841 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
002
MAY 22001810 MAY 22001810 Contact Us For Availability
003
MAY 33001240 MAY 33001240 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY MAY 306694 Contact Us For Availability
004
MAY Y312184 MAY Y312184 Contact Us For Availability
004
WASHER, STRAP SCREW MAY 910309 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
MAY 33001131 MAY 33001131 Contact Us For Availability
005
MAY 22001870 MAY 22001870 Contact Us For Availability
006
PLUG, DOOR (WHT) MAY 33001132 Contact Us For Availability
006
MAY Y312904 MAY Y312904 Contact Us For Availability
006
VALVE, GAS MAY 307927 Contact Us For Availability
006
MAY 33001847 MAY 33001847 Contact Us For Availability
007
MAY 33001230 MAY 33001230 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
MAY Y304578 MAY Y304578 Contact Us For Availability
007
SCREW, TERMINAL BLOCK MAY Y312209 Contact Us For Availability
007
BOLT, LOCKING MAY 22001903 Contact Us For Availability
008
SCREW, FRONT PANEL MAY 22001496 Contact Us For Availability
008
MAY 306056 MAY 306056 Contact Us For Availability
008
MAY Y311270 MAY Y311270 Contact Us For Availability
008
MAY 315122 MAY 315122 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT MAY 910387 Contact Us For Availability
010
MAY 33001436 MAY 33001436 Contact Us For Availability
010
MAY 314566 MAY 314566 Contact Us For Availability
010
SCREW, SENSOR SWITCH MAY 912012 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
MAY 33001285 MAY 33001285 Contact Us For Availability
011
MAY 33001425 MAY 33001425 Contact Us For Availability
011
MAY 33001819 MAY 33001819 Contact Us For Availability
011
MAY 22001910 MAY 22001910 Contact Us For Availability
012
MAY Y314137 MAY Y314137 Contact Us For Availability
012
WASHER, BAFFLE MAY 314158 Contact Us For Availability
012
MAY 216183 MAY 216183 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314568 Contact Us For Availability
013
MAY Y305086 MAY Y305086 Contact Us For Availability
013
MAY 33001108 MAY 33001108 Contact Us For Availability
013
MAY Y303349 MAY Y303349 Contact Us For Availability
013
COVER, BLOWER HOUSING MAY 314778 Contact Us For Availability
014
SCREW, ACCESS COVER MAY 216423 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY MAY Y303383 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
014
MAY 33001253 MAY 33001253 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
MAY 33001175 MAY 33001175 Contact Us For Availability
015
MAY Y312951 MAY Y312951 Contact Us For Availability
015
MOTOR MAY Y304656 Contact Us For Availability
015
CLIP, BRACKET SCREW MAY 211605 Contact Us For Availability
015
SCREW, SWITCH BRACKET MAY 212276 Contact Us For Availability
016
FASTENER, INNER DOOR MAY Y313910 Contact Us For Availability
016
INLET DUCT ASSEMBLY MAY Y308504 Contact Us For Availability
016
HARNESS, SENSOR SWITCH MAY 208045 Contact Us For Availability
016
MAY 22001966 MAY 22001966 Contact Us For Availability
017
OPTIC SWITCH ASSEMBLY MAY 206799 Contact Us For Availability
017
MAY 216442 MAY 216442 Contact Us For Availability
018
MAY 33001243 MAY 33001243 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
SPRING, SWITCH ROD MAY 33001252 Contact Us For Availability
019
RELAY, MOTOR (DPDT) MAY 206421 Contact Us For Availability
019
RELAY, MOTOR (SPST 24VDC) MAY 206824 Contact Us For Availability
019
BRACKET, STRIKE MAY 314944 Contact Us For Availability
019
BASE ASSEMBLY MAY Y303361 Contact Us For Availability
019
MAY Y308548 MAY Y308548 Contact Us For Availability
019
MAY 22001812 MAY 22001812 Contact Us For Availability
020
RELAY, HEATER (SPST) MAY 306398 Contact Us For Availability
020
SHAFT, TUMBLER ROLLER----C MAY Y312948 Contact Us For Availability
020
MAY 33001693 MAY 33001693 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) MAY 305186 Contact Us For Availability
021
SCREW, MOTOR RELAY MAY 212949 Contact Us For Availability
021
BRACKET, RELAY MAY 314627 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
SCREW, SET MAY Y053241 Contact Us For Availability
021
PLATE, ADAPTER (WHT) MAY 22001879 Contact Us For Availability
022
MAY Y303945 MAY Y303945 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
027
MAY 901220 MAY 901220 Contact Us For Availability
028
MAY 910343 MAY 910343 Contact Us For Availability
030
SCREW, TRANSFORMER MAY Y313559 Contact Us For Availability
030
TRANSFORMER MAY 22001417 Contact Us For Availability
030
TRANSFORMER MAY 307928 Contact Us For Availability
030
MAY 33001816 MAY 33001816 Contact Us For Availability
032
SCREW, EXHAUST DUCT MAY Y310632 Contact Us For Availability
033
BASE ASSEMBLY MAY Y305084 Contact Us For Availability
034
MAY 410490 MAY 410490 Contact Us For Availability
038
CLIP, CABLE MAY Y310376 Contact Us For Availability
039
MAY 315471 MAY 315471 Contact Us For Availability
× ![]()
