Model Maytag MDG11CSEGL GAS DRYER – Common Parts & Diagrams

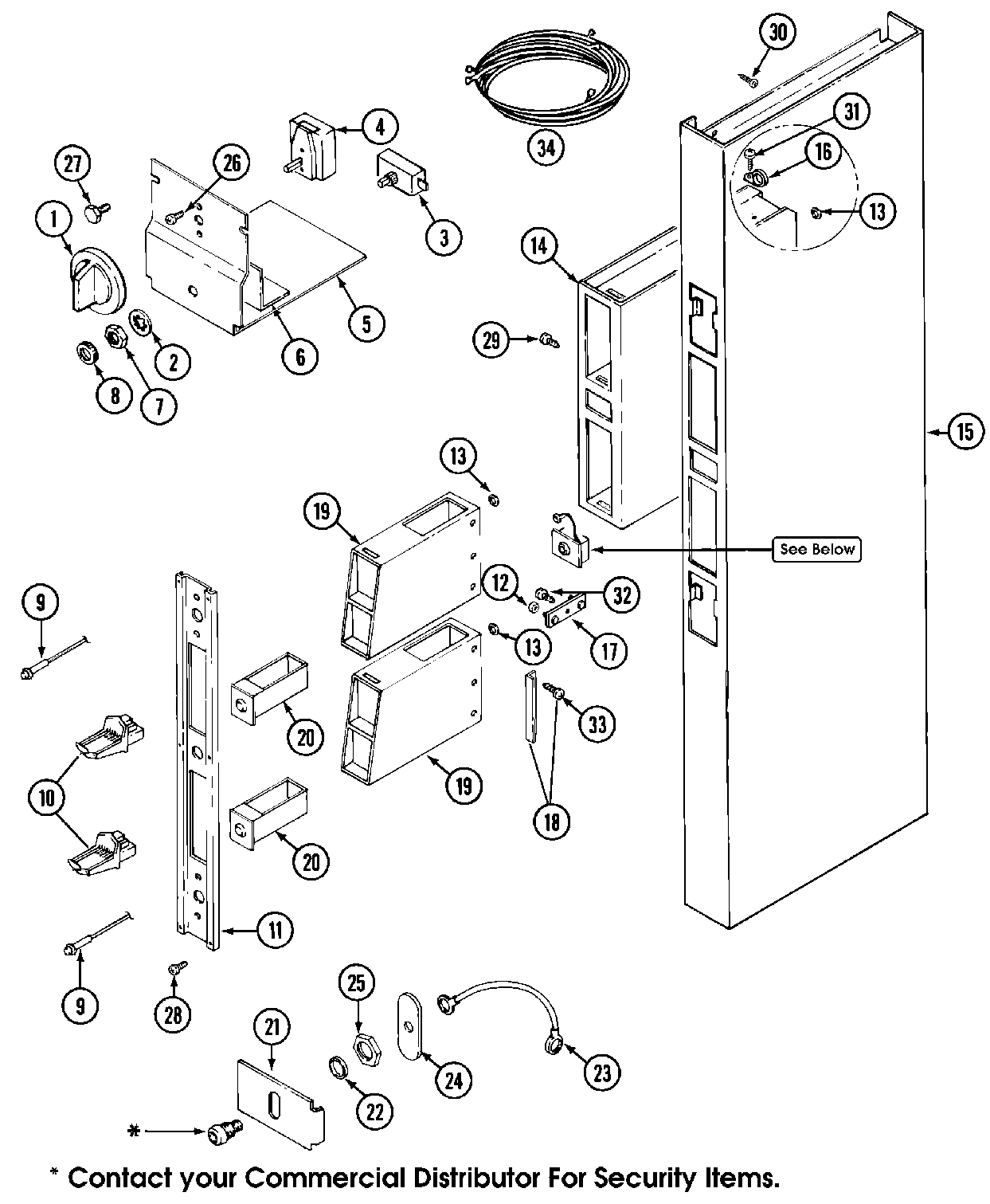

01 - CONTROL CENTER SHROUD

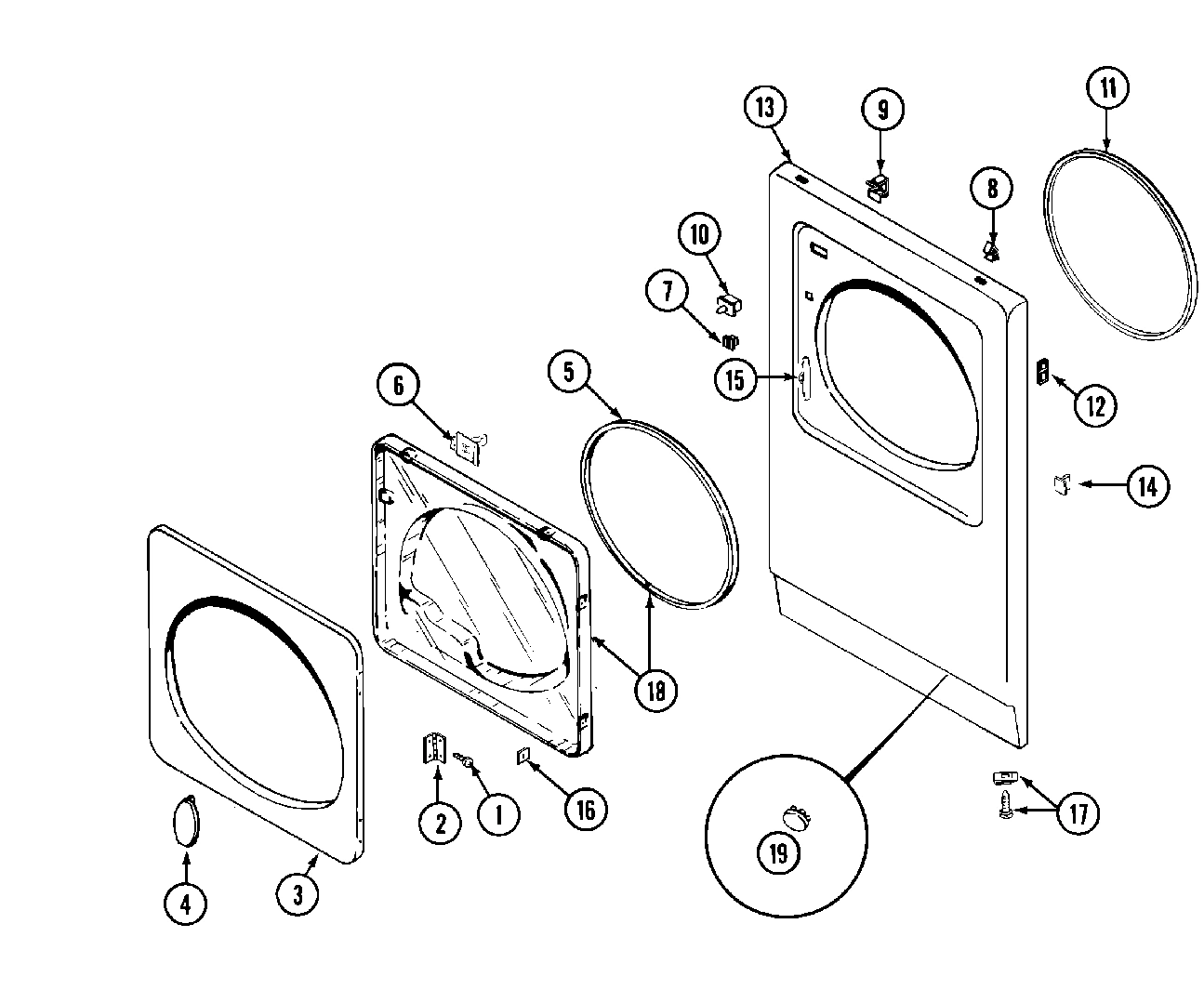

02 - DOOR

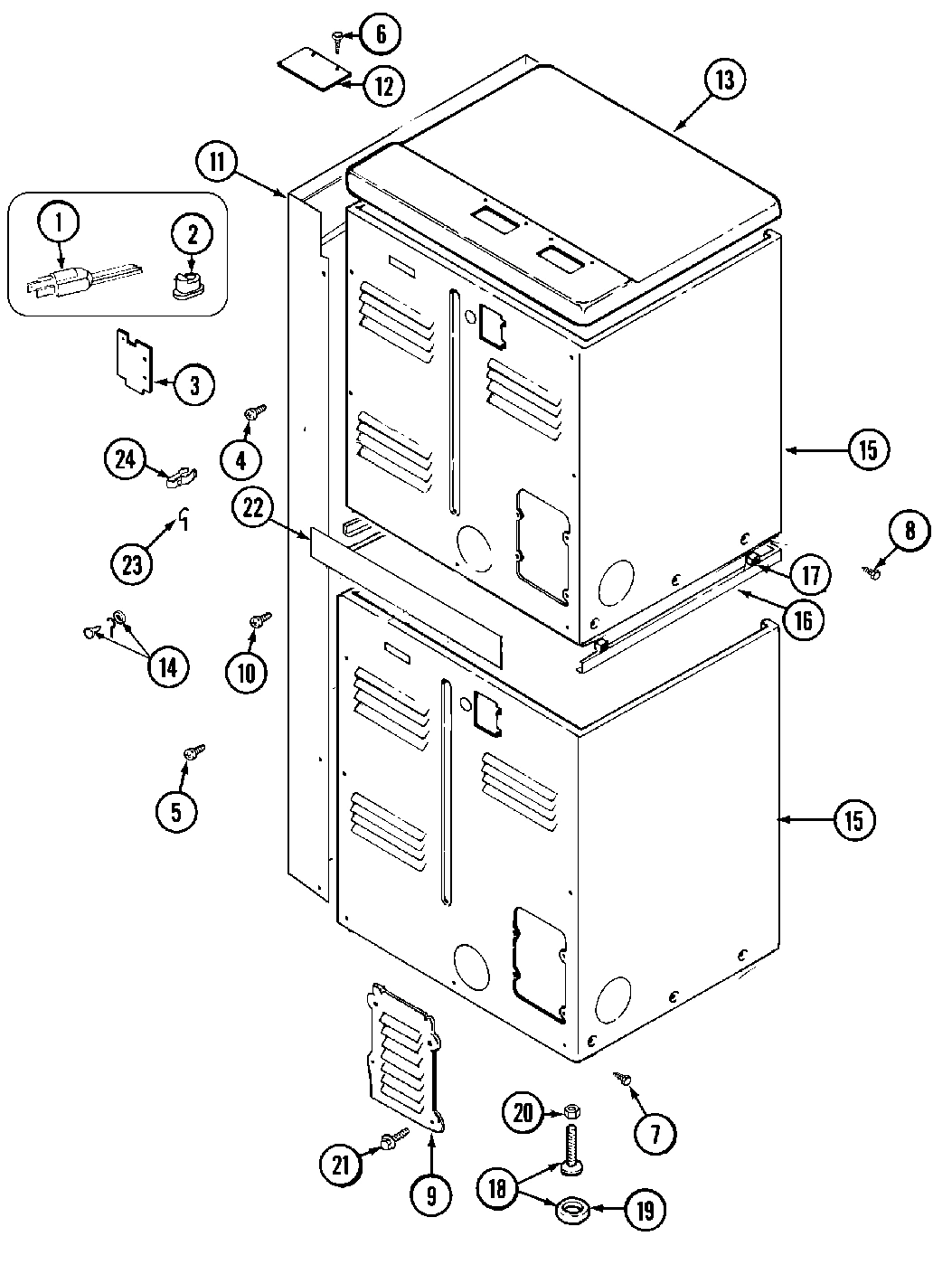

03 - REAR VIEW
04 - TUMBLER

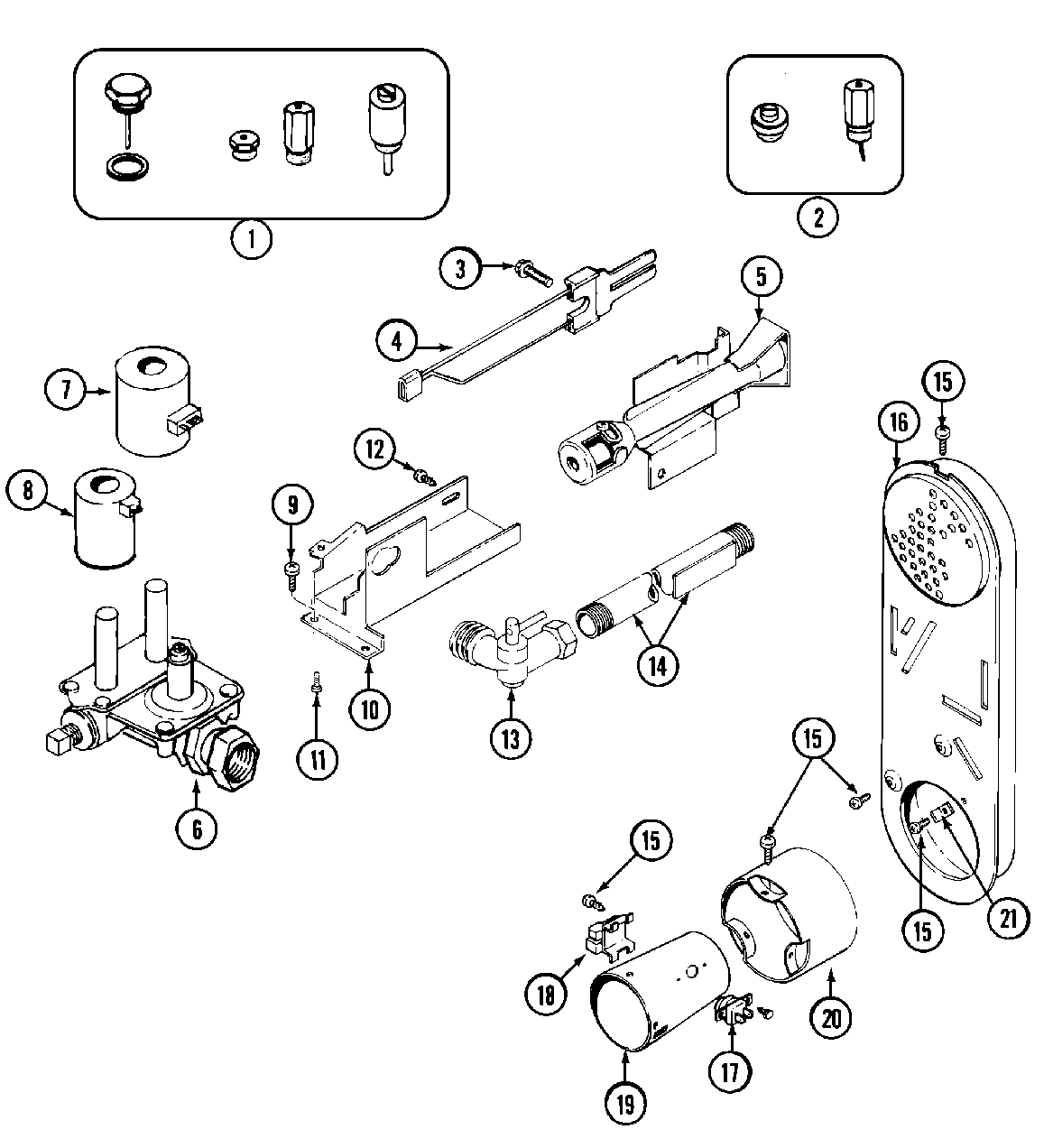

05 - GAS VALVE

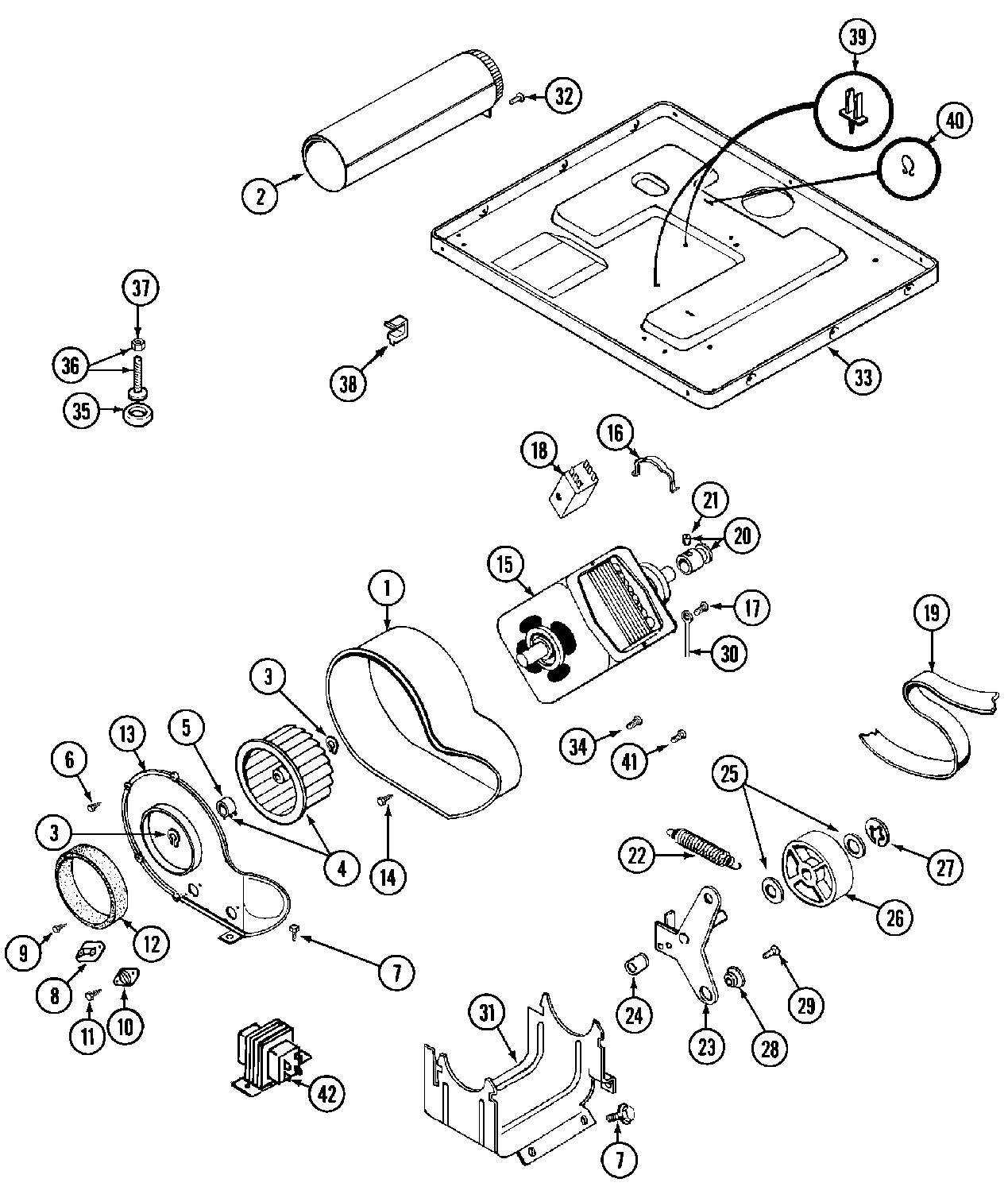

06 - MOTOR DRIVE

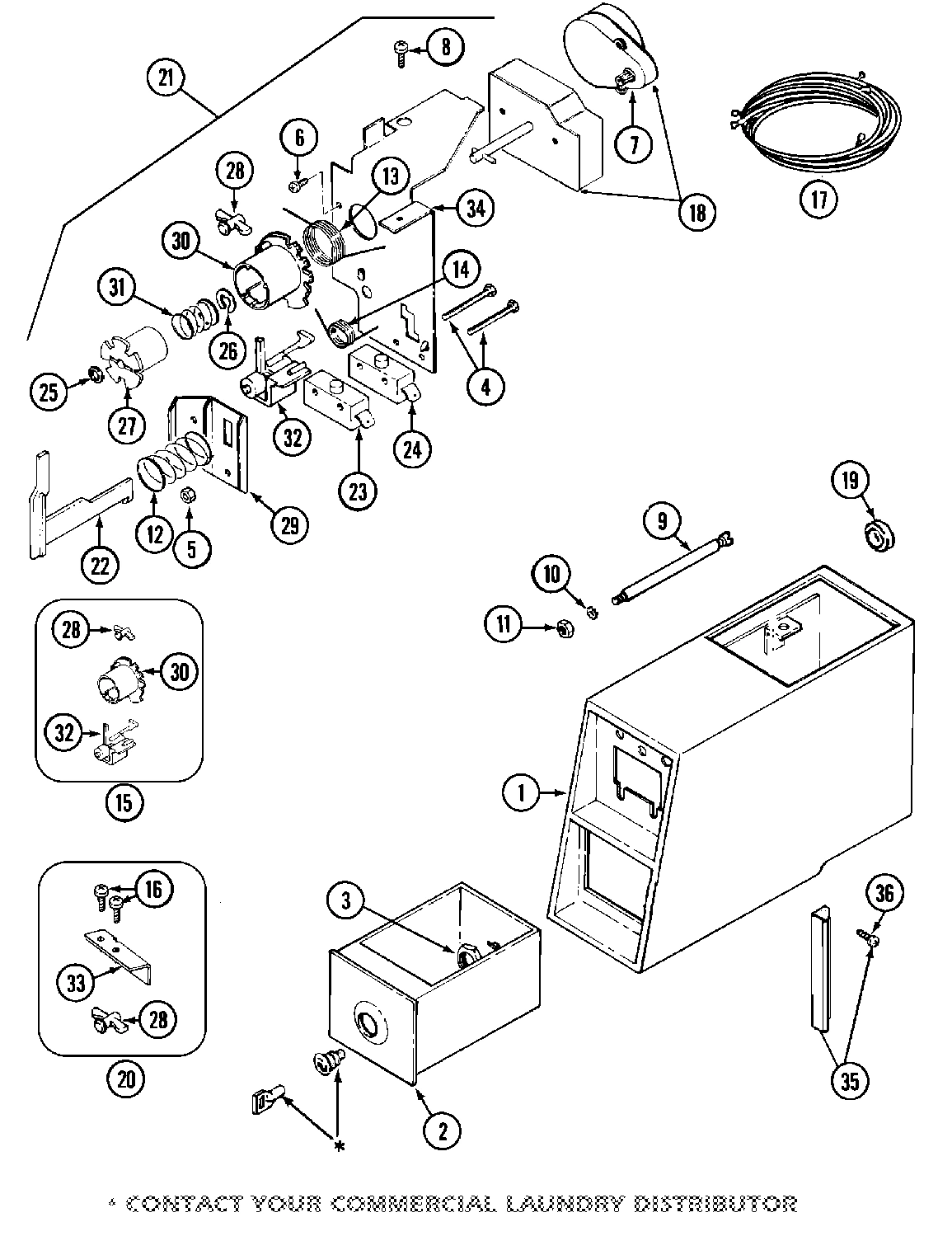

07 - CONTROL CENTER

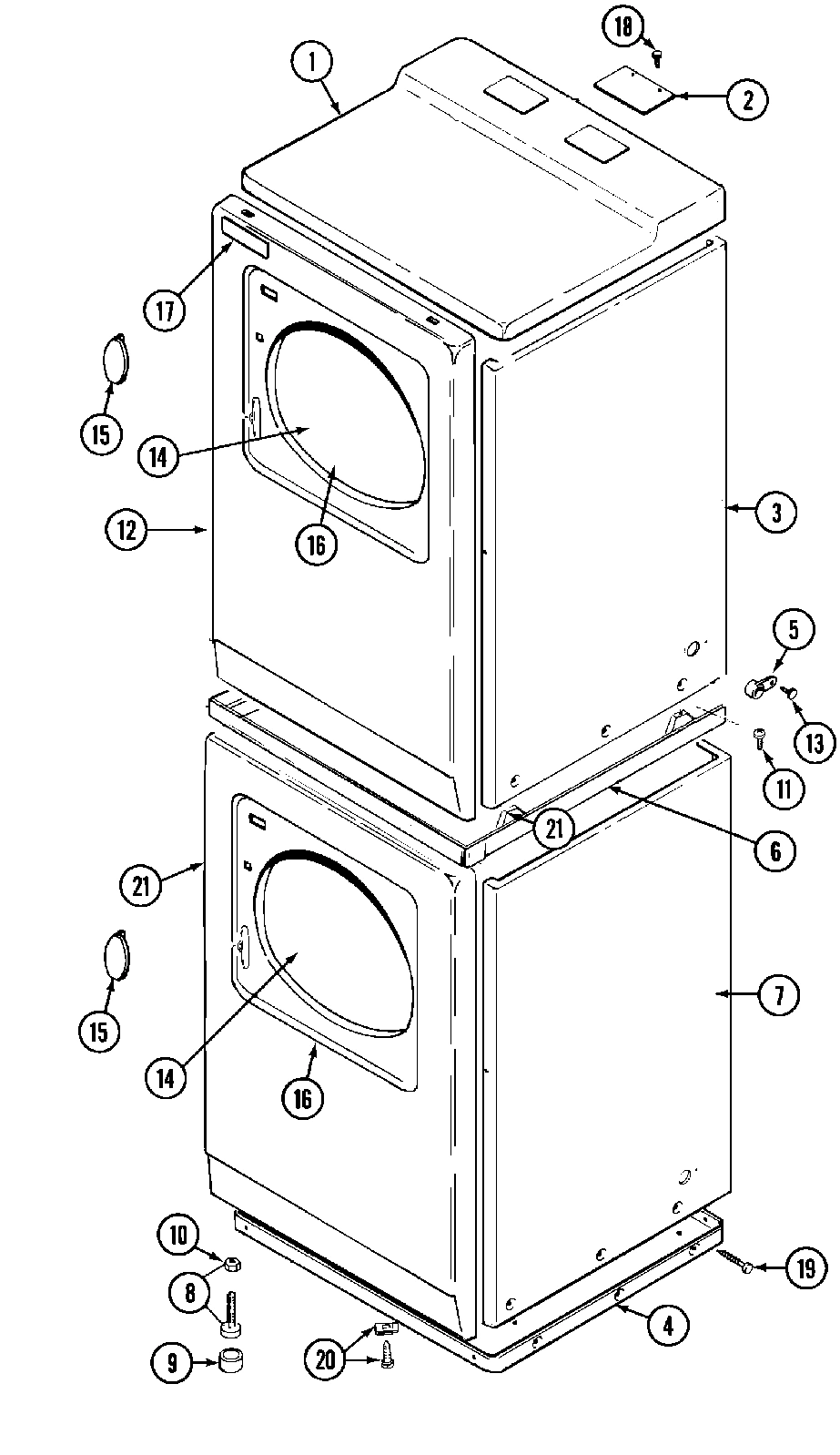

08 - FRONT VIEW
Common parts from model Maytag MDG11CSEGL GAS DRYER
001
MAY 33001016 MAY 33001016 Contact Us For Availability
001
MAY 308966 MAY 308966 Contact Us For Availability
001
MAY 33001285 MAY 33001285 Contact Us For Availability
001
TOP COVER ASSY. (WHT) MAY 33001165 Contact Us For Availability
001
MAY Y308378 MAY Y308378 Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
001
CASE, COIN METER (WHT) MAY Y307081 Contact Us For Availability
002
MAY 33001230 MAY 33001230 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
MAY Y308377 MAY Y308377 Contact Us For Availability
002
MAY Y303442 MAY Y303442 Contact Us For Availability
002
BOX, COIN (WHT) MAY 205423 Contact Us For Availability
002
MAY 205423L MAY 205423L Contact Us For Availability
003
MAY Y312905 MAY Y312905 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
004
BASE ASSY. MAY 306530 Contact Us For Availability
004
SCREW, BY-PASS SWITCHES MAY 315277 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
NUT, BY-PASS SWITCHES MAY Y052634 Contact Us For Availability
005
CABLE STOP MAY 910768 Contact Us For Availability
006
SCREW, SPACER ASSY. MAY Y310632 Contact Us For Availability
006
MAY 33001302 MAY 33001302 Contact Us For Availability
006
VALVE, GAS MAY 307927 Contact Us For Availability
006
SCREW, TIMER MAY 910708 Contact Us For Availability
006
SCREW, SPACER ASSY. MAY 911050 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
MOTOR, TIMER (240V 50HZ) MAY 306527 Contact Us For Availability
008
MAY Y303225 MAY Y303225 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) MAY 306966 Contact Us For Availability
008
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
008
WIRE HARNESS, THERMOSTATS MAY 33001306 Contact Us For Availability
009
MAY 215559 MAY 215559 Contact Us For Availability
010
MAY 314566 MAY 314566 Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT MAY 910387 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
SCREW, TOP DRYER MAY 314663 Contact Us For Availability
012
WASHER, BAFFLE SCREW MAY 314158 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314568 Contact Us For Availability
013
MAY 33001108 MAY 33001108 Contact Us For Availability
013
MAY Y303349 MAY Y303349 Contact Us For Availability
013
MAY 314847 MAY 314847 Contact Us For Availability
014
MAY 33001203 MAY 33001203 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
MAY Y303383 MAY Y303383 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
014
SPRING, ACTUATOR MAY 314332 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
HANDLE, DOOR (WHT) MAY 314939 Contact Us For Availability
015
MOTOR (240V 50HZ) MAY Y304656 Contact Us For Availability
015
ACTUATOR KIT MAY 306104 Contact Us For Availability
015
(ALM) MAY 314974 Contact Us For Availability
016
FASTENER, INNER DOOR MAY Y313910 Contact Us For Availability
016
MAY Y308504 MAY Y308504 Contact Us For Availability
016
PANEL, OUTER (WHT) MAY 314967 Contact Us For Availability
017
NAME PLATE MAY NLA Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
017
WIRE HARNESS, TIMER MAY 305800 Contact Us For Availability
018
SCREW, COVER PLATE MAY Y313559 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) MAY 306207 Contact Us For Availability
018
SWITCH, MOTOR START (PROD. No. 303358-2, 3033 MAY Y303877 Contact Us For Availability
018
SWITCH, MOTOR START (PROD. No. 303358 & 30335 MAY Y303879 Contact Us For Availability
018
TIMER (240V 50HZ) MAY 305812 Contact Us For Availability
019
MAY 33001132 MAY 33001132 Contact Us For Availability
019
(ALM) MAY 33001168 Contact Us For Availability
019
COMBUSTION CONE ASSY. MAY Y308549 Contact Us For Availability
019
GROMMET, CASE OPENING MAY Y313671 Contact Us For Availability
020
SCREW & FASTENER ASSY. MAY 204439 Contact Us For Availability
020
MAY 305186 MAY 305186 Contact Us For Availability
020
MAY Y305185 MAY Y305185 Contact Us For Availability
021
FASTENER, SUPPORT ASSY. MAY 310933 Contact Us For Availability
021
MAY Y312951 MAY Y312951 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
MAY Y312890 MAY Y312890 Contact Us For Availability
021
SCREW, SET MAY Y053241 Contact Us For Availability
021
TORSION TIMER ASSY. MAY 305831 Contact Us For Availability
022
IDLER SPRING ASSY. MAY Y303945 Contact Us For Availability
023
SWITCH, BY-PASS (MOTOR) MAY 305798 Contact Us For Availability
024
SWITCH, BY-PASS (HEATER) MAY Y305799 Contact Us For Availability
024
MAY 301548 MAY 301548 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
026
CLIP, SPRING RETAINER MAY Y312270 Contact Us For Availability
027
DRIVER, INDEX WHEEL MAY 314330 Contact Us For Availability
028
PEG, TIME ADJUSTMENT MAY 314335 Contact Us For Availability
028
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
028
STOP, ADJUSTABLE RETURN MAY 314547 Contact Us For Availability
029
BRACKET, SWITCH & SLIDER MAY 314339 Contact Us For Availability
030
MAY 901220 MAY 901220 Contact Us For Availability
030
WHEEL, INDEX MAY 314546 Contact Us For Availability
032
ACTUATOR, WHEEL MAY 314548 Contact Us For Availability
033
(UPPER) MAY Y307482 Contact Us For Availability
033
BRACKET, COIN SLIDE MAY 314334 Contact Us For Availability
034
BRACKET, TIMER MAY 314333 Contact Us For Availability
036
SCREW, METER STOP MAY Y014872 Contact Us For Availability
038
CLIP, CABLE MAY Y310376 Contact Us For Availability
039
RETAINER, WIRE HARNESS MAY 315471 Contact Us For Availability
040
MAY 410490 MAY 410490 Contact Us For Availability
042
MAY 307928 MAY 307928 Contact Us For Availability
× ![]()
