Model Whirlpool MDE27CSADW ELECTRIC DRYER – Common Parts & Diagrams

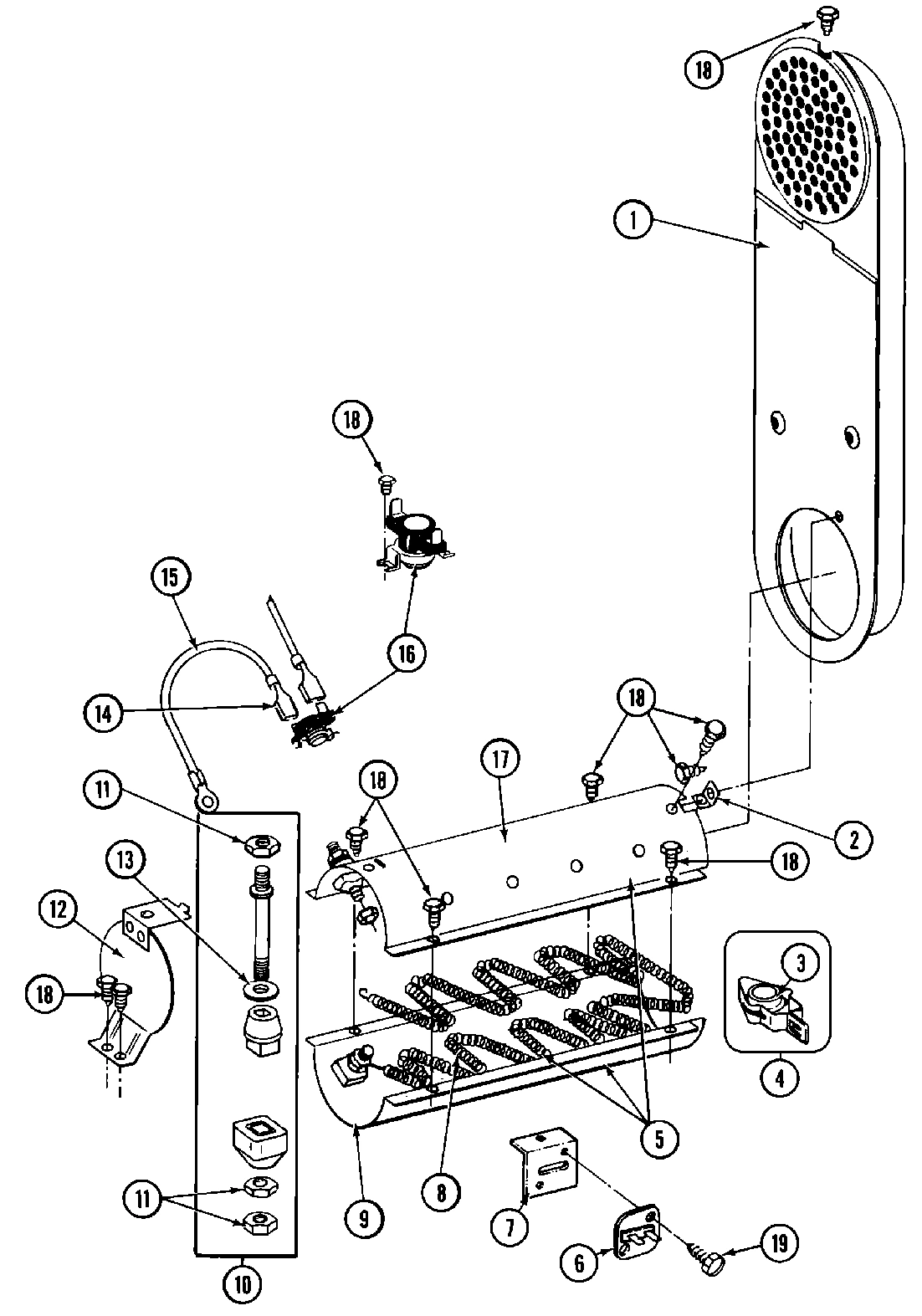

12 - HEATER (A0 SERIES)

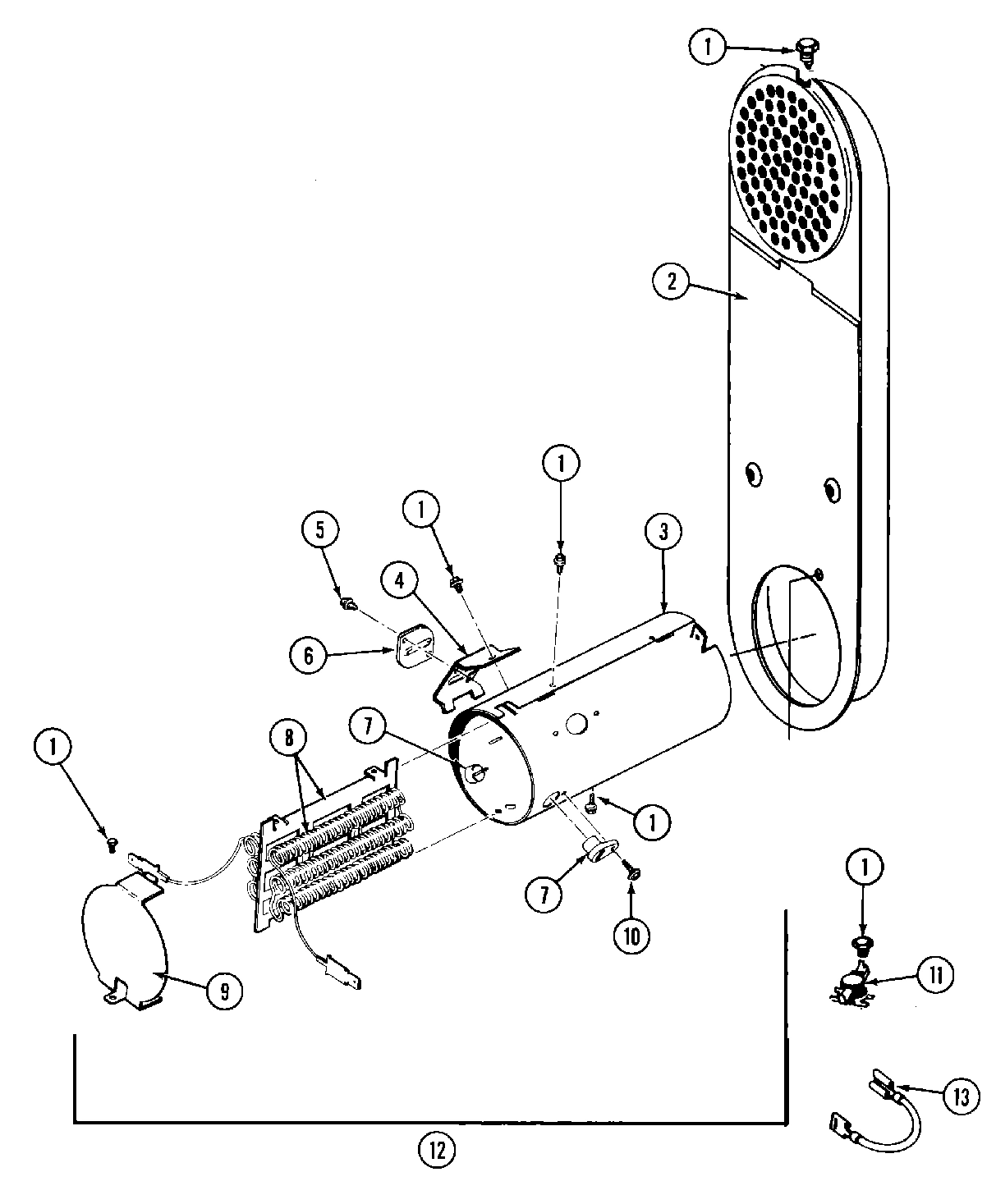

09 - HEATER (A3 SERIES)

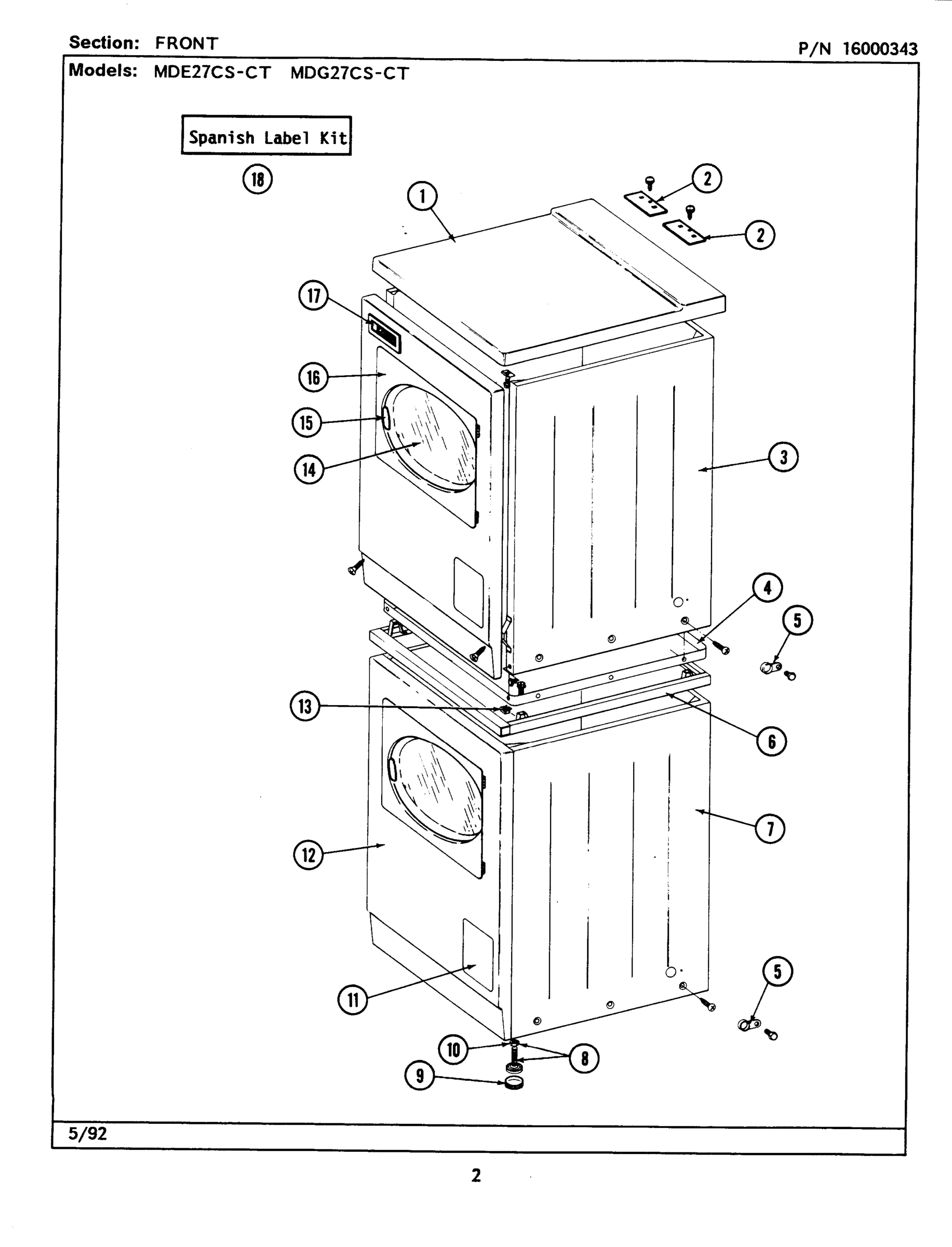

01 - FRONT

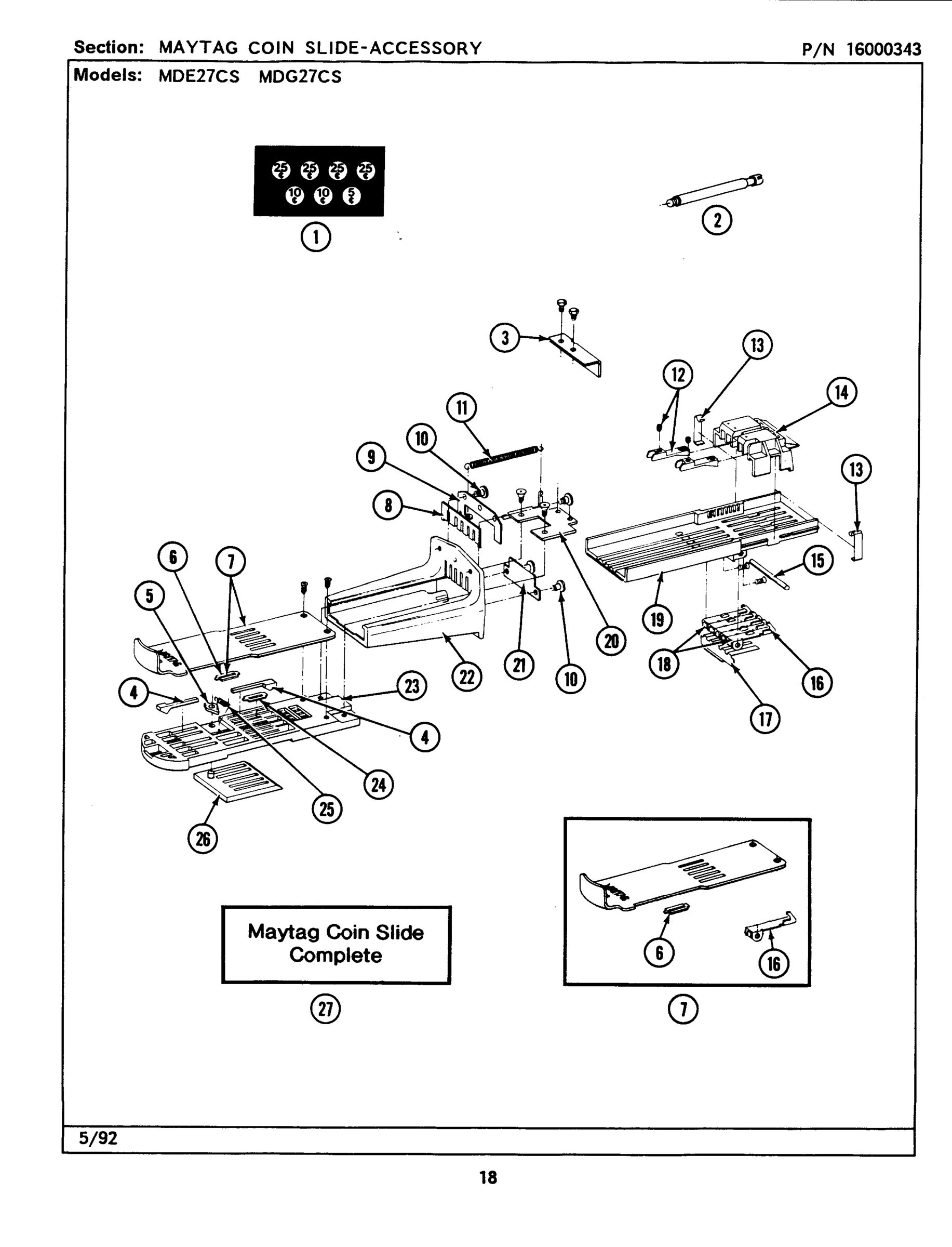

06 - MAYTAG COIN SLIDE-ACCESSORY

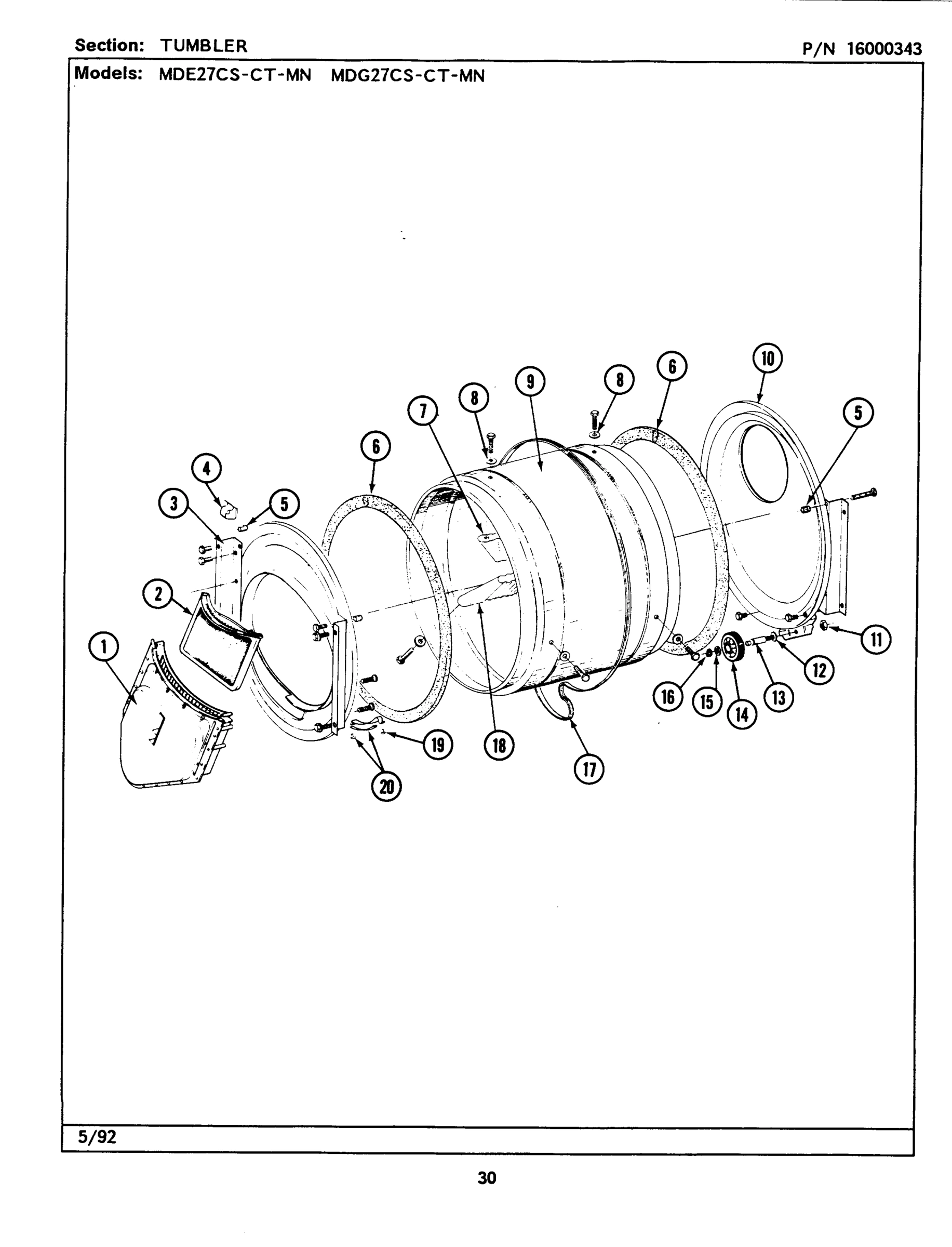

08 - TUMBLER

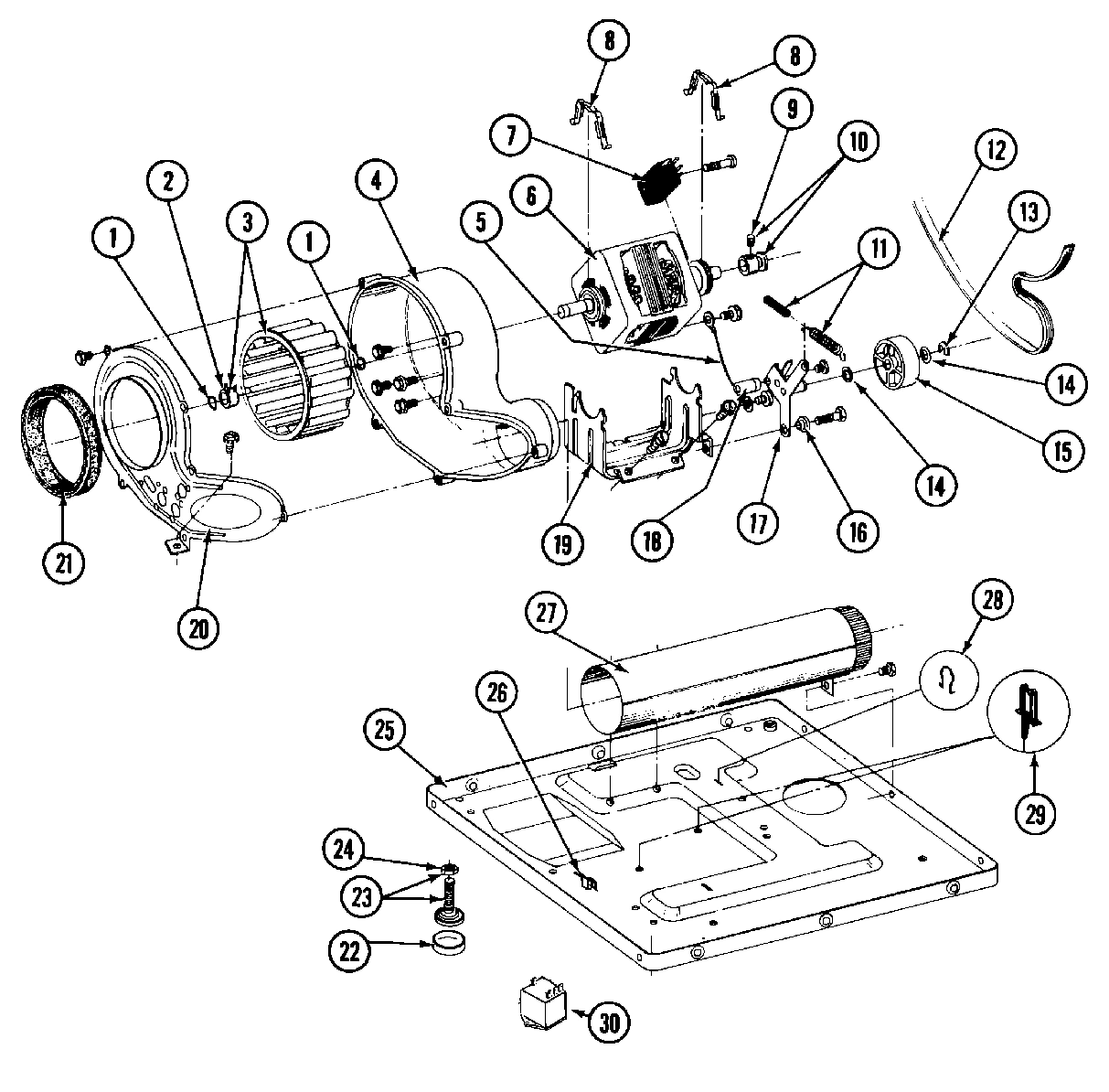

10 - MOTOR, BLOWER & BASE FRAME

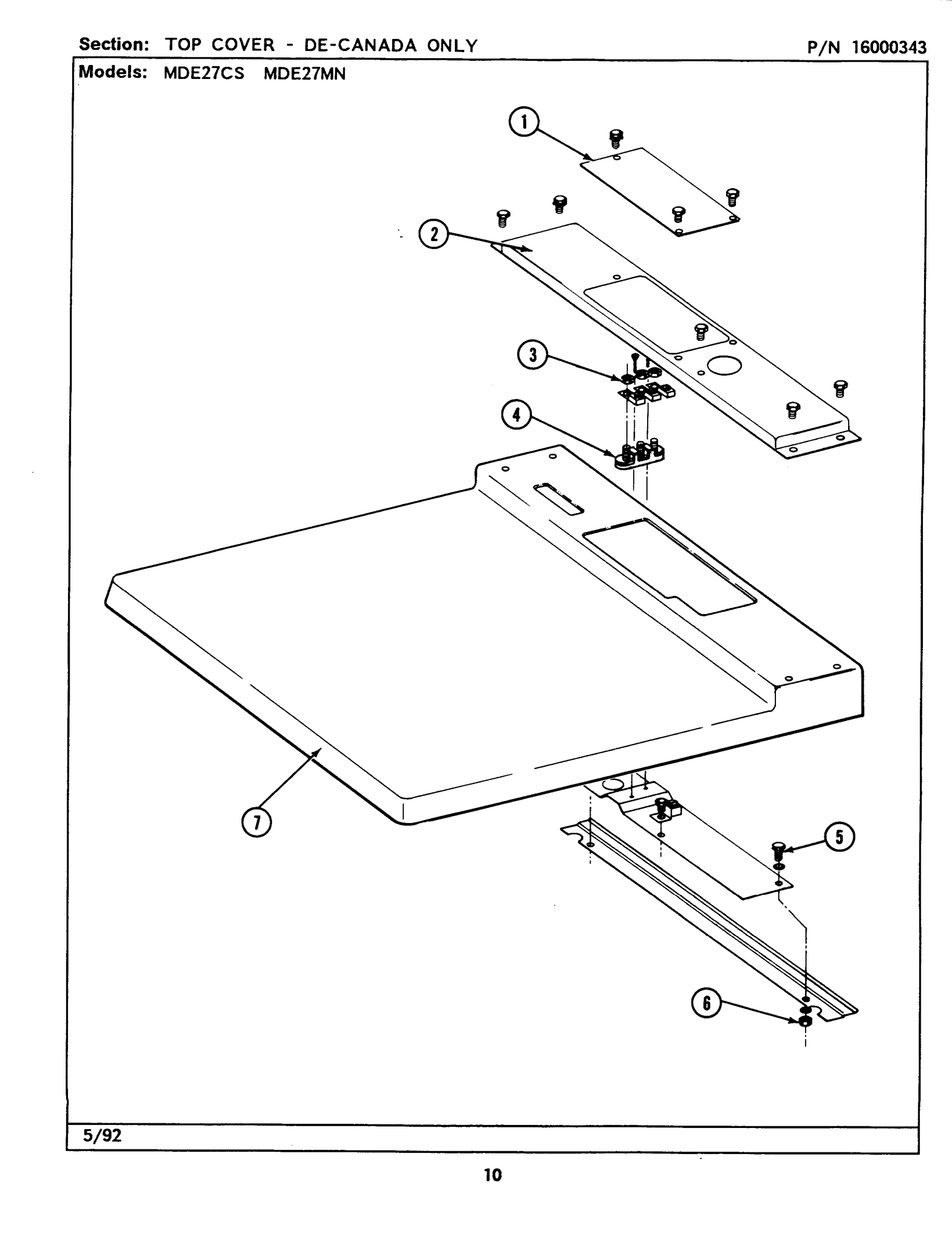

03 - TOP COVER

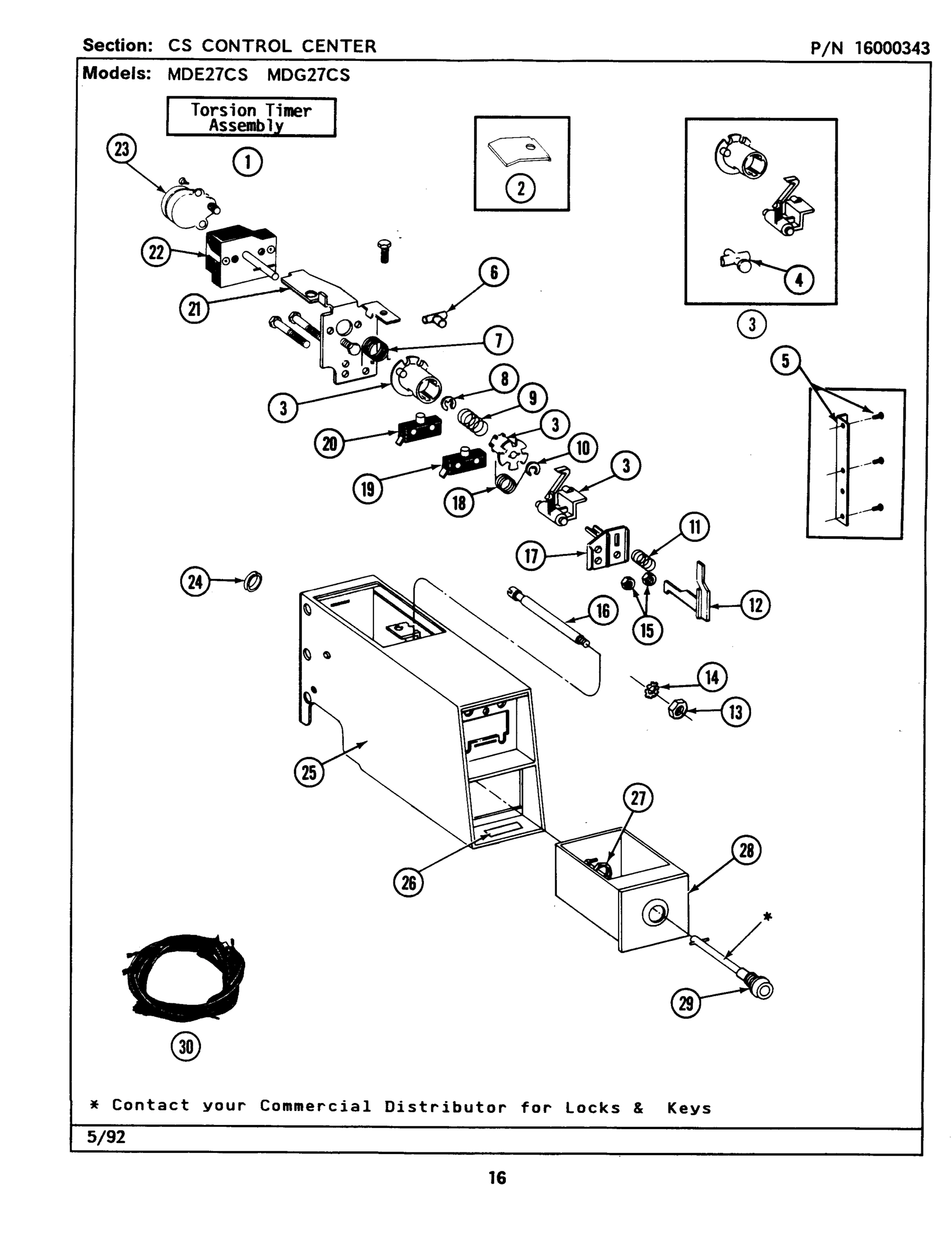

05 - CONTROL CENTER

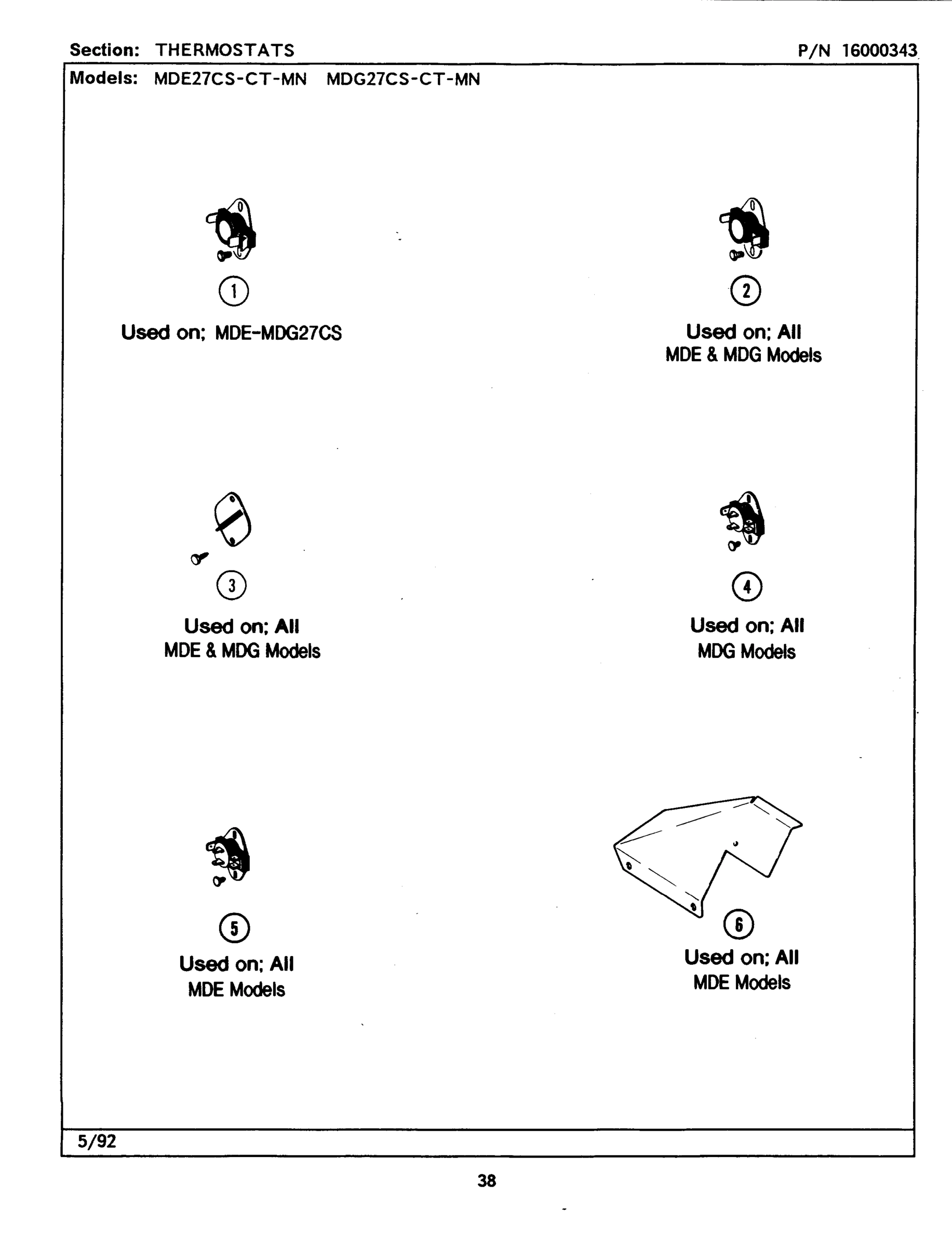

11 - THERMOSTATS

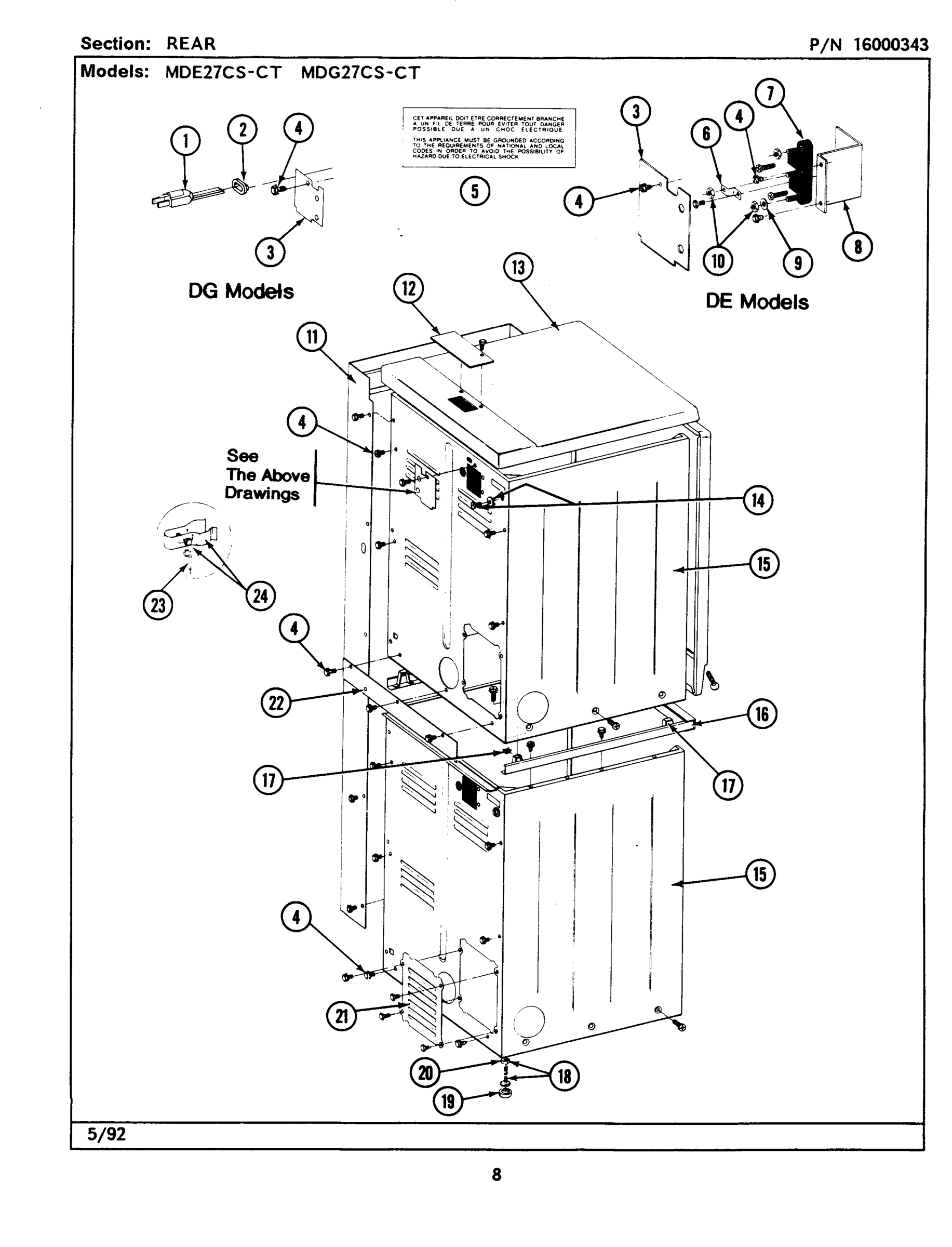

02 - REAR

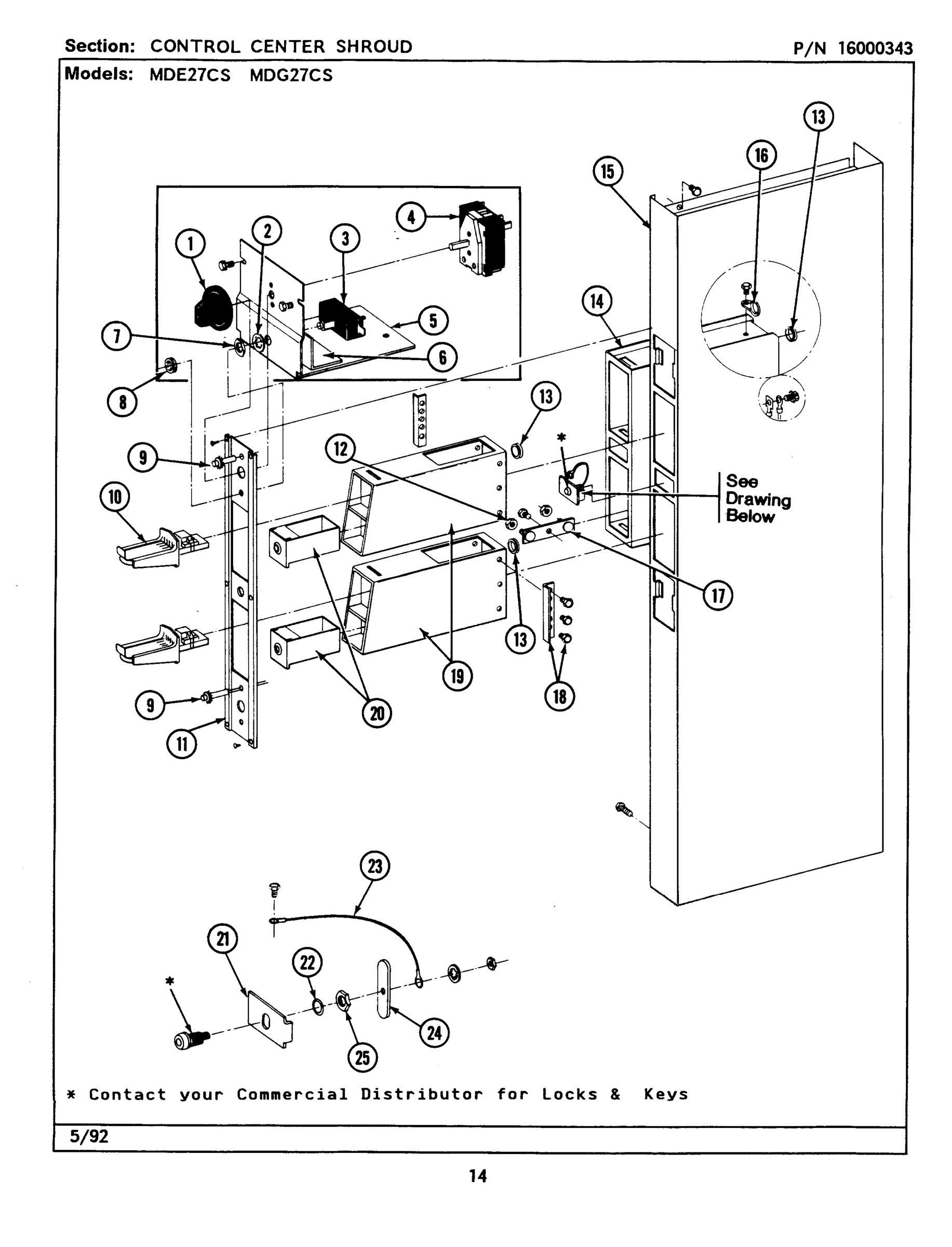

04 - CONTROL CENTER SHROUD

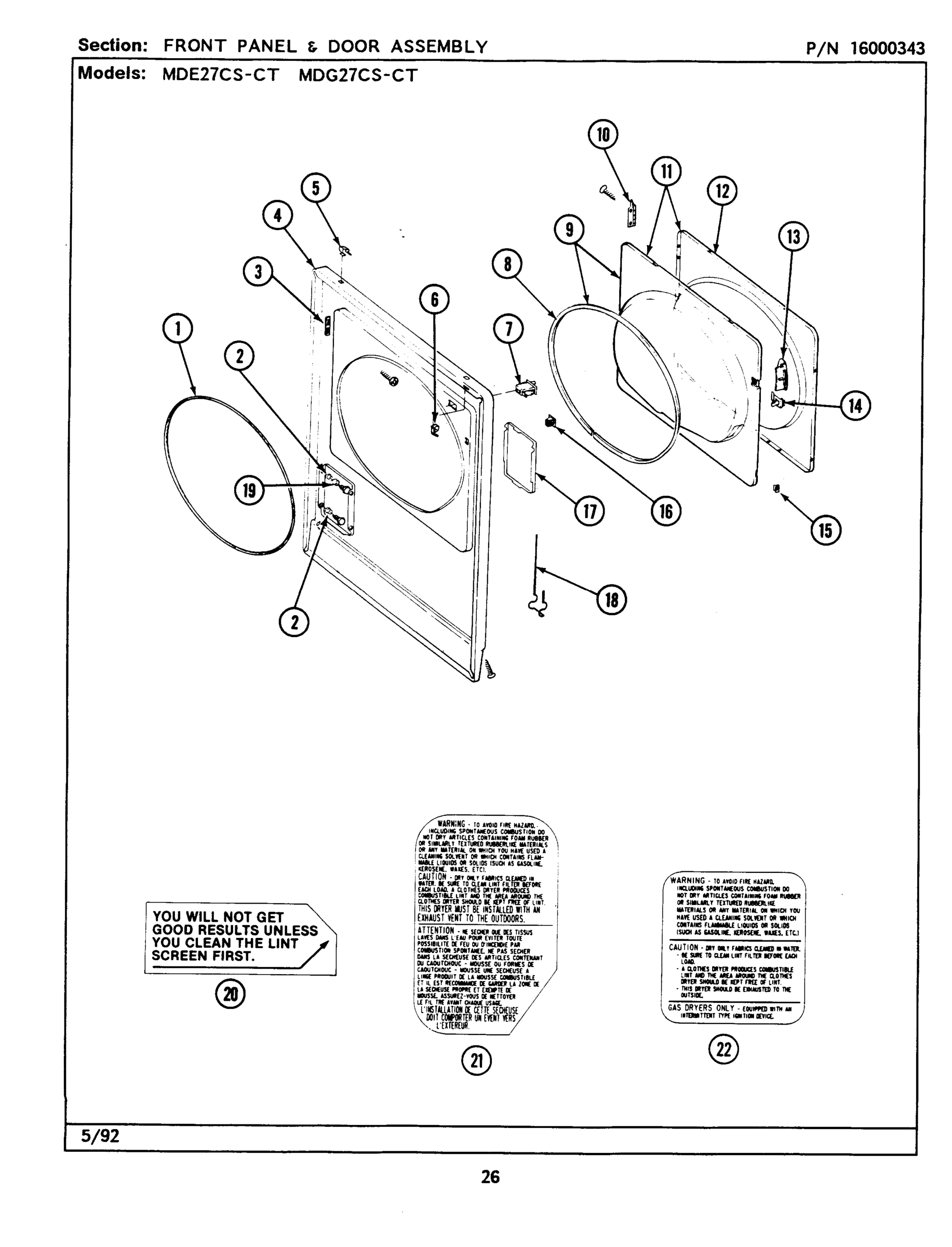

07 - FRONT PANEL & DOOR ASSEMBLY
Common parts from model Whirlpool MDE27CSADW ELECTRIC DRYER
001
COINAGE DECAL WPL 214648 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
TERMINAL COVER - CANADA WPL Y314174 Contact Us For Availability
001
TORSION TIMER ASSY. WPL 305797 Contact Us For Availability
001
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
001
PART NOT USED WPL 302521 Contact Us For Availability
001
KNOB WPL 205663 Contact Us For Availability
001
SEAL WPL 314937 Contact Us For Availability
002
INLET DUCT ASSY. WPL 308503 Contact Us For Availability
002
LINT SCREEN WPL 307108 Contact Us For Availability
002
PART NOT USED WPL 211881 Contact Us For Availability
003
CHAMBER, HEATER WPL 314995 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
003
BRACKET WPL 314334 Contact Us For Availability
003
TUMBLER FRONT W/SEAL WPL 307109 Contact Us For Availability
003
TORSION-TIMER KIT WPL 306104 Contact Us For Availability
003
TERMINAL COVER WPL Y312905 Contact Us For Availability
003
FASTENER WPL Y313907 Contact Us For Availability
004
BLOWER HOUSING WPL Y312893 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
004
SCREW WPL 314663 Contact Us For Availability
004
SCREW & FASTENER ASSY. WPL 204439 Contact Us For Availability
004
SCREW WPL Y313561 Contact Us For Availability
004
PART NOT USED WPL 306966 Contact Us For Availability
004
SWITCH, CYCLE SELECTOR WPL 307253 Contact Us For Availability
005
RATCHET ARM WPL 214572 Contact Us For Availability
005
GROUND WIRE WPL 901220 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMPERATURE WPL 306967 Contact Us For Availability
005
LABEL-ELECTRICAL INSTRUCTIONS WPL 214519 Contact Us For Availability
005
SWITCH & RELAY BRACKET WPL Y314261 Contact Us For Availability
006
CLIP WPL Y310376 Contact Us For Availability
006
TIME ADJUSTMENT PEG WPL 314335 Contact Us For Availability
006
COVER, THERMOSTATS WPL 315122 Contact Us For Availability
006
GROUNDING STRAP WPL Y312184 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
No.3-3358-8 & 3-3358-9 WPL 306207 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358-2, 3-3358 WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- WPL Y303879 Contact Us For Availability
007
TERMINAL BLOCK WPL 400008 Contact Us For Availability
007
RETURN SPRING WPL 314331 Contact Us For Availability
007
HEX NUT WPL Y312706 Contact Us For Availability
008
GATE WPL 214578 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
E CLIP WPL Y312270 Contact Us For Availability
008
TERMINAL BRACKET WPL Y312904 Contact Us For Availability
008
KNURLED NUT WPL Y312702 Contact Us For Availability
008
SEAL, DOOR WPL 314935 Contact Us For Availability
009
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
009
INNER DOOR W/GASKET WPL 308069 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER LESS BAFFLES WPL 314802 Contact Us For Availability
009
SET SCREW, MOTOR PULLEY WPL Y053241 Contact Us For Availability
009
INDICATOR LIGHT WPL 303963 Contact Us For Availability
010
TUMBLER BACK W/SEAL WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
MOTOR PULLEY W/SET SCREW WPL Y305185 Contact Us For Availability
010
LOCK RING WPL 211790 Contact Us For Availability
010
HINGE WPL 307099 Contact Us For Availability
010
SCREW WPL Y314062 Contact Us For Availability
011
THERMOSTAT, HI-LIMIT (CAN.) WPL 308217 Contact Us For Availability
011
RETURN SPRING WPL 214581 Contact Us For Availability
011
IDLER SPRING ASSY. W/PLUG WPL Y303945 Contact Us For Availability
011
VAULT PANEL WPL 315037 Contact Us For Availability
012
HEATER SHIELD WPL 304124 Contact Us For Availability
012
PANEL, DOOR-OUTER (WHITE) WPL 314967 Contact Us For Availability
013
TOP COVER ASSY. (WHITE) WPL 307104 Contact Us For Availability
013
HANDLE (WHITE) WPL 314939 Contact Us For Availability
013
SPRING CLIP WPL 214589 Contact Us For Availability
013
GROMMET WPL Y313671 Contact Us For Availability
014
WIRE TERMINAL WPL 210745 Contact Us For Availability
014
SCREW, GROUND WIRE TO VAULT WPL Y310632 Contact Us For Availability
014
LOCK WASHER WPL 910387 Contact Us For Availability
014
VAULT ASSY. WPL 305534 Contact Us For Availability
015
CABINET, LOWER (WHITE) WPL 307125 Contact Us For Availability
015
CLIP WPL Y313910 Contact Us For Availability
016
CABLE STRAP WPL 910768 Contact Us For Availability
016
BOLT, LOCKING WPL 215559 Contact Us For Availability
017
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
017
FASTENER WPL 310933 Contact Us For Availability
017
SPRING WPL 214596 Contact Us For Availability
017
SWITCH & SLIDER BRACKET WPL 314339 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
LOWER GAGE ARM ASSY. WPL 205343 Contact Us For Availability
018
SCREW WPL Y014872 Contact Us For Availability
018
ACTUATOR SPRING WPL 314332 Contact Us For Availability
018
PART NOT USED WPL Y314025 Contact Us For Availability
019
BASE INSERT WPL 214594 Contact Us For Availability
019
BYPASS SWITCH, MOTOR WPL 305798 Contact Us For Availability
019
OUTER CASE (WHITE) WPL Y307081 Contact Us For Availability
019
PART NOT USED WPL 312369 Contact Us For Availability
020
SCREW WPL 214597 Contact Us For Availability
020
COVER, BLOWER WPL 314847 Contact Us For Availability
020
BYPASS SWITCH, HEATER WPL Y305799 Contact Us For Availability
020
COIN BOX-WHITE WPL 205423 Contact Us For Availability
020
INSTRUCTION DECAL WPL Y313340 Contact Us For Availability
021
TIMER MOUNTING BRACKET WPL 314333 Contact Us For Availability
021
SCREW (HEX HD No.6-32 X 1 5/8``) WPL 315277 Contact Us For Availability
021
ACCESS COVER WPL Y312951 Contact Us For Availability
021
PLATE FOR LATCH WPL 313428 Contact Us For Availability
021
INSTRUCTION DECAL WPL 314941 Contact Us For Availability
022
INSTRUCTION LABEL WPL NLA Contact Us For Availability
022
HOUSING WPL 214584 Contact Us For Availability
022
TIMER WPL 305796 Contact Us For Availability
022
WIRE HARNESS, TIMER WPL 305800 Contact Us For Availability
023
TIMER MOTOR (305796 TIMER) WPL 305870 Contact Us For Availability
023
GROUND WIRE WPL Y303981 Contact Us For Availability
024
GROUND CLAMP WPL 301548 Contact Us For Availability
024
SCREW WPL 313122 Contact Us For Availability
025
BASE ASSY. (UPPER & LOWER) WPL Y303361 Contact Us For Availability
025
SPRING WPL 214582 Contact Us For Availability
026
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
027
EXHAUST DUCT PIPE WPL Y303442 Contact Us For Availability
028
HARNESS SPRING WPL 410490 Contact Us For Availability
029
WIRE RETAINER WPL Y313262 Contact Us For Availability
030
(UPPER-DE) (CAN) WPL 308314 Contact Us For Availability
030
(LOWER-DE) (CAN) WPL Y308313 Contact Us For Availability
× ![]()
