Model Maytag MDE26PCAEL ELECTRIC DRYER – Common Parts & Diagrams

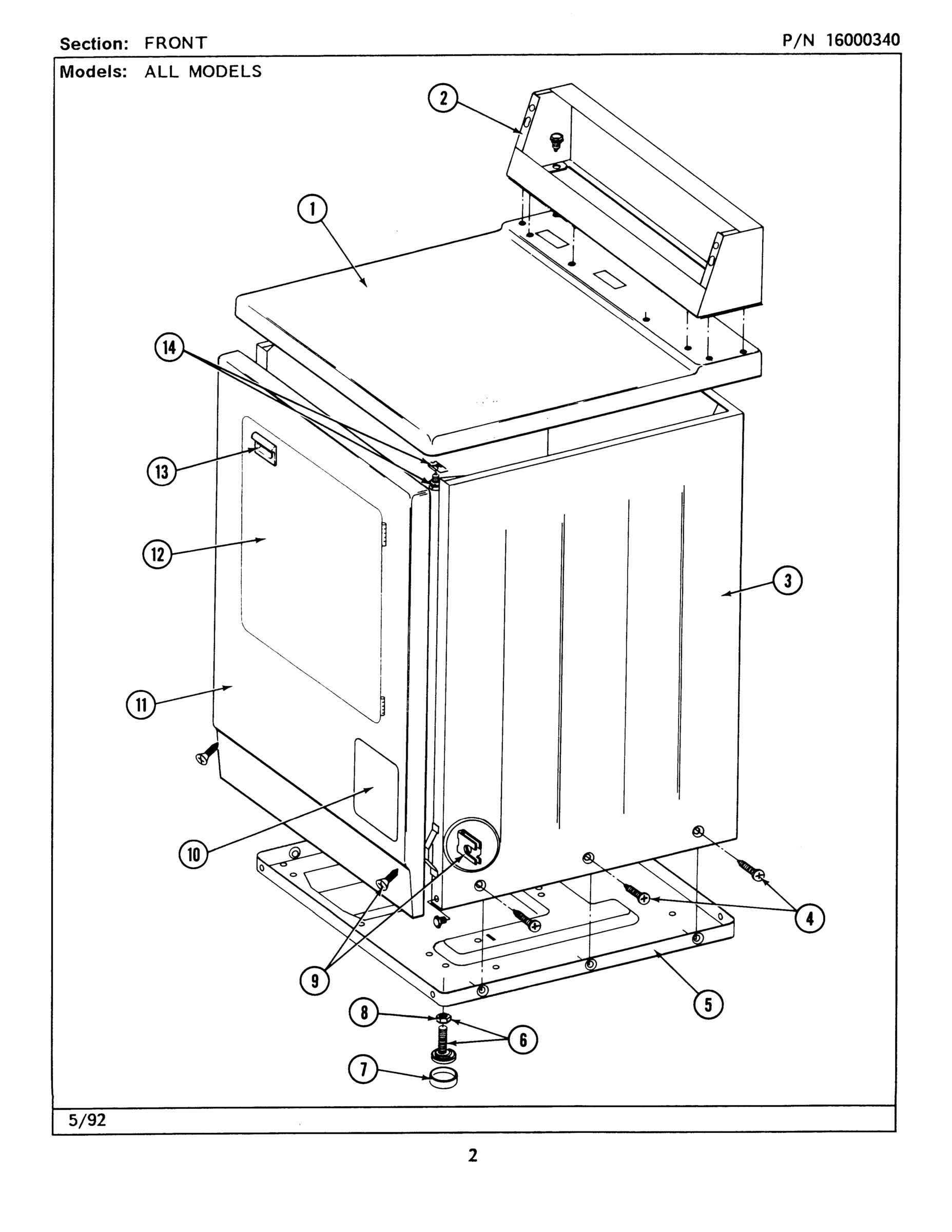

01 - FRONT

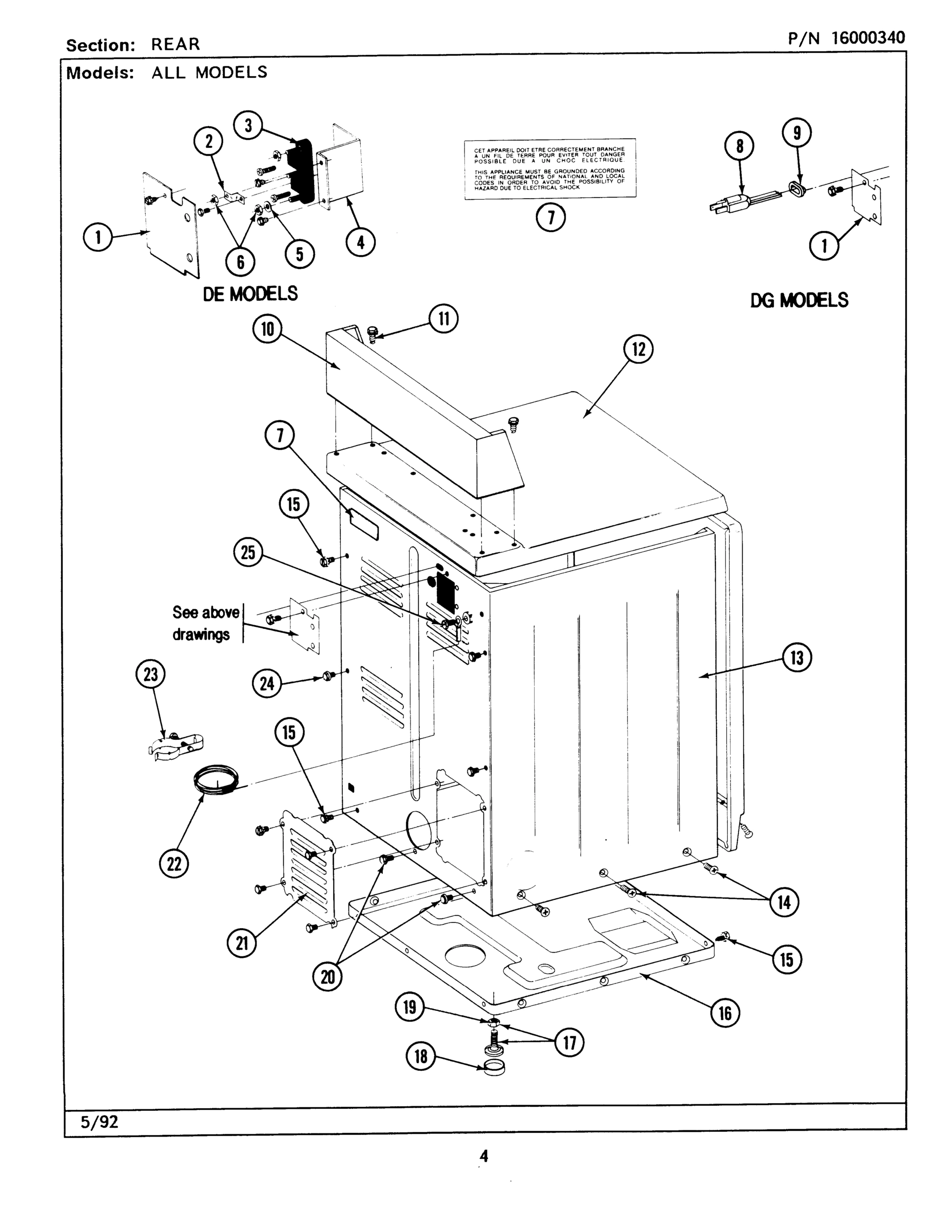

02 - REAR
03 - PC CONTROL PANEL
04 - PC CONTROL CENTER
05 - FRONT PANEL
06 - TUMBLER
07 - HEATER (A3 SERIES)
08 - MOTOR DRIVE, BLOWER & BASE FRAME
09 - THERMOSTATS
10 - HEATER (A0 SERIES)
Common parts from model Maytag MDE26PCAEL ELECTRIC DRYER
001
MAY 203188 MAY 203188 Contact Us For Availability
001
MAY 203188L MAY 203188L Contact Us For Availability
001
(H. WHEAT) MAY 203188M Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. MAY Y313340 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
002
THERMISTOR TEMP. CONTROL PART NOT USED. MDE/G MAY 306056 Contact Us For Availability
002
MAY 314941 MAY 314941 Contact Us For Availability
002
SCREEN, LINT MAY 307108 Contact Us For Availability
002
MAY Y303856 MAY Y303856 Contact Us For Availability
003
MAY 400008 MAY 400008 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
PART NOT USED MAY 314942 Contact Us For Availability
003
MAY 307109 MAY 307109 Contact Us For Availability
003
MAY Y313576 MAY Y313576 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMP PART NOT USED. MDG26CT MAY 306966 Contact Us For Availability
004
MAY 207673 MAY 207673 Contact Us For Availability
004
MAY 207673L MAY 207673L Contact Us For Availability
004
MAY 207940 MAY 207940 Contact Us For Availability
004
(ALM) MAY 207940L Contact Us For Availability
004
MAY 307099 MAY 307099 Contact Us For Availability
004
PART NOT USED MAY 315346 Contact Us For Availability
004
MAY Y313575 MAY Y313575 Contact Us For Availability
005
MAY 306967 MAY 306967 Contact Us For Availability
005
MAY 215510 MAY 215510 Contact Us For Availability
005
MAY 314946 MAY 314946 Contact Us For Availability
005
MAY 314972 MAY 314972 Contact Us For Availability
005
MAY Y312893 MAY Y312893 Contact Us For Availability
005
MAY Y312890 MAY Y312890 Contact Us For Availability
006
MAY Y305086 MAY Y305086 Contact Us For Availability
006
MAY 215003 MAY 215003 Contact Us For Availability
006
MAY 214660 MAY 214660 Contact Us For Availability
006
MAY Y307111 MAY Y307111 Contact Us For Availability
006
MAY Y310632 MAY Y310632 Contact Us For Availability
006
MAY 901220 MAY 901220 Contact Us For Availability
006
MAY 315122 MAY 315122 Contact Us For Availability
007
MAY Y314137 MAY Y314137 Contact Us For Availability
007
MAY 212276 MAY 212276 Contact Us For Availability
007
MAY 206794 MAY 206794 Contact Us For Availability
007
MAY 314966 MAY 314966 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
MAY 314998 MAY 314998 Contact Us For Availability
007
MAY 304124 MAY 304124 Contact Us For Availability
008
MAY 306694 MAY 306694 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
MAY 307187 MAY 307187 Contact Us For Availability
008
No.3-3358-8 & 3-3358-9 MAY 306207 Contact Us For Availability
008
SWITCH, MOTOR PRODUCTION No.3-3358-2, 3-3358- MAY Y303877 Contact Us For Availability
008
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- MAY Y303879 Contact Us For Availability
009
MAY 204439 MAY 204439 Contact Us For Availability
009
MAY 910309 MAY 910309 Contact Us For Availability
009
MAY 212982 MAY 212982 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
MAY 314802 MAY 314802 Contact Us For Availability
009
MAY 314999 MAY 314999 Contact Us For Availability
010
MAY Y307114 MAY Y307114 Contact Us For Availability
010
MAY Y308544 MAY Y308544 Contact Us For Availability
010
MAY Y053241 MAY Y053241 Contact Us For Availability
011
MAY Y313270 MAY Y313270 Contact Us For Availability
011
DISPLAY COVER MAY 215515 Contact Us For Availability
011
BOX, COIN (WHT) MAY 207912 Contact Us For Availability
011
(ALM) MAY 207912L Contact Us For Availability
011
MAY 312538 MAY 312538 Contact Us For Availability
011
MAY Y305185 MAY Y305185 Contact Us For Availability
012
MAY 314937 MAY 314937 Contact Us For Availability
012
HEATER ASSY. COMPLETE (208V) MAY Y308260 Contact Us For Availability
012
MAY 910343 MAY 910343 Contact Us For Availability
013
MAY 910181 MAY 910181 Contact Us For Availability
013
MAY Y313907 MAY Y313907 Contact Us For Availability
013
MAY Y303945 MAY Y303945 Contact Us For Availability
013
PART NOT USED MAY 315046 Contact Us For Availability
014
MAY 213035 MAY 213035 Contact Us For Availability
014
MAY Y303373 MAY Y303373 Contact Us For Availability
015
MAY 215526 MAY 215526 Contact Us For Availability
015
PART NOT USED MAY NLA Contact Us For Availability
015
SCREW PART NOT USED MAY 212949 Contact Us For Availability
015
PART NOT USED MAY 312301 Contact Us For Availability
016
MAY 206799 MAY 206799 Contact Us For Availability
016
MAY 307105 MAY 307105 Contact Us For Availability
016
SLEEVE, ACCESS PANEL STUD PART NOT USED MAY 312369 Contact Us For Availability
016
MAY Y312527 MAY Y312527 Contact Us For Availability
017
MAY 205810 MAY 205810 Contact Us For Availability
017
PART NOT USED MAY 302542 Contact Us For Availability
017
PART NOT USED MAY 302542L Contact Us For Availability
017
PART NOT USED MAY 302542M Contact Us For Availability
018
SPACER CIRCUIT BOARD MAY Y215513 Contact Us For Availability
018
MAY 314936 MAY 314936 Contact Us For Availability
018
MAY 314944 MAY 314944 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
019
MAY 314935 MAY 314935 Contact Us For Availability
019
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
019
MAY 210745 MAY 210745 Contact Us For Availability
020
MAY Y038227 MAY Y038227 Contact Us For Availability
020
MAY 307098 MAY 307098 Contact Us For Availability
021
CLIP, DOOR LINER (OUTER PNL) MAY Y313910 Contact Us For Availability
022
MAY 207948 MAY 207948 Contact Us For Availability
023
MAY 216009 MAY 216009 Contact Us For Availability
024
MAY 216010 MAY 216010 Contact Us For Availability
025
MAY 216011 MAY 216011 Contact Us For Availability
025
MAY Y313561 MAY Y313561 Contact Us For Availability
026
MAY 207947 MAY 207947 Contact Us For Availability
026
COVER, BLOWER MAY 314778 Contact Us For Availability
029
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
031
MAY Y303361 MAY Y303361 Contact Us For Availability
032
MAY Y310376 MAY Y310376 Contact Us For Availability
033
MAY Y303442 MAY Y303442 Contact Us For Availability
034
MAY 410490 MAY 410490 Contact Us For Availability
035
MAY Y313262 MAY Y313262 Contact Us For Availability
036
MAY 306199 MAY 306199 Contact Us For Availability
× ![]()
