Model Maytag MDE26DAACG ELECTRIC DRYER – Common Parts & Diagrams
01 - CONTROL PANEL

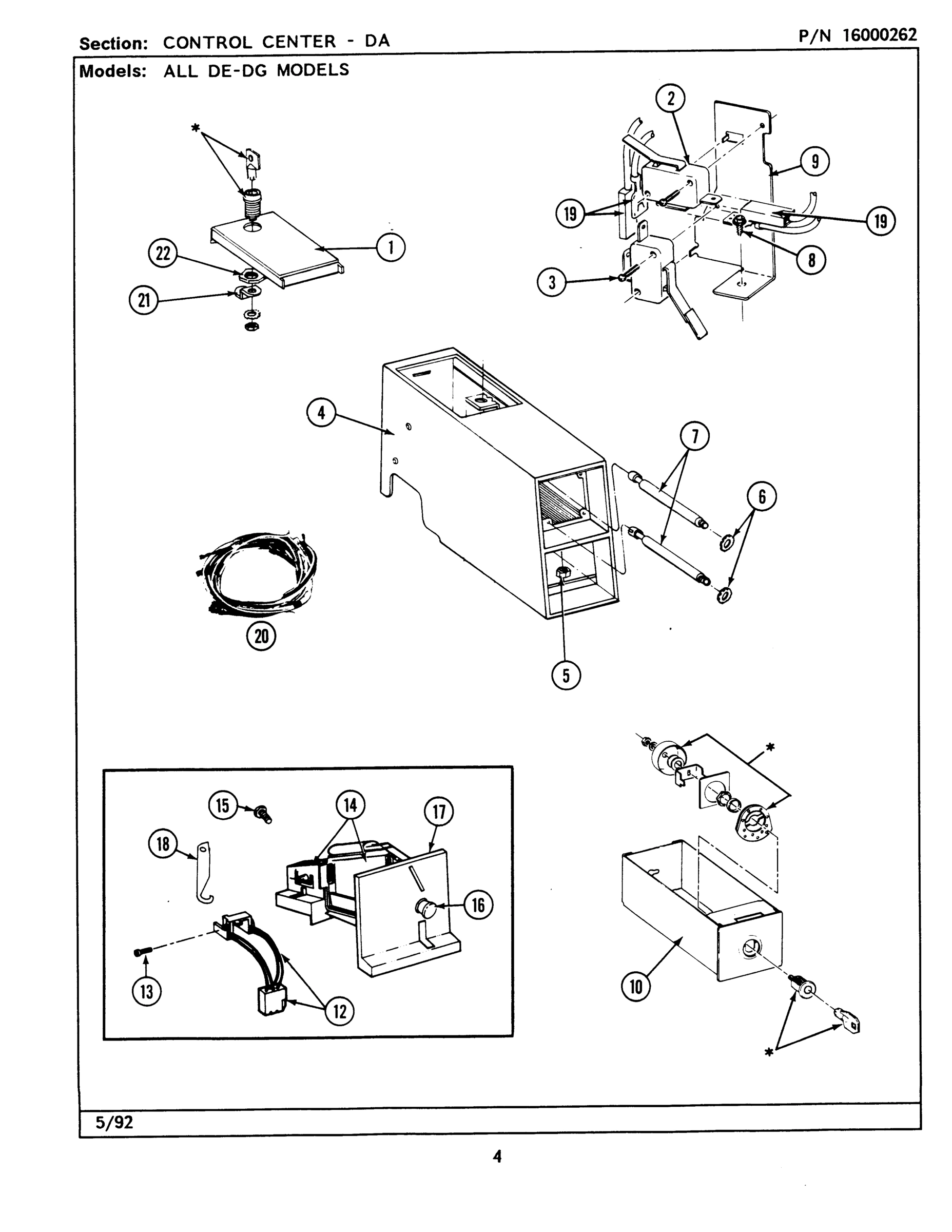

02 - CONTROL CENTER

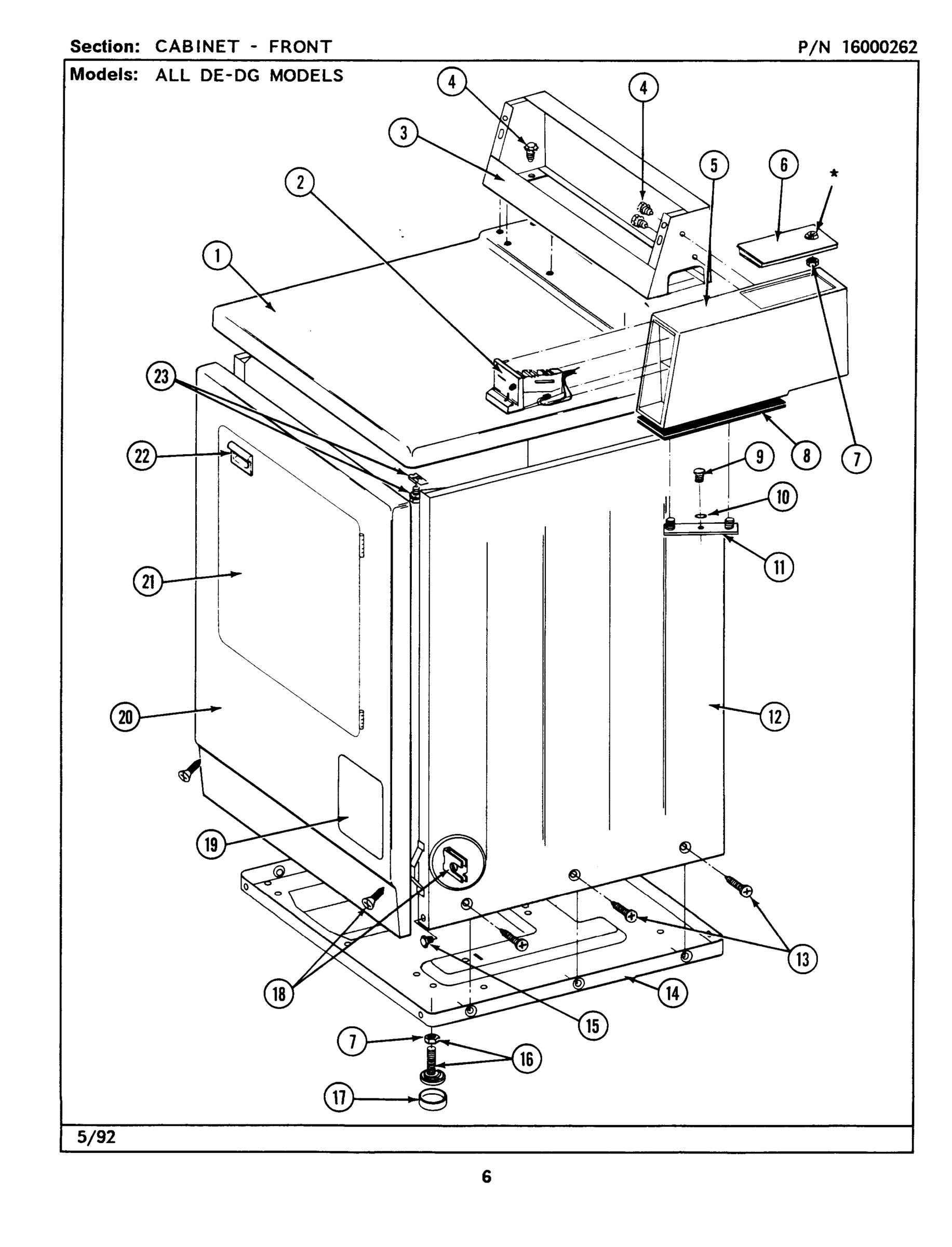

03 - CABINET-FRONT
04 - CABINET-REAR
05 - DOOR
06 - TUMBLER
07 - HEATER
08 - MOTOR DRIVE
09 - MOTOR DRIVE-THERMOSTATS
Common parts from model Maytag MDE26DAACG ELECTRIC DRYER
001
MAY Y312905 MAY Y312905 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
002
MAY 307099 MAY 307099 Contact Us For Availability
002
SCREEN, LINT MAY 307108 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
MAY W10124350 MAY W10124350 Contact Us For Availability
003
MAY 314966 MAY 314966 Contact Us For Availability
004
MAY 306967 MAY 306967 Contact Us For Availability
004
MAY 314946 MAY 314946 Contact Us For Availability
004
MAY 314972 MAY 314972 Contact Us For Availability
004
MAY Y312184 MAY Y312184 Contact Us For Availability
004
MAY 315346 MAY 315346 Contact Us For Availability
005
MAY 400008 MAY 400008 Contact Us For Availability
005
MAY 207940 MAY 207940 Contact Us For Availability
005
(ALM) MAY 207940L Contact Us For Availability
005
MAY Y307111 MAY Y307111 Contact Us For Availability
005
MAY 307109 MAY 307109 Contact Us For Availability
005
THERMOSTAT, LIMIT MAY 308211 Contact Us For Availability
006
MAY 203188 MAY 203188 Contact Us For Availability
006
MAY 203188L MAY 203188L Contact Us For Availability
006
(HVST WHEAT) MAY 203188M Contact Us For Availability
006
MAY Y312904 MAY Y312904 Contact Us For Availability
006
MAY Y312893 MAY Y312893 Contact Us For Availability
006
MAY 315122 MAY 315122 Contact Us For Availability
007
MAY 213035 MAY 213035 Contact Us For Availability
007
SCREW, TERMINAL BRACKET MAY Y312209 Contact Us For Availability
007
MAY 314998 MAY 314998 Contact Us For Availability
007
MAY 901220 MAY 901220 Contact Us For Availability
008
SCREW, THERMAL CUT-OFF MAY NLA Contact Us For Availability
008
GASKET MAY 214660 Contact Us For Availability
008
FASTENER, SPRING (FRT PNL) MAY 212982 Contact Us For Availability
008
MAY 314803 MAY 314803 Contact Us For Availability
008
MAY 307185 MAY 307185 Contact Us For Availability
009
WASHER, BAFFLE MAY 314158 Contact Us For Availability
009
SCREW, THERM. COVER MAY Y310632 Contact Us For Availability
009
MAY 314999 MAY 314999 Contact Us For Availability
009
PROD. 3-3358-8, 3-3358-9 MAY 306207 Contact Us For Availability
009
SWITCH, EXTERNAL START PROD.3-3358-2, 3-3358- MAY Y303877 Contact Us For Availability
009
SWITCH, EXTERNAL START PROD. 3-3358, 3-3358-6 MAY Y303879 Contact Us For Availability
010
MAY 207912 MAY 207912 Contact Us For Availability
010
(ALM) MAY 207912L Contact Us For Availability
010
MAY 910309 MAY 910309 Contact Us For Availability
010
SCREW, GROUND STRAP MAY Y311423 Contact Us For Availability
010
MAY 306663 MAY 306663 Contact Us For Availability
010
MAY 314802 MAY 314802 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
MAY 207948 MAY 207948 Contact Us For Availability
011
SCREW, TUMBLER BAFFLES MAY Y310759 Contact Us For Availability
011
SCREW, SET PULLEY MAY Y053241 Contact Us For Availability
012
MAY 206799 MAY 206799 Contact Us For Availability
012
FASTENER, TWIN (HINGES) MAY Y313907 Contact Us For Availability
012
MAY Y307114 MAY Y307114 Contact Us For Availability
012
MAY Y308544 MAY Y308544 Contact Us For Availability
012
MAY Y305185 MAY Y305185 Contact Us For Availability
013
MAY 910343 MAY 910343 Contact Us For Availability
014
MAY 207947 MAY 207947 Contact Us For Availability
014
SCREW, CONSOLE MAY 212276 Contact Us For Availability
014
SPRING ASSY., IDLER MAY Y303945 Contact Us For Availability
015
CONSOLE (WHT) MAY 307105 Contact Us For Availability
015
MAY 312538 MAY 312538 Contact Us For Availability
016
MAY 216009 MAY 216009 Contact Us For Availability
016
LABEL, ELECTRICAL INSTR. MAY 214519 Contact Us For Availability
017
MAY 216010 MAY 216010 Contact Us For Availability
018
SCREW & FASTENER ASSY. MAY 204439 Contact Us For Availability
018
MAY 216011 MAY 216011 Contact Us For Availability
018
MAY Y303373 MAY Y303373 Contact Us For Availability
018
MAY Y312527 MAY Y312527 Contact Us For Availability
019
HARNESS, WIRE (SENSOR SW`S.) MAY 208045 Contact Us For Availability
019
MAY 314936 MAY 314936 Contact Us For Availability
020
HARNESS, WIRE MAY Y308580 Contact Us For Availability
020
MAY 301548 MAY 301548 Contact Us For Availability
020
SEAL, DOOR MAY 314935 Contact Us For Availability
021
MAY 308061 MAY 308061 Contact Us For Availability
021
MAY 307098 MAY 307098 Contact Us For Availability
021
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
022
SCREW, ACCESS COVER MAY Y313559 Contact Us For Availability
022
CLIP, DOOR LINER MAY Y313910 Contact Us For Availability
023
MAY 204445 MAY 204445 Contact Us For Availability
023
LABEL, LINT SCREEN INSTR. MAY Y313340 Contact Us For Availability
023
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
024
MAY Y312951 MAY Y312951 Contact Us For Availability
024
MAY 314941 MAY 314941 Contact Us For Availability
027
SCREW, MTR SUPP. & BLWR COVER MAY Y313561 Contact Us For Availability
028
MAY 314847 MAY 314847 Contact Us For Availability
032
MAY Y303361 MAY Y303361 Contact Us For Availability
033
CLIP, FASTENER MAY Y310376 Contact Us For Availability
034
DUCT, EXHAUST MAY Y303442 Contact Us For Availability
035
MAY 410490 MAY 410490 Contact Us For Availability
036
MAY Y313262 MAY Y313262 Contact Us For Availability
× ![]()
