Model Maytag MDE26CSADG ELECTRIC DRYER – Common Parts & Diagrams

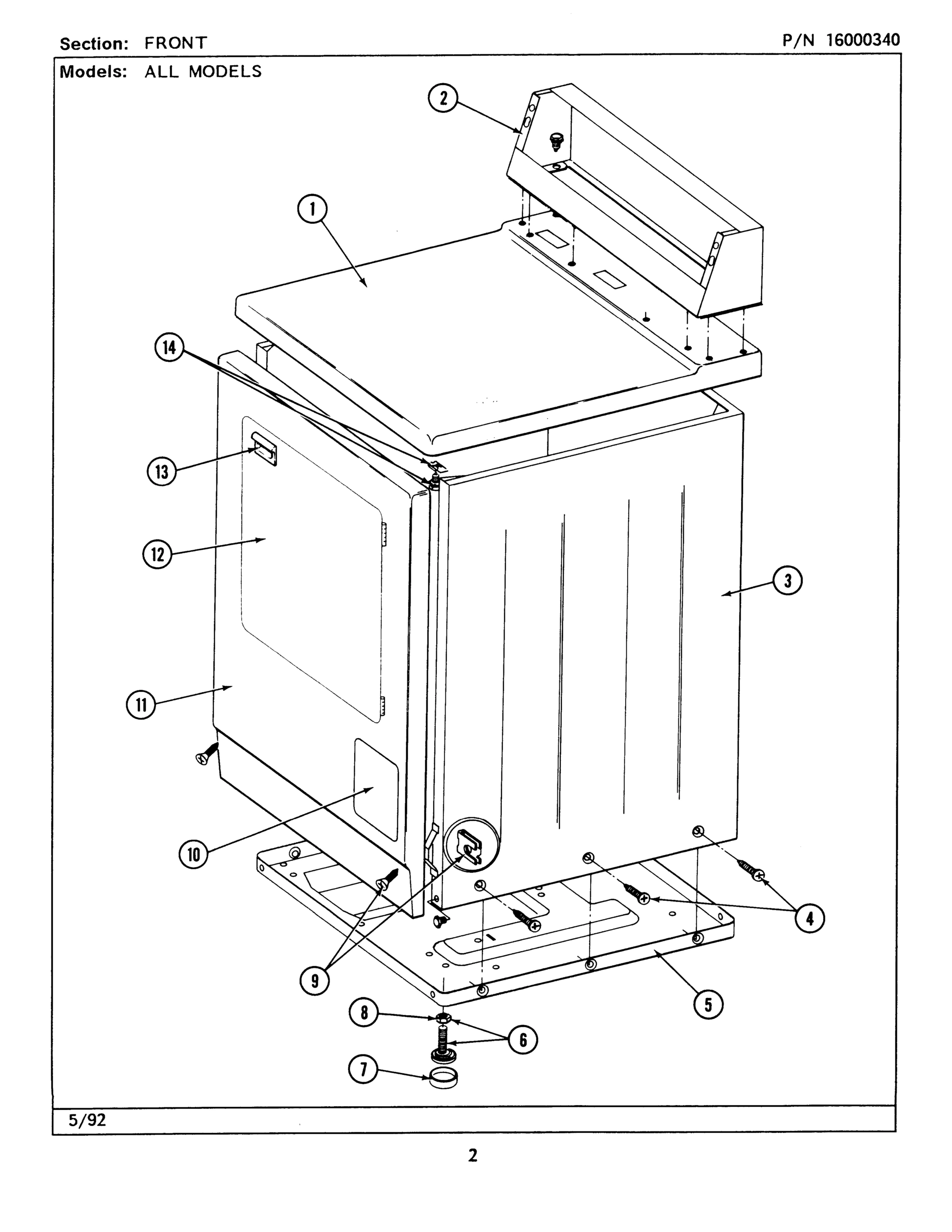

01 - FRONT

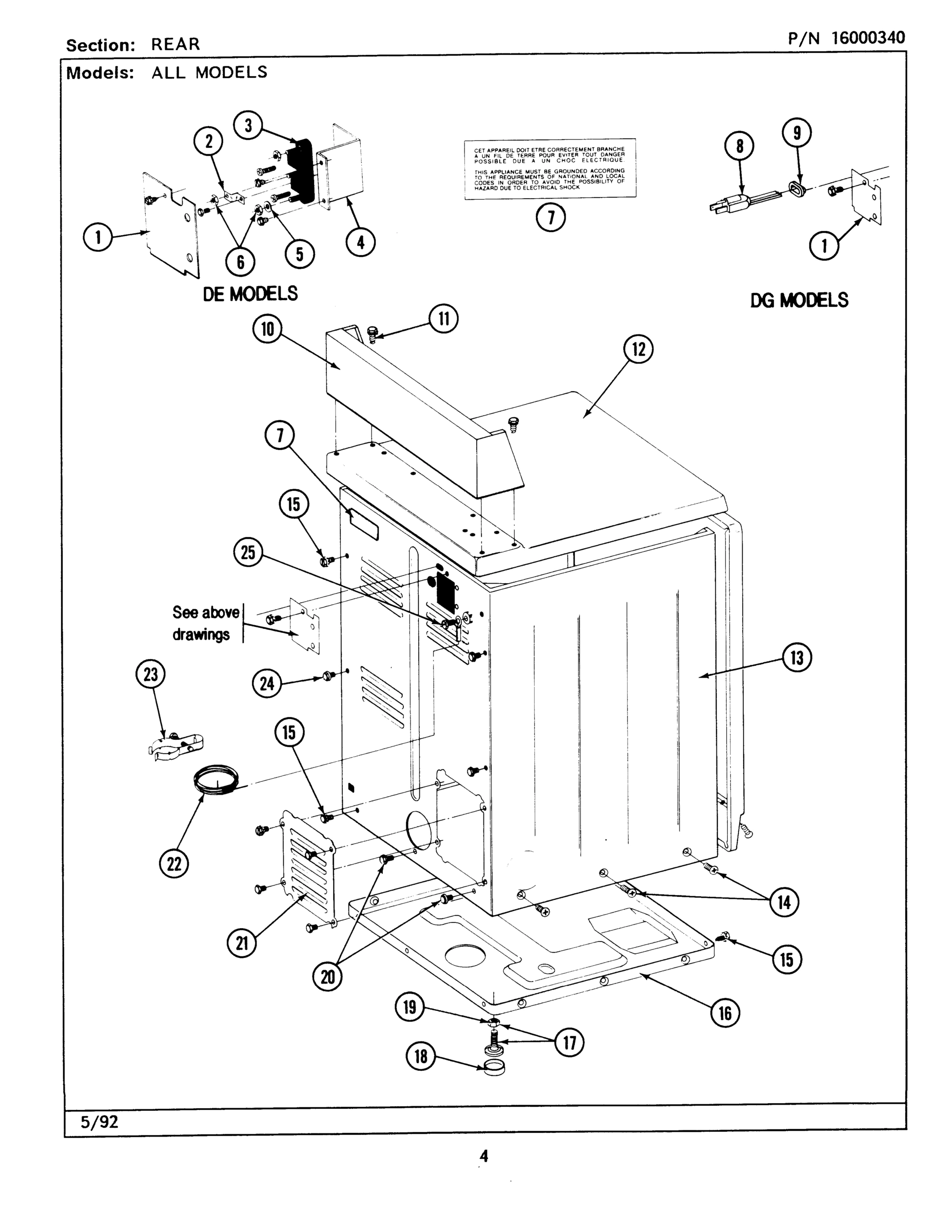

02 - REAR
03 - CS CONTROL PANEL
04 - CS CONTROL CENTER
05 - FRONT PANEL
06 - TUMBLER
07 - HEATER (A3 SERIES)
08 - MOTOR DRIVE, BLOWER & BASE FRAME
09 - THERMOSTATS
10 - HEATER (A0 SERIES)
Common parts from model Maytag MDE26CSADG ELECTRIC DRYER
001
MAY 203188 MAY 203188 Contact Us For Availability
001
MAY 203188L MAY 203188L Contact Us For Availability
001
(H. WHEAT) MAY 203188M Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. MAY Y313340 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
002
THERMISTOR TEMP. CONTROL PART NOT USED. MDE/G MAY 306056 Contact Us For Availability
002
MAY 314941 MAY 314941 Contact Us For Availability
002
SCREEN, LINT MAY 307108 Contact Us For Availability
002
PART NOT AVAILABLE MAY 307470 Contact Us For Availability
003
MAY 400008 MAY 400008 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
MAY 307109 MAY 307109 Contact Us For Availability
003
PART NOT USED. (MDE/G26CT-MN) MAY 314848 Contact Us For Availability
003
MAY Y313576 MAY Y313576 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMP PART NOT USED. MDG26CT MAY 306966 Contact Us For Availability
004
TIME ADJUSTMENT PEG MAY 314335 Contact Us For Availability
004
MAY 307099 MAY 307099 Contact Us For Availability
004
MAY 315346 MAY 315346 Contact Us For Availability
004
MAY Y313575 MAY Y313575 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMP PART NOT USED. MDE26CT MAY 306967 Contact Us For Availability
005
MAY 314946 MAY 314946 Contact Us For Availability
005
MAY 314972 MAY 314972 Contact Us For Availability
005
MAY Y312893 MAY Y312893 Contact Us For Availability
005
MAY Y312890 MAY Y312890 Contact Us For Availability
006
MAY Y312270 MAY Y312270 Contact Us For Availability
006
MAY Y307111 MAY Y307111 Contact Us For Availability
006
MAY Y310632 MAY Y310632 Contact Us For Availability
006
MAY 901220 MAY 901220 Contact Us For Availability
006
MAY 315122 MAY 315122 Contact Us For Availability
007
MAY 211065 MAY 211065 Contact Us For Availability
007
MAY 314966 MAY 314966 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
MAY 314998 MAY 314998 Contact Us For Availability
007
MAY 304124 MAY 304124 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
MAY 314330 MAY 314330 Contact Us For Availability
008
MAY 307184 MAY 307184 Contact Us For Availability
008
No.3-3358-8 & 3-3358-9 MAY 306207 Contact Us For Availability
008
SWITCH, MOTOR PRODUCTION No.3-3358-2, 3-3358- MAY Y303877 Contact Us For Availability
008
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- MAY Y303879 Contact Us For Availability
009
MAY 212982 MAY 212982 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
MAY 314802 MAY 314802 Contact Us For Availability
009
MAY 314999 MAY 314999 Contact Us For Availability
010
MAY 306104 MAY 306104 Contact Us For Availability
010
MAY Y307114 MAY Y307114 Contact Us For Availability
010
MAY Y308544 MAY Y308544 Contact Us For Availability
010
MAY Y053241 MAY Y053241 Contact Us For Availability
011
MAY Y313270 MAY Y313270 Contact Us For Availability
011
MAY 312538 MAY 312538 Contact Us For Availability
011
THERMOSTAT, HI-LIMIT (CAN.) MAY 308217 Contact Us For Availability
011
MAY Y305185 MAY Y305185 Contact Us For Availability
012
MAY 314937 MAY 314937 Contact Us For Availability
012
MAY 910343 MAY 910343 Contact Us For Availability
013
SHAFT, TUMBLER ROLLER----C WPL WP6-3129480 No Longer Available
013
MAY 306938 MAY 306938 Contact Us For Availability
013
MAY Y313907 MAY Y313907 Contact Us For Availability
013
MAY Y303945 MAY Y303945 Contact Us For Availability
013
MAY 315046 MAY 315046 Contact Us For Availability
014
SCREW & FSTNER ASSY (FT. PNL) MAY 204439 Contact Us For Availability
014
MAY 910387 MAY 910387 Contact Us For Availability
014
MAY Y303373 MAY Y303373 Contact Us For Availability
015
MAY 307105 MAY 307105 Contact Us For Availability
015
SCREW MAY NLA Contact Us For Availability
015
MAY Y052634 MAY Y052634 Contact Us For Availability
015
SCREW PART NOT USED MAY 212949 Contact Us For Availability
015
PART NOT USED MAY 312301 Contact Us For Availability
016
MAY 215559 MAY 215559 Contact Us For Availability
016
SLEEVE, ACCESS PANEL STUD PART NOT USED MAY 312369 Contact Us For Availability
016
MAY Y312527 MAY Y312527 Contact Us For Availability
017
MAY Y305086 MAY Y305086 Contact Us For Availability
017
SWITCH & SLIDER BRACKET MAY 314339 Contact Us For Availability
017
PART NOT USED MAY 302542 Contact Us For Availability
017
PART NOT USED MAY 302542L Contact Us For Availability
017
PART NOT USED MAY 302542M Contact Us For Availability
018
MAY Y314137 MAY Y314137 Contact Us For Availability
018
MAY 205810 MAY 205810 Contact Us For Availability
018
MAY 314332 MAY 314332 Contact Us For Availability
018
MAY 314936 MAY 314936 Contact Us For Availability
018
MAY 314944 MAY 314944 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
019
BYPASS SWITCH, MOTOR MAY 305798 Contact Us For Availability
019
MAY 314935 MAY 314935 Contact Us For Availability
019
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
019
MAY 210745 MAY 210745 Contact Us For Availability
020
BYPASS SWITCH, HEATER MAY Y305799 Contact Us For Availability
020
MAY 307280 MAY 307280 Contact Us For Availability
020
MAY Y308315 MAY Y308315 Contact Us For Availability
020
MAY 307098 MAY 307098 Contact Us For Availability
021
SCREW, RELAY (TUB SUPPORT) MAY 910708 Contact Us For Availability
021
CLIP, DOOR LINER (OUTER PNL) MAY Y313910 Contact Us For Availability
023
TIMER MOUNTING BRACKET MAY 314333 Contact Us For Availability
025
MAY 305796 MAY 305796 Contact Us For Availability
025
MAY Y313561 MAY Y313561 Contact Us For Availability
026
TIMER (CANADA) MAY 305813 Contact Us For Availability
026
COVER, BLOWER MAY 314778 Contact Us For Availability
027
WIRE HARNESS, TIMER MAY 305800 Contact Us For Availability
028
TIMER MOTOR RPR MAY 305870 Contact Us For Availability
029
TORSION TIMER ASSY. COMPLETE MAY 305797 Contact Us For Availability
029
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
031
BRACKET, COIN SLIDE MAY 314334 Contact Us For Availability
031
MAY Y303361 MAY Y303361 Contact Us For Availability
032
COIN METER ASSY (WHT) MAY 206956 Contact Us For Availability
032
(ALM) MAY 206956L Contact Us For Availability
032
(H. WHEAT) MAY 206956M Contact Us For Availability
032
MAY Y310376 MAY Y310376 Contact Us For Availability
033
MAY 214660 MAY 214660 Contact Us For Availability
033
MAY Y303442 MAY Y303442 Contact Us For Availability
034
MAY 410490 MAY 410490 Contact Us For Availability
035
MAY Y313262 MAY Y313262 Contact Us For Availability
036
MAY 306199 MAY 306199 Contact Us For Availability
036
MAY 910309 MAY 910309 Contact Us For Availability
038
MAY 205423 MAY 205423 Contact Us For Availability
038
MAY 205423L MAY 205423L Contact Us For Availability
038
(H. WHEAT) MAY 205423M Contact Us For Availability
041
MAY 214648 MAY 214648 Contact Us For Availability
042
MAY 314547 MAY 314547 Contact Us For Availability
043
MAY 314546 MAY 314546 Contact Us For Availability
044
MAY 314548 MAY 314548 Contact Us For Availability
× ![]()
