Model Maytag MDE12CSACW ELECTRIC DRYER – Common Parts & Diagrams
01 - CABINET-FRONT
02 - DOOR

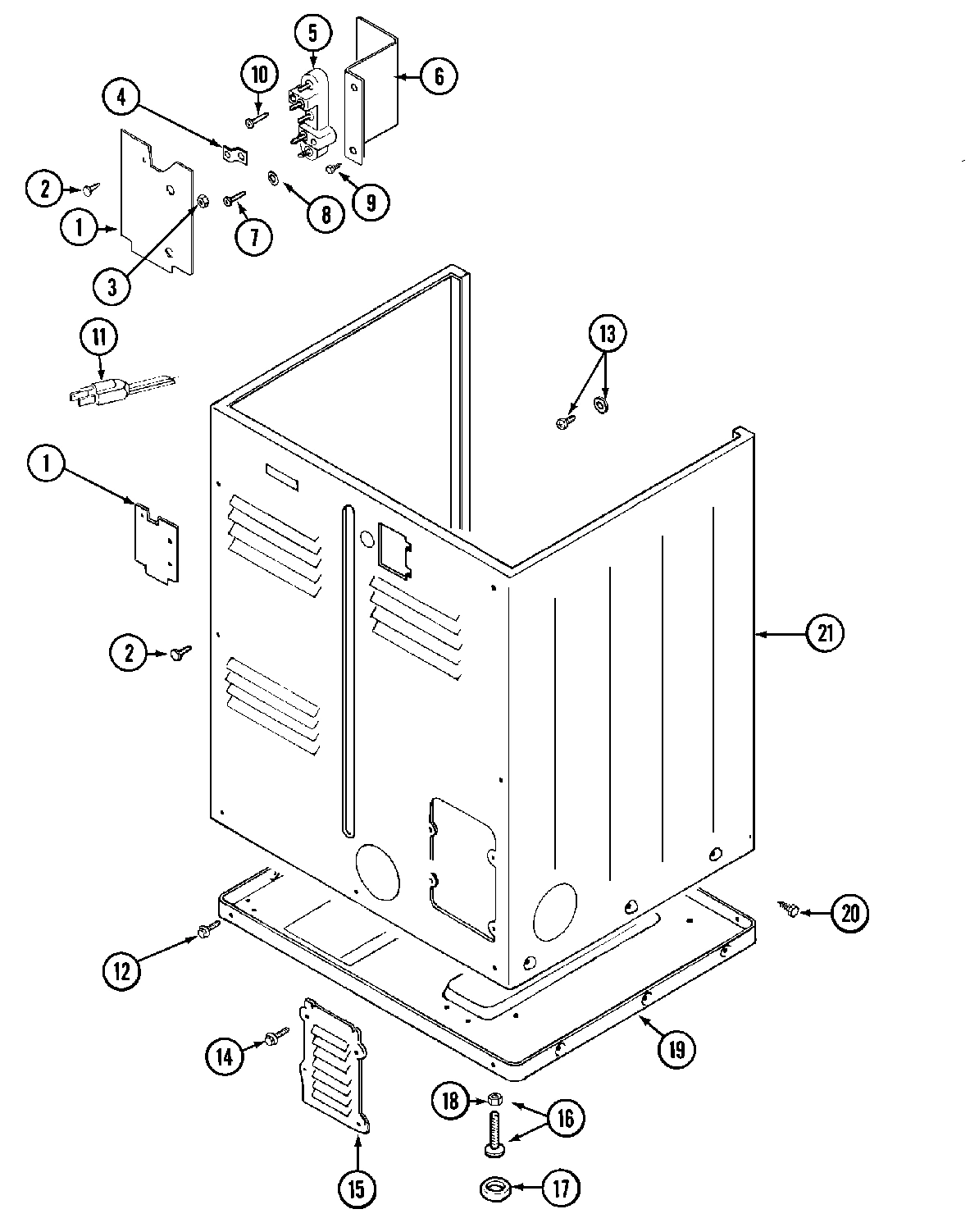

03 - CABINET-REAR
04 - TUMBLER
05 - HEATER
06 - MOTOR DRIVE

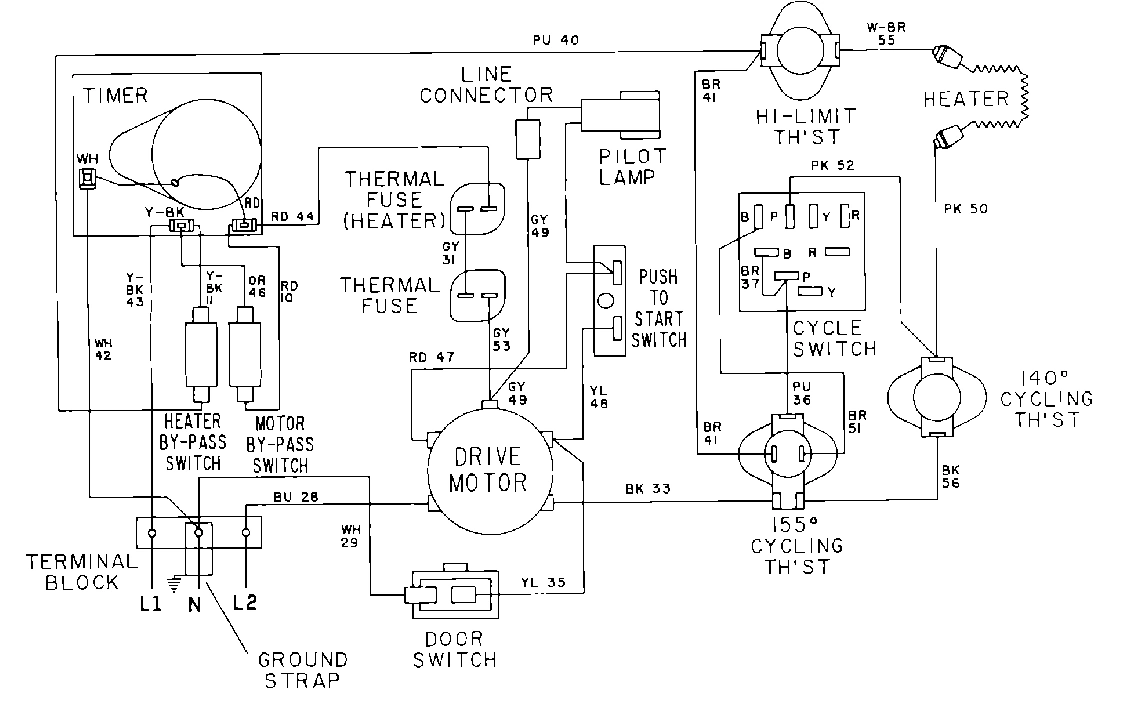

07 - WIRING INFORMATION
08 - CONTROL CENTER

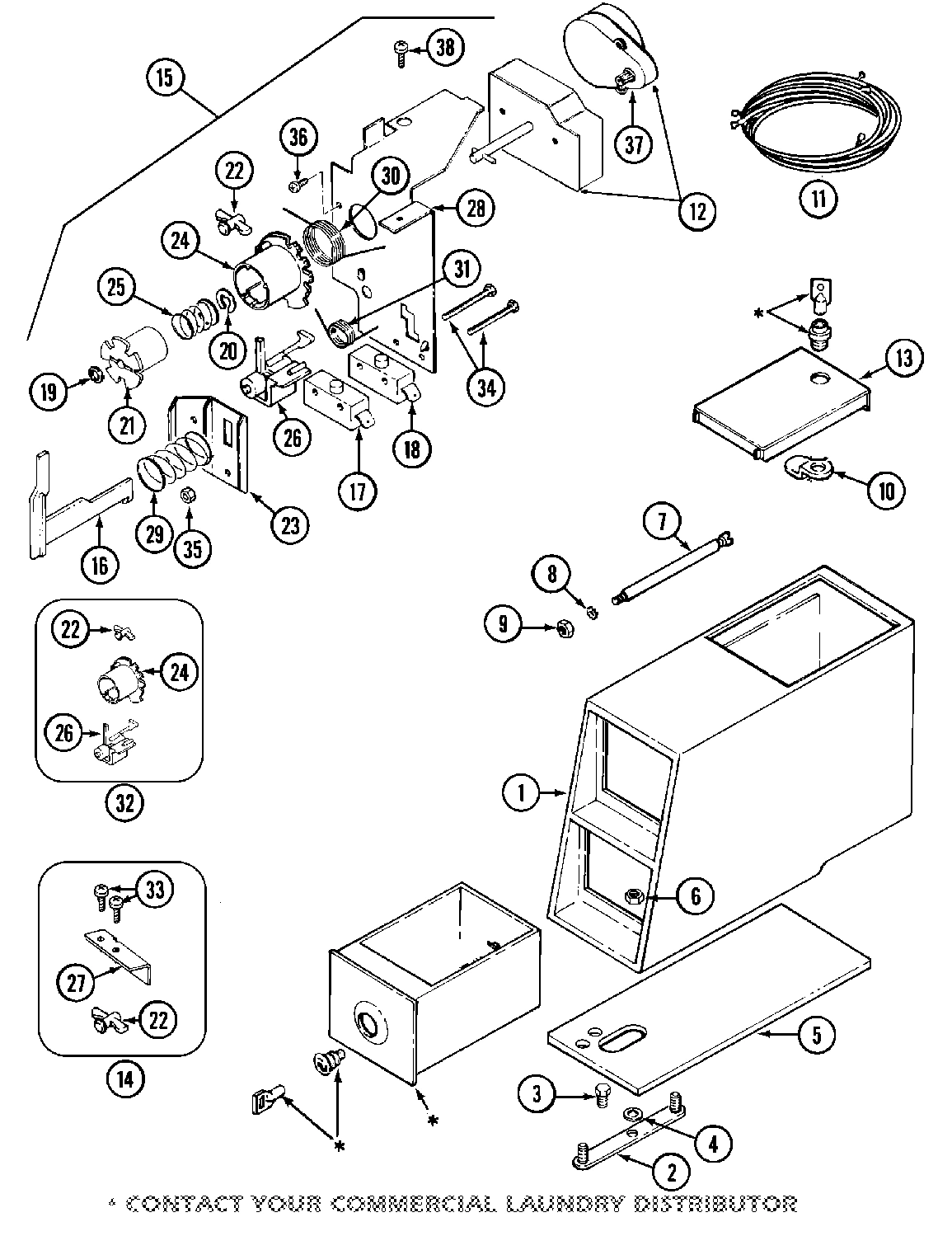

09 - CONTROL PANEL
Common parts from model Maytag MDE12CSACW ELECTRIC DRYER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
001
MAY 22001871 MAY 22001871 Contact Us For Availability
001
MAY 22001872 MAY 22001872 Contact Us For Availability
001
MAY 33001707 MAY 33001707 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
DUCT, INLET MAY 308503 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
002
MAY 22001810 MAY 22001810 Contact Us For Availability
003
ENCLOSURE, HEATER MAY 314995 Contact Us For Availability
003
FASTENER, CONTROL PANEL MAY 215003 Contact Us For Availability
004
MAY 314998 MAY 314998 Contact Us For Availability
004
WASHER, STRAP SCREW MAY 910309 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
MAY 22001870 MAY 22001870 Contact Us For Availability
005
MAY 22001874 MAY 22001874 Contact Us For Availability
005
SCREW, CONSOLE MAY 212276 Contact Us For Availability
006
MAY 314999 MAY 314999 Contact Us For Availability
007
MAY 33001230 MAY 33001230 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
BOLT, LOCKING MAY 22001903 Contact Us For Availability
007
GROUND WIRE MAY 205810 Contact Us For Availability
008
SCREW, FRONT PANEL MAY 22001496 Contact Us For Availability
008
MAY 306966 MAY 306966 Contact Us For Availability
008
(ALM) MAY NLA Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT MAY 910387 Contact Us For Availability
008
BRACKET, CONTROL PANEL (WHT) MAY 314912 Contact Us For Availability
009
KNOB, SELECTOR MAY 306938 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
MAY 33001195 MAY 33001195 Contact Us For Availability
012
WASHER, BAFFLE MAY 314158 Contact Us For Availability
012
MAY 33001155 MAY 33001155 Contact Us For Availability
012
HARNESS, WIRE MAY 33001529 Contact Us For Availability
013
MAY 33001108 MAY 33001108 Contact Us For Availability
013
MAY 315346 MAY 315346 Contact Us For Availability
013
COVER, BLOWER HOUSING MAY 314778 Contact Us For Availability
013
MAY 22001881 MAY 22001881 Contact Us For Availability
013
MAY 22001882 MAY 22001882 Contact Us For Availability
013
MAY 22001883 MAY 22001883 Contact Us For Availability
013
MAY 22001910 MAY 22001910 Contact Us For Availability
013
(ALM) MAY 22001911 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
MAY Y308590 MAY Y308590 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
014
MAY 33001688 MAY 33001688 Contact Us For Availability
014
NUT, SWITCH MAY Y312706 Contact Us For Availability
015
MAY 33001275 MAY 33001275 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
016
LEG & NUT MAY Y305086 Contact Us For Availability
016
NUT, KNURLED MAY Y312702 Contact Us For Availability
017
MAY Y314137 MAY Y314137 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
017
SWITCH, BY-PASS (MOTOR) MAY 305798 Contact Us For Availability
017
LIGHT, INDICATOR MAY 204075 Contact Us For Availability
018
SWITCH, BY-PASS (HEATER) MAY Y305799 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) MAY 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (No.303358-2, 30 MAY Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303879 Contact Us For Availability
020
MAY Y305185 MAY Y305185 Contact Us For Availability
020
CLIP, SPRING RETAINER MAY Y312270 Contact Us For Availability
021
DRIVER, INDEX WHEEL MAY 314330 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
SCREW, SET MAY Y053241 Contact Us For Availability
022
PEG, TINE ADJUSTMENT MAY 314335 Contact Us For Availability
022
MAY Y303945 MAY Y303945 Contact Us For Availability
022
STOP, ADJUSTABLE RETURN MAY 314547 Contact Us For Availability
023
BRACKET, SWITCH & SLIDER MAY 314339 Contact Us For Availability
024
WHEEL, INDEX MAY 314546 Contact Us For Availability
025
SPRING, INDEX WHEEL MAY 211065 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
026
MAY 314548 MAY 314548 Contact Us For Availability
027
MAY 33001708 MAY 33001708 Contact Us For Availability
028
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
028
MAY 33001207 MAY 33001207 Contact Us For Availability
030
MAY 901220 MAY 901220 Contact Us For Availability
031
SPRING, ACTUATOR MAY 314332 Contact Us For Availability
032
ACTUATOR KIT MAY 306104 Contact Us For Availability
033
BASE ASSEMBLY MAY Y305084 Contact Us For Availability
034
SCREW, BY-PASS SWITCHES MAY 315277 Contact Us For Availability
035
NUT, BY-PASS SWITCHES MAY Y052634 Contact Us For Availability
036
SCREW, TIMER MAY 910708 Contact Us For Availability
037
MAY Y308991 MAY Y308991 Contact Us For Availability
038
CLIP, CABLE MAY Y310376 Contact Us For Availability
039
MAY 315471 MAY 315471 Contact Us For Availability
039
PLATE, ADAPTER (WHT) MAY 22001879 Contact Us For Availability
040
MAY 410490 MAY 410490 Contact Us For Availability
042
MAY 315122 MAY 315122 Contact Us For Availability
043
SCREW, THERMOSTAT COVER MAY Y310632 Contact Us For Availability
× ![]()
