Model Maytag MDE11MNAGW ELECTRIC DRYER – Common Parts & Diagrams

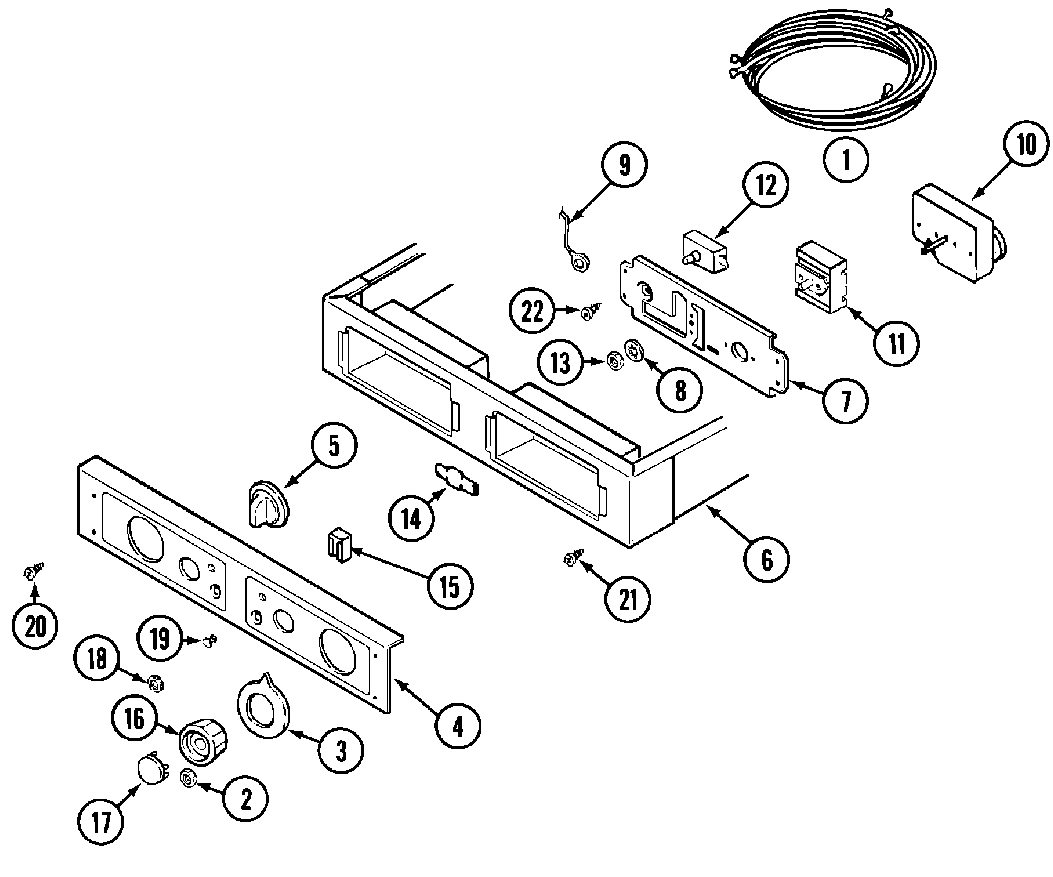

01 - CONTROL PANEL & SUPPORT ASSEMBLY

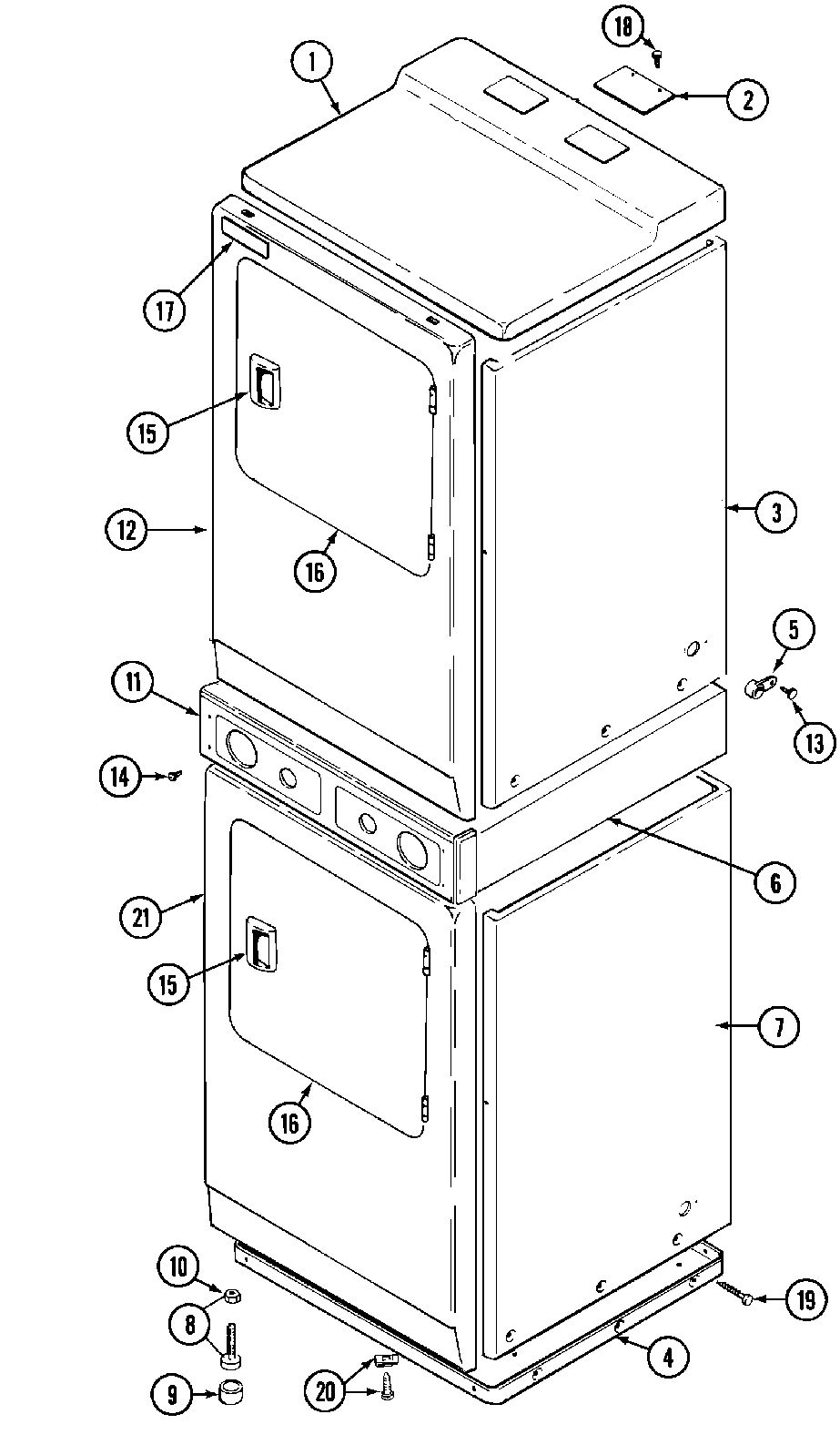

02 - FRONT VIEW
03 - DOOR

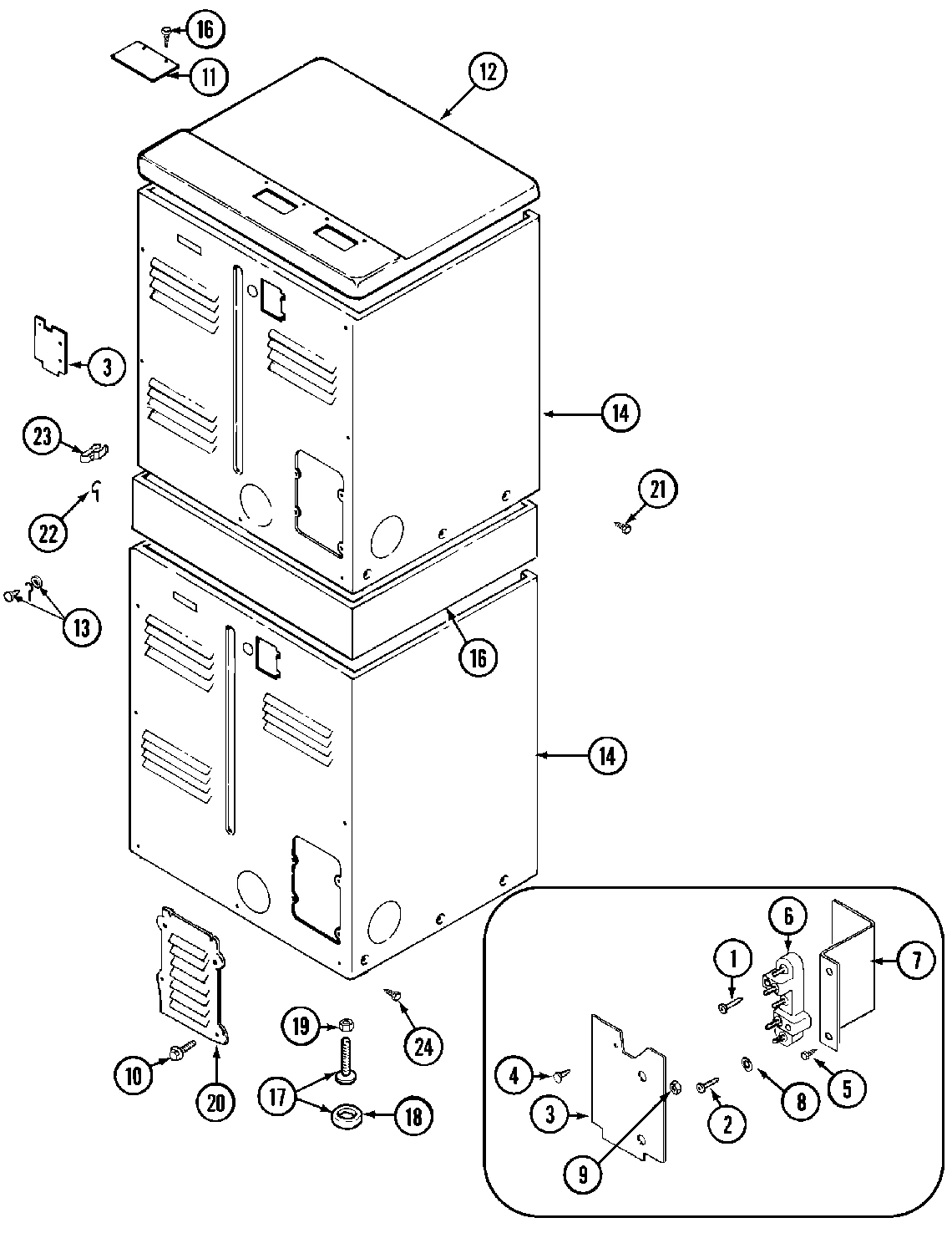

04 - REAR
05 - TUMBLER
06 - HEATER

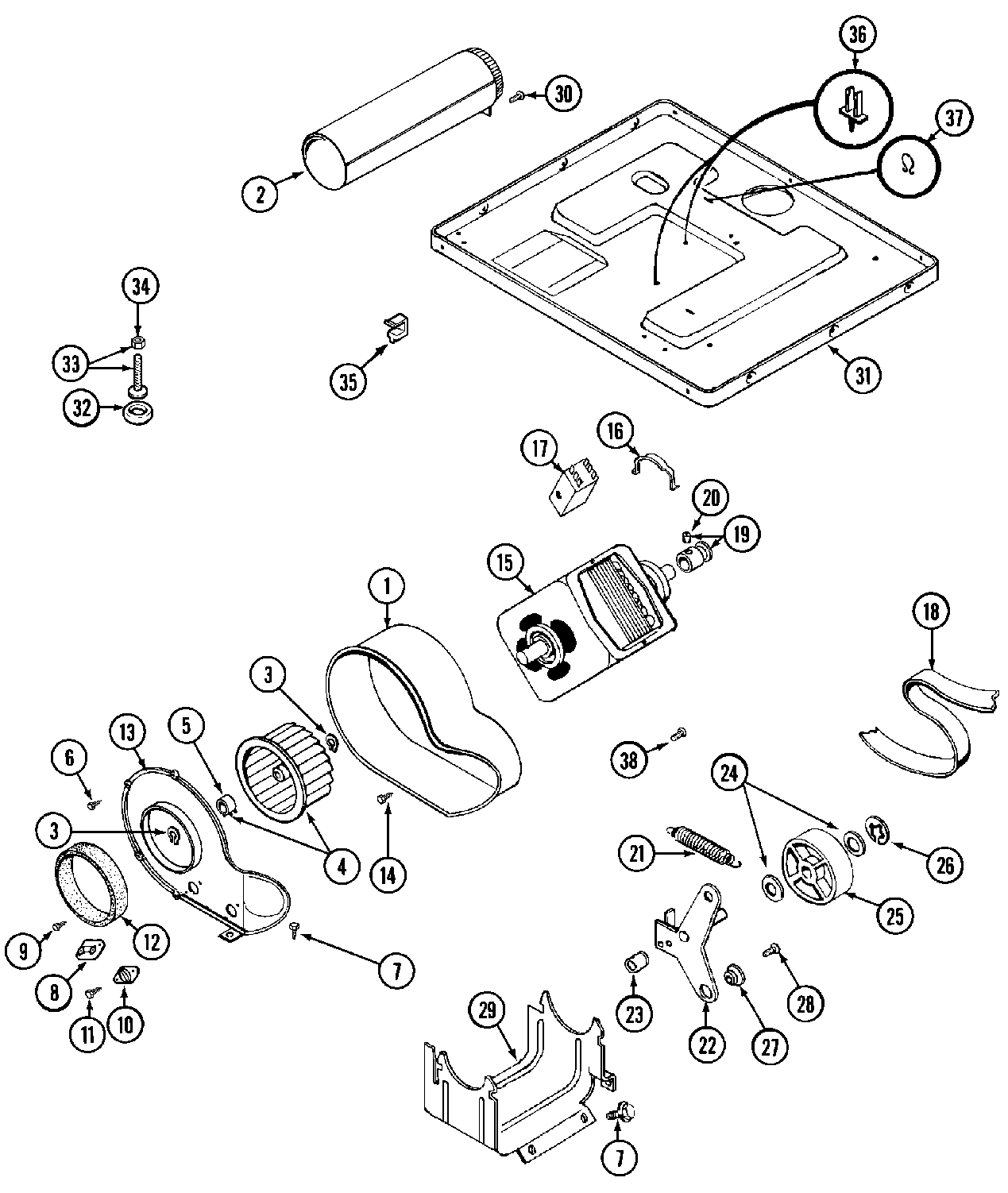

07 - MOTOR DRIVE
Common parts from model Maytag MDE11MNAGW ELECTRIC DRYER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
002
MAY 33001230 MAY 33001230 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
INLET DUCT ASSEMBLY MAY 308503 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
003
MAY 314995 MAY 314995 Contact Us For Availability
003
DIAL, TIMER INDICATOR MAY 33001500 Contact Us For Availability
003
MAY 33001240 MAY 33001240 Contact Us For Availability
003
MAY Y312905 MAY Y312905 Contact Us For Availability
004
MAY 315346 MAY 315346 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
MAY 33001131 MAY 33001131 Contact Us For Availability
005
SCREW, TERMINAL BRACKET MAY Y312209 Contact Us For Availability
006
MAY 400008 MAY 400008 Contact Us For Availability
007
MAY Y304578 MAY Y304578 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
BRACKET, TERMINAL MAY Y312904 Contact Us For Availability
007
MAY 314998 MAY 314998 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) MAY 306967 Contact Us For Availability
008
FASTENER, SPRING (FRT PNL) MAY 212982 Contact Us For Availability
008
MAY 910181 MAY 910181 Contact Us For Availability
008
MAY Y311270 MAY Y311270 Contact Us For Availability
008
WIRE HARNESS, THERMOSTAT MAY 33001306 Contact Us For Availability
009
MAY 314999 MAY 314999 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
012
WASHER, BAFFLE SCREW MAY 314158 Contact Us For Availability
012
TOP COVER ASSEMBLY (WHT) MAY 33001165 Contact Us For Availability
012
HEATER ASSEMBLY MAY 307180 Contact Us For Availability
013
TUMBLER MAY 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING MAY 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
MAY 33001175 MAY 33001175 Contact Us For Availability
015
MOTOR MAY Y304656 Contact Us For Availability
016
CLIP, INNER DOOR SCREW MAY Y313910 Contact Us For Availability
016
SCREW, TOP COVER PLATE MAY Y313559 Contact Us For Availability
017
(PROD. No. 303358-8 & 303358-9) MAY 306207 Contact Us For Availability
017
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303877 Contact Us For Availability
017
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303879 Contact Us For Availability
018
PANEL, INNER DOOR (W/SEAL) MAY 33001243 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
019
MAY 33001132 MAY 33001132 Contact Us For Availability
019
PULLEY, MOTOR (W/SET SCREW) MAY 305186 Contact Us For Availability
020
SCREW & CLIP ASSEMBLY MAY 204439 Contact Us For Availability
020
MAY Y312951 MAY Y312951 Contact Us For Availability
020
SCREW, SET MAY Y053241 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
MAY Y303945 MAY Y303945 Contact Us For Availability
022
MAY 311155 MAY 311155 Contact Us For Availability
023
MAY 301548 MAY 301548 Contact Us For Availability
023
SCREW, CLAMP MAY 313122 Contact Us For Availability
024
WASHER, IDLER SHAFT MAY Y312527 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
027
GROUND WIRE MAY 901220 Contact Us For Availability
027
MAY Y312894 MAY Y312894 Contact Us For Availability
028
MAY 910343 MAY 910343 Contact Us For Availability
029
SUPPORT, MOTOR MAY NLA Contact Us For Availability
030
SCREW, EXHAUST DUCT MAY Y310632 Contact Us For Availability
031
BASE ASSEMBLY (LOWER) MAY 306530 Contact Us For Availability
031
(UPPER) MAY Y307482 Contact Us For Availability
033
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
035
MAY Y310376 MAY Y310376 Contact Us For Availability
036
RETAINER, WIRE HARNESS MAY 315471 Contact Us For Availability
037
MAY 410490 MAY 410490 Contact Us For Availability
× ![]()
