Model Maytag MDE10PDEGL ELECTRIC DRYER – Common Parts & Diagrams

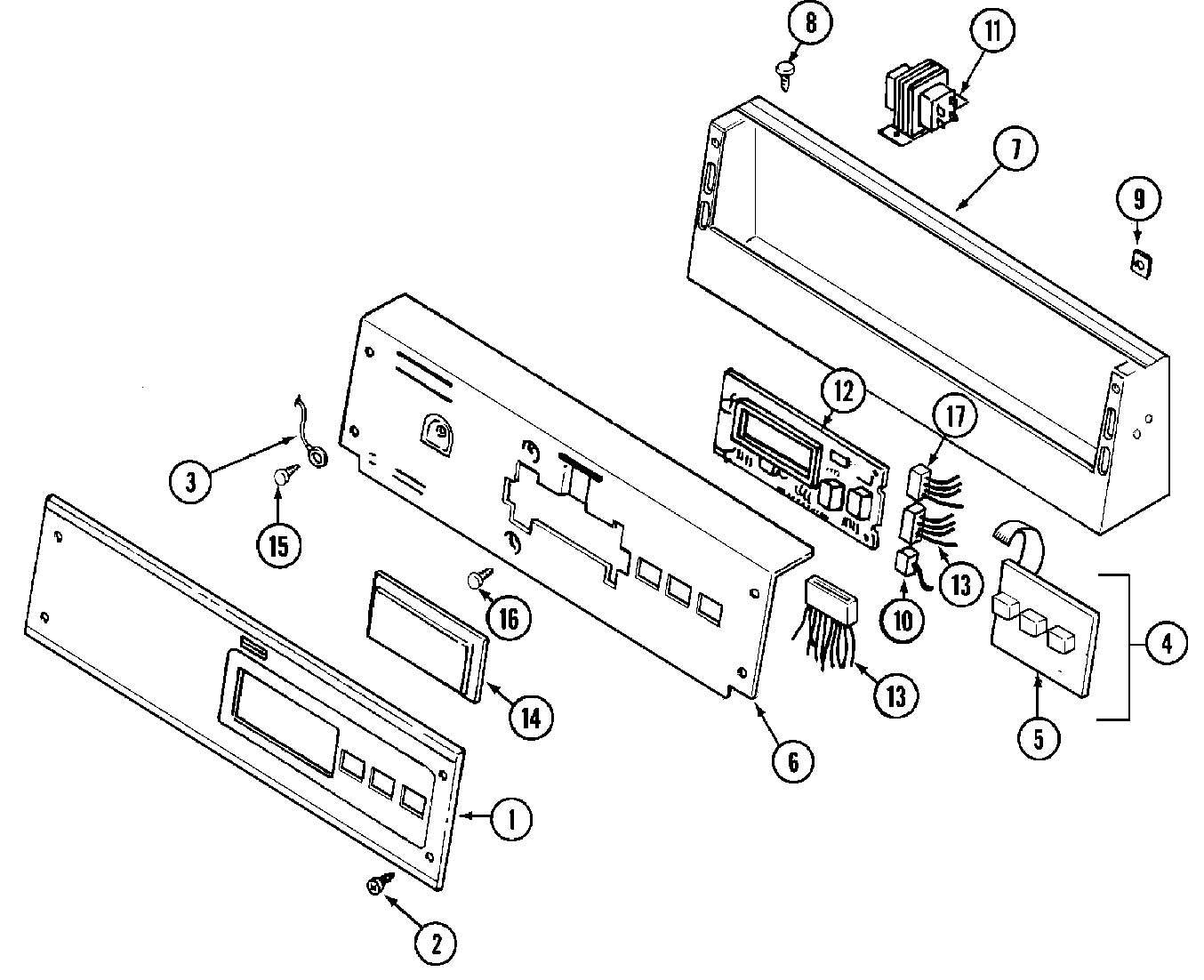

01 - CONTROL PANEL

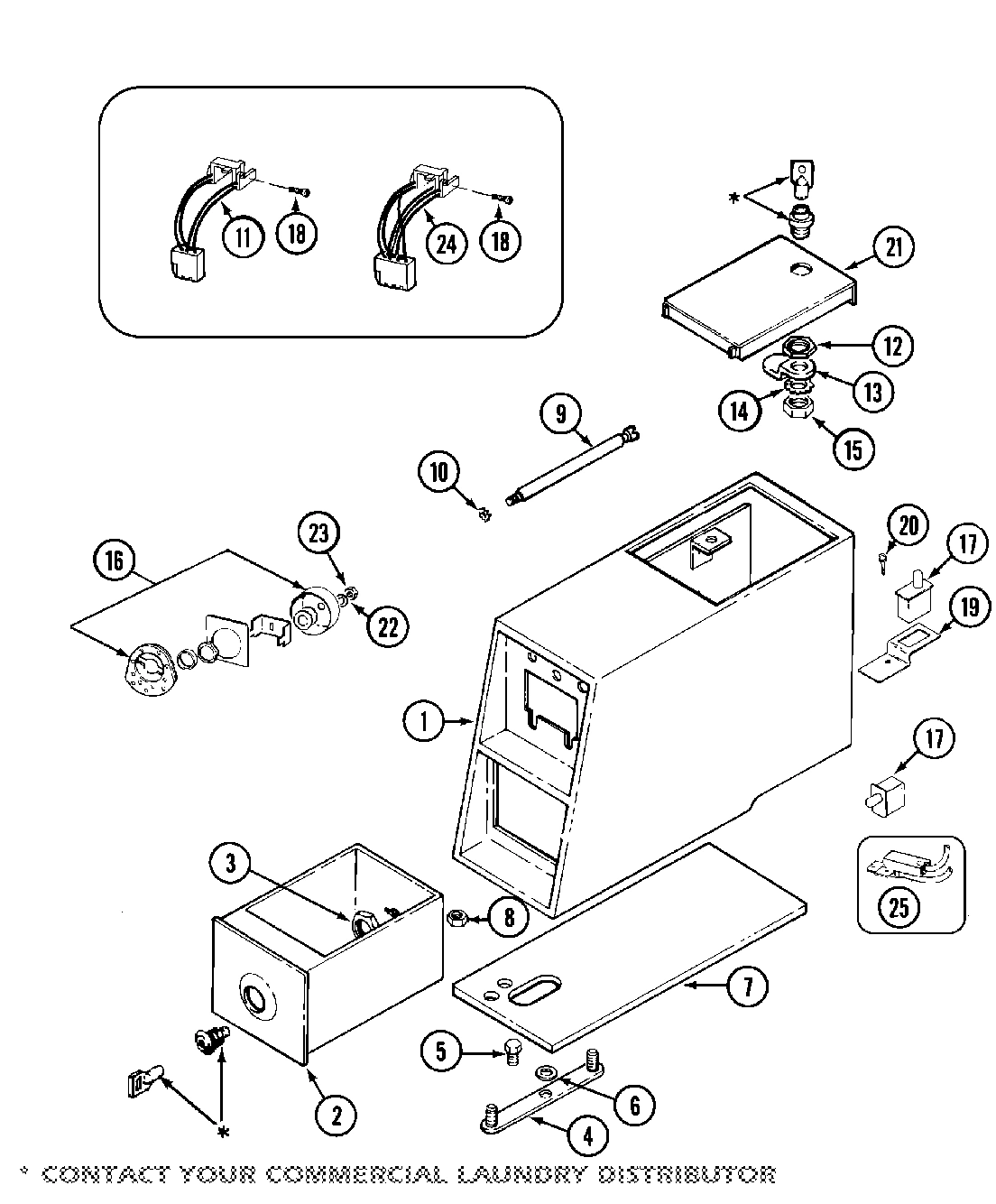

02 - CONTROL CENTER
03 - CABINET-FRONT
04 - DOOR
05 - CABINET-REAR
06 - TUMBLER
07 - HEATER
08 - MOTOR DRIVE
Common parts from model Maytag MDE10PDEGL ELECTRIC DRYER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
MAY Y312905 MAY Y312905 Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
002
SCREW, CONSOLE MAY 212276 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
INLET DUCT ASSEMBLY MAY 308503 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
003
ENCLOSURE, HEATER MAY 314995 Contact Us For Availability
003
MAY 33001163 MAY 33001163 Contact Us For Availability
003
MAY 33001164 MAY 33001164 Contact Us For Availability
003
MAY 33001240 MAY 33001240 Contact Us For Availability
003
(ALM) MAY 33001257 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY MAY 306694 Contact Us For Availability
004
(ALM) MAY 33001254 Contact Us For Availability
004
MAY Y312184 MAY Y312184 Contact Us For Availability
004
MAY 314998 MAY 314998 Contact Us For Availability
005
MAY 400008 MAY 400008 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
MAY 33001131 MAY 33001131 Contact Us For Availability
006
SCREW, TOP COVER MAY 214354 Contact Us For Availability
006
MAY 33001132 MAY 33001132 Contact Us For Availability
006
(ALM) MAY 33001168 Contact Us For Availability
006
MAY Y312904 MAY Y312904 Contact Us For Availability
006
MAY 314999 MAY 314999 Contact Us For Availability
007
MAY 33001230 MAY 33001230 Contact Us For Availability
007
SCREW, HOUSING COVER MAY Y313561 Contact Us For Availability
007
MAY Y304578 MAY Y304578 Contact Us For Availability
007
SCREW, TERMINAL BLOCK MAY Y312209 Contact Us For Availability
008
SCREW & FASTENER ASSEMBLY MAY 204439 Contact Us For Availability
008
MAY 306056 MAY 306056 Contact Us For Availability
008
MAY 212982 MAY 212982 Contact Us For Availability
008
LOCKWASHER, TERMINAL BLOCK MAY 910181 Contact Us For Availability
009
MAY 213035 MAY 213035 Contact Us For Availability
009
FASTENER, CONSOLE MAY 215075 Contact Us For Availability
009
HEATER ASSEMBLY (COMPLETE) MAY 307180 Contact Us For Availability
010
MAY 33001436 MAY 33001436 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
MAY 308966 MAY 308966 Contact Us For Availability
012
WASHER, BAFFLE MAY 314158 Contact Us For Availability
012
GROMMET, POWER CORD MAY 216183 Contact Us For Availability
013
MAY 33001108 MAY 33001108 Contact Us For Availability
013
MAY 315346 MAY 315346 Contact Us For Availability
013
COVER, BLOWER HOUSING MAY 314778 Contact Us For Availability
014
MAY 301548 MAY 301548 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
MAY 33001175 MAY 33001175 Contact Us For Availability
015
(ALM) MAY 33001176 Contact Us For Availability
015
WIRE, GROUND MAY 204807 Contact Us For Availability
015
MOTOR (240V-50H) MAY Y304656 Contact Us For Availability
016
FASTENER, INNER DOOR MAY Y313910 Contact Us For Availability
016
MAY 910343 MAY 910343 Contact Us For Availability
017
SCREW, CONSOLE MAY 210186 Contact Us For Availability
018
MAY 33001243 MAY 33001243 Contact Us For Availability
018
MAY Y312951 MAY Y312951 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
PROD. IDNo. 303358-8 & 303358-9 MAY 306207 Contact Us For Availability
019
RELAY, MOTOR (DPDT) MAY 206421 Contact Us For Availability
020
RELAY, HEATER (SPST) MAY 306398 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) MAY 305186 Contact Us For Availability
021
SCREW, MOTOR RELAY MAY 212949 Contact Us For Availability
021
BRACKET, RELAYS MAY 314627 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
SCREW, SET MAY Y053241 Contact Us For Availability
022
BASE ASSEMBLY MAY Y303361 Contact Us For Availability
022
MAY Y303945 MAY Y303945 Contact Us For Availability
024
OPTIC SWITCH ASSY. (6 WIRE) MAY 206799 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
027
MAY 901220 MAY 901220 Contact Us For Availability
030
SCREW, TRANSFORMER MAY Y313559 Contact Us For Availability
030
TRANSFORMER MAY 22001417 Contact Us For Availability
030
TRANSFORMER MAY 307928 Contact Us For Availability
031
SUPPORT, MOTOR MAY NLA Contact Us For Availability
032
SCREW, EXHAUST DUCT MAY Y310632 Contact Us For Availability
033
BASE ASSEMBLY MAY Y305084 Contact Us For Availability
034
MAY 410490 MAY 410490 Contact Us For Availability
038
CLIP, CABLE MAY Y310376 Contact Us For Availability
039
MAY 315471 MAY 315471 Contact Us For Availability
× ![]()
