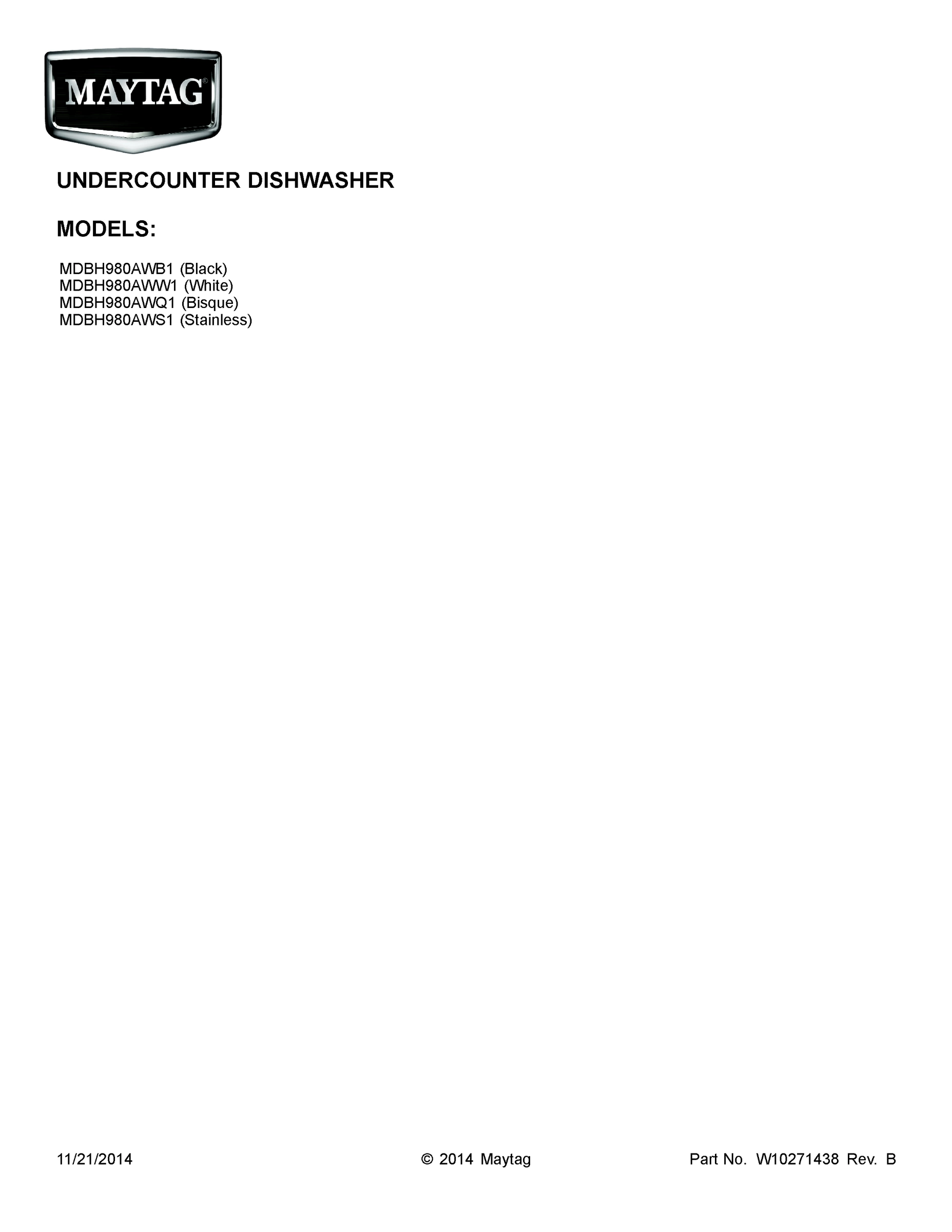

Model Maytag MDBH980AWW1 DISHWASHER – Common Parts & Diagrams
01 - COVER SHEET

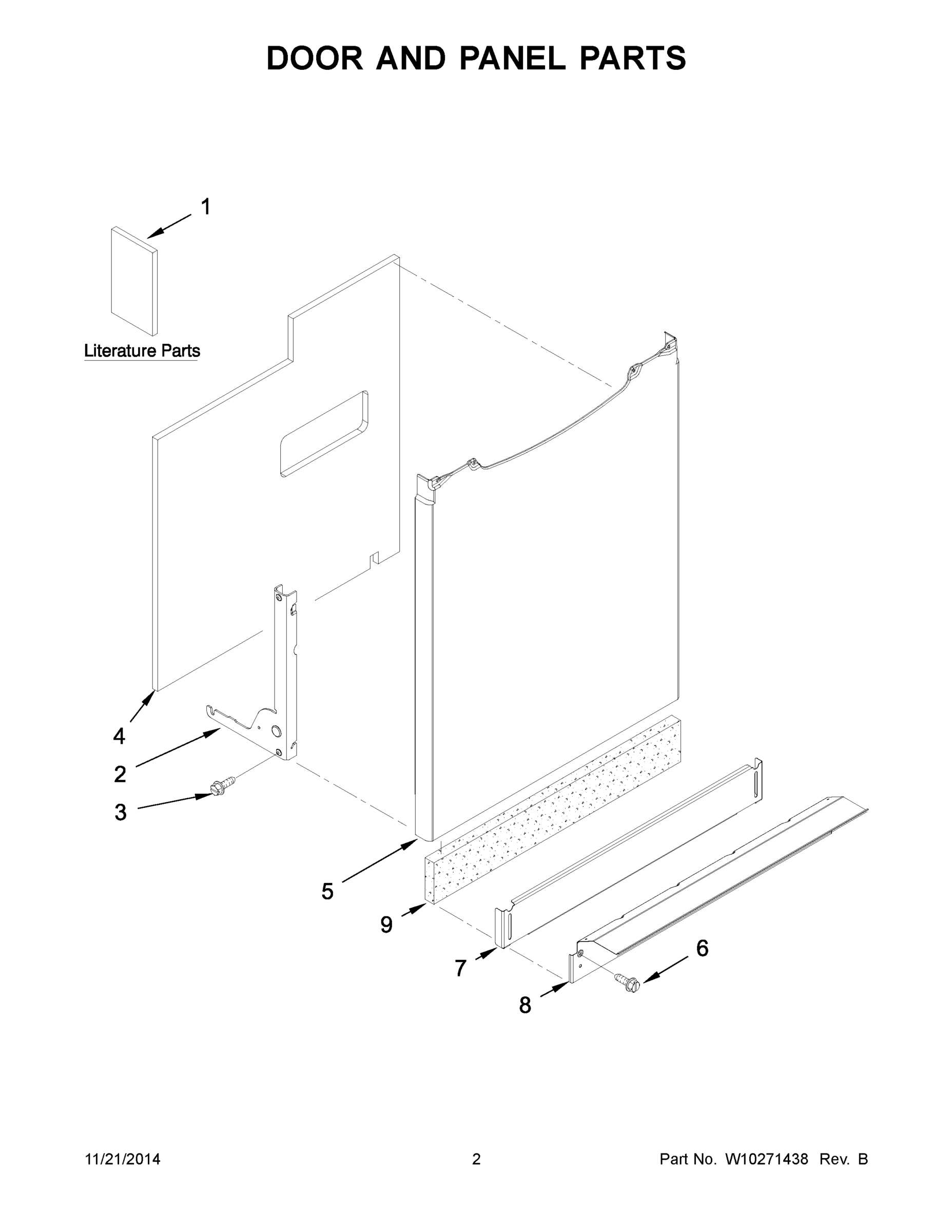

02 - DOOR AND PANEL PARTS
03 - CONTROL PANEL PARTS
04 - DOOR AND LATCH PARTS
05 - LOWER WASHARM PARTS
06 - HEATER PARTS
07 - FILL AND OVERFILL PARTS
08 - TUB AND FRAME PARTS
09 - PUMP AND MOTOR PARTS
10 - UPPER AND LOWER RACK PARTS
11 - UPPER WASH AND RINSE PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDBH980AWW1 DISHWASHER
1
MAY 99002852 MAY 99002852 Contact Us For Availability
1
HARNESS, WIRING MAY 99003308 Contact Us For Availability
1
MAY 99003083 MAY 99003083 Contact Us For Availability
1
MAY W10119337 MAY W10119337 Contact Us For Availability
1
MAY 99002666 MAY 99002666 Contact Us For Availability
1
MAY W10203879 MAY W10203879 Contact Us For Availability
1
FEED TUBE ASSEMBLY MAY 99003081 Contact Us For Availability
2
MAY W10169387 MAY W10169387 Contact Us For Availability
2
MAY 99003771 MAY 99003771 Contact Us For Availability
2
MAY 6-916881 MAY 6-916881 Contact Us For Availability
2
MAY W10166790 MAY W10166790 Contact Us For Availability
2
MAY W10144736 MAY W10144736 Contact Us For Availability
3
MAY 99002753 MAY 99002753 Contact Us For Availability
3
HOUSING, BOARD (BOTTOM) MAY 99002576 Contact Us For Availability
3
MAY W10218606 MAY W10218606 Contact Us For Availability
3
MAY 99003032 MAY 99003032 Contact Us For Availability
3
CLIP, UPPER WASH MANIFOLD (FRONT) MAY 99003072 Contact Us For Availability
4
MAY 99003243 MAY 99003243 Contact Us For Availability
4
FLOAT HOUSING ASSEMBLY MAY W10205539 Contact Us For Availability
4
MAY W10212444 MAY W10212444 Contact Us For Availability
4
STATION, DOCKING (WITH FLAPPER) MAY 6-918805 Contact Us For Availability
4C
PANEL, CONTROL (INCLUDES OVERLAY) (STAINLESS) MAY W10235721 Contact Us For Availability
5
MAY 99002751 MAY 99002751 Contact Us For Availability
5
MAY 99003322 MAY 99003322 Contact Us For Availability
5
MAY 6-916979 MAY 6-916979 Contact Us For Availability
5
WASH MANIFOLD ASSEMBLY MAY 99002679 Contact Us For Availability
5
MAY 6-917644 MAY 6-917644 Contact Us For Availability
6
HOUSING, VENT ASSEMBLY MAY W10190889 Contact Us For Availability
6
FLOAT (SERIES 41, 44, 45, 46) MAY W10130099 Contact Us For Availability
6
MAY 99003688 MAY 99003688 Contact Us For Availability
6
FILTER/FLOWPLATE ASSEMBLY MAY W10192800 Contact Us For Availability
7
INLET, AIR AND WATER MAY 99003028 Contact Us For Availability
7
MAY W10173920 MAY W10173920 Contact Us For Availability
7
MAY W10203871 MAY W10203871 Contact Us For Availability
8
MAY 99002608 MAY 99002608 Contact Us For Availability
8
INNER DOOR W/ DAMPER MAY 99003424 Contact Us For Availability
8
MAY 6-918298 MAY 6-918298 Contact Us For Availability
9
BRACKET, DISPENSER MAY 99001465 Contact Us For Availability
9
MAY 99003040 MAY 99003040 Contact Us For Availability
9
MAY 99003687 MAY 99003687 Contact Us For Availability
9
MAY W10120019 MAY W10120019 Contact Us For Availability
9
STOP, TRACK MAY W10169391 Contact Us For Availability
10
MAY 99002598 MAY 99002598 Contact Us For Availability
10
MAY 912615 MAY 912615 Contact Us For Availability
10
MAY W10130109 MAY W10130109 Contact Us For Availability
10
MAY 99003697 MAY 99003697 Contact Us For Availability
10
BASKET, SILVERWARE (SERIES 42 REMOVES HANDLE) MAY 6-918873 Contact Us For Availability
11
MAY 99002668 MAY 99002668 Contact Us For Availability
12
MAY 99003427 MAY 99003427 Contact Us For Availability
13
WASH MOTOR ASSEMBLY MAY W10118627 Contact Us For Availability
14
TUB ASSEMBLY (NOT SERVICED) MAY N/P Contact Us For Availability
14
MAY 99003309 MAY 99003309 Contact Us For Availability
15
THERMOSTAT LIMITING MAY 99002633 Contact Us For Availability
15
O-RING MAY 99002857 Contact Us For Availability
16
MAY 99002740 MAY 99002740 Contact Us For Availability
16
MAY W10167658 MAY W10167658 Contact Us For Availability
17
MAY 99002692 MAY 99002692 Contact Us For Availability
17
PUMP, DRAIN MAY W10200518 Contact Us For Availability
18
BRACKET, JUNCTION (NOT SERVICED) BOX MAY 99002637 Contact Us For Availability
18
MAY W10167912 MAY W10167912 Contact Us For Availability
19
MAY 99002665 MAY 99002665 Contact Us For Availability
19
MAY W10143258 MAY W10143258 Contact Us For Availability
20
STRIP, TRIM LEFT MAY W10164700 Contact Us For Availability
20
MAY 99002601 MAY 99002601 Contact Us For Availability
21
MAY 99002638 MAY 99002638 Contact Us For Availability
22
MAY W10117485 MAY W10117485 Contact Us For Availability
22A
MAY W10117484 MAY W10117484 Contact Us For Availability
23
MAY W10174569 MAY W10174569 Contact Us For Availability
23A
MAY W10174581 MAY W10174581 Contact Us For Availability
24
MAY W10164702 MAY W10164702 Contact Us For Availability
25
TRIM, SIDE RIGHT MAY W10164701 Contact Us For Availability
26
GRILL, AIR/WATER INLET MAY 99003078 Contact Us For Availability
27
SCREWR MAY 6-912799 Contact Us For Availability
28
GAP SEAL, TOE KICK (BLACK) MAY W10163633 Contact Us For Availability
28A
GAP SEAL, TOE KICK (WHITE) MAY W10163635 Contact Us For Availability
28B
GAP SEAL, TOE KICK (BISCUIT/BISQUE) MAY W10163634 Contact Us For Availability
29
BRACKET, REAR SUPPORT MAY W10167660 Contact Us For Availability
30
MAY W10167916 MAY W10167916 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
INSTALLATION KIT, BARRIER KIT MAY 4396277 Contact Us For Availability
NI
KIT, INSTALLATION (INCLUDES 6 FT. FILL HOSE A MAY 4396897RP Contact Us For Availability
NI
INSTALLATION KIT, DRAIN HOSE (6 FT) MAY 4396897RW Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
INSTALLATION KIT, DRAIN HOSE (12 FT) MAY 8212486 Contact Us For Availability
NI
KIT INSTALLATION (INCLUDES POWER CORD, 6 FT. MAY 8212488RC Contact Us For Availability
× ![]()
